Page 1385 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±418
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P1154 ± HO2S Transition Time Ratio Bank 2 Sensor 1
StepNo Ye s Value(s) Action
12Check for leaks at the exhaust manifold.
Are there l

Page 1386 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±419
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P1154 ± HO2S Transition Time Ratio Bank 2 Sensor 1
StepNo Ye s Value(s) Action
21Replace Bank 2 HO2S 1.
Is the action complete?
ÐVer

Page 1387 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±420
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1167 Fuel System Rich During Decel Fuel Cut Off (Bank 1)
060R200054
Circuit Description
The powertrain control modul

Page 1388 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±421
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1167 Fuel System Rich During Decel Fuel Cut Off (Bank1)
StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System C

Page 1389 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±422
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1169 Fuel System Rich During Decel Fuel Cut Off (Bank 2)
060R200054
Circuit Description
The powertrain control modul

Page 1390 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±423
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1169 Fuel System Rich During Decel Fuel Cut Off (Bank2)
StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System C

Page 1391 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±424
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1171 Fuel System Lean During Acceleration
060R200054
Circuit Description
The powertrain control module (PCM) interna

6E±424
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1171 Fuel System Lean During Acceleration
060R200054
Circuit Description
The powertrain control module (PCM) internal circuitry
can identify if the vehicle fuel system is capable of
supplying adequate amounts of fuel during heavy
acceleration (power enrichment). The PCM monitors the
voltage of the oxygen sensor during power enrichment.
When a power enrichment mode of operation is
requested during ªclosed loopº operation (by heavy
acceleration), the PCM will provide more fuel to the
engine. Under these conditions the PCM should detect a
ªrichº condition (high oxygen sensor voltage). If this ªrichº
exhaust is not detected at this time, a DTC P1171 will set.
A plugged fuel filter, restricted fuel line, restricted in-tank
filter or defective fuel pump can prevent adequate
amounts of fuel from being supplied during power
enrichment mode.
Conditions for Setting the DTC
No related DTCs.
Engine is operating in ªclosed loop power enrichmentº
mode for 3 seconds.
Engine coolant temperature is above 60C (140F).
While in ªpower enrichmentº mode the oxygen sensor
voltage remains below 400 mV for 3 seconds.
Action Taken When the DTC Sets
The PCM will not turn the malfunction indicator lamp
(MIL) ªONº.
The PCM will store conditions which were present
when the DTC was set as Failure Records only. This
information will not be stored as Freeze Frame data.
Conditions for Clearing the MIL/DTC
The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.
A history DTC P1171 will clear after 40 consecutive
warm-up cycles have occurred without a fault.
DTC P1171 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
A restricted fuel filter or fuel line, restricted in-tank filter,
or a defective fuel pump may supply adequate
amounts of fuel at idle, but may not be able to supply
enough fuel during heavy acceleration.
Water or alcohol in the fuel may cause low HO2S
voltage during acceleration.
Check for faulty or plugged fuel injector(s).
Check for low fuel.

Page 1392 of 2100

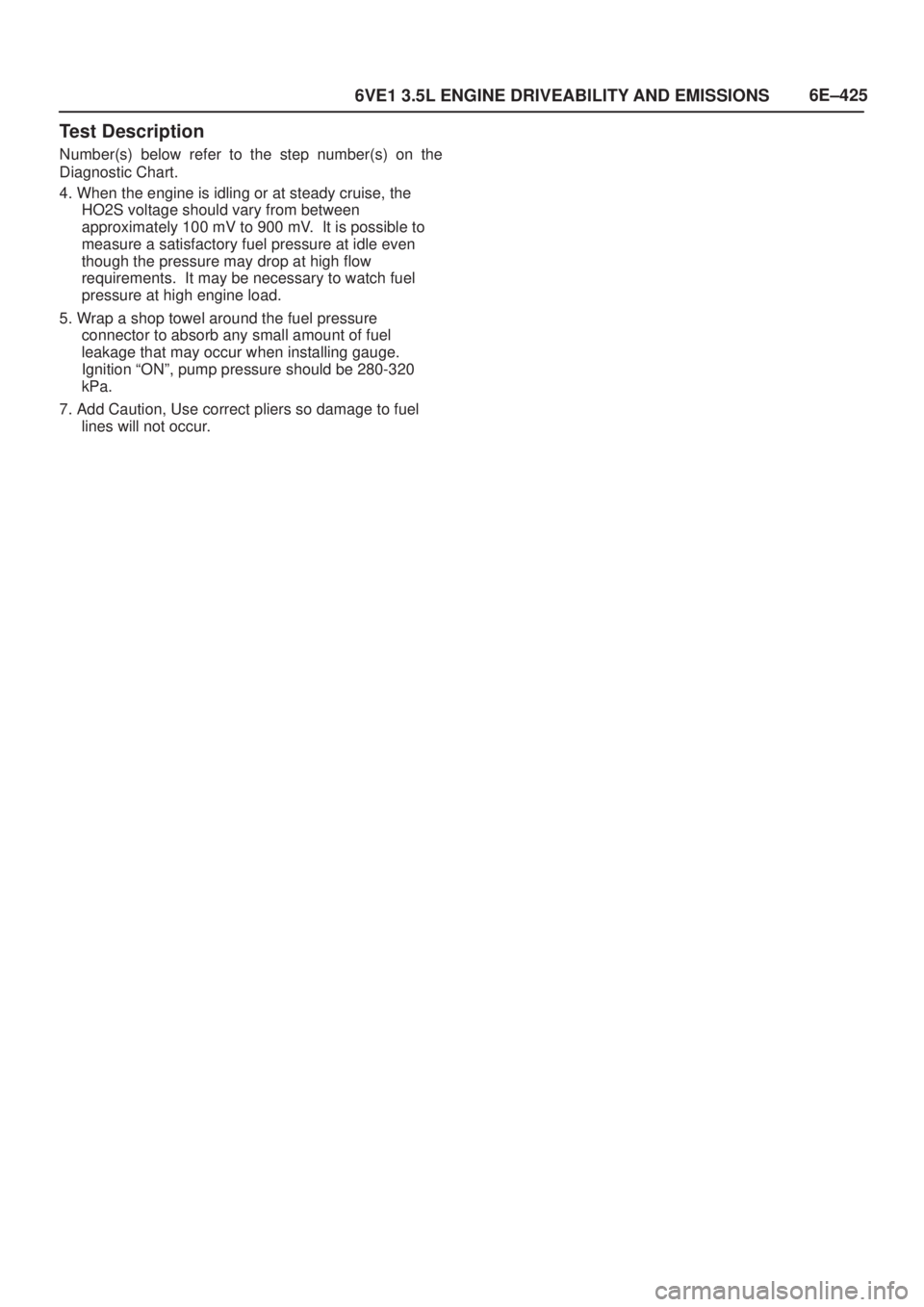

ISUZU AXIOM 2002 Service Repair Manual 6E±425
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Test Description
Number(s) below refer to the step number(s) on the
Diagnostic Chart.
4. When the engine is idling or at steady cruise, the
HO2S vol
