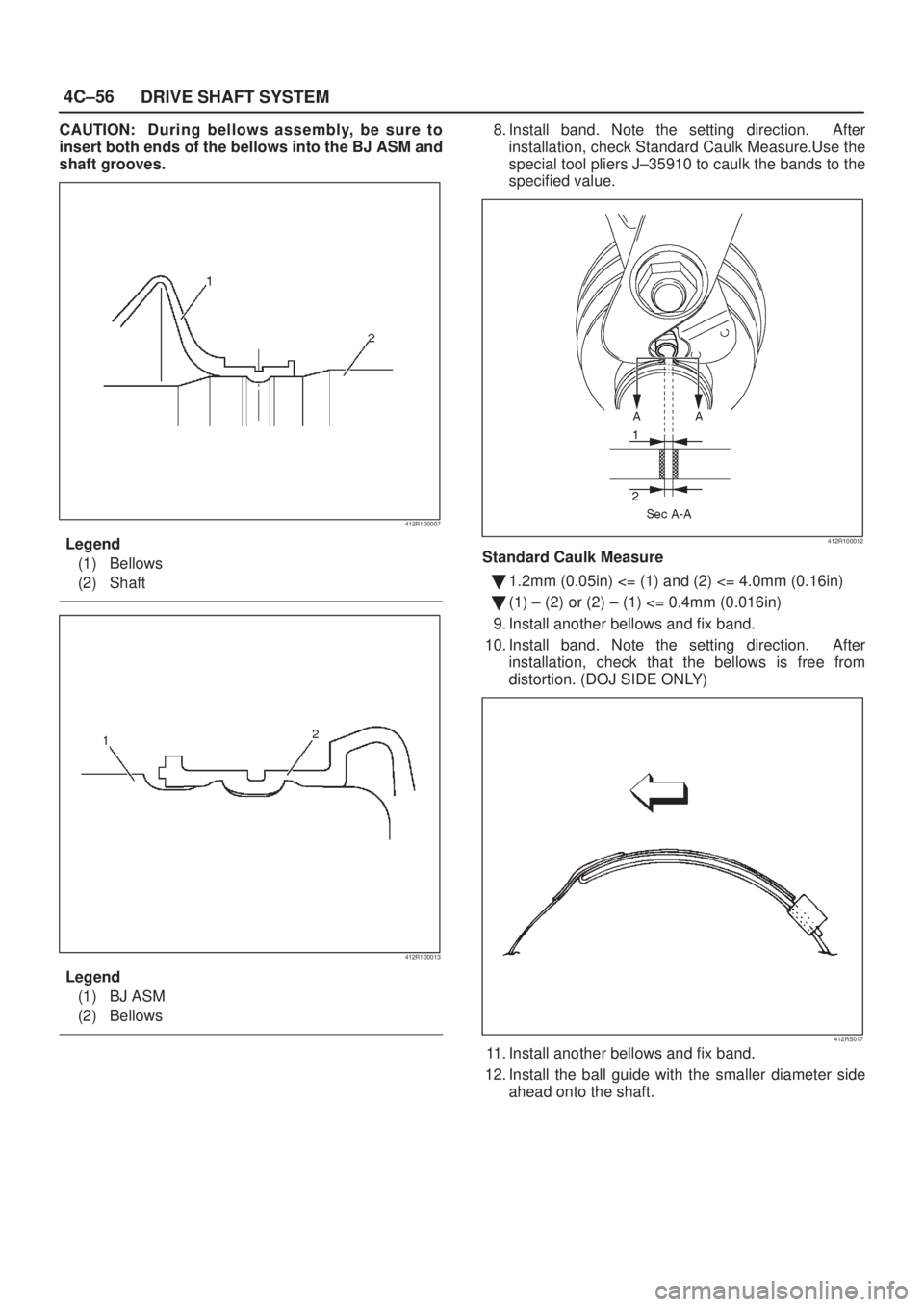

ISUZU AXIOM 2002 Service Repair Manual 4C±56 DRIVE SHAFT SYSTEM CAUTION: During bellows assembly, be sure to insert both ends of the bellows into the BJ ASM and shaft grooves. 412R100007 Legend (1) Bellows (2) Shaft 412R100013 Legend (1)

Page 554 of 2100

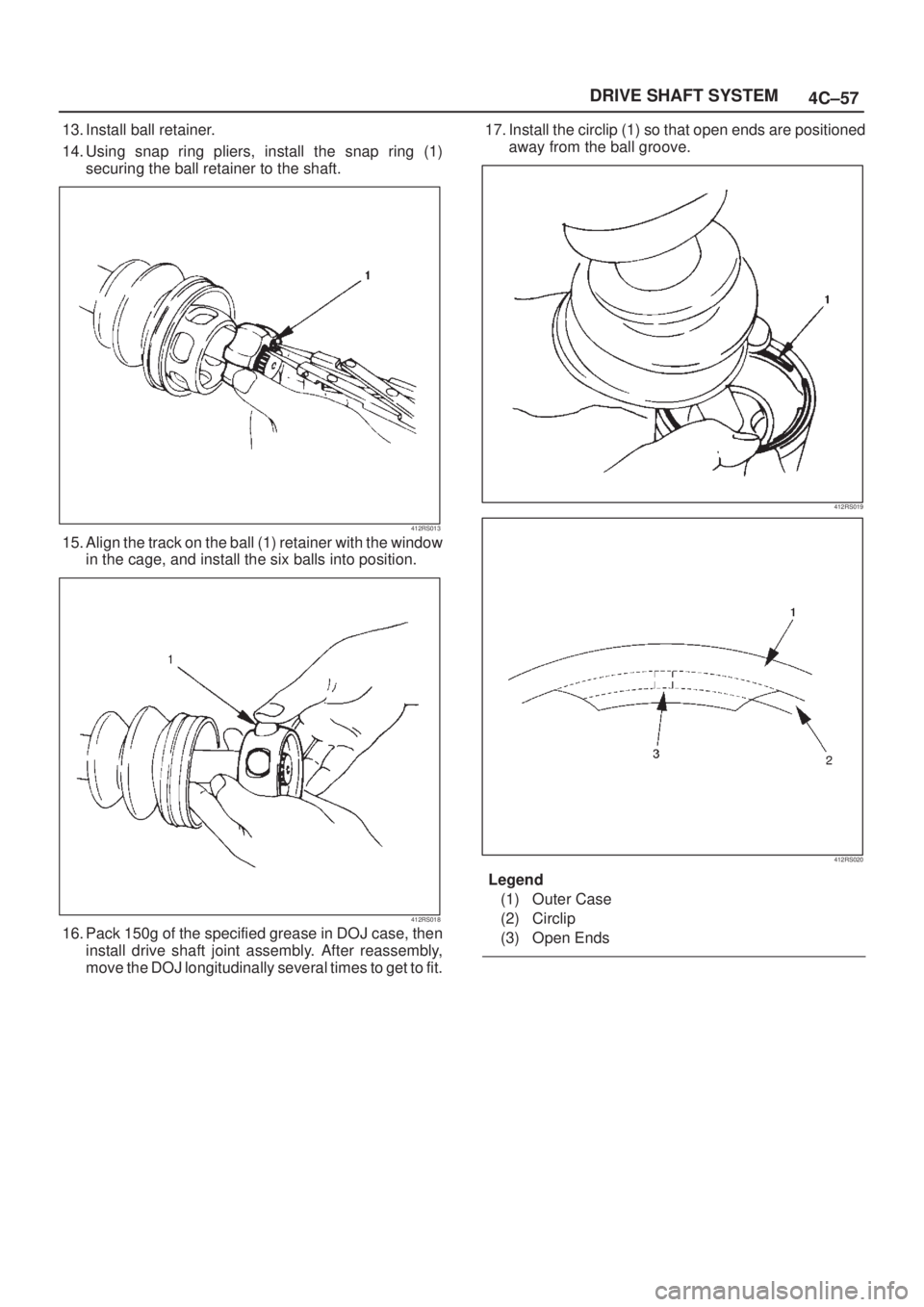

ISUZU AXIOM 2002 Service Repair Manual 4C±57 DRIVE SHAFT SYSTEM 13. Install ball retainer. 14. Using snap ring pliers, install the snap ring (1) securing the ball retainer to the shaft. 412RS013 15. Align the track on the ball (1) retaine

Page 555 of 2100

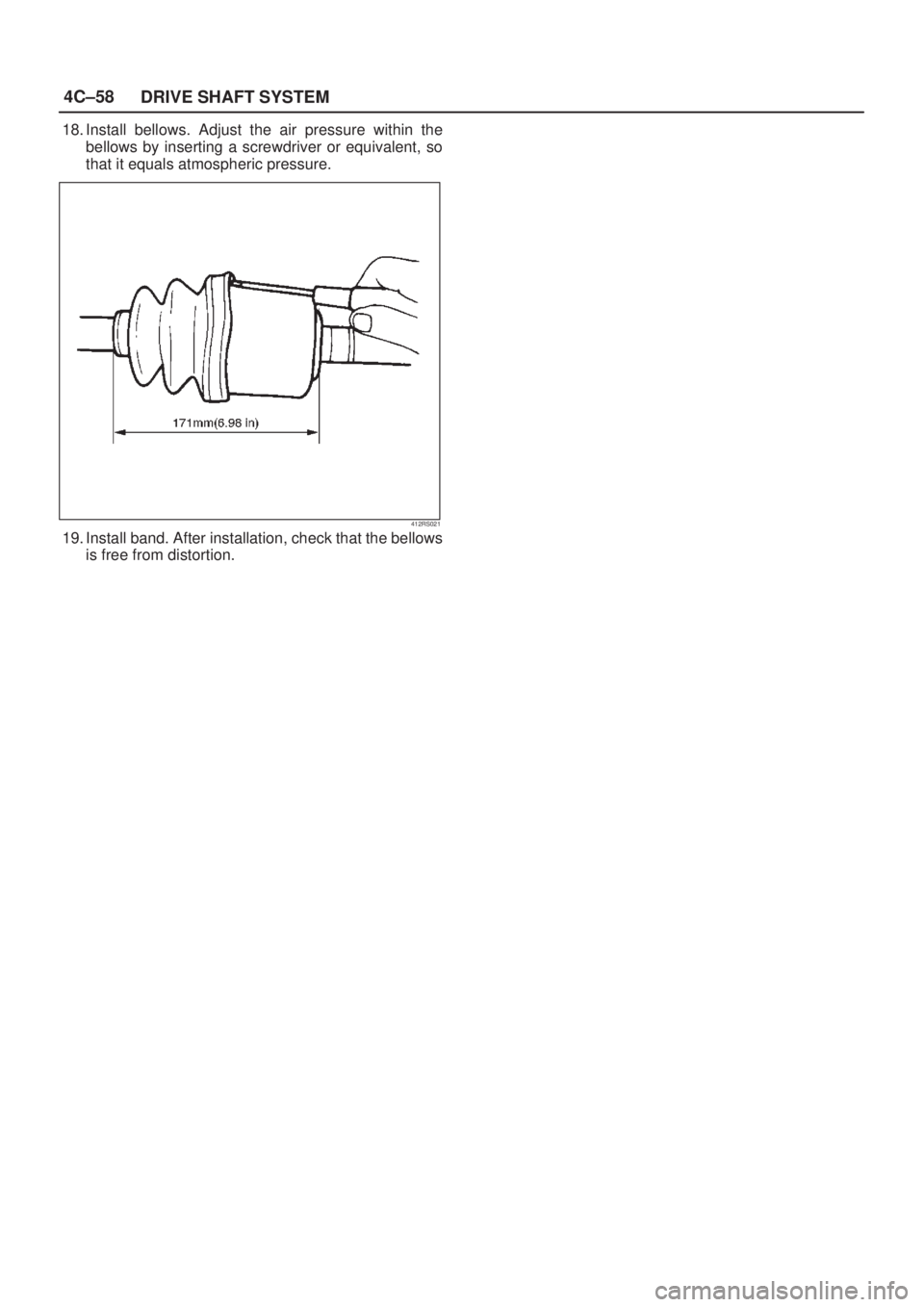

ISUZU AXIOM 2002 Service Repair Manual 4C±58 DRIVE SHAFT SYSTEM 18. Install bellows. Adjust the air pressure within the bellows by inserting a screwdriver or equivalent, so that it equals atmospheric pressure. 412RS021 19. Install band. A

Page 556 of 2100

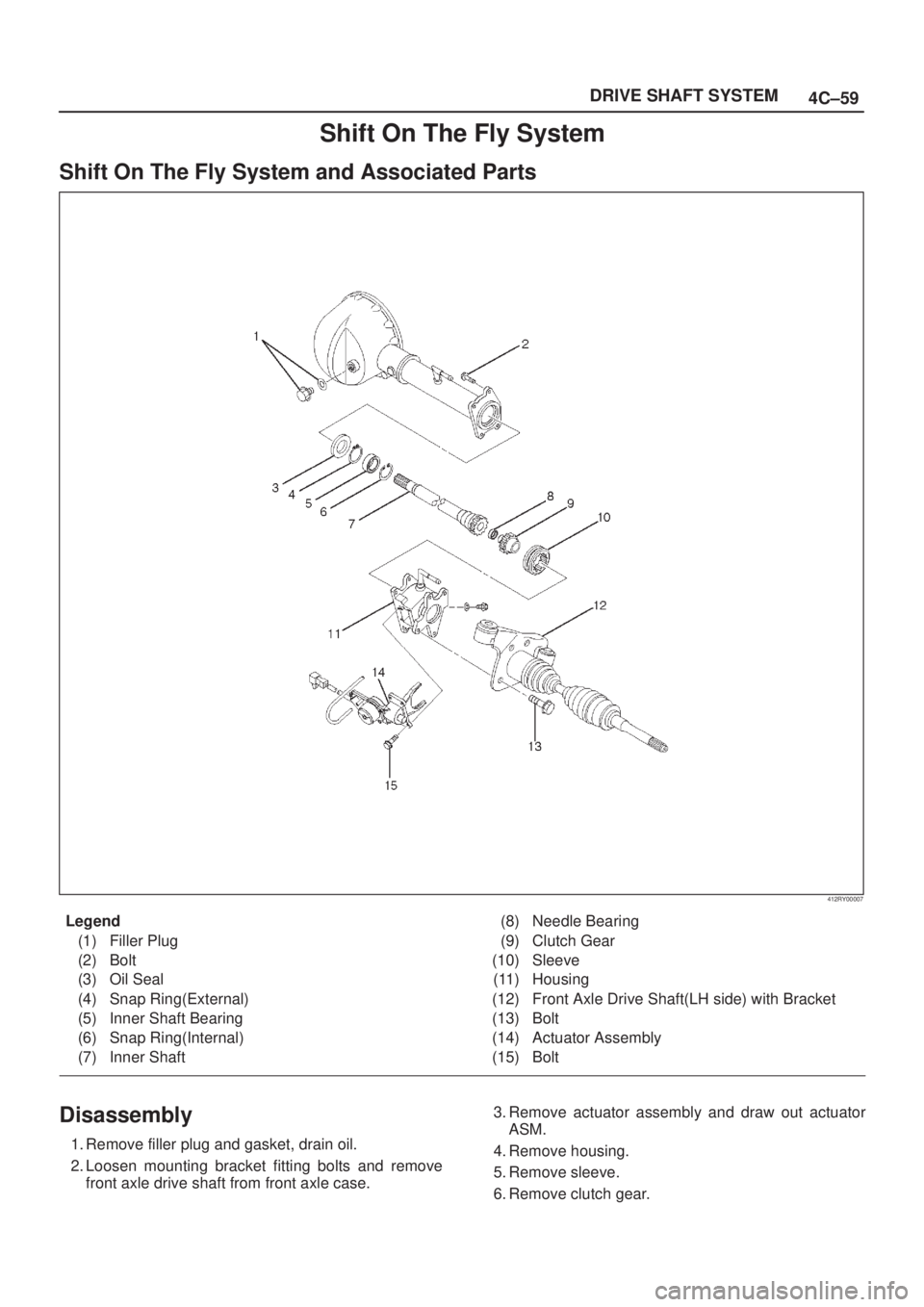

ISUZU AXIOM 2002 Service Repair Manual 4C±59 DRIVE SHAFT SYSTEM Shift On The Fly System Shift On The Fly System and Associated Parts 412RY00007 Legend (1) Filler Plug (2) Bolt (3) Oil Seal (4) Snap Ring(External) (5) Inner Shaft Bearing (

Page 557 of 2100

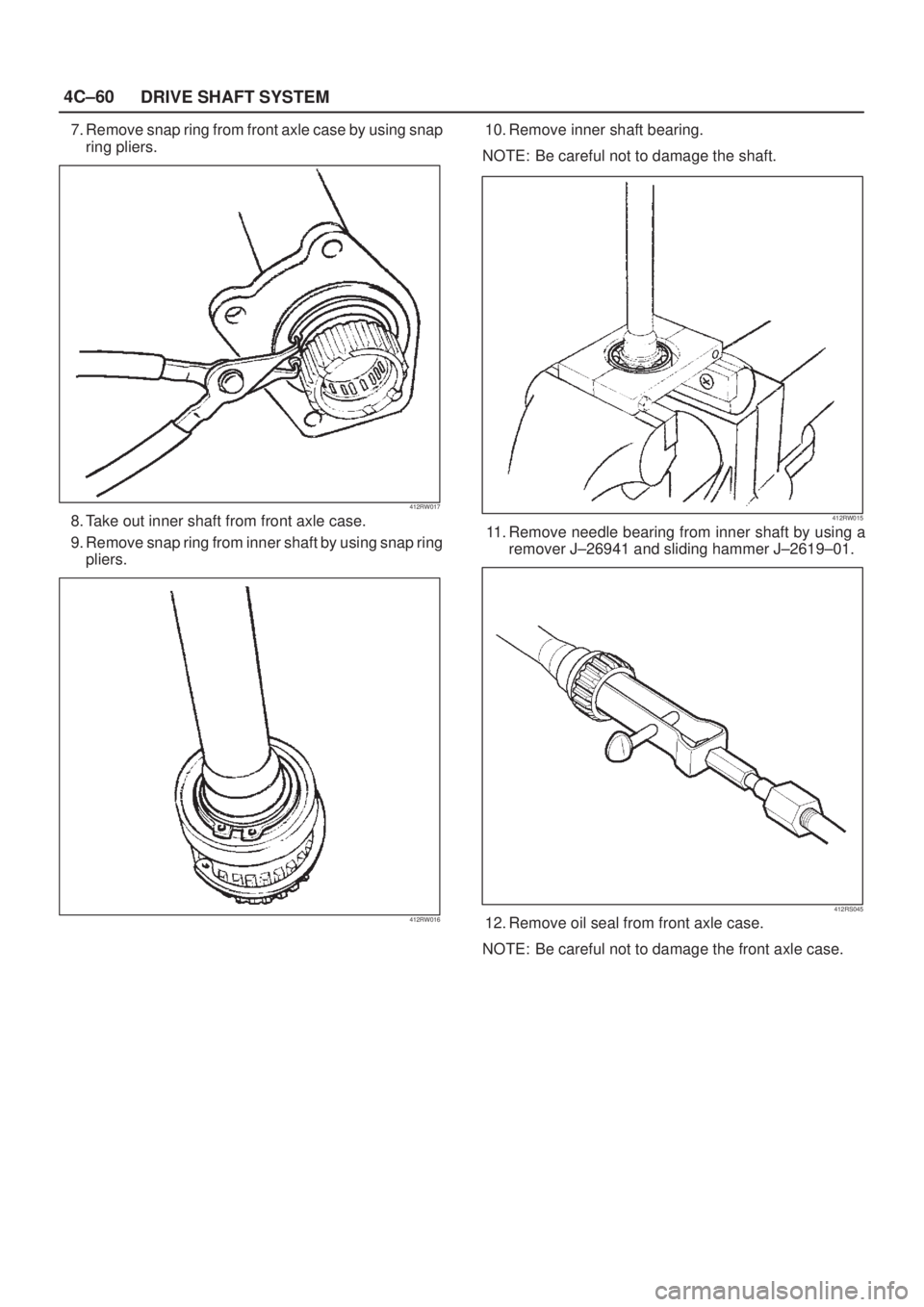

ISUZU AXIOM 2002 Service Repair Manual 4C±60 DRIVE SHAFT SYSTEM 7. Remove snap ring from front axle case by using snap ring pliers. 412RW017 8. Take out inner shaft from front axle case. 9. Remove snap ring from inner shaft by using snap

Page 558 of 2100

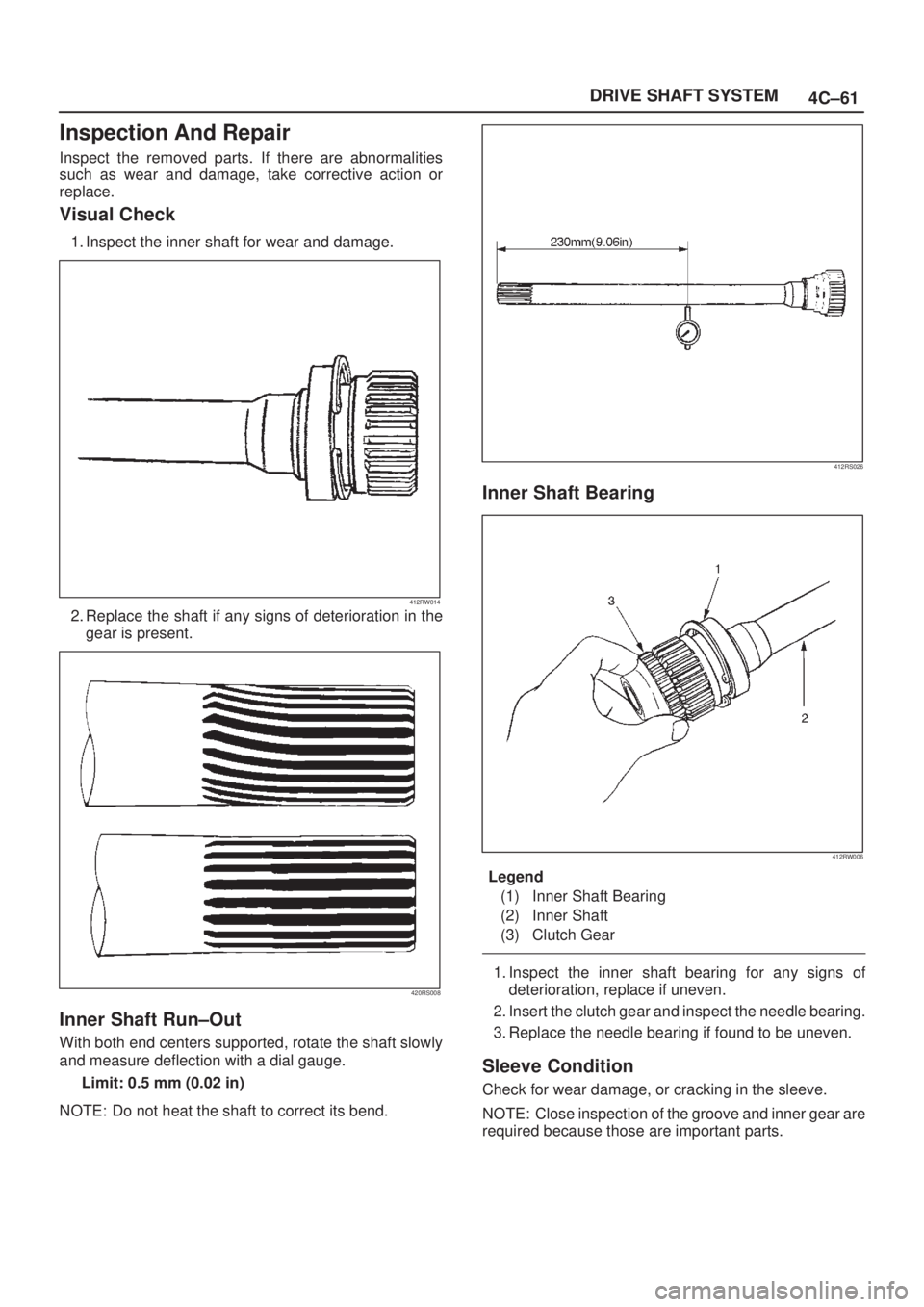

ISUZU AXIOM 2002 Service Repair Manual 4C±61 DRIVE SHAFT SYSTEM Inspection And Repair Inspect the removed parts. If there are abnormalities such as wear and damage, take corrective action or replace. Visual Check 1. Inspect the inner shaf

Page 559 of 2100

ISUZU AXIOM 2002 Service Repair Manual 4C±62 DRIVE SHAFT SYSTEM Sleeve Function 412RY00039Test the sleeve for smoothness by sliding it between the inner shaft and the clutch gear, replace the sleeve if its difficult to slide. NOTE: Gear o

Page 560 of 2100

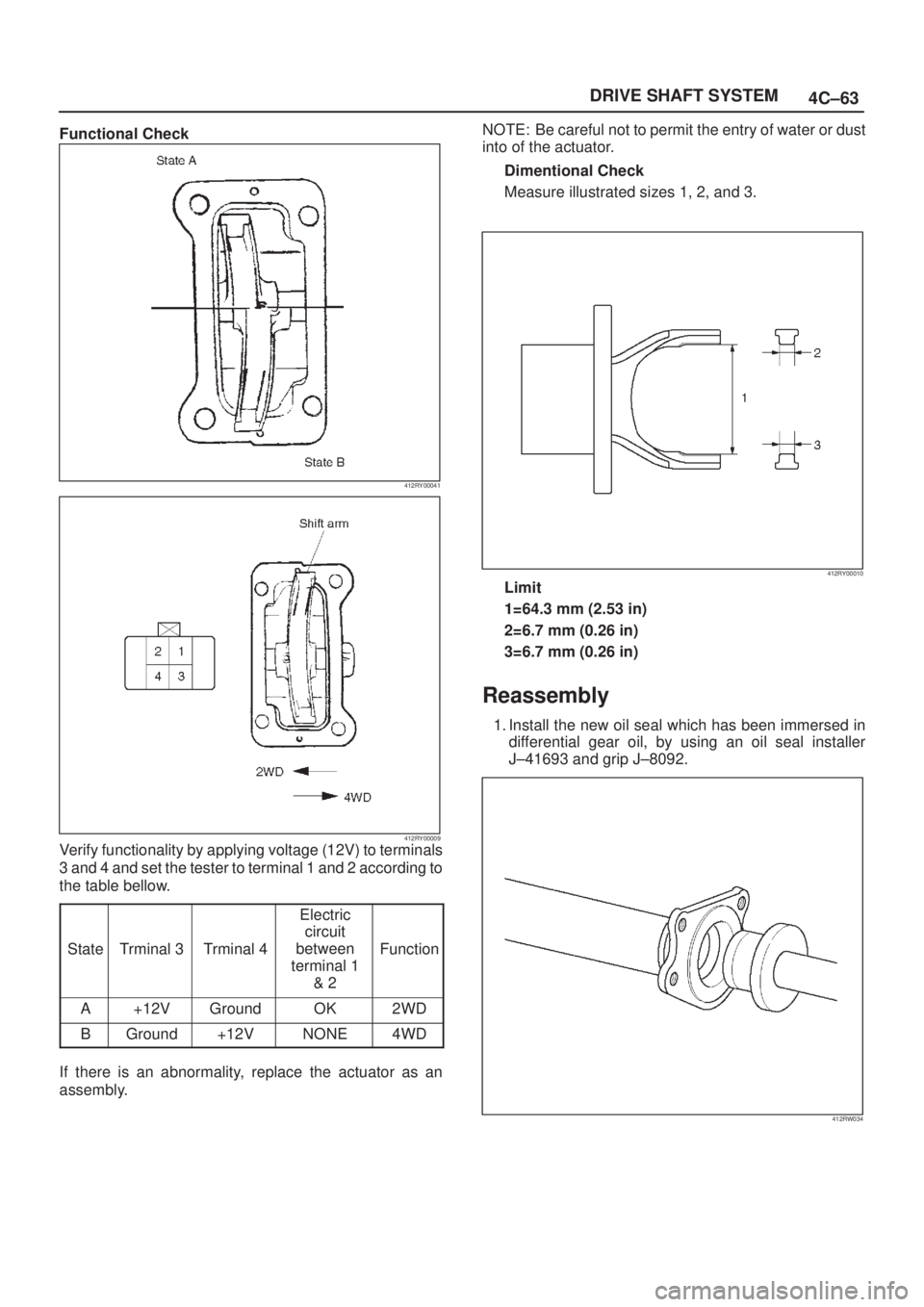

ISUZU AXIOM 2002 Service Repair Manual 4C±63 DRIVE SHAFT SYSTEM Functional Check 412RY00041 412RY00009Verify functionality by applying voltage (12V) to terminals 3 and 4 and set the tester to terminal 1 and 2 according to the table bellow
