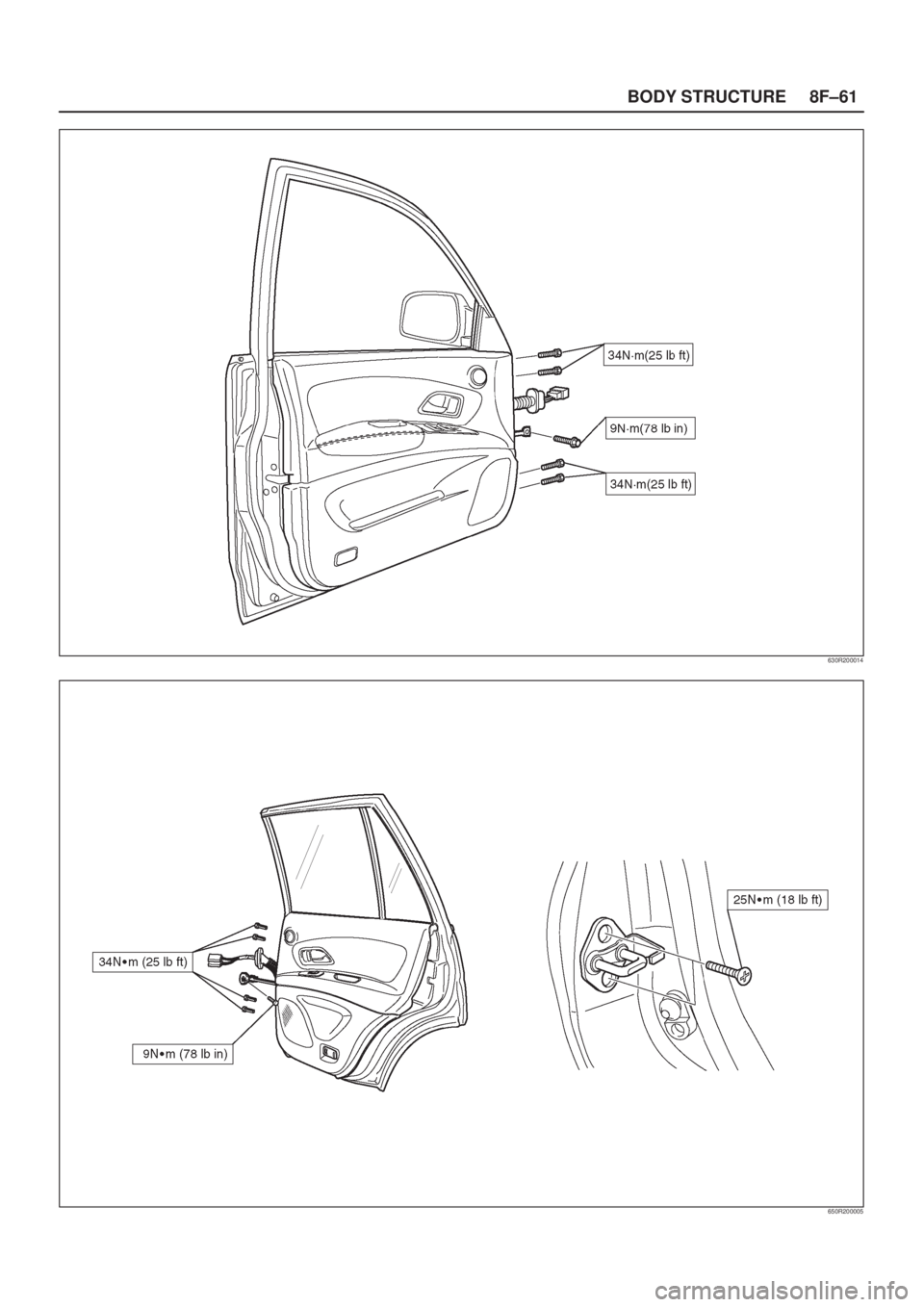

Page 1937 of 2100
8F±61 BODY STRUCTURE
630R200014
650R200005

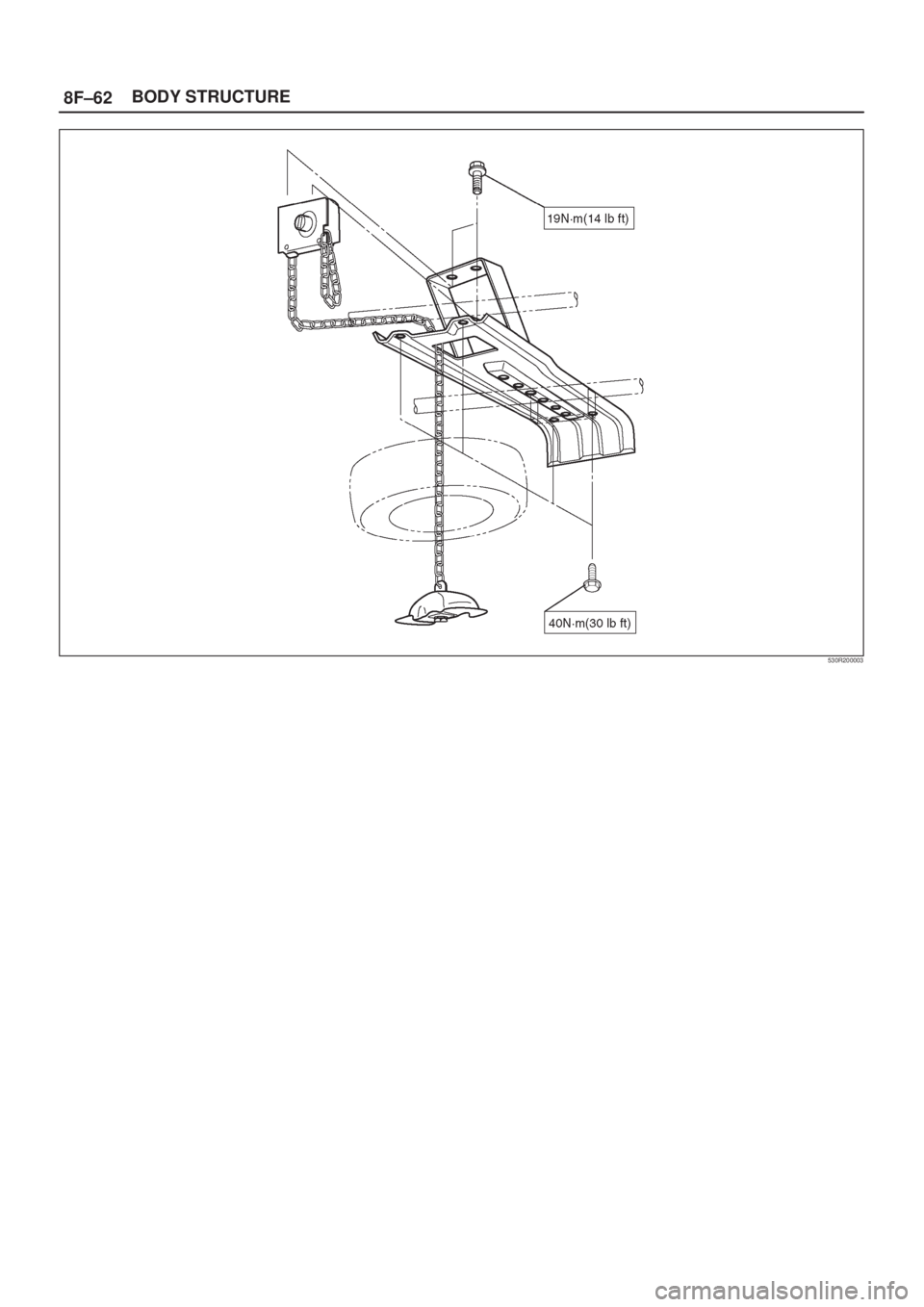

Page 1938 of 2100
8F±62BODY STRUCTURE
530R200003

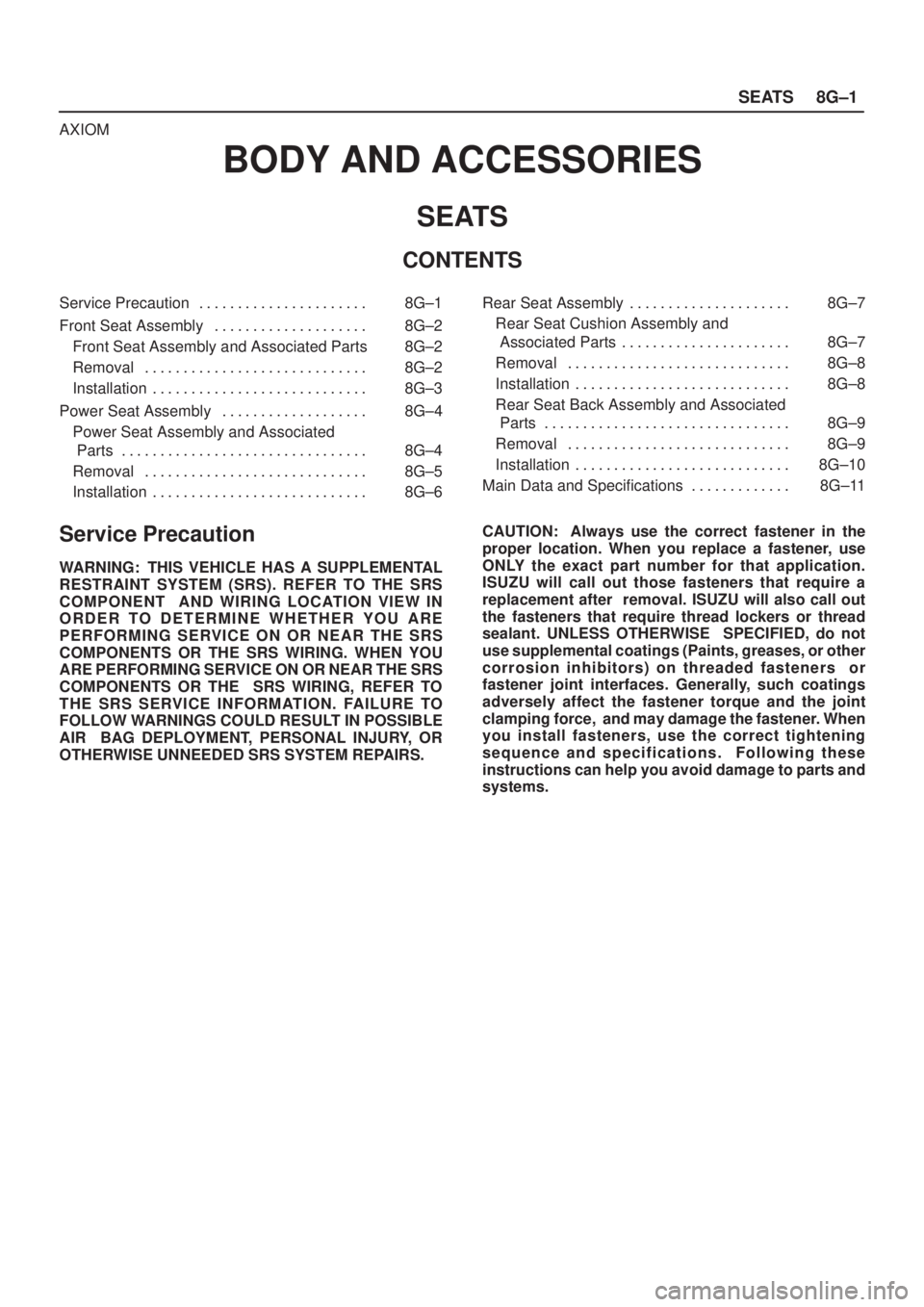

Page 1939 of 2100

SEATS8G±1
AXIOM
BODY AND ACCESSORIES
SEATS
CONTENTS
Service Precaution 8G±1. . . . . . . . . . . . . . . . . . . . . .
Front Seat Assembly 8G±2. . . . . . . . . . . . . . . . . . . .
Front Seat Assembly and Associated Parts 8G±2
Removal 8G±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8G±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Seat Assembly 8G±4. . . . . . . . . . . . . . . . . . .
Power Seat Assembly and Associated
Parts 8G±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8G±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8G±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . Rear Seat Assembly 8G±7. . . . . . . . . . . . . . . . . . . . .
Rear Seat Cushion Assembly and
Associated Parts 8G±7. . . . . . . . . . . . . . . . . . . . . .
Removal 8G±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8G±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Seat Back Assembly and Associated
Parts 8G±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8G±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8G±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8G±11. . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
Page 1940 of 2100
8G±2SEATS
Front Seat Assembly
Front Seat Assembly and Associated Parts
750R200011
Legend
(1) Front Seat Assembly (Passenger's Seat Only)
(2) Hinge Cover
(3) Rear Cover
(4) Front Seat Belt Buckle Assembly
(5) Seat Adjuster
(6) Front Cover(7) Reclining Knob
(8) Side Cover
(9) Reclining Device
(10) Seat Back Assembly
(11) Guide Holder
(12) Headrest
Removal
1. Disconnect the battery ground cable.
2. Remove the front and rear covers.
3. Remove the front seat assembly.
Remove the four fixing bolts.
Page 1941 of 2100

SEATS8G±3
4. Pull out the reclining knob.
5. Remove the side cover.
Remove the two screws.
6. Remove the headrest.
7. Remove the reclining device.
Pull up on the seat back trim cover in order to
remove the reclining device fixing bolts.
750R200007
8. Remove the seat back assembly.
Remove the seat back assembly fixing nut on the
opposite side of the reclining device.
750R200008
9. Remove the trim cover (Seat back side).
10. Remove the guide holder.
Pull the guide holder out by holding the bottom end
of it from the seat back assembly.
11. Remove the seat adjuster.
Disconnect the release wire (4) and remove the
fixing bolts.
750RW006
12. Remove the seat belt buckle assembly.
13. Remove the trim cover (Seat cushion side).
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Tighten the reclining device fixing bolts to the
specified torque.
Torque: 46 N´m (34 lb ft)
2. Tighten the front seat assembly fixing bolts to the
specified torque.
Torque: 39 N´m (29 lb ft)
Page 1942 of 2100
8G±4SEATS
Power Seat Assembly
Power Seat Assembly and Associated Parts
750R200009
Legend
(1) Headrest
(2) Guide Holder
(3) Seat Back Frame Assembly
(4) Connecting Pipe
(5) Seat Back Pad
(6) Seat Heater (Required Option)
(7) Reclining Device Cover
(8) Reclining Device
(9) Outer Side Cover
(10) Reclining Switch Knob
(11) Slide Switch Knob
(12) Power Lumbar Switch (Driver's Side)
(13) Power Seat Switch
(14) Seat Cushion Frame Assembly(15) Power Seat Harness
(16) Adjuster Bracket Rear Cover
(17) Outer Seat Adjuster Assembly
(18) Adjuster Bracket Front Cover
(19) Front Cover
(20) Sliding Motor Cable
(21) Inner Seat Adjuster Assembly
(22) Seat Cushion Pad
(23) Seat Cushion Assembly/Seat Cushion Trim
Cover
(24) Seat Belt Buckle Assembly
(25) Inner Side Cover
(26) Power Lumbar Support Assembly (Driver's
Side)
(27) Seat Back Assembly/Seat Back Trim Cover
Page 1943 of 2100

SEATS8G±5
Removal
1. Remove the adjuster bracket rear cover and the fixing
bolts on the rear side of the seat adjuster assembly.
Before removal, slide the power seat assembly
forward.
2. Remove the adjuster bracket front cover and the
fixing bolts on the front side of the seat adjuster
assembly.
Before removal, slide the power seat assembly
backward.
3. Disconnect the battery ground cable.
4. Remove the power seat assembly.
Disconnect the power seat harness connectors and
the seat belt warning connector of the driver side.
CAUTION: When raising power seat assembly (1),
use the handle (2) not the cable (3). A bent cable
causes noise to occur during power seat operation.
Please grip the handle (4).
Don't grip the cable (5).
750R200012
5. Pull the switch knobs out.
6. Remove the outer side cover.
Remove the two fixing screws and disconnect the
power seat switch connector.
7. Remove the power seat switch.
Remove the two fixing screws.
8. Remove the power lumber switch.
Remove the two fixing screws and connectors.
9. Remove the inner side cover.
10. Remove the headrest.
11. Remove the reclining device (2).
Flip up the seat back trim cover (1) in order to
remove the reclining device fixing bolts.
Disconnect the reclining motor harness connector
(3).
760R100037
12. Remove the reclining device covers.
13. Remove the trim cover and pad (Seat back side).
14. Remove the seat heater and connector (seat back
side).
15. Remove the power lumbar support assembly.
16. Remove the guide holder.
Pull the guide holder out by holding the bottom end
of it from the seat back assembly.
17. Remove the seat adjuster assembly.
Remove the four fixing bolts and disconnect the
sliding motor connector.
18. Remove the sliding motor cable (2).
Remove the nuts of each side.
CAUTION: Be sure to maintain the same position for
both outer and inner seat adjust assembly (1).
760R100038

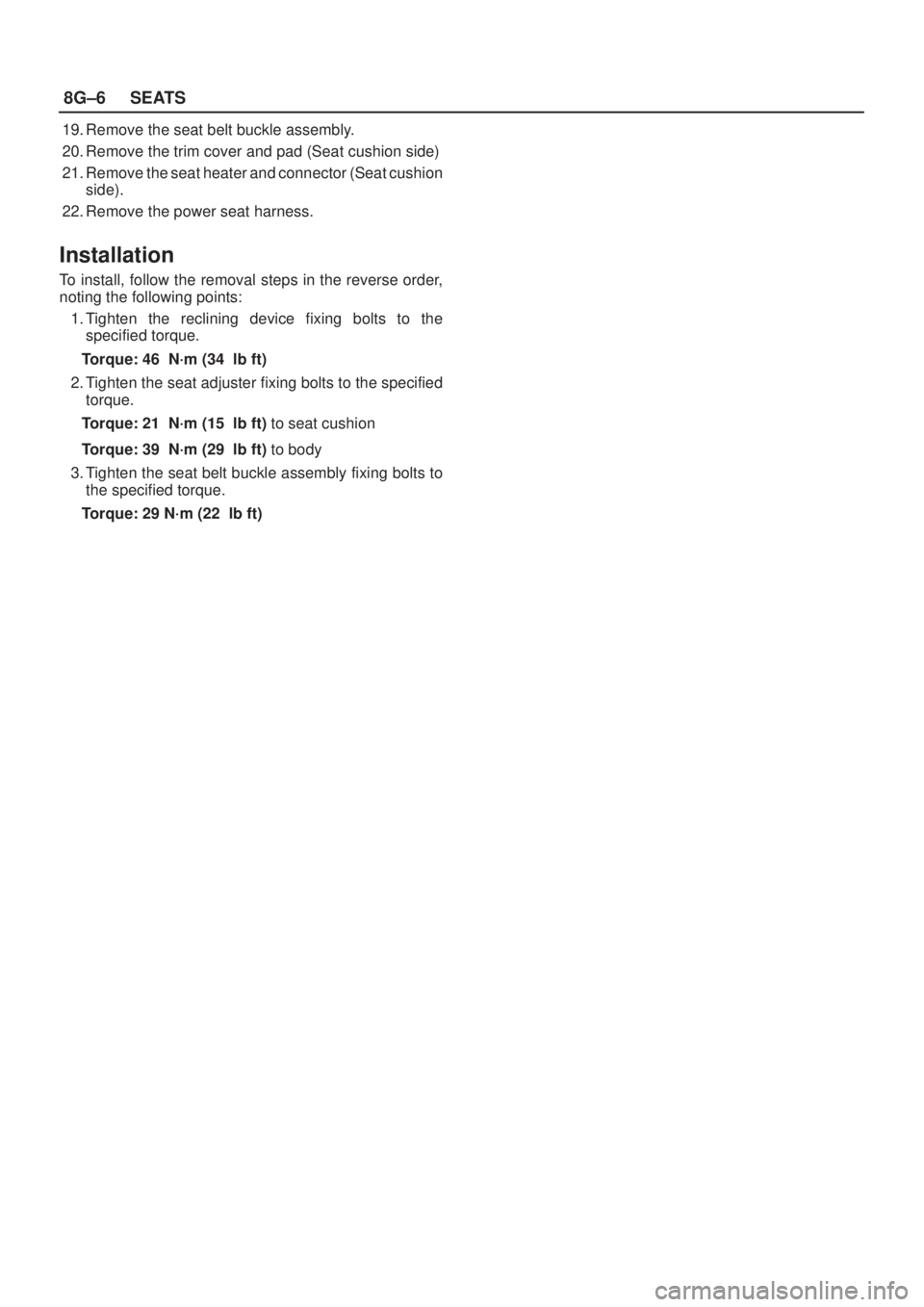

Page 1944 of 2100
8G±6SEATS
19. Remove the seat belt buckle assembly.
20. Remove the trim cover and pad (Seat cushion side)
21. Remove the seat heater and connector (Seat cushion
side).
22. Remove the power seat harness.
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Tighten the reclining device fixing bolts to the
specified torque.
Torque: 46 N´m (34 lb ft)
2. Tighten the seat adjuster fixing bolts to the specified
torque.
Torque: 21 N´m (15 lb ft) to seat cushion
Torque: 39 N´m (29 lb ft) to body
3. Tighten the seat belt buckle assembly fixing bolts to
the specified torque.
Torque: 29 N´m (22 lb ft)
