2002 ISUZU AXIOM Service Repair Manual

Page 513 of 2100

ISUZU AXIOM 2002  Service Repair Manual 4C±16
DRIVE SHAFT SYSTEM

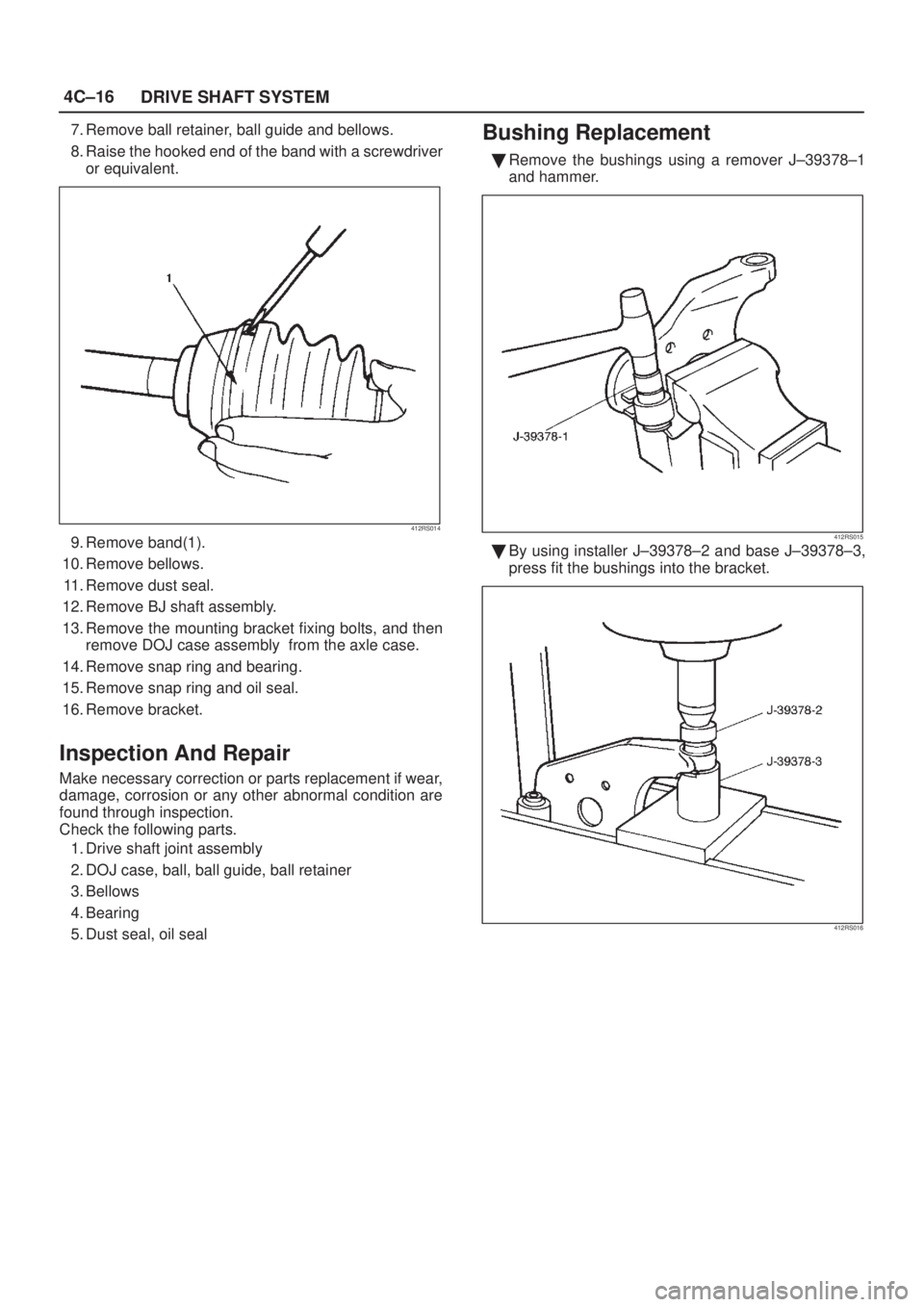

7. Remove ball retainer, ball guide and bellows.
8. Raise the hooked end of the band with a screwdriver
or equivalent.
412RS014
9. Remove band(1).
10. Remove bellows.
11. Rem

Page 514 of 2100

ISUZU AXIOM 2002  Service Repair Manual 4C±17 DRIVE SHAFT SYSTEM
Reassembly

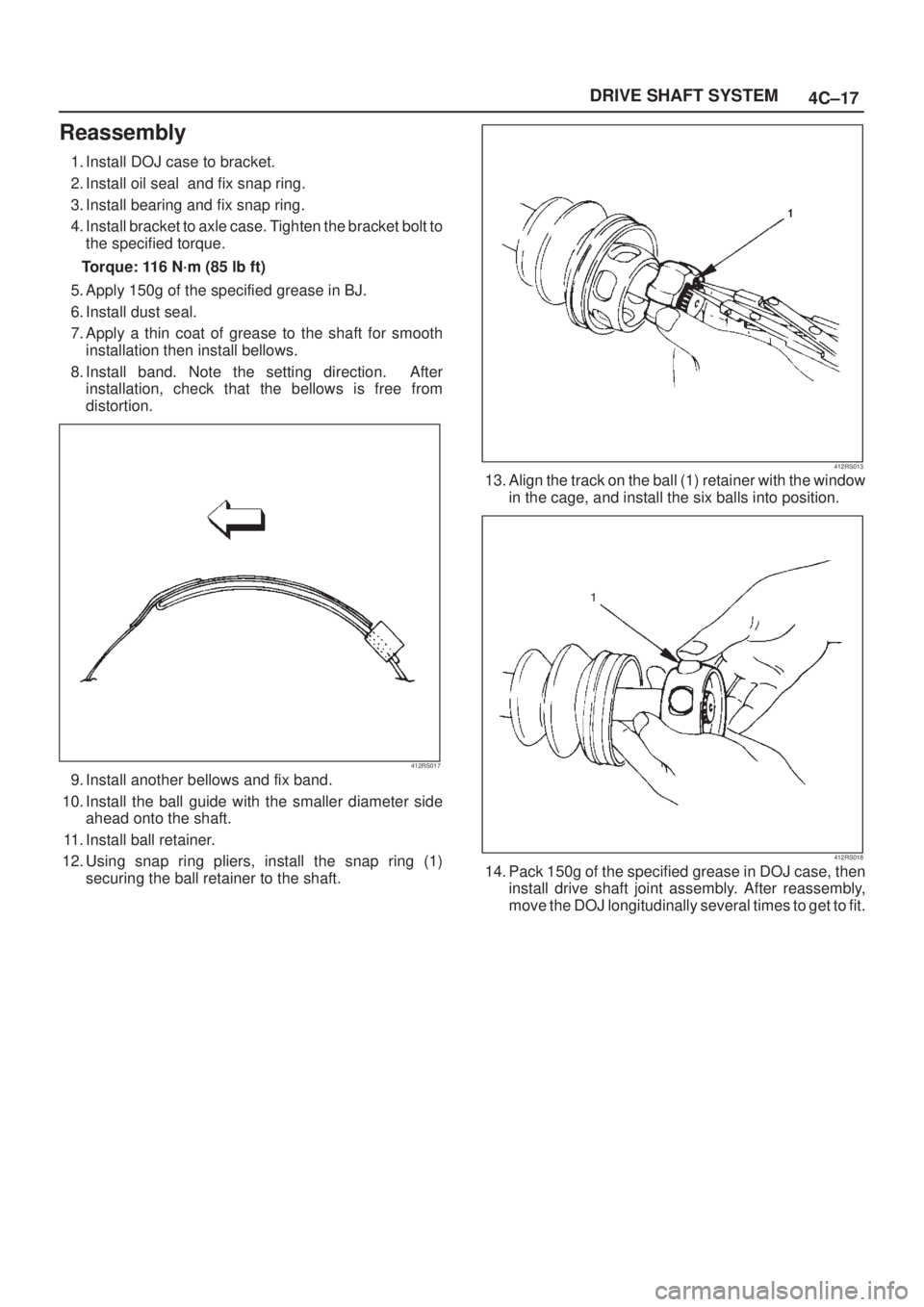

1. Install DOJ case to bracket.
2. Install oil seal  and fix snap ring.
3. Install bearing and fix snap ring.
4. Install bracket to axle case. Tighten the bracket

Page 515 of 2100

ISUZU AXIOM 2002  Service Repair Manual 4C±18
DRIVE SHAFT SYSTEM

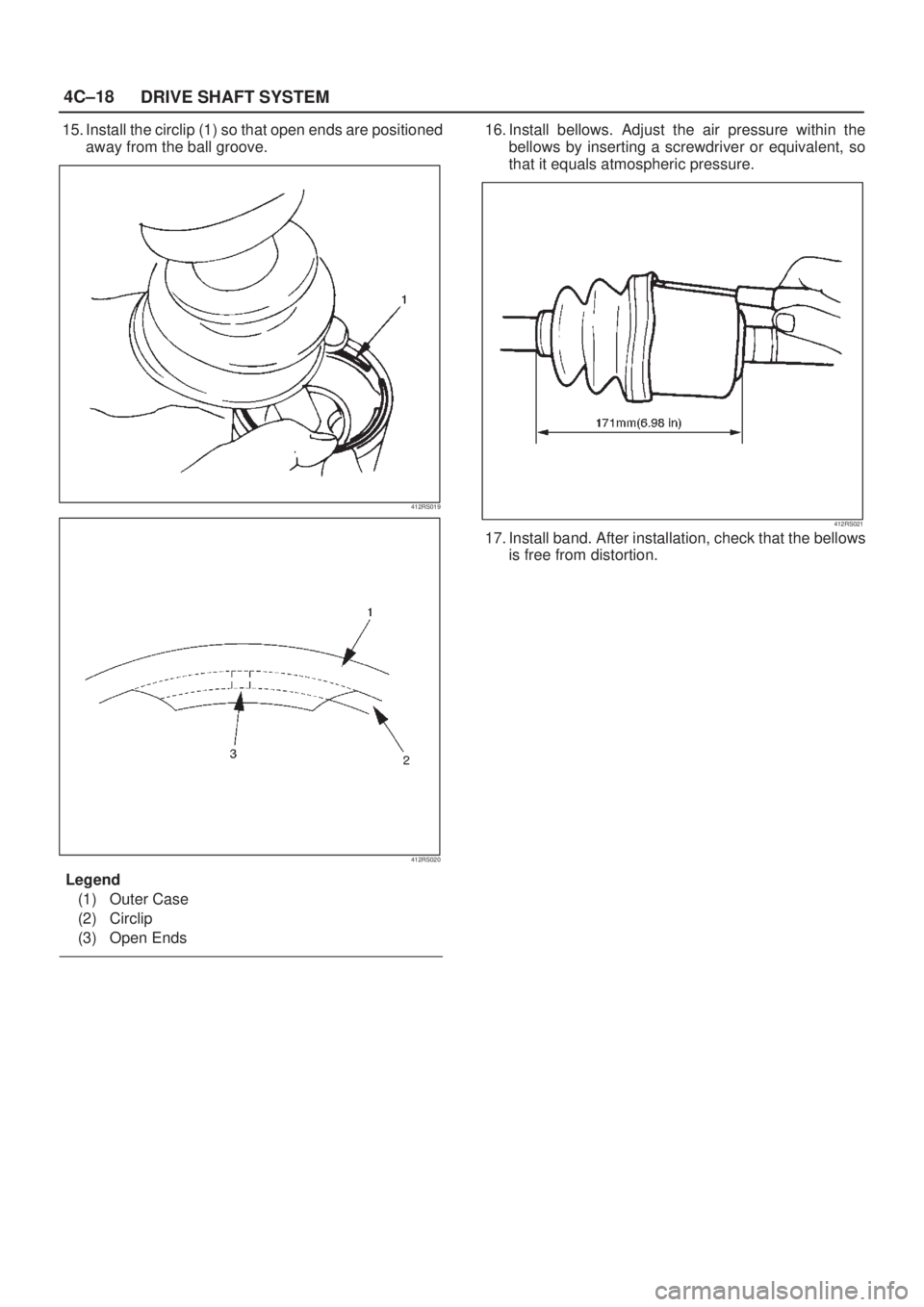

15. Install the circlip (1) so that open ends are positioned
away from the ball groove.
412RS019
412RS020
Legend
(1) Outer Case
(2) Circlip
(3) Open Ends
16. Install bellows.

Page 516 of 2100

ISUZU AXIOM 2002  Service Repair Manual 4C±19 DRIVE SHAFT SYSTEM
Shift On The Fly System

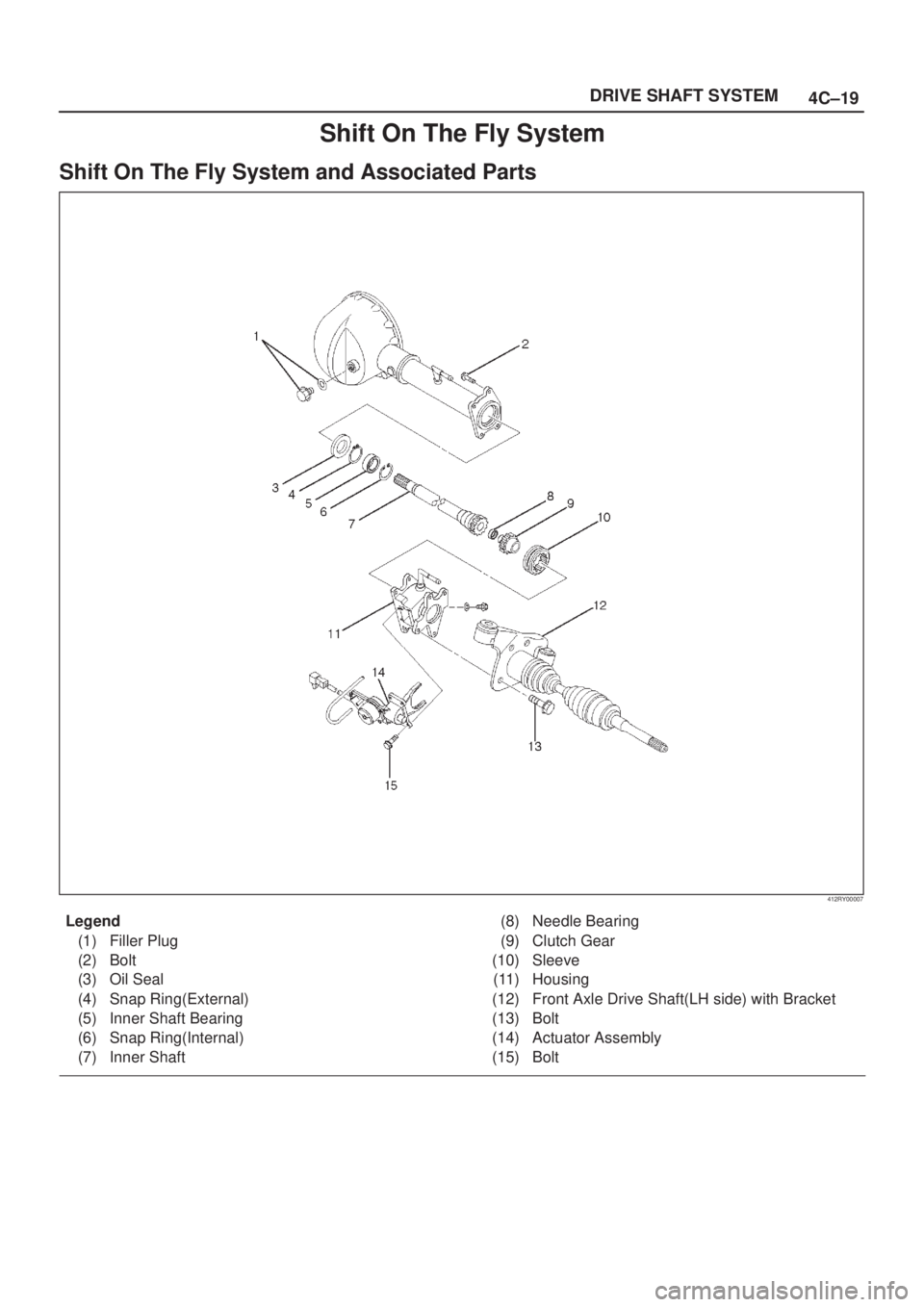

Shift On The Fly System and Associated Parts
412RY00007
Legend
(1) Filler Plug
(2) Bolt
(3) Oil Seal
(4) Snap Ring(External)
(5) Inner Shaft Bearing
(

Page 517 of 2100

ISUZU AXIOM 2002  Service Repair Manual 4C±20
DRIVE SHAFT SYSTEM
Disassembly

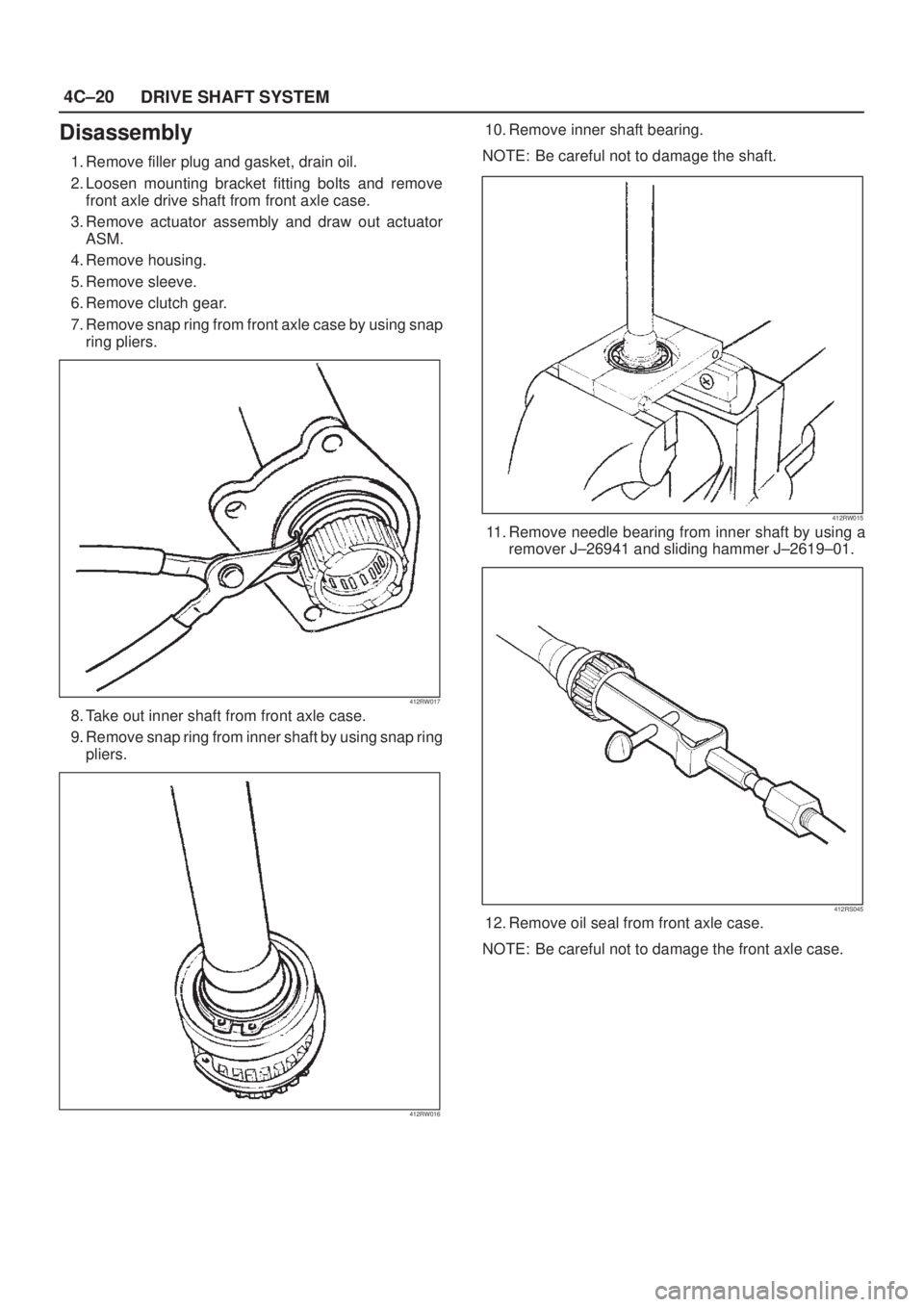

1. Remove filler plug and gasket, drain oil.
2. Loosen mounting bracket fitting bolts and remove
front axle drive shaft from front axle case.
3. Remove actuator a

Page 518 of 2100

ISUZU AXIOM 2002  Service Repair Manual 4C±21 DRIVE SHAFT SYSTEM
Inspection And Repair

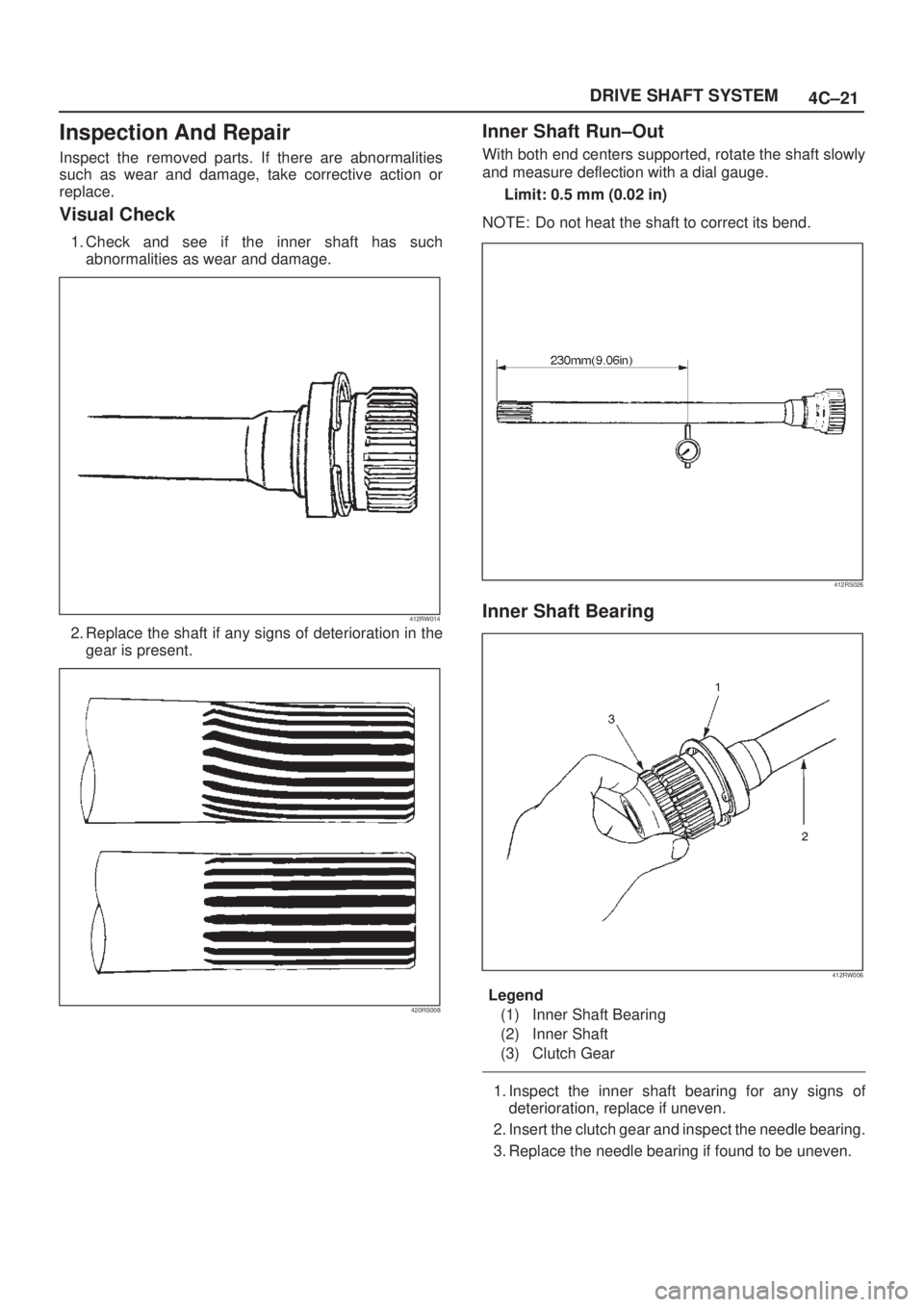

Inspect the removed parts. If there are abnormalities
such as wear and damage, take corrective action or
replace.
Visual Check
1. Check and see if the i

Page 519 of 2100

ISUZU AXIOM 2002  Service Repair Manual 4C±22
DRIVE SHAFT SYSTEM
Sleeve Condition
Check and see that there is not wear damage, or cracking
in the sleeve.
NOTE: Close inspection of the groove and inner gear are
required because those are im

Page 520 of 2100

ISUZU AXIOM 2002  Service Repair Manual 4C±23 DRIVE SHAFT SYSTEM
Actuator

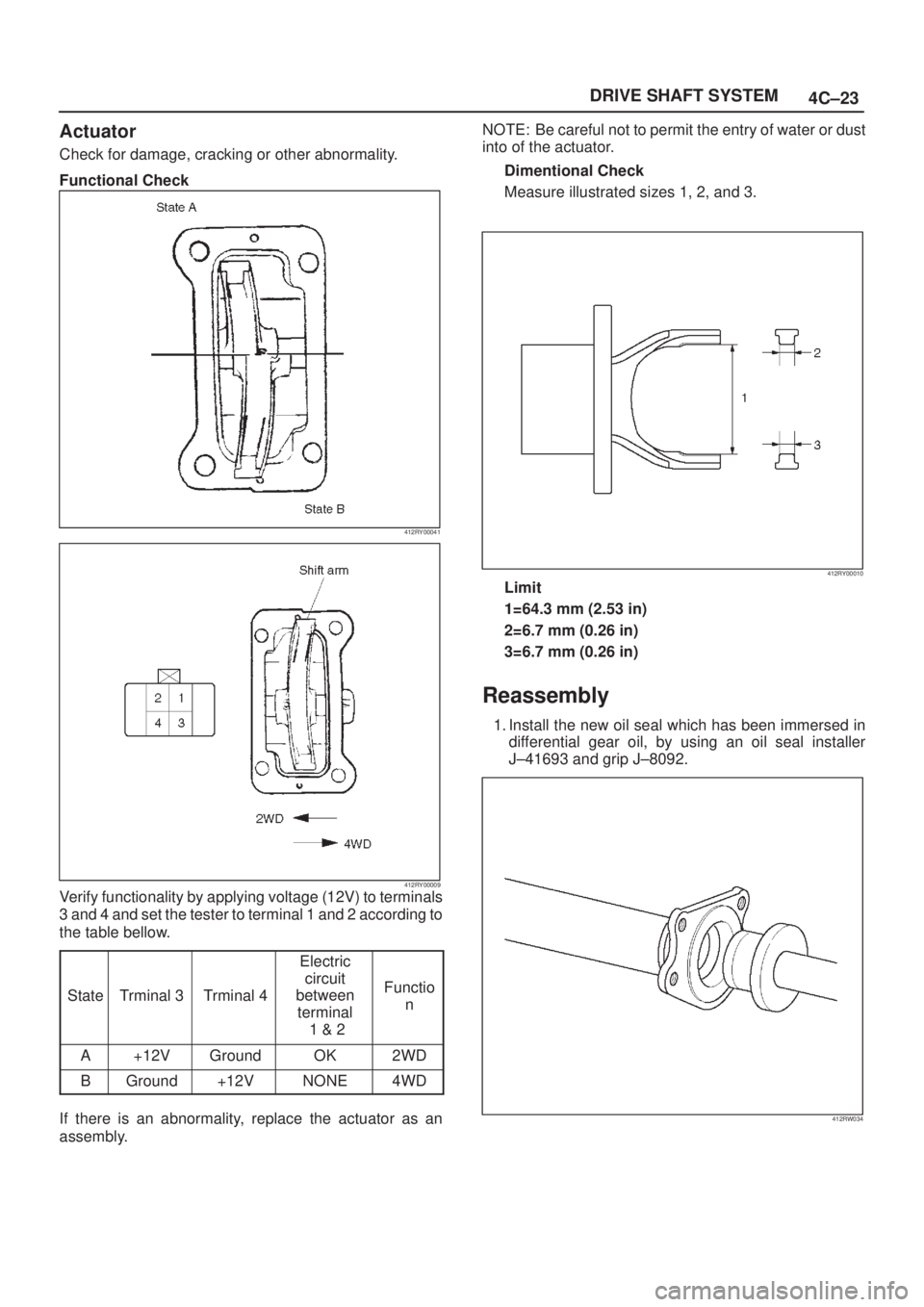

Check for damage, cracking or other abnormality.
Functional Check
412RY00041
412RY00009Verify functionality by applying voltage (12V) to terminals
3 and 4 and set th
