Page 1809 of 2100
WIPER/WASHER SYSTEM8B±11
Alarm and Relay Control Unit
Removal
1. Disconnect the battery ground cable.
2. Remove the grove box (1).
3. Remove the alarm and relay control unit (2).
Disconnect the connector.
826R200020
Installation
To install, follow the removal steps in the reverse order.
Rear Wiper Arm/Blade
Removal
1. Open the cap (2).
2. Remove the arm nut (3).
3. Remove the wiper arm/blade (1).
885R200011
Installation
Refer to Rear Wiper Motor in this section.
Page 1810 of 2100
8B±12WIPER/WASHER SYSTEM
Rear Washer Nozzle
Removal
1. Disconnect the battery ground cable.
2. Remove the high mounted stoplight (1).
Refer to
High Mounted Stoplight in Lighting System
section.
3. Remove the washer nozzle(3).
Pull out the washer nozzle from the washer hose
(2).
885R200003
Installation
To install, follow the removal steps in the reverse order.
Rear Washer Spray Pattern
885R200006
Legend
(1) Washer Nozzle
(2) Spray Target
(3) High Mounted Stoplight
Page 1811 of 2100
WIPER/WASHER SYSTEM8B±13

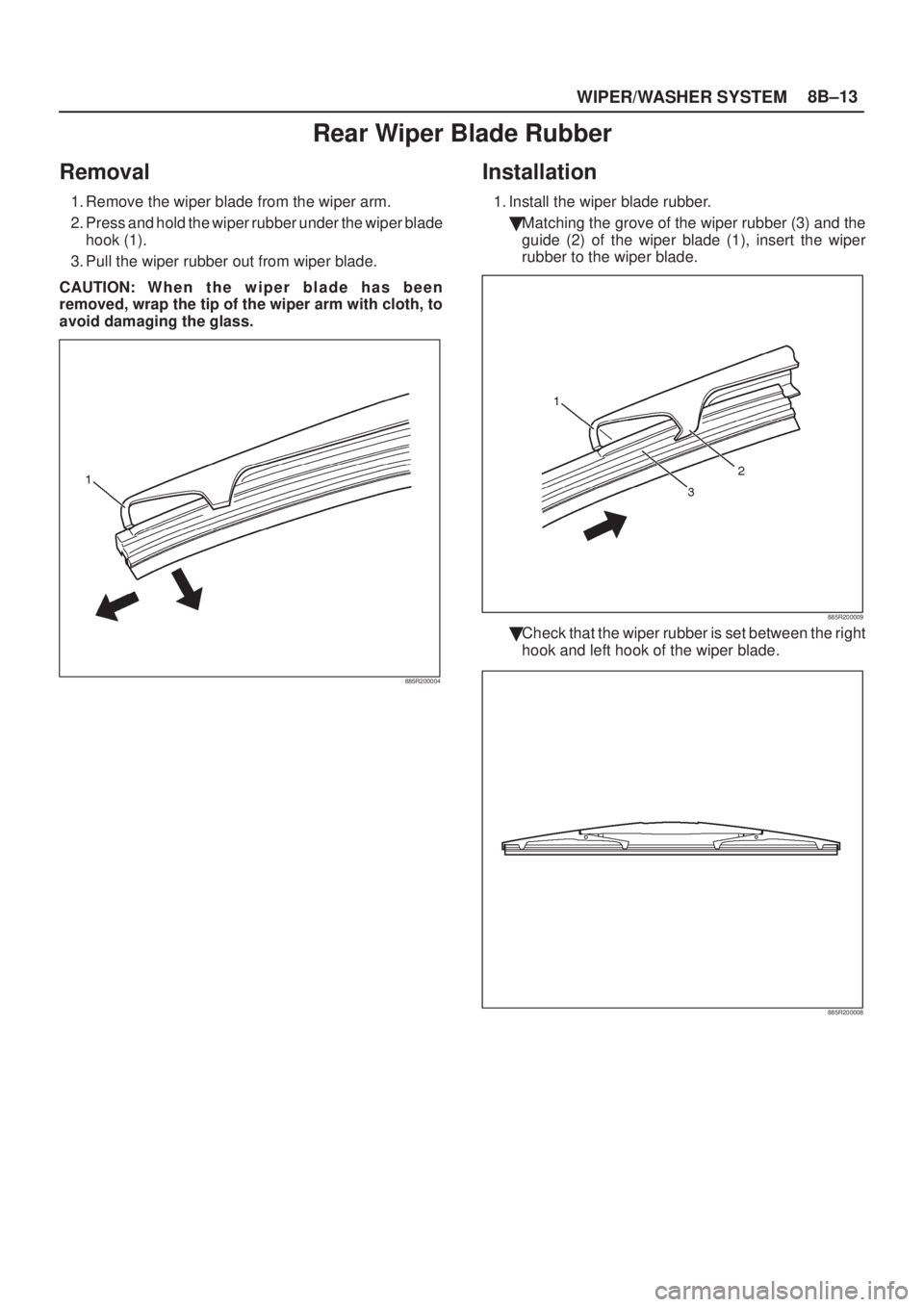

Rear Wiper Blade Rubber
Removal
1. Remove the wiper blade from the wiper arm.
2. Press and hold the wiper rubber under the wiper blade
hook (1).
3. Pull the wiper rubber out from wiper blade.
CAUTION: W h e n t h e w i p e r blade has been
removed, wrap the tip of the wiper arm with cloth, to
avoid damaging the glass.
885R200004
Installation
1. Install the wiper blade rubber.
Matching the grove of the wiper rubber (3) and the
guide (2) of the wiper blade (1), insert the wiper
rubber to the wiper blade.
885R200009
Check that the wiper rubber is set between the right
hook and left hook of the wiper blade.
885R200008
Page 1812 of 2100
8B±14WIPER/WASHER SYSTEM

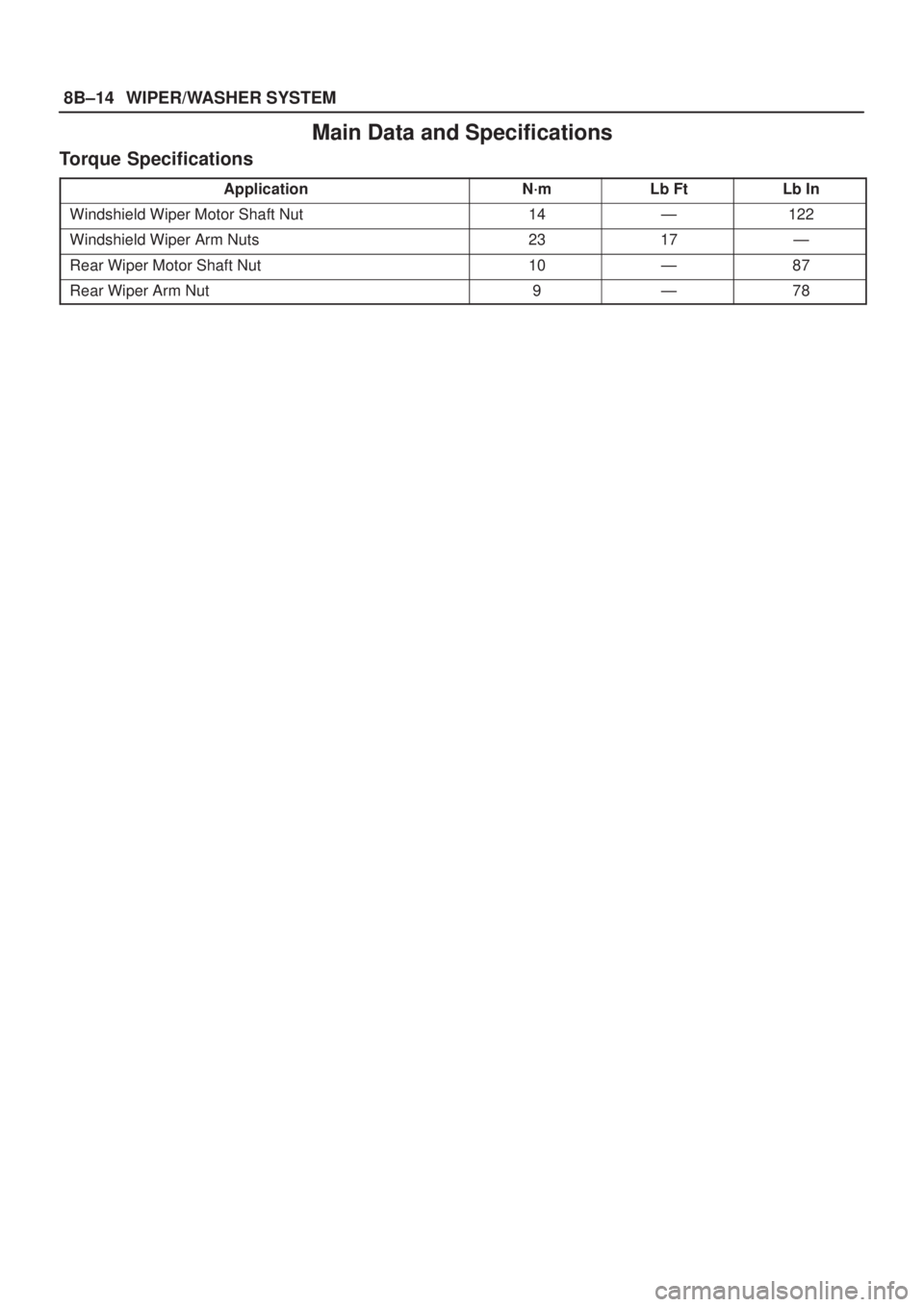

Main Data and Specifications
Torque Specifications
ApplicationN´mLb FtLb In
Windshield Wiper Motor Shaft Nut14Ð122
Windshield Wiper Arm Nuts2317Ð
Rear Wiper Motor Shaft Nut10Ð87
Rear Wiper Arm Nut9Ð78
Page 1813 of 2100

ENTERTAINMENT8C±1
AXIOM
BODY AND ACCESSORIES
ENTERTAINMENT
CONTENTS
Service Precaution 8C±1. . . . . . . . . . . . . . . . . . . . . .
Cigarette Lighter 8C±2. . . . . . . . . . . . . . . . . . . . . . . .
General Description 8C±2. . . . . . . . . . . . . . . . . . . . .
Removal 8C±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rod Type Antenna 8C±3. . . . . . . . . . . . . . . . . . . . . .
Removal 8C±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessory Socket 8C±4. . . . . . . . . . . . . . . . . . . . . . .
Front Accessory Socket 8C±4. . . . . . . . . . . . . . . .
Removal 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Accessory Socket 8C±4. . . . . . . . . . . . . . . .
Removal 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speaker 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Speaker 8C±6. . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Tweeter Assembly 8C±6. . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Speaker 8C±6. . . . . . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Tweeter Assembly 8C±7. . . . . . . . . . . . . . . .
Removal 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display (MID) 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
MID Control Unit 8C±9. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS Control Unit 8C±10. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Self-Diagnosis 8C±11. . . . . . . . . . . . . . . . . . . . . . . . . .
Self-Diagnosis Flow Chart±1 8C±11. . . . . . . . . . . .
Self-Diagnosis Flow Chart±2 (Audio) 8C±12. . . . .
Self-Diagnosis Flow Chart±3 (Display) 8C±13. . .
Self-Diagnosis Flow Chart±4 (MID) 8C±14. . . . . .
Audio Self-Diagnosis 8C±15. . . . . . . . . . . . . . . . . . .
Display Self-Diagnosis 8C±16. . . . . . . . . . . . . . . . .
MID Self-Diagnosis 8C±17. . . . . . . . . . . . . . . . . . . .
Symptom Diagnosis 8C±18. . . . . . . . . . . . . . . . . . . . .
MID Not Appears 8C±18. . . . . . . . . . . . . . . . . . . . . .
No COMPASS, CLOCK, FUEL
CONSUMPTION, or SERVICE Display 8C±19. .
No COMPASS Display 8C±20. . . . . . . . . . . . . . . . .
No SERVICE Display 8C±20. . . . . . . . . . . . . . . . . .
Other Trouble Symptom 8C±21. . . . . . . . . . . . . . . .
MID Circuit 8C±22. . . . . . . . . . . . . . . . . . . . . . . . . . .
Harness Connector Faces 8C±23. . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.
Page 1814 of 2100
8C±2ENTERTAINMENT
Cigarette Lighter
General Description
When the cigarette lighter is pushed in with the starter
switch at either ªACCº or ªONº position, a circuit is formed
in the cigarette lighter case to heat the lighter coil.
The cigarette lighter springs back to its original position
after the lighter coil is heated.
Removal
1. Disconnect the battery ground cable.
2. Remove the center cluster assembly (1).
Refer to
Instrument Panel Assembly in Body
Structure section.
3. Remove the cigarette lighter assembly (2).
Disconnect the connectors.
Remove the socket (3) and nut (4).
826R200012
Installation
To install, follow the removal steps in the reverse order,
noting the following point:
1. When installing the bezel, align the projected portion
of the socket with the notch of the bezel.
Page 1815 of 2100
ENTERTAINMENT8C±3
Rod Type Antenna
Removal
1. Disconnect the battery ground cable.
2. Turn the antenna rod (1) counterclockwise to remove
it.
3. Remove three screws and nine clips to remove the
fender inner liner (5).
4. Disconnect the feeder cable connector (4) at the
inside of the vehicle.
5. Turning the lock nut (2) counterclockwise removes it
together with the base mold (3).
6. Pull down and remove the housing (7) from the panel.
7. Pull and remove the cable with the grommet (6).
890R200040
Installation
To install, follow the removal steps in the reverse order.
Page 1816 of 2100
8C±4ENTERTAINMENT
Accessory Socket
Front Accessory Socket
Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly (2).
Refer to
Instrument Panel Assembly in Body
Structure section.
3. Remove the front accessory socket (1).
Disconnect the connectors.
Remove the holdernut (3).
826R200013
Installation
To install, follow the removal steps in the reverse order.
Rear Accessory Socket
Removal
1. Disconnect the battery ground cable.
2. Remove the quarter trim lower cover.
3. Remove the rear accessory socket (1).
Disconnect the connectors (3).
Pull out the rear accessory socket from the socket
cover (2).
826R200014
Installation
To install, follow the removal steps in the reverse order.
