Page 1969 of 2100

ISUZU AXIOM 2002 Service Repair Manual SECURITY AND LOCKS8H±19
Main Data and Specifications
Torque Specifications
635R200011

Page 1970 of 2100

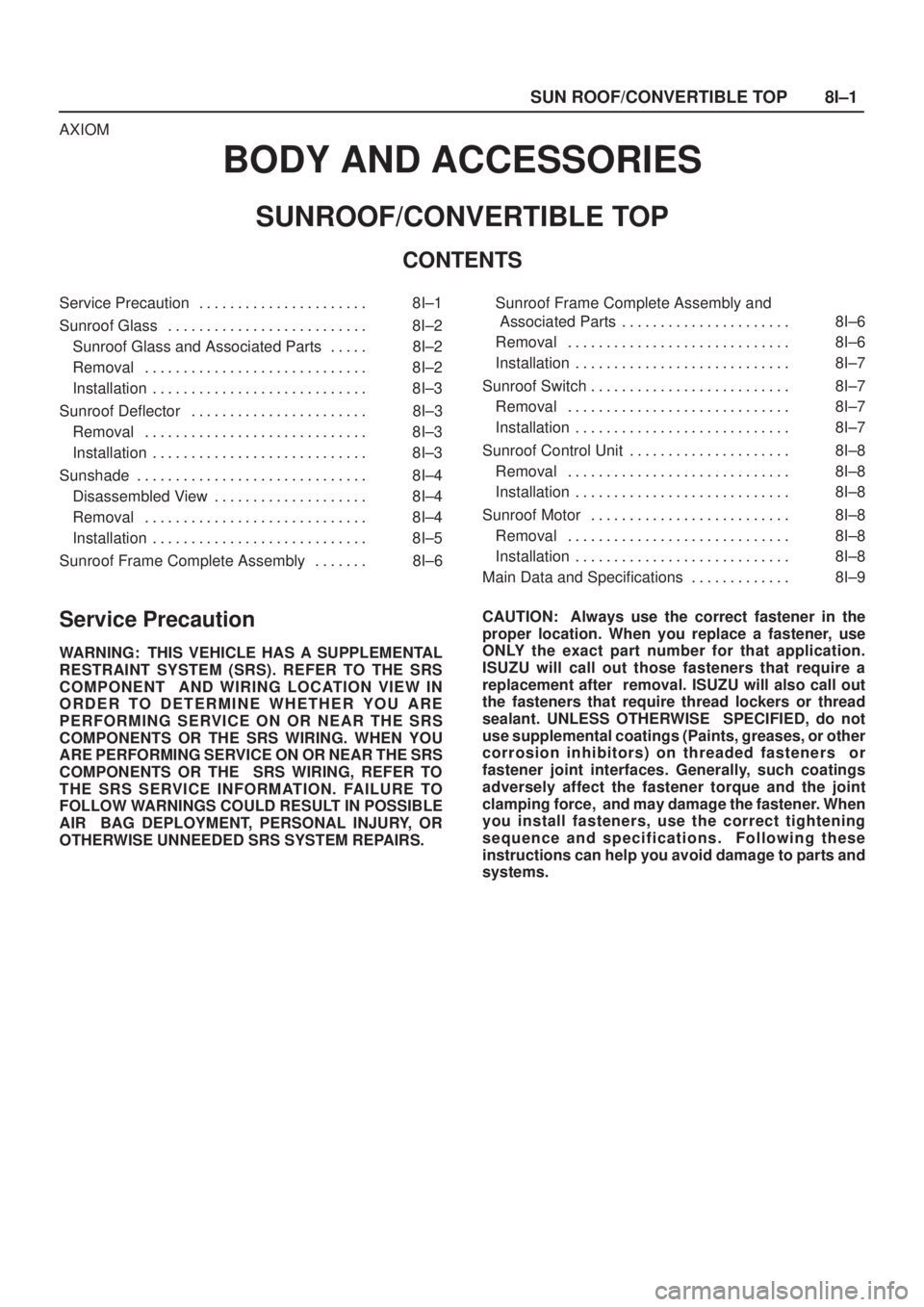

ISUZU AXIOM 2002 Service Repair Manual SUN ROOF/CONVERTIBLE TOP8I±1
AXIOM
BODY AND ACCESSORIES
SUNROOF/CONVERTIBLE TOP
CONTENTS
Service Precaution 8I±1. . . . . . . . . . . . . . . . . . . . . .
Sunroof Glass 8I±2. . . . . . . . . . .

SUN ROOF/CONVERTIBLE TOP8I±1
AXIOM
BODY AND ACCESSORIES
SUNROOF/CONVERTIBLE TOP
CONTENTS
Service Precaution 8I±1. . . . . . . . . . . . . . . . . . . . . .
Sunroof Glass 8I±2. . . . . . . . . . . . . . . . . . . . . . . . . .
Sunroof Glass and Associated Parts 8I±2. . . . .
Removal 8I±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sunroof Deflector 8I±3. . . . . . . . . . . . . . . . . . . . . . .
Removal 8I±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sunshade 8I±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembled View 8I±4. . . . . . . . . . . . . . . . . . . .
Removal 8I±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sunroof Frame Complete Assembly 8I±6. . . . . . . Sunroof Frame Complete Assembly and
Associated Parts 8I±6. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sunroof Switch 8I±7. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8I±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sunroof Control Unit 8I±8. . . . . . . . . . . . . . . . . . . . .
Removal 8I±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sunroof Motor 8I±8. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8I±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8I±9. . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

Page 1971 of 2100

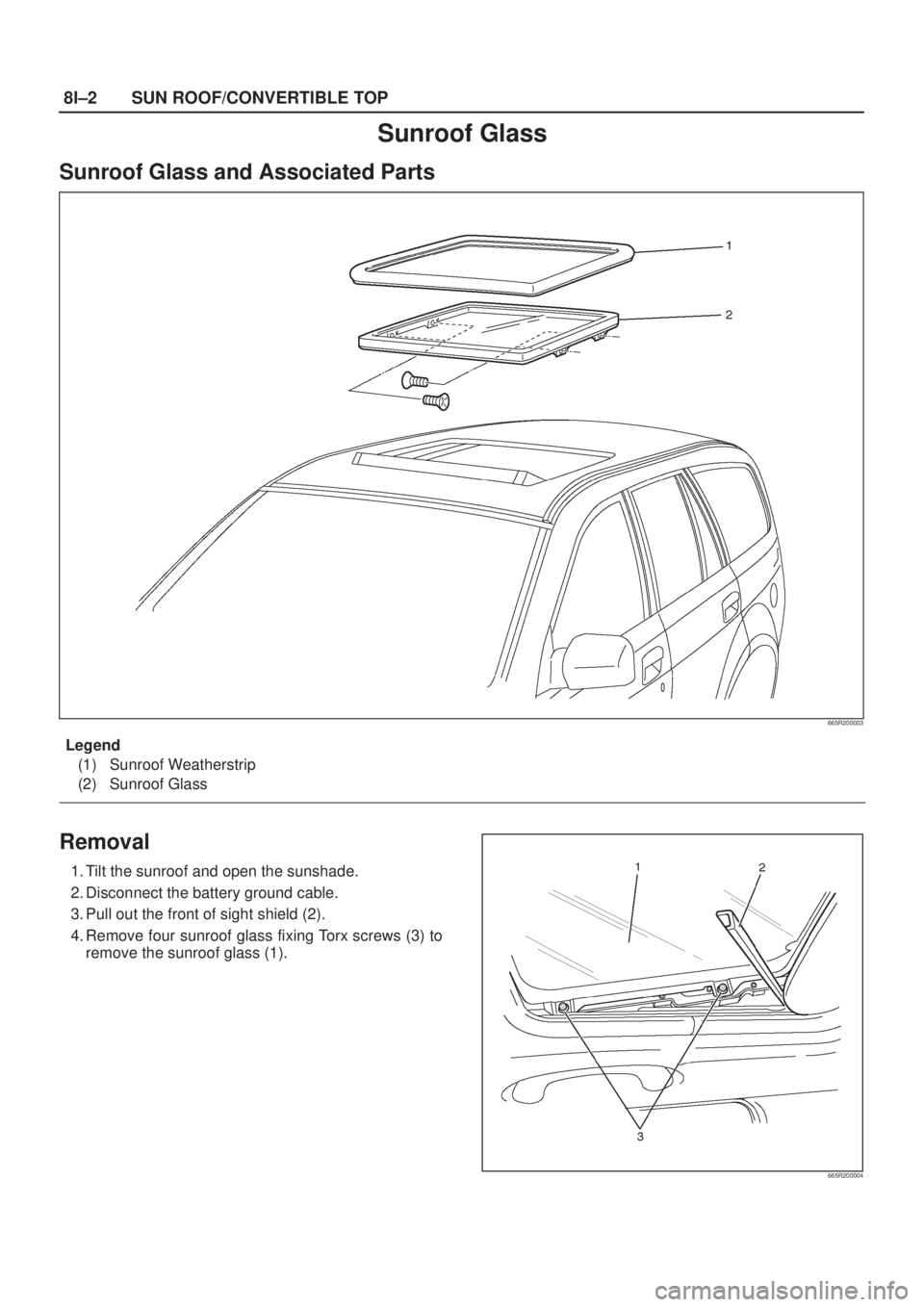

ISUZU AXIOM 2002 Service Repair Manual 8I±2SUN ROOF/CONVERTIBLE TOP
Sunroof Glass
Sunroof Glass and Associated Parts
665R200003
Legend
(1) Sunroof Weatherstrip
(2) Sunroof Glass
Removal
1. Tilt the sunroof and open the sunshade.
2. Discon

Page 1972 of 2100

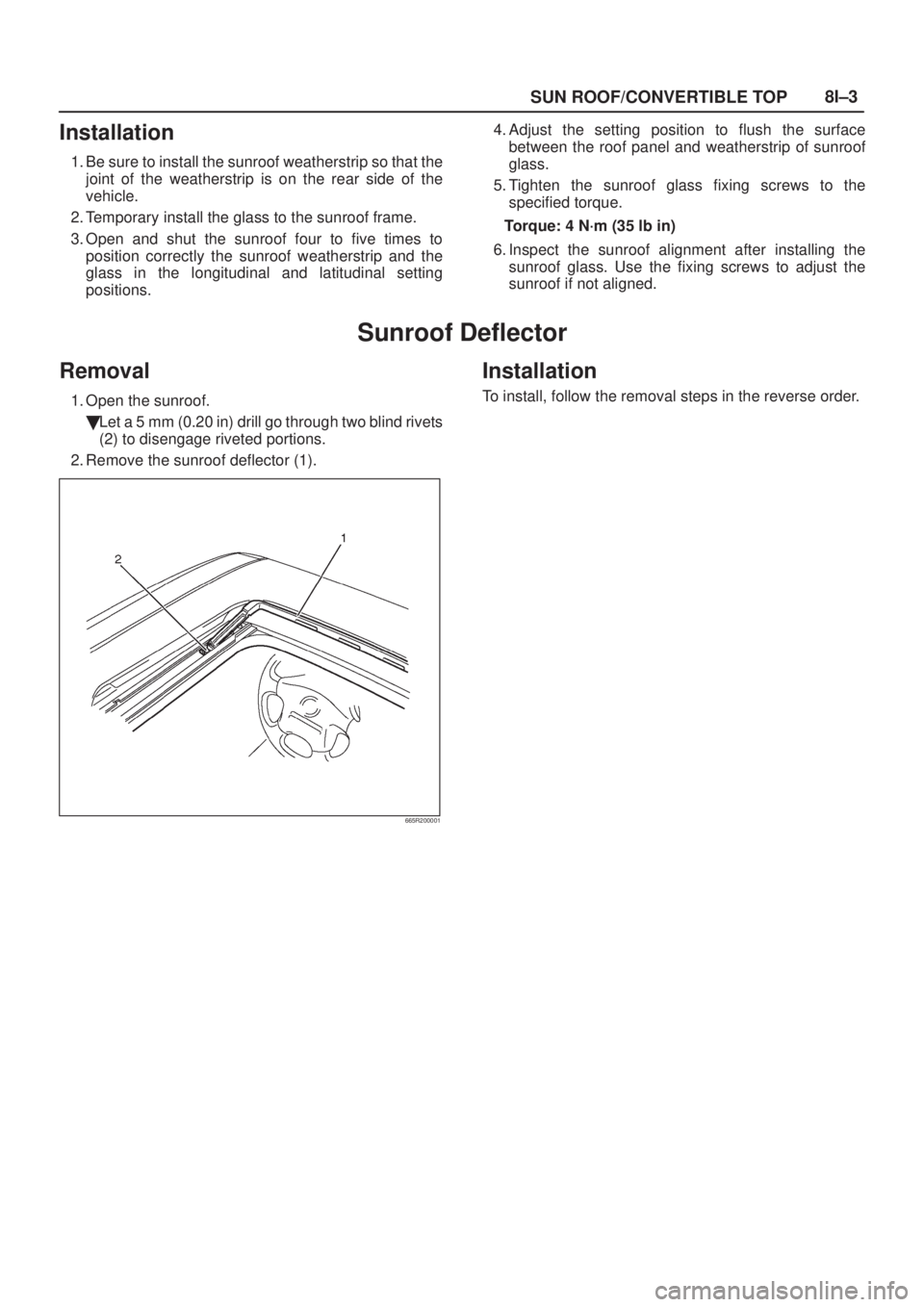

ISUZU AXIOM 2002 Service Repair Manual SUN ROOF/CONVERTIBLE TOP8I±3
Installation
1. Be sure to install the sunroof weatherstrip so that the
joint of the weatherstrip is on the rear side of the
vehicle.
2. Temporary install the glass to th

Page 1973 of 2100

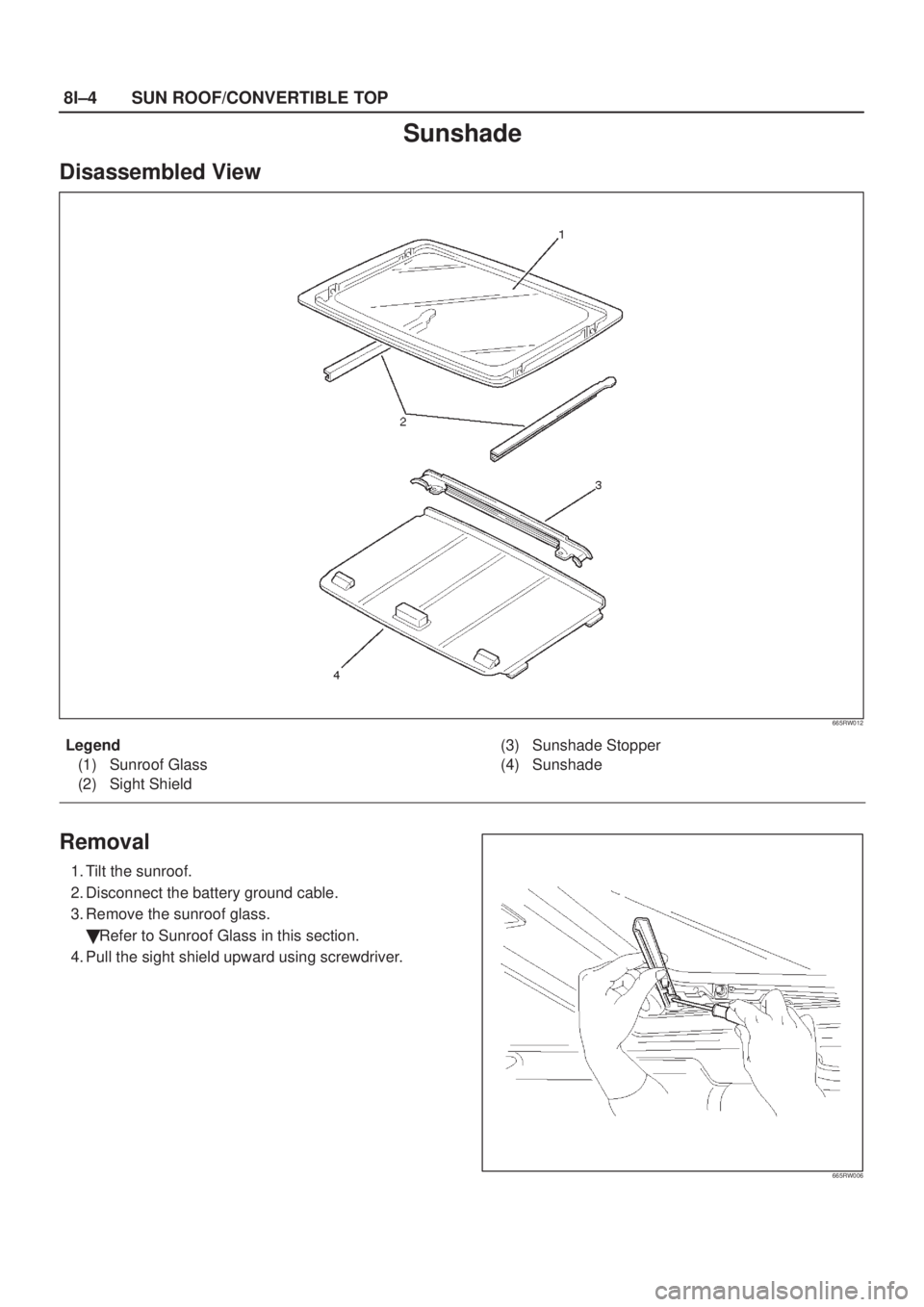

ISUZU AXIOM 2002 Service Repair Manual 8I±4SUN ROOF/CONVERTIBLE TOP
Sunshade
Disassembled View
665RW012
Legend
(1) Sunroof Glass
(2) Sight Shield(3) Sunshade Stopper
(4) Sunshade
Removal
1. Tilt the sunroof.
2. Disconnect the battery grou

Page 1974 of 2100

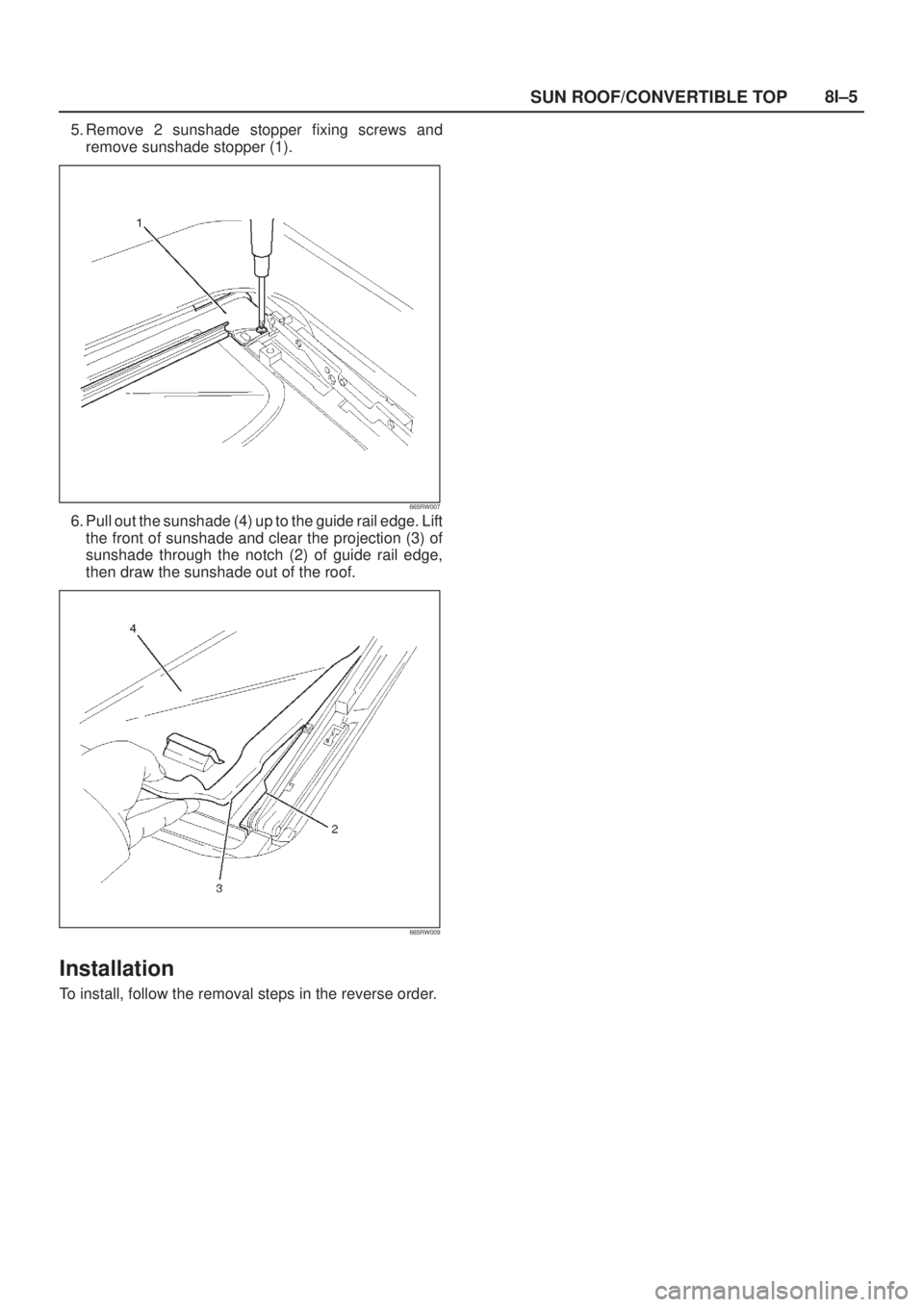

ISUZU AXIOM 2002 Service Repair Manual SUN ROOF/CONVERTIBLE TOP8I±5
5. Remove 2 sunshade stopper fixing screws and
remove sunshade stopper (1).
665RW007
6. Pull out the sunshade (4) up to the guide rail edge. Lift
the front of sunshade an

Page 1975 of 2100

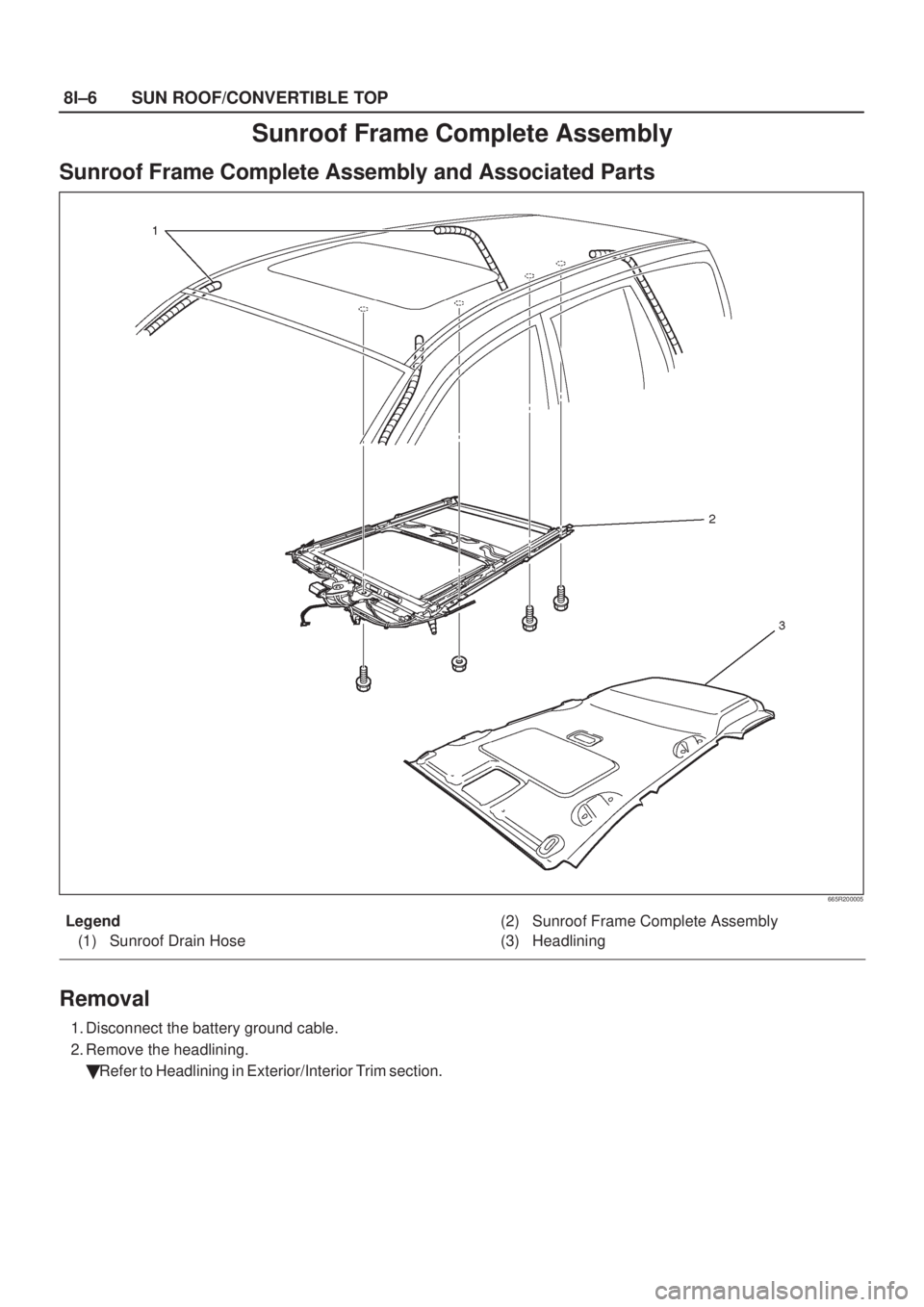

ISUZU AXIOM 2002 Service Repair Manual 8I±6SUN ROOF/CONVERTIBLE TOP
Sunroof Frame Complete Assembly
Sunroof Frame Complete Assembly and Associated Parts
665R200005
Legend
(1) Sunroof Drain Hose(2) Sunroof Frame Complete Assembly
(3) Headl

Page 1976 of 2100

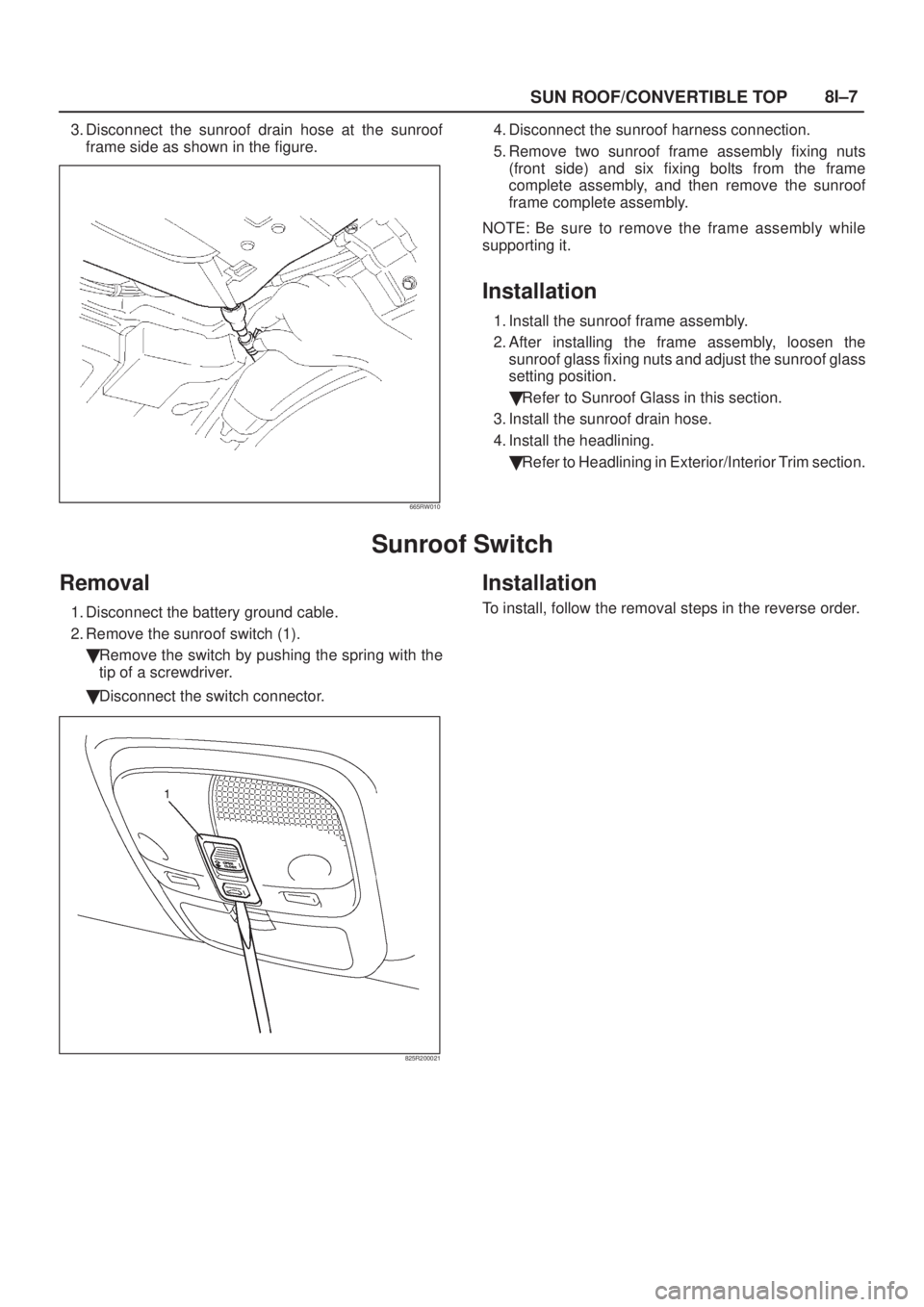

ISUZU AXIOM 2002 Service Repair Manual SUN ROOF/CONVERTIBLE TOP8I±7
3. Disconnect the sunroof drain hose at the sunroof
frame side as shown in the figure.
665RW010
4. Disconnect the sunroof harness connection.
5. Remove two sunroof frame
