ISUZU AXIOM 2002 Service Repair Manual 8F±29 BODY STRUCTURE A10R200011

Page 1906 of 2100

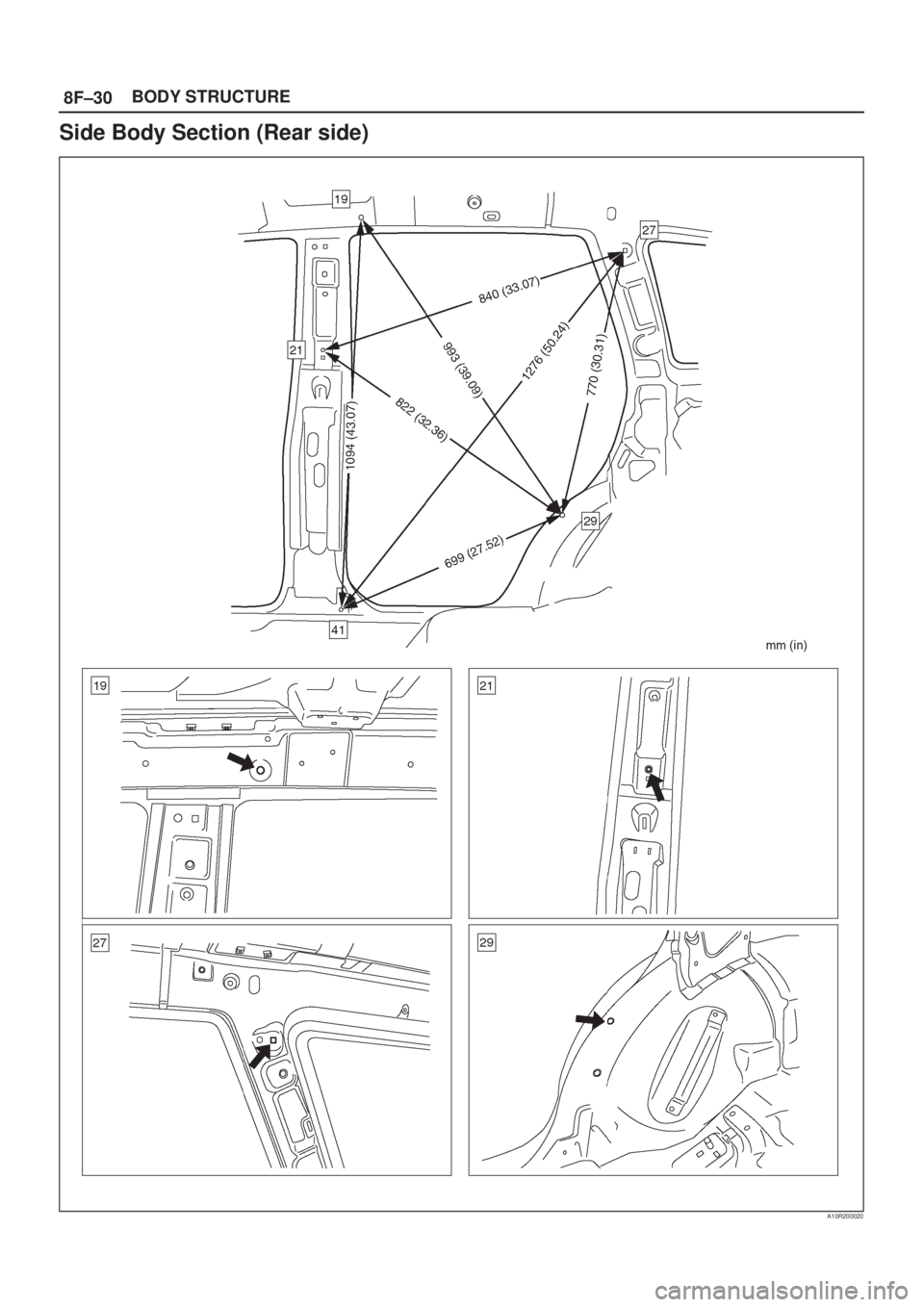

ISUZU AXIOM 2002 Service Repair Manual 8F±30BODY STRUCTURE Side Body Section (Rear side) A10R200020

Page 1907 of 2100

ISUZU AXIOM 2002 Service Repair Manual 8F±31 BODY STRUCTURE A10R200013

Page 1908 of 2100

ISUZU AXIOM 2002 Service Repair Manual 8F±32BODY STRUCTURE General Description (Body) This publication contains essential removal, installation, adjustment and maintenance procedures. Instrument Panel Assembly Parts Location 740R200024 Le

Page 1909 of 2100

ISUZU AXIOM 2002 Service Repair Manual 8F±33 BODY STRUCTURE Removal CAUTION: F o r p recautions on installation or removal of SRS ± air bag system, refer to Supplemental Restraint System (SRS) ± AIR BAG in Restraint section. 1. Disconn

Page 1910 of 2100

ISUZU AXIOM 2002 Service Repair Manual 8F±34BODY STRUCTURE Disconnect the instrument harness connectors (six connectors on the drivers side, three connectors on the passenger side and two connectors on the center side). Disconnect radi

Page 1911 of 2100

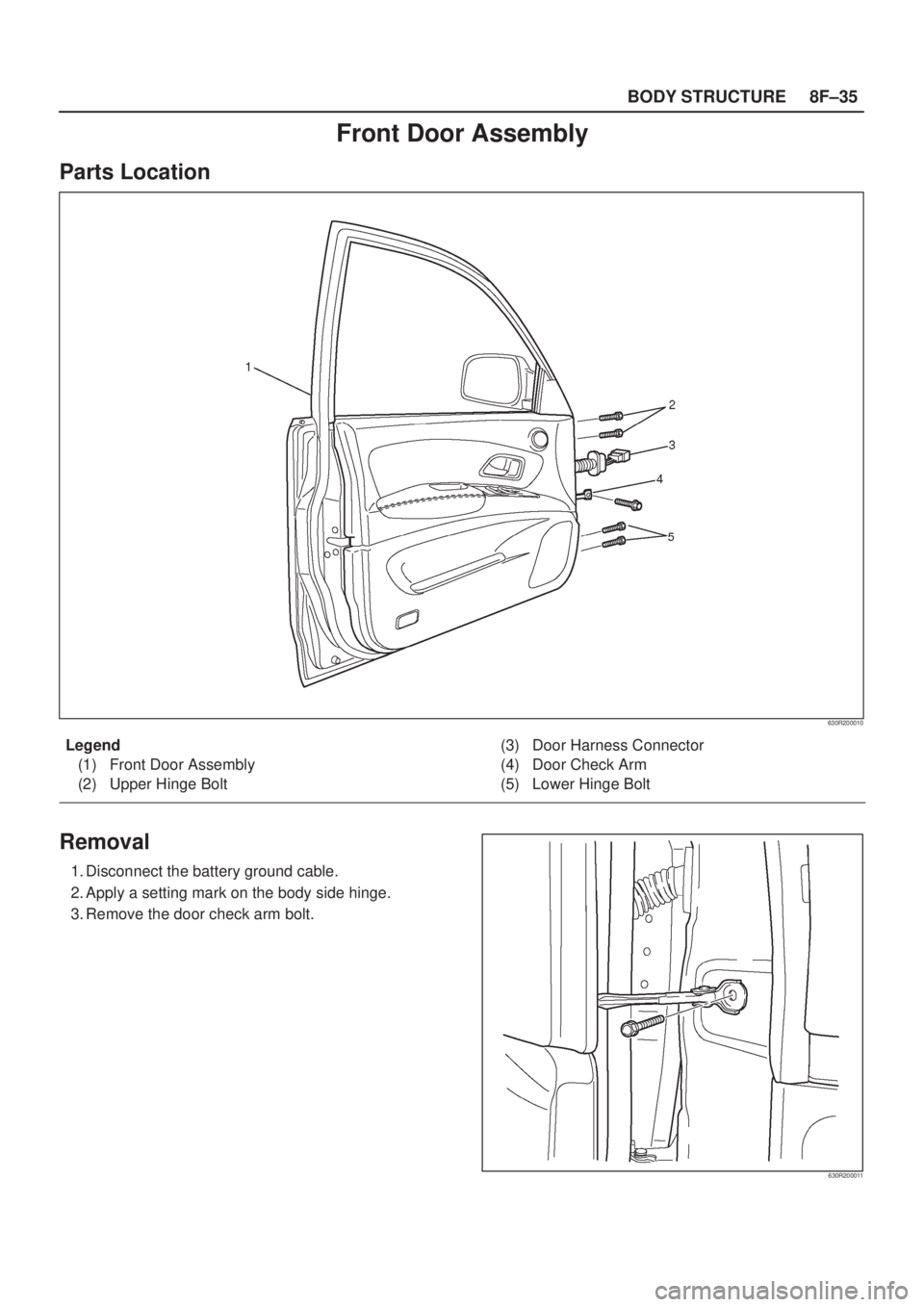

ISUZU AXIOM 2002 Service Repair Manual 8F±35 BODY STRUCTURE Front Door Assembly Parts Location 630R200010 Legend (1) Front Door Assembly (2) Upper Hinge Bolt(3) Door Harness Connector (4) Door Check Arm (5) Lower Hinge Bolt Removal 1. Dis

Page 1912 of 2100

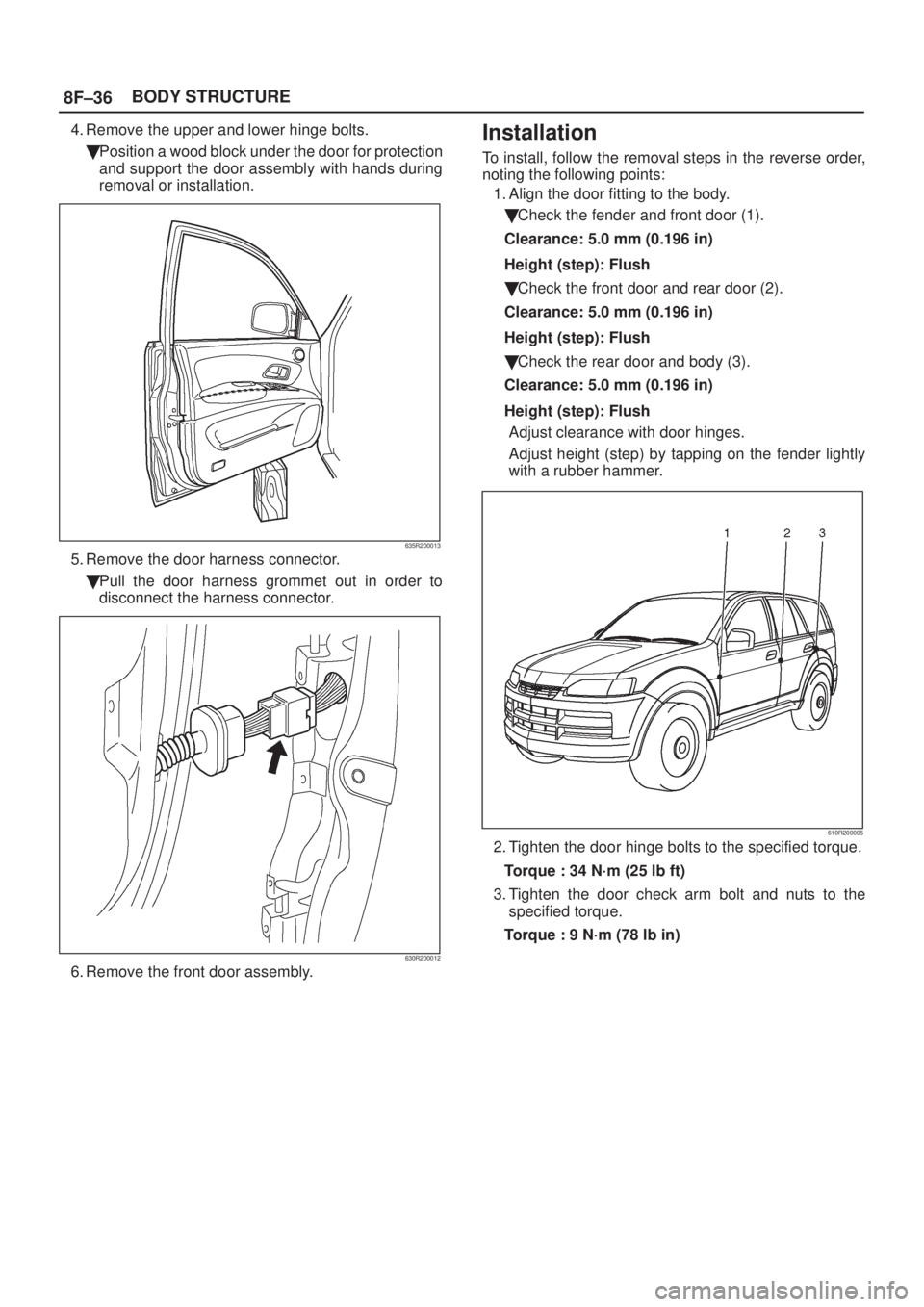

ISUZU AXIOM 2002 Service Repair Manual 8F±36BODY STRUCTURE 4. Remove the upper and lower hinge bolts. Position a wood block under the door for protection and support the door assembly with hands during removal or installation. 635R200013
