Page 505 of 2100

ISUZU AXIOM 2002 Service Repair Manual 4C±8 DRIVE SHAFT SYSTEM Front Hub and Disc (4WD Model) Disassembled View 411RW001 Legend (1) Bolt (2) Cap (3) Snap Ring and Shim (4) Hub Flange (5) Lock Washer and Lock Screw (6) Hub Nut(7) Outer Bea

Page 506 of 2100

ISUZU AXIOM 2002 Service Repair Manual 4C±9 DRIVE SHAFT SYSTEM 6. Remove snap ring and shim. 7. Remove hub flange. 8. Remove lock washer and lock screw. 9. Remove hub nut, using front hub nut wrench J±36827. 901RW054 10. Remove hub and d

Page 507 of 2100

ISUZU AXIOM 2002 Service Repair Manual 4C±10 DRIVE SHAFT SYSTEM Inspection and Repair Make necessary correction or parts replacement if wear, damage, corrosion or any other abnormal condition are found through inspection. Check the follow

Page 508 of 2100

ISUZU AXIOM 2002 Service Repair Manual 4C±11 DRIVE SHAFT SYSTEM 4. Install outer bearing. Install the outer race by driving it into the hub by using install J±36828 and grip J±8092. 901RW056 5. Install oil seal by using installer J±368

Page 509 of 2100

ISUZU AXIOM 2002 Service Repair Manual 4C±12 DRIVE SHAFT SYSTEM Preload Adjustment 1. Tighten the hub nut to 29 N´m (22 lb ft), then fully loosen the nut. 2. Tighten the hub nut to the value given below, using a spring scale on the whee

Page 510 of 2100

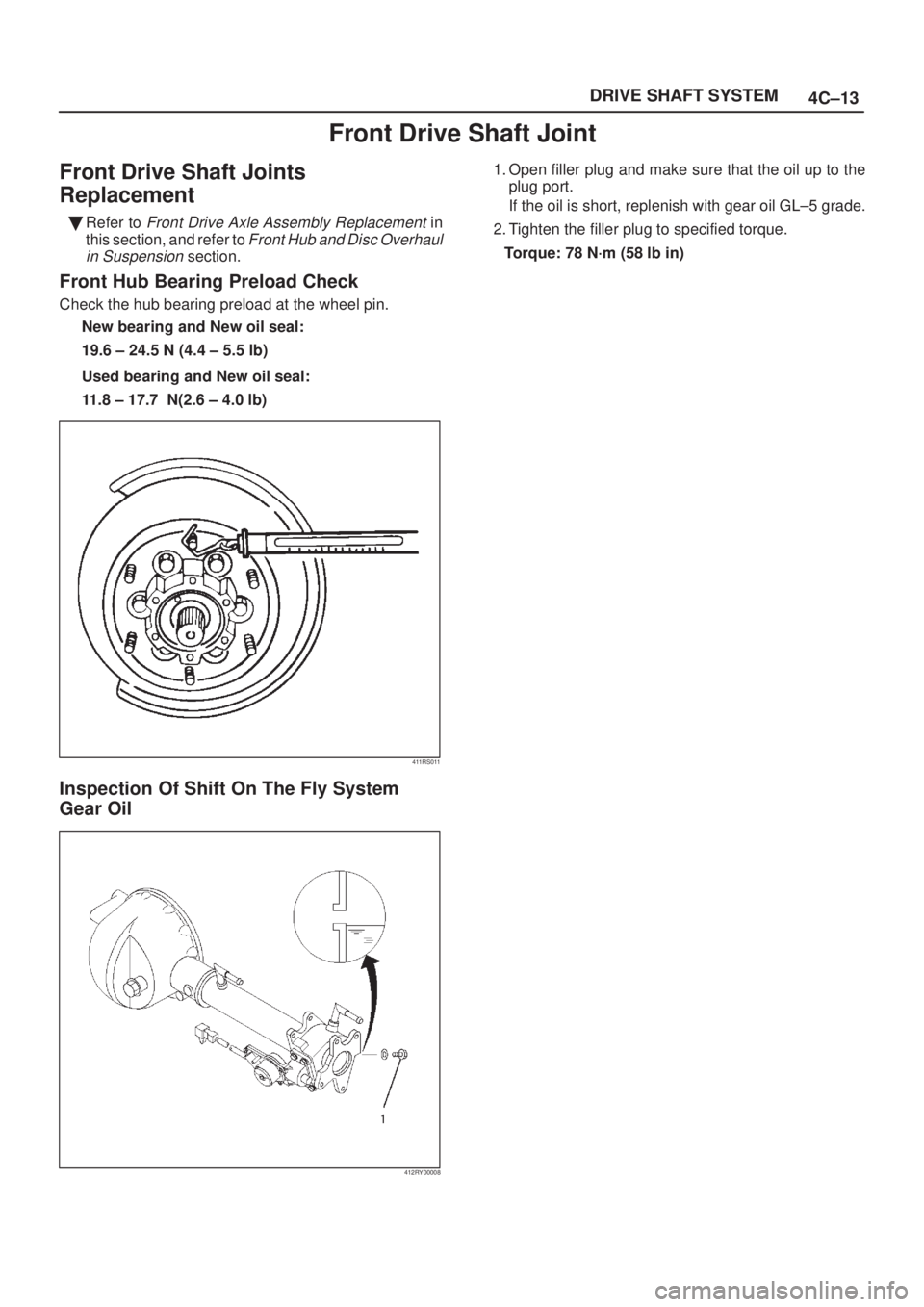

ISUZU AXIOM 2002 Service Repair Manual 4C±13 DRIVE SHAFT SYSTEM Front Drive Shaft Joint Front Drive Shaft Joints Replacement Refer to Front Drive Axle Assembly Replacement in this section, and refer to Front Hub and Disc Overhaul in Sus

Page 511 of 2100

ISUZU AXIOM 2002 Service Repair Manual 4C±14 DRIVE SHAFT SYSTEM Front Axle Drive Shaft Front Axle Drive Shaft and Associated Parts 412RY00036 Legend (1) Axle Case and Differential (2) Snap Ring (3) Bearing (4) Snap Ring (5) Oil Seal (6)

Page 512 of 2100

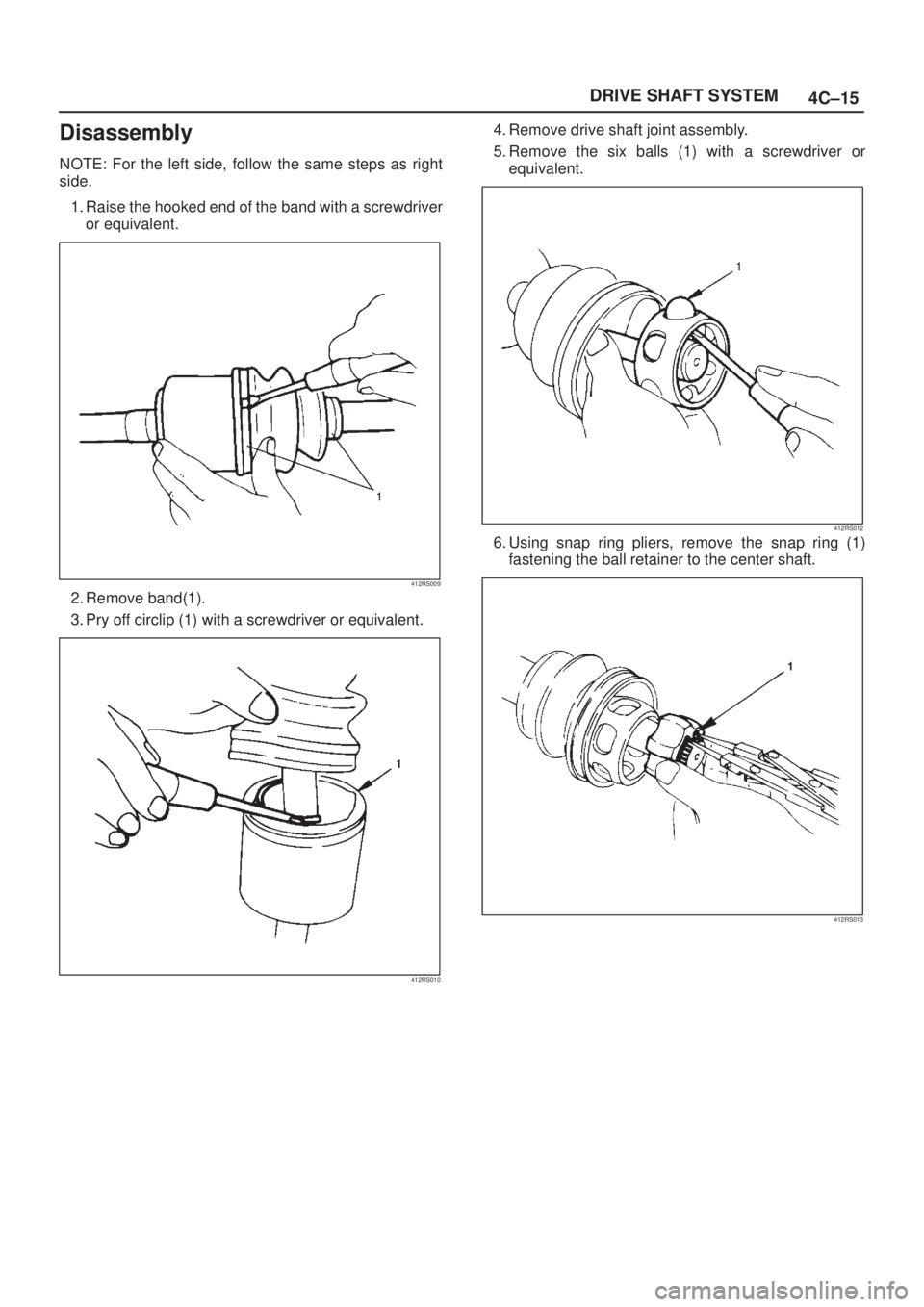

ISUZU AXIOM 2002 Service Repair Manual 4C±15 DRIVE SHAFT SYSTEM Disassembly NOTE: For the left side, follow the same steps as right side. 1. Raise the hooked end of the band with a screwdriver or equivalent. 412RS009 2. Remove band(1). 3.
