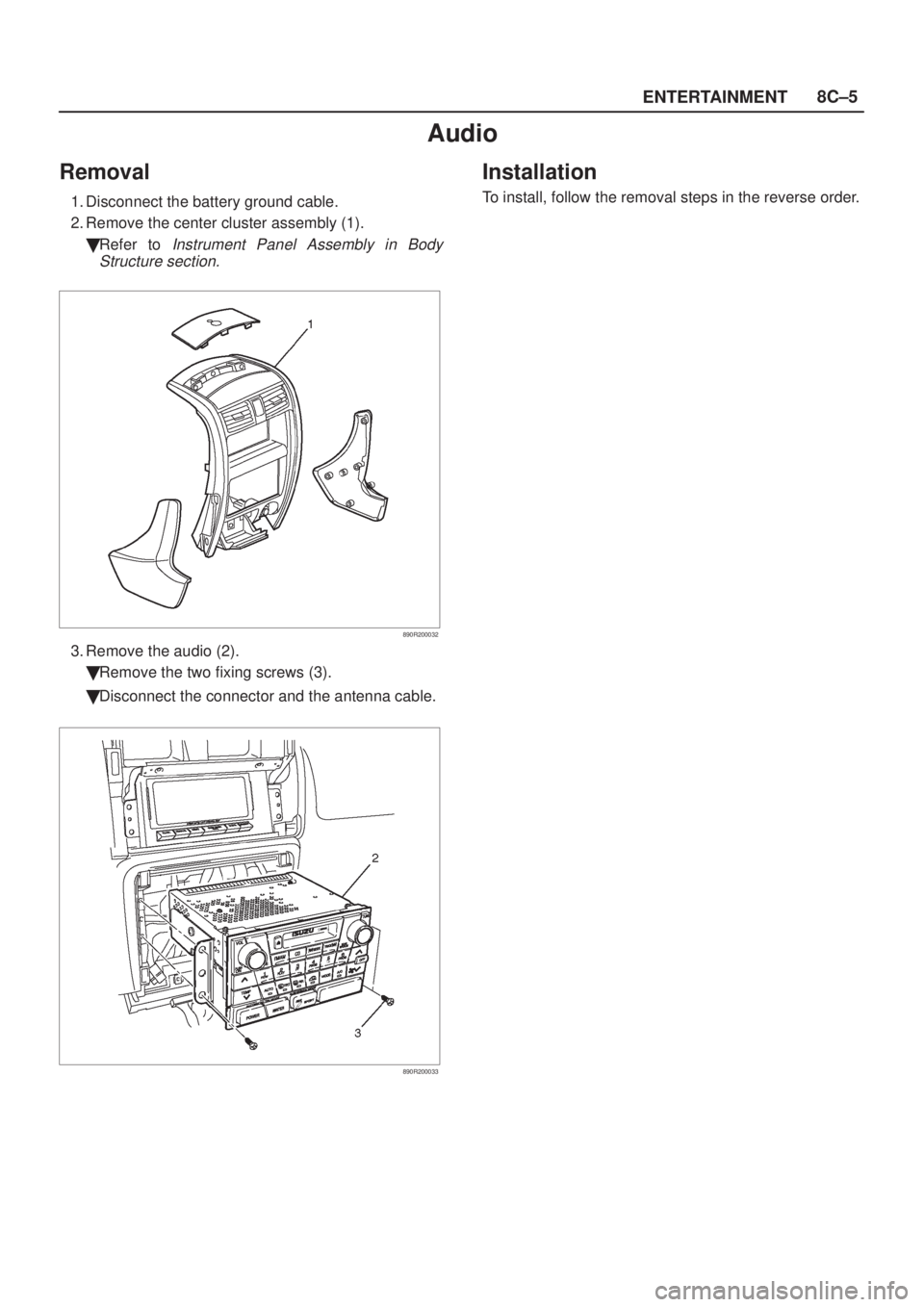

Page 1817 of 2100
ENTERTAINMENT8C±5
Audio
Removal
1. Disconnect the battery ground cable.
2. Remove the center cluster assembly (1).
Refer to
Instrument Panel Assembly in Body
Structure section.
890R200032
3. Remove the audio (2).
Remove the two fixing screws (3).
Disconnect the connector and the antenna cable.
890R200033
Installation
To install, follow the removal steps in the reverse order.

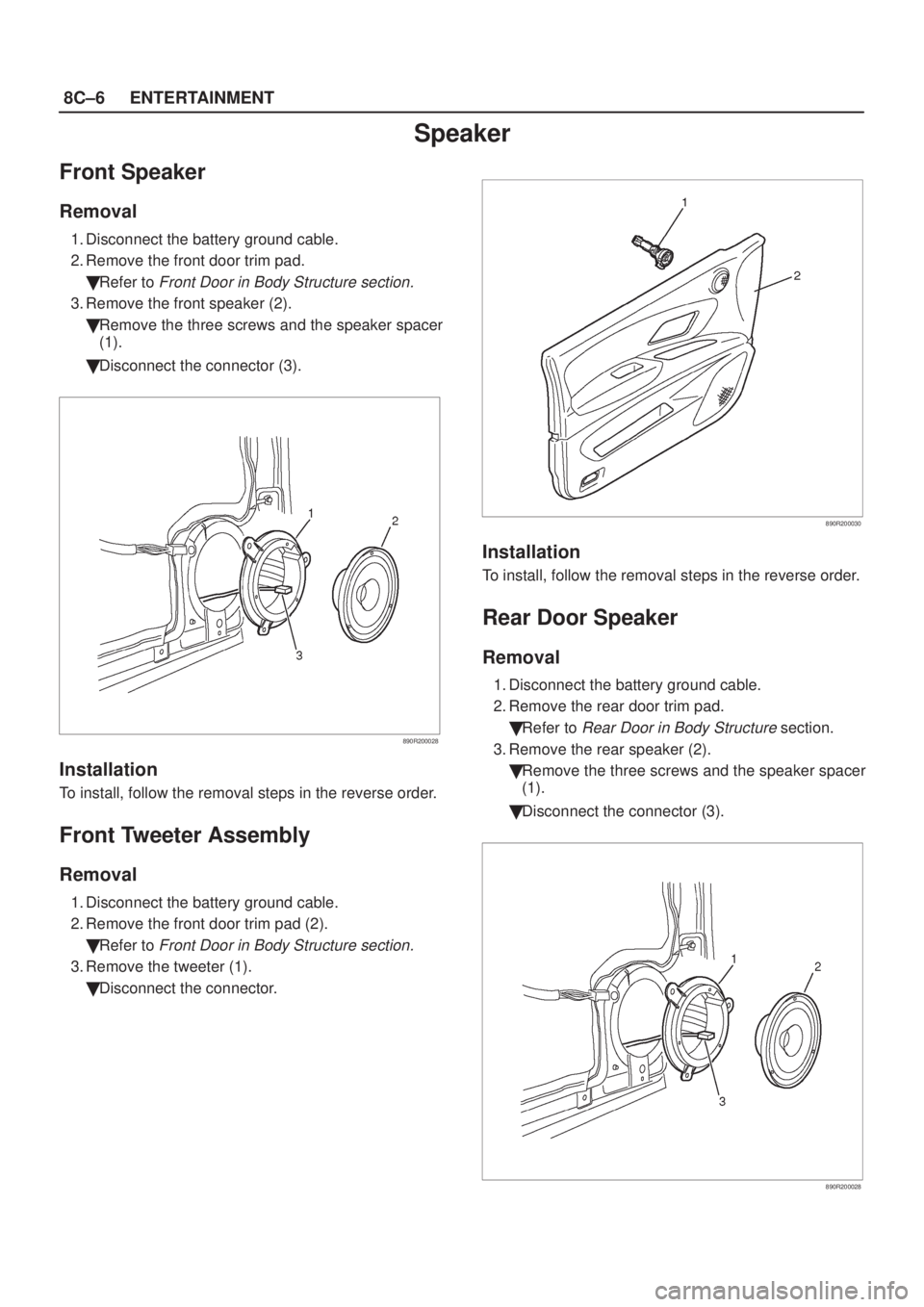

Page 1818 of 2100
8C±6ENTERTAINMENT
Speaker
Front Speaker
Removal
1. Disconnect the battery ground cable.
2. Remove the front door trim pad.
Refer to
Front Door in Body Structure section.
3. Remove the front speaker (2).
Remove the three screws and the speaker spacer
(1).
Disconnect the connector (3).
890R200028
Installation
To install, follow the removal steps in the reverse order.
Front Tweeter Assembly
Removal
1. Disconnect the battery ground cable.
2. Remove the front door trim pad (2).
Refer to
Front Door in Body Structure section.
3. Remove the tweeter (1).
Disconnect the connector.
890R200030
Installation
To install, follow the removal steps in the reverse order.
Rear Door Speaker
Removal
1. Disconnect the battery ground cable.
2. Remove the rear door trim pad.
Refer to
Rear Door in Body Structure section.
3. Remove the rear speaker (2).
Remove the three screws and the speaker spacer
(1).
Disconnect the connector (3).
890R200028

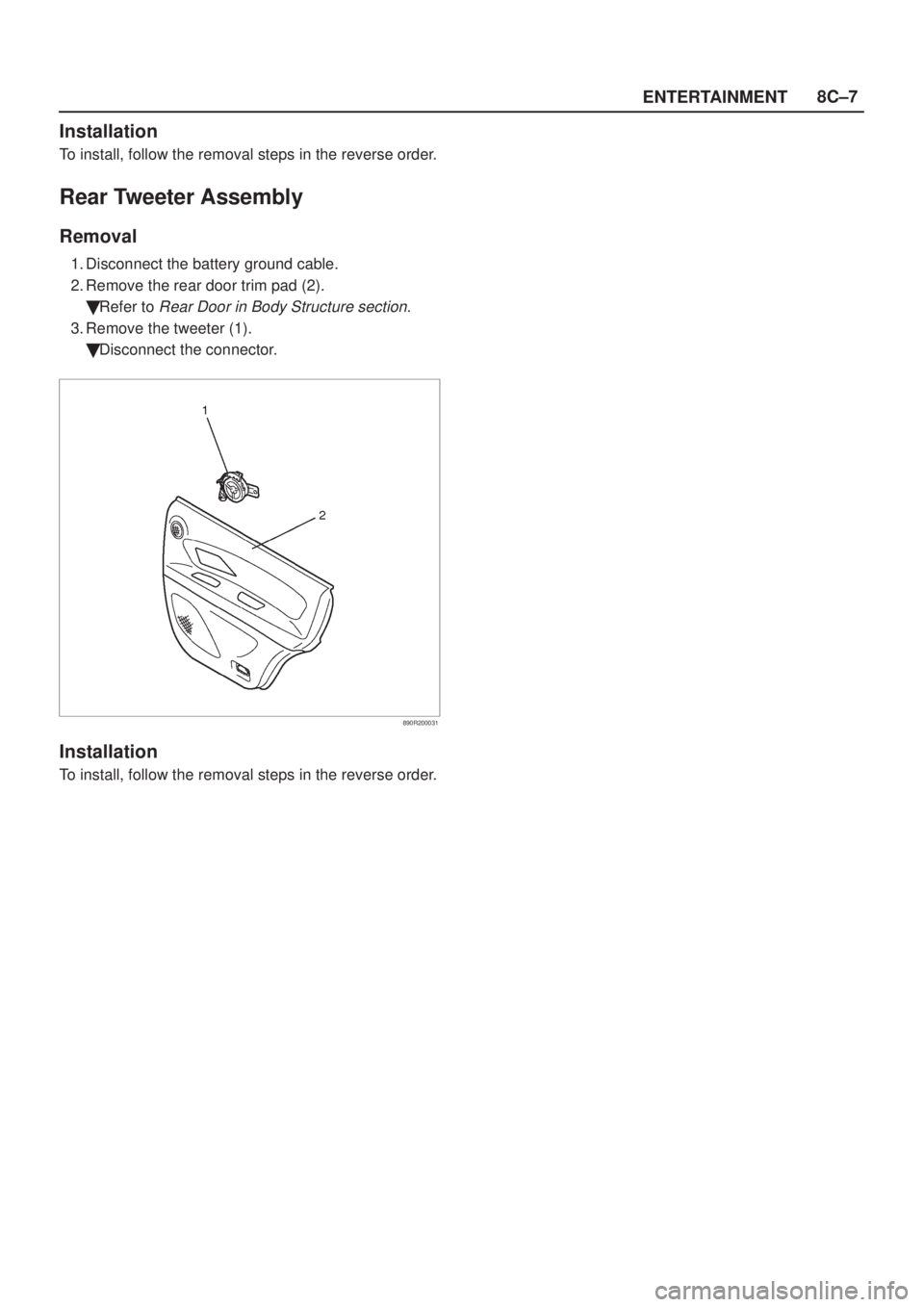

Page 1819 of 2100
ENTERTAINMENT8C±7
Installation
To install, follow the removal steps in the reverse order.
Rear Tweeter Assembly
Removal
1. Disconnect the battery ground cable.
2. Remove the rear door trim pad (2).
Refer to
Rear Door in Body Structure section.
3. Remove the tweeter (1).
Disconnect the connector.
890R200031
Installation
To install, follow the removal steps in the reverse order.
Page 1820 of 2100
8C±8ENTERTAINMENT
Horn
Removal
1. Disconnect the battery ground cable.
2. Remove the horn.
Disconnect the connector.
Remove the horn mounting bolt.
NOTE: High (1), Low (2)
828R200003
Installation
To install, follow the removal steps in the reverse order.
Display (MID)
Removal
1. Disconnect the battery ground cable.
2. Remove the cluster upper cover.
Disconnect the sun sensor connector and the GPS
control unit connector.
3. Remove the center cluster.
Refer to
Instrument Panel Assembly in Body
Structure.
4. Remove the Display (1).
Remove the screws (2).
Disconnect the Display connector and MID control
unit connector.
890R200036
Installation
To install, follow the removal steps in the reverse order.
Page 1821 of 2100

ENTERTAINMENT8C±9
MID Control Unit
Removal
1. Disconnect the battery ground cable.
2. Remove the MID control unit (3).
Refer to
MID (1) in this section.
Remove the control unit (3) from the bracket (2).
CAUTION: When the battery is disconnected, the
MID control unit directional data is lost (the control
unit returns to its start-up condition). When the
battery is reconnected, the display will be erroneous
until the control unit receives a clear GPS satellite
signal and resets its directional data.
After reconnecting the battery, wait until the satellite
mark indicator turns on. Select an area where there
are no high buildings or other obstacles to electro-
magnetic waves. Drive the vehicle in a straight line at
a speed exceeding 32 km/h (20 mph) for at least 20 se-
conds.
D08R200055
Installation
To install, follow the removal steps in the reverse order.
CAUTION: When installing the MID control unit,
turn the face with part number (4) stamped on the
MID control unit toward the front of vehicle.
Page 1822 of 2100
8C±10ENTERTAINMENT
GPS Control Unit
Removal
1. Disconnect the battery ground cable.
2. Remove the cluster upper cover (3).
Disconnect the sun sensor connector and the GPS
control unit connector.
3. Remove the GPS control unit (2).
Remove the screws (1).
890R200035
Installation
To install, follow the removal steps in the reverse order.

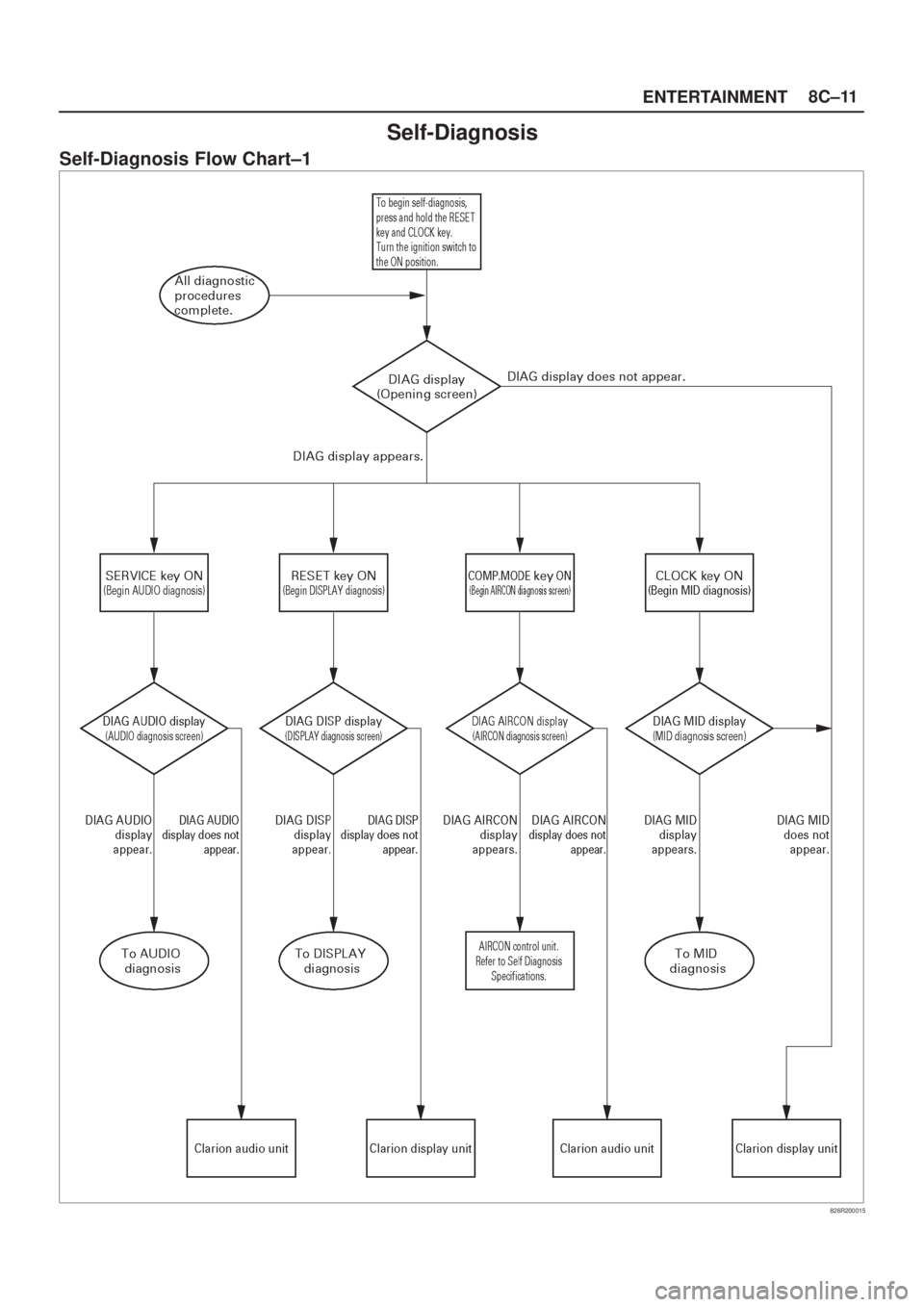

Page 1823 of 2100
ENTERTAINMENT8C±11
Self-Diagnosis
Self-Diagnosis Flow Chart±1
826R200015

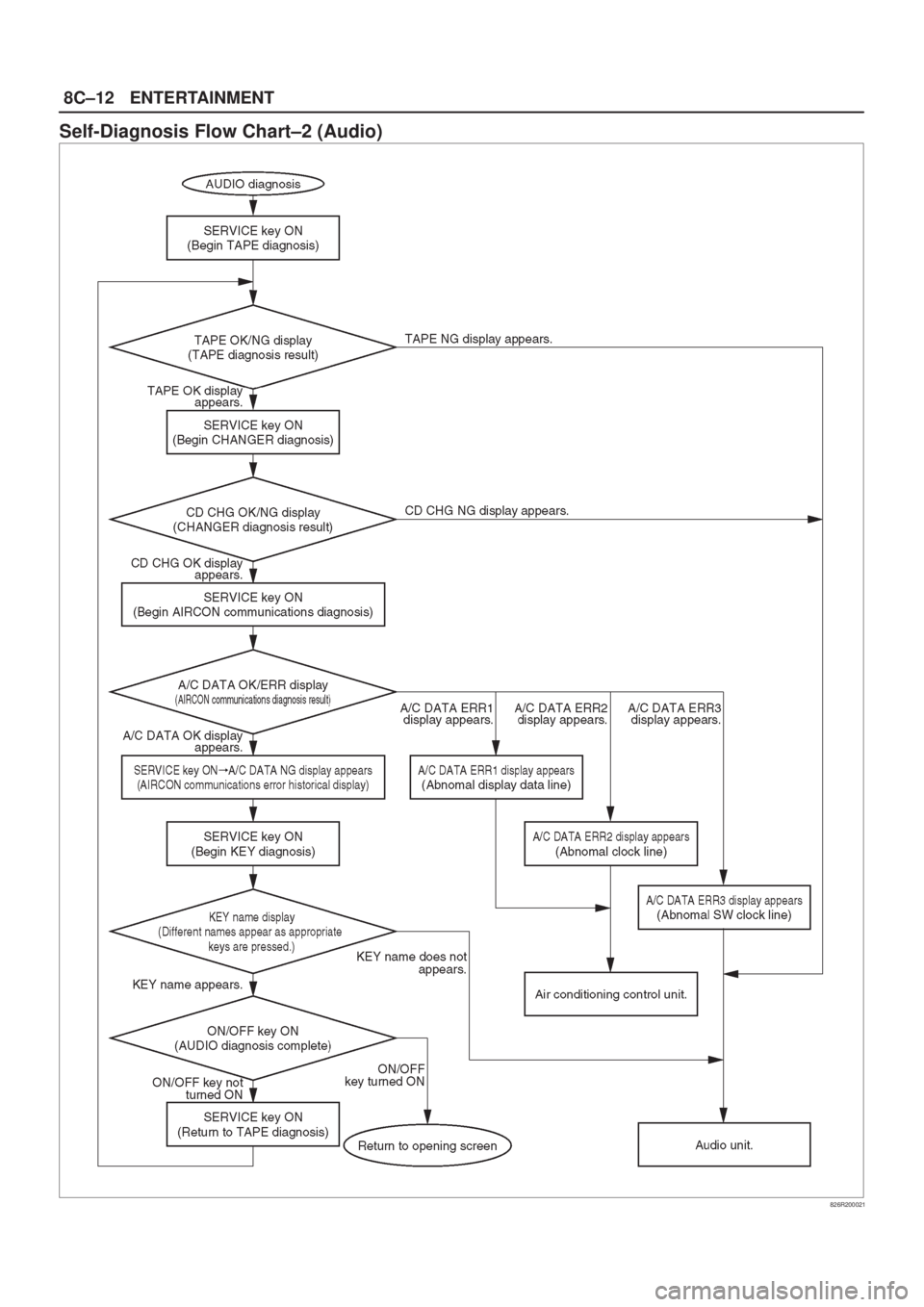

Page 1824 of 2100
8C±12ENTERTAINMENT
Self-Diagnosis Flow Chart±2 (Audio)
826R200021
