Page 1945 of 2100
SEATS8G±7

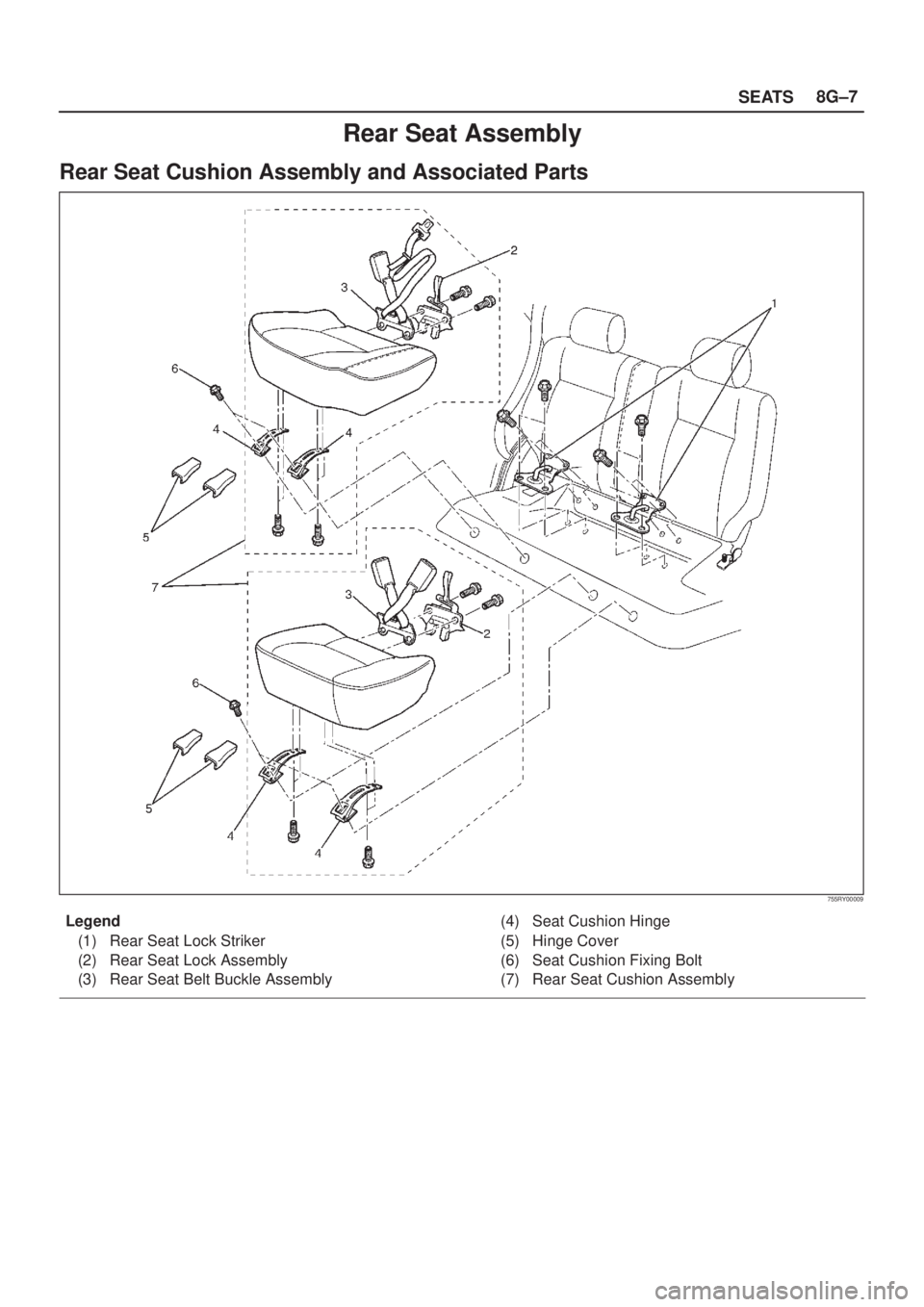

Rear Seat Assembly
Rear Seat Cushion Assembly and Associated Parts
755RY00009
Legend
(1) Rear Seat Lock Striker
(2) Rear Seat Lock Assembly
(3) Rear Seat Belt Buckle Assembly(4) Seat Cushion Hinge
(5) Hinge Cover
(6) Seat Cushion Fixing Bolt
(7) Rear Seat Cushion Assembly
Page 1946 of 2100

8G±8SEATS

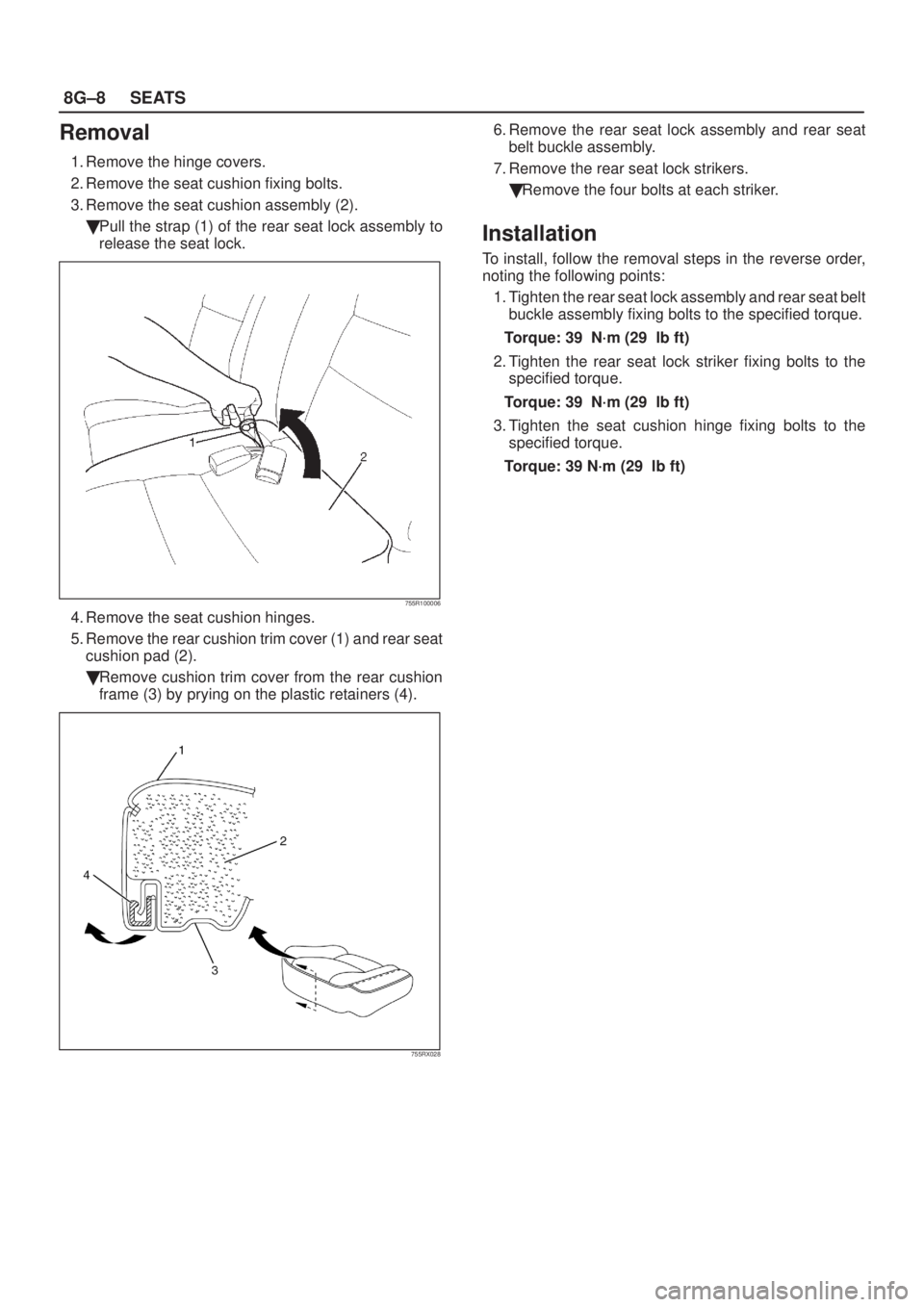

Removal
1. Remove the hinge covers.
2. Remove the seat cushion fixing bolts.
3. Remove the seat cushion assembly (2).
Pull the strap (1) of the rear seat lock assembly to
release the seat lock.
755R100006
4. Remove the seat cushion hinges.
5. Remove the rear cushion trim cover (1) and rear seat
cushion pad (2).
Remove cushion trim cover from the rear cushion
frame (3) by prying on the plastic retainers (4).
755RX028
6. Remove the rear seat lock assembly and rear seat
belt buckle assembly.
7. Remove the rear seat lock strikers.
Remove the four bolts at each striker.
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Tighten the rear seat lock assembly and rear seat belt
buckle assembly fixing bolts to the specified torque.
Torque: 39 N´m (29 lb ft)
2. Tighten the rear seat lock striker fixing bolts to the
specified torque.
Torque: 39 N´m (29 lb ft)
3. Tighten the seat cushion hinge fixing bolts to the
specified torque.
Torque: 39 N´m (29 lb ft)
Page 1947 of 2100
SEATS8G±9
Rear Seat Back Assembly and Associated Parts
755R200005
Legend
(1) Headrest
(2) Seat Back Assembly
(3) Guide Holder
(4) Release Knob(5) Seat Lock Cover
(6) Seat Lock Striker
(7) Side Hinge
(8) Body Floor Panel
(9) Center Hinge
Removal
1. Pull the release knob and pull the seat back assembly
forward.
2. Remove the seat lock covers.
Remove the three screws from each side.
3. Remove the luggage floor carpets.
Pull the nine carpet fixing clips from the backside of
the seat back assembly.4. Remove the seat back assembly.
Remove the four fixing bolts at each seat back.
5. Remove the headrests.
6. Remove the release knobs.
Turn the knob counterclockwise to remove it.
7. Remove the trim covers.
8. Remove the guide holders.
9. Remove the side hinges.
Remove the one fixing nut at each side hinge.
Page 1948 of 2100
8G±10SEATS

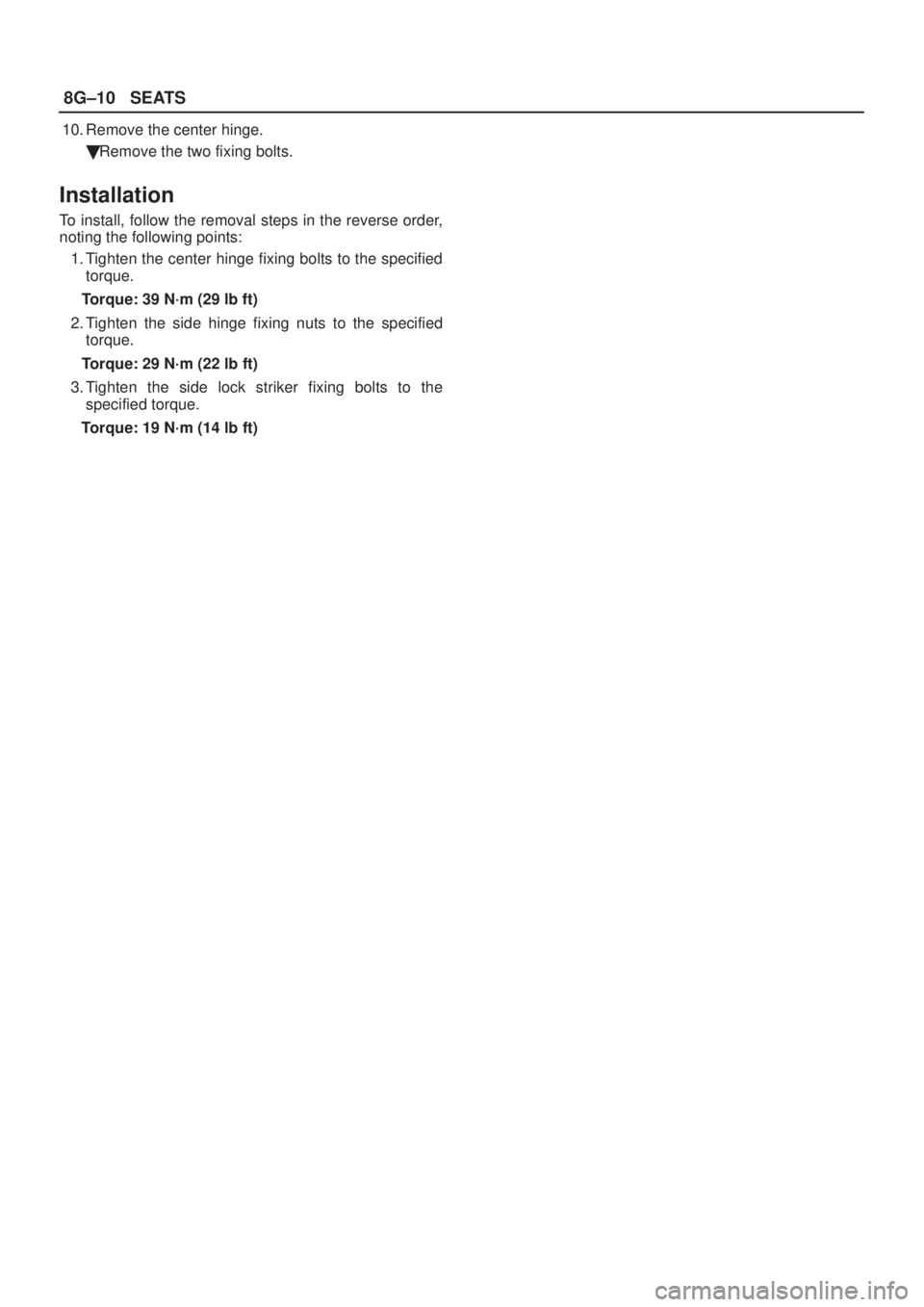

10. Remove the center hinge.
Remove the two fixing bolts.
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Tighten the center hinge fixing bolts to the specified
torque.
Torque: 39 N´m (29 lb ft)
2. Tighten the side hinge fixing nuts to the specified
torque.
Torque: 29 N´m (22 lb ft)
3. Tighten the side lock striker fixing bolts to the
specified torque.
Torque: 19 N´m (14 lb ft)
Page 1949 of 2100
SEATS8G±11

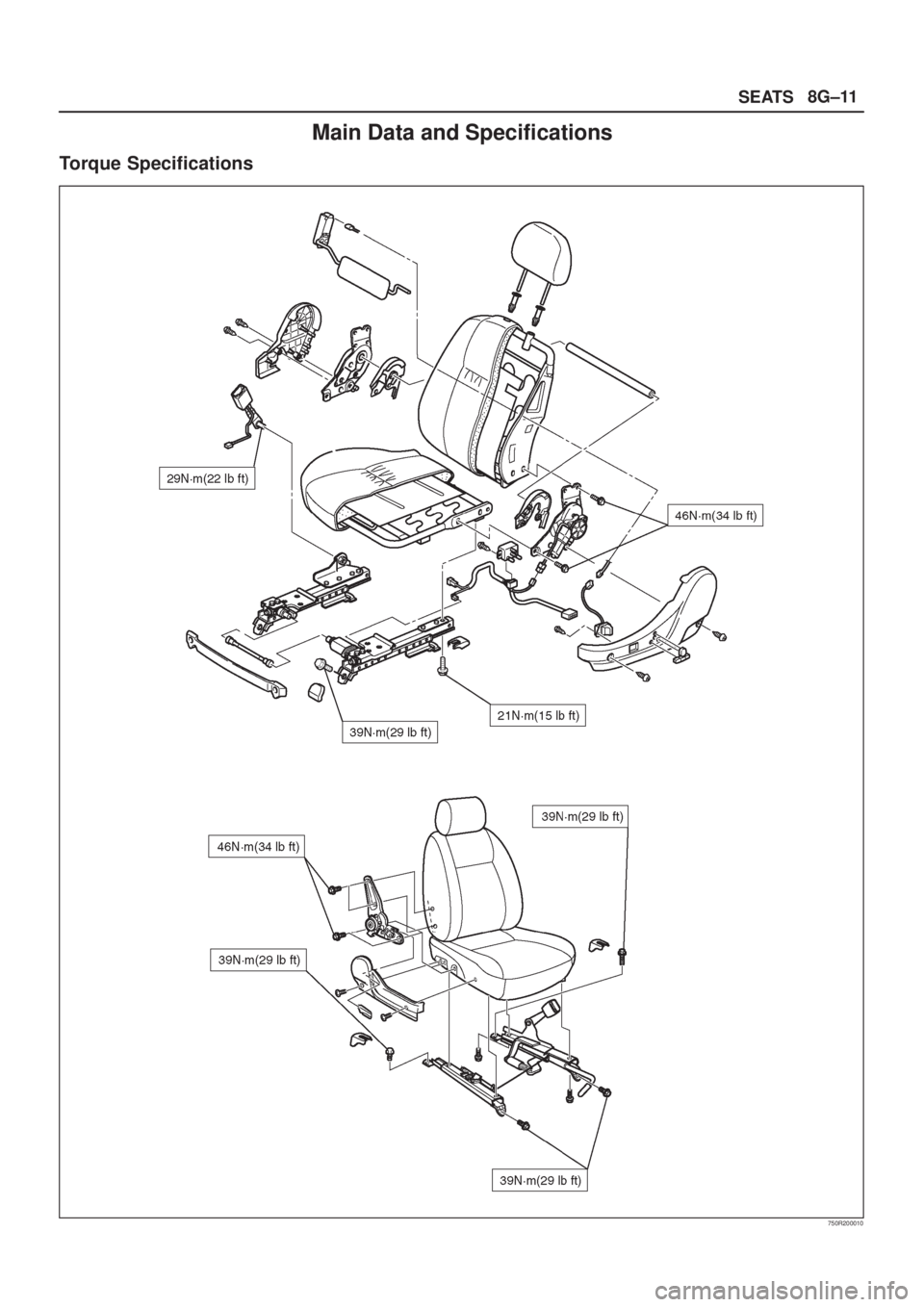

Main Data and Specifications

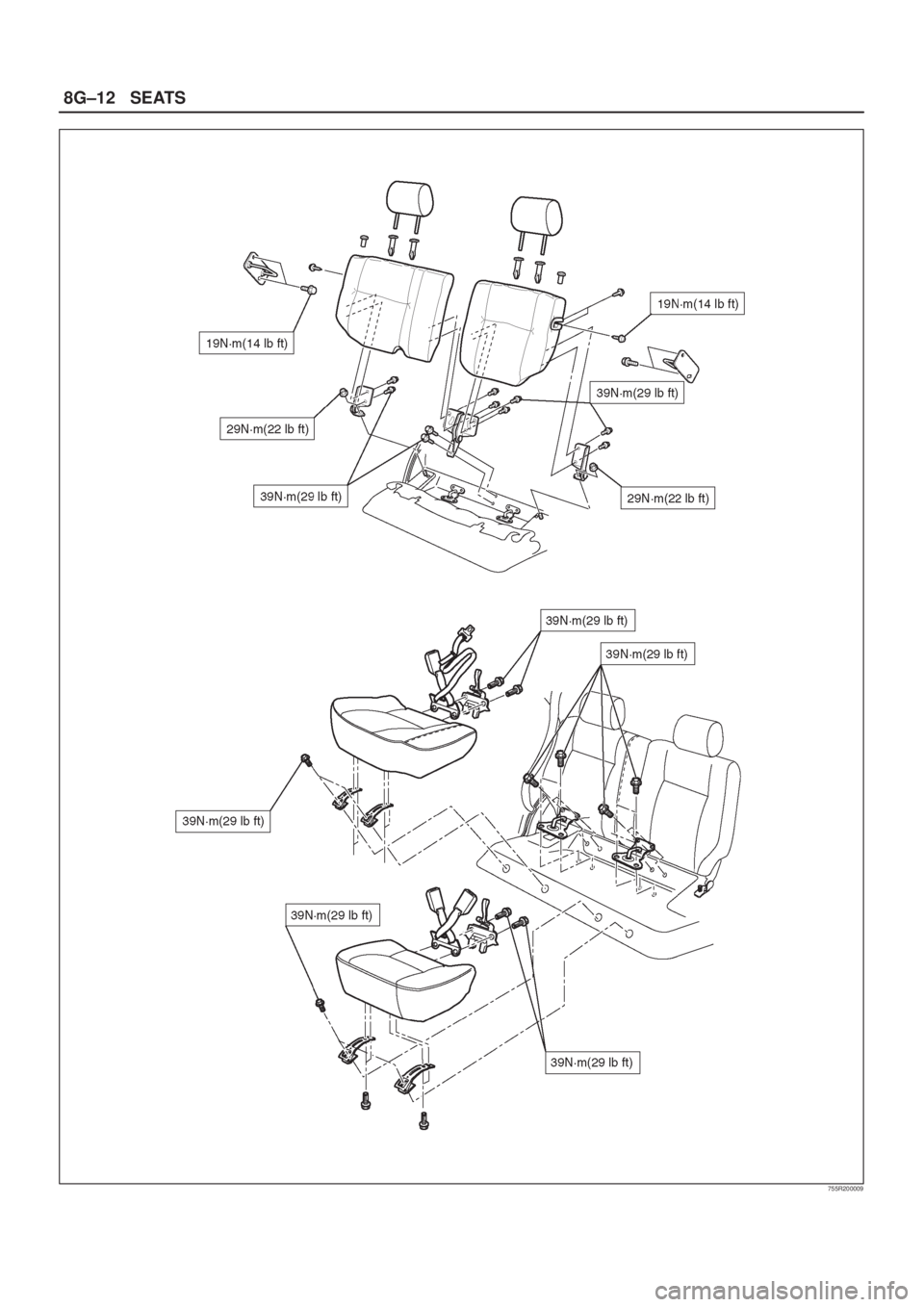

Torque Specifications
750R200010
Page 1950 of 2100
Page 1951 of 2100

SECURITY AND LOCKS8H±1
AXIOM
BODY AND ACCESSORIES
SECURITY AND LOCKS
CONTENTS
Service Precaution 8H±1. . . . . . . . . . . . . . . . . . . . . .
Front Door Lock Assembly 8H±2. . . . . . . . . . . . . . .
Front Door Lock Assembly and Associated
Parts 8H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Outside Handle 8H±5. . . . . . . . . . . . . . . . . . . .
Front Outside Handle and Associated Parts 8H±5
Removal 8H±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Lock Assembly 8H±6. . . . . . . . . . . . . . . .
Rear Door Lock Assembly and Associated
Parts 8H±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8H±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Outside Handle 8H±9. . . . . . . . . . . . . . . . . . . .
Rear Outside Handle and Associated Parts 8H±9
Removal 8H±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate Lock and Outside Handle 8H±10. . . . . . . . .
Tailgate Lock, Outside Handle and
Associated Parts 8H±10. . . . . . . . . . . . . . . . . . . . . . Removal 8H±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Coding 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Styles 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Door Lock System 8H±13. . . . . . . . . . . . . . . .
General Description 8H±13. . . . . . . . . . . . . . . . . . . .
Door Lock Key Switch 8H±13. . . . . . . . . . . . . . . . . .
Front Door Lock Actuator 8H±13. . . . . . . . . . . . . . .
Rear Door Lock Actuator 8H±13. . . . . . . . . . . . . . .
Tailgate Lock Actuator 8H±13. . . . . . . . . . . . . . . . . .
Anti-Theft System 8H±14. . . . . . . . . . . . . . . . . . . . . . .
General Description 8H±14. . . . . . . . . . . . . . . . . . . .
Anti±Theft & Keyless Entry Controller 8H±14. . . .
Anti±Theft Indicator 8H±14. . . . . . . . . . . . . . . . . . . .
Anti±Theft Horn 8H±14. . . . . . . . . . . . . . . . . . . . . . .
Engine Hood Switch 8H±15. . . . . . . . . . . . . . . . . . .
Anti±theft & Keyless Entry Control
Unit/Transmitter Replacement 8H±15. . . . . . . . . .
Keyless Entry System 8H±16. . . . . . . . . . . . . . . . . . . .
ID Code Registration 8H±16. . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8H±19. . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.
Page 1952 of 2100
8H±2SECURITY AND LOCKS
Front Door Lock Assembly
Front Door Lock Assembly and Associated Parts
635R200008
Legend
(1) Door Mirror Cover
(2) Power Window Switch
(3) Door Trim Panel
(4) Inside Lock Bracket
(5) Inside Handle(6) Pull Box
(7) Pull Box Bracket
(8) Waterproof Sheet
(9) Door Lock Assembly
(10) Door Lock Cylinder
(11) Outside Handle
Removal
1. Disconnect the battery ground cable.
2. Remove the pull box.
Remove the one fixing screw.
635R200004
