Page 1993 of 2100

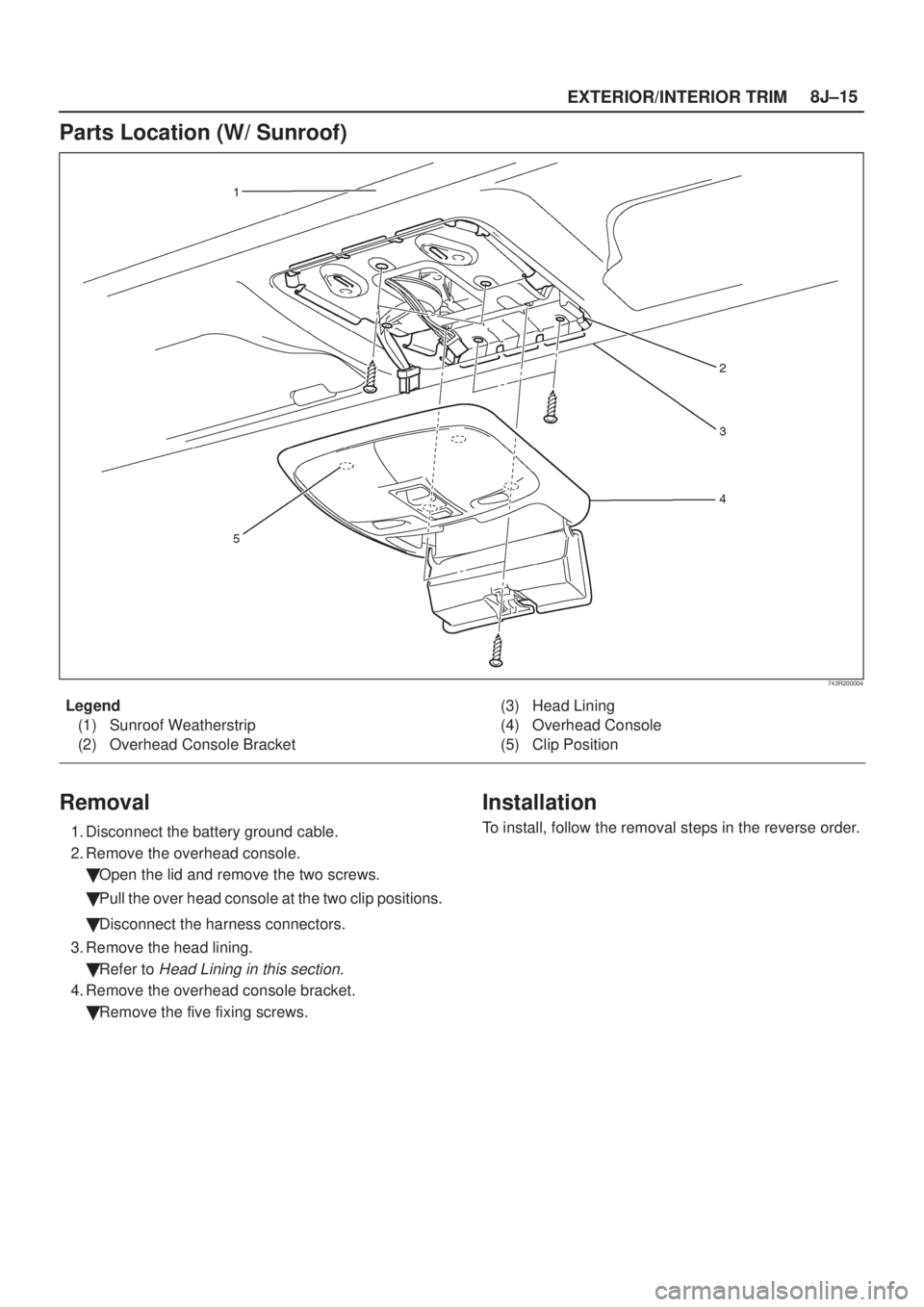

ISUZU AXIOM 2002 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±15 Parts Location (W/ Sunroof) 743R200004 Legend (1) Sunroof Weatherstrip (2) Overhead Console Bracket(3) Head Lining (4) Overhead Console (5) Clip Position Removal 1. Discon

Page 1994 of 2100

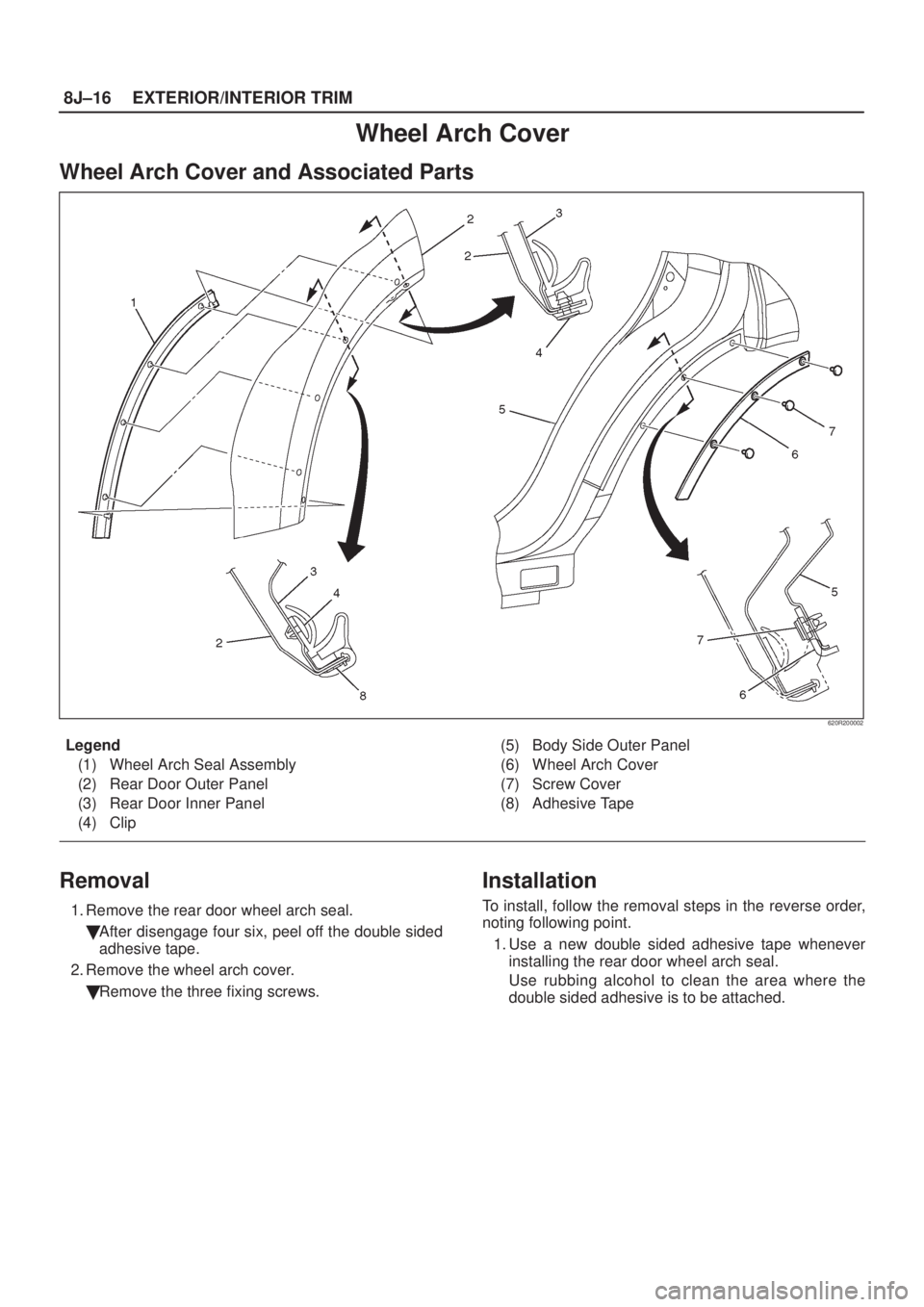

ISUZU AXIOM 2002 Service Repair Manual 8J±16EXTERIOR/INTERIOR TRIM Wheel Arch Cover Wheel Arch Cover and Associated Parts 620R200002 Legend (1) Wheel Arch Seal Assembly (2) Rear Door Outer Panel (3) Rear Door Inner Panel (4) Clip(5) Body

Page 1995 of 2100

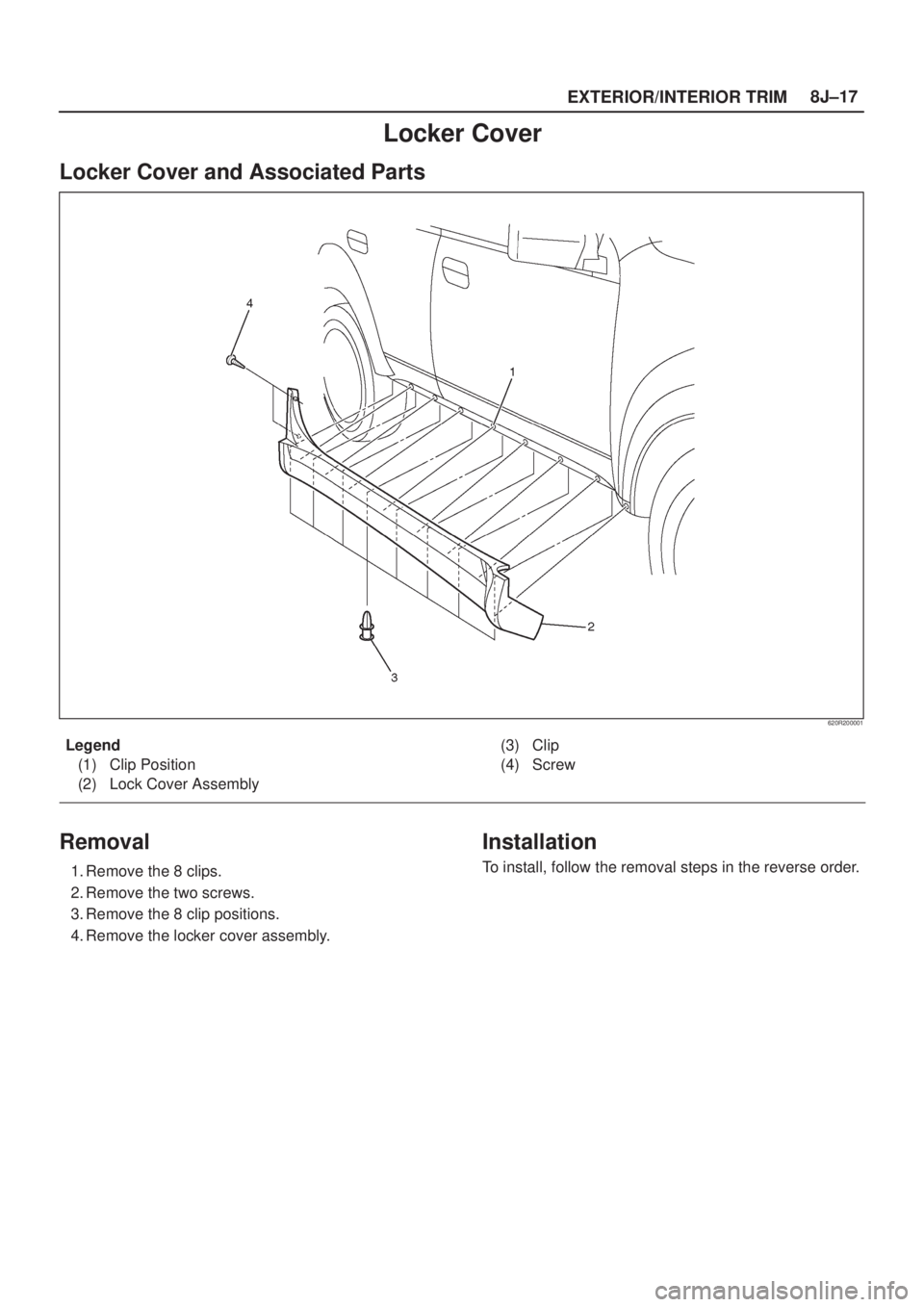

ISUZU AXIOM 2002 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±17 Locker Cover Locker Cover and Associated Parts 620R200001 Legend (1) Clip Position (2) Lock Cover Assembly(3) Clip (4) Screw Removal 1. Remove the 8 clips. 2. Remove the t

Page 1996 of 2100

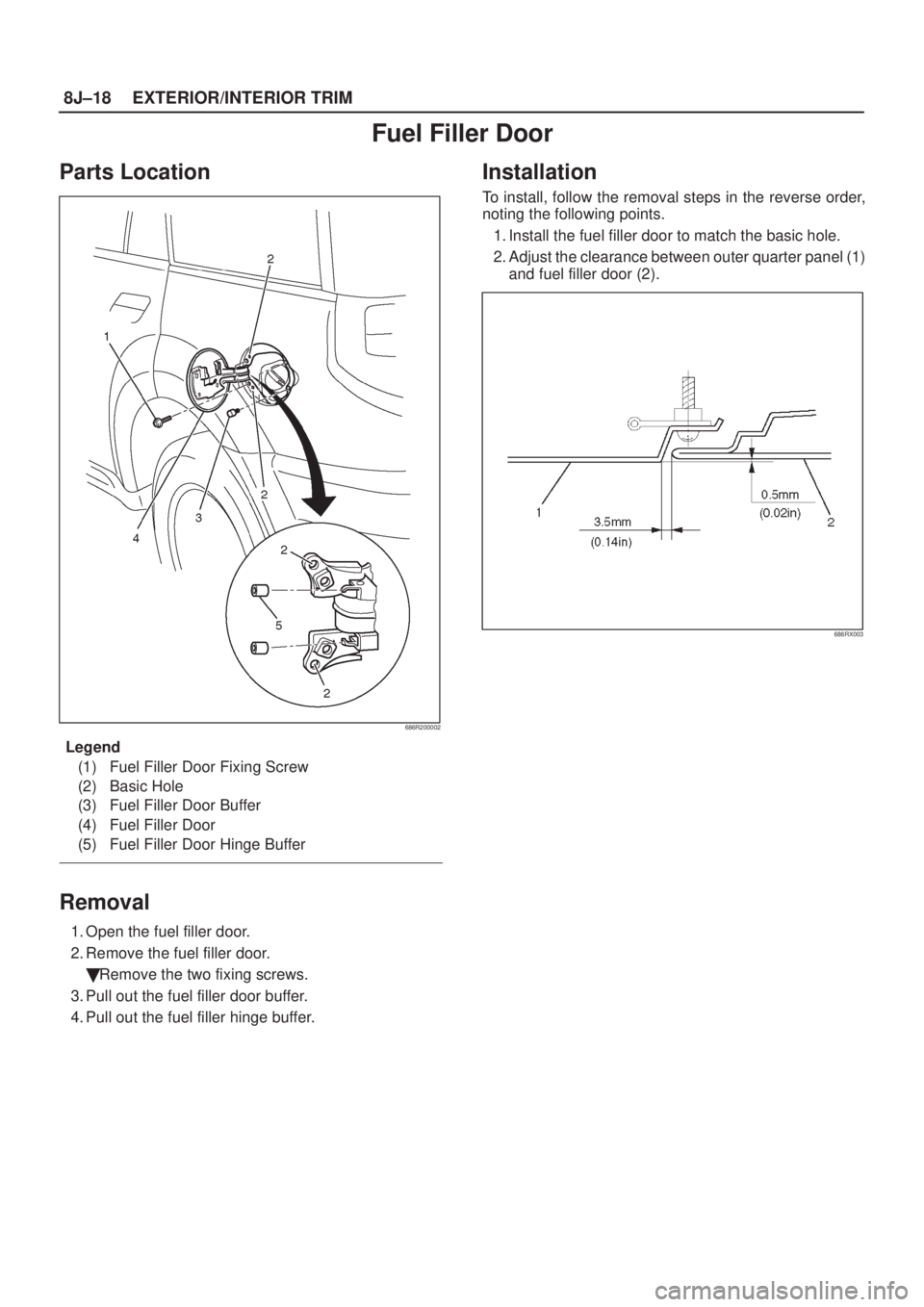

ISUZU AXIOM 2002 Service Repair Manual 8J±18EXTERIOR/INTERIOR TRIM Fuel Filler Door Parts Location 686R200002 Legend (1) Fuel Filler Door Fixing Screw (2) Basic Hole (3) Fuel Filler Door Buffer (4) Fuel Filler Door (5) Fuel Filler Door Hi

Page 1997 of 2100

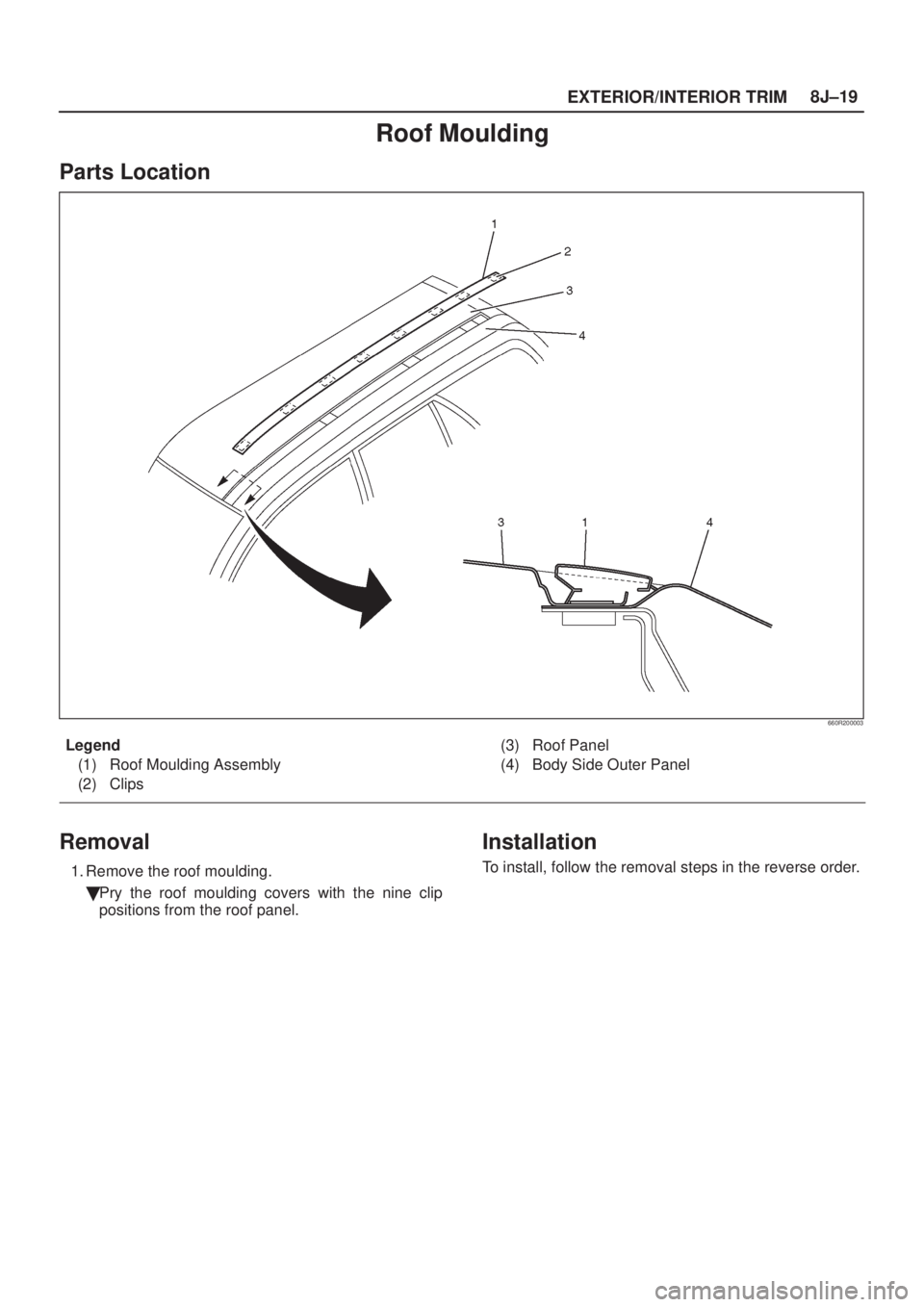

ISUZU AXIOM 2002 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±19 Roof Moulding Parts Location 660R200003 Legend (1) Roof Moulding Assembly (2) Clips(3) Roof Panel (4) Body Side Outer Panel Removal 1. Remove the roof moulding. Pry the r

Page 1998 of 2100

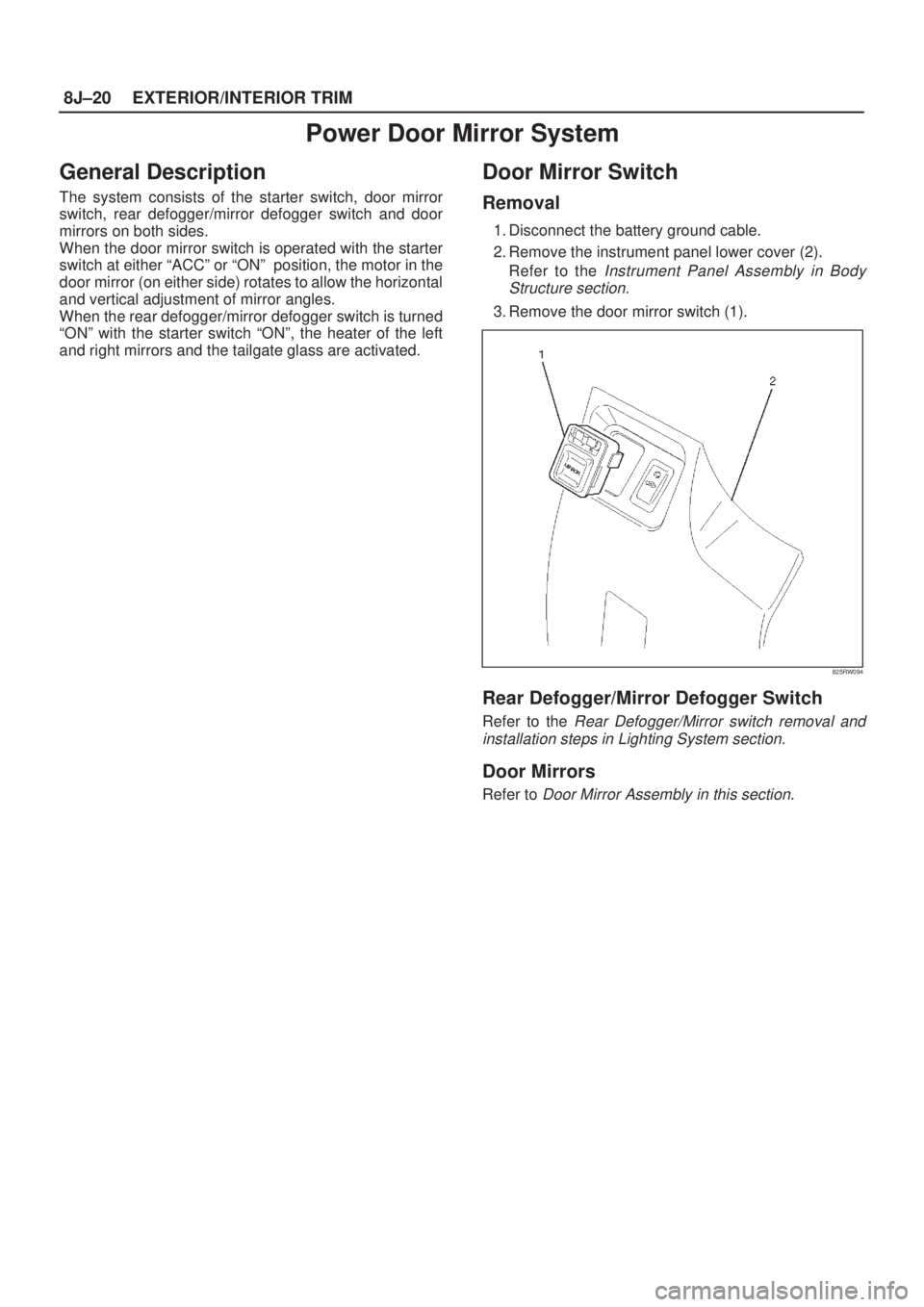

ISUZU AXIOM 2002 Service Repair Manual 8J±20EXTERIOR/INTERIOR TRIM Power Door Mirror System General Description The system consists of the starter switch, door mirror switch, rear defogger/mirror defogger switch and door mirrors on both s

Page 1999 of 2100

ISUZU AXIOM 2002 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±21 Power Window System General Description The power window system consists of power window switches and power window motors on driver and passenger sides and power window re

Page 2000 of 2100

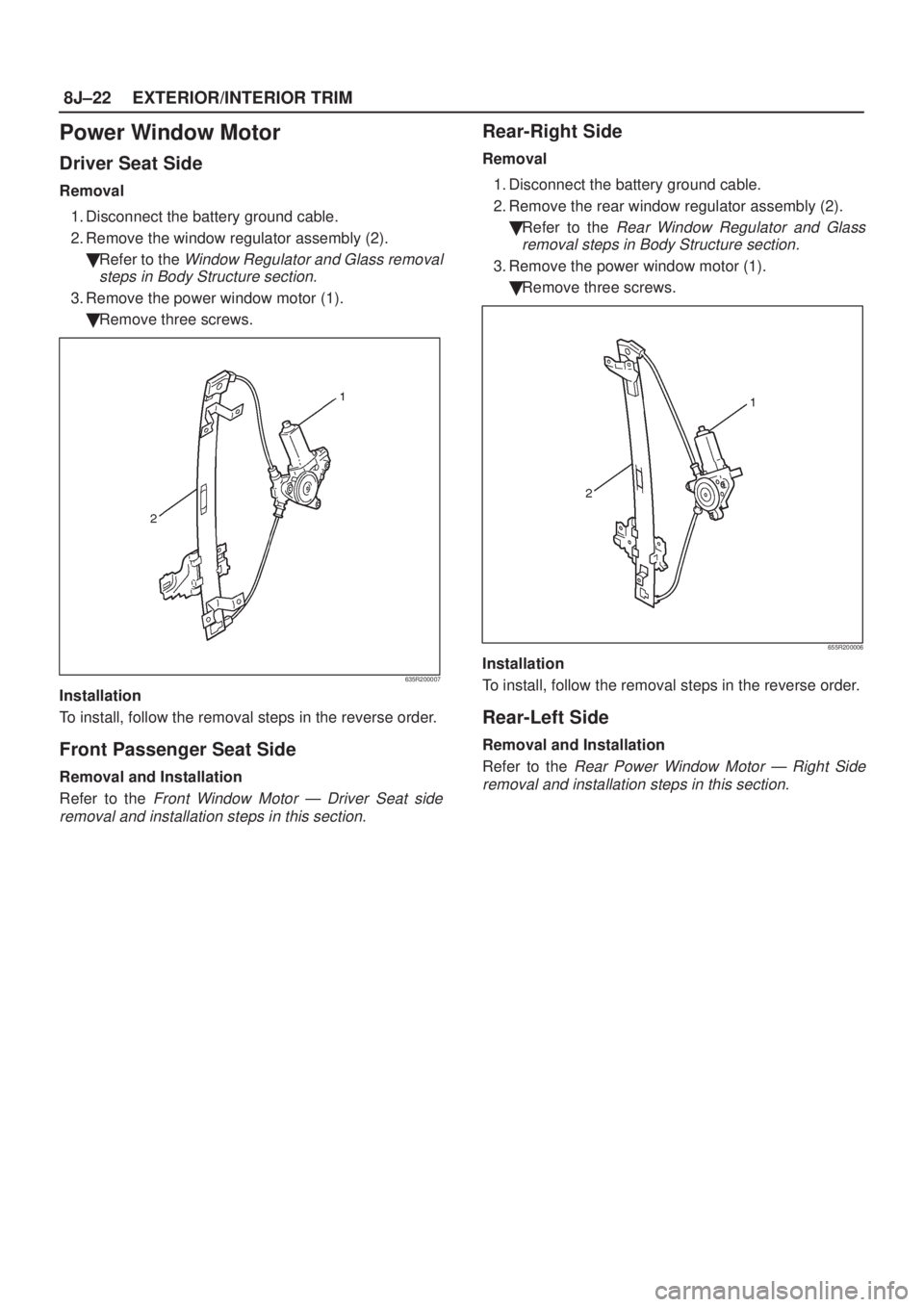

ISUZU AXIOM 2002 Service Repair Manual 8J±22EXTERIOR/INTERIOR TRIM Power Window Motor Driver Seat Side Removal 1. Disconnect the battery ground cable. 2. Remove the window regulator assembly (2). Refer to the Window Regulator and Glass
