INTELLIGENT SUSPENSION3F±5
Vertical G-Sensor
Front G-sensors installed inside front actuators and the
rear G-sensor installed on the rear left frame side detect
the vehicle vertical gravity and send a signal to the Control
Unit.
Lateral G-Sensor
The G-sensor installed inside the Control Unit detects the
vehicle turning speed and sends a signal to the Control
Unit.
Acronyms and Abbreviations
Several acronyms and abbreviations are commonly used
throughout this section:
BATT
Battery
DLC
Data Link Connector
DTC
Diagnostic Trouble Code
FL
Front Left
FR
Front Right
GND
Ground
HARN
Harness
IG
Ignition
PCM
Powertrain Control Module
RL
Rear Left
RR
Rear Right
SW
Switch
W/L
Warning Lamp
Vout
Voltage output
General Diagnosis
General Information
Intelligent Suspension Control troubles can be classified
into two types, those which can be detected by the
warning lamp and those which can be detected as a
vehicle abnormality by the driver.
In either case, locate the fault in accordance with
theªBASIC DIAGNOSTIC FLOWCHARTº and repair.
Please refer to
Section 3 for the diagnosis of mechanical
troubles such as abnormal noise, vehicle pulls, excessive
tire wear, wheel hop and shimmy, shake or vibration.
Service Precautions
Required Tools and Items:

Box Wrench

Special Tool
Some diagnosis procedures in this section require the
installation of a special tool.
J-39200 High Impedance Multimeter
When circuit measurements are requested, use a
circuit tester with high impedance.
Computer System Service Precautions
The Intelligent Suspension Control interfaces directly
with the Control Unit which is a control computer that is
similar in some regards to the Powertrain Control Module.
These modules are designed to withstand normal current
draws associated with vehicle operation. However care
must be taken to avoid overloading any of the Control Unit
circuits. In testing for opens or shorts, do not ground or
apply voltage to any of the circuits unless instructed to do
so by the appropriate diagnostic procedure. These
circuits should only be tested with a high impedance
multimeter (J-39200) or special tools as described in this
section. Power should never be removed or applied to
any control module with the ignition in the ªONº
position.Before removing or connecting battery cables,
fuses or connectors, always turn the ignition switch to
theªOFFº position.
General Service Precautions
The following are general precautions which should be
observed when servicing and diagnosing the Intelligent
Suspension Control and/or other vehicle systems. Failure
to observe these precautions may result in Intelligent
Suspension Control damage.

If welding work is to be performed on the vehicle using
an electric arc welder, the Control Unit connectors
should be disconnected before the welding operation
begins.

The Control Unit connectors should never be
connected or disconnected with the ignitionªONº.
Parts Handling
Be careful when handling the actuator, control unit, or
G-sensor. They should not be dropped or thrown,
because the semi-conductor G-sensor tip damage may
result.

5A±11
BRAKE CONTROL SYSTEM
Acronyms and Abbreviations
Several acronyms and abbreviations are commonly used
throughout this section:
ABS
Anti-lock Brake System
CIM
Coil Integrated Module
CKT
Circuit
DLC
Data Link Connector
EHCU
Electronic Hydraulic Control Unit
FL
Front Left
FR
Front Right
GEN
Generator
H/U
Hydraulic Unit
MV
Millivolts
RR
Rear
RPS
Revolution per Second
VDC
DC Volts
VA C
AC Volts
W/L
Warning Light
WSS
Wheel Speed Sensor
General Diagnosis
General Information
ABS troubles can be classified into two types, those
which can be detected by the ABS warning light and those
which can be detected as a vehicle abnormality by the
driver.
In either case, locate the fault in accordance with the
ªBASIC DIAGNOSTIC FLOWCHARTº and repair.
Please refer to
Section 5C for the diagnosis of
mechanical troubles such as brake noise, brake judder
(brake pedal or vehicle vibration felt when braking),
uneven braking, and parking brake trouble.
ABS Service Precautions
Required Tools and Items:

Box Wrench

Brake Fluid

Special ToolSome diagnosis procedures in this section require the
installation of a special tool.
J-39200 High Impedance Multimeter
When circuit measurements are requested, use a circuit
tester with high impedance.
Computer System Service Precautions
The Anti-lock Brake System interfaces directly with the
Electronic Hydraulic Control Unit (EHCU) which is a
control computer that is similar in some regards to the
Powertrain Control Module. These modules are designed
to withstand normal current draws associated with
vehicle operation. However, care must be taken to avoid
overloading any of the EHCU circuits. In testing for opens
or shorts, do not ground or apply voltage to any of the
circuits unless instructed to do so by the appropriate
diagnostic procedure. These circuits should only be
tested with a high impedance multimeter (J-39200) or
special tools as described in this section. Power should
never be removed or applied to any control module with
the ignition in the ªONº position.
Before removing or connecting battery cables, fuses or
connectors, always turn the ignition switch to the ªOFFº
position.
General Service Precautions
The following are general precautions which should be
observed when servicing and diagnosing the Anti-lock
Brake System and/or other vehicle systems. Failure to
observe these precautions may result in Anti-lock Brake
System damage.

If welding work is to be performed on the vehicle using
an electric arc welder, the EHCU and valve block
connectors should be disconnected before the
welding operation begins.

The EHCU and valve block connectors should never
be connected or disconnected with the ignition ªONº .

If only the rear wheels are rotated using jacks or drum
tester, the system will diagnose a speed sensor
malfunction and the ªABSº warning light will
illuminate. But actually no trouble exists. After
inspection stop the engine once and re-start it, then
make sure that the ªABSº warning light does not
illuminate.
If the battery has been discharged
The engine may stall if the battery has been completely
discharged and the engine is started via jumper cables.
This is because the Anti-lock Brake System (ABS)
requires a large quantity of electricity. In this case, wait
until the battery is recharged, or set the ABS to a
non-operative state by removing the fuse for the ABS
(50A). After the battery has been recharged, stop the
engine and install the ABS fuse. Start the engine again,
and confirm that the ABS warning light does not light.
Note on Intermittents
As with virtually any electronic system, it is difficult to
identify an intermittent failure. In such a case duplicating
the system malfunction during a test drive or a good
description of vehicle behavior from the customer may be
helpful in locating a ªmost likelyº failed component or

5A±29
BRAKE CONTROL SYSTEM
Part Location
810R200002
Legend
(1) Battery
(2) Fuse & Relay Box
(3) C±16
(4) C±5
(5) C±6
(6) H±8, 14
(7) I±18
(8) Starter Switch(9) I±24
(10) C±39
(11) F±4
(15) C±10
(16) C±28
(17) H±5
(19) E±23
(21) C±1

5C±10
POWER±ASSISTED BRAKE SYSTEM
Hydraulic Brakes
Filling Master Cylinder Reservoir
CAUTION: Use only specified brake fluid. Do not
use any fluid which contains a petroleum base. Do
not use a container which has been used for
petroleum based fluids or a container which is wet
with water. Petroleum based fluid will cause swelling
and distortion of rubber parts in the hydraulic brake
system. Water mixed with brake fluid lowers the fluid
boiling point. Keep all fluid containers capped to
prevent contamination.
Always fill the master cylinder reservoir when the en-
gine is cold.
Never allow the brake fluid to come in contact with
the painted surfaces.
The master cylinder reservoir must be kept properly
filled to ensure adequate reserve and to prevent air
and moisture from entering the hydraulic system.
However, because of expansion due to heat ab-
sorbed from the brakes and the engine, the reservoir
must not be overfilled. The brake fluid reservoir is on
the master cylinder, which is located under the hood
on the left side of the cowl. Thoroughly clean reser-
voir cap before removal to avoid getting dirt into res-
ervoir. Remove the diaphragm. Add fluid as required
to bring level to the ªMAXº mark on the reservoir
tank. Use ªDOT 3º Hydraulic Brake Fluid. If the fluid
cap diaphragm is stretched, return it to the original
position before installing.
Deterioration of Brake Fluid
Using any other brake fluid than specified or brake fluid
with mineral oil or water mixed in will drop the boiling point
of brake fluid. It may, in turn, result in vapor lock or
deteriorated rubber parts of the hydraulic system. Be sure
to change the brake fluid at specified intervals.
If the rubber parts are deteriorated, remove all the system
parts and clean them with alcohol. Prior to reassembly,
dry the cleaned parts with air to remove the alcohol.
Replace all the hoses and rubber parts of the system.
Leakage of Brake Fluid
With engine idling, set shift lever in the neutral position
and continue to depress brake pedal at a constant pedal
application force.
Should the pedal stroke become deeper gradually,
leakage from the hydraulic pressure system is possible.
Perform visual inspection for any signs of leakage.
Bleeding Brake Hydraulic System
A bleeding operation is necessary to remove air from the
hydraulic brake system whenever air is introduced into
the hydraulic system. It may be necessary to bleed the
hydraulic system at all four brakes if air has been
introduced through a low fluid level or by disconnecting
brake pipes at the master cylinder. If a brake pipe is
disconnected at one wheel, only that wheel
cylinder/caliper needs to be bled. If the pipes aredisconnected at any fitting located between the master
cylinder and brakes, then the brake system served by the
disconnected pipe must be bled.
1. For 4±Wheel Antilock Brake System (ABS) equipped
vehicle, be sure to remove the ABS main fuse 60A
located at the relay and fuse box before bleeding air. If
you attempt to bleed air without removing the main
fuse, air cannot be let out thoroughly, and this may
cause damage to the hydraulic unit. After bleeding air,
be sure to replace the ABS main fuse back to its
original position.
2. Set the parking brake completely, then start the
engine.
NOTE: The vacuum booster will be damaged if the
bleeding operation is performed with the engine off.
3. Remove the master cylinder reservoir cap.
4. Fill the master cylinder reservoir with brake fluid.
Keep the reservoir at least half full during the air
bleeding operation
5. Always use new brake fluid for replenishment.
6. When replenishing the brake fluid reservoir, carefully
pour in the brake fluid to prevent air bubbles from
entering the brake system.
When the master cylinder is replaced or overhauled,
first bleed the air from the master cylinder, then from
each wheel cylinder and caliper following the
procedures described below.
Bleeding the Master Cylinder
7. Disconnect the rear wheel brake pipe (1) from the
master cylinder.
Check the fluid level and replenish as necessary. If
replenished, leave the system for at least one minute.
8. Depress the brake pedal slowly once and hold it
depressed.
9. Completely seal the delivery port of the master
cylinder with your finger, where the pipe was
disconnected then release the brake pedal slowly.
10. Release your finger from the delivery port when the
brake pedal returns completely.
11. Repeat steps 8 through 10 until the brake fluid comes
out of the delivery port during step 8.
NOTE: Do not allow the fluid level in the reservoir to go
below the half±way mark.
12. Reconnect the brake pipe (1) to the master cylinder
and tighten the pipe.
13. Depress the brake pedal slowly once and hold it
depressed.
14. Loosen the rear wheel brake pipe (1) at the master
cylinder.
15. Retighten the brake pipe, then release the brake
pedal slowly.
16. Repeat steps 13 through 15 until no air comes out of
the port when the brake pipe is loosened
NOTE: Be very careful not to allow the brake fluid to come
in contact with painted surfaces.

5C±70
POWER±ASSISTED BRAKE SYSTEM
Hydraulic Brakes
Filling Master Cylinder Reservoir
CAUTION: Use only specified brake fluid. Do not
use any fluid which contains a petroleum base. Do
not use a container which has been used for
petroleum based fluids or a container which is wet
with water. Petroleum based fluid will cause swelling
and distortion of rubber parts in the hydraulic brake
system. Water mixed with brake fluid lowers the fluid
boiling point. Keep all fluid containers capped to
prevent contamination.
Always fill the master cylinder reservoir when the en-
gine is cold.
Never allow the brake fluid to come in contact with
the painted surfaces.
The master cylinder reservoir must be kept properly
filled to ensure adequate reserve and to prevent air
and moisture from entering the hydraulic system.
However, because of expansion due to heat ab-
sorbed from the brakes and the engine, the reservoir
must not be overfilled. The brake fluid reservoir is on
the master cylinder, which is located under the hood
on the left side of the cowl. Thoroughly clean reser-
voir cap before removal to avoid getting dirt into res-
ervoir. Remove the diaphragm. Add fluid as required
to bring level to the ªMAXº mark on the reservoir
tank. Use ªDOT 3º Hydraulic Brake Fluid. If the fluid
cap diaphragm is stretched, return it to the original
position before installing.
Deterioration of Brake Fluid
Using any other brake fluid than specified or brake fluid
with mineral oil or water mixed in will drop the boiling point
of brake fluid. It may, in turn, result in vapor lock or
deteriorated rubber parts of the hydraulic system. Be sure
to change the brake fluid at specified intervals.
If the rubber parts are deteriorated, remove all the system
parts and clean them with alcohol. Prior to reassembly,
dry the cleaned parts with air to remove the alcohol.
Replace all the hoses and rubber parts of the system.
Leakage of Brake Fluid
With engine idling, set shift lever in the neutral position
and continue to depress brake pedal at a constant pedal
application force.
Should the pedal stroke become deeper gradually,
leakage from the hydraulic pressure system is possible.
Perform visual inspection for any signs of leakage.
Bleeding Brake Hydraulic System
A bleeding operation is necessary to remove air from the
hydraulic brake system whenever air is introduced into
the hydraulic system. It may be necessary to bleed the
hydraulic system at all four brakes if air has been
introduced through a low fluid level or by disconnecting
brake pipes at the master cylinder. If a brake pipe is
disconnected at one wheel, only that wheel
cylinder/caliper needs to be bled. If the pipes are
disconnected at any fitting located between the master
cylinder and brakes, then the brake system served by the
disconnected pipe must be bled.
1. For 4±Wheel Antilock Brake System (ABS) equipped
vehicle, be sure to remove the ABS main fuse 60A
located at the relay and fuse box before bleeding air. If
you attempt to bleed air without removing the main
fuse, air cannot be let out thoroughly, and this may
cause damage to the hydraulic unit. After bleeding air,
be sure to replace the ABS main fuse back to its
original position.
2. Set the parking brake completely, then start the
engine.
NOTE: The vacuum booster will be damaged if the
bleeding operation is performed with the engine off.
3. Remove the master cylinder reservoir cap.
4. Fill the master cylinder reservoir with brake fluid.
Keep the reservoir at least half full during the air
bleeding operation
5. Always use new brake fluid for replenishment.
6. When replenishing the brake fluid reservoir, carefully
pour in the brake fluid to prevent air bubbles from
entering the brake system.
When the master cylinder is replaced or overhauled,
first bleed the air from the master cylinder, then from
each wheel cylinder and caliper following the
procedures described below.
Bleeding the Master Cylinder
7. Disconnect the rear wheel brake pipe (1) from the
master cylinder.
Check the fluid level and replenish as necessary. If
replenished, leave the system for at least one minute.
8. Depress the brake pedal slowly once and hold it
depressed.
9. Completely seal the delivery port of the master
cylinder with your finger, where the pipe was
disconnected then release the brake pedal slowly.
10. Release your finger from the delivery port when the
brake pedal returns completely.
11. Repeat steps 8 through 10 until the brake fluid comes
out of the delivery port during step 8.

6A±5
ENGINE MECHANICAL (6VE1 3.5L)
4. Engine Lacks Compression
Condition
Possible causeCorrection
Engine lacks compressionSpark plug loosely fitted or spark
plug gasket defectiveTighten to specified torque or replace
gasket
Valve timing incorrectAdjust
Cylinder head gasket defectiveReplace gasket
Valve incorrectly seatedLap valve
Valve stem seizedReplace valve and valve guide
Valve spring weakened or brokenReplace
Cylinder or piston rings wornOverhaul engine
Piston ring seizedOverhaul engine.
Engine Compression Test Procedure
1. Start and run the engine until the engine reaches
normal operating temperature.
2. Turn the engine off.
3. Remove all the spark plugs.
4. Remove ignition coil fuse (15A) and disable the
ignition system.
5. Remove the fuel pump relay from the relay and fuse
box.
6. Engage the starter and check that the cranking speed
is approximately 300 rpm.
7. Install cylinder compression gauge into spark plug
hole.
8. With the throttle valve opened fully, keep the starter
engaged until the compression gage needle reaches
the maximum level. Note the reading.
9. Repeat the test with each cylinder.
If the compression pressure obtained falls below the
limit, engine overhaul is necessary.
Limit; 1000 kPa (145 psi)

6E±28
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Engine Component Locator Table
Number
NameLocation
1Linear Exhaust Gas Recirculation (EGR) ValveRear right side of the engine
2Throttle Position (TP) SensorOn the throttle body
3Intake Air Temperature (IAT) SensorOn the intake air duct near the throttle body
4Check Engine (MIL) LightOn the instrument panel beneath the
tachometer
5Positive Crankcase Ventilation (PCV) ValveOn the left of the cylinder head cover
6Air CleanerLeft front of the engine bay
7Mass Air Flow (MAF) SensorAttached to the air filter box
8Fuel RailOn the Common Chamber
9Fuel Pressure RegulatorRear side of the engine
10ION Sensing moduleBolted to the top of the Common Chamber
11Common ChamberTop of the engine
12EVAP Duty Solenoid ValveBolted to the front of the coolant pipe
13Fuse/Relay BoxAlong the inside of the right fender
14Manifold Absolute Pressure (MAP) SensorBolted to the top of the Common Chamber
15Throttle BodyBetween the intake air duct and the Common
Chamber
16Engine Coolant Temperature SensorOn the coolant crossover pipe at the front of
the engine, near the throttle body
17Power Train Control Module (PCM)Along the inside of the left fender

6E±65
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

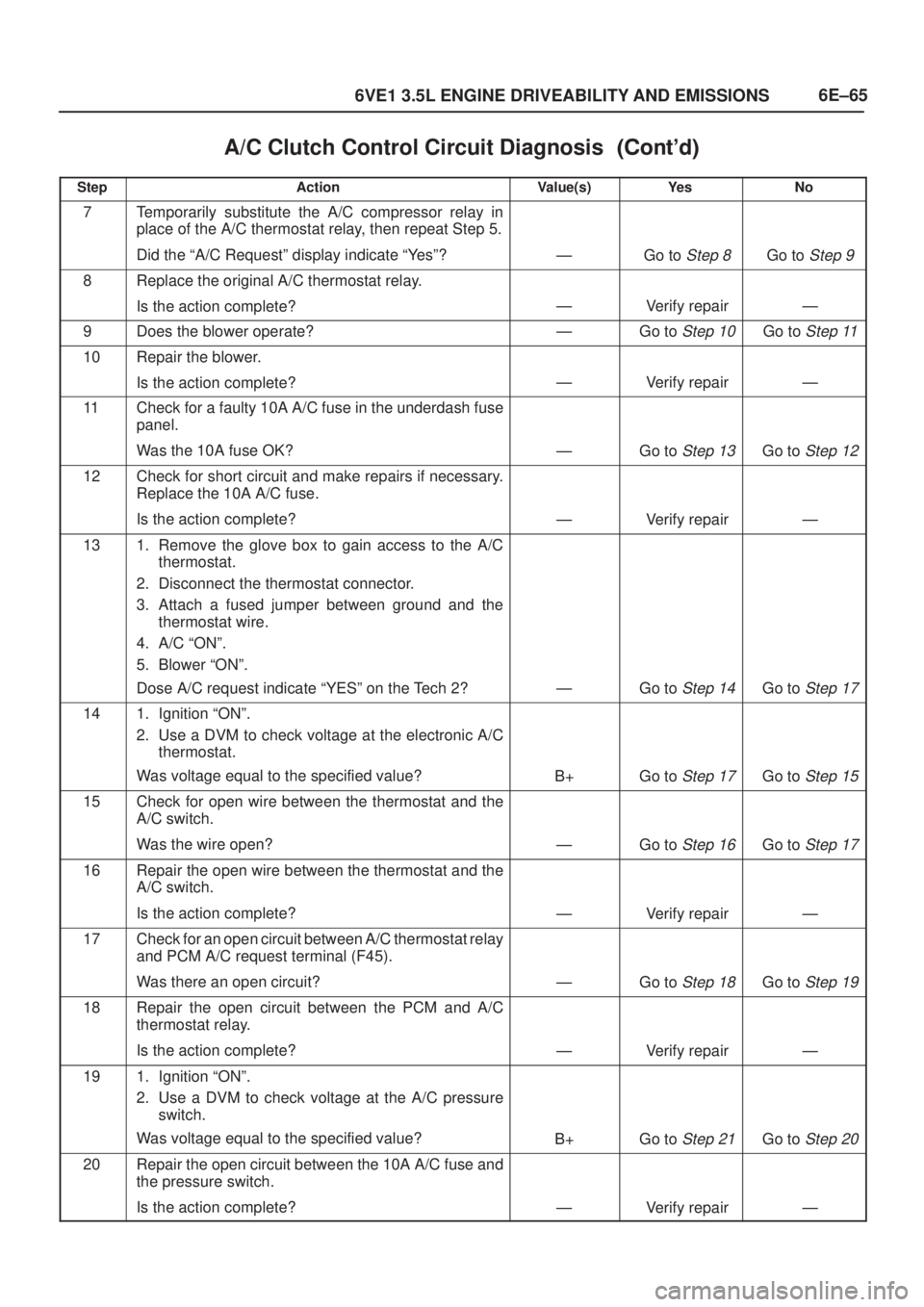

A/C Clutch Control Circuit Diagnosis


StepNo Ye s Value(s) Action
7Temporarily substitute the A/C compressor relay in
place of the A/C thermostat relay, then repeat Step 5.
Did the ªA/C Requestº display indicate ªYesº?
ÐGo to Step 8Go to Step 9
8Replace the original A/C thermostat relay.
Is the action complete?
ÐVerify repairÐ
9Does the blower operate?ÐGo to Step 10Go to Step 11
10Repair the blower.
Is the action complete?
ÐVerify repairÐ
11Check for a faulty 10A A/C fuse in the underdash fuse
panel.
Was the 10A fuse OK?
ÐGo to Step 13Go to Step 12
12Check for short circuit and make repairs if necessary.
Replace the 10A A/C fuse.
Is the action complete?
ÐVerify repairÐ
131. Remove the glove box to gain access to the A/C
thermostat.
2. Disconnect the thermostat connector.
3. Attach a fused jumper between ground and the
thermostat wire.
4. A/C ªONº.
5. Blower ªONº.
Dose A/C request indicate ªYESº on the Tech 2?
ÐGo to Step 14Go to Step 17
141. Ignition ªONº.
2. Use a DVM to check voltage at the electronic A/C
thermostat.
Was voltage equal to the specified value?
B+Go to Step 17Go to Step 15
15Check for open wire between the thermostat and the
A/C switch.
Was the wire open?
ÐGo to Step 16Go to Step 17
16Repair the open wire between the thermostat and the
A/C switch.
Is the action complete?
ÐVerify repairÐ
17Check for an open circuit between A/C thermostat relay
and PCM A/C request terminal (F45).
Was there an open circuit?
ÐGo to Step 18Go to Step 19
18Repair the open circuit between the PCM and A/C
thermostat relay.
Is the action complete?
ÐVerify repairÐ
191. Ignition ªONº.
2. Use a DVM to check voltage at the A/C pressure
switch.
Was voltage equal to the specified value?
B+Go to Step 21Go to Step 20
20Repair the open circuit between the 10A A/C fuse and
the pressure switch.
Is the action complete?
ÐVerify repairÐ
