2000 MITSUBISHI MONTERO Service Repair Manual

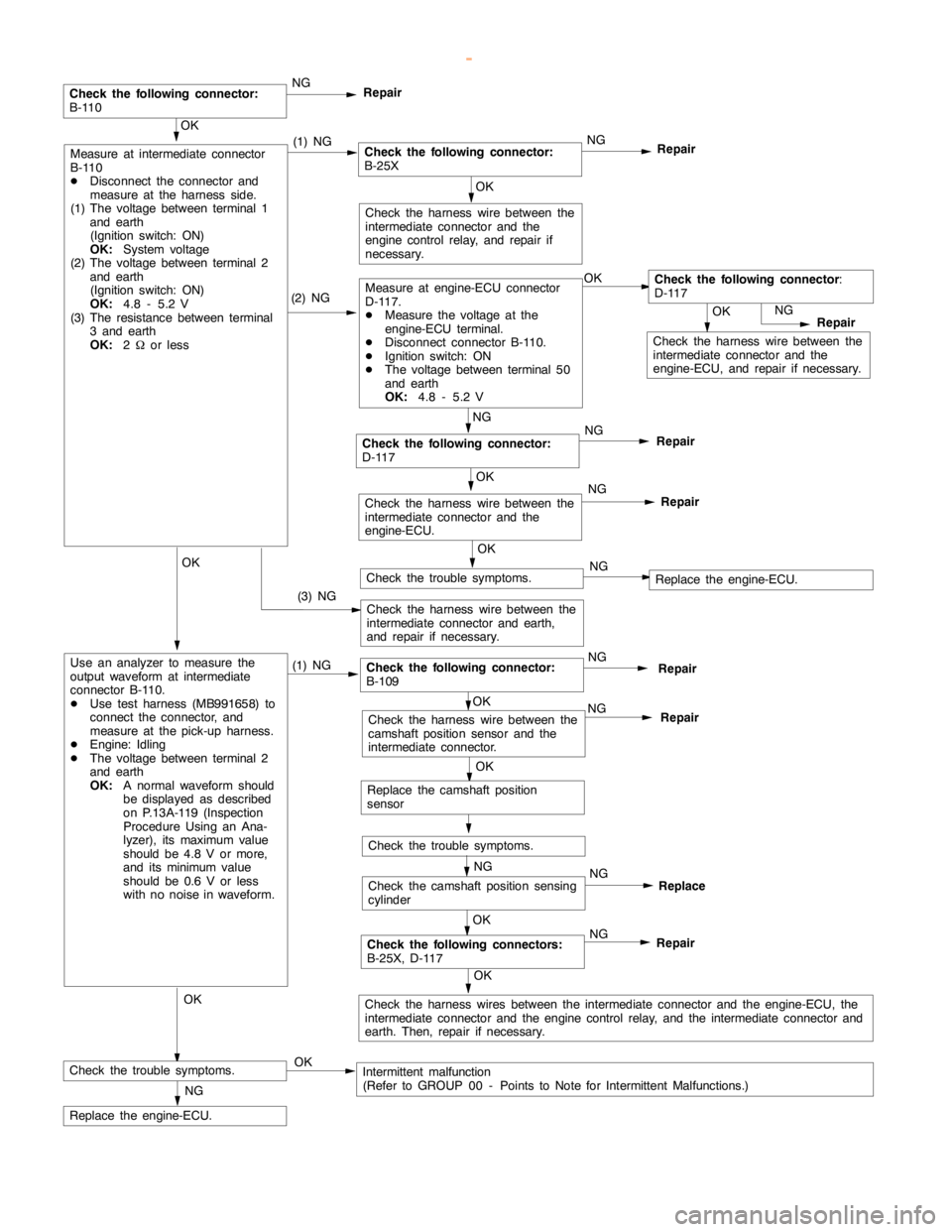

GDI -Troubleshooting 13A-59
OK
Check the harness wire between the
intermediate connector and the
engine-ECU, and repair if necessary.NG
Repair
NG
NG
Repair
NG
Repair
(2) NGMeasure at engine-ECU connector
D-117.
DMeasure the voltage at the
engine-ECU terminal.
DDisconnect connector B-110.
DIgnition switch: ON
DThe voltage between terminal 50
and earth
OK:
4.8 - 5.2 VOKCheck the following connector
:
D-117
Check the harness wire between the
intermediate connector and earth,
and repair if necessary.
OK
Check the harness wire between the
intermediate connector and the
engine controlrelay, and repair if
necessary.
(3) NG
OK
Measure at intermediate connector
B-110
DDisconnect the connector and
measure at the harness side.
(1) The voltage between terminal 1
and earth
(Ignition switch: ON)
OK:
System voltage
(2) The voltage between terminal 2
and earth
(Ignition switch: ON)
OK:
4.8 - 5.2 V
(3) The resistance between terminal
3 and earth
OK:
2Wor less(1) NGCheck the following connector:
B-25XNG
Repair
OK
Replace the camshaft position
sensor
Check the trouble symptoms.
OK
NG
Repair
OK
Check the harness wires between the intermediate connector and the engine-ECU, the
intermediate connector and theengine controlrelay, and the intermediate connector and
earth. Then, repair if necessary.
NG
Replace the engine-ECU.
OK
Check the harness wire between the
intermediate connector and the
engine-ECU.NG
Repair
OK
Use an analyzer to measure the
output waveform at intermediate
connector B-110.
DUse test harness (MB991658) to
connect the connector, and
measure at the pick-up harness.
DEngine: Idling
DThe voltage between terminal 2
and earth
OK:
A normal waveform should
be displayed as described
on P.13A-119 (Inspection
Procedure Using an Ana-
lyzer), its maximum value
should be 4.8 V or more,
and its minimumvalue
should be 0.6 V or less
with no noise in waveform.(1) NGCheck the following connector:
B-109NG
Repair
OK
Check the harness wire between the
camshaft position sensor and the
intermediate connector.NG
Repair
NG
Check the camshaft position sensing
cylinderNG
OK
Check the trouble symptoms.Intermittent malfunction
(Refer to GROUP 00 - Points to Note for Intermittent Malfunctions.)
OK
Check the trouble symptoms.NGReplace the engine-ECU.
Replace
OK
Check the following connector:
B-110
Check the following connector:
D-117
Check the following connectors:
B-25X, D-117


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-60

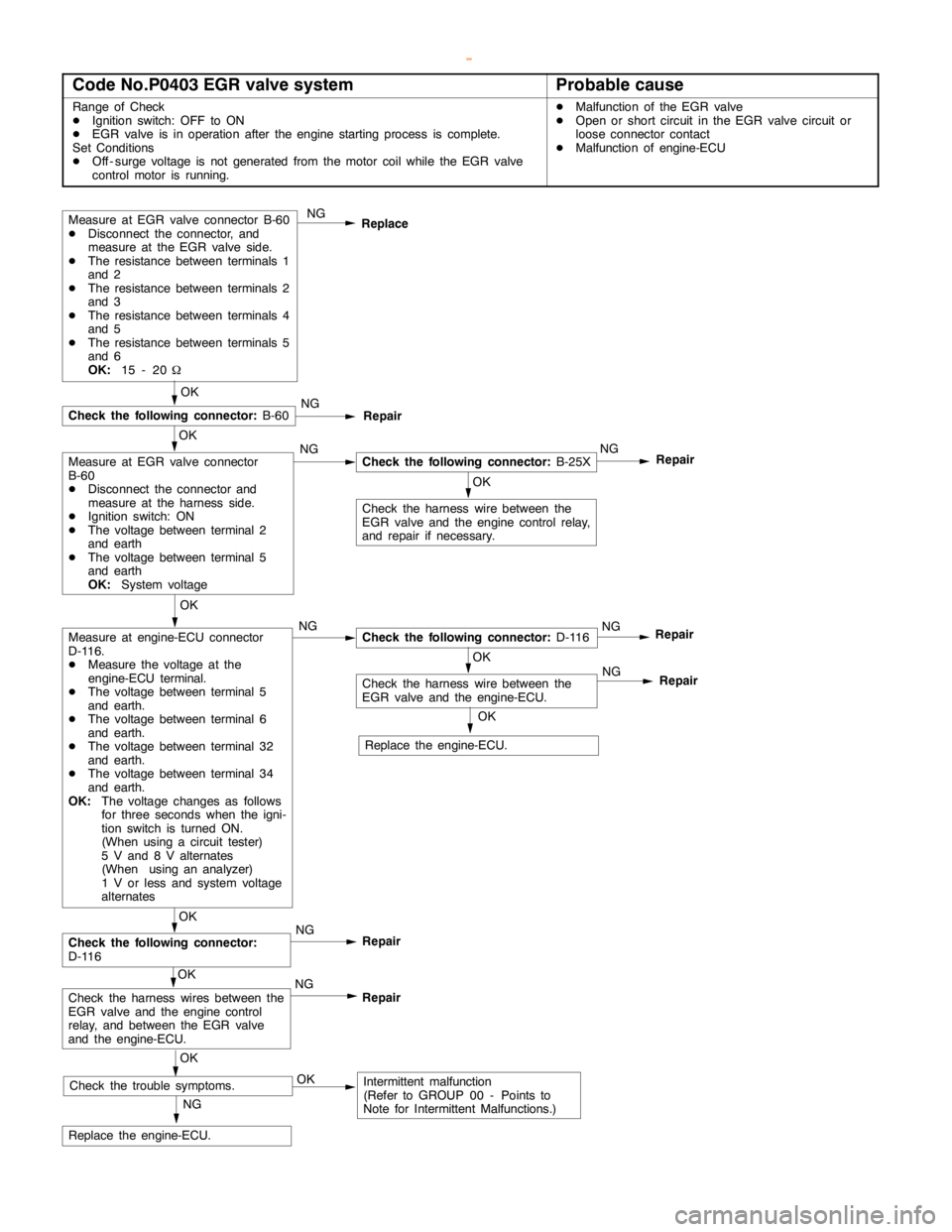

Code No.P0403 EGR valve systemProbable cause
Range of Check
DIgnition switch: OFF to ON
DEGR valve is in operation after theengine startingprocess is complete.
Set Conditions
DOff - surge voltage is not generated from the motor coil while the EGR valve
control motor is running.DMalfunction of the EGR valve
DOpen or short circuit in the EGR valve circuit or
loose connector contact
DMalfunction of engine-ECU
Measure at EGR valve connector B-60
DDisconnect the connector, and
measure at the EGR valve side.
DThe resistance between terminals 1
and 2
DThe resistance between terminals 2
and 3
DThe resistance between terminals 4
and 5
DThe resistance between terminals 5
and 6
OK:
15 - 20WNG
Replace
OK
Check the harness wire between the
EGR valve and theengine controlrelay,
and repair if necessary.
NG
Replace the engine-ECU.
OK
NG
Check the following connector:
B-25XNG
Repair
OK
Check the following connector:
B-60NG
Repair
OK
Measure at engine-ECU connector
D-116.
DMeasure the voltage at the
engine-ECU terminal.
DThe voltage between terminal 5
and earth.
DThe voltage between terminal 6
and earth.
DThe voltage between terminal 32
and earth.
DThe voltage between terminal 34
and earth.
OK:
The voltage changes as follows
for three seconds when the igni-
tion switch is turned ON.
(When using a circuit tester)
5 V and 8 V alternates
(When using an analyzer)
1 V or less and system voltage
alternatesNGCheck the following connector:
D-116NG
Repair
OK
Check the harness wire between the
EGR valve and the engine-ECU.
OK
Check the following connector:
D-116NG
Repair
OK
Check the harness wires between the
EGR valve and theengine control
relay, and between the EGR valve
and the engine-ECU.NG
Repair
OK
Check the trouble symptoms.OKIntermittent malfunction
(Refer to GROUP 00 - Points to
Note for Intermittent Malfunctions.)NG
Repair
OK
Replace the engine-ECU.
Measure at EGR valve connector
B-60
DDisconnect the connector and
measure at the harness side.
DIgnition switch: ON
DThe voltage between terminal 2
and earth
DThe voltage between terminal 5
and earth
OK:
System voltage


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-61

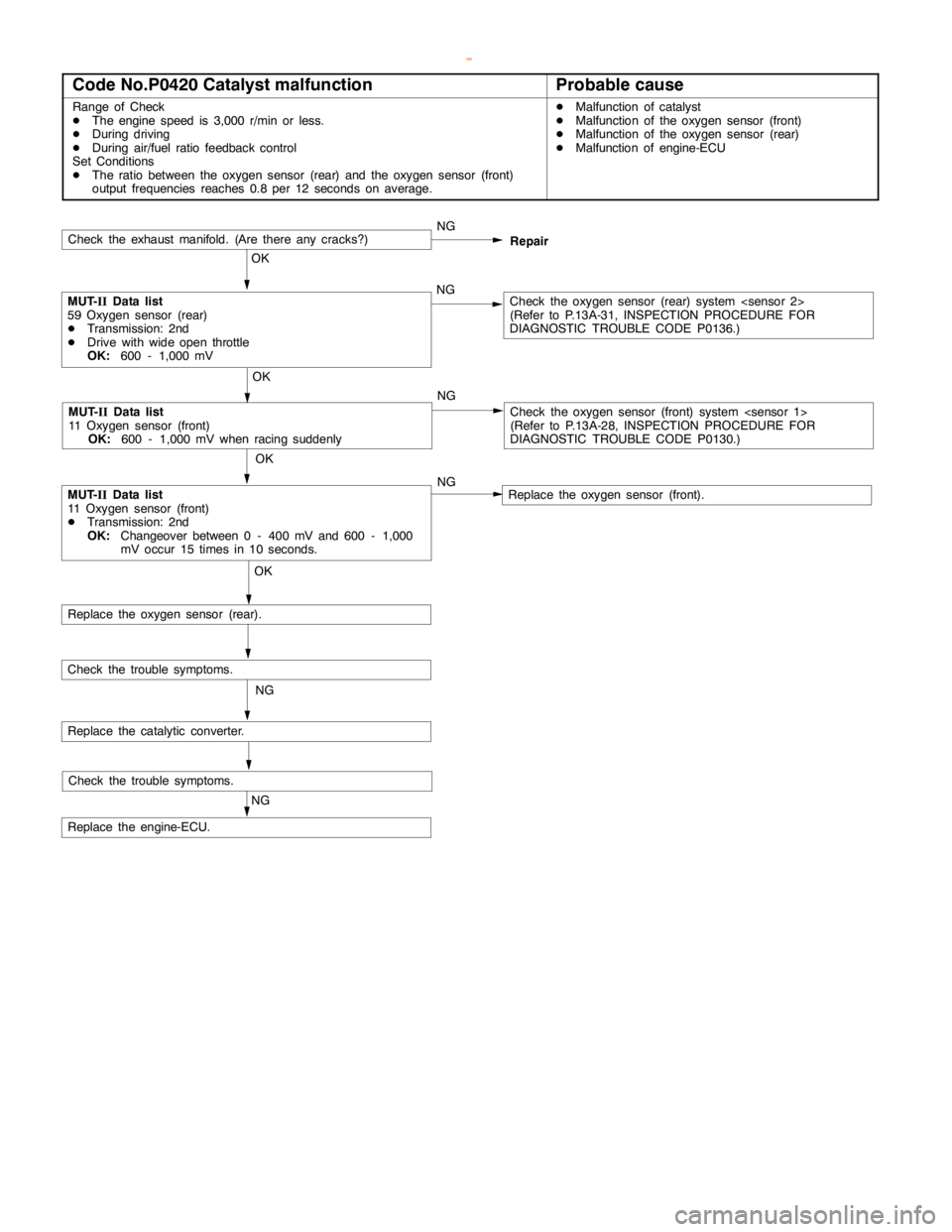

Code No.P0420 Catalyst malfunctionProbable cause
Range of Check
DThe enginespeed is 3,000 r/min or less.
DDuring driving
DDuring air/fuel ratio feedback control
Set Conditions
DThe ratio between the oxygen sensor (rear) and the oxygen sensor (front)
output frequencies reaches 0.8 per 12 seconds on average.DMalfunction of catalyst
DMalfunction of the oxygen sensor (front)
DMalfunction of the oxygen sensor (rear)
DMalfunction of engine-ECU
Check the trouble symptoms.
Check the exhaust manifold. (Are there anycracks?)NG
OK
MUT-
IIData list
59 Oxygen sensor (rear)
DTransmission: 2nd
DDrive with wideopen throttle
OK:
600 - 1,000 mVNGCheck the oxygen sensor (rear) system
(Refer to P.13A-31, INSPECTIONPROCEDURE FOR
DIAGNOSTIC TROUBLE CODE P0136.)
OK
MUT-
IIData list
11 Oxygen sensor (front)
DTransmission: 2nd
OK:
Changeover between 0 - 400 mV and 600 - 1,000
mV occur 15 times in 10 seconds.
OK
Replace the oxygen sensor (rear).
NG
Replace the catalytic converter.
Check the trouble symptoms.
NG
Replace the engine-ECU.
MUT-
IIData list
11 Oxygen sensor (front)
OK:
600 - 1,000 mV when racing suddenly
OK
NGRepair
Check the oxygen sensor (front) system
(Refer to P.13A-28, INSPECTIONPROCEDURE FOR
DIAGNOSTIC TROUBLE CODE P0130.)
Replace the oxygen sensor (front). NG


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-62

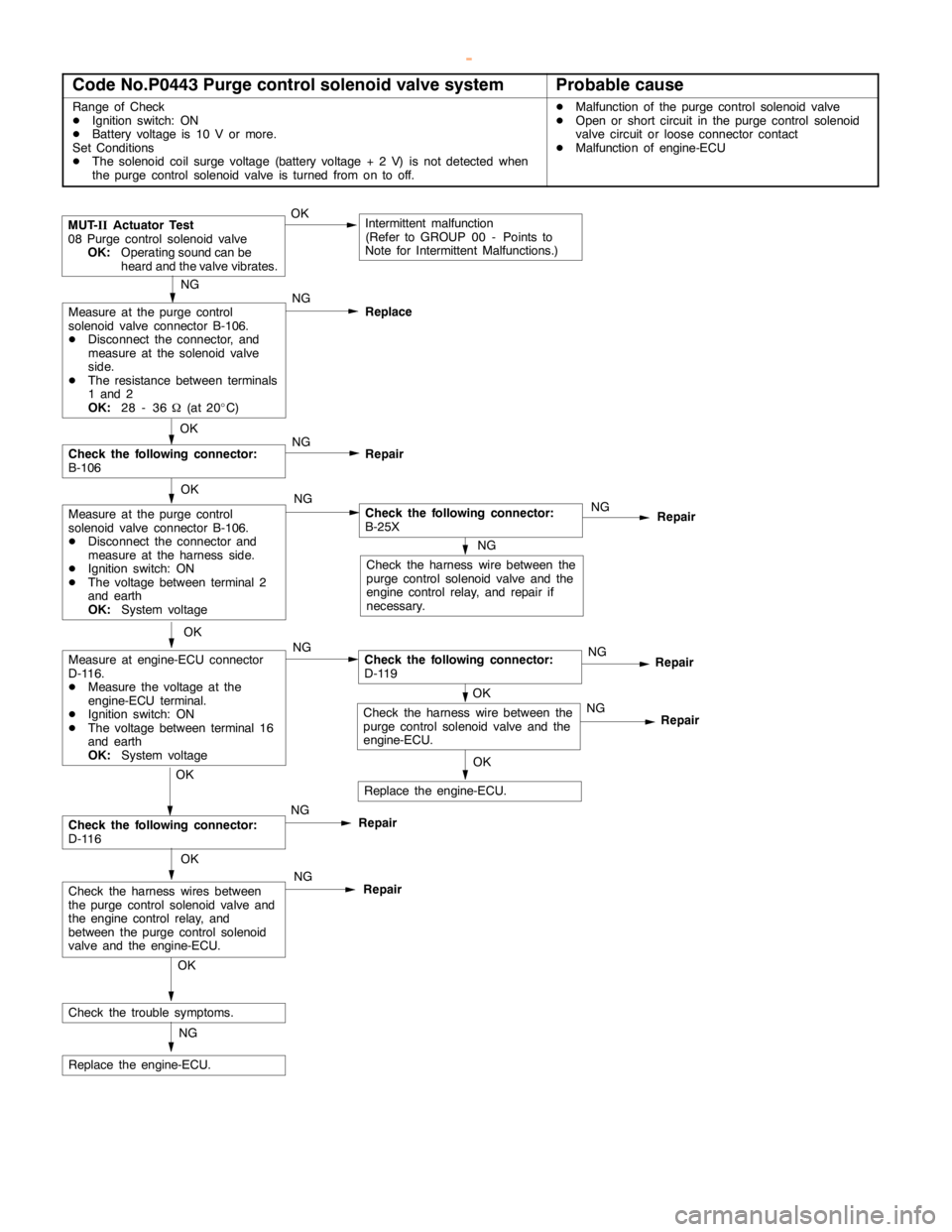

Code No.P0443 Purge control solenoid valve systemProbable cause
Range of Check
DIgnition switch: ON
DBattery voltage is 10 V or more.
Set Conditions
DThe solenoid coil surge voltage (battery voltage + 2 V) is not detected when
the purge control solenoid valve is turned from on to off.DMalfunction of the purge control solenoid valve
DOpen or short circuit in the purge control solenoid
valve circuit or loose connector contact
DMalfunction of engine-ECU
Repair
MUT-
IIActuator Test
08 Purge control solenoid valve
OK:
Operating sound can be
heard and the valve vibrates.OKIntermittent malfunction
(Refer to GROUP 00 - Points to
Note for Intermittent Malfunctions.)
NG
Check the harness wire between the
purge control solenoid valve and the
engine controlrelay, and repair if
necessary.
NG
Measure at the purge control
solenoid valve connector B-106.
DDisconnect the connector, and
measure at the solenoid valve
side.
DThe resistance between terminals
1 and 2
OK:
28 - 36W(at 20_C)NG
Replace
OK
Measure at the purge control
solenoid valve connector B-106.
DDisconnect the connector and
measure at the harness side.
DIgnition switch: ON
DThe voltage between terminal 2
and earth
OK:
System voltageNGCheck the following connector:
B-25XNG
Repair
OK
Check the following connector:
B-106NG
Repair
OK
OK
Measure at engine-ECU connector
D-116.
DMeasure the voltage at the
engine-ECU terminal.
DIgnition switch: ON
DThe voltage between terminal 16
and earth
OK:
System voltageNGCheck the following connector:
D-119NG
Repair
OK
Check the following connector:
D-116NG
Repair
OK
NG
Repair
OK
Check the trouble symptoms.
NG
Replace the engine-ECU.OKNG
Replace the engine-ECU.
Check the harness wires between
the purge control solenoid valve and
the engine controlrelay, and
between the purge control solenoid
valve and the engine-ECU.
Check the harness wire between the
purge control solenoid valve and the
engine-ECU.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-63
Code No.P0500 Vehicle speed sensor systemProbable cause
Range of Check
DEngine: Two seconds after theengine wasstarted
DIdle switch: OFF
DEngine speed: 2,500 r/min or more
DDuring high engine load
Set Conditions
DThe sensor output voltage does not change for 4 seconds (no pulse signal
input).DMalfunction of the vehicle speed sensor
DOpen or short circuit in the vehicle speed sensor
circuit or loose connector contact
DMalfunction of engine-ECU
NOCheck the vehicle speed sensor
(Refer to GROUP 54 - Combination Meter.)
YES
Use an analyzer to measure the output waveform of the
vehicle speed sensor at engine-ECU connector D-118.
DDriving the vehicle
DThe voltage between terminal 80 and earth
OK:
A normal waveform should be displayed as described
in OSCILLOSCOPE INSPECTION PROCEDURE,
and noise should not be displayed in the waveform.
(Refer to GROUP 23 - Troubleshooting)NGCheck the following connectors:
D-118, E-13
NG
Repair
OK
Check the harness wire between intermediate connector E-13
and the engine-ECU, and repair if necessary.
OK
Check the following connector:
C-09NG
Repair
OK
Check the trouble symptoms.
NG
Replace the engine-ECU.
Does the speedometer operate normally?
Code No.P1200 Injector driver systemProbable cause
Range of Check
DEngine speed: 4,000 r/m or less
DBattery voltage: 10 V or more
DThe fuel cut operation and the injector operation (by carrying out the Actuator
test) are not in progress.
DDuring high engine load
Set Conditions
DInjector opencircuit check signal is not output from the injector driver.DMalfunction of the injector driver
DOpen or short circuit, or loose connector contact
DMalfunction of engine-ECU
OK
Use an analyzer to measure the signal waveform at
engine-ECU connectors D-116, D-118.
DEngine: Idling
DThe voltage between terminal 96 and earth, terminal 1 and
earth
OK:
A normal waveform should be displayed as described
on P.13A-121 (INSPECTIONPROCEDURE USING
AN ANALYZER).NGReplace the injector driver.
OK
Check the harness wire between the injector driver and the
engine-ECU.NG
Repair
NG
Replace the engine-ECU.
Check the following connectors:
B-121, D-118NG
Repair
OK
Check the trouble symptoms.OKIntermittent malfunction
(Refer to GROUP 00 - Points to Note for Intermittent
Malfunctions.)


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-64
Code No.P1220 Electronic-controlled throttle valve
systemProbable cause
Range of Check
DIgnition switch: ON
DError in communication between the engine-ECU and the throttle valve
controller
Set Conditions
DOutput voltage of throttle position sensor (2nd channel) fluctuates significantly
(approx. 1 V or more) from an expected value, based on that of the
accelerator pedal positionsensor (2nd channel).
Range of Check
DIgnition switch: ON
DError in communication between the throttle valve controller and the
engine-ECU
Set Conditions
DThe output voltage of the throttle position sensor (2nd channel) is significantly
different (approx. 1 V) from the the throttle valveopening angle (voltage),
which the engine-ECU request the throttle valve controller.DShort in communicationline
DMalfunction of the engine-ECU
DMalfunction of the throttle valve controller
OK
Check the harness wire between the throttle valve controller
and the engine-ECU.NG
Repair
NG
Replace the engine-ECU.
Check the following connectors:
D-11, D-118NG
Repair
OK
NG
Replace the throttle valve controller.
Check the trouble symptoms.
Check the trouble symptoms.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-65
Code No.P1221 Throttle valve position feedback systemProbable cause
The throttle valve controller judges a malfunction, and then transmit the result to
the engine-ECU.
Range of Check
DIgnition switch: ON
DBattery voltage: 10 V or more
Set Conditions
DFailure in the position feedback
(The engine-ECU detects that the current in the motor isexcessive and the
opening angle difference between the targetvalue of throttle position sensor
(1st channel) and the actual value of throttle position sensor (1st channel) is
2.0 V or more)DMalfunction of throttle position sensor (1st channel)
DOpen or short circuit in the throttle position sensor
(1st channel) circuit or loose connector contact
DMalfunction of the throttle valve controller
NG
Replace the throttle valve controller.
OK
Check the trouble symptoms.
NG
Check the harness wires between the throttle position sensor
and the throttle valve controller, and between the throttle valve
control servo and the throttle valve controller.NG
Repair
NO
Adjust the throttle position sensor. (Refer to P.13A-220.)
MUT-
IISelf-Diag Code
Is code No.P0120 set?YESRefer to Code No.P0120, Throttle position sensor (1st
channel) system (Refer to P.13A-25).
NO
MUT-
IISelf-Diag Code
Is Code No.P1222 set?YESRefer to Code No.P1222, Throttle valvr control servo system
(Refer to P.13A-66.)
OK
Check the following connectors:
B-102, B-122, D-11NG
Repair
OK
Check the throttle valve control servo. (Refer to 13A-132.)NGReplace the throttle body assembly.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk
