2000 MITSUBISHI MONTERO Service Repair Manual

GDI -Troubleshooting 13A-99
Inspection procedure 26
Engine control relay and ignition switch-IG system
Probable cause
When the ignition switch ON signal is input to the engine-ECU, the engine-ECU
turns on theengine controlrelay.
This causes system voltage to be supplied to the engine-ECU and to the
sensors and actuators.DMalfunction of the ignition switch
DMalfunction of the engine controlrelay
DOpen circuit or short-circuited harness wire of the
engine controlrelay circuit
DMalfunction of the engine-ECU
OK
Check the trouble symptoms.NGCheck the harness wire between the
battery and theengine controlrelay, and
repair if necessary.
OK
Check the engine-ECU power supply
and earth circuit system. (Refer to
P.13A-98, Inspection procedure 25.)
OK
Measure at the engine controlrelay con-
nector B-25X.
DDisconnect the connector, and
measure at the harness side.
DVoltage between 2, 3 and earth
OK:
System voltageNGCheck the following connector:
D-143NG
Repair
Check theengine controlrelay. (Refer
to P.13A-227.)NG
Replace
Inspection procedure 27
Ignition switch-ST system
Probable cause
The ignition switch-ST outputs a HIGH signal to the engine-ECU while the
engine iscranking.
The engine-ECU uses this signal to carry out functions such as fuel injection
control during starting.DMalfunction of the ignition switch
DOpen circuit or short-circuited harness wire of the
ignition switch circuit
DMalfunction of the engine-ECU
NG
RepairOK
Check the ignition switch. (Refer to
GROUP 54.)
NG
Replace the engine-ECU.
OK
Check the trouble symptoms.
OK
Check the following connector:
D-117NG
RepairOK
Check the trouble symptoms.NGCheck the harness wire between the
engine-ECU and the ignition switch.
Measure at the engine-ECU connector
D-117.
DDisconnect the connector, and
measure at the harness side.
DVoltage between 68 and earth
(Ignition switch: START)
OK:
8 V or moreNGCheck the following connectors:
C-01, E-113, E-114NG
Repair


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-100

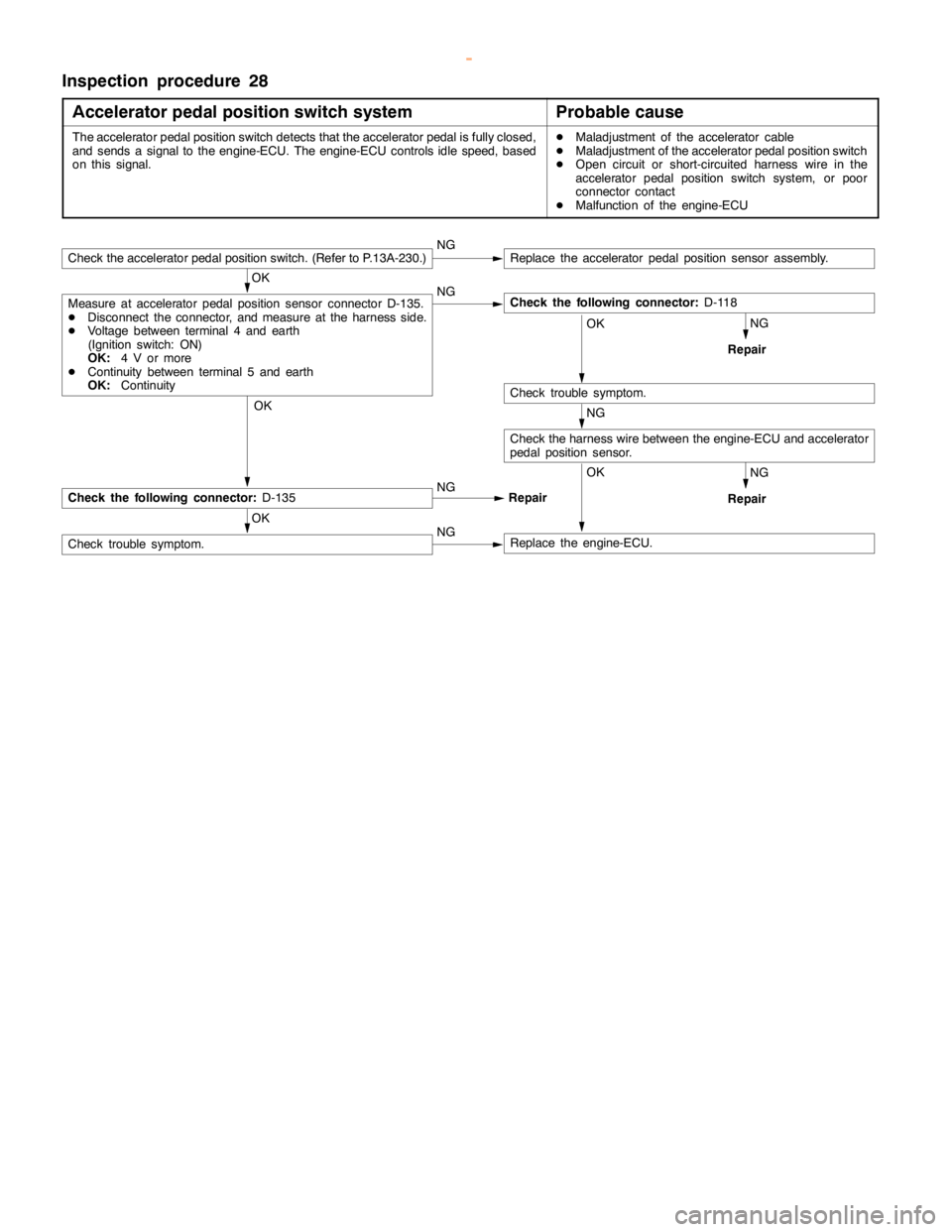

Inspection procedure 28
Accelerator pedal position switch system
Probable cause
The accelerator pedal positionswitch detects that the acceleratorpedal isfully closed,
and sends a signal to the engine-ECU. The engine-ECU controlsidle speed,based
on this signal.DMaladjustment of the accelerator cable
DMaladjustment of the accelerator pedal positionswitch
DOpen circuit or short-circuited harness wire in the
accelerator pedal positionswitch system, or poor
connector contact
DMalfunction of the engine-ECU
NG
Repair
NG
Repair
Check the acceleratorpedal positionswitch. (Refer to P.13A-230.)NGReplace the accelerator pedal positionsensor assembly.
OK
Measure at accelerator pedal positionsensor connector D-135.
DDisconnect the connector, and measure at the harness side.
DVoltage between terminal 4 and earth
(Ignition switch: ON)
OK:
4 V or more
DContinuity between terminal 5 and earth
OK:
ContinuityNGCheck the following connector:
D-118
OK
Check trouble symptom.
NG
Check the harness wire between the engine-ECU and accelerator
pedal positionsensor.
OK
Check the following connector:
D-135NG
Repair
OK
Check trouble symptom.NGReplace the engine-ECU.
OK


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-101

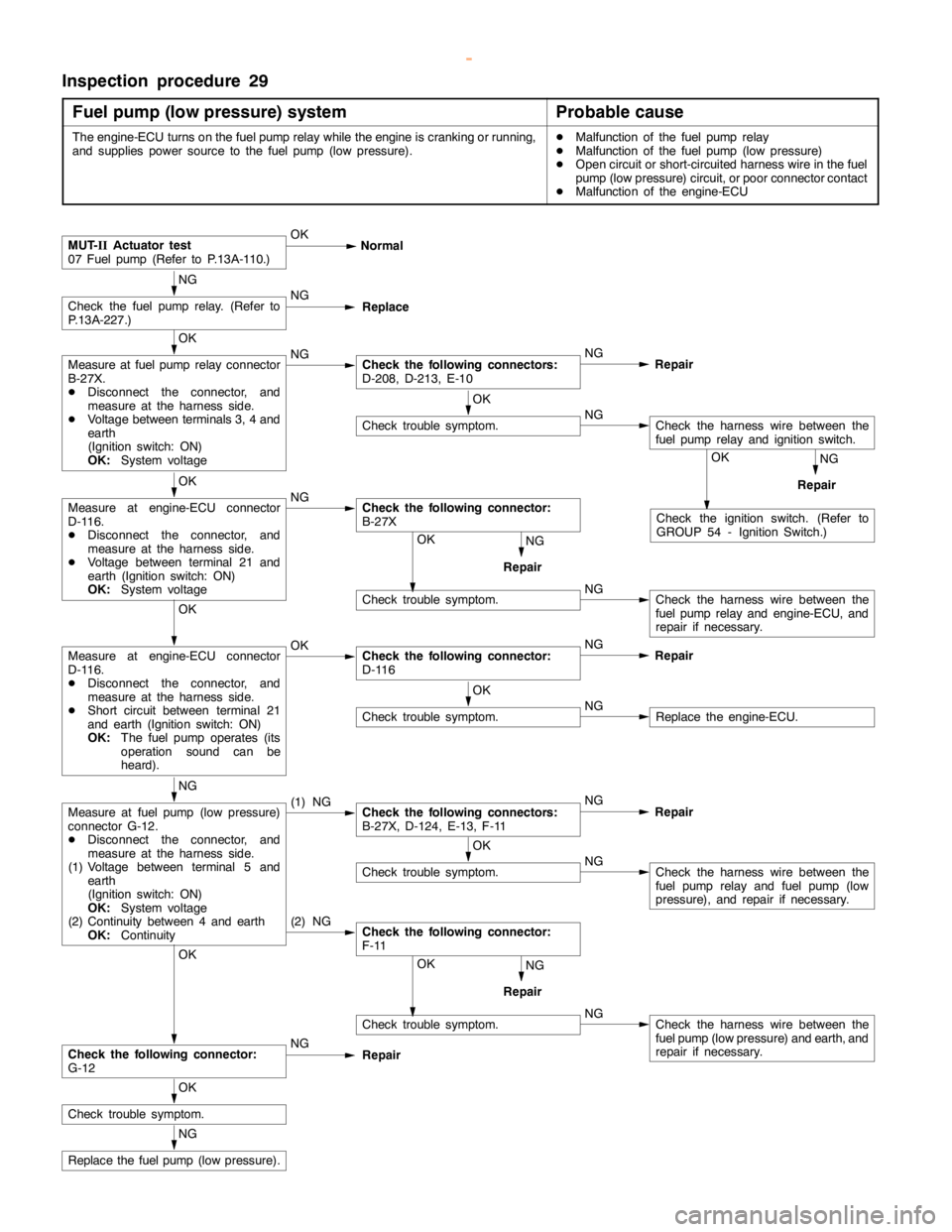

Inspection procedure 29
Fuel pump (low pressure) system
Probable cause
The engine-ECU turns on the fuelpumprelay while theengine iscranking or running,
and supplies power source to the fuelpump(low pressure).DMalfunction of the fuel pumprelay
DMalfunction of the fuel pump(low pressure)
DOpen circuit or short-circuited harness wire in the fuel
pump(low pressure) circuit, or poor connector contact
DMalfunction of the engine-ECU
Check trouble symptom.NGCheck the harness wire between the
fuel pump(low pressure) and earth, and
repair if necessary.
NG
RepairOK
Check trouble symptom.NGCheck the harness wire between the
fuel pumprelay and engine-ECU, and
repair if necessary.
NG
RepairOK
NG
RepairOK
Check the ignition switch. (Refer to
GROUP 54 - Ignition Switch.)
(2) NGCheck the following connector:
F-11
MUT-
IIActuator test
07 Fuel pump(Refer to P.13A-110.)OK
Normal
NG
Check the fuelpumprelay. (Refer to
P.13A-227.)NG
Replace
OK
Measure at fuel pumprelay connector
B-27X.
DDisconnect the connector, and
measure at the harness side.
DVoltage between terminals 3, 4 and
earth
(Ignition switch: ON)
OK:
System voltageNGCheck the following connectors:
D-208, D-213, E-10NG
Repair
OK
Check trouble symptom.NGCheck the harness wire between the
fuel pumprelay and ignition switch.
OK
Measure at engine-ECU connector
D-116.
DDisconnect the connector, and
measure at the harness side.
DVoltage between terminal 21 and
earth (Ignition switch: ON)
OK:
System voltageNGCheck the following connector:
B-27X
OK
Measure at engine-ECU connector
D-116.
DDisconnect the connector, and
measure at the harness side.
DShort circuit between terminal 21
and earth (Ignition switch: ON)
OK:
The fuel pump operates(its
operation sound can be
heard).OKCheck the following connector:
D-116NG
Repair
OK
Check trouble symptom.NGReplace the engine-ECU.
NG
Measure at fuel pump(low pressure)
connector G-12.
DDisconnect the connector, and
measure at the harness side.
(1) Voltage between terminal 5 and
earth
(Ignition switch: ON)
OK:
System voltage
(2) Continuity between 4 and earth
OK:
Continuity(1) NGCheck the following connectors:
B-27X, D-124, E-13, F-11NG
Repair
OK
Check trouble symptom.NGCheck the harness wire between the
fuel pumprelay and fuelpump(low
pressure), and repair if necessary.
OK
Check the following connector:
G-12NG
Repair
OK
Check trouble symptom.
NG
Replace the fuel pump(low pressure).


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-102

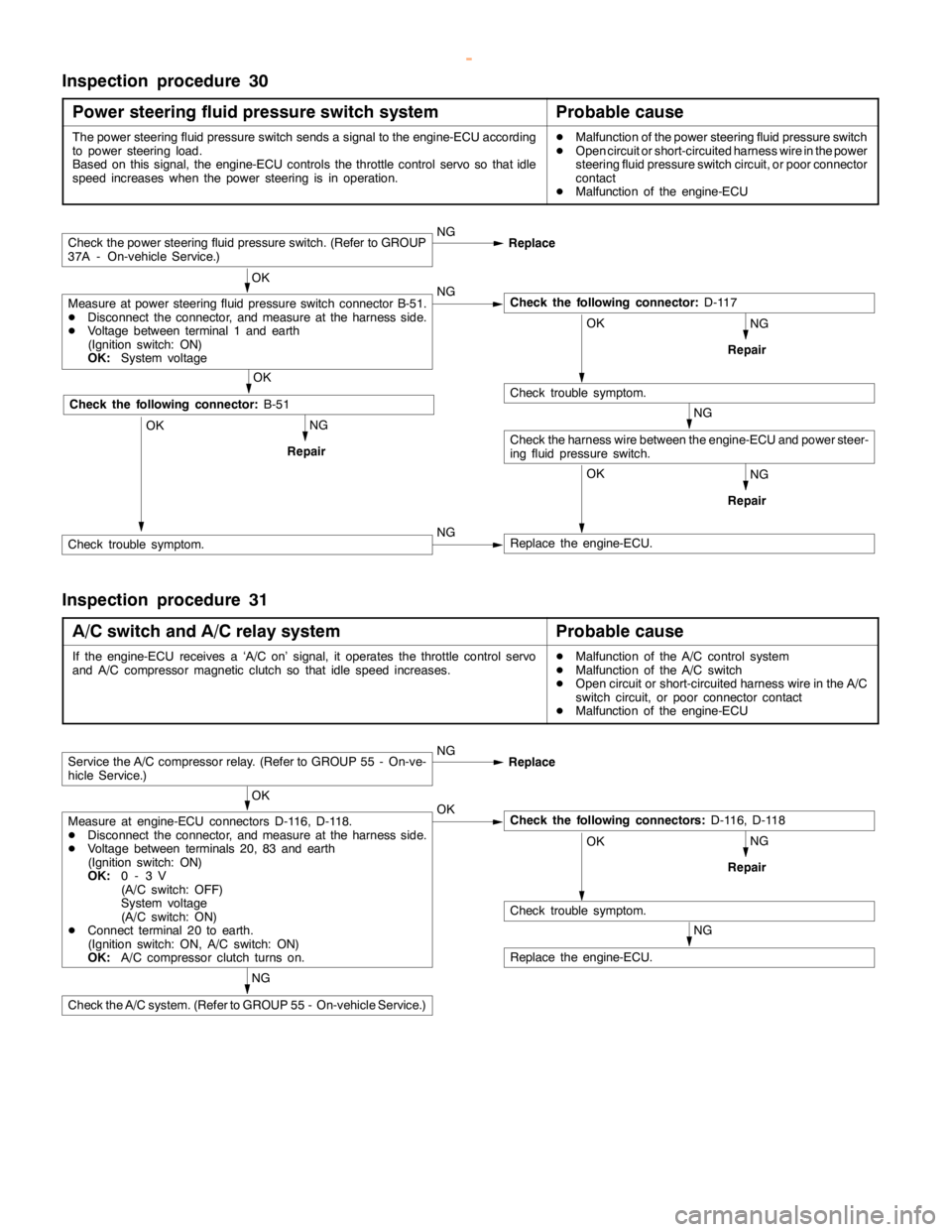

Inspection procedure 30
Power steering fluid pressure switch system
Probable cause
The power steering fluid pressure switch sends a signal to the engine-ECU according
to power steering load.
Based on this signal, the engine-ECU controls the throttle control servo so thatidle
speed increases when the power steering is in operation.DMalfunction of the power steering fluid pressure switch
DOpen circuit or short-circuited harness wire in the power
steering fluid pressure switch circuit, or poor connector
contact
DMalfunction of the engine-ECU
NG
NG
RepairOK
Replace the engine-ECU.
NG
Repair
Check the power steering fluid pressure switch. (Refer to GROUP
37A - On-vehicle Service.)NG
Replace
OK
Measure at power steering fluid pressure switch connector B-51.
DDisconnect the connector, and measure at the harness side.
DVoltage between terminal 1 and earth
(Ignition switch: ON)
OK:
System voltageNGCheck the following connector:
D-117
OK
Check trouble symptom.
Check the harness wire between the engine-ECU and power steer-
ing fluid pressure switch.NG
RepairOK
OK
Check the following connector:
B-51
Check trouble symptom.NG
Inspection procedure 31
A/C switch and A/C relay system
Probable cause
If the engine-ECU receives a ‘A/C on’ signal, it operates the throttle control servo
and A/C compressor magnetic clutch so thatidlespeed increases.DMalfunction of the A/C control system
DMalfunction of the A/C switch
DOpen circuit or short-circuited harness wire in the A/C
switch circuit, or poor connector contact
DMalfunction of the engine-ECU
NG
NG
RepairOK
Check trouble symptom.
NG
Replace the engine-ECU.
Service the A/C compressor relay. (Refer to GROUP 55 - On-ve-
hicle Service.)NG
Replace
OK
Measure at engine-ECU connectors D-116, D-118.
DDisconnect the connector, and measure at the harness side.
DVoltage between terminals 20, 83 and earth
(Ignition switch: ON)
OK:
0-3V
(A/C switch: OFF)
System voltage
(A/C switch: ON)
DConnect terminal 20 to earth.
(Ignition switch: ON, A/C switch: ON)
OK:
A/C compressor clutch turns on.OKCheck the following connectors:
D-116, D-118
Check the A/C system. (Refer to GROUP 55 - On-vehicle Service.)


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-103
Inspection procedure 32
Stop lamp switch system
Probable cause
The engine-ECU determines whether the brakepedal is depressed or not, by means
of the stoplampswitch input signal.DMalfunction of the stoplampswitch
DOpen circuit or short-circuited harness wire in the stop
lampcircuit, or poor connector contact
DMalfunction of the engine-ECU
NG
NG
NG
Repair
Check the stoplampswitch. (Refer to GROUP 35 - Brake Pedal.)NG
Replace
OK
Measure at stoplampswitch connector D-136.
DDisconnect the connector, and measure at the harness side.
DVoltage between terminal 2 and earth
OK:
System voltageNG
OK
Check trouble symptom.
Check the harness wire between the battery and stoplampswitch.
NG
Repair
OK
Measure at engine-ECU connector D-117.
DDisconnect the connector, and measure at the harness side.
DVoltage between terminal 63 and earth
(Ignition switch: ON)
OK:
0 - 3 V (when the brakepedal is not depressed)
System voltage (when the brakepedal is depressed)NG
OK
Check trouble symptom.
Check the harness wire between the engine-ECU and stoplamp,
and repair if necessary.
OK
Check the following connector:
D-117NG
Repair
OK
Check trouble symptom.
NG
Replace the engine-ECU.
Check the following connectors:
D-26 , D-27, D-124

Check the following connectors:
D-26 , D-124 ,
D-128, E-13


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-104

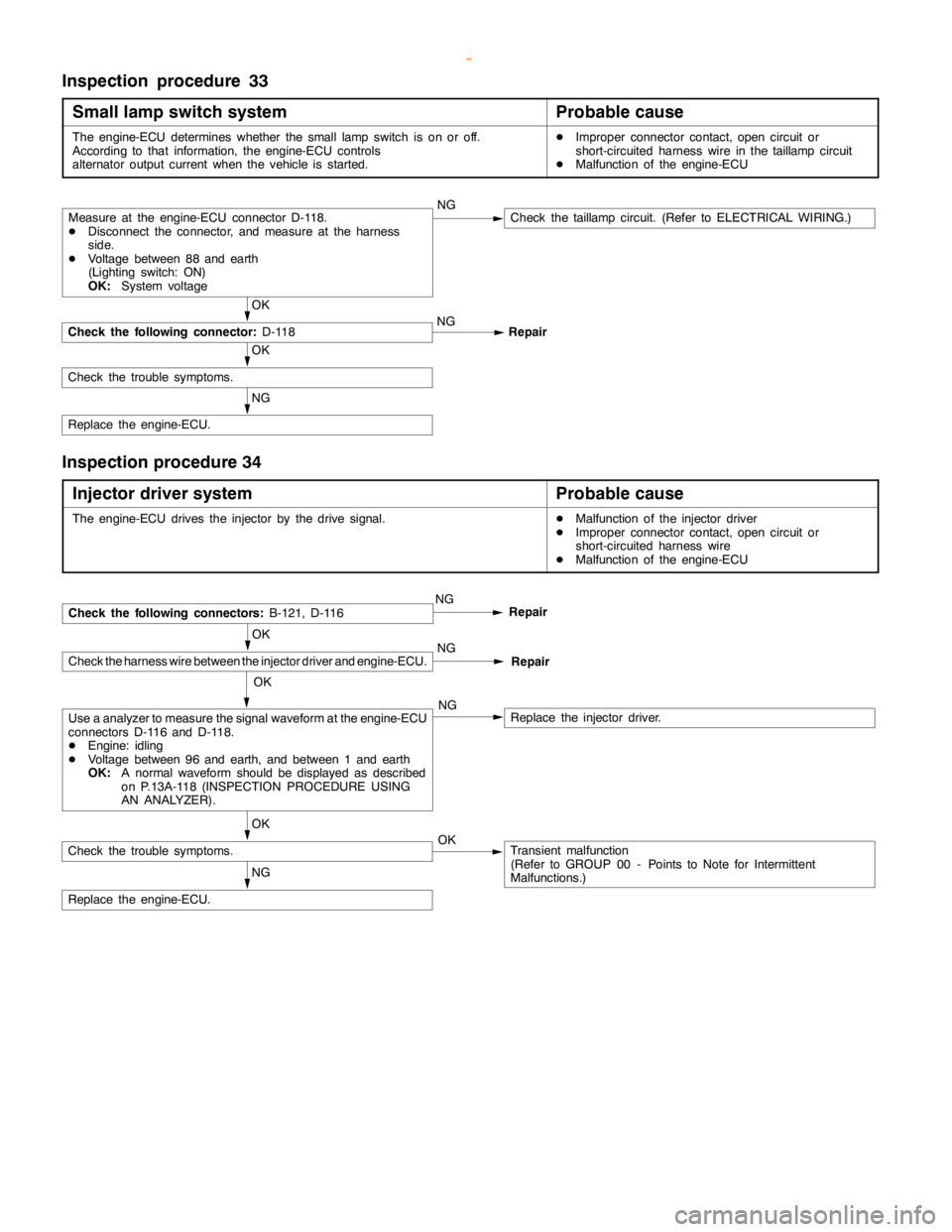

Inspection procedure 33
Small lamp switch system
Probable cause
The engine-ECU determines whether the small lampswitch is on or off.
According to that information, the engine-ECU controls
alternator output current when the vehicle is started.DImproper connector contact,opencircuit or
short-circuited harness wire in thetaillampcircuit
DMalfunction of the engine-ECU
NG
Replace the engine-ECU.
OK
Check the trouble symptoms.
OK
Check the following connector:
D-118NG
Repair
Measure at the engine-ECU connector D-118.
DDisconnect the connector, and measure at the harness
side.
DVoltage between 88 and earth
(Lighting switch: ON)
OK:
System voltageNGCheck thetaillampcircuit. (Refer to ELECTRICAL WIRING.)
Inspection procedure 34
Injector driver system
Probable cause
The engine-ECU drives the injector by the drive signal.DMalfunction of the injector driver
DImproper connector contact,opencircuit or
short-circuited harness wire
DMalfunction of the engine-ECU
OK
Check the harness wire between the injector driver and engine-ECU.
NG
Replace the engine-ECU.
OK
Check the trouble symptoms.Transient malfunction
(Refer to GROUP 00 - Points to Note for Intermittent
Malfunctions.) OK
Use a analyzer to measure the signal waveform at the engine-ECU
connectors D-116 and D-118.
DEngine: idling
DVoltage between 96 and earth, and between 1 and earth
OK:
A normal waveform should be displayed as described
on P.13A-118 (INSPECTION PROCEDURE USING
AN ANALYZER).NGReplace the injector driver.
NGCheck the following connectors:
B-121, D-116Repair
NG
Repair
OK


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-105
DATA LIST REFERENCE TABLE
Caution
When shifting the select lever to D range, the brakes should be applied so that the vehicle does
not move forward.
NOTE
*
1: Within four minutes after starting the engine
*2: In a new vehicle [driven approximately 500 km or less], the injector drive time is sometimes 10%
longer than the standard time.
*
3: The accelerator pedal position switch normally turns off when the voltage of the accelerator pedal
position sensor (1st channel) is 200 - 600 mV higher than the voltage at the idle position. If the
accelerator pedal position switch turns back on after the accelerator pedal position sensor voltage
has risen by 100 mV and the throttle valve has opened, the accelerator pedal position switch and
the accelerator pedal position sensor (1st channel) need to be adjusted.
Item
No.Check itemsRequirementsNormal conditionInspection
procedure
No.Reference
page
11Oxygen sen-Engine: AfterIdling200 mV or lessK
1Code No.13A-28
sor
(front)warm-up
Sudden racing600 - 1,000 mV
P0130
2,500 r/min400 mV or less and
600 - 1,000 mV
alternates.
12Air flow sensorD
Engine coolant
temperature:Idling22 - 48 HzCode No.
P010013A-17
80 - 95_
C
D
Lamps, electric
cooling fan and2,500 r/min60 - 100 Hz
cooling fan and
all accessories:
OFF
D
Transmission:
Neutral
RacingFrequency in-
creases in re-
sponse to racing.
13Intake air tem-
perature sen-Ignition switch: ONIntake air tempera-
ture: - 20_
C-20_
CCode No.
P011013A-21
sor
Intake air tempera-
ture: 0_
C0_
C
Intake air tempera-
ture: 20_
C20_
C
Intake air tempera-
ture: 40_
C40_
C
Intake air tempera-
ture: 80_
C80_
C


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-106
Item
No.Reference
page Inspection
procedure
No. Normal condition Requirements Check items
14Throttle posi-
tion sensorDEngine coolant
temperature:Release the accel-
erator pedal.4,000 mV or moreCode No.
P022513A-52
(2nd channel)80 - 95_C
DIgnition switch:
ON (Engine
stopped)
Depress the accel-
erator pedal gradu-
ally.Voltage decreases
in response to the
pedal depression.
Depress the accel-
erator pedal fully.400 - 600 mV
16Power supply
voltageIgnition switch: ONSystem voltageProcedure
No.2513A-98
18Cranking sig-Transmission: Neu-Engine: StoppedOFFProcedure13A-99
nal (Ignition
switch - ST)tral
Engine: CrankingON
No.27
21Engine coolant
temperature
sensorIgnition switch: ONEngine coolant
temperature:
-20_C-20_CCode No.
P011513A-22
Engine coolant
temperature: 0_C0_C
Engine coolant
temperature: 20_C20_C
Engine coolant
temperature: 40_C40_C
Engine coolant
temperature: 80_C80_C
22Crank angle
sensorDEngine: crank-
ing
DTachometer:
ConnectedCompare the engine
speed readings on
the tachometer and
the MUT-II.AccordCode No.
P033513A-56
DEngine: Idling
DAccelerator
pedal positionEngine coolant
temperature:
-20_C1,250 - 1,450 r/min
switch: ON
Engine coolant
temperature: 0_C1,100 - 1,300 r/min
Engine coolant
temperature: 20_C1,000 - 1,200 r/min
Engine coolant
temperature: 40_C900 - 1,100 r/min
Engine coolant
temperature: 80_C550 - 650 r/min*1


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk
