2000 MITSUBISHI MONTERO Service Repair Manual

DIESEL FUEL <4M4> -Troubleshooting13C-6
Code No. 41 Throttle valve systemProbable cause
Range of Check
DEngine speed is 1,600 r/min and accelerator opening angle is 50 % or more
Set Conditions
DBoost pressure < barometric pressure + 33 kPa for 12 secondsDMalfunction of throttle valve
DOpen circuit or short-circuit in throttle valve circuit
or poor connector connection
DMalfunction of engine-ECU

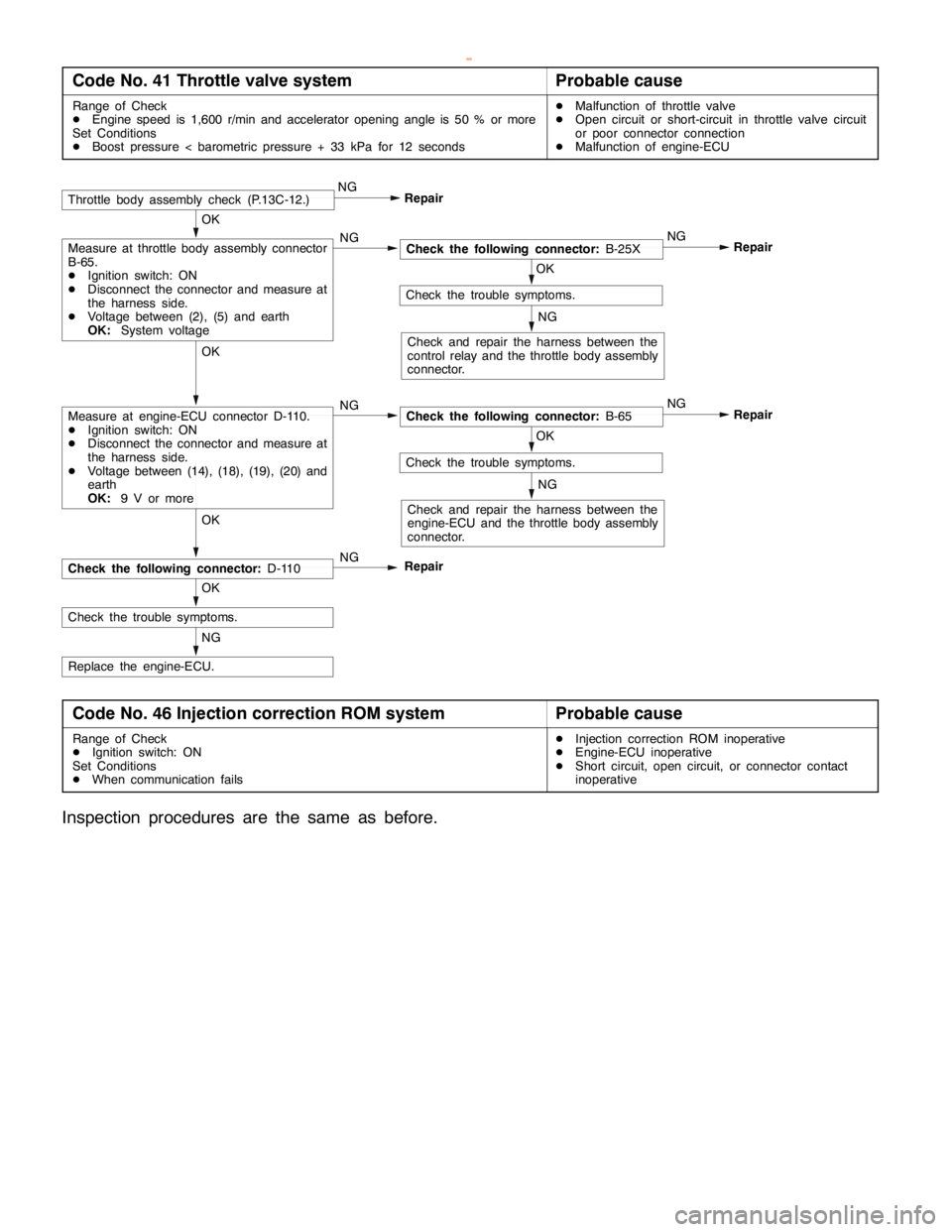

NG
Replace the engine-ECU.
OK
Check the trouble symptoms.
OK
NG
Check the following connector:D-110
OK
Check the trouble symptoms.
NG
Check and repair the harness between the
engine-ECU and the throttle body assembly
connector.
Repair NG
OK
Check the following connector:B-65 NG
OK
Check the trouble symptoms.
NG
Check and repair the harness between the
control relay and the throttle body assembly
connector.
Repair NG
OK
Check the following connector:B-25X NGMeasure at throttle body assembly connector
B-65.
DIgnition switch: ON
DDisconnect the connector and measure at
the harness side.
DVoltage between (2), (5) and earth
OK:System voltage
RepairThrottle body assembly check (P.13C-12.)NG
Measure at engine-ECU connector D-110.
DIgnition switch: ON
DDisconnect the connector and measure at
the harness side.
DVoltage between (14), (18), (19), (20) and
earth
OK:9 V or more
Repair
Code No. 46 Injection correction ROM systemProbable cause
Range of Check
DIgnition switch: ON
Set Conditions
DWhen communication failsDInjection correction ROM inoperative
DEngine-ECU inoperative
DShort circuit, open circuit, or connector contact
inoperative
Inspection procedures are the same as before.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

DIESEL FUEL <4M4> -Troubleshooting13C-7
Code No. 48 GE actuator (in the middle of control sleeve
position sensor inoperative) systemProbable cause
Range of Check
DIgnition switch: ON
Set Conditions
DTarget value minus actual value for 0.5 second is 1 V or more.DControl sleeve position sensor inoperative
DGE actuator inoperative
DControl sleeve position sensor open circuit, short
circuit, or connector contact inoperative
DEngine-ECU inoperative

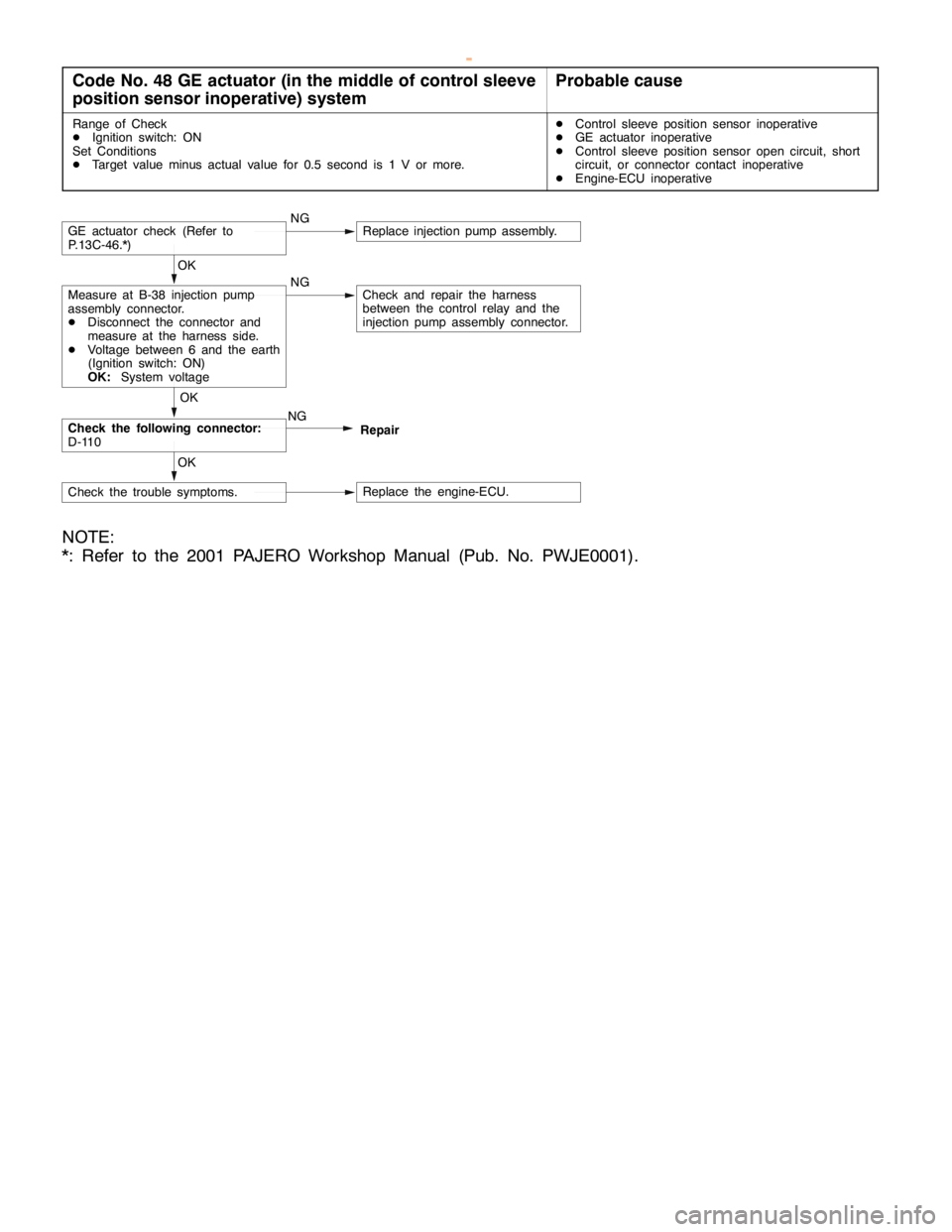

NGGE actuator check (Refer to
P.13C-46.*)Replace injection pump assembly.
NGMeasure at B-38 injection pump
assembly connector.
DDisconnect the connector and
measure at the harness side.
DVoltage between 6 and the earth
(Ignition switch: ON)
OK:System voltageCheck and repair the harness
between the control relay and the
injection pump assembly connector. OK
Check the following connector:
D-110NG OK
Repair
Check the trouble symptoms.Replace the engine-ECU. OK
NOTE:
*: Refer to the 2001 PAJERO Workshop Manual (Pub. No. PWJE0001).


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

DIESEL FUEL <4M4> -Troubleshooting13C-8
Code No. 51 EGR valve assembly systemProbable cause
Range of Check
DIgnition switch: ON
Set Conditions
DEGR sensor output voltage is continuously 0.5 V or less, or 4.5 V or more
for 1 second or more
DDifference between EGR sensor output voltage target value and output is
continuously 0.5 V or more for 3 seconds or moreDMalfunction of EGR valve assembly
DOpen circuit or short-circuit in EGR valve
assembly circuit or poor connector connection
DMalfunction of engine-ECU
Check and repair the harness
between the engine-ECU and the
EGR valve assembly connector.
NG
OKCheck the trouble symptoms.
OK
Transient malfunction (Refer to
GROUP 00 - Point to Note for
Intermittent Malfunctions.)
NGMeasure at engine-ECU connector
D-113.
DConnector connected
DIgnition switch: ON
DVoltage between (90) and earth
OK:0.5 - 4.5 VCheck the following connector:
D-113NG
Repair OK
Check and repair the harness
between the engine-ECU and the
EGR valve assembly connector.
NG
OKCheck the trouble symptoms.
OK
Transient malfunction (Refer to
GROUP 00 - Point to Note for
Intermittent Malfunctions.)

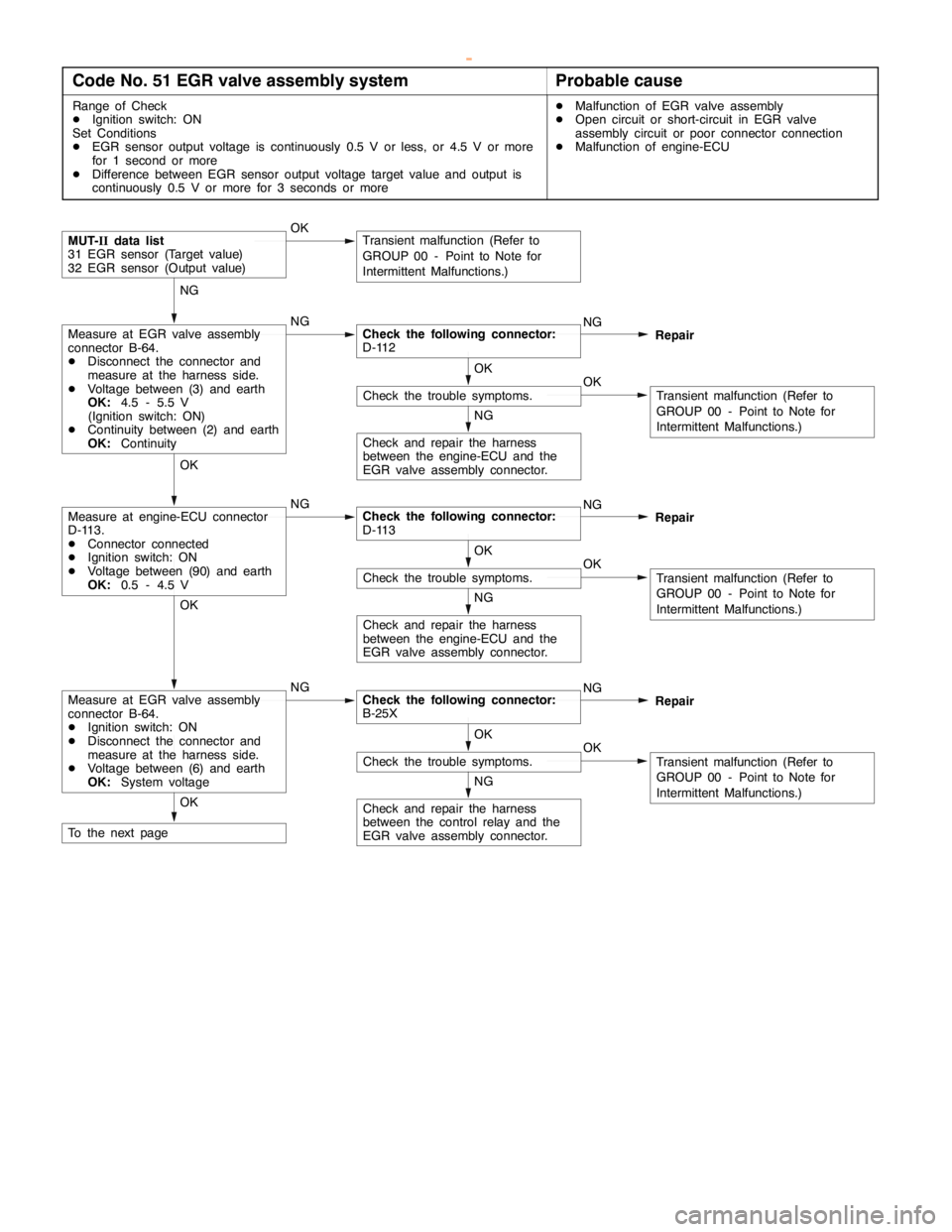

OKMUT-IIdata list
31 EGR sensor (Target value)
32 EGR sensor (Output value)Transient malfunction (Refer to
GROUP 00 - Point to Note for
Intermittent Malfunctions.)
NGMeasure at EGR valve assembly
connector B-64.
DDisconnect the connector and
measure at the harness side.
DVoltage between (3) and earth
OK:4.5 - 5.5 V
(Ignition switch: ON)
DContinuity between (2) and earth
OK:ContinuityCheck the following connector:
D-112NG
Repair NG
To the next pageOK
Check and repair the harness
between the control relay and the
EGR valve assembly connector.
NG
OKCheck the trouble symptoms.
OK
Transient malfunction (Refer to
GROUP 00 - Point to Note for
Intermittent Malfunctions.)
NGMeasure at EGR valve assembly
connector B-64.
DIgnition switch: ON
DDisconnect the connector and
measure at the harness side.
DVoltage between (6) and earth
OK:System voltageCheck the following connector:
B-25XNG
Repair OK


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

DIESEL FUEL <4M4> -Troubleshooting13C-9

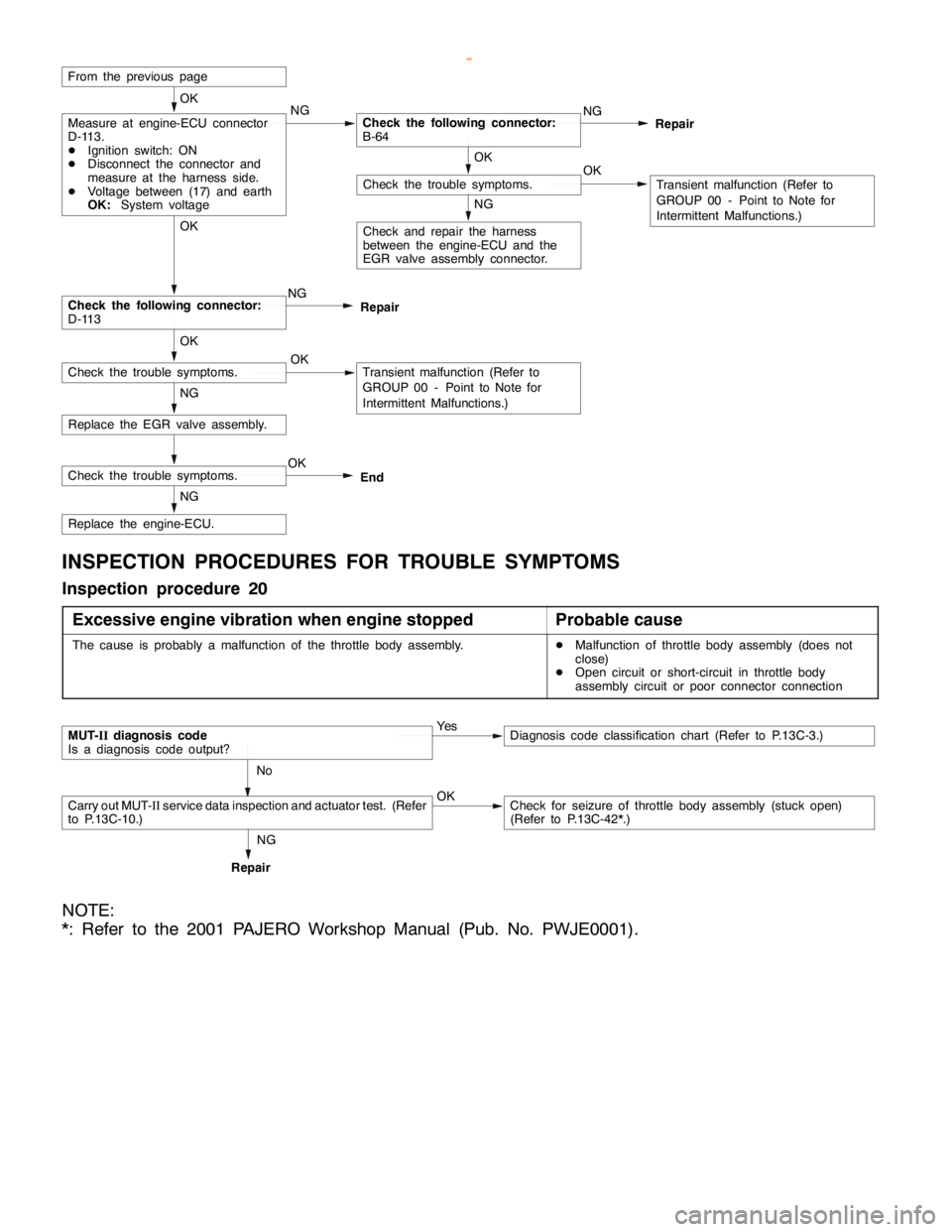

Replace the engine-ECU.
Replace the EGR valve assembly.NG
Check the following connector:
D-113NG OK
Check and repair the harness
between the engine-ECU and the
EGR valve assembly connector.
NG
OKCheck the trouble symptoms.
OK
Transient malfunction (Refer to
GROUP 00 - Point to Note for
Intermittent Malfunctions.)
From the previous page
NGMeasure at engine-ECU connector
D-113.
DIgnition switch: ON
DDisconnect the connector and
measure at the harness side.
DVoltage between (17) and earth
OK:System voltageCheck the following connector:
B-64NG
Repair OK
NG
OKCheck the trouble symptoms.Transient malfunction (Refer to
GROUP 00 - Point to Note for
Intermittent Malfunctions.) OKRepair
Check the trouble symptoms.OK
End
INSPECTION PROCEDURES FOR TROUBLE SYMPTOMS
Inspection procedure 20
Excessive engine vibration when engine stopped
Probable cause
The cause is probably a malfunction of the throttle body assembly.DMalfunction of throttle body assembly (does not
close)
DOpen circuit or short-circuit in throttle body
assembly circuit or poor connector connection
MUT-IIdiagnosis code
Is a diagnosis code output?Ye sDiagnosis code classification chart (Refer to P.13C-3.)
No
Carry out MUT-IIservice data inspection and actuator test. (Refer
to P.13C-10.)OKCheck for seizure of throttle body assembly (stuck open)
(Refer to P.13C-42*.)
RepairNG
NOTE:
*: Refer to the 2001 PAJERO Workshop Manual (Pub. No. PWJE0001).


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

DIESEL FUEL <4M4> -Troubleshooting13C-10
DATA LIST REFERENCE TABLE
Item No.Check itemInspection
conditionsValue to be
determined normalCode No. or
inspection
procedure No.Reference page
31EGR sensor
(Target value)Engine: RacingChanges between 0.5
V and 4.5 VCode No. 5113C-8
32EGR sensor
(Output value)Engine: RacingApproaches EGR
sensor (target value).Code No. 5113C-8
36Throttle body
assembly
(Target value)Engine: Idling30 degCode No. 4113C-6
ACTUATOR TEST TABLE
Item No.Check itemDrive contentsInspection
conditionsValue to be
determined as
normalCode No. or
inspection
procedure No.Reference
page
07Throttle body
assemblyThrottle valve:
Fully closedDIgnition
switch: ON
DVehicle
Operating
sound can be
heard
Code No. 4113C-6
08Throttle valve:
Kept at half-
openDVehicle
speed: 0 km/h
DEngine
speed: 1,000
r/minorlower
heard.
09Throttle valve:
Fully openr/minorlower
28EGR valve
assemblyEGR valve:
OpenDIgnition
switch: ON
DVehicle
Operating
sound can be
heard
Code No. 5113C-8
29EGR valve:
ClosedDVehicle
speed: 0 km/hheard.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

DIESEL FUEL <4M4> -Troubleshooting13C-11
ENGINE-ECU CHECK
TERMINAL VOLTAGE TABLE
Terminal No.Check itemInspection conditions (engine status)Normal condition
14Throttle body assembly (1)Ignition switch: ON (Engine stops)9 V or more
17EGR motorIgnition switch: ON (Engine stops)System voltage
18Throttle body assembly (2)Ignition switch: ON (Engine stops)9 V or more
19Throttle body assembly (3)Ignition switch: ON (Engine stops)9 V or more
20Throttle body assembly (4)Ignition switch: ON (Engine stops)9 V or more
33A/C load signalEngine: Idle
A/C switch: ONDuring weak cooling or
heatingSystem voltage
During normal cooling0-1V
During strong coolingChanges repeatedly
between 0 V and 12 V
37Clutch switch Clutch pedal depressed0-1V
Inhibitor switch Ignition switch:
ON (Engine stops)Move selector lever to N
or P0-1V
Move selector lever to D,
2, L or RSystem voltage
38Control relay (no immobi-
lizer)
Ignition switch: ON0-1V
lizer)
Ignition switch: ON→OFF (after approx. 8
seconds)System voltage
41Select switch Ignition switch:
ON (Engine stops)Move shift lever to 4st or
RSystem voltage
421st - 2nd switch Ignition switch:
ON (Engine stops)Move shift lever to 1st or
2ndSystem voltage
433rd - 4th switch Ignition switch:
ON (Engine stops)Move shift lever to 3rd or
4thSystem voltage
445th - R switch Ignition switch:
ON(Enginestops)
Move shift lever to 5th0-1V
ON(Engine stops)
Move shift lever to RSystem voltage
58TachometerDuring idlingChanges repeatedly
between 0 V and 12 V
90EGR valve sensorDuring racingChanges between 0.5
V and 4.5 V


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

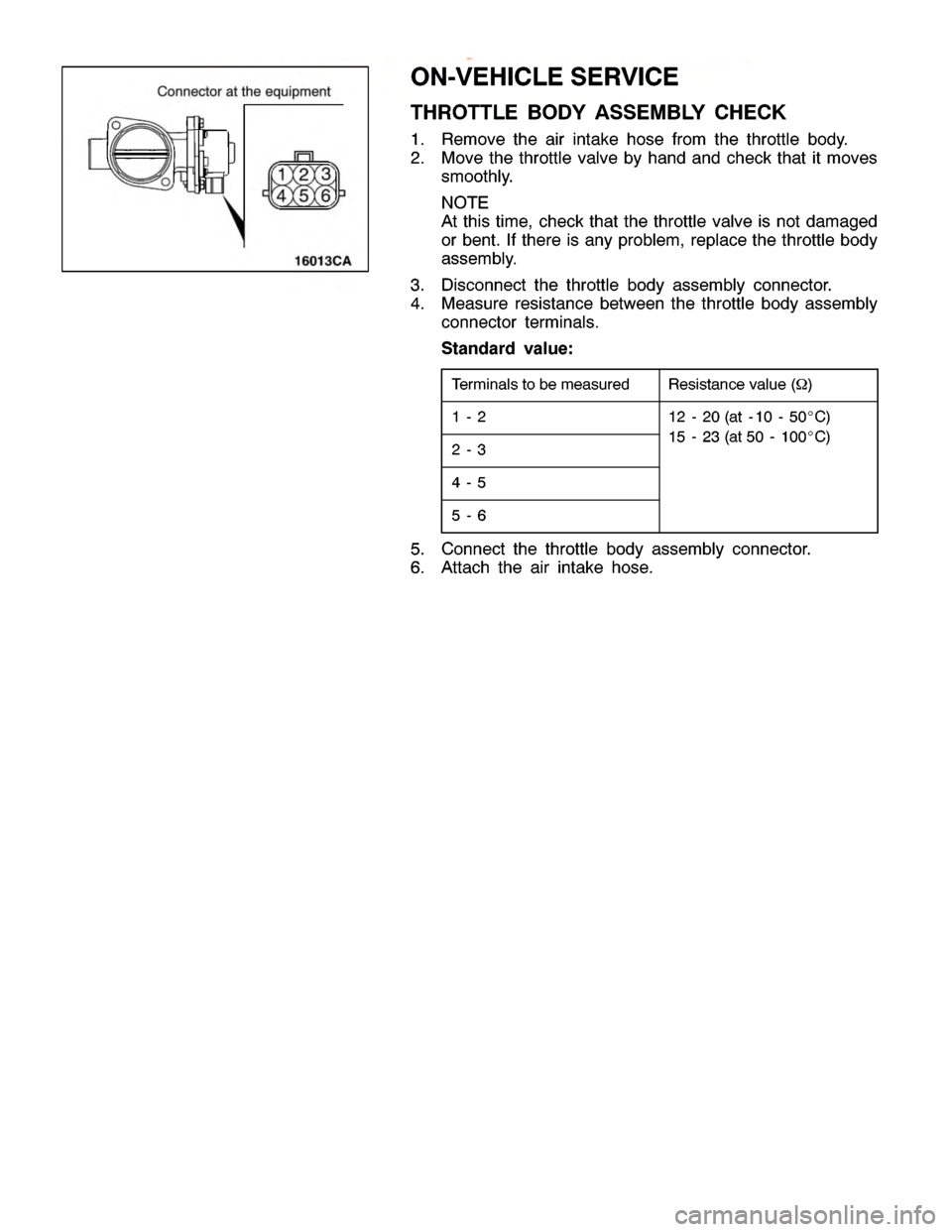

O
N-V EH IC LE SER VIC E
T H RO TTLE BO DY ASSEM BLY CHEC K
1 . Rem ove th e air in ta ke hose fr o m th e th ro ttle body.
2 . Move th e th ro ttle va lv e by hand and ch eck th at it m ove s
s m ooth ly .
N O TE
A tth is tim e, ch eck th at th e th ro ttle va lv e is not dam aged
o r bent. If th ere is any pro ble m ,re pla ce th e th ro ttle body
a sse m bly .
3 . Dis co nnect th e th ro ttle body asse m bly co nnecto r.
4 . Measu re re sis ta nce betw een th e th ro ttle body asse m bly
c o nnecto r te rm in als .
S ta n dard valu e:
T e rm in als to be m easu re d R
esis ta nce va lu e (Ω ) 1
-2 1
2 -20 (a t -1 0 -50_C ) 1
5 2
-3 1
5 -23 (a t 50 -100_C ) 4
-5 5
-6

I
N JE C TIO N PU M P
R EM OVA L AND IN STA LLA TIO N 5
.0 ±1.0 N·m 5
.0 ±1.0 N·m (
E ngin e oil)
12
5 8
1 4
3
6 15
1
6
11
R em oval ste p s
1 . In je ctio n pum p co nnecto r
2 . E ngin e sp eed se nso r co nnecto r
3 . E ngin e sp eed se nso r 1 co nnecto r
4 . E ngin e sp eed se nso r 1
5 . E ngin e sp eed se nso r 2 co nnecto r
6 . E ngin e sp eed se nso r 2
" CA 7. Fuel re tu rn hose
" BA 8. Fuel re tu rn hose "
BA 9. Fuel m ain hose
1 0. In je ctio n pum p sta y
1 1 . In ta ke manif o ld co ve r
1 2. In je ctio n pum p co ve r asse m bly
1 3. In su la to r co lla r
1 4. In su la to r
1 5. In je ctio n pum p co ve r
A A" "AA 16. In je ctio n pum p asse m bly
w
ww.W ork sh opM an uals .c o .u k
P urc h ased f r o m w ww.W ork sh opM an uals .c o .u k
