2000 MITSUBISHI MONTERO Service Repair Manual

SWS -Troubleshooting54B-11
Code No.13 Failure concerning the front-ECUProbable cause
This diagnosis code is displayed when the signals that the front-ECU sends to
the ETACS-ECU are errors consecutive fifteen times in 0.6 second.
The diagnosis code will be erased when the front-ECU sends normal signals to
the ETACS-ECU consecutive 15 times in 0.6 second.DMalfunction of front-ECU
DMalfunction of ETACS-ECU
DMalfunction of wiring harness or connector
OK
Is diagnosis code No. 12 output
when the ignition switch is at the
ON position?Ye sMeasure at front-ECU connector A-07X.
DDisconnect connector and
measure at harness side.
DVoltage between terminal 7 and
body earth
OK:System voltageNGCheck the following connector:
A-07X
NG
Check the harness wire between front-
ECU and fusible link (2).
No
Measure at front-ECU connector A-08X.
DDisconnect connector and
measure at harness side.
DContinuity between terminal 31
and body earth.
OK:ContinuityCheck the following connectors:
A-08X, D-27, D-31, D-226NG
Repair
OK
Replace the front-ECU.
OK
Check trouble symptoms.NGReplace the front-ECU.
NG
Check the following connector:
A-08XNG
Repair
NG
RepairOK
Check trouble symptoms.
OK
Check the trouble symptoms.NGCheck the harness wire between front-
ECU and body earth.
Check trouble symptoms.
NG
Replace the ETACS-ECU.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-12
Code No.21 Short circuit in communication linesProbable cause
This diagnosis code is displayed when the SWS communication line voltage
reaches the LO level for 0.3 second. The diagnosis code is erased when
voltage in the ETACS-ECU data line reaches the HI level for 0.3 second, or the
ETACS-ECU receives a normal signal from other ECUs or switches. While this
code is displayed, other codes are not displayed.DMalfunction of column switch
DMalfunction of front-ECU
DMalfunction of power windowmainswitch

DMalfunction of sunroof motor assembly with sunroof>
DMalfunction of center display display>
DMalfunction of ETACS-ECU
DMalfunction of wiring harness or connector
NG
Repair
OK
Ye s
Replace the column switch.
No
Ye s
Replace the front-ECU.
No
Ye s
Replace the power windowmainswitch.
No
Ye s
Replace the center display.
No
Replace the ETACS-ECU.
No
Ye s
Replace the sunroof motor assembly.
Is diagnosis code No. 21 no longer output when center
display connector D-06 is disconnected?
Is diagnosis code No. 21 no longer output when sunroof
motor assembly connector F-06 is disconnected?
Is diagnosis code No. 21 no longer output when power
window mainswitch connector H-05 is disconnected?
Is diagnosis code No. 21 no longer output when front-ECU
connector A-08X is disconnected? (However, code No. 13 is
still output.)
Is diagnosis code No. 21 no longer output when column
switch connector D-203 is disconnected? (However, code No.
12 is still output.)
NG
Check the harness wires between column switch and ETACS-ECU,
front-ECU and ETACS-ECU, power windowmainswitch and
ETACS-ECU, sunroof motor assembly and ETACS-ECU, center
display and ETACS-ECU.NG
Repair
OK
Check trouble symptoms.
Check the following connectors:
A-08X, D-06, D-25, D-27, D-29, D-31, D-203, D-226, F-02, F-06,
H-05


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-13
TROUBLE SYMPTOM CHART
Trouble symptomInspection
procedureReference
page
Communication with the MUT-IIis impossible.A-154B-17
BuzzerLight reminder warning buzzer function does not work
normally.B-154B-17
Center display operation annunciation function does not work
normally.B-254B-18
Central door lock-Central door locking system does not work normally.C-154B-18
ing system
Some doors does not lock or unlock.C-254B-19
Some functions of central locking system do not work.C-354B-19
Forgotten key prevention function does not work.C-454B-20
Power windowPower window does not work at all.D-154B-20
Power window main switch can not operate driver’s window.D-254B-21
Power window sub switch can not operate front passenger’s or
rear window.D-354B-22
Power window main switch can not operate front passenger’s
or rear window.D-454B-23
Power window timer function does not work normally.D-554B-23
When the glass is raised, it then lowers automatically.D-654B-24
The glass is not lowered when something is jammed in the
window.D-754B-24
When the glass is fully raised, it then lowers automatically.D-854B-24
Keyless entry sys-Keyless entry system does not operate.E-154B-24
tem
The room lamp and hazard warning lamps do not operate
through the answerback function.E-254B-25
The encrypted code cannot be registered.E-354B-25
SunroofSunroof does not work at all.F-154B-26
Sunroof timer function does not work normally.F-254B-27
Safety mechanism does not function.F-354B-27


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -TroubleshootingSWS -Troubleshooting54B-14
Trouble symptomInspection
procedureReference
page
Windshield wiperWindshield wiper does not operate.G-154B-28
and washer
Windshield wiper does not stop at the predetermined park
position.G-254B-29
Any of the windshield wiper switch positions is defective.G-354B-29
Windshield intermittent wiper interval cannot be adjusted.G-454B-30
Windshield washer does not work.G-554B-30
Rear wiper andRear wiper does not work at all.H-154B-31
washer
Rear wiper does not stop at the predetermined park position.H-254B-31
When the shift lever orselector lever ismoved
to R position during the rear wiper operation, the rear wiper
does not operate at the continuous mode.H-354B-32
Rear washer does not work.H-454B-32
Headlamp washerHeadlamp washer does not work.I-154B-33
Ignition key hole
illumination lampIgnition key hole illumination lamp does not work normally.J-154B-34
Headlamp, tailTail lamp do not illuminate.K-154B-34
lamp
Headlamps (low-beam) do not illuminate.K-254B-35
Headlamps (high-beam) do not illuminate.K-354B-35
Headlamps do not illuminate when the passing switch is
operated.K-454B-36
The headlamp automatic shutdown function does not work
normally.K-554B-36
Headlamp dimmer switch automatic reset function does not
work normally.K-654B-37
Daytime running lamp (DRL) function does not work.K-754B-37
Flasher timerTurn-signal lamp do not flash when the turn-signal lamp switch
is turned on.L-154B-37
Hazard warning lamps do not flash when the hazard warning
lamp switch is turned on.L-254B-38
Front fog lampFront fog lamps do not illuminate when the front fog lamp
switch is turned on.M-154B-39
Front fog lamp do not go out when the tail lamps are turned off
while the front fog lamps are on.M-254B-39


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-15
Trouble symptomInspection
procedureReference
page
Rear fog lampRear fog lamp do not illuminate when the rear fog lamp switch
is turned on.N-154B-40
Rear fog lamp do not go out when the headlamps and front fog
lamps are turned off while the rear fog lamp is on.N-254B-40
Room lampRoom lamp does not illuminate.O-154B-41
Room lamp dimming function does not work normally.O-254B-41
Center displayCenter display does not work normally.–GROUP 54A
– Center Dis-
play.
DEFECTS FOUND BY INPUT SIGNAL CHECK
If the input signal check finds a defect, follow the table below to check.
Trouble symptomInspection
procedureReference
page
Ignition switch (ACC) signal is not sent to the ETACS-ECU.P-154B-42
Ignition switch (IG1) signal is not sent to the ETACS-ECU.P-254B-42
Key reminder switch signal is not sent to the ETACS-ECU.P-354B-43
Hazard warning lamp switch signal is not sent to the ETACS-ECU.P-454B-43
Front fog lamp switch signal is not sent to the ETACS-ECU.P-554B-44
Rear fog lamp switch signal is not sent to the ETACS-ECU.P-654B-45
Back-up lamp switch signal is not sent to the ETACS-ECU.P-754B-45
Inhibitor switch (reverse) signal is not sent to the ETACS-ECU.P-854B-46
Rear wiper motor auto-stop signal is not sent to the ETACS-ECU.P-954B-46
Driver’s door switch signal is not sent to the ETACS-ECU.P-1054B-47
Door switches signal is not sent to the ETACS-ECU.
Front passenger’s or back door lock key cylinder switch signal is not sent to the
ETACS-ECU.P-1154B-48
Driver’s door lock actuator switch signal is not sent to the ETACS-ECU.P-1254B-48


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-16
Trouble symptomInspection
procedureReference
page
Column switchTail lamp switch signal is not sent to the ETACS-ECU.P-1354B-49
Headlamp switch signal is not sent to the ETACS-ECU.
Dimmer switch signal is not sent to the ETACS-ECU.
Passing switch signal is not sent to the ETACS-ECU.
Turn-signal lamp switch signal is not sent to the ETACS-ECU.
Windshield mist wiper switch signal is not sent to the
ETACS-ECU.P-1454B-50
Windshield intermittent wiper switch signal is not sent to the
ETACS-ECU.
Windshield low-speed wiper switch signal is not sent to the
ETACS-ECU.
Windshield high-speed wiper switch signal is not sent to the
ETACS-ECU.
Windshield intermittent wiper interval adjusting knob signal is
not sent to the ETACS-ECU.P-1554B-50
Windshield washer switch signal is not sent to the
ETACS-ECU.P-1454B-50
Rear wiper switch signal is not sent to the ETACS-ECU.
Rear washer switch signal is not sent to the ETACS-ECU.
Headlamp washer switch signal is not sent to the ETACS-ECU.P-1354B-49
Power window
main switchAny switch signal is not sent to the ETACS-ECU.P-1654B-51
TransmitterAny switch signal is not sent to the ETACS-ECU.P-1754B-52
Sunroof switchAny switch signal is not sent to the ETACS-ECU.P-1854B-52
Center displayAny switch signal is not sent to the ETACS-ECU.P-1954B-53


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -TroubleshootingSWS -Troubleshooting54B-17
INSPECTION PROCEDURE FOR TROUBLE SYMPTOMS
Inspection Procedure A-1
Communication with the MUT-II
is impossible.Probable cause
The harness wires between the ETACS-ECU power supply line or the
ETACS-ECU and the diagnosis connector may be defective.DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
Ye s
Ye s
Check the ETACS-ECU battery circuit. (Refer to P.54B-53, Inspec-
tion Procedure Q-1.)
No
NG
NG
Repair
NG
Check the harness wire between ETACS-ECU and body earth.
OK
OK
Replace the ETACS-ECU.
NG
Repair
NG
Check the harness wire between ETACS-ECU and diagnosis con-
nector.NG
Repair
OK
Check trouble symptoms.
Check following connectors:
D-226, D-222, D-23
OK
Check trouble symptoms.
Check following connectors:
D-224, D-209Measure at ETACS-ECU connector D-224.
DDisconnect connector and measure at J/B side.
DContinuity between terminal 20 and body earth.
OK:Continuity
Is communication with the MUT-
IIpossible when the ignition
switch is at the ON position?
Can MUT-
IIcommunicate with other system?NoCheck and repair the self-diagnosis system with the MUT-
II.
Inspection Procedure B-1
Buzzer: Light reminder warning buzzer function does not
work normally.Probable cause
The ETACS-ECU operates the light reminder warning buzzer function, based on
input signals from the following switches:
DIgnition switch (IG1)
DDriver’s door switch
DTail lampswitch
DHeadlamp switch
If the function does not work normally, a defect on the relevant circuit or the
ETACS-ECU may be suspected.DMalfunction of driver’s door switch
DMalfunction of column switch
DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
NoCheck the ETACS-ECU battery circuit. (Refer to P.54B-53, Inspec-
tion Procedure Q-1.)
Ye s
NG
Check the defective input circuit. (Refer to P.54B-15, Defects Found
by Input Signal Check.)
OK
Replace the ETACS-ECU.
Do all of the following functions operate when the ignition key
is at the LOCK (OFF) position?
DHazard warninglamp
DRoom lamp
MUT-
IIinput signal check
DIgnition switch (IG1)
DDriver’s door switch
DTail lampswitch
DHeadlamp switch


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-18

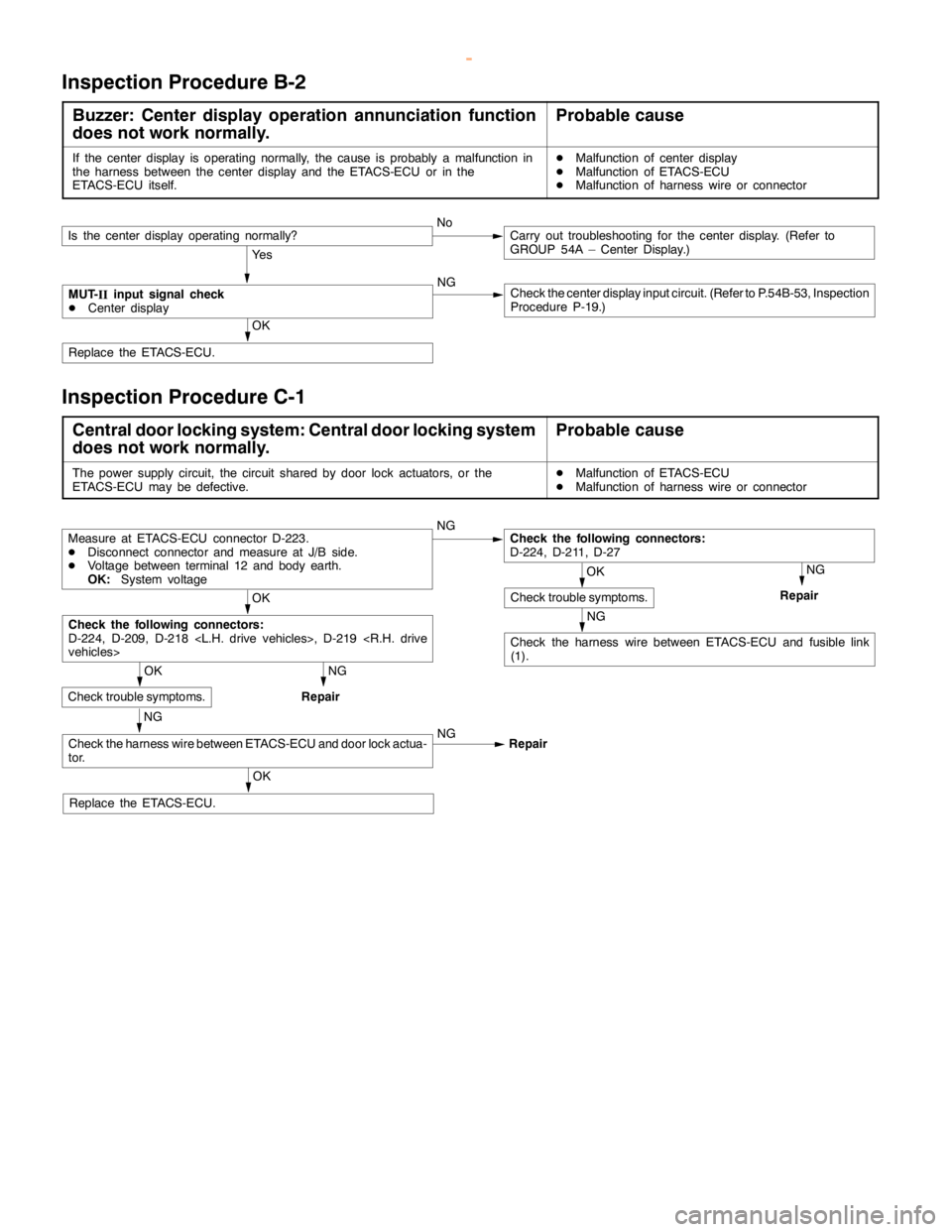

Inspection Procedure B-2
Buzzer: Center display operation annunciation function
does not work normally.Probable cause
If the center display is operating normally, the cause is probably a malfunction in
the harness between the center display and the ETACS-ECU or in the
ETACS-ECU itself.DMalfunction of center display
DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
Ye s
NG
Check the center display input circuit. (Refer to P.54B-53, Inspection
Procedure P-19.)
OK
Replace the ETACS-ECU.
MUT-
IIinput signal check
DCenter display
Is the center display operating normally?NoCarry out troubleshooting for the center display. (Refer to
GROUP 54A – Center Display.)
Inspection Procedure C-1
Central door locking system: Central door locking system
does not work normally.Probable cause
The power supply circuit, the circuit shared by door lock actuators, or the
ETACS-ECU may be defective.DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
NG
NG
Repair
NG
Check the harness wire between ETACS-ECU and fusible link
(1).
OK
NG
Repair
NG
NG
Repair
OK
Replace the ETACS-ECU.
Check the harness wire between ETACS-ECU and door lock actua-
tor.
OK
Check trouble symptoms.
Check the following connectors:
D-224, D-209, D-218 , D-219 vehicles>
Measure at ETACS-ECU connector D-223.
DDisconnect connector and measure at J/B side.
DVoltage between terminal 12 and body earth.
OK:System voltage
OK
Check trouble symptoms.
Check the following connectors:
D-224, D-211, D-27


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk
