2000 MITSUBISHI MONTERO Service Repair Manual

SWS -General Information54B-3
POWER WINDOWS
Power Windows Operation
A signal line dedicated for transmission of multiplex
communication data is connected between the
power window main switches and the power window
motor-ECU.
Communication is uni-directional. The power
window main switches have a transmitting circuit
only, whereas the power window sub switches have
a receiving circuit only.
Power Window Timer Function
With the ignition switch in the ON position, the power
window relay and power window switch receipt
permission signal (a SWS signal transmitted from
the ETACS-ECU) are turned ON [the power windowswitch receipt permission signal remains ON for 30
seconds after the ignition switch is turned LOCK
(OFF)], enabling opening and closing of the
windows. The power window relay goes ON for
additional 30 seconds. If the driver’s door is
subsequently closed during this period, the receipt
permission signal goes OFF. The power window
relay goes OFF 10 seconds after the receipt
permission signal goes OFF.
If the driver’s door is opened during timer operation,
the receipt permission signal goes ON for additional
30 seconds. If the driver’s door is subsequently
closed during this period, the receipt permission
signal goes OFF ten seconds after the receipt
permission signal goes OFF.
KEYLESS ENTRY SYSTEM
Keyless Entry System Operation
If the transmitter LOCK or UNLOCK switch is
pressed while the ignition key is removed and all
of the doors are closed, the doors can be locked
or unlocked.
Keyless Entry Answerback Function
The keyless entry hazard answerable function
facilitates confirmation of door locking and unlock-
ing operations even in daylight. When a LOCKsignal from the keyless entry transmitter is applied
to the ETACS-ECU, all of the turn-signal lamps flash
twice. When an UNLOCK signal from the keyless
entry transmitter is applied to the ETACS-ECU, all of
the turn-signal lamps flash four times. Note that an
unlock switch has change from OFF to ON.
NOTE
The hazard answer back is enabled or disabled
by the configuration function.
SUNROOF
Sunroof Operation
All of the slide open/close, tilt up/down, and stop
operations can be performed by a single switch.
When the roof lid glass is tilted up, the sunshade
opens approximately 98 mm in combined operation
with the roof lid glass for better ventilation.
A jam preventing mechanism has been adopted.
When a slide-close or tilt-down operation is blocked
by an external force, the roof lid glass moves back
and stops.Sunroof Timer Function
When the ignition switch is turned from ON position
to LOCK (OFF) or ACC position, the sunroof will
be ready to work for 30 seconds.
If the driver’s door is opened during the timer
operation, the timer operates for another
30
seconds starting from that point. However, the
timer operation discontinues if the door is closed
during that period.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -General Information54B-4
WINDSHIELD WIPER AND WASHER
Windshield Low-speed/High-speed Wiper
Operation
DIf the windshield low-speed wiper switch is
turned to the ON position with the ignition switch
at the ACC or ON position, the column switch
sends a low-speed wiper ON and high-speed
wiper OFF signals to the front-ECU.
This turns the wiper signal on and the wiper
speed switching relay off (low-speed), causing
the wipers to operate at low-speed.
DIf the windshield high-speed wiper switch is
turned to the ON position, the column switch
sends a low-speed wiper OFF and high-speed
wiper ON signals to the front-ECU.
This turns both the wiper signal and the wiper
speed switching relay on (high-speed), causing
the wipers to operate at high-speed.
Windshield Intermittent Wiper Operation
The ETACS-ECU calculates the wiper operation
interval according to the voltage signal sent from the
column switch. Then the ETACS-ECU sends a
signal to the front-ECU. The front-ECU determines
the wiper operation interval and turns on the wiper
signal relay. This causes the wiper auto stop relay to
turn on. Then the wiper auto stop relay will turn off
after the wipers reach the park position. This causes
the wiper signal relay and then the wipers to turn off.
If the wiper signal relay remains off for the wiper
operation interval, the relay turns on again, causing
the wipers to operate in intermittent mode.Windshield Mist Wiper Operation
DIf the windshield mist wiper switch of the column
switch is turned to the ON position with the
ignition switch at ACC or ON position, the mist
wiper high-speed operation signal is sent to
the front-ECU. This signal turns on the wiper
speed switching relay, causing the wipers to
work at high-speed while the mist switch is
on.
DWhile the windshield mist wiper switch remains
turned on when the intermittent mode is still
working, the wipers work as the mist wiper.
However, the wipers return to the intermittent
mode again when the wiper auto stop signal
turns on after the mist wiper switch is turned
off.
Windshield Washer Operation
If the windshield washer switch of the column switch
is turned to the ON position with the ignition switch
at ACC or ON position, the windshield washer ON
signal is sent to the front-ECU, causing the
windshield wiper signal to turn on after 0.3 seconds.
After the windshield washer switch signal turns off,
the windshield wiper signal turns off in three
seconds.
If the windshield wiper switch is turned to the ON
position while the windshield wiper is at intermittent
mode, the windshield washer works for that period
when the windshield washer switch remains on.
Then the wipers return to the intermittent mode.
REAR WIPER AND WASHER
Rear Wiper Operation
If the rear wiper switch is turned to the ON position
with the ignition switch at ACC or ON position,
the ETACS-ECU turns ON the rear wiper drive signal
for three seconds (approx. two operations). 7.4
seconds later, the wiper begins the intermittent
operation with 8 seconds’ cycle.
If the shift lever or selector lever is
moved to the R position when the rear wiper switch
is turned to the ON position and the ignition switch
at ACC or ON position, back-up lamp switch
or inhibitor switch R turns ON. One second
later, the ETACS-ECU turns ON the rear wiper drive
signal for three seconds (approx. two operations)
to clear the rear field of view. 7.4 seconds later,
the wiper returns to the intermittent operation with
8 seconds’ cycle.Rear Washer Operation
If the rear washer switch is turned to the ON position
with the ignition switch at ACC or ON position,
the rear washer ON signal is sent to the
ETACS-ECU, causing the rear wiper signal to turn
on after 0.3 seconds. After the rear washer switch
signal turns off, the rear wiper signal turns off in
three seconds.
If the rear wiper is in intermittent operation when
the rear washer switch is turned ON, the rear wiper
again continues the intermittent operation with 8
seconds’ cycle from 7.4 seconds later since the
rear drive signal is turned OFF.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -General InformationSWS -General Information54B-5
HEADLAMP WASHER
If the headlamp washer switch at the steering
column is placed in the ON position when the ignition
switch is in the ACC or ON position and theheadlamp switch is in the ON position, the headlamp
washer drive signal is turned ON for 0.5 second.
IGNITION KEY HOLE ILLUMINATION LAMP
When the ignition switch is turned to LOCK (OFF) or
ACC position with the driver’s door opened, the
ignition key hole illumination lamp is illuminated.
If the door is closed in that state, the lamp goes out
after 30 seconds. Vehicles with keyless entrysystem, it illuminates for 30 seconds after the
ignition key is removed. In either case the lamp goes
out when the ignition switch is turned to ON position.
HEADLAMP
Headlamp Automatic Shutdown Function
If the ignition switch is turned to LOCK (OFF) or
ACC position, when the headlamps are on, the
headlamps will be switched off in three minutes.
If the driver’s door is opened within that three-minute
period, the headlamps will be switched off
automatically. This prevents the battery from
discharged.
In addition, if the headlamps are turned on when
the ignition switch is at LOCK (OFF) or ACC position,
the headlamps will not be switched off.Headlamp Dimmer Switch Automatic Reset
Function
This function allows the dimmer switch to be reset
to the low-beam position whenever the headlamp
switch is turned ON.
Daytime Running Lamp (DRL) Function

If the ignition switch is turned to ON when the
headlamps and tail lamps are off, the headlamps
(low-beam) and tail lamps turn on.
FLASHER TIMER
Turn-signal Lamp
When the ignition switch is turned to ON position
and turn-signal lamp switch is placed in the ON
position for right or left turn signaling, the system
generates turn-signal lamp drive signals (flashing
signals).
The system also notifies of a blown turn-signal lamp
bulb by shortening the flashing intervals of the
corresponding indicator lamp.Hazard Warning Lamp
The system detects a change from ON to OFF
of the hazard lamp input signal and activates the
hazard lamps if they are not in operation or
deactivates the lamps if they are operating (reversal
of state between activation and deactivation).
FRONT FOG LAMP
If the front fog lamp switch is turned ON at the
condition that the headlamp or the tail lamp is turned
ON (including the illumination by the automatic
lighting function), the front fog lamp is turned ON.Whenever the tail lamps are turned on at the next
time, the front fog lamps will always be off regardless
of the switch positions. In addition, if the tail lamp
is switched off by the automatic lighting system,
the front fog lamp will also be switched off. However,
the front fog lamp will be illuminated when the tail
lamp is switched on.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -General Information54B-6
REAR FOG LAMP
If the fog lamp switch is turned ON when the
headlamp or the front fog lamp is turned On, the
rear fog lamp is switched ON and OFF alternatively.If the headlamp and the front fog lamp are turned
OFF during lighting of the rear fog lamp, the rear
fog lamp is turned OFF at the same time.
ROOM LAMP
With the room lamp switch in the DOOR position,
the ETACS-ECU controls the room lamp operation
as follows:
DWhen a door is opened from outside or inside
[with the ignition switch turned to LOCK (OFF)
position]:
When a door is opened, the ETACS-ECU
causes the room lamp to be illuminated at the
100% intensity. When the door is closed, it
dims out the room lamp to 65% intensity and
approx. 30 seconds later, turns out the lamp
completely. During this period (timer controlled
period), the room lamp goes out if the ignition
switch is turned to ON position or the doors
are locked.
DWhen a door is opened or closed with the
ignition switch in the ON position:
The room lamp illuminates at 100% intensity
when a door is opened and turned out when
it is closed.
DWhen no door is opened and the ignition key
is removed:When the ignition key is removed with all the
doors closed, the room lamp is illuminated at
an intensity of 100% and turned out approx.
30 seconds later. During that time
(timer-controlled period), the room lamp goes
out if the ignition key is inserted and turned
to ON position or the door locking system is
activated.
DRoom lamp’s answerback operation in
response to door lock control by keyless entry
system:
To allow the driver to ascertain the result of
the door locking/unlocking control action by
the use of the keyless entry system, the
ETACS-ECU causes the room lamp to blink
twice when the doors are locked through the
system and to illuminate for approx. 15 seconds
when the doors are locked.
The room lamp’s answerback operation in
response to a keyless entry system control
action is accompanied by operation of the
hazard warning lamps.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

S
PEC IA L TO OLS
T o ol N
um ber N
am e U
se M
B991502 M
UT-II su b
a sse m bly C
heckin g of th e SW S
( D ia gnosis co de dis p la y and in put ch eck
w it h th e MUT-II ) M
B991529 D
ia gnosis co de
c h eck harn ess S
im ple dia gnosis H
arn ess se t
A : Te st harn ess
B : LE D harn ess
C :LE D harn ess
a dapte r
D :Pro be M
easu re m ento fte rm in alv o lt a ge atE C Us
A : Connecto rp in co nta ctp re ssu re in sp ec-
t io n
B : Pow er cir c u it in sp ectio n
C :Pow er cir c u it in sp ectio n
D :C om merc ia lte ste r co nnectio n

SWS -Troubleshooting54B-8
TROUBLESHOOTING
STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING
Refer to GROUP 00 – How to Use Troubleshooting/Inspection Service Points.
DIAGNOSTIC FUNCTION
DIAGNOSIS CODES CHECK
Use the MUT-II
to check a diagnosis code.
(Refer to GROUP 00 – How to Use Troubleshooting/Inspection Service Points.)
NOTE
Connect the MUT-II
to the 16-pin diagnosis connector (black).
INPUT SIGNAL CHECK
1. Use the MUT-II
to check a input signal.
(Refer to GROUP 00 – How to Use Troubleshooting/Inspection Service Points.)
2. In this condition, the following input switches can be checked.
3. If an abnormality is found during the input signal check, carry out troubleshooting while referring
to the Trouble Symptom Check page.
Input Signal Check Function
Input signalBuzzer operation condition
Ignition switch (ACC)Turned from LOCK(OFF) to ACC
Ignition switch (IG1)Turned from ACC to ON
Key reminder switch Ignition key removed from ignition key cylinder
(from inserted position)
Hazard warning lamp switchTurned from OFF to ON
Front fog lamp switch
Rear fog lamp switch
Back-up lamp switchShift lever moved to R position
Inhibitor switch (reverse) washer>Selector lever moved to R position
Rear wiper motor auto-stop signal washer>Rear wiper begins to operate (The input signal
is sent before the rear wiper begins to operate)
Driver’s door switchDriver’s door opened from closed condition
Door switchesAll doors closed to any door opened
Front passenger’s or back door lock key cylinder switch with central door locking system>Turn the key to the locked or unlock
Driver’s door lock actuator switch locking system>Driver’s door lock knob moved from lock
position to unlock position or vice versa


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-9
Input signalBuzzer operation condition
Column switchTail lamp switchTurned the lighting switch from OFF to tail lamp
position
Headlamp switchTurn the lighting switch from tail lamp position to
headlamp position
Dimmer switchTurned from OFF to ON
Passing switch
Turn-signal lamp switch
Windshield mist wiper switch
Windshield intermittent wiper switch
Windshield low-speed wiper switch
Windshield high-speed wiper switch
Windshield intermittent wiper interval adjusting
knobRotate the windshield intermittent wiper interval
adjusting knob from FAST to SLOW when the
ignition switch is in ON position (The
ETACS-ECU sends a signal around the medium
knob position)
Windshield washer switchTurned from OFF to ON
Rear wiper switch washer>
Rear washer switch and washer>
Headlamp washer switch headlamp washer>
Power window
main switchAny switch Turned from OFF to ON
TransmitterAny switch system>Turned from OFF to ON
Sunroof switchAny switch Turned from OFF to ON
Center displayAny switch Turned from OFF to ON
DIAGNOSIS CODE CHART
Code No.Diagnosis itemReference page
11Failure concerning the ETACS-ECU54B-10
12Failure concerning the column switch or improper connecting with the ETACS-ECU54B-10
13Failure concerning the front-ECU54B-11
21Short circuit in communication line54B-12


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-10

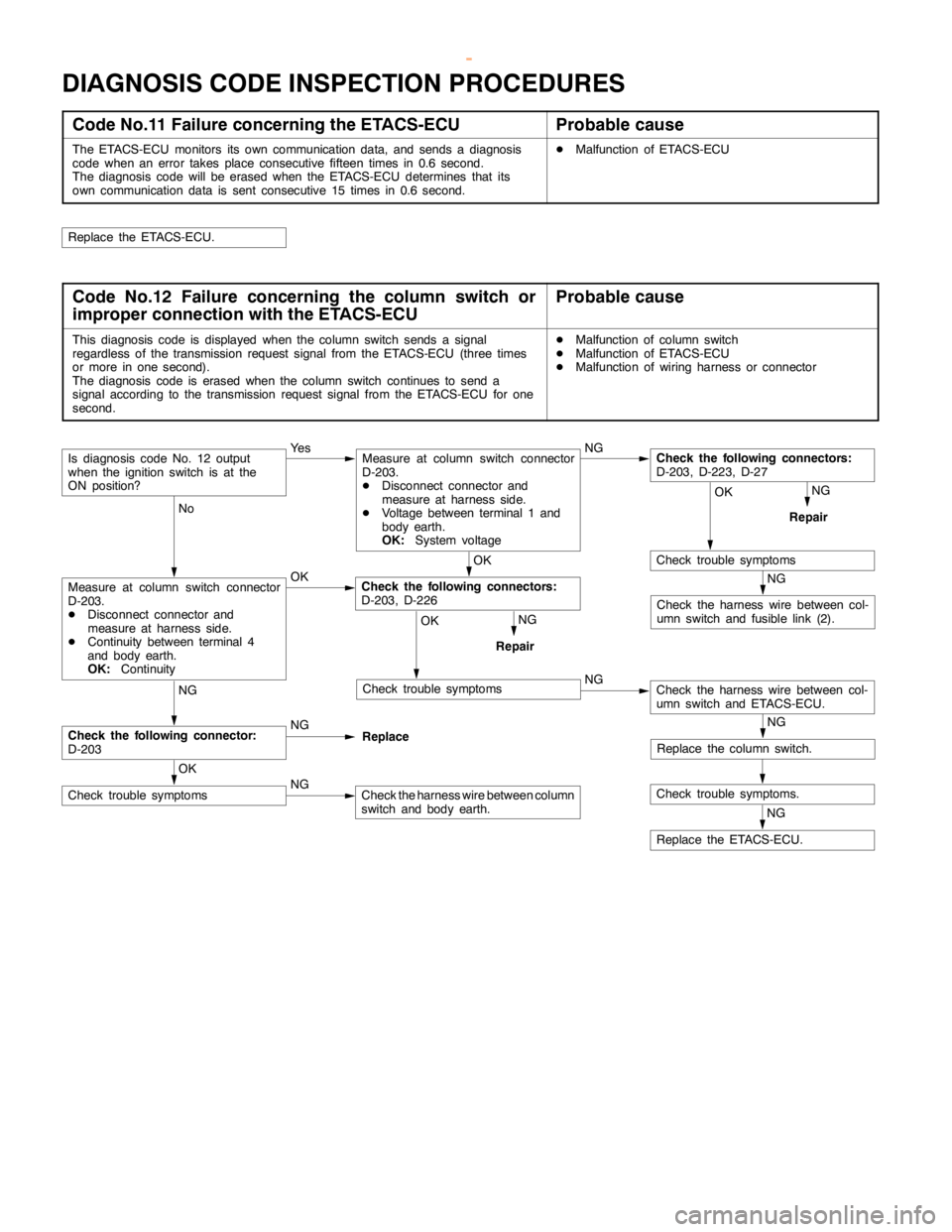

DIAGNOSIS CODE INSPECTION PROCEDURES
Code No.11 Failure concerning the ETACS-ECUProbable cause
The ETACS-ECU monitors its own communication data, and sends a diagnosis
code when an error takes place consecutive fifteen times in 0.6 second.
The diagnosis code will be erased when the ETACS-ECU determines that its
own communication data is sent consecutive 15 times in 0.6 second.DMalfunction of ETACS-ECU
Replace the ETACS-ECU.
Code No.12 Failure concerning the column switch or
improper connection with the ETACS-ECUProbable cause
This diagnosis code is displayed when the column switch sends a signal
regardless of the transmission request signal from the ETACS-ECU (three times
or more in one second).
The diagnosis code is erased when the column switch continues to send a
signal according to the transmission request signal from the ETACS-ECU for one
second.DMalfunction of column switch
DMalfunction of ETACS-ECU
DMalfunction of wiring harness or connector
Ye s N G
NG
Check the harness wire between col-
umn switch and fusible link (2).
NG
Repair
No
OK
OK
NG
Repair
NG
OK
Check trouble symptomsNG
NG
Replace
OK
Check trouble symptomsNGCheck the harness wire between column
switch and body earth.
NG
Replace the ETACS-ECU.
Check trouble symptoms.
NG
Replace the column switch.
Check the harness wire between col-
umn switch and ETACS-ECU.
OK
Check trouble symptoms
Check the following connectors:
D-203, D-223, D-27
Check the following connectors:
D-203, D-226
Measure at column switch connector
D-203.
DDisconnect connector and
measure at harness side.
DVoltage between terminal 1 and
body earth.
OK:System voltage
Check the following connector:
D-203
Measure at column switch connector
D-203.
DDisconnect connector and
measure at harness side.
DContinuity between terminal 4
and body earth.
OK:Continuity
Is diagnosis code No. 12 output
when the ignition switch is at the
ON position?


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk
