2000 MITSUBISHI MONTERO Service Repair Manual

GDI -Troubleshooting 13A-51
OK

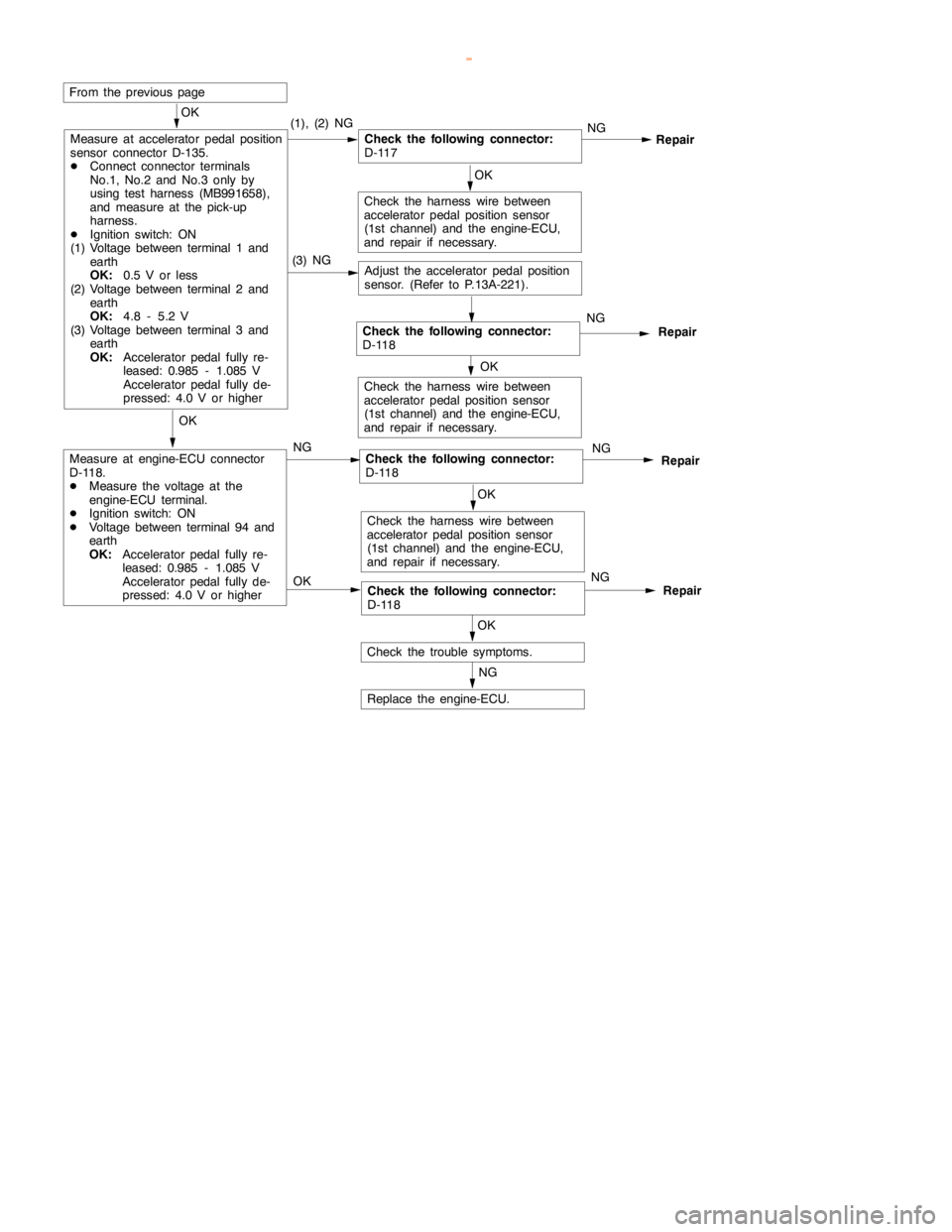

Measure at accelerator pedal position
sensor connector D-135.
DConnect connector terminals
No.1, No.2 and No.3 only by
using test harness (MB991658),
and measure at the pick-up
harness.
DIgnition switch: ON
(1) Voltage between terminal 1 and
earth
OK:
0.5 V or less
(2) Voltage between terminal 2 and
earth
OK:
4.8 - 5.2 V
(3) Voltage between terminal 3 and
earth
OK:
Acceleratorpedalfully re-
leased: 0.985 - 1.085 V
Acceleratorpedalfully de-
pressed: 4.0 V or higher(1), (2) NGCheck the following connector:
D-117NG
Check the following connector:
D-118NG
Repair OK
Check the harness wire between
accelerator pedal positionsensor
(1st channel) and the engine-ECU,
and repair if necessary.
From the previouspage
(3) NG
Adjust the acceleratorpedal position
sensor. (Refer to P.13A-221).
OK
Check the harness wire between
accelerator pedal positionsensor
(1st channel) and the engine-ECU,
and repair if necessary.
OK
Measure at engine-ECU connector
D-118.
DMeasure the voltage at the
engine-ECU terminal.
DIgnition switch: ON
DVoltage between terminal 94 and
earth
OK:
Acceleratorpedalfully re-
leased: 0.985 - 1.085 V
Acceleratorpedalfully de-
pressed: 4.0 V or higherNGCheck the following connector:
D-118NGRepair
OK
Check the harness wire between
accelerator pedal positionsensor
(1st channel) and the engine-ECU,
and repair if necessary.
OKCheck the following connector:
D-118NG
OK
Check the trouble symptoms.
NG
Replace the engine-ECU.Repair
Repair


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-52

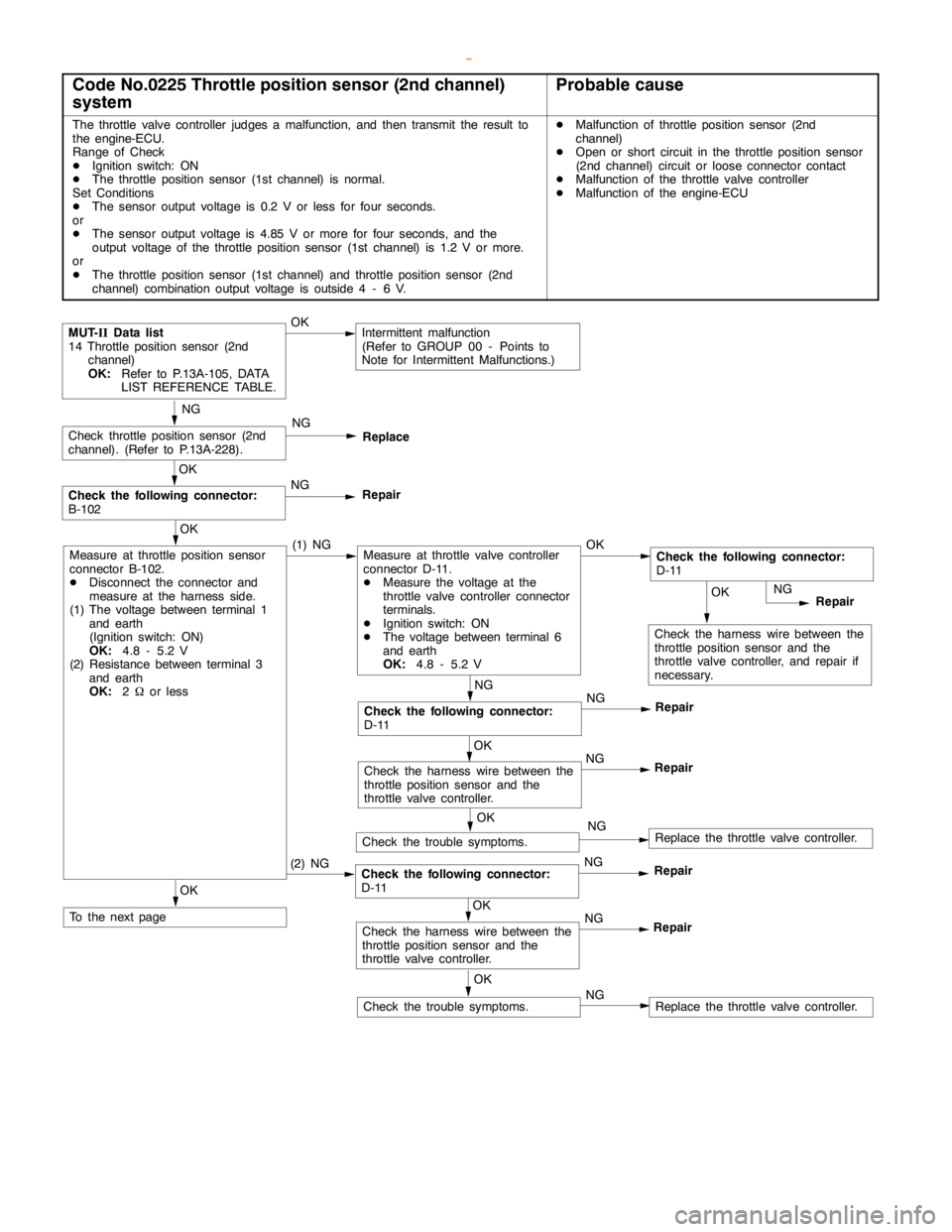

Code No.0225 Throttle position sensor (2nd channel)
systemProbable cause
The throttle valve controller judges a malfunction, and then transmit the result to
the engine-ECU.
Range of Check
DIgnition switch: ON
DThe throttle position sensor (1st channel) is normal.
Set Conditions
DThe sensor output voltage is 0.2 V or less for four seconds.
or
DThe sensor output voltage is 4.85 V or more for four seconds, and the
output voltage of the throttle position sensor (1st channel) is 1.2 V or more.
or
DThe throttle position sensor (1st channel) and throttle position sensor (2nd
channel) combination output voltage is outside 4 - 6 V.DMalfunction of throttle position sensor (2nd
channel)
DOpen or short circuit in the throttle position sensor
(2nd channel) circuit or loose connector contact
DMalfunction of the throttle valve controller
DMalfunction of the engine-ECU
OK
Check the harness wire between the
throttle position sensor and the
throttle valve controller, and repair if
necessary.
NG
Check throttle position sensor (2nd
channel). (Refer to P.13A-228).NG
Replace
NG
Repair
NG
Check the following connector:
D-11NG
Repair
OK
Check the trouble symptoms.NGReplace the throttle valve controller.
OK
Check the following connector:
B-102NG
Repair
OK
Check the harness wire between the
throttle position sensor and the
throttle valve controller.NG
Repair
OK
Check the harness wire between the
throttle position sensor and the
throttle valve controller.NG
Repair
MUT-
IIData list
14 Throttle position sensor (2nd
channel)
OK:
Refer to P.13A-105, DATA
LIST REFERENCE TABLE.OKIntermittent malfunction
(Refer to GROUP 00 - Points to
Note for Intermittent Malfunctions.)
OK
To the nextpage
OK
Measure at throttle position sensor
connector B-102.
DDisconnect the connector and
measure at the harness side.
(1) The voltage between terminal 1
and earth
(Ignition switch: ON)
OK:
4.8 - 5.2 V
(2) Resistance between terminal 3
and earth
OK:
2Wor less(1) NGMeasure at throttle valve controller
connector D-11.
DMeasure the voltage at the
throttle valve controller connector
terminals.
DIgnition switch: ON
DThe voltage between terminal 6
and earth
OK:
4.8 - 5.2 VOKCheck the following connector:
D-11
(2) NGCheck the following connector:
D-11NG
Repair
OK
Check the trouble symptoms.NGReplace the throttle valve controller.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-53
OK
Measure at throttle position sensor
connector B-102.
DUse test harness (MB991536) to
connect the connector, and
measure at the pick-up harness.
DIgnition switch: ON
(1) The voltage between terminal 1
and earth
OK:
4.8 - 5.2 V
(2) The voltage between terminal 3
and earth
OK:
0.5 V or less
(3) The voltage between terminal 4
and earth
OK:
Acceleratorpedalfully re-
leased: 4.0 V or more
Acceleratorpedalfully de-
pressed: 0.4 - 0.6 V(1), (2) NG
NGRepair
Check the following connector:
D-118NG
Repair
OK
Check the harness wire between
throttle position sensor (2nd channel)
and the throttle valve controller.
From the previouspage
(3) NG
Adjust the throttle position sensor.
(Refer to P.13A-220.)
OK
Check the harness wire between
throttle position sensor (2nd channel)
and the engine-ECU, and repair if
necessary.OK
Measure at engine-ECU connector
D-118.
DMeasure the voltage at the
engine-ECU terminal.
DIgnition switch: ON
DThe voltage between terminal 78
and earth
OK:
Acceleratorpedalfully re-
leased: 4.0 V or more
Acceleratorpedalfully de-
pressed: 0.4 - 0.6 VNGCheck the following connector:
D-118NGRepair
OK
Check the harness wire between
throttle position sensor (2nd channel)
and the engine-ECU, and repair if
necessary.
OKCheck the following connector:
D-118NGRepair
OK
Check the trouble symptoms.
NG
Replace the engine-ECU.
Check the following connector:
D-11
Code No.P0300 Ignition coil (power transistor) systemProbable cause
Range of Check
DEngine speed is approx. 50 - 4,000 r/min.
DEngine is not cranking.
Set Conditions
DThe ignition failure sensor does not send a signal about a certain cylinder for
four seconds.DMalfunction of the ignition coil
DMalfunction of the ignition failure sensor
DMalfunction of sparkplug
DOpen or short circuit in the primary ignition circuit
or loose connector contact
DMalfunction of engine-ECU


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-54
OK
Check the harness wire between the
engine-ECU and the intermediate
connector.NG
Repair
OK
Check the following connector:
D-116NG
Repair
OK
Check the harness wire between the
ignition coil connector for a defective
cylinder and the intermediate
connector.NG
Repair
MUT-
IIActuator Test
01 No.1 injector
02 No.2 injector
03 No.3 injector
04 No.4 injector
05 No.5 injector
06 No.6 injector
OK:
The idling condition should
change.
Reference
When the cylinder (defective
cylinder) whereidling conditiondoes
not change is detected after
suspending the injector, go to (1)
and inspect the spark plug, the
ignition coil, the connector, and the
harness of the defective cylinder.
(When more than one cylinder are
detected, inspect all of them.)
When all the cylinders are OK, go to
(2).(1)Check the following connectors:
B-107 and the ignition coil
connectors, which correspond to
defective cylinders (B-101, B-108,
B-112, B-113, B-116, B-119).NG
Repair
OK
Check the sparkplug and the
ignition coil for a defective cylinder.
(Refer to GROUP 16 - Ignition
System.)NG
Replace
OK
Use an analyzer to measure the signal waveform at engine-ECU connector D-116.
DEngine: Idling
DThe voltage between the ignition coil primary signal terminal for a defective cylinder
and earth
OK:
A normal waveform should be displayed as described on P.13A-122 (Inspection
Procedure Using an Analyzer).
OK
Repair the ignition coil assembly for
a defective cylinder and the spark
plug.
NG
Replace the engine-ECU.
(2)
Use an analyzer to measure the
signal waveform at the ignition failure
sensor connector B-04.
DUse test harness (MB991536) to
connect the connector, and
measure at the pick-up harness.
DEngine: Idling
DThe voltage between terminal 2
and earth
OK:
A normal waveform should
be displayed as described
on P.13A-122 (INSPEC-
TION PROCEDURE US-
ING AN ANALYZER).
Reference
When a normal waveform is
displayed, compare it with that of the
ignition coil primary signal at the
engine-ECU terminal to determine
the cylinder (defective cylinder) with
an abnormal waveform.
®When one or more cylinders are
abnormal, go to (1)
®When all of the cylinders are
abnormal, go to (3)
®When a normal waveform is
displayed, go to (4).(3)
Check the following connectors:
B-04, D-117NG
Repair
OK
Check the harness wires between
the ignition failure sensor and the
engine-ECU, and between the
ignition failure sensor and earth.NG
Repair
OK
Repair the ignition failure sensor
Check the trouble symptoms.NGReplace the engine-ECU.
(4)Check the trouble symptoms.OKIntermittent malfunction
(Refer to GROUP 00 - Points to
Note for Intermittent Malfunctions.)
NG
Check the sparkplug and the
ignition coil for a defective
cylinder.(Refer to GROUP16 -
Ignition System.)
(1)


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting GDI -Troubleshooting 13A-55
Code No.P0301 No.1 cylinder misfire detected.
Code No.P0302 No.2 cylinder misfire detected.
Code No.P0303 No.3 cylinder misfire detected.
Code No.P0304 No.4 cylinder misfire detected.
Code No.P0305 No.5 cylinder misfire detected.Probable cause
Range of Check
DThe enginespeed is 500 - 4,500 r/min.
DWhile the engine is runningexcept deceleration and sudden acceleration.
Set Conditions
DThe number of misfires exceeds a predetermined number per 200engine
revolutions (Misfire has occurred in only one cylinder).
or
DThe number of misfires exceeds a predetermined number per 100engine
revolutions (Misfire has occurred in only one cylinder).DMalfunction of the ignition system
DAbnormal compression
DMalfunction of injector
DMalfunction of engine-ECU
NG
Check the harness wire between the
ignition coil and the engine-ECU.
NG
Replace
NG
Repair
(2) NG
OK
Check the ignition failure sensor
(Refer to GROUP 16 - Ignition
System.)
OK
Check the harness wire between the
ignition coil and the earth, and repair
if necessary. (3) NG
OK
Measure at ignition coil connectors
B-101, B-108, B-112, B-113, B-116,
B-119.
DDisconnect the connector and
measure at the harness side.
(1) The voltage between terminal 1
and earth
(Ignition switch: ON)
OK:
System voltage
(2) The voltage between terminal 3
and earth
(Engine: cranking)
OK:
0.5 - 4.0 V
(3) The resistance between terminal
2 and earth
OK:
2Wor less(1) NGCheck the following connectors:
B-04, B-107, D-208, D-223NG
Repair
Check the ignition coil (Refer to
GROUP 16 - Ignition System.)
Check the compression pressure.
(Refer to GROUP 11A - On-vehicle
Service.)Repair
Replace the engine-ECU.
OK
Check the harness wire between the
ignition coil and the ignition failure
sensor, and between the ignition coil
and the ignition failure sensor.
NG
Repair
OK
NGNG
Repair
OKReplace
NG
Check the spark plugs.
Check the trouble symptoms.
OK
Check the trouble symptoms.NGReplace the engine-ECU.
Check the following connectors:
B-101, B-108, B-112, B-113, B-116,
B-119
Check the following connector:
B-107, D-116
OK


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-56

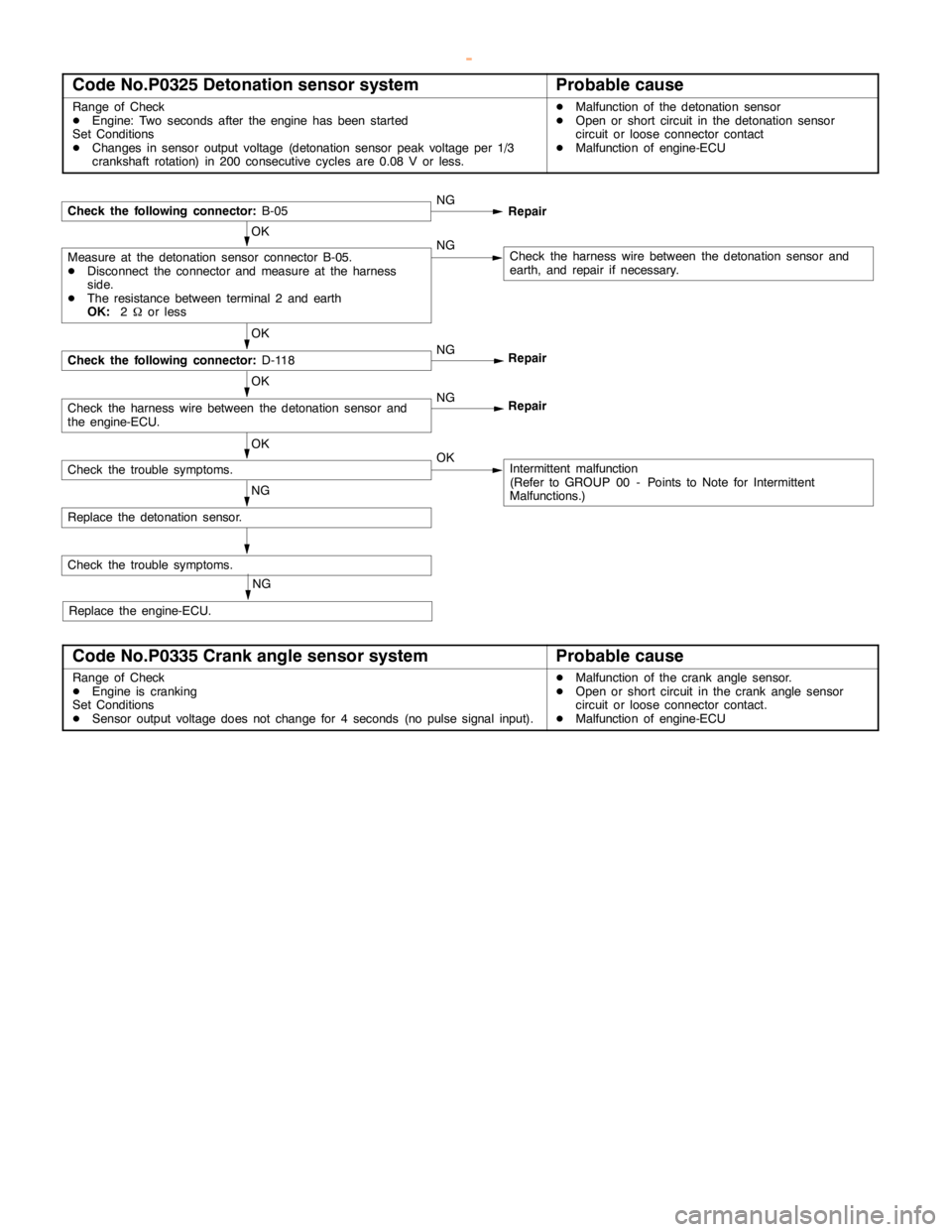

Code No.P0325 Detonation sensor systemProbable cause
Range of Check
DEngine: Two seconds after theengine has beenstarted
Set Conditions
DChanges in sensor output voltage (detonation sensor peak voltage per 1/3
crankshaft rotation) in 200 consecutivecycles are0.08 V or less.DMalfunction of the detonation sensor
DOpen or short circuit in the detonation sensor
circuit or loose connector contact
DMalfunction of engine-ECU
Check the following connector:
B-05NG
Repair
OK
Measure at the detonation sensor connector B-05.
DDisconnect the connector and measure at the harness
side.
DThe resistance between terminal 2 and earth
OK:
2Wor lessNGCheck the harness wire between the detonation sensor and
earth, and repair if necessary.
OK
Check the following connector:
D-118NG
Repair
OK
Check the harness wire between the detonation sensor and
the engine-ECU.NG
Repair
OK
Check the trouble symptoms.OKIntermittent malfunction
(Refer to GROUP 00 - Points to Note for Intermittent
Malfunctions.)
NG
Replace the detonation sensor.
Check the trouble symptoms.
NG
Replace the engine-ECU.

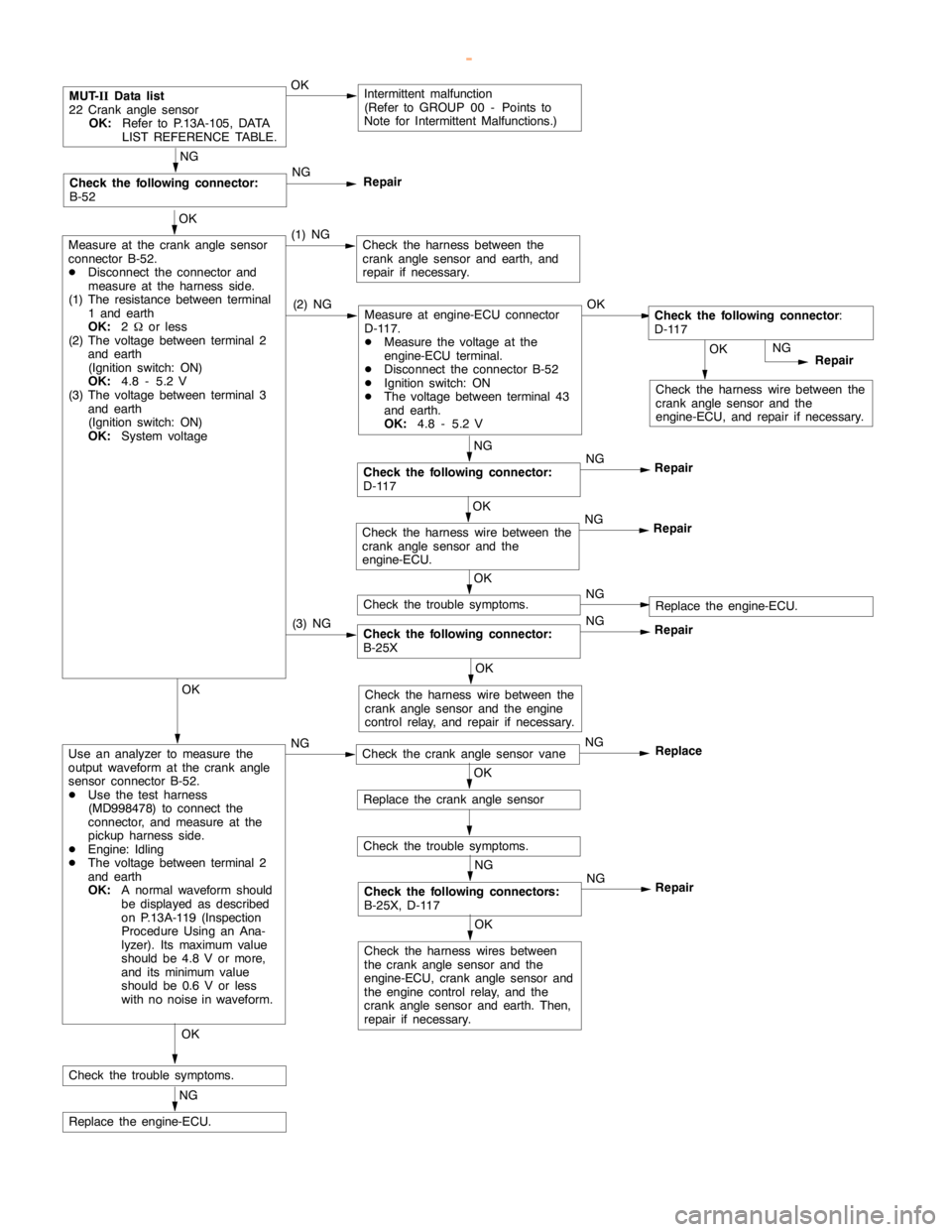

Code No.P0335 Crank angle sensor systemProbable cause
Range of Check
DEngine is cranking
Set Conditions
DSensor output voltage does not change for 4 seconds (no pulse signal input).DMalfunction of the crankanglesensor.
DOpen or short circuit in the crankanglesensor
circuit or loose connector contact.
DMalfunction of engine-ECU


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

GDI -Troubleshooting 13A-57
OK
Check the harness wire between the
crankanglesensor and the
engine-ECU, and repair if necessary.
MUT-
IIData list
22 Crankanglesensor
OK:
Refer to P.13A-105, DATA
LIST REFERENCE TABLE.OKIntermittent malfunction
(Refer to GROUP 00 - Points to
Note for Intermittent Malfunctions.)
OK
Measure at the crankanglesensor
connector B-52.
DDisconnect the connector and
measure at the harness side.
(1) The resistance between terminal
1 and earth
OK:
2Wor less
(2) The voltage between terminal 2
and earth
(Ignition switch: ON)
OK:
4.8 - 5.2 V
(3) The voltage between terminal 3
and earth
(Ignition switch: ON)
OK:
System voltage(1) NGCheck the harness between the
crankanglesensor and earth, and
repair if necessary.
NG
Repair
NG
Check the following connector:
D-117NG
Repair
NG
Check the following connector:
B-52NG
Repair
(2) NGMeasure at engine-ECU connector
D-117.
DMeasure the voltage at the
engine-ECU terminal.
DDisconnect the connector B-52
DIgnition switch: ON
DThe voltage between terminal 43
and earth.
OK:
4.8 - 5.2 VOKCheck the following connector
:
D-117
Check the following connector:
B-25XNG
Repair
OK
Check the harness wire between the
crankanglesensor and the
engine-ECU.NG
Repair
OK
Check the trouble symptoms.NGReplace the engine-ECU.
(3) NG
OK
Check the harness wire between the
crankanglesensor and theengine
control relay, and repair if necessary.OK
Use an analyzer to measure the
output waveform at the crankangle
sensor connector B-52.
DUse the test harness
(MD998478) to connect the
connector, and measure at the
pickup harness side.
DEngine: Idling
DThe voltage between terminal 2
and earth
OK:
A normal waveform should
be displayed as described
on P.13A-119 (Inspection
Procedure Using an Ana-
lyzer). Its maximum value
should be 4.8 V or more,
and its minimumvalue
should be 0.6 V or less
with no noise in waveform.NGCheck the crankanglesensor vaneNG
Replace
OK
Replace the crankanglesensor
Check the trouble symptoms.
NG
Check the following connectors:
B-25X, D-117NG
Repair
OK
Check the harness wires between
the crankanglesensor and the
engine-ECU, crankanglesensor and
the engine controlrelay, and the
crankanglesensor and earth. Then,
repair if necessary.
OK
Check the trouble symptoms.
NG
Replace the engine-ECU.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk
