2000 MITSUBISHI MONTERO Service Repair Manual

SWS -Troubleshooting54B-19

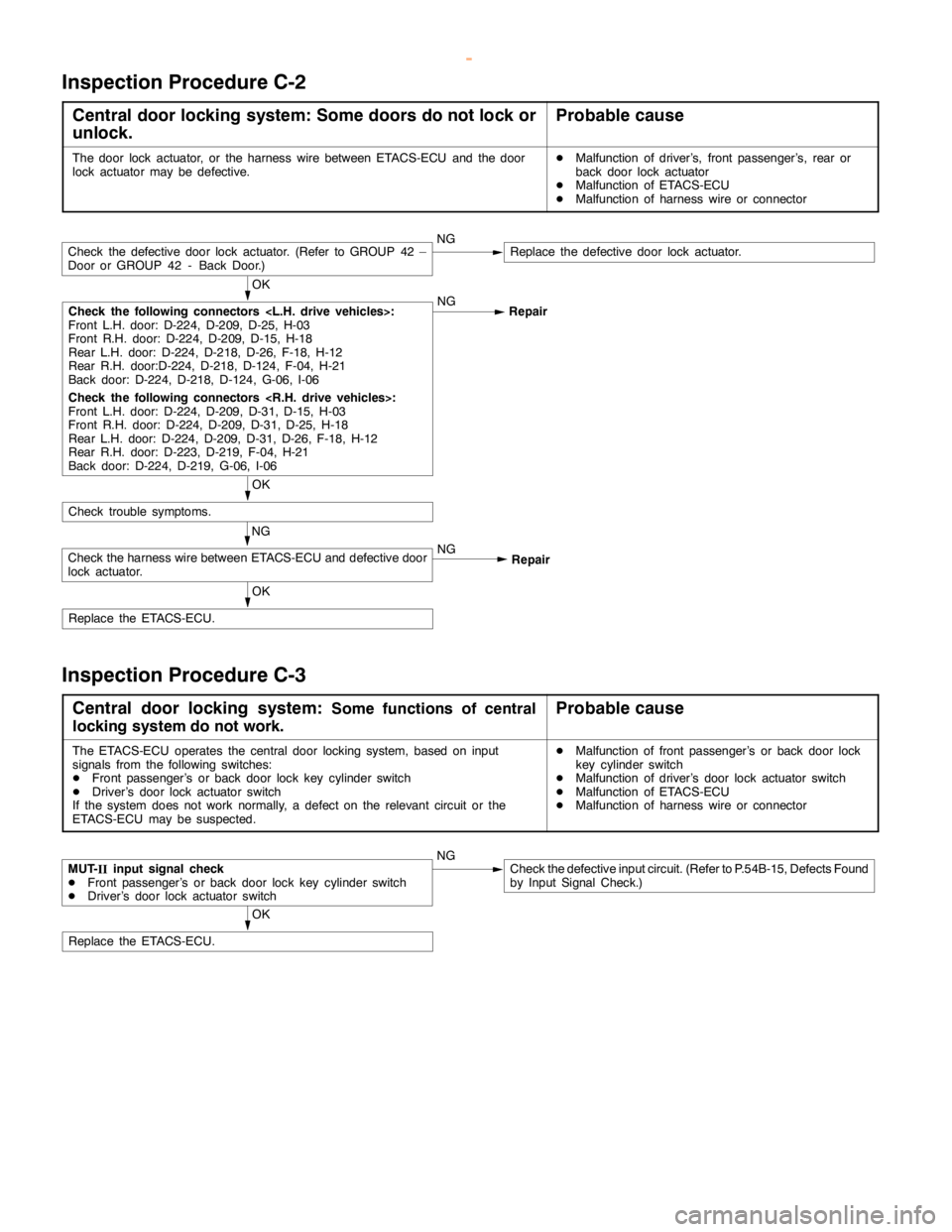

Inspection Procedure C-2
Central door locking system: Some doors do not lock or
unlock.Probable cause
The door lock actuator, or the harness wire between ETACS-ECU and the door
lock actuator may be defective.DMalfunction of driver’s, front passenger’s, rear or
back door lock actuator
DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
NGReplace the defective door lock actuator.
OK
NG
Repair
OK
Check trouble symptoms.
OK
Replace the ETACS-ECU.
Check the harness wire between ETACS-ECU and defective door
lock actuator.Repair NG NG
Check the following connectors :
Front L.H. door: D-224, D-209, D-25, H-03
Front R.H. door: D-224, D-209, D-15, H-18
Rear L.H. door: D-224, D-218, D-26, F-18, H-12
Rear R.H. door:D-224, D-218, D-124, F-04, H-21
Back door: D-224, D-218, D-124, G-06, I-06
Check the following connectors :
Front L.H. door: D-224, D-209, D-31, D-15, H-03
Front R.H. door: D-224, D-209, D-31, D-25, H-18
Rear L.H. door: D-224, D-209, D-31, D-26, F-18, H-12
Rear R.H. door: D-223, D-219, F-04, H-21
Back door: D-224, D-219, G-06, I-06
Check the defective door lock actuator. (Refer to GROUP 42 –
Door or GROUP 42 - Back Door.)
Inspection Procedure C-3
Central door locking system:Some functions of central
locking system do not work.Probable cause
The ETACS-ECU operates the central door locking system, based on input
signals from the following switches:
DFront passenger’s or back door lock key cylinder switch
DDriver’s door lock actuator switch
If the system does not work normally, a defect on the relevant circuit or the
ETACS-ECU may be suspected.DMalfunction of front passenger’s or back door lock
key cylinder switch
DMalfunction of driver’s door lock actuator switch
DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
NGCheck the defective input circuit. (Refer to P.54B-15, Defects Found
by Input Signal Check.)
OK
Replace the ETACS-ECU.
MUT-
IIinput signal check
DFront passenger’s or back door lock key cylinder switch
DDriver’s door lock actuator switch


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-20

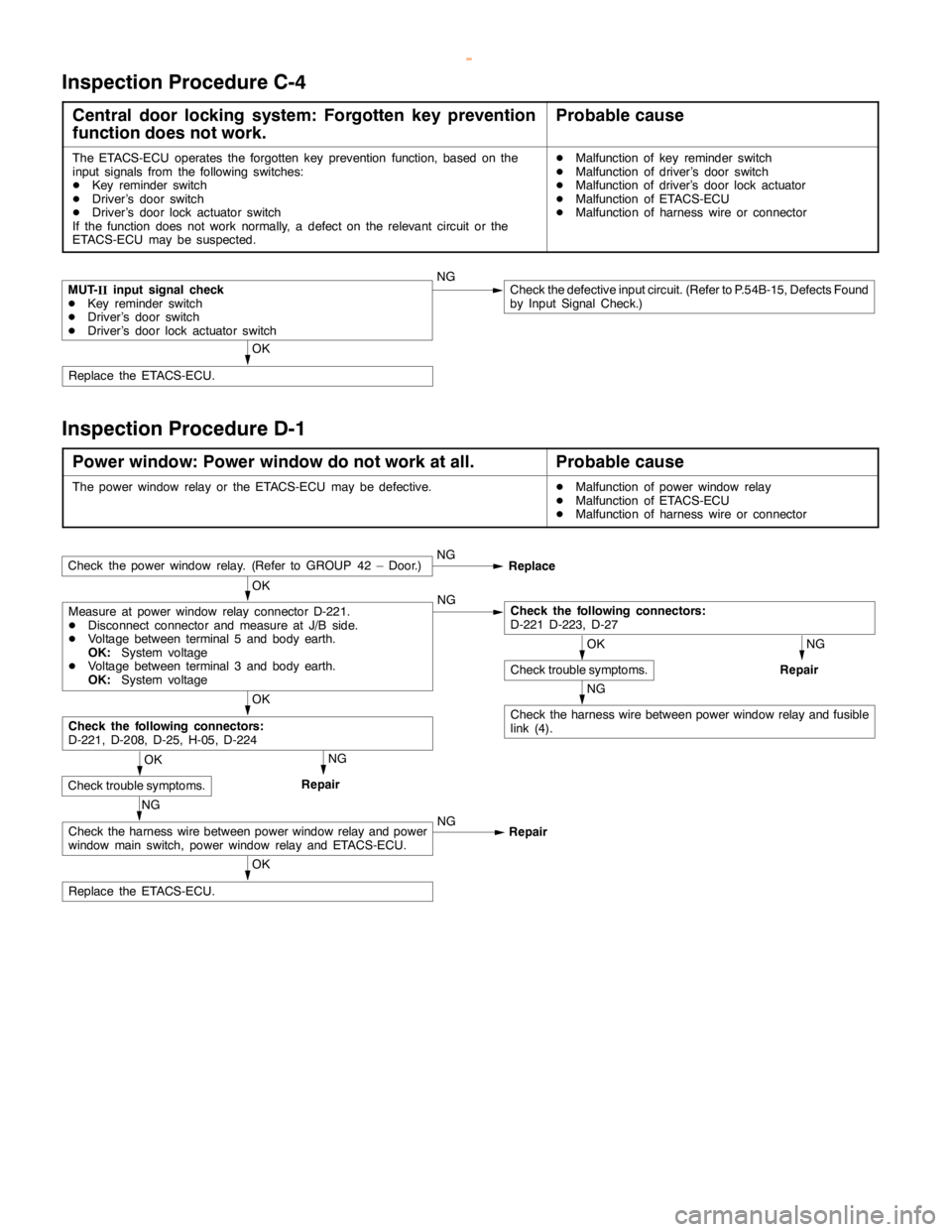

Inspection Procedure C-4
Central door locking system: Forgotten key prevention
function does not work.Probable cause
The ETACS-ECU operates the forgotten key prevention function, based on the
input signals from the following switches:
DKey reminder switch
DDriver’s door switch
DDriver’s door lock actuator switch
If the function does not work normally, a defect on the relevant circuit or the
ETACS-ECU may be suspected.DMalfunction of key reminder switch
DMalfunction of driver’s door switch
DMalfunction of driver’s door lock actuator
DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
NGCheck the defective input circuit. (Refer to P.54B-15, Defects Found
by Input Signal Check.)
OK
Replace the ETACS-ECU.
MUT-
IIinput signal check
DKey reminder switch
DDriver’s door switch
DDriver’s door lock actuator switch
Inspection Procedure D-1
Power window: Power window do not work at all.Probable cause
The power window relay or the ETACS-ECU may be defective.DMalfunction of power window relay
DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
OK
NG
NG
Repair
NG
Check the harness wire between power window relay and fusible
link (4).OK
NG
Repair
OK
Replace the ETACS-ECU.
NG
Check the harness wire between power window relay and power
window mainswitch, power window relay and ETACS-ECU.NG
Repair
OK
Check trouble symptoms.
Check the following connectors:
D-221, D-208, D-25, H-05, D-224
Check the power window relay. (Refer to GROUP 42 – Door.)NG
Replace
OK
Check trouble symptoms.
Measure at power window relay connector D-221.
DDisconnect connector and measure at J/B side.
DVoltage between terminal 5 and body earth.
OK:System voltage
DVoltage between terminal 3 and body earth.
OK:System voltageCheck the following connectors:
D-221 D-223, D-27


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-21

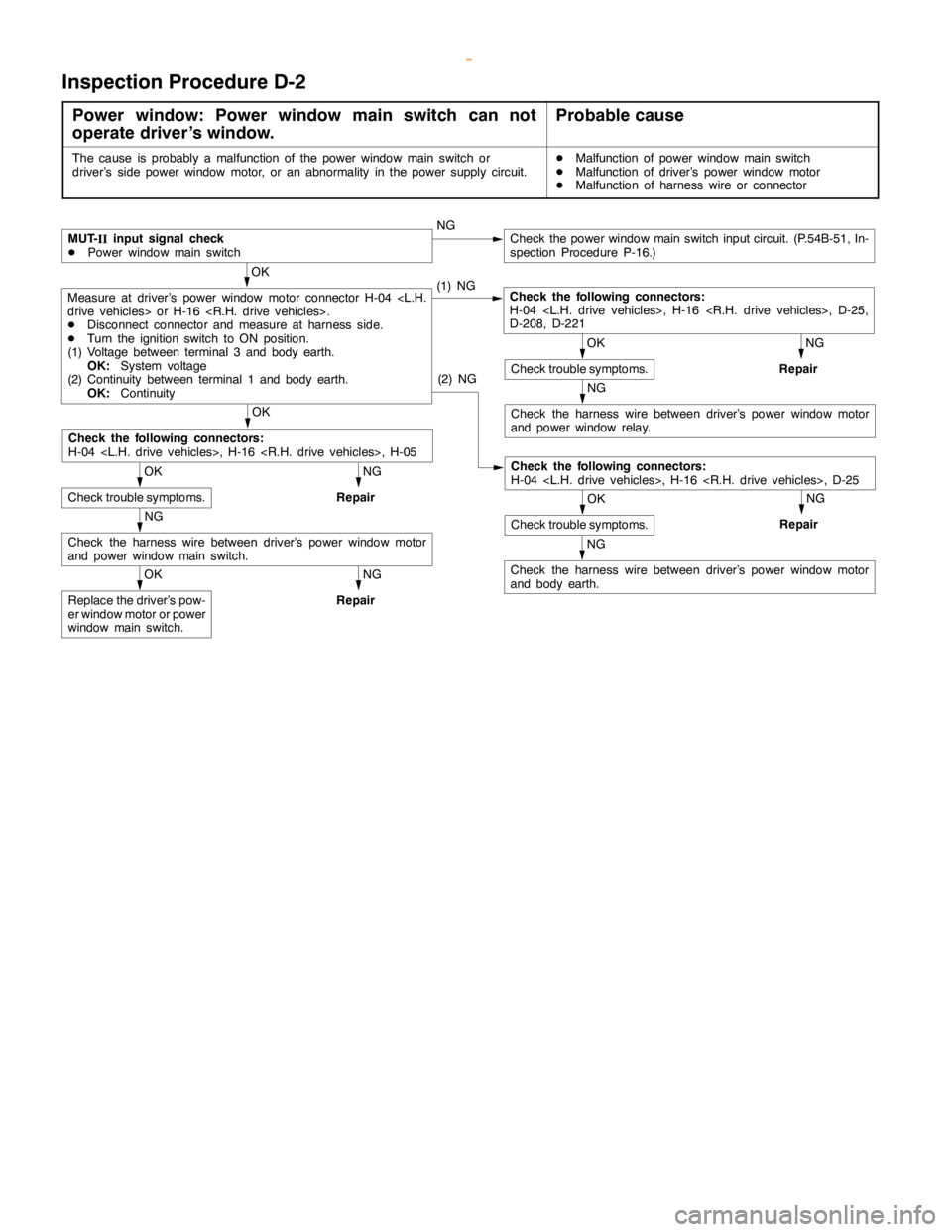

Inspection Procedure D-2
Power window: Power window main switch can not
operate driver’s window.Probable cause
The cause is probably a malfunction of the power windowmainswitch or
driver’s side power window motor, or an abnormality in the power supply circuit.DMalfunction of power windowmainswitch
DMalfunction of driver’s power window motor
DMalfunction of harness wire or connector
NG
Repair
NG
Check the harness wire between driver’s power window motor
and power window relay.
NG
Repair
NG
Check the harness wire between driver’s power window motor
and body earth.
NG
OK
Check trouble symptoms. NG
Repair
OK
Replace the driver’s pow-
er window motor or power
window mainswitch.
NG
Repair
NG
Check the harness wire between driver’s power window motor
and power windowmainswitch.
OK
Check trouble symptoms.
OK
Check the following connectors:
H-04 , H-16 , H-05
(2) NG
Check the following connectors:
H-04 , H-16 , D-25
OK
Check trouble symptoms.
OK
Measure at driver’s power window motor connector H-04 drive vehicles> or H-16 .
DDisconnect connector and measure at harness side.
DTurn the ignition switch to ON position.
(1) Voltage between terminal 3 and body earth.
OK:System voltage
(2) Continuity between terminal 1 and body earth.
OK:Continuity(1) NGCheck the following connectors:
H-04 , H-16 , D-25,
D-208, D-221
MUT-
IIinput signal check
DPower windowmainswitchCheck the power windowmainswitch input circuit. (P.54B-51, In-
spection Procedure P-16.)


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-22

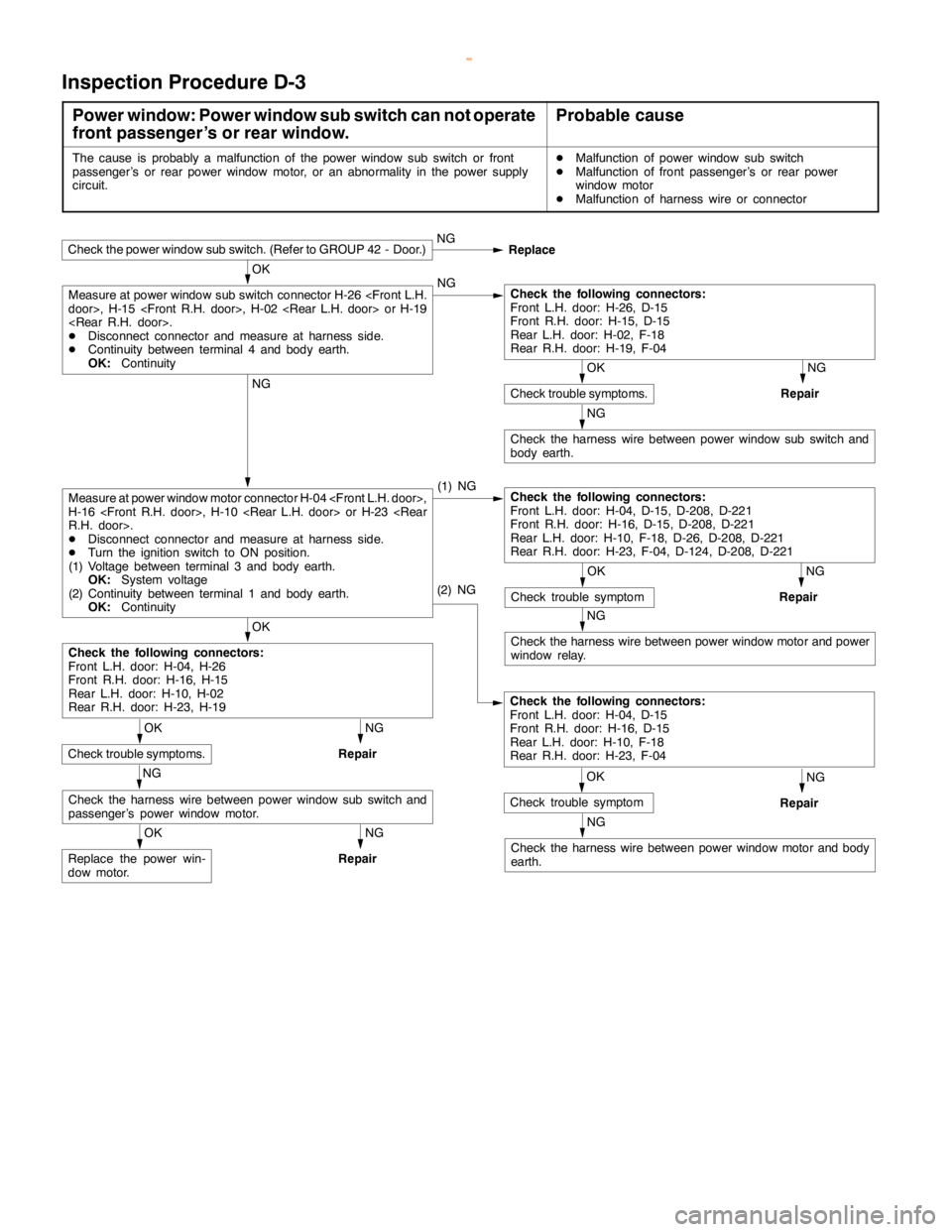

Inspection Procedure D-3
Power window: Power window sub switch can not operate
front passenger’s or rear window.Probable cause
The cause is probably a malfunction of the power window sub switch or front
passenger’s or rear power window motor, or an abnormality in the power supply
circuit.DMalfunction of power window sub switch
DMalfunction of front passenger’s or rear power
window motor
DMalfunction of harness wire or connector
NG
Repair
OK
NG
Check the harness wire between power window sub switch and
body earth.
NG
Repair
NG
Repair
NG
Repair
NG
Check the harness wire between power window motor and body
earth.
NG
Check the harness wire between power window motor and power
window relay.
OK
Replace the power win-
dow motor.
NG
Repair
NG
Check the harness wire between power window sub switch and
passenger’s power window motor.
OK
Check trouble symptoms.
Check the following connectors:
Front L.H. door: H-04, H-26
Front R.H. door: H-16, H-15
Rear L.H. door: H-10, H-02
Rear R.H. door: H-23, H-19
OK
Check trouble symptom
(2) NG
Check the following connectors:
Front L.H. door: H-04, D-15
Front R.H. door: H-16, D-15
Rear L.H. door: H-10, F-18
Rear R.H. door: H-23, F-04
OK
Check trouble symptom
NG
(1) NG
Check the following connectors:
Front L.H. door: H-04, D-15, D-208, D-221
Front R.H. door: H-16, D-15, D-208, D-221
Rear L.H. door: H-10, F-18, D-26, D-208, D-221
Rear R.H. door: H-23, F-04, D-124, D-208, D-221Measure at power window motor connector H-04 ,
H-16 , H-10 or H-23 R.H. door>.
DDisconnect connector and measure at harness side.
DTurn the ignition switch to ON position.
(1) Voltage between terminal 3 and body earth.
OK:System voltage
(2) Continuity between terminal 1 and body earth.
OK:Continuity
OK
Check trouble symptoms.
OK
Measure at power window sub switch connector H-26 door>, H-15 , H-02 or H-19
.
DDisconnect connector and measure at harness side.
DContinuity between terminal 4 and body earth.
OK:ContinuityNGCheck the following connectors:
Front L.H. door: H-26, D-15
Front R.H. door: H-15, D-15
Rear L.H. door: H-02, F-18
Rear R.H. door: H-19, F-04
Check the power window sub switch. (Refer to GROUP 42 - Door.)NG
Replace


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-23

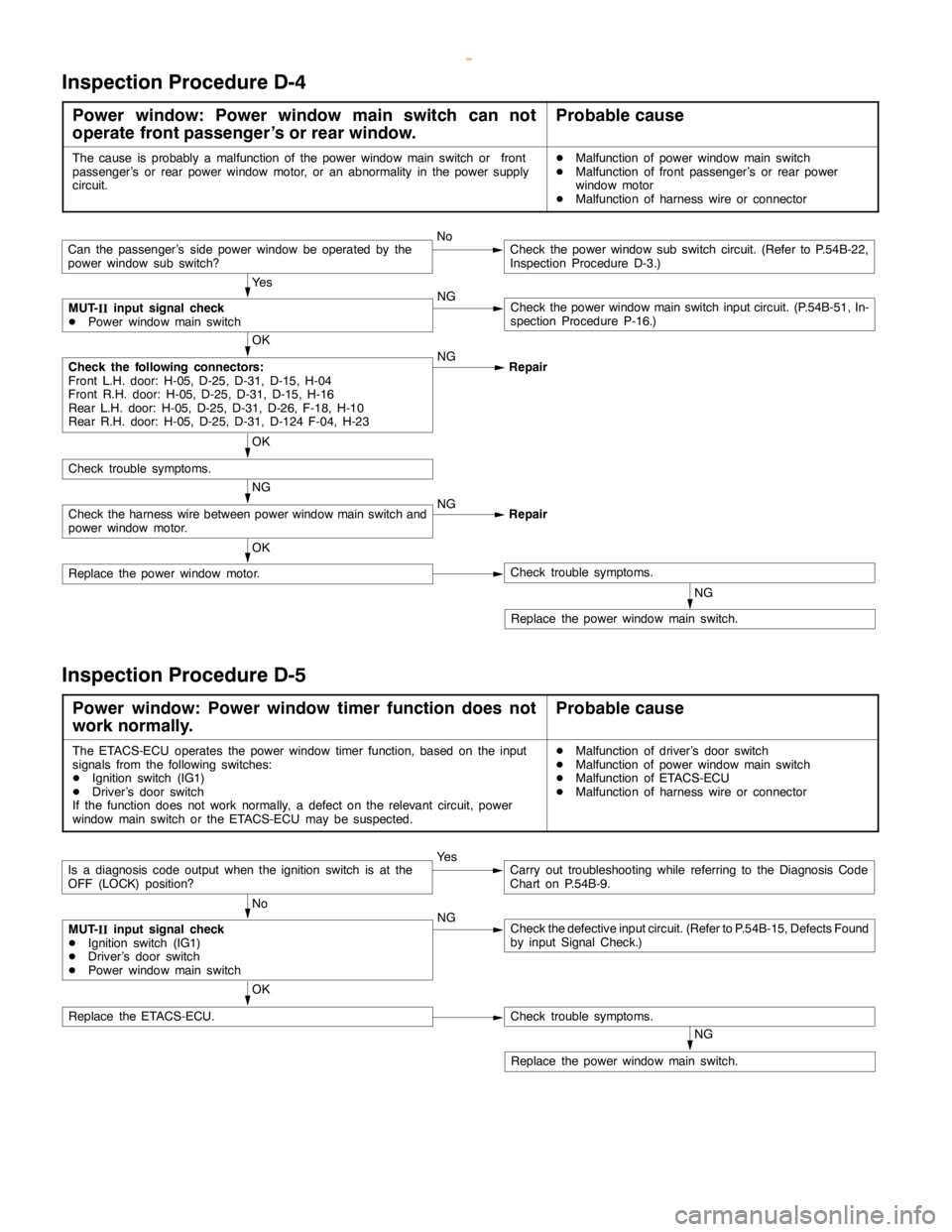

Inspection Procedure D-4
Power window: Power window main switch can not
operate front passenger’s or rear window.Probable cause
The cause is probably a malfunction of the power windowmainswitch or front
passenger’s or rear power window motor, or an abnormality in the power supply
circuit.DMalfunction of power windowmainswitch
DMalfunction of front passenger’s or rear power
window motor
DMalfunction of harness wire or connector
NG
Replace the power windowmainswitch.
OK
Replace the power window motor.Check trouble symptoms.
NG
Check the harness wire between power windowmainswitch and
power window motor.NG
Repair
OK
Check trouble symptoms.
Ye s
NG
Check the power windowmainswitch input circuit. (P.54B-51, In-
spection Procedure P-16.)
OK
Check the following connectors:
Front L.H. door: H-05, D-25, D-31, D-15, H-04
Front R.H. door: H-05, D-25, D-31, D-15, H-16
Rear L.H. door: H-05, D-25, D-31, D-26, F-18, H-10
Rear R.H. door: H-05, D-25, D-31, D-124 F-04, H-23NG
Repair
MUT-
IIinput signal check
DPower windowmainswitch
Can the passenger’s side power window be operated by the
power window sub switch?NoCheck the power window sub switch circuit. (Refer to P.54B-22,
Inspection Procedure D-3.)
Inspection Procedure D-5
Power window: Power window timer function does not
work normally.Probable cause
The ETACS-ECU operates the power window timer function, based on the input
signals from the following switches:
DIgnition switch (IG1)
DDriver’s door switch
If the function does not work normally, a defect on the relevant circuit, power
window mainswitch or the ETACS-ECU may be suspected.DMalfunction of driver’s door switch
DMalfunction of power windowmainswitch
DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
OK
NoNGCheck the defective input circuit. (Refer to P.54B-15, Defects Found
by input Signal Check.)
NG
Replace the power windowmainswitch.
Check trouble symptoms.Replace the ETACS-ECU.
MUT-
IIinput signal check
DIgnition switch (IG1)
DDriver’s door switch
DPower windowmainswitch
Is a diagnosis code output when the ignition switch is at the
OFF (LOCK) position?Ye sCarry out troubleshooting while referring to the Diagnosis Code
Chart on P.54B-9.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -TroubleshootingSWS -Troubleshooting54B-24
Inspection Procedure D-6
Power window: When the glass is raised, it then lowers
automatically.Probable cause
If the sliding resistance is too large when the glass isbeing raised, it is judged
that something is jammed in the window, and the window is lowered by
approximately 150 mm.DIncorrect window glass adjustment
DGlass slider is incorrectly installed or warped
DMalfunction of power window motor
OK
Replace the power window motor.NG
Replace the window regulator assembly.
Check trouble symptoms.
Check the power window operating currant. (Refer to GROUP
42 – Door.)NGAdjust the window glass. (Refer to GROUP 42 – Door.)
Inspection Procedure D-7
Power window: The glass is jammed in the window.Probable cause
The cause may be a malfunction of the revolution detection sensor in the power
window motor.DMalfunction of power window motor
Replace the power window motor.
Inspection Procedure D-8
Power window: When the glass is fully raised, it then
lowers automatically.Probable cause
The cause may be a malfunction of the revolution detection sensor in the power
window motor.DMalfunction of power window motor
NG
Replace the power window motor.
Check trouble symptoms.
After disconnecting the battery terminals, set the limit switch.
(Refer to GROUP 42 - Door.)

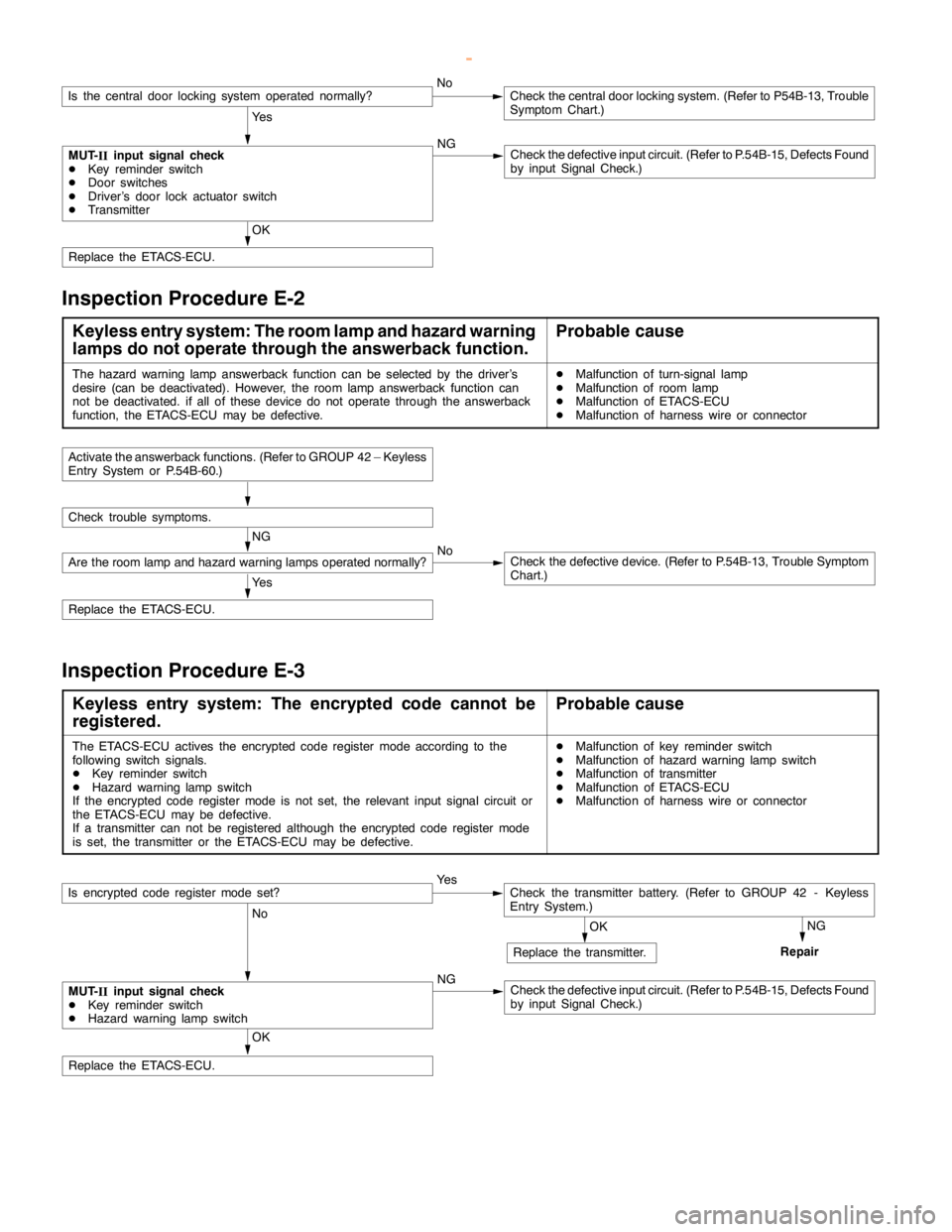

Inspection Procedure E-1
Keyless entry system: Keyless entry system does not
operate.Probable cause
The ETACS-ECU operates the keyless entry system, based on the input signals
from the following switches:
DKey reminder switch
DDoor switches
DDriver’s door lock actuator switch
DTransmitter
If the function does not work normally, a defect on the relevant circuit or the
ETACS-ECU may be suspected.DMalfunction of key reminder switch
DMalfunction of door switches
DMalfunction of driver’s door lock actuator switch
DMalfunction of transmitter
DMalfunction of ETACS-ECU


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-25
OK
Replace the ETACS-ECU.
NoCheck the central door locking system. (Refer to P54B-13, Trouble
Symptom Chart.)
Ye s
MUT-
IIinput signal check
DKey reminder switch
DDoor switches
DDriver’s door lock actuator switch
DTransmitterNGCheck the defective input circuit. (Refer to P.54B-15, Defects Found
by input Signal Check.)
Is the central door locking system operated normally?
Inspection Procedure E-2
Keyless entry system: The room lamp and hazard warning
lamps do not operate through the answerback function.Probable cause
The hazard warninglampanswerback function can be selected by the driver’s
desire (can be deactivated). However, the roomlampanswerback function can
not be deactivated. if all of these device do not operate through the answerback
function, the ETACS-ECU may be defective.DMalfunction of turn-signal lamp
DMalfunction of room lamp
DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
Ye s
Replace the ETACS-ECU.
NG
Are the room lamp andhazard warning lamps operated normally?NoCheck the defective device. (Refer to P.54B-13, Trouble Symptom
Chart.)
Check trouble symptoms.
Activate the answerback functions. (Refer to GROUP 42 – Keyless
Entry System or P.54B-60.)
Inspection Procedure E-3
Keyless entry system: The encrypted code cannot be
registered.Probable cause
The ETACS-ECU actives the encrypted code registermode according to the
following switch signals.
DKey reminder switch
DHazard warninglampswitch
If the encrypted code registermode is notset, the relevant input signal circuit or
the ETACS-ECU may be defective.
If a transmitter can not be registered although the encrypted code registermode
is set, the transmitter or the ETACS-ECU may be defective.DMalfunction of key reminder switch
DMalfunction of hazard warninglampswitch
DMalfunction of transmitter
DMalfunction of ETACS-ECU
DMalfunction of harness wire or connector
OK
Replace the ETACS-ECU.
Ye s
No
NG
Check the defective input circuit. (Refer to P.54B-15, Defects Found
by input Signal Check.)NG
Repair OKReplace the transmitter.
MUT-
IIinput signal check
DKey reminder switch
DHazard warninglampswitch
Is encrypted code registermodeset?Check the transmitter battery. (Refer to GROUP 42 - Keyless
Entry System.)


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -Troubleshooting54B-26

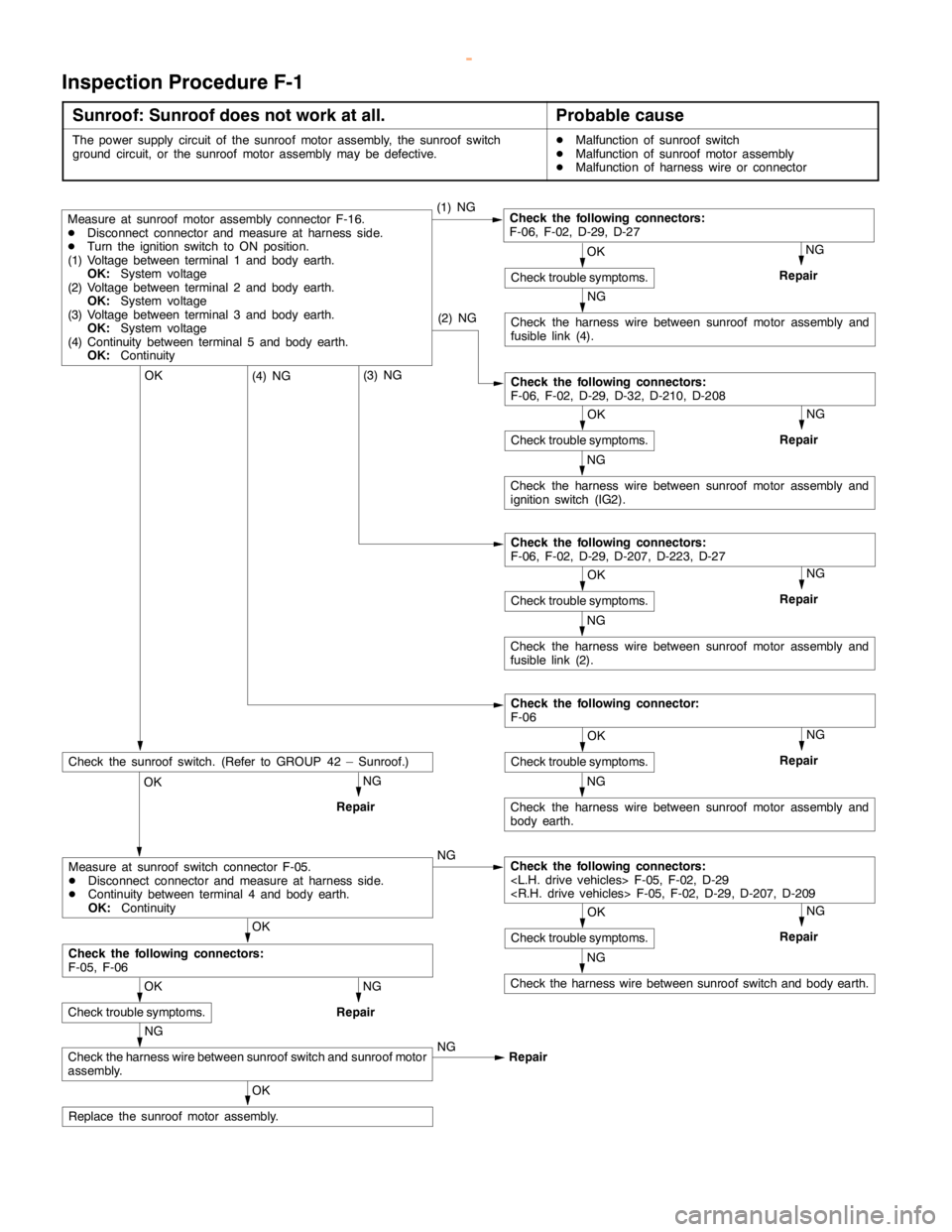

Inspection Procedure F-1
Sunroof: Sunroof does not work at all.Probable cause
The power supply circuit of the sunroof motor assembly, the sunroof switch
ground circuit, or the sunroof motor assembly may be defective.DMalfunction of sunroof switch
DMalfunction of sunroof motor assembly
DMalfunction of harness wire or connector
NG
Repair
NG
Check the harness wire between sunroof motor assembly and
fusible link (4).
NG
Repair
NG
Check the harness wire between sunroof motor assembly and
ignition switch (IG2).
NG
Repair
NG
Repair
NG
Repair
NG
Check the harness wire between sunroof motor assembly and
fusible link (2).
NG
Check the harness wire between sunroof motor assembly and
body earth.
NG
Repair
NG
Check the harness wire between sunroof switch and body earth.
NG
Repair
OK
Replace the sunroof motor assembly.
NG
Repair
NG
Check the harness wire between sunroof switch and sunroof motor
assembly.
OK
Check trouble symptoms.
OK
Check the following connectors:
F-05, F-06
OK
Check trouble symptoms.
OK
NG
Check the following connectors:
F-05, F-02, D-29
F-05, F-02, D-29, D-207, D-209Measure at sunroof switch connector F-05.
DDisconnect connector and measure at harness side.
DContinuity between terminal 4 and body earth.
OK:Continuity
OK
Check trouble symptoms.
(4) NG
Check the following connector:
F-06
OK
Check the sunroof switch. (Refer to GROUP 42 – Sunroof.)
OK
Check trouble symptoms.
(3) NG
Check the following connectors:
F-06, F-02, D-29, D-207, D-223, D-27
OK
Check trouble symptoms.
(2) NG
Check the following connectors:
F-06, F-02, D-29, D-32, D-210, D-208
OK
Check trouble symptoms.
Measure at sunroof motor assembly connector F-16.
DDisconnect connector and measure at harness side.
DTurn the ignition switch to ON position.
(1) Voltage between terminal 1 and body earth.
OK:System voltage
(2) Voltage between terminal 2 and body earth.
OK:System voltage
(3) Voltage between terminal 3 and body earth.
OK:System voltage
(4) Continuity between terminal 5 and body earth.
OK:Continuity(1) NGCheck the following connectors:
F-06, F-02, D-29, D-27


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk
