Page 385 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-171 Inspection procedure 5 No initial combustion (starting impossible) Probable cause In cases such as the above, the cause is probably that a sparkplug is defective, or

Page 386 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-172 OK Check the following items in that order. DCheck the sparkplug DCheck the compression pressure DCheck if foreign materials (water, alcohol, etc.) got into fuel. OK

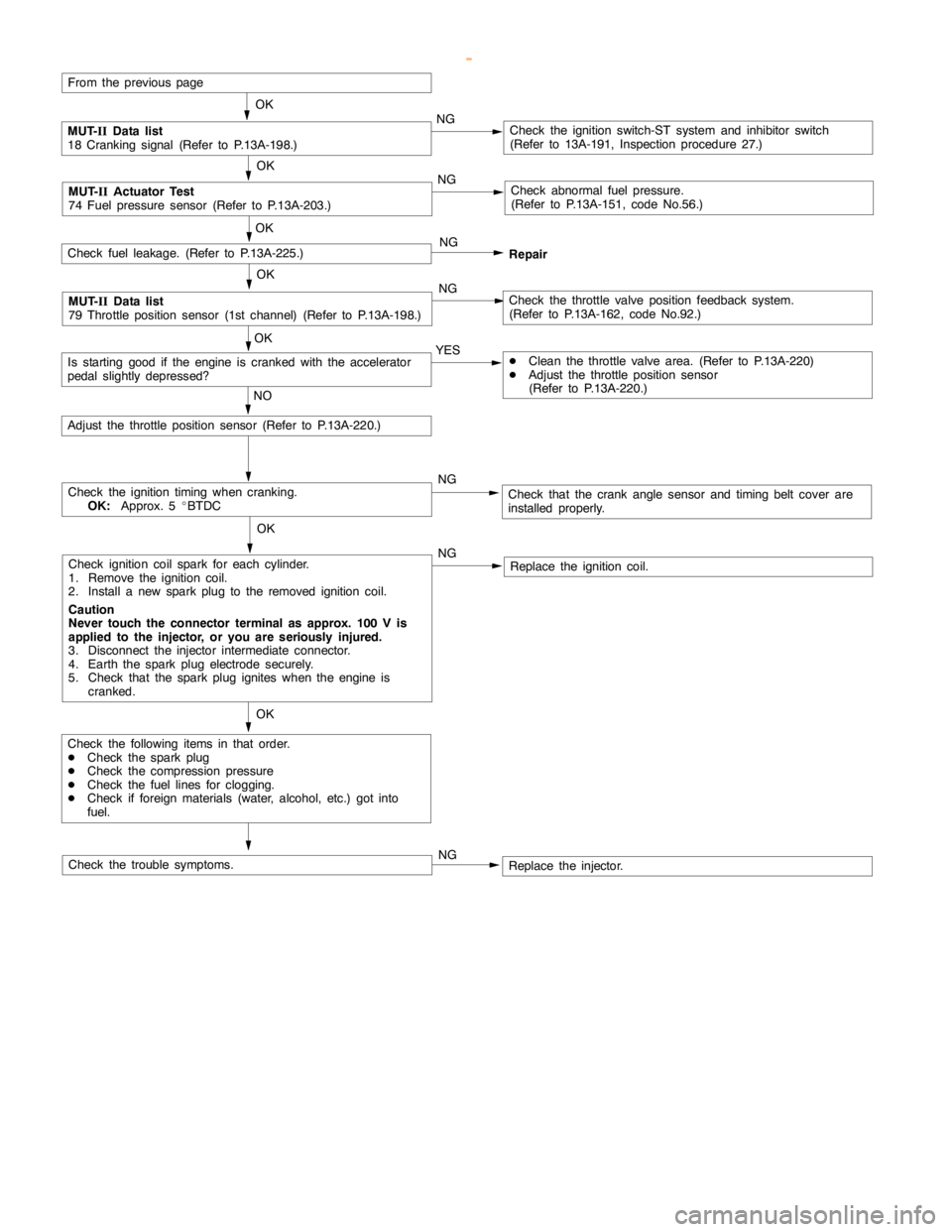

Page 387 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-173 NGReplace the injector.Check the trouble symptoms. OK Check the following items in that order. DCheck the sparkplug DCheck the compression pressure DCheck the fuel li

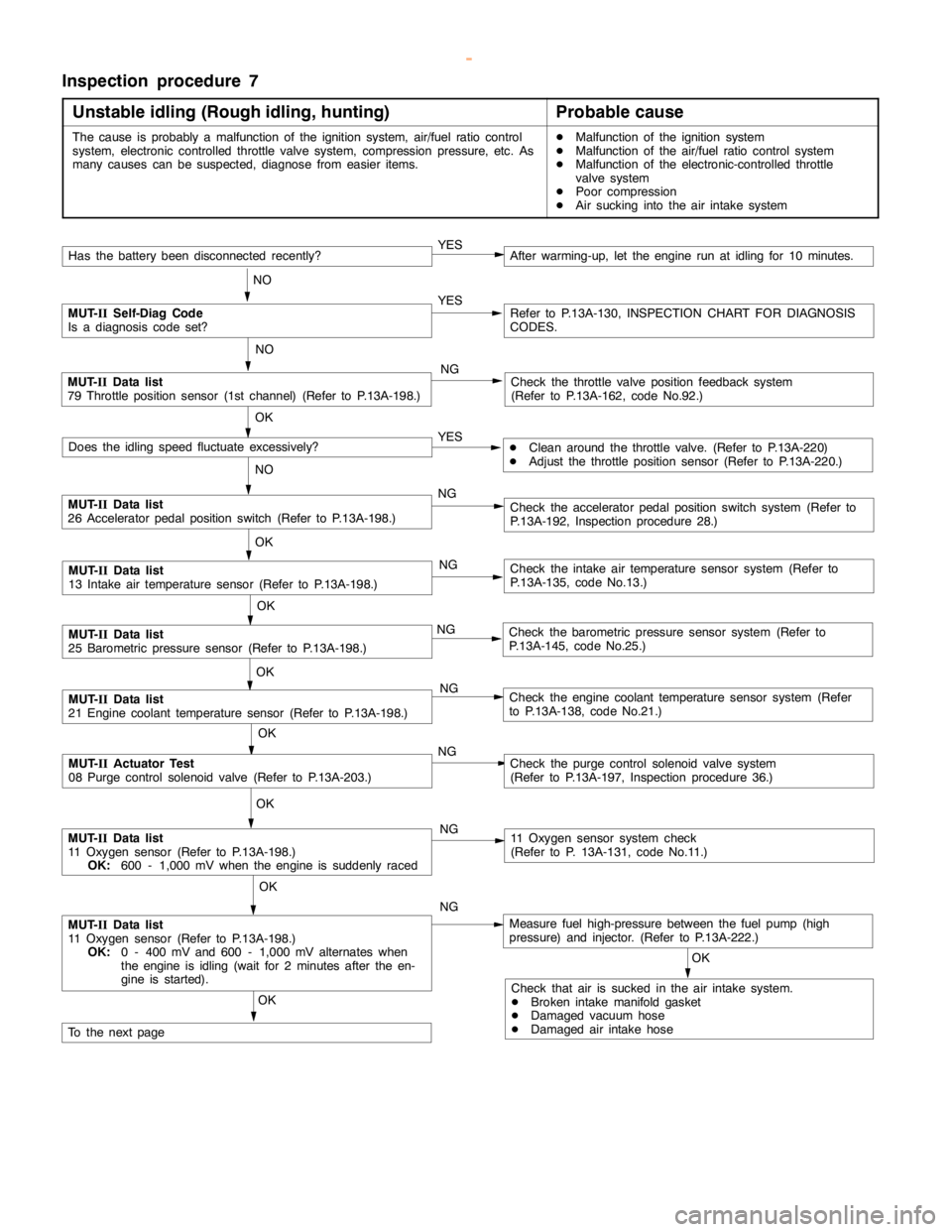

Page 388 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-174 Inspection procedure 7 Unstable idling (Rough idling, hunting) Probable cause The cause is probably a malfunction of the ignition system, air/fuel ratio control syste

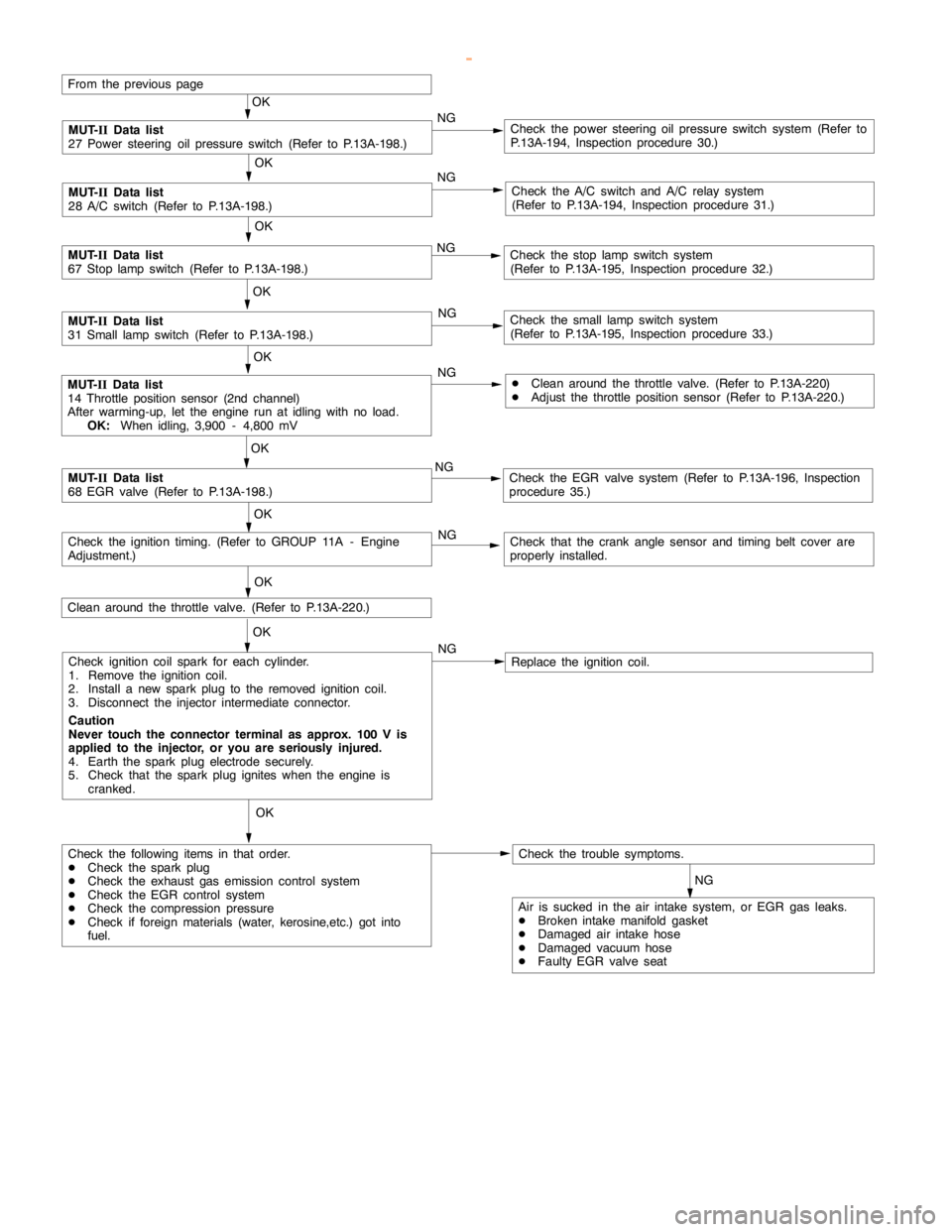

Page 389 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-175 OK NG Air is sucked in the air intake system, or EGR gas leaks. DBroken intake manifold gasket DDamaged air intake hose DDamaged vacuum hose DFaulty EGR valve seat Ch

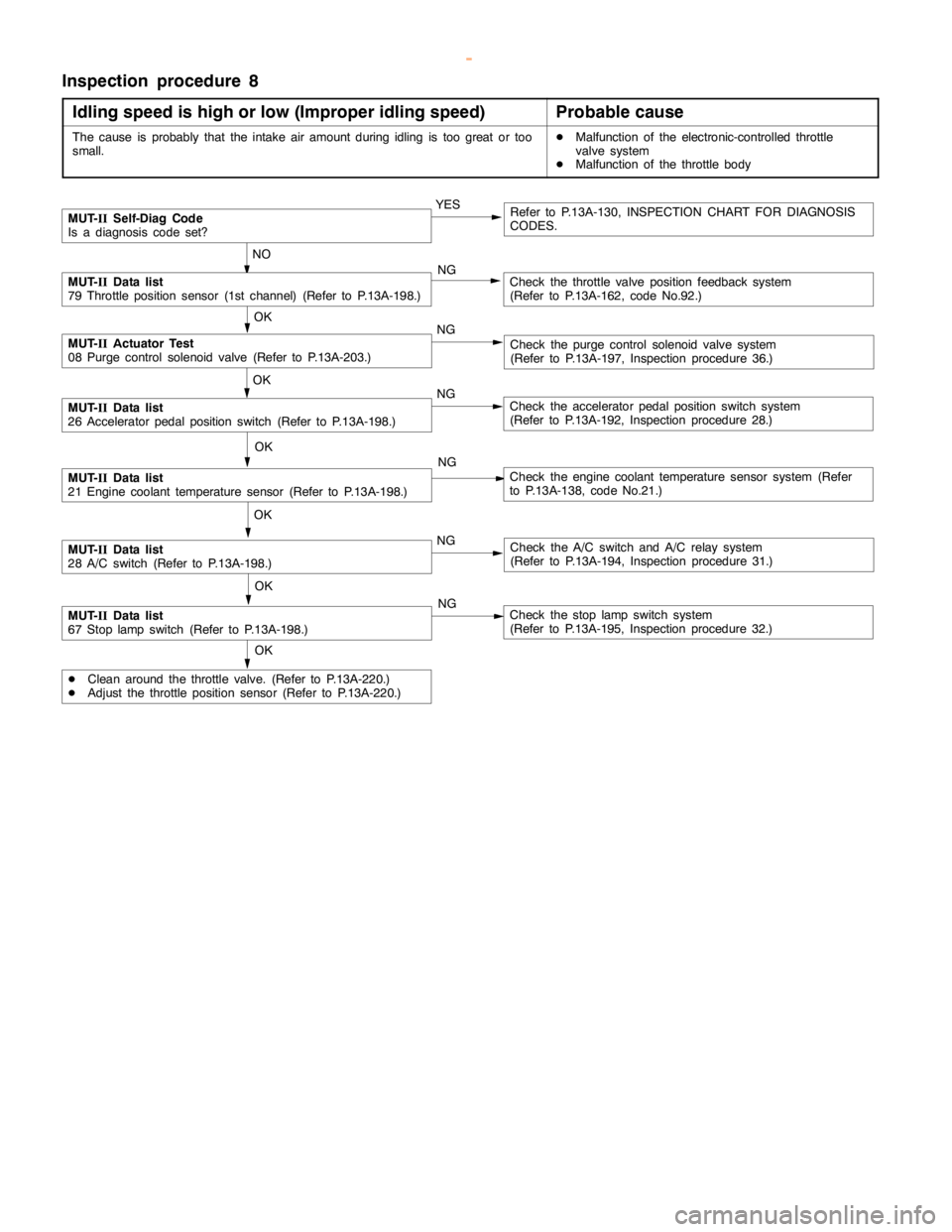

Page 390 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-176 Inspection procedure 8 Idling speed is high or low (Improper idling speed) Probable cause The cause is probably that the intake airamount during idling is too great o

Page 391 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-177 Inspection procedure 9 When the engine is cold, it stalls at idling. (Die out) Probable cause In such cases as the above, the cause is probably that the air/fuel mixt

Page 392 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-178 Inspection procedure 10 When the engine becomes hot, it stalls at idling. (Die out) Probable cause In such cases as the above, the cause is probably that ignition sys
