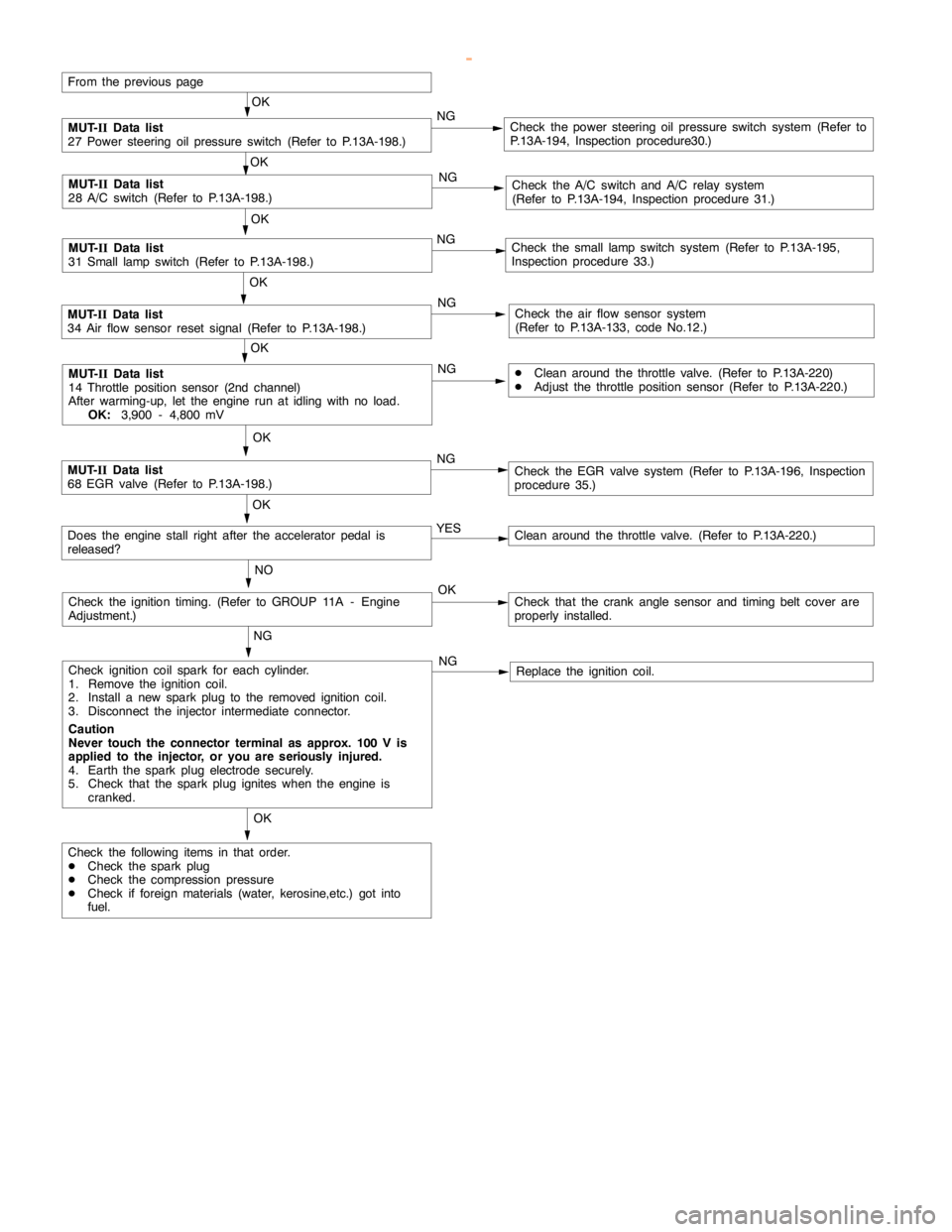

GDI -Troubleshooting 13A-179 OK Check the following items in that order. DCheck the sparkplug DCheck the compression pressure DCheck if foreign materials (water, kerosine,etc.) got into fuel. OK MUT- IIData list 68 EGR valve (Refer to P.13A-198.)NGCheck the EGR valve system (Refer to P.13A-196, Inspection procedure 35.) OK MUT- IIData list 28 A/C switch (Refer to P.13A-198.)NGCheck the A/C switch and A/C relay system (Refer to P.13A-194, Inspection procedure 31.) OK MUT- IIData list 27 Power steering oil pressure switch (Refer to P.13A-198.)NGCheck the power steering oil pressure switch system (Refer to P.13A-194, Inspection procedure30.) From the previouspage NO Check the ignition timing. (Refer to GROUP 11A - Engine Adjustment.)OKCheck that the crankanglesensor andtiming beltcover are properly installed. NG Check ignition coil spark for each cylinder. 1. Remove the ignition coil. 2. Install a new sparkplug to the removed ignitioncoil. 3. Disconnect the injector intermediate connector. Caution Never touch the connector terminal as approx. 100 V is applied to the injector, or you are seriously injured. 4. Earth the sparkplug electrodesecurely. 5. Check that the sparkplug igniteswhen theengine is cranked.NGReplace the ignition coil. OK MUT- IIData list 14 Throttle position sensor (2nd channel) After warming-up, let theengine run at idlingwith no load. OK: 3,900 - 4,800 mVNGDClean around the throttle valve. (Refer to P.13A-220) DAdjust the throttle position sensor (Refer to P.13A-220.) OK MUT- IIData list 34 Air flow sensor reset signal (Refer to P.13A-198.)NGCheck the air flow sensor system (Refer to P.13A-133, code No.12.) OK Does theenginestall right after the acceleratorpedal is released?YESClean around the throttle valve. (Refer to P.13A-220.) OK MUT- IIData list 31 Small lampswitch (Refer to P.13A-198.)NGCheck the smalllampswitch system (Refer to P.13A-195, Inspection procedure 33.) www.WorkshopManuals.co.uk Purchased from www.WorkshopManuals.co.uk

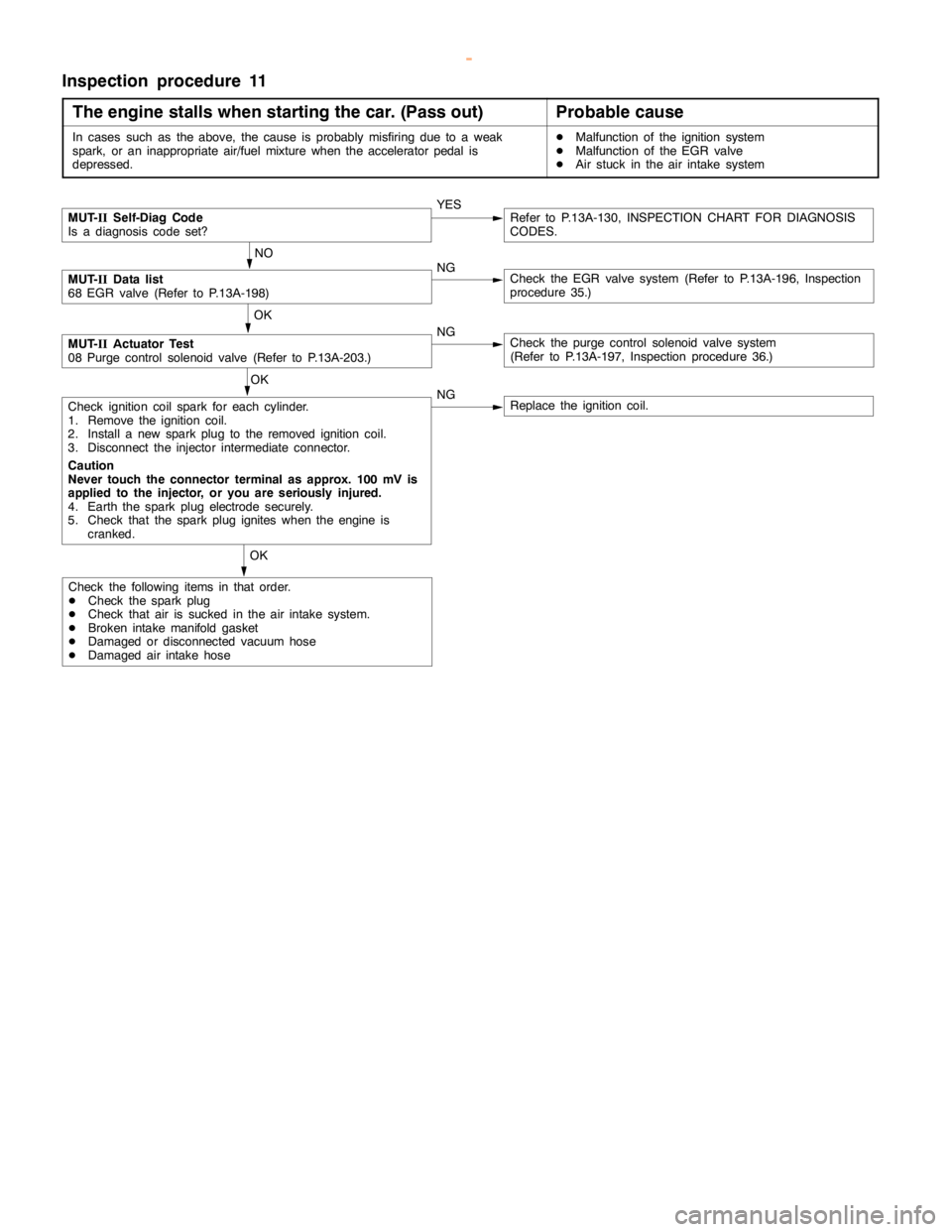

GDI -Troubleshooting 13A-180 Inspection procedure 11 The engine stalls when starting the car. (Pass out) Probable cause In cases such as the above, the cause is probably misfiring due to a weak spark, or an inappropriate air/fuel mixture when the acceleratorpedal is depressed.DMalfunction of the ignition system DMalfunction of the EGR valve DAir stuck in the air intake system OK MUT- IIActuator Test 08 Purge control solenoid valve (Refer to P.13A-203.)NGCheck the purge control solenoid valve system (Refer to P.13A-197, Inspection procedure 36.) NO MUT- IIData list 68 EGR valve (Refer to P.13A-198)NGCheck the EGR valve system (Refer to P.13A-196, Inspection procedure 35.) MUT- IISelf-Diag Code Is a diagnosis code set?YESRefer to P.13A-130, INSPECTION CHART FOR DIAGNOSIS CODES. OK Check the following items in that order. DCheck the sparkplug DCheck that air is sucked in the air intake system. DBroken intakemanifoldgasket DDamaged or disconnected vacuum hose DDamaged air intake hose OK Check ignition coil spark for each cylinder. 1. Remove the ignition coil. 2. Install a new sparkplug to the removed ignitioncoil. 3. Disconnect the injector intermediate connector. Caution Never touch the connector terminal as approx. 100 mV is applied to the injector, or you are seriously injured. 4. Earth the sparkplug electrodesecurely. 5. Check that the sparkplug igniteswhen theengine is cranked.NGReplace the ignition coil. www.WorkshopManuals.co.uk Purchased from www.WorkshopManuals.co.uk

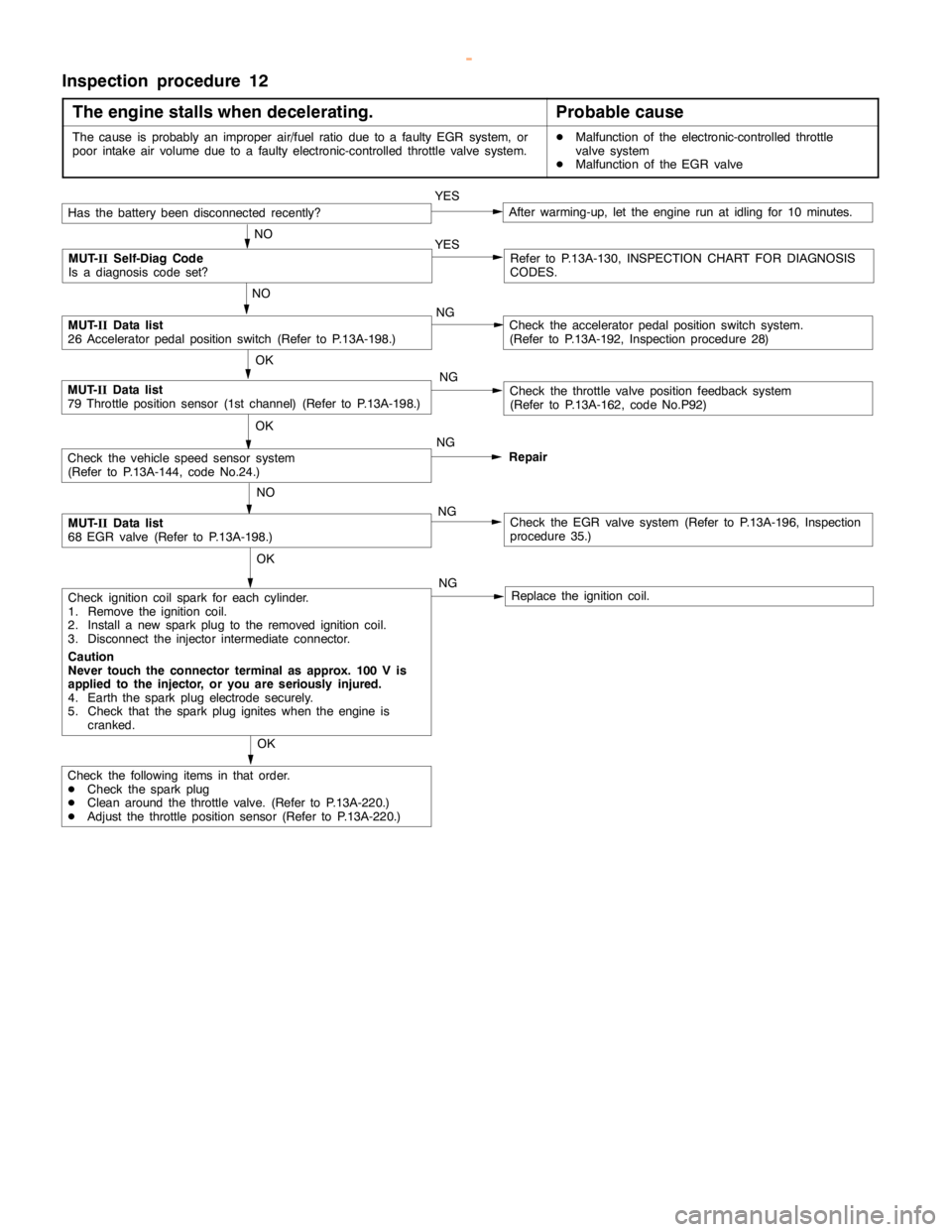

GDI -Troubleshooting 13A-181 Inspection procedure 12 The engine stalls when decelerating. Probable cause The cause is probably an improper air/fuel ratio due to a faulty EGR system, or poor intake air volume due to a faulty electronic-controlled throttle valve system.DMalfunction of the electronic-controlled throttle valve system DMalfunction of the EGR valve OK Check the following items in that order. DCheck the sparkplug DClean around the throttle valve. (Refer to P.13A-220.) DAdjust the throttle position sensor (Refer to P.13A-220.) OK Check ignition coil spark for each cylinder. 1. Remove the ignition coil. 2. Install a new sparkplug to the removed ignitioncoil. 3. Disconnect the injector intermediate connector. Caution Never touch the connector terminal as approx. 100 V is applied to the injector, or you are seriously injured. 4. Earth the sparkplug electrodesecurely. 5. Check that the sparkplug igniteswhen theengine is cranked.NGReplace the ignition coil. NO MUT- IIData list 68 EGR valve (Refer to P.13A-198.)NGCheck the EGR valve system (Refer to P.13A-196, Inspection procedure 35.) OK Check the vehicle speed sensor system (Refer to P.13A-144, code No.24.)NGRepair OK MUT- IIData list 79 Throttle position sensor (1st channel) (Refer to P.13A-198.)NGCheck the throttle valve position feedback system (Refer to P.13A-162, code No.P92) NO MUT- IIData list 26 Acceleratorpedal positionswitch (Refer to P.13A-198.)NGCheck the acceleratorpedal positionswitch system. (Refer to P.13A-192, Inspection procedure 28) NO MUT- IISelf-Diag Code Is a diagnosis code set?YESRefer to P.13A-130, INSPECTION CHART FOR DIAGNOSIS CODES. Has the batterybeen disconnectedrecently?YESAfter warming-up, let theengine run at idling for 10 minutes. www.WorkshopManuals.co.uk Purchased from www.WorkshopManuals.co.uk

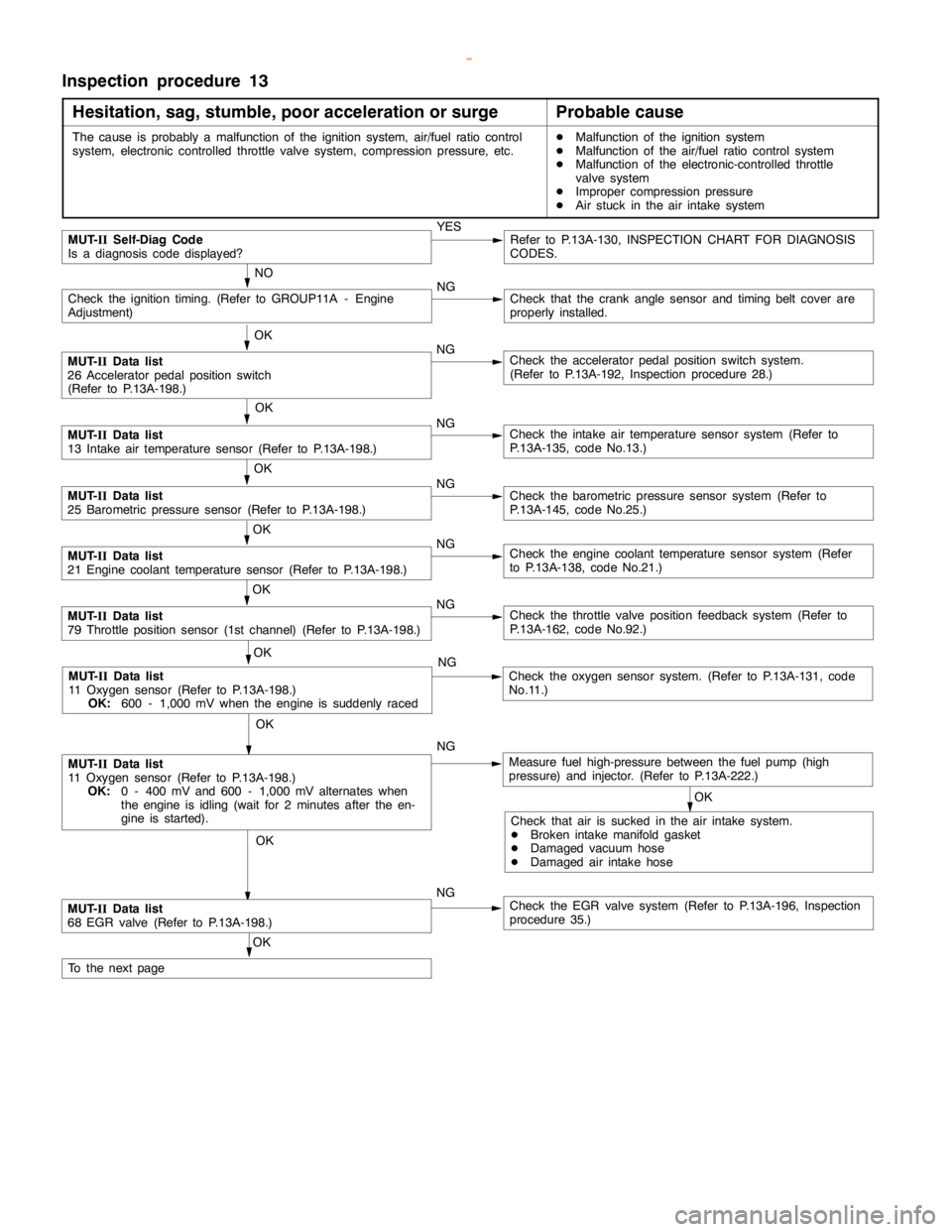

GDI -Troubleshooting 13A-182 Inspection procedure 13 Hesitation, sag, stumble, poor acceleration or surge Probable cause The cause is probably a malfunction of the ignition system, air/fuel ratio control system, electronic controlled throttle valve system, compression pressure, etc.DMalfunction of the ignition system DMalfunction of the air/fuel ratio control system DMalfunction of the electronic-controlled throttle valve system DImproper compression pressure DAir stuck in the air intake system NO NG Check that the crankanglesensor andtiming beltcover are properly installed. OK Check that air is sucked in the air intake system. DBroken intake manifold gasket DDamaged vacuum hose DDamaged air intake hose OK To the nextpage MUT- IIData list 68 EGR valve (Refer to P.13A-198.)NGCheck the EGR valve system (Refer to P.13A-196, Inspection procedure 35.) OK MUT- IIData list 11 Oxygen sensor (Refer to P.13A-198.) OK: 0 - 400 mV and 600 - 1,000 mV alternates when the engine is idling(wait for 2 minutes after the en- gine is started).NGMeasure fuel high-pressure between the fuel pump (high pressure) and injector. (Refer to P.13A-222.) OK MUT- IIData list 11 Oxygen sensor (Refer to P.13A-198.) OK: 600 - 1,000 mV when theengine is suddenlyracedNGCheck the oxygen sensor system. (Refer to P.13A-131, code No.11.) OK MUT- IIData list 79 Throttle position sensor (1st channel) (Refer to P.13A-198.)NGCheck the throttle valve position feedback system (Refer to P.13A-162, code No.92.) OK MUT- IIData list 21 Engine coolant temperature sensor (Refer to P.13A-198.)NGCheck theengine coolant temperaturesensor system (Refer to P.13A-138, code No.21.) OK MUT- IIData list 25 Barometric pressure sensor (Refer to P.13A-198.)NGCheck the barometric pressure sensor system (Refer to P.13A-145, code No.25.) OK MUT- IIData list 13 Intake air temperature sensor (Refer to P.13A-198.)NGCheck the intake air temperature sensor system (Refer to P.13A-135, code No.13.) OK MUT- IIData list 26 Acceleratorpedal positionswitch (Refer to P.13A-198.)NGCheck the acceleratorpedal positionswitch system. (Refer to P.13A-192, Inspection procedure 28.) Check the ignition timing. (Refer to GROUP11A - Engine Adjustment) MUT- IISelf-Diag Code Is a diagnosis code displayed?YESRefer to P.13A-130, INSPECTION CHART FOR DIAGNOSIS CODES. OK www.WorkshopManuals.co.uk Purchased from www.WorkshopManuals.co.uk

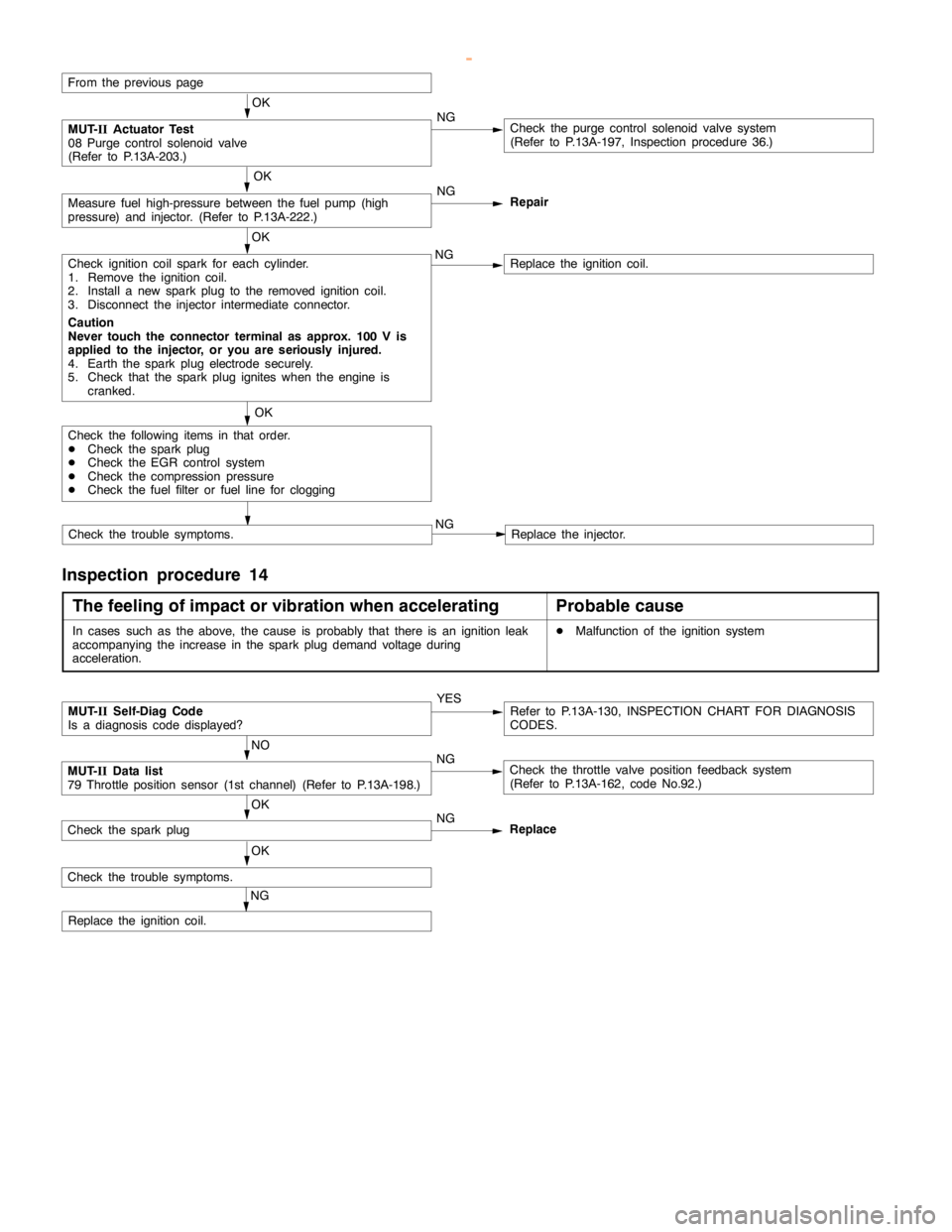

GDI -Troubleshooting 13A-183 OK Check the following items in that order. DCheck the sparkplug DCheck the EGR control system DCheck the compression pressure DCheck the fuel filter or fuelline for clogging OK Check ignition coil spark for each cylinder. 1. Remove the ignition coil. 2. Install a new sparkplug to the removed ignitioncoil. 3. Disconnect the injector intermediate connector. Caution Never touch the connector terminal as approx. 100 V is applied to the injector, or you are seriously injured. 4. Earth the sparkplug electrodesecurely. 5. Check that the sparkplug igniteswhen theengine is cranked.NGReplace the ignition coil. OK Measure fuel high-pressure between the fuel pump (high pressure) and injector. (Refer to P.13A-222.)NGRepair From the previouspage Check the trouble symptoms.Replace the injector. NG OK MUT- IIActuator Test 08 Purge control solenoid valve (Refer to P.13A-203.)NGCheck the purge control solenoid valve system (Refer to P.13A-197, Inspection procedure 36.) Inspection procedure 14 The feeling of impact or vibration when accelerating Probable cause In cases such as the above, the cause is probably that there is an ignition leak accompanying the increase in the sparkplug demand voltage during acceleration.DMalfunction of the ignition system Replace the ignition coil. NG OK Check the trouble symptoms. OK Check the sparkplugNGReplace NO MUT- IIData list 79 Throttle position sensor (1st channel) (Refer to P.13A-198.)NGCheck the throttle valve position feedback system (Refer to P.13A-162, code No.92.) MUT- IISelf-Diag Code Is a diagnosis code displayed?YESRefer to P.13A-130, INSPECTION CHART FOR DIAGNOSIS CODES. www.WorkshopManuals.co.uk Purchased from www.WorkshopManuals.co.uk
GDI -Troubleshooting 13A-184 Inspection procedure 15 The feeling of impact or vibration when decelerating Probable cause The cause is probably insufficient intake air due to a faulty electronic-controlled throttle valve system.DMalfunction of the electronic - controlled throttle valve system OK Clean around the throttle valve. (Refer to P.13A-220.) OK MUT- IIData list 26 Acceleratorpedal positionswitch (Refer to P.13A-198.)NGCheck the acceleratorpedal positionswitch system (Refer to P.13A-192, Inspection procedure 28.) NO MUT- IIData list 79 Throttle position sensor (1st channel) (Refer to P.13A-198.)NGCheck the throttle valve position feedback system (Refer to P.13A-162, code No.92.) MUT- IISelf-Diag Code Are diagnosis codes displayed?YESRefer to P.13A-130, INSPECTION CHART FOR DIAGNOSIS CODES. Inspection procedure 16 Knocking Probable cause In case as the above, the cause is probably that the heat value of the spark plug is inappropriate.DMalfunction of the detonation sensor DImproper heat range of the spark plugs. MUT- IISelf-Diag Code Is a diagnosis code set?YESRefer to P.13A-130, INSPECTION CHART FOR DIAGNOSIS CODES. NO Does knocking occur when the vehicle is driven with the detonation sensor disconnected? (At this time, use the MUT-IIto check whether the ignition timing is retarded fromwhen the detonation sensor connector is connected.)NOCheck the detonation sensor system. (Refer to P.13A-146, code No.31.) YES Check the following items in that order. DSpark plugs DCheck if foreign materials (water, kerosine,etc.) got into fuel. Inspection procedure 17 Run-on (Dieseling) Probable cause Fuel leakage from injectors is suspected.DMalfunction of the injector Replace the injector. www.WorkshopManuals.co.uk Purchased from www.WorkshopManuals.co.uk

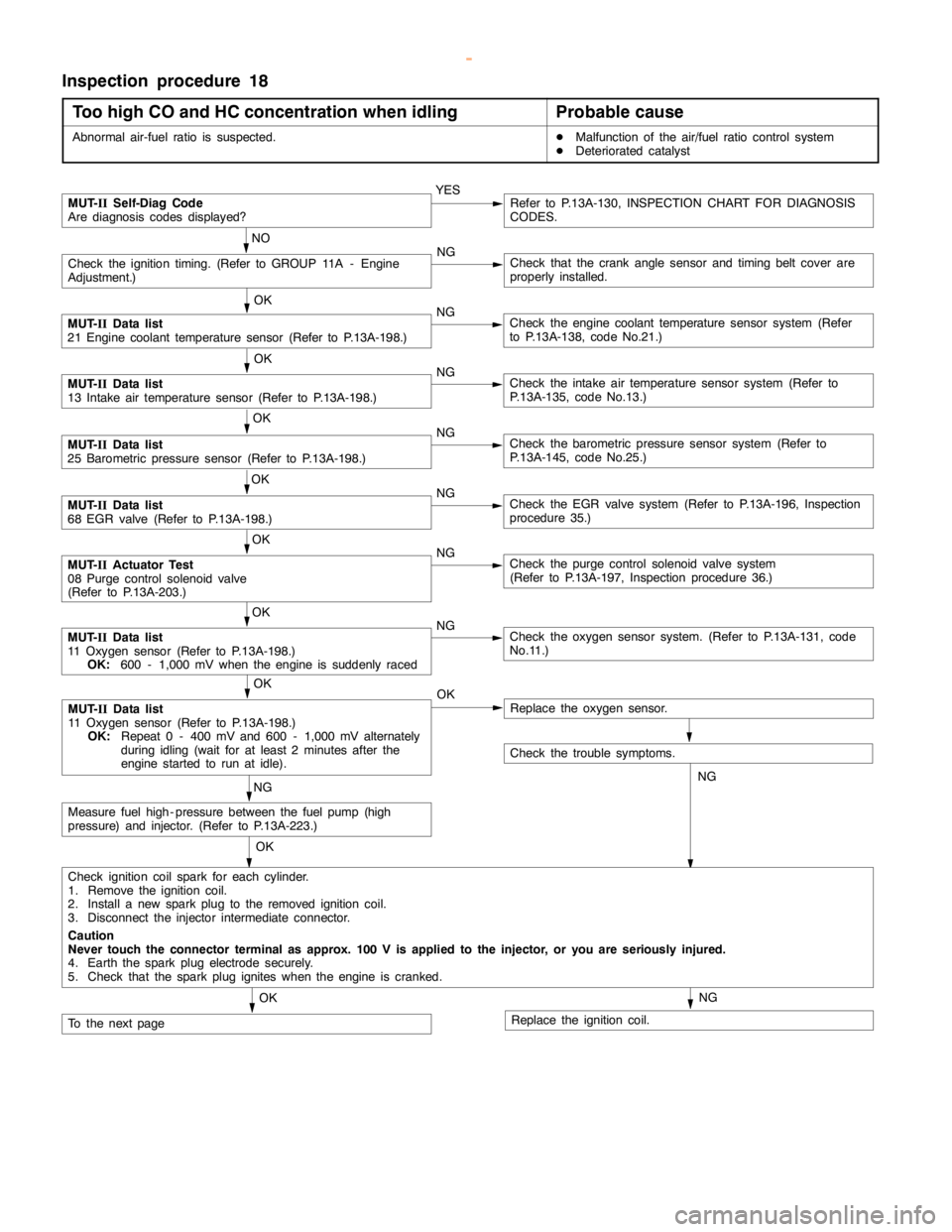

GDI -Troubleshooting 13A-185 Inspection procedure 18 Too high CO and HC concentration when idling Probable cause Abnormal air-fuel ratio is suspected.DMalfunction of the air/fuel ratio control system DDeteriorated catalyst OK To the nextpage NG Replace the ignition coil. OK Check ignition coil spark for each cylinder. 1. Remove the ignition coil. 2. Install a new sparkplug to the removed ignitioncoil. 3. Disconnect the injector intermediate connector. Caution Never touch the connector terminal as approx. 100 V is applied to the injector, or you are seriously injured. 4. Earth the sparkplug electrodesecurely. 5. Check that the sparkplug igniteswhen theengine iscranked.NG NG Measure fuel high -pressure between the fuelpump (high pressure) and injector. (Refer to P.13A-223.) Check the trouble symptoms. OK MUT- IIData list 11 Oxygen sensor (Refer to P.13A-198.) OK: Repeat 0 - 400 mV and 600 - 1,000 mV alternately during idling(wait for at least 2 minutes after the enginestarted to run at idle).OKReplace the oxygen sensor. OK MUT- IIData list 11 Oxygen sensor (Refer to P.13A-198.) OK: 600 - 1,000 mV when theengine is suddenlyracedNGCheck the oxygen sensor system. (Refer to P.13A-131, code No.11.) OK MUT- IIActuator Test 08 Purge control solenoid valve (Refer to P.13A-203.)NGCheck the purge control solenoid valve system (Refer to P.13A-197, Inspection procedure 36.) OK MUT- IIData list 68 EGR valve (Refer to P.13A-198.)NGCheck the EGR valve system (Refer to P.13A-196, Inspection procedure 35.) OK MUT- IIData list 25 Barometric pressure sensor (Refer to P.13A-198.)NGCheck the barometric pressure sensor system (Refer to P.13A-145, code No.25.) OK MUT- IIData list 13 Intake air temperature sensor (Refer to P.13A-198.)NGCheck the intake air temperature sensor system (Refer to P.13A-135, code No.13.) OK MUT- IIData list 21 Engine coolant temperature sensor (Refer to P.13A-198.)NGCheck theengine coolant temperaturesensor system (Refer to P.13A-138, code No.21.) NO Check the ignition timing. (Refer to GROUP 11A - Engine Adjustment.)NGCheck that the crankanglesensor andtiming beltcover are properly installed. MUT- IISelf-Diag Code Are diagnosis codes displayed?YESRefer to P.13A-130, INSPECTION CHART FOR DIAGNOSIS CODES. www.WorkshopManuals.co.uk Purchased from www.WorkshopManuals.co.uk
GDI -Troubleshooting 13A-186 Check the trouble symptoms.NG From the previouspage Check the trouble symptoms. Replace the catalytic converter. OK Check the following items in that order. DCheck the sparkplug DCheck the compression pressure DCheck the positive crankcase ventilation system. NG Replace the injector. Inspection procedure 19 Low alternator output voltage (approx.12.3 V) Probable cause The cause is probably a malfunction of the alternator or one of the problems listed at right.DMalfunction of the charging system DOpen circuit between the alternator G terminal and the engine-A/T-ECU DMalfunction of the engine-A/T-ECU Measure at alternator connector B-59 DConnect the connector. (Use test harness: MB991519) DThe voltage between terminal 1 (black clip) and earth (Engine: Idling) (Headlamp: OFF to ON) (Stoplamp: OFF to ON) (Rear defogger switch: OFF to ON) OK: The voltage increases by 0.2 - 3.5 VNGMeasure at alternator connector B-59 DDisconnect the connector, and measure at the harness side. DDisconnect the engine-A/T-ECU connector DThe continuity between terminal 1 and earth OK: No continuityNGCheck the harness wire between the alternator and the engine-A/T-ECU, and repair if necessary. OK Check the alternator (Refer to GROUP16 - Charging System.)NG OK Check the following connectors: B-41, D-119Repair OK Replace the engine-A/T-ECU. OK Check the trouble symptoms. NG NG Check the harness wire between the alternator and the engine-A/T-ECU.Repair www.WorkshopManuals.co.uk Purchased from www.WorkshopManuals.co.uk
