2000 MITSUBISHI MONTERO Service Repair Manual

CHASSIS ELECTRICAL -RV Meter54A-20
Inspection procedure 4
Compass does not display normally.
NO
NO
NG
Replace the RV meter.
Is a carrier antenna with a magnet
installed to the vehicle, or is there a
magnet or other metal near the RV
meter?YES
YES
YESEnd (NO abnormality)
NO
YESEnd (NO abnormality)Does operation return to normal
when the magnet or metal is
removed?
NO
Carry out a geomagnetic sensor
mode check in service mode. Does
operation return to normal if
degaussing or calibration is carried
out?OKEnd (NO abnormality)
Does the location have stable
geomagnetism?Is operation normal when the vehicle
is moved to a location with stable
geomagnetism?
OKEnd (NO abnormality)Carry out a geomagnetic sensor
mode check in service mode.
NG


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

CHASSIS ELECTRICAL -RV Meter54A-21
Inspection procedure 5
Altimeter does not display normally.
NG
Replace the RV meter.
OKEnd (No abnormality)Carry out an altitude calibration mode check in service
mode.
Inspection procedure 6
Air conditioner information does not display normally.
NG
Replace the RV meter.
NG
Replace the RV meter.
(1)
Check the trouble symptoms. NO
MUT-II Self-diag code
Is A/C diagnosis code output?
Carry out a service function
communication and wiring check. One
of the following M-BUS outputs will
appear.
(1) E1 (Communication error)
(2) E2 (Open circuit or short-circuit)
(3) OKMeasure the wave pattern at RV meter
connector D-40.
DConnector disconnected
DVoltage between terminal (9) and
body earth
DVoltage between terminal (10) and
body earth
DVoltage between terminal (19) and
body earth
OK:Hi: 4 - 5 V
Lo: 0 - 1 V
Malfunction of A/C-ECU OKMeasure the wave pattern at A/C-ECU
connector D-131.
DConnector disconnected
DVoltage between terminal (6) and
body earth
DVoltage between terminal (16) and
body earth
DVoltage between terminal (17) and
body earth
OK:Hi: 4 - 5 V
Lo: 0 - 1 V (2)Check the following
connectors:D-40, D-131
NG
OK
Check the harness between
the RV meter and the
A/C-ECU, and repair if
necessary. (3)
Refer to GROUP 55B - A/C
Troubleshooting.YES
OK
Repair


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

CHASSIS ELECTRICAL -RV Meter54A-22
Inspection procedure 7
Audio information does not display normally.
Replace the RV meter.
NG
Replace the radio and tape, CD
player
(1)
Check the trouble symptoms.
Carry out a service function
communication and wiring check. One
of the following M-BUS outputs will
appear.
(1) E1 (Communication error)
(2) E2 (Open circuit or short-circuit)
(3) OKMeasure the wave pattern at RV meter
connector D-40.
DConnector disconnected
DVoltage between terminal (7) and
body earth
DVoltage between terminal (8) and
body earth
DVoltage between terminal (17) and
body earth
OK:Hi: 4 - 5 V
Lo: 0 - 1 V
Malfunction of radio and tape, CD
player OK
(2)
Check the harness between the RV
meter and the radio and tape, CD player,
and repair if necessary. (3)
YESOK
NG
Is error message “004” shown?NOReplace the RV meter.
NOTE:
The contents of error messages shown in the audio display screen are as follows:
Error messageLocation and cause of malfunction
EJECTA magazine for CD changeris not inserted.
NO DISCCD is not inserted.
ERROR 001Program error in audio
ERROR 002Error in CD disk
ERROR 003Mechanical error in audio system
ERROR 004Communication error in audio systemand RV meter,power supply error in audio
system, and other errors
ERROR HOTHeat protection for audio system


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

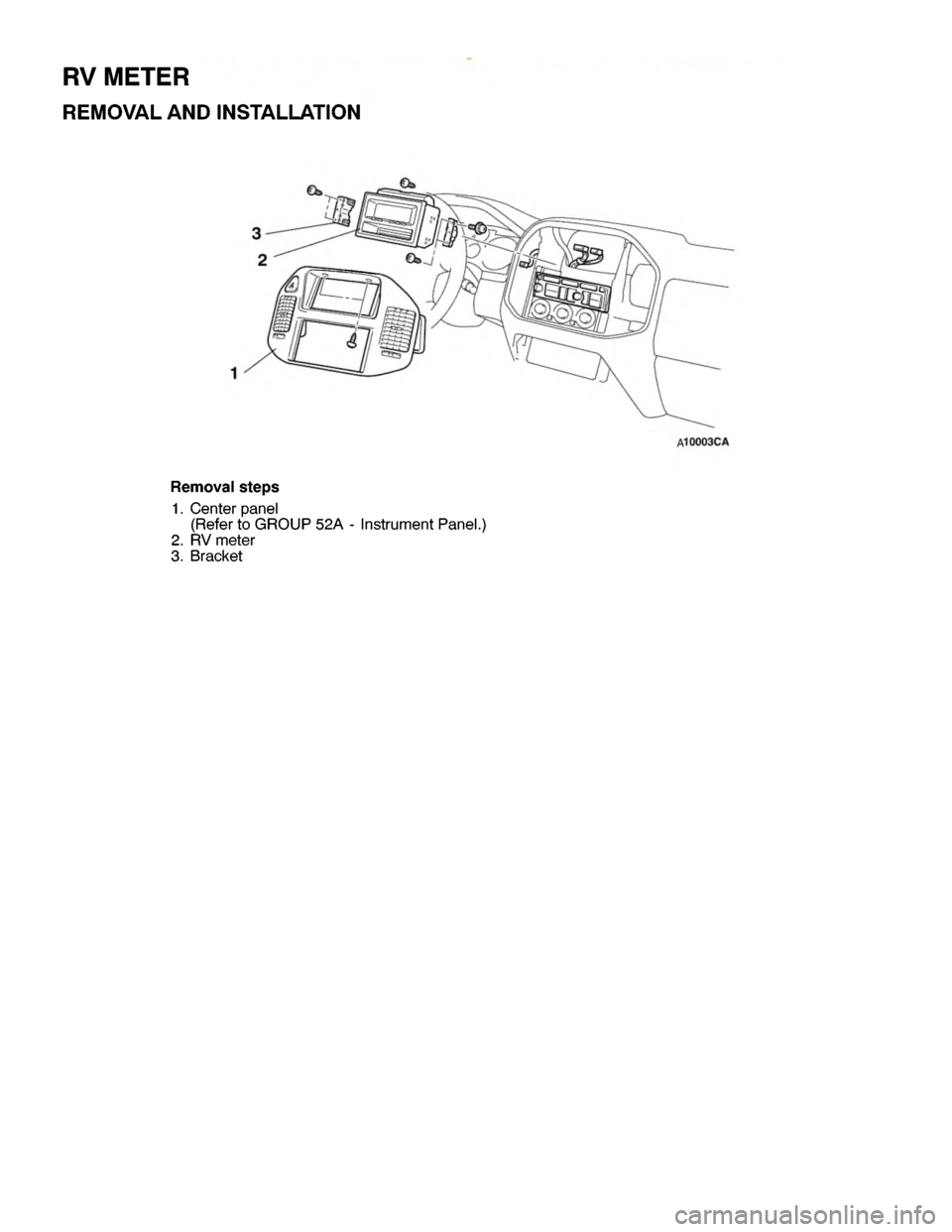

R
V METE R
R EM OVA L AND IN STA LLA TIO N
2
1 3
R em ovals te p s
1 . C ente r panel
( R efe r to GRO UP 52A -In str u m entP anel. )
2 . R V mete r
3 . B ra cke t
w
ww.W ork sh opM an uals .c o .u k
P urc h ased f r o m w ww.W ork sh opM an uals .c o .u k

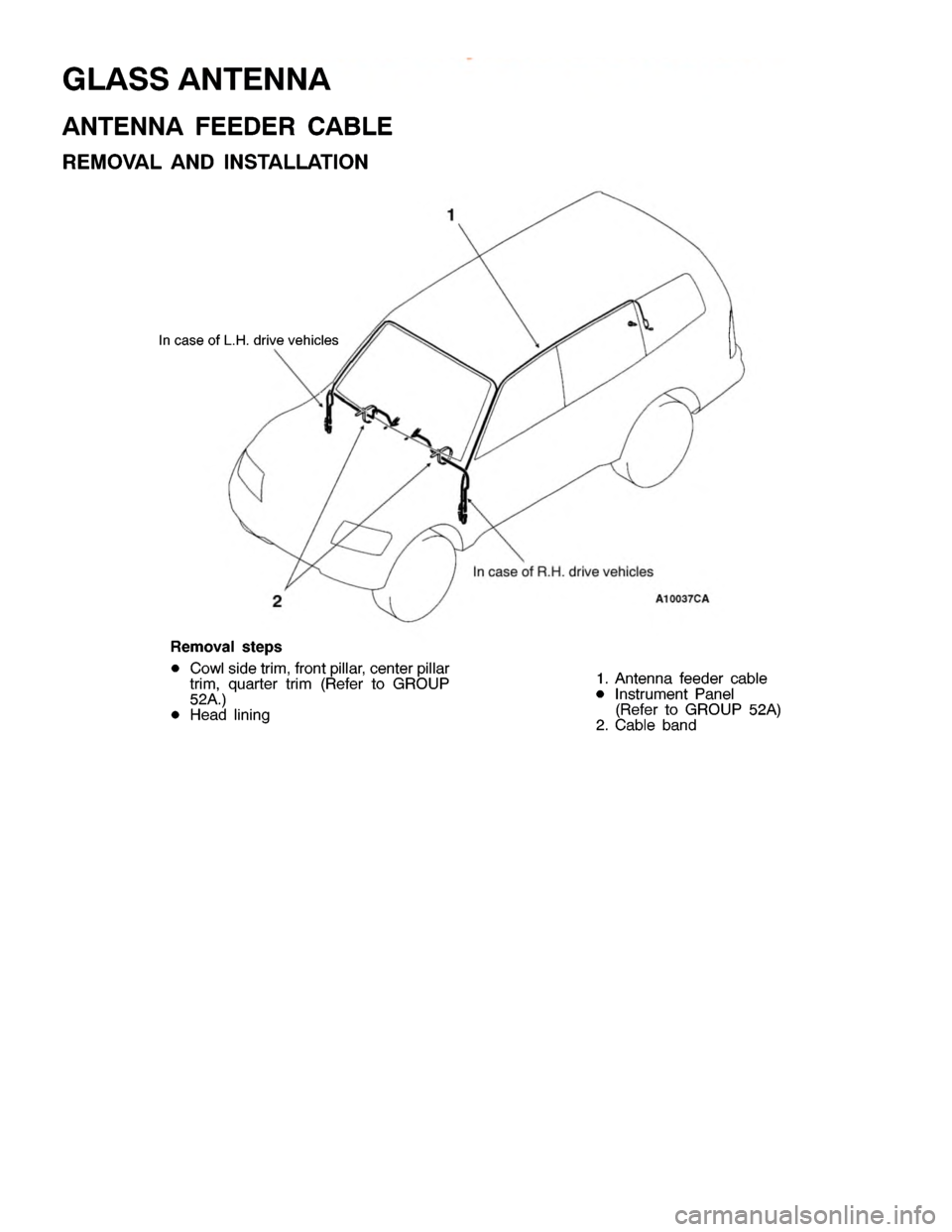

I
n ca se ofR .H .d riv e ve hic le s
R em oval ste p s
D Cow ls id e tr im ,fr o ntp illa r, ce nte r pilla r
t r im ,quarte r tr im (R efe r to GRO UP
5 2A .)
D Head lin in g 1
. A nte nna fe eder ca ble
D In str u m ent Panel
( R efe r to GRO UP 52A )
2 . C able band
w
ww.W ork sh opM an uals .c o .u k
P urc h ased f r o m w ww.W ork sh opM an uals .c o .u k

SMART WIRING
SYSTEM (SWS)
Click on the applicable bookmark to selected the required model year.


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

54B-1
SMART WIRING
SYSTEM (SWS)
CONTENTS
GENERAL INFORMATION 2................
SPECIAL TOOLS 7........................
TROUBLESHOOTING 8....................
Standard Flow of Diagnostic
Troubleshooting 8...........................
Diagnostic Function 8........................
Diagnosis Code Chart 9.....................Diagnosis Code Inspection Procedures 10.....
Trouble Symptom Chart 13...................
Inspection Procedure for Trouble
Symptoms 17...............................
Check at ECU Terminals 54..................
ON-VEHICLE SERVICE 60.................
Adjustment Procedures for SWS Function 60..


www.WorkshopManuals.co.uk


Purchased from www.WorkshopManuals.co.uk

SWS -General InformationSWS -General Information54B-2
GENERAL INFORMATION
COMMUNICATION LINE
Data lines for multiplex communication are connected between the front-ECU, ETACS-ECU, column switch
assembly, sunroof motor assembly, center display, power window main switch, and power window motors
as illustrated below.
ETACS-ECUMUT-II
Column switch
assembly
Front-ECU
Power window
main switch
Power window motor
(front-right)
Center display*1
Sunroof motor
assembly*2Power window motor
(front-left)
Power window motor
(rear-right)
Power window motor
(rear-left)

NOTE
: Uni-directional communication line
: Bi-directional communication line
*
1: Vehicles with center display
*2: Vehicles with sunroof
OPERATION
BUZZER
Light Reminder Warning Buzzer Function
When the driver’s door is opened with lighting switch
in the ON (tail lamp switch or headlamp switch)
position and ignition switch in the LOCK (OFF) or
ACC position, the buzzer will sound continuously to
remind the driver that the lamps (tail lamps or
headlamps) are ON.
This function does not work if the lighting switched
off through the headlamp automatic shutdownfunction. In addition, the ignition key reminder
warning buzzer function has a priority over this
function.
Center Display Operation Annunciation
Function
On vehicles with center display, the buzzer (peeps)
sounds when the operation switch of the audio
and navigation system is pressed.
CENTRAL DOOR LOCKING SYSTEM
Central Door Locking System Operation
When the lock switch is turned ON after the unlock
switch on the driver’s door lock actuator switch
is OFF, the ETACS-ECU gives a lock output for
0.5 second. When the unlock switch is turned ON
after the lock switch on the driver’s door lock
actuator switch is OFF, the ETACS-ECU gives an
unlock output for 0.5 second.
When the front passenger’s door key or back door
key is operated, the ETACS-ECU gives a lock or
unlock output for 0.5 second.Forgotten Key Prevention Function
If, with the key reminder switch OFF and the driver’s
door switch ON, the driver’s door lock switch is
turned ON after the door unlock switch in the front
door lock actuator is turned OFF, the ETACS-ECU
waits 0.3 second then give an unlock relay output
for 0.5 second, there by preventing the doors from
being locked. This operation prevents the ignition
key from being locked inside the vehicle. This
function takes precedence over the central door
locking control function.
