Page 1945 of 2057

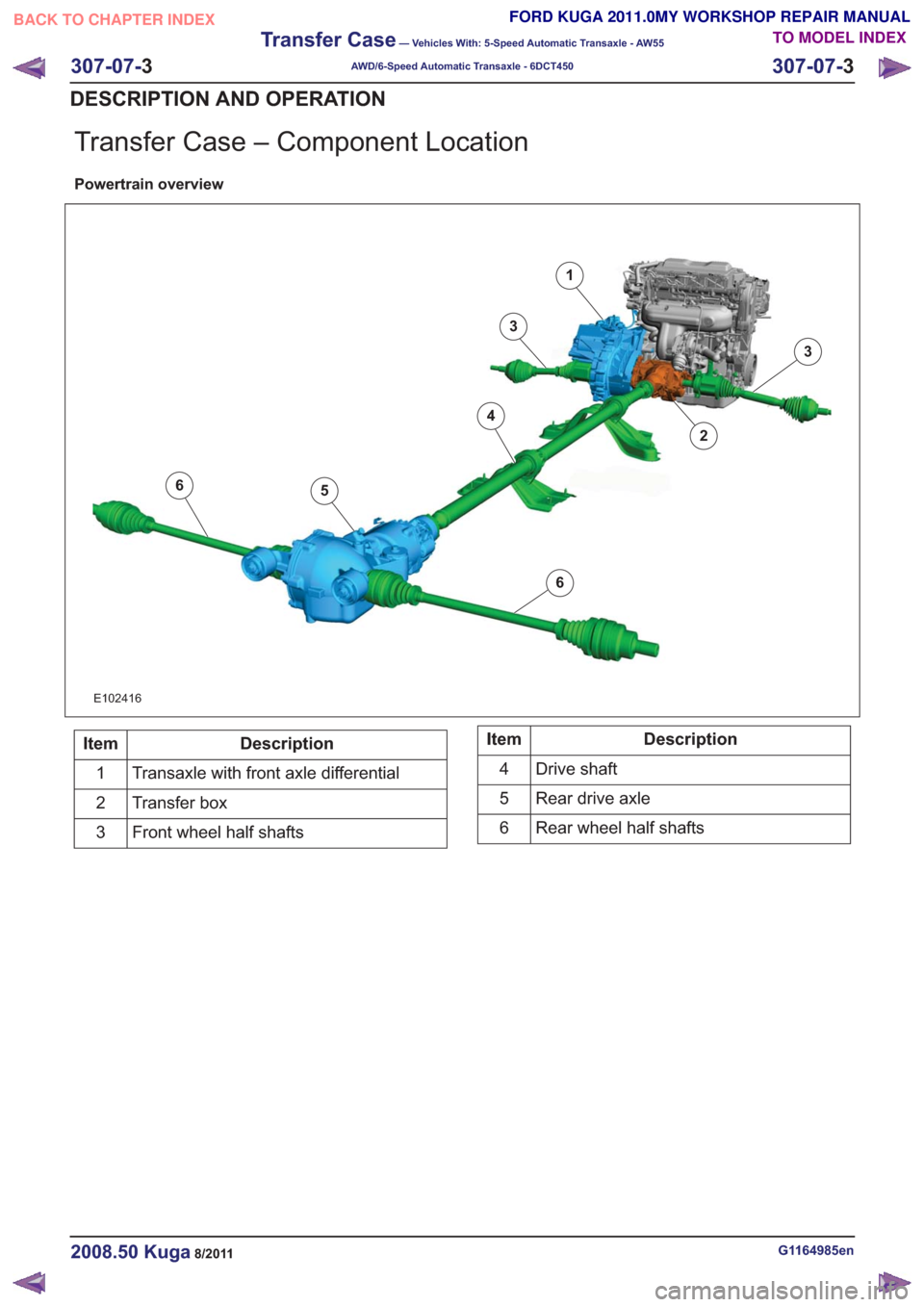

FORD KUGA 2011 1.G Workshop Manual Transfer Case – Component Location Powertrain overview 6 6 1 2 3 3 4 5 6 6 E102416 Description Item Transaxle with front axle differential 1 Transfer box 2 Front wheel half shafts 3Description Item

Page 1946 of 2057

FORD KUGA 2011 1.G Workshop Manual Transfer box 1 23 E115223 Description Item Transfer box 1 Heat deflector 2 Bracket, transfer box to engine 3 G1164985en2008.50 Kuga8/2011 307-07- 4 Transfer Case — Vehicles With: 5-Speed Automatic T

Page 1947 of 2057

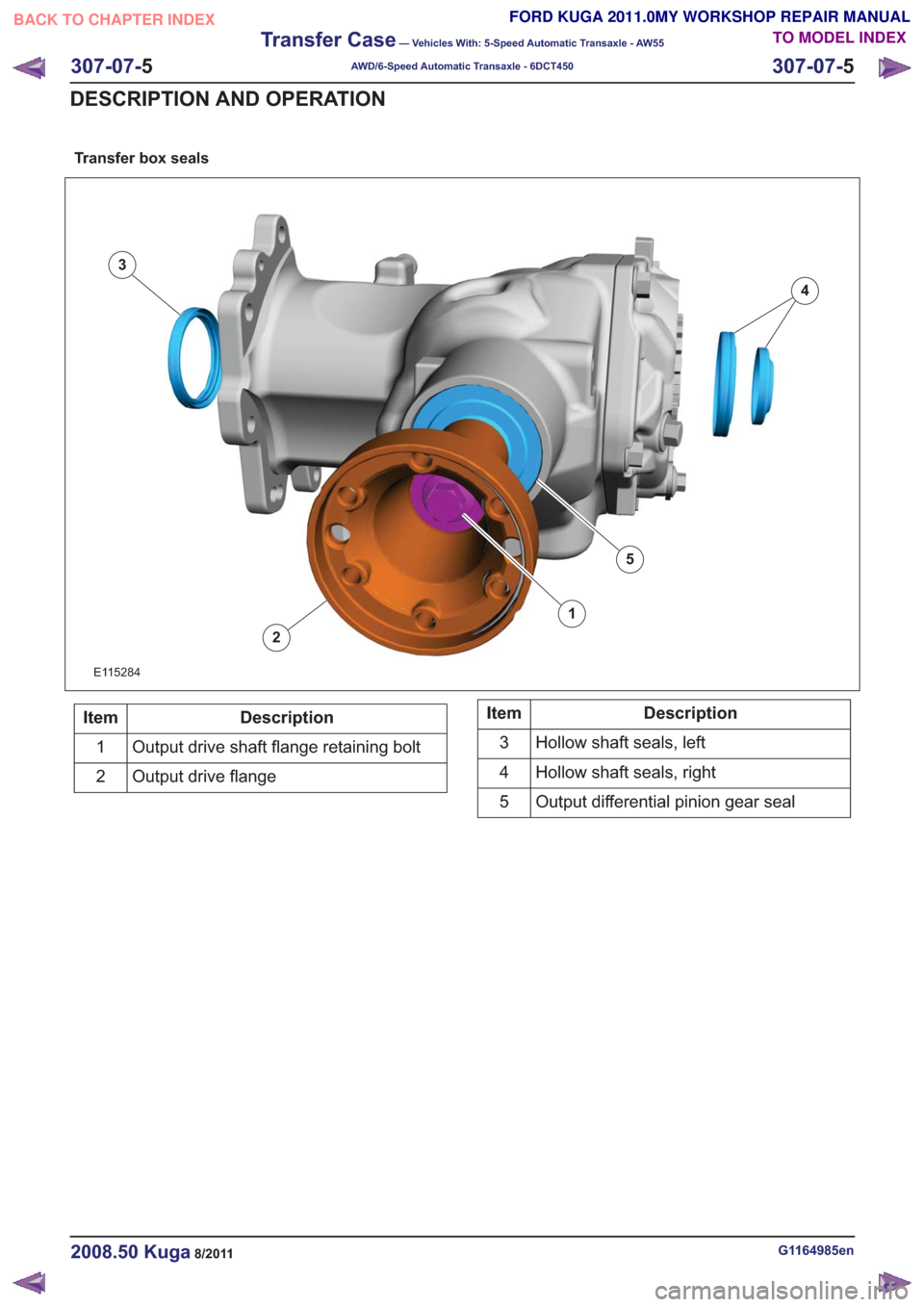

FORD KUGA 2011 1.G Workshop Manual Transfer box seals 1 2 3 4 5 E115284 Description Item Output drive shaft flange retaining bolt 1 Output drive flange 2Description Item Hollow shaft seals, left 3 Hollow shaft seals, right 4 Output dif

Page 1948 of 2057

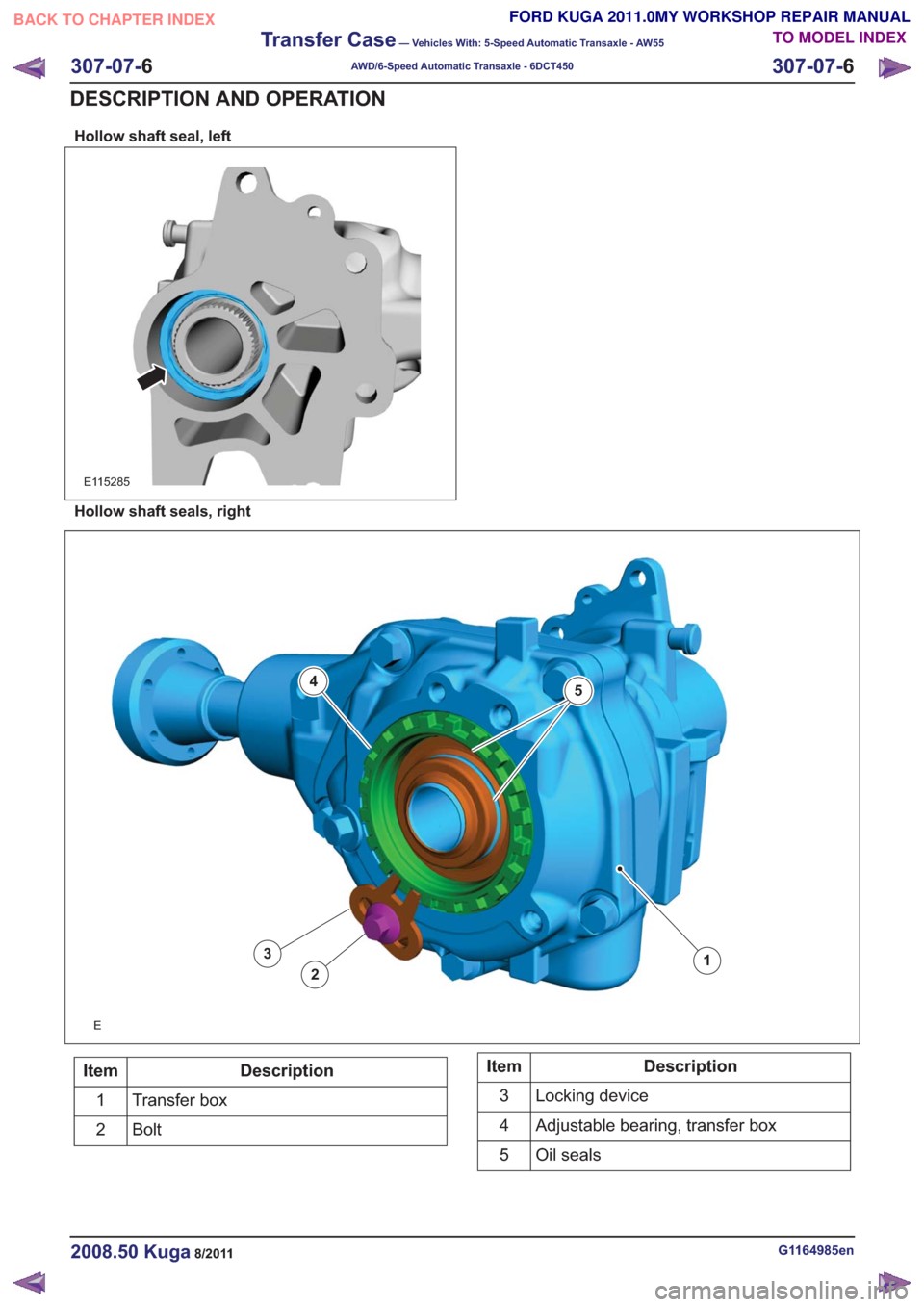

FORD KUGA 2011 1.G Workshop Manual Hollow shaft seal, left E115285 Hollow shaft seals, right 12 3 45 E Description Item Transfer box 1 Bolt 2Description Item Locking device 3 Adjustable bearing, transfer box 4 Oil seals 5 G1164985en200

Page 1949 of 2057

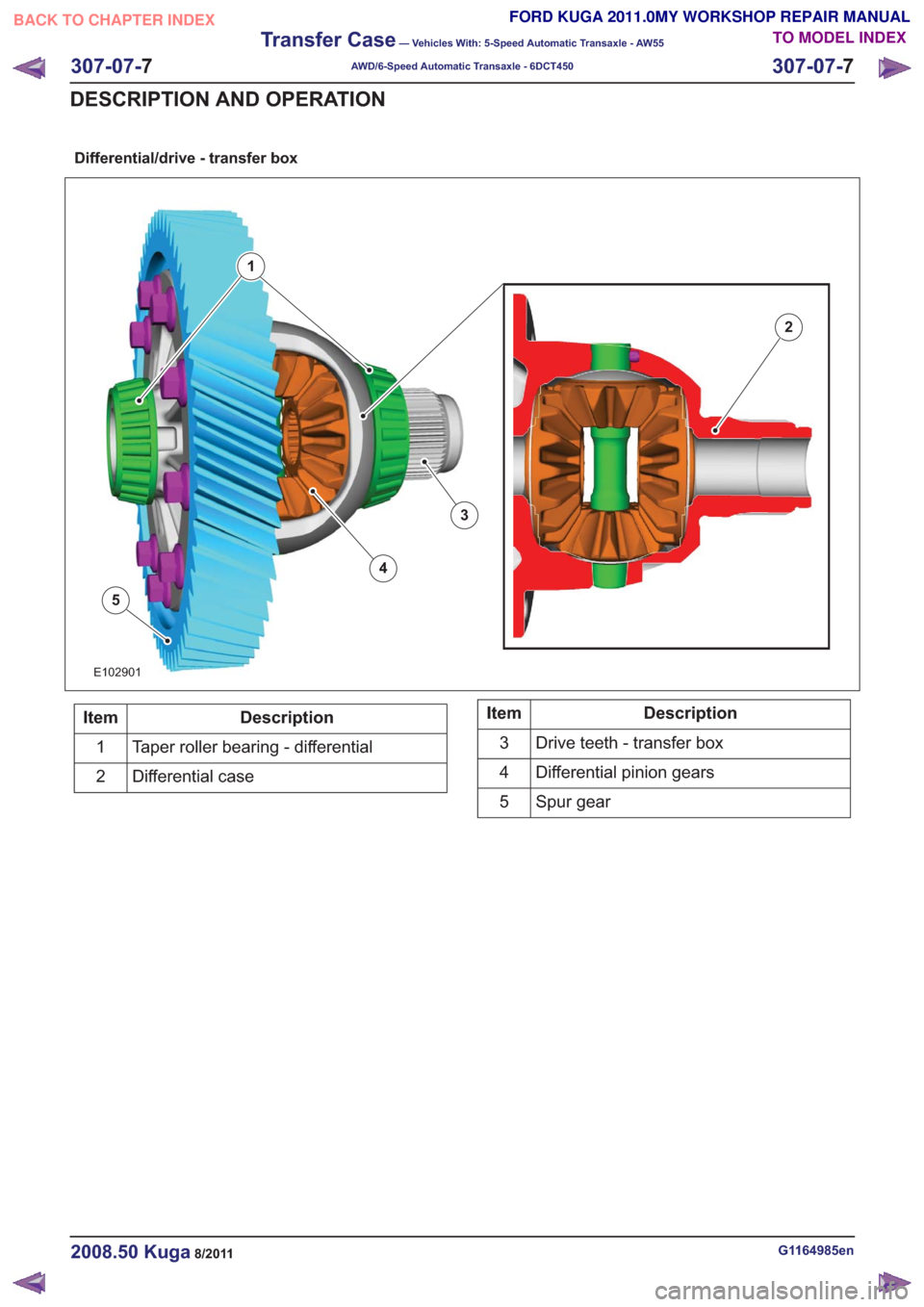

FORD KUGA 2011 1.G Workshop Manual Differential/drive - transfer box 1 2 3 4 5 2 E102901 Description Item Taper roller bearing - differential 1 Differential case 2Description Item Drive teeth - transfer box 3 Differential pinion gears

Page 1950 of 2057

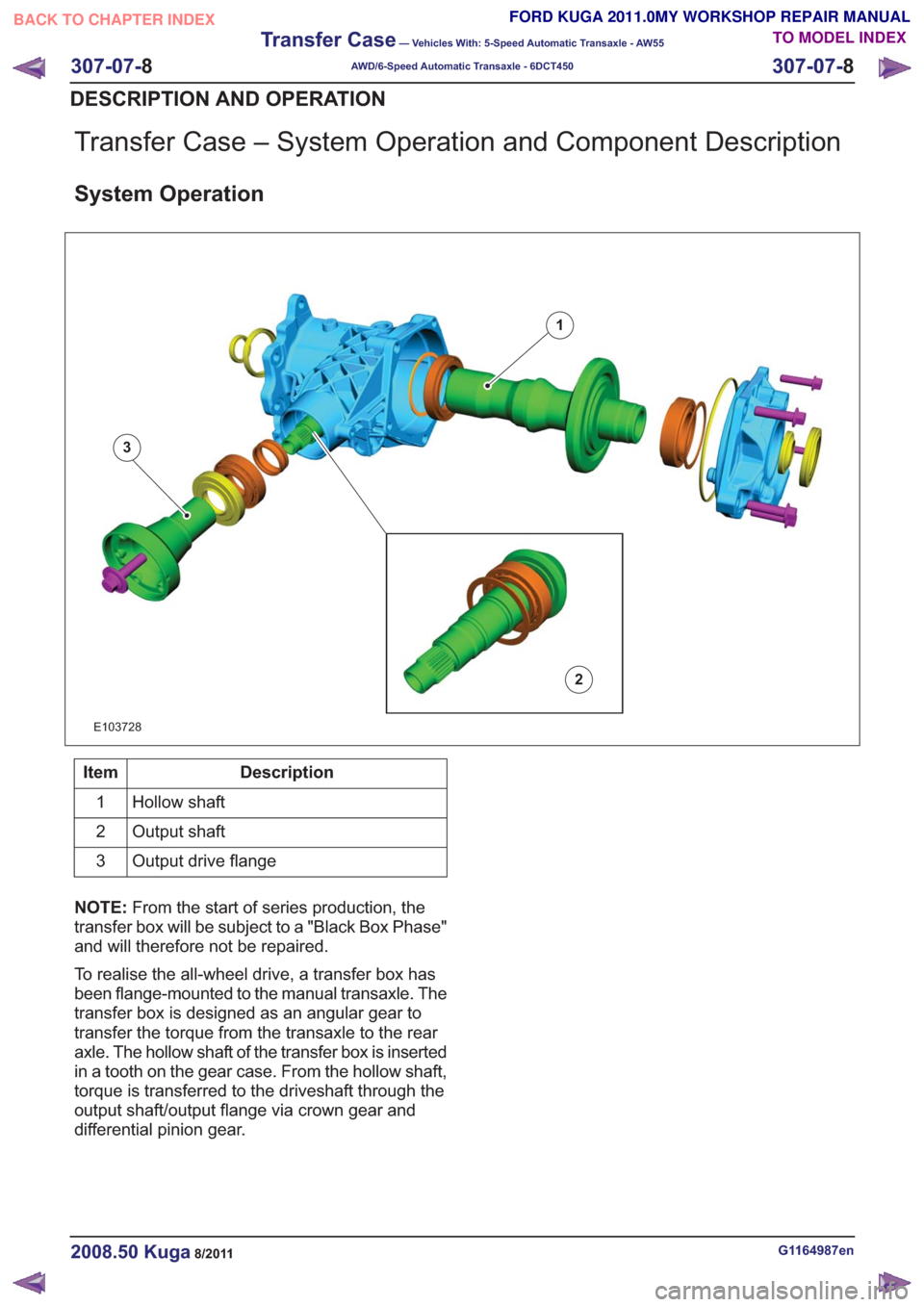

FORD KUGA 2011 1.G Workshop Manual Transfer Case – System Operation and Component Description System Operation 1 2 3 E103728 Description Item Hollow shaft 1 Output shaft 2 Output drive flange 3 NOTE: From the start of series producti

Page 1951 of 2057

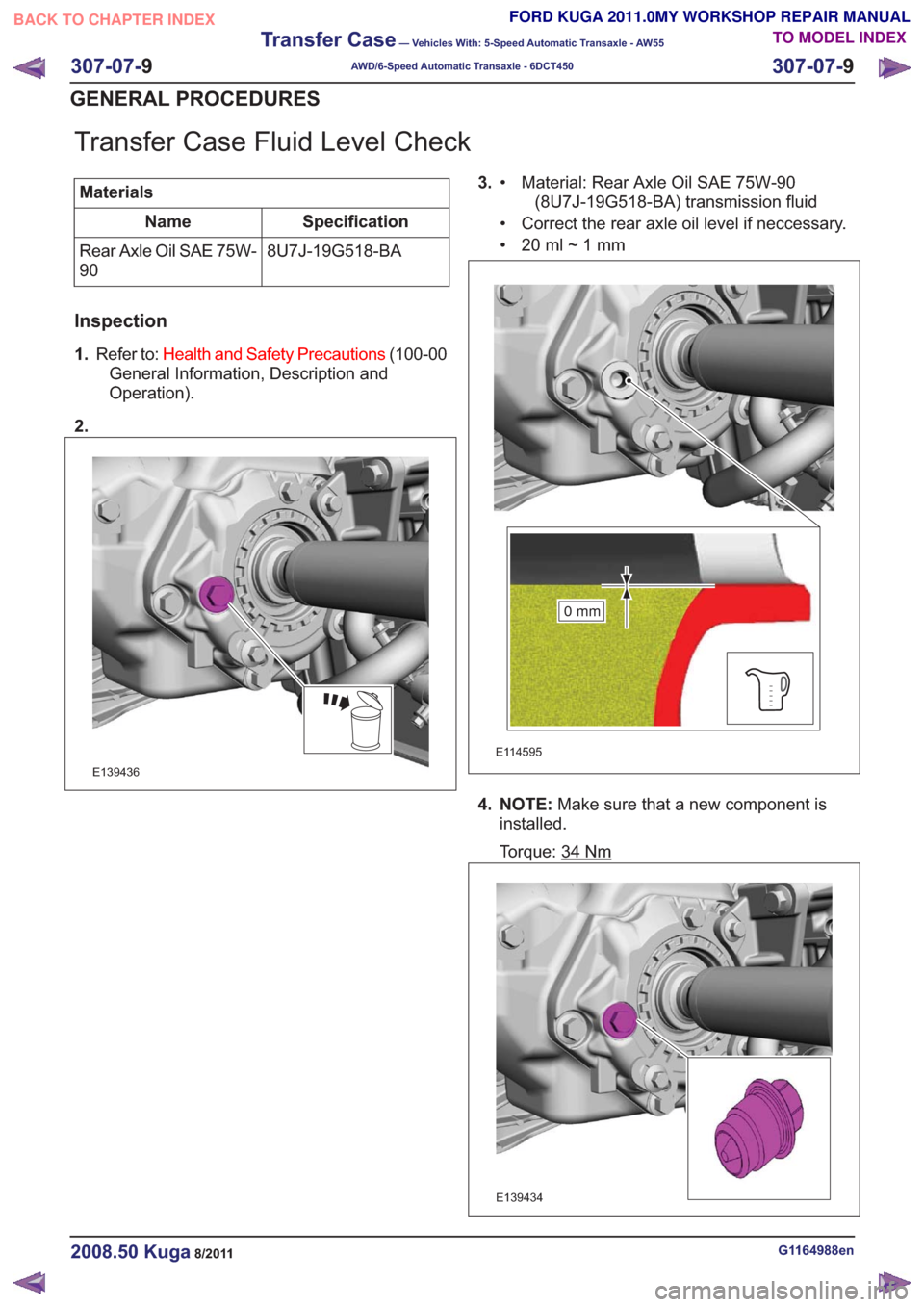

FORD KUGA 2011 1.G Workshop Manual Transfer Case Fluid Level Check MaterialsSpecification Name 8U7J-19G518-BA Rear Axle Oil SAE 75W- 90 Inspection 1. Refer to: Health and Safety Precautions (100-00 General Information, Description and

Page 1952 of 2057

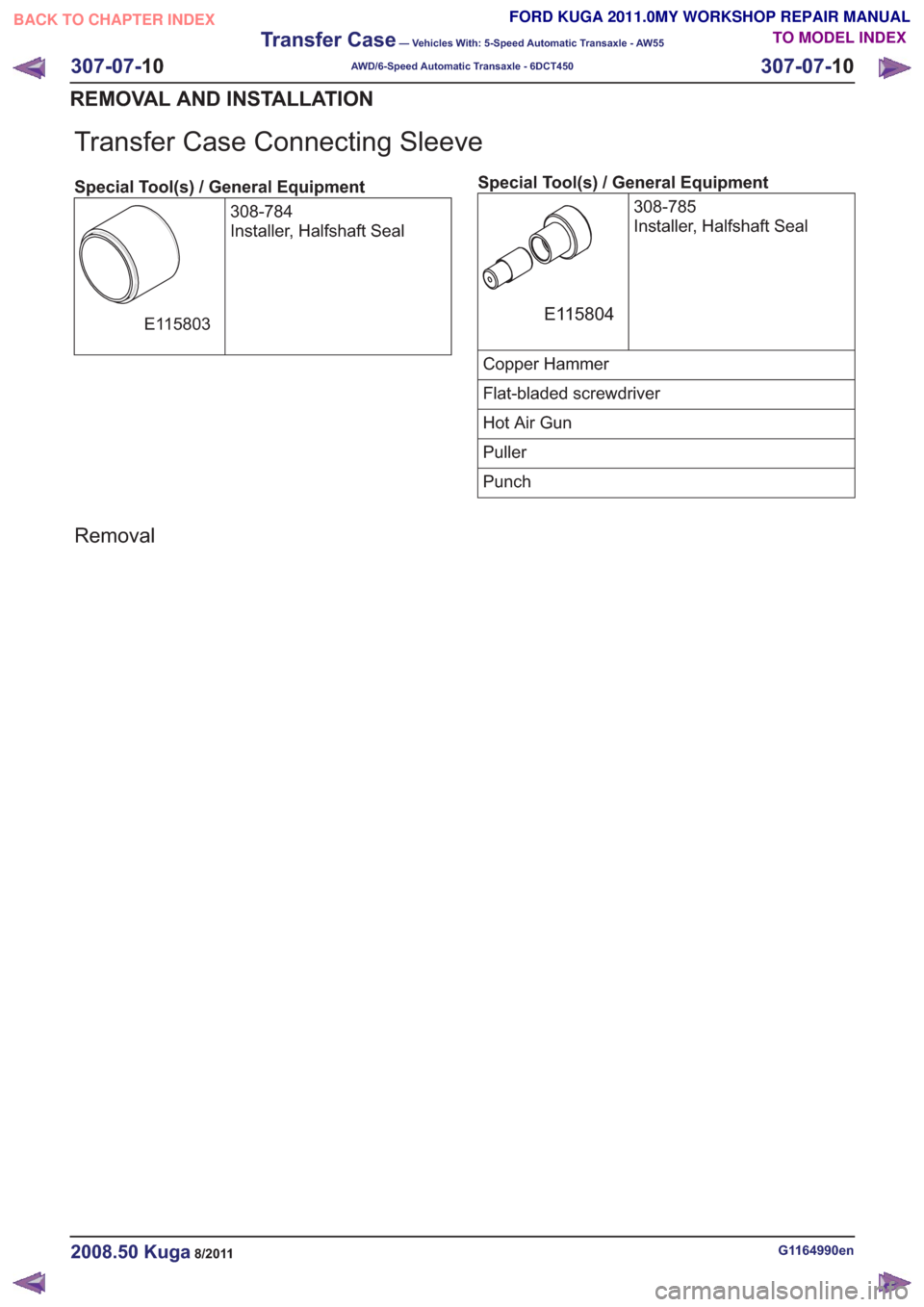

FORD KUGA 2011 1.G Workshop Manual Transfer Case Connecting Sleeve Special Tool(s) / General Equipment308-784 Installer, Halfshaft Seal E115803 Special Tool(s) / General Equipment308-785 Installer, Halfshaft Seal E115804 Copper Hammer
