Page 1377 of 2057

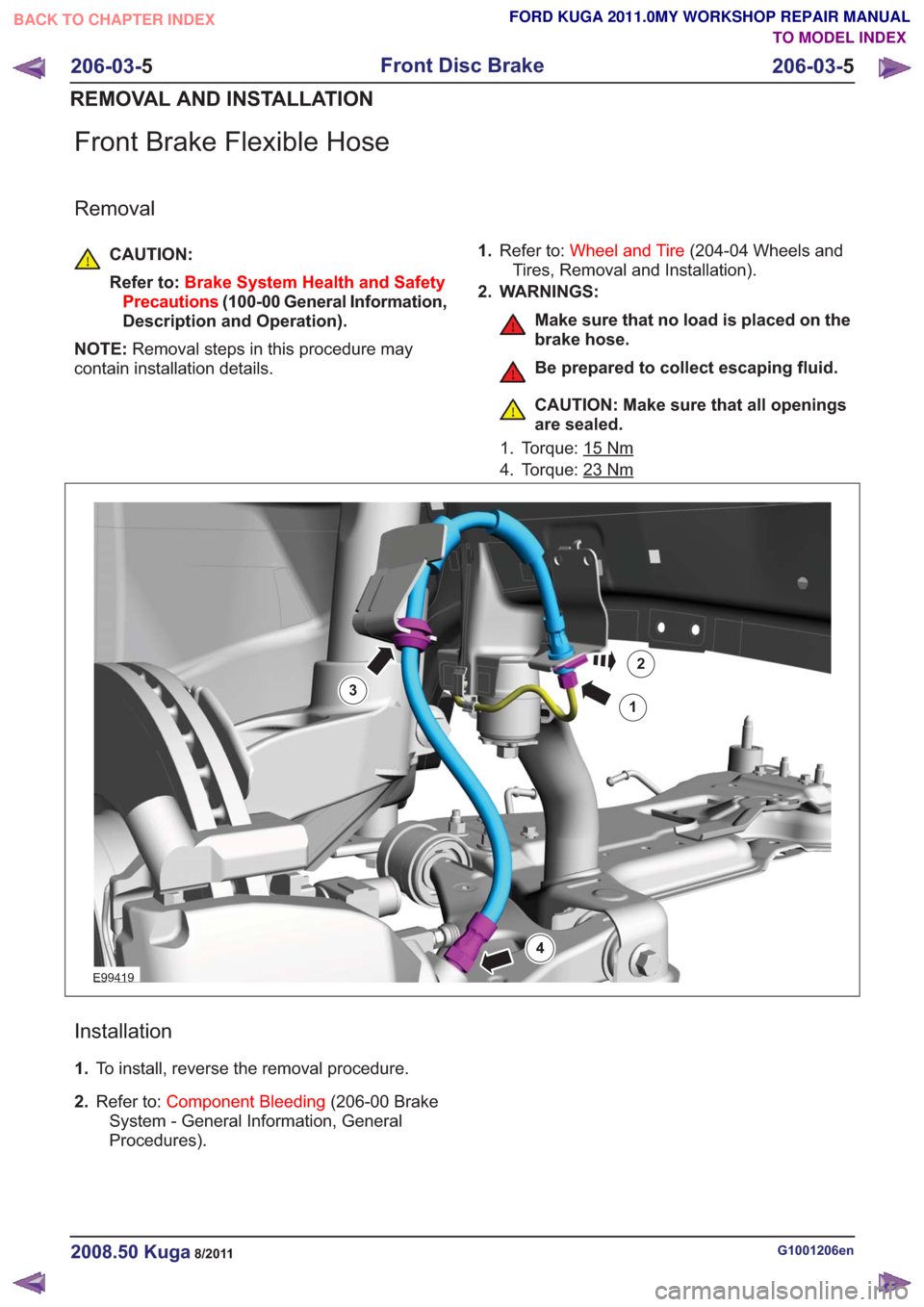

FORD KUGA 2011 1.G Workshop Manual Front Brake Flexible Hose Removal CAUTION: Refer to:Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). NOTE: Removal steps in this procedure may contai

Page 1378 of 2057

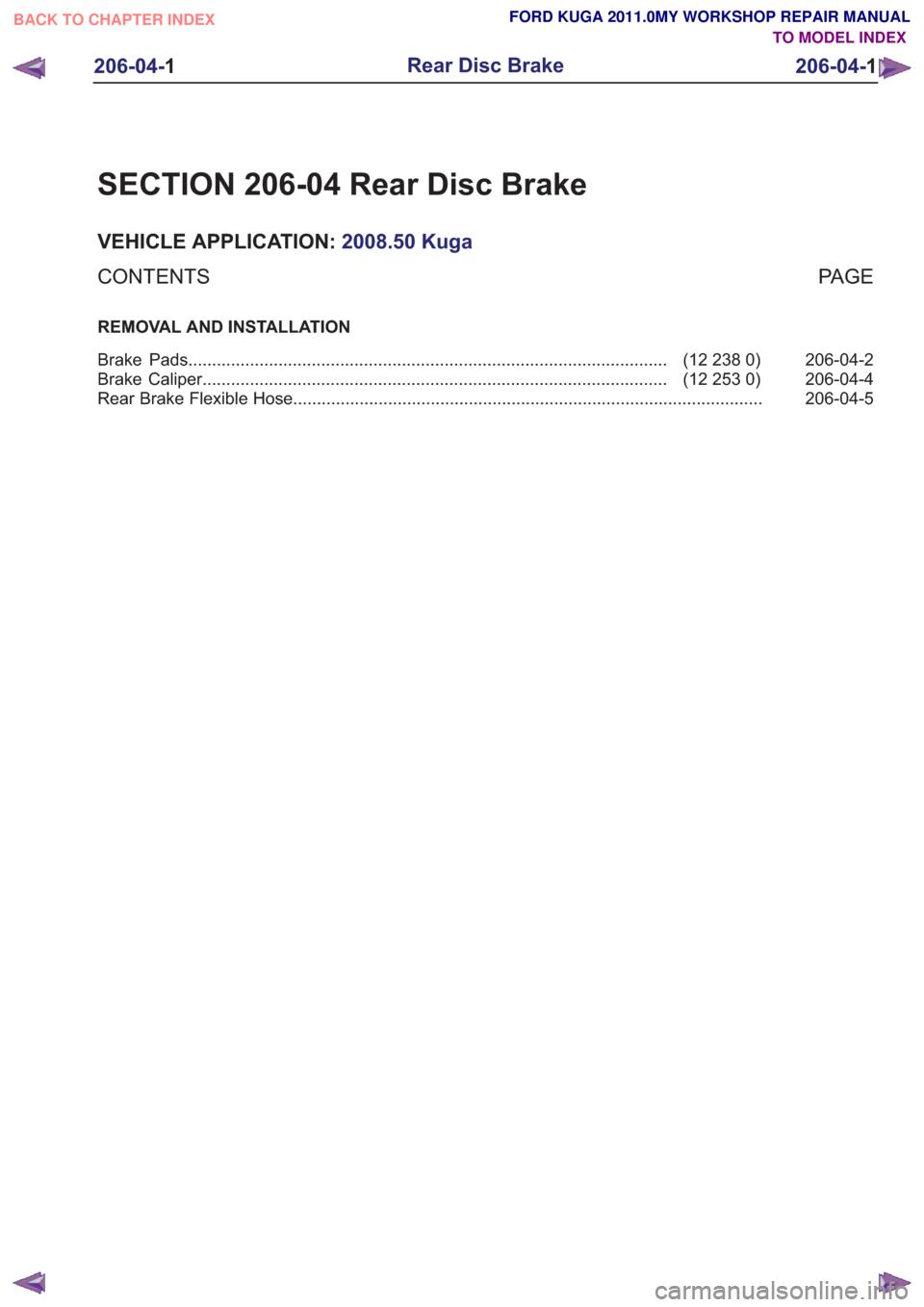

FORD KUGA 2011 1.G Workshop Manual SECTION 206-04 Rear Disc Brake VEHICLE APPLICATION:2008.50 Kuga PA G E CONTENTS REMOVAL AND INSTALLATION 206-04-2 (12 238 0) Brake Pads ................................................................

Page 1379 of 2057

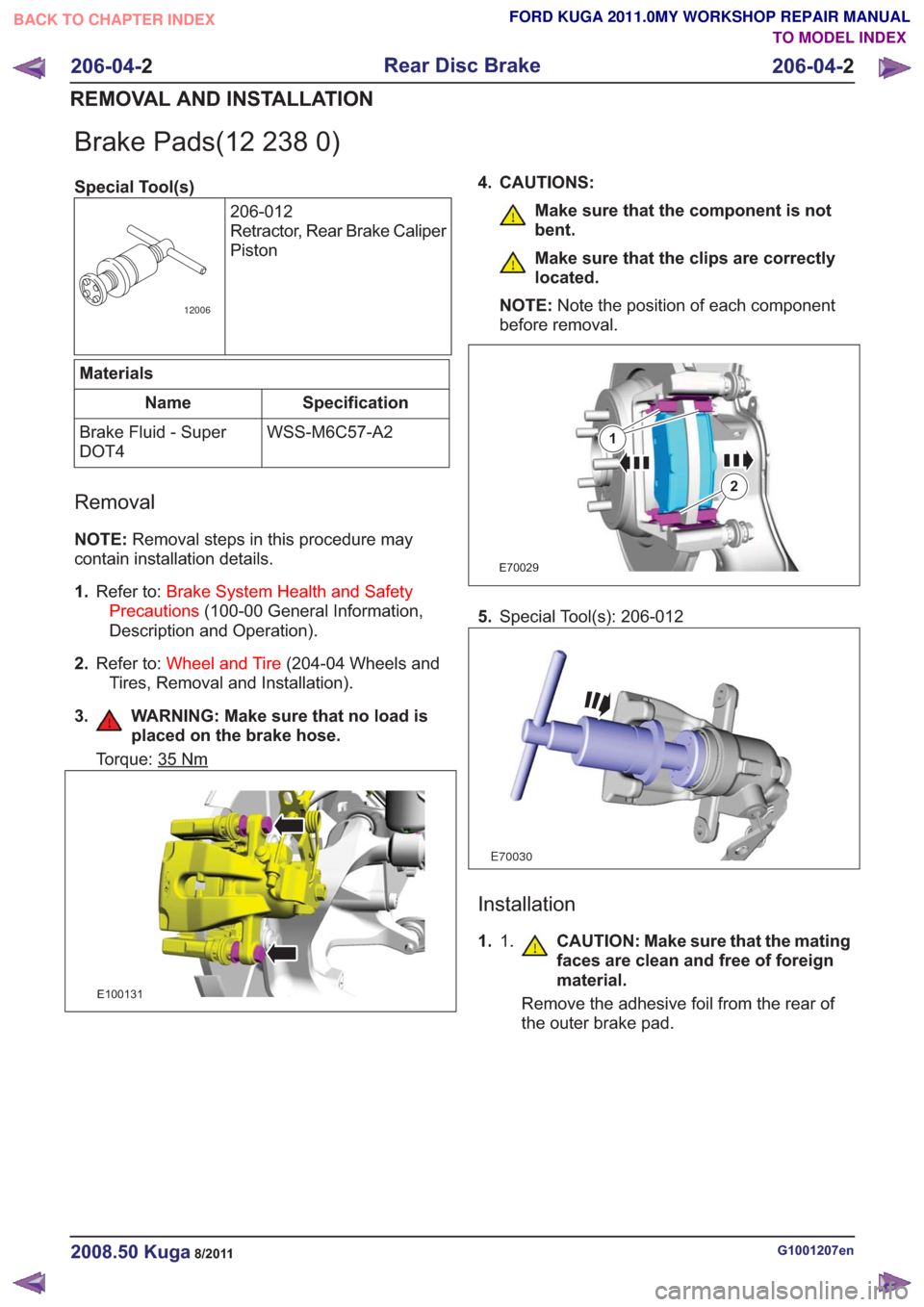

FORD KUGA 2011 1.G Workshop Manual Brake Pads(12 238 0) Special Tool(s)206-012 Retractor, Rear Brake Caliper Piston 12006 Materials Specification Name WSS-M6C57-A2 Brake Fluid - Super DOT4 Removal NOTE: Removal steps in this procedure

Page 1380 of 2057

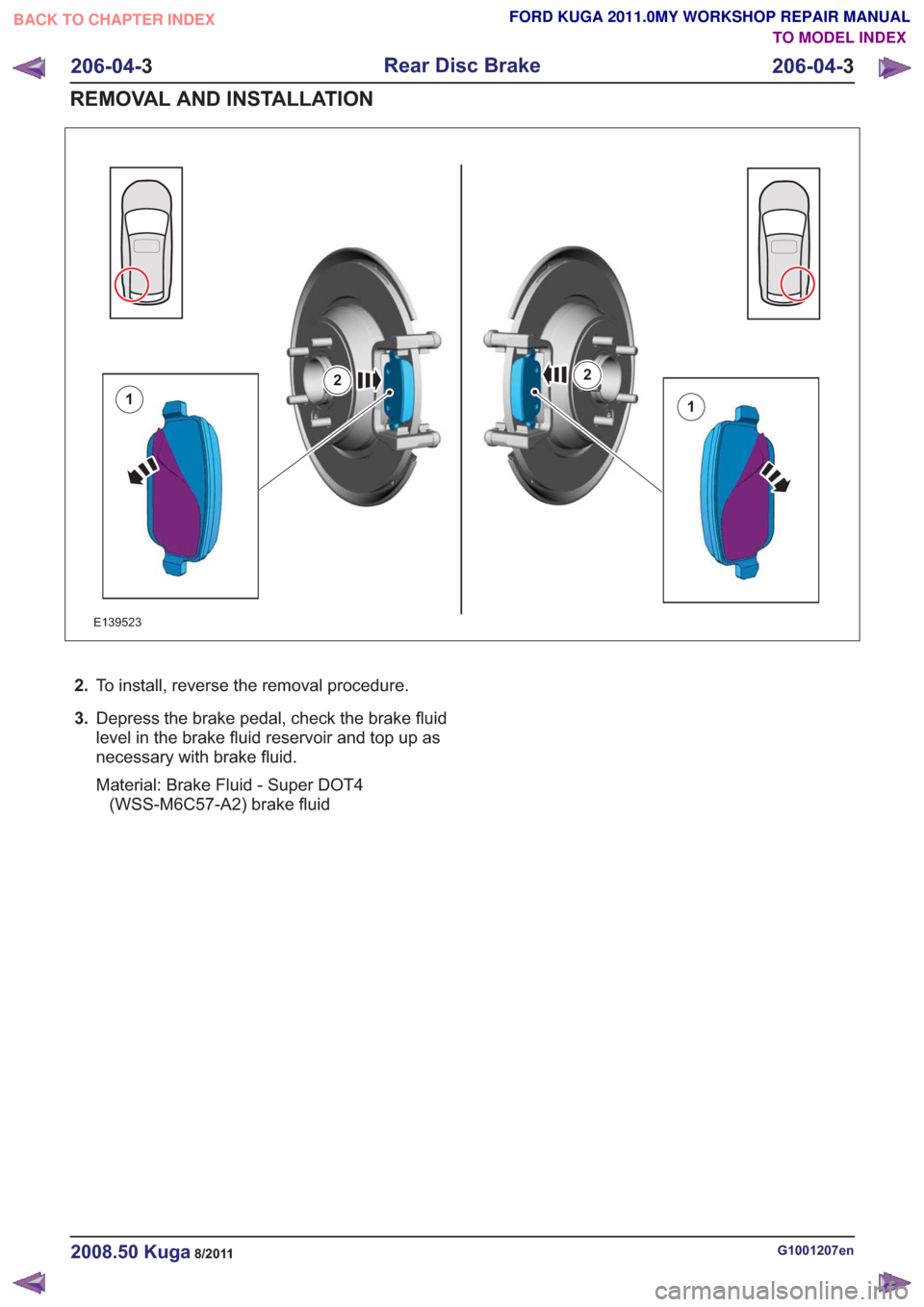

FORD KUGA 2011 1.G Workshop Manual E139523 11 22 2.To install, reverse the removal procedure. 3. Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid. Material: Brak

Page 1381 of 2057

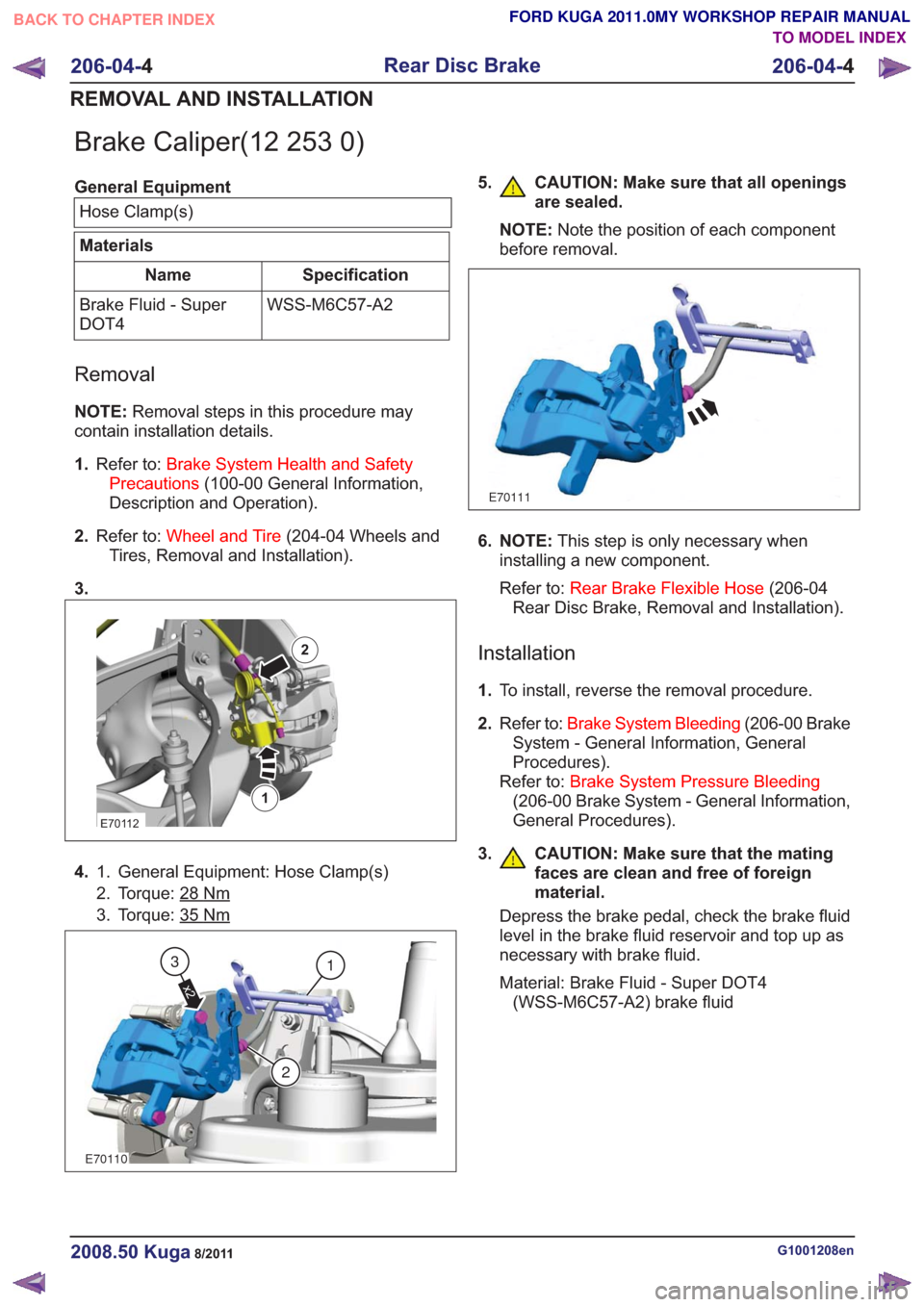

FORD KUGA 2011 1.G Workshop Manual Brake Caliper(12 253 0) General EquipmentHose Clamp(s) Materials Specification Name WSS-M6C57-A2 Brake Fluid - Super DOT4 Removal NOTE: Removal steps in this procedure may contain installation details

Page 1382 of 2057

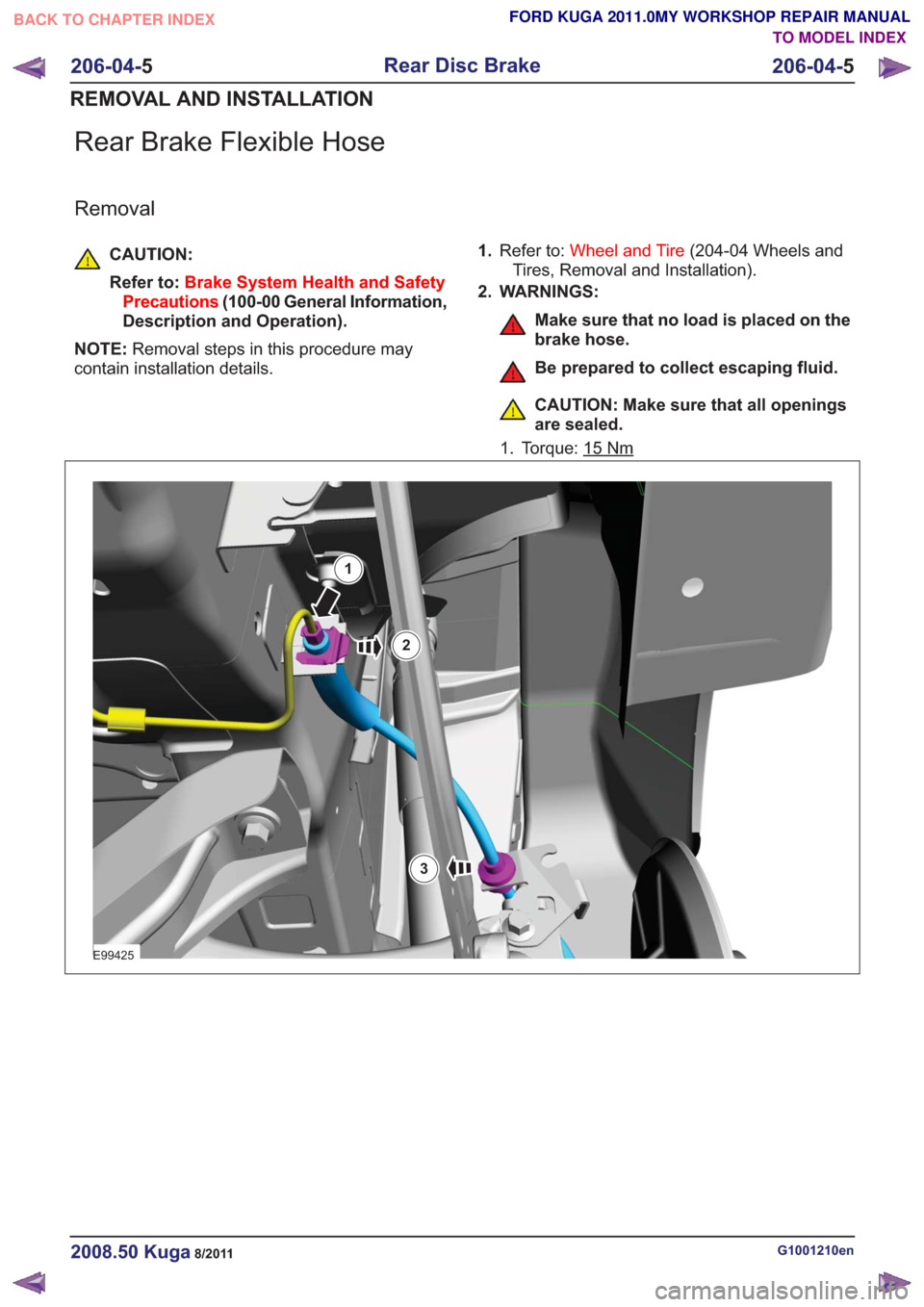

FORD KUGA 2011 1.G Workshop Manual Rear Brake Flexible Hose Removal CAUTION: Refer to:Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). NOTE: Removal steps in this procedure may contain

Page 1383 of 2057

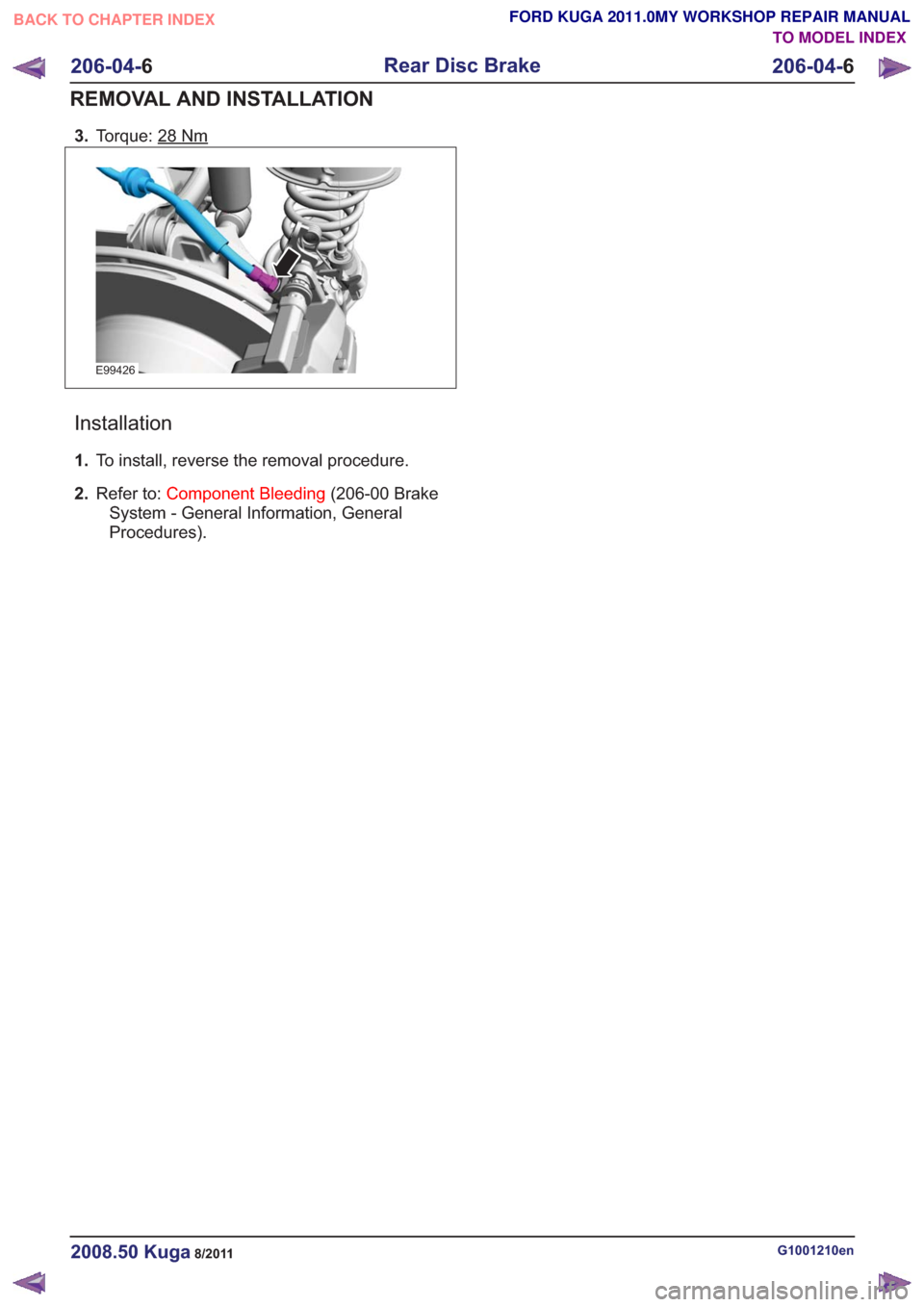

FORD KUGA 2011 1.G Workshop Manual 3.Torque: 28Nm E99426 Installation 1.To install, reverse the removal procedure. 2. Refer to: Component Bleeding (206-00 Brake System - General Information, General Procedures). G1001210en2008.50 Kuga8

Page 1384 of 2057

FORD KUGA 2011 1.G Workshop Manual SECTION 206-05 Parking Brake and Actuation VEHICLE APPLICATION:2008.50 Kuga PA G E CONTENTS DESCRIPTION AND OPERATION 206-05-2 Parking Brake (Overview) ................................................
