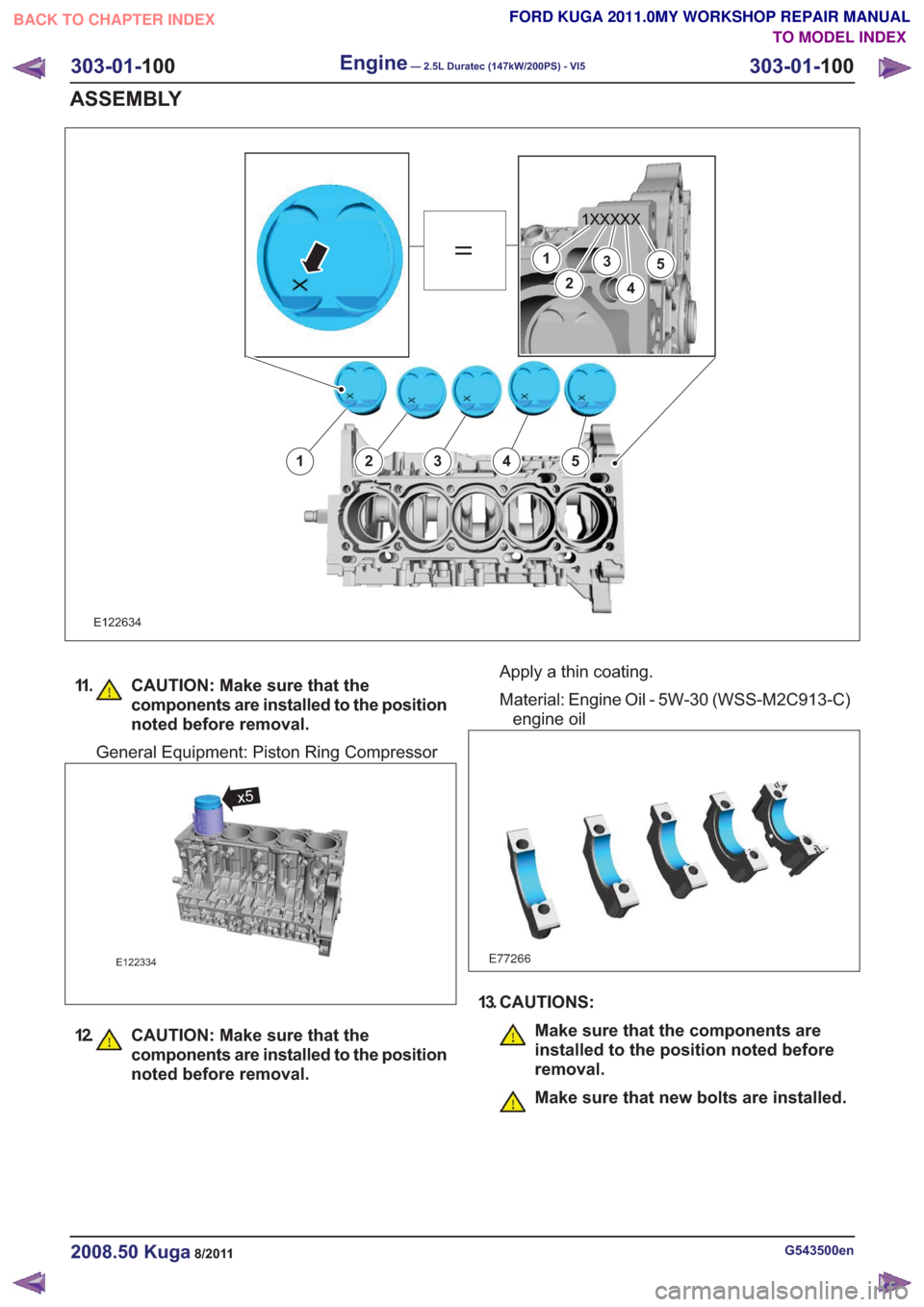

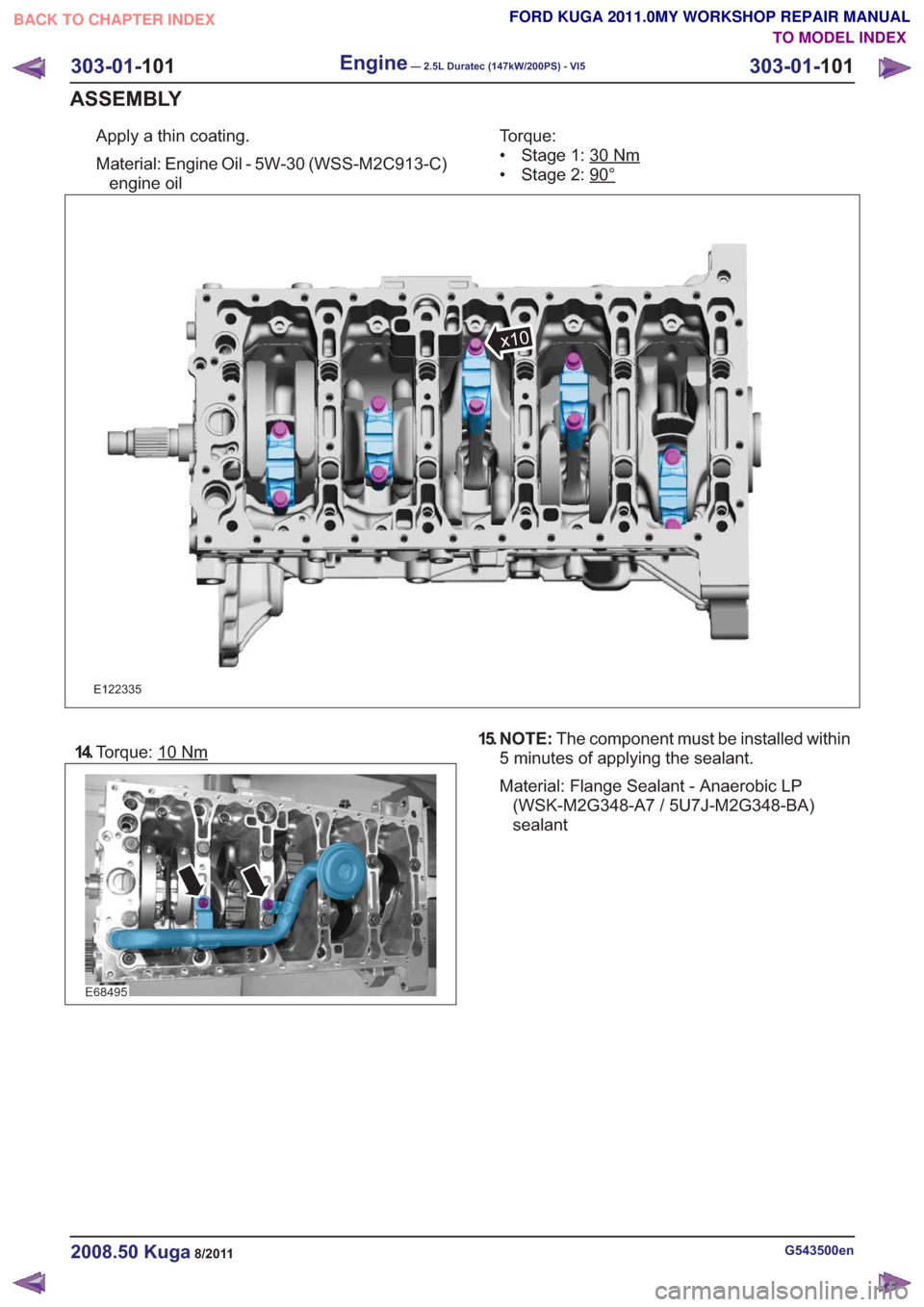

FORD KUGA 2011 1.G Workshop Manual E122634 1 2 3 4 5 12345 11. CAUTION: Make sure that thecomponents are installed to the position noted before removal. General Equipment: Piston Ring Compressor E122334 x5 12. CAUTION: Make sure that t

Page 1634 of 2057

FORD KUGA 2011 1.G Workshop Manual Apply a thin coating. Material: Engine Oil - 5W-30 (WSS-M2C913-C)engine oil Torque: • Stage 1: 30 Nm • Stage 2: 90° E122335 x10 14. Torque: 10Nm E68495 15. N O T E : The component must be install

Page 1635 of 2057

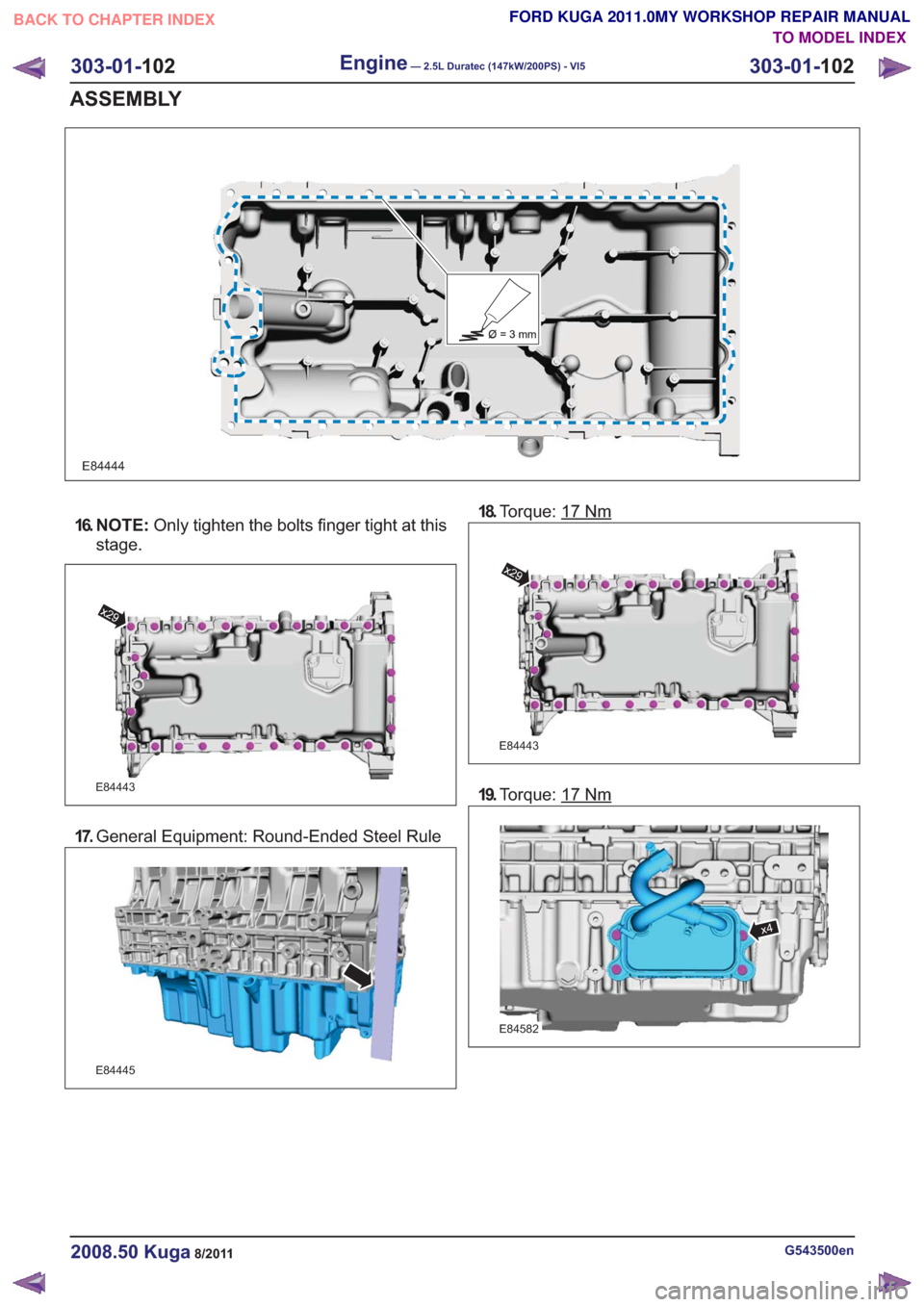

FORD KUGA 2011 1.G Workshop Manual E84444 16. N O T E :Only tighten the bolts finger tight at this stage. E84443 17. General Equipment: Round-Ended Steel Rule E84445 18.Torque: 17Nm E84443 19.Torque: 17Nm E84582 x4 G543500en2008.50 Kug

Page 1636 of 2057

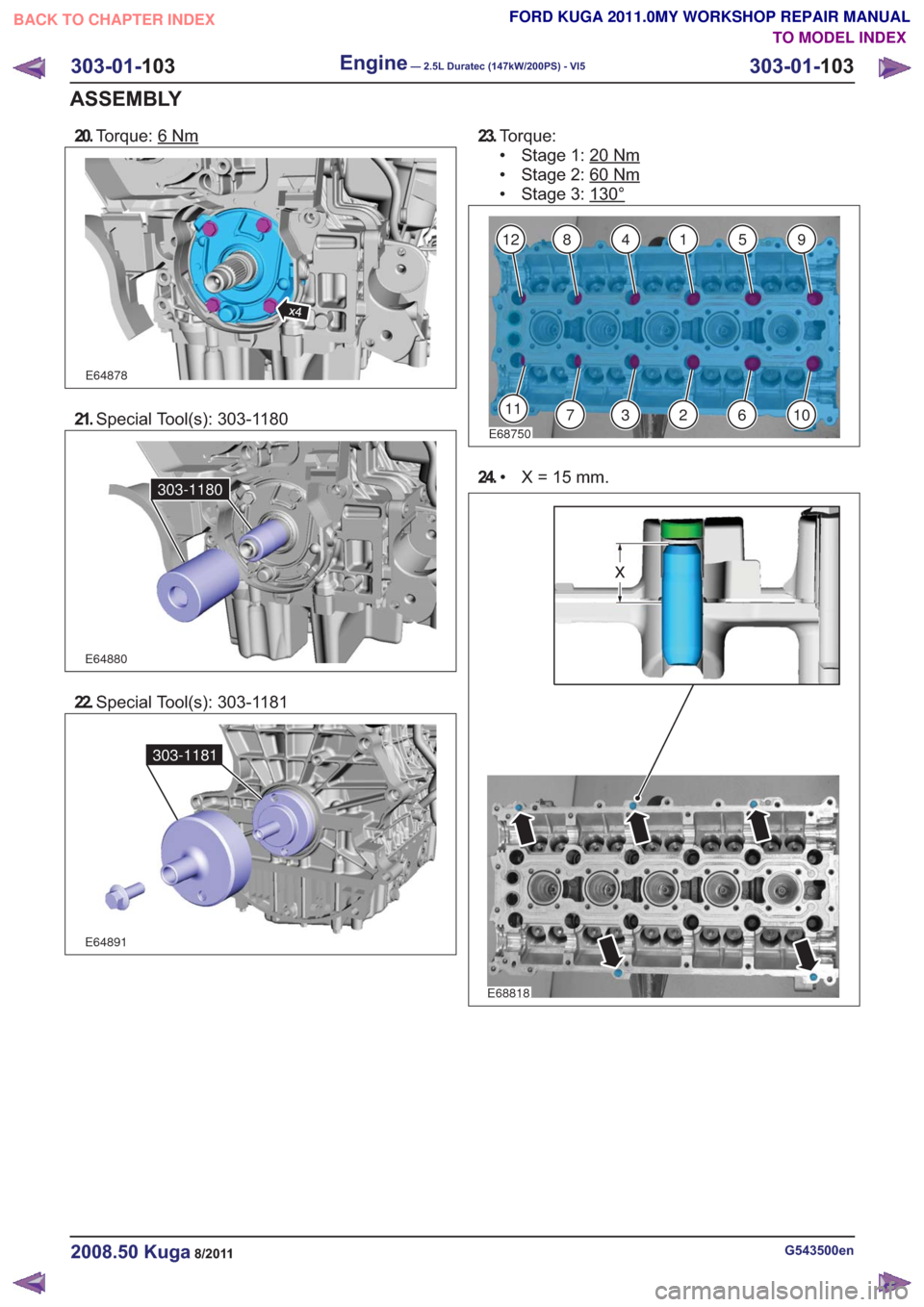

FORD KUGA 2011 1.G Workshop Manual 20.Torque: 6Nm E64878 21.Special Tool(s): 303-1180 E64880 303-1180 22.Special Tool(s): 303-1181 E64891 303-1181 23.Torque: • Stage 1: 20 Nm • Stage 2: 60Nm • Stage 3: 130° E68750 1284159 106237

Page 1637 of 2057

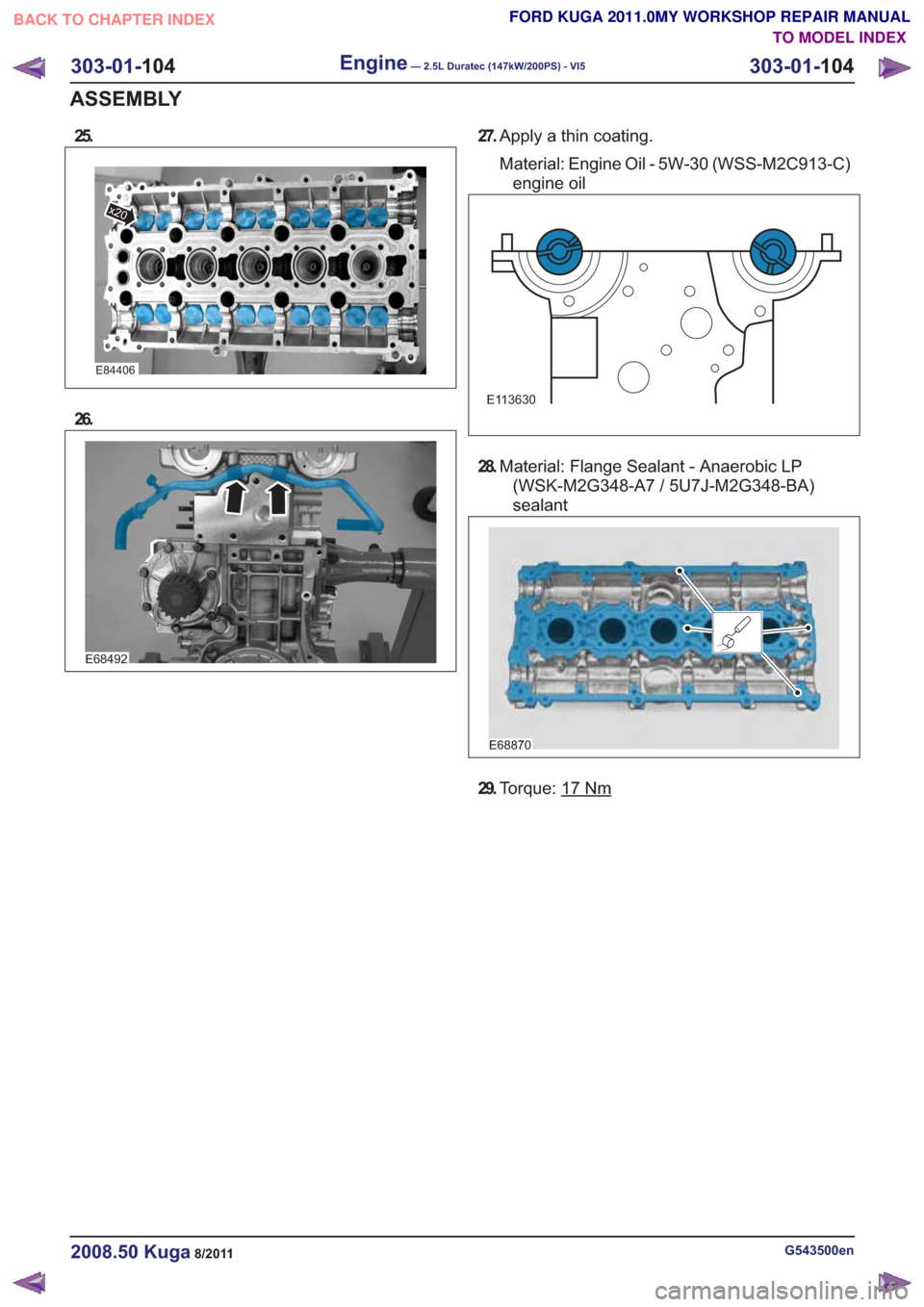

FORD KUGA 2011 1.G Workshop Manual 25. E84406 x20 26. E68492 27.Apply a thin coating. Material: Engine Oil - 5W-30 (WSS-M2C913-C) engine oil E113630 28. Material: Flange Sealant - Anaerobic LP (WSK-M2G348-A7 / 5U7J-M2G348-BA) sealant E

Page 1638 of 2057

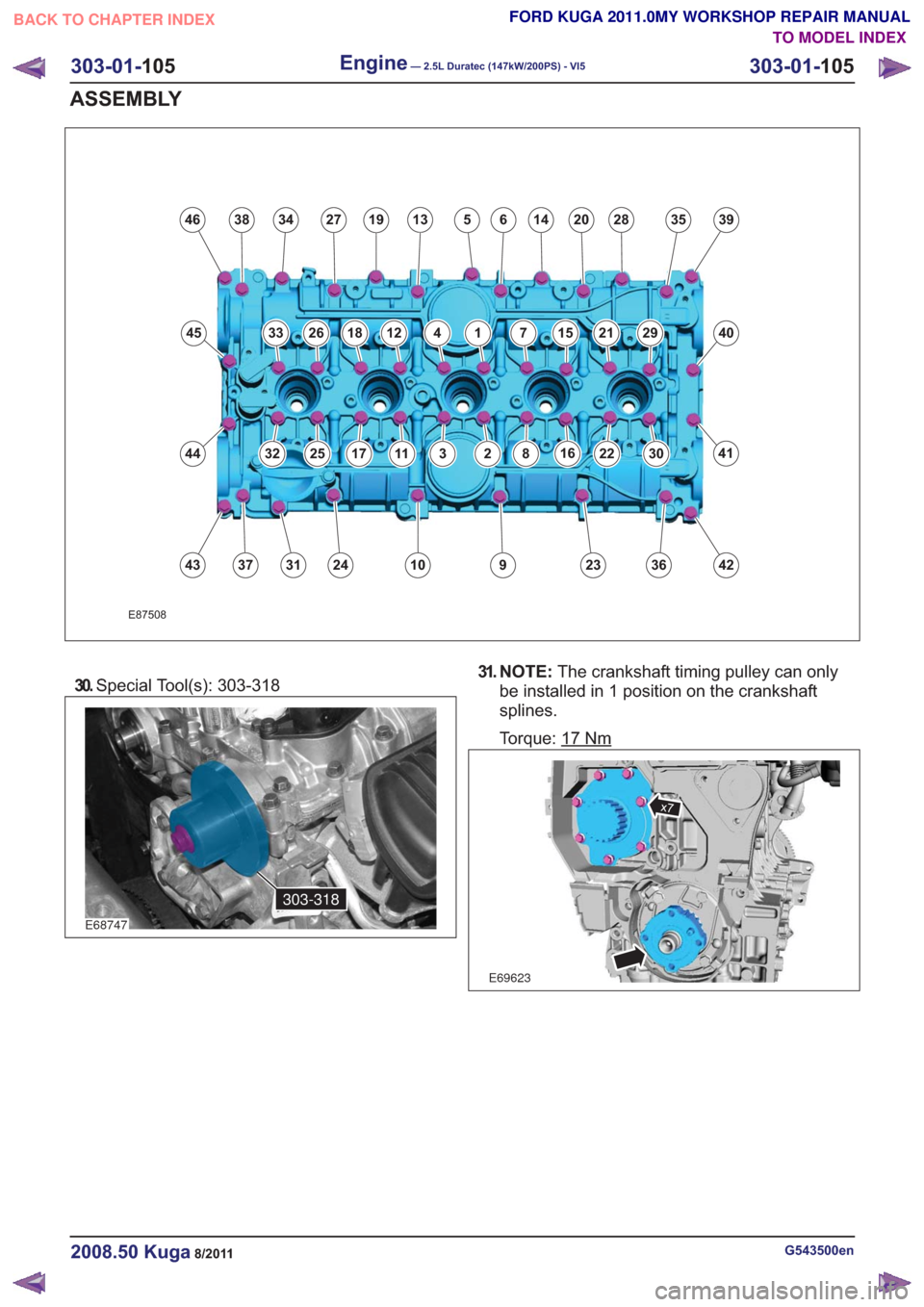

FORD KUGA 2011 1.G Workshop Manual E87508 46 45 44 43 3834271913514202839 40 41 423623910243137 635 29211571412182633 30221682311172532 30.Special Tool(s): 303-318 E68747 303-318 31. N O T E : The crankshaft timing pulley can only be i

Page 1639 of 2057

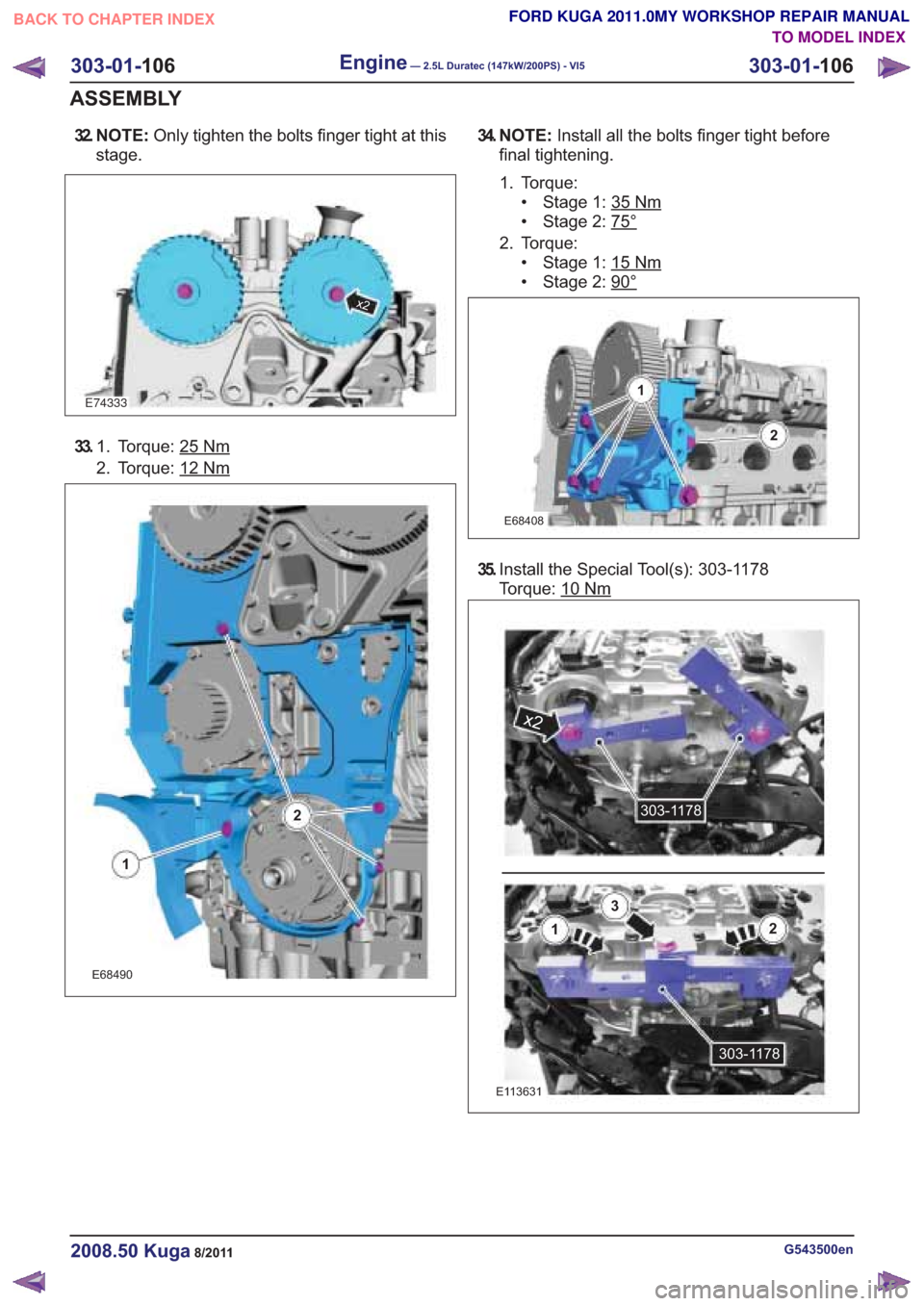

FORD KUGA 2011 1.G Workshop Manual 32. N O T E :Only tighten the bolts finger tight at this stage.34. N O T E : Install all the bolts finger tight before final tightening. 1. Torque: • Stage 1: 35 G543500en2008.50 Kuga8/2011 303-01-

Page 1640 of 2057

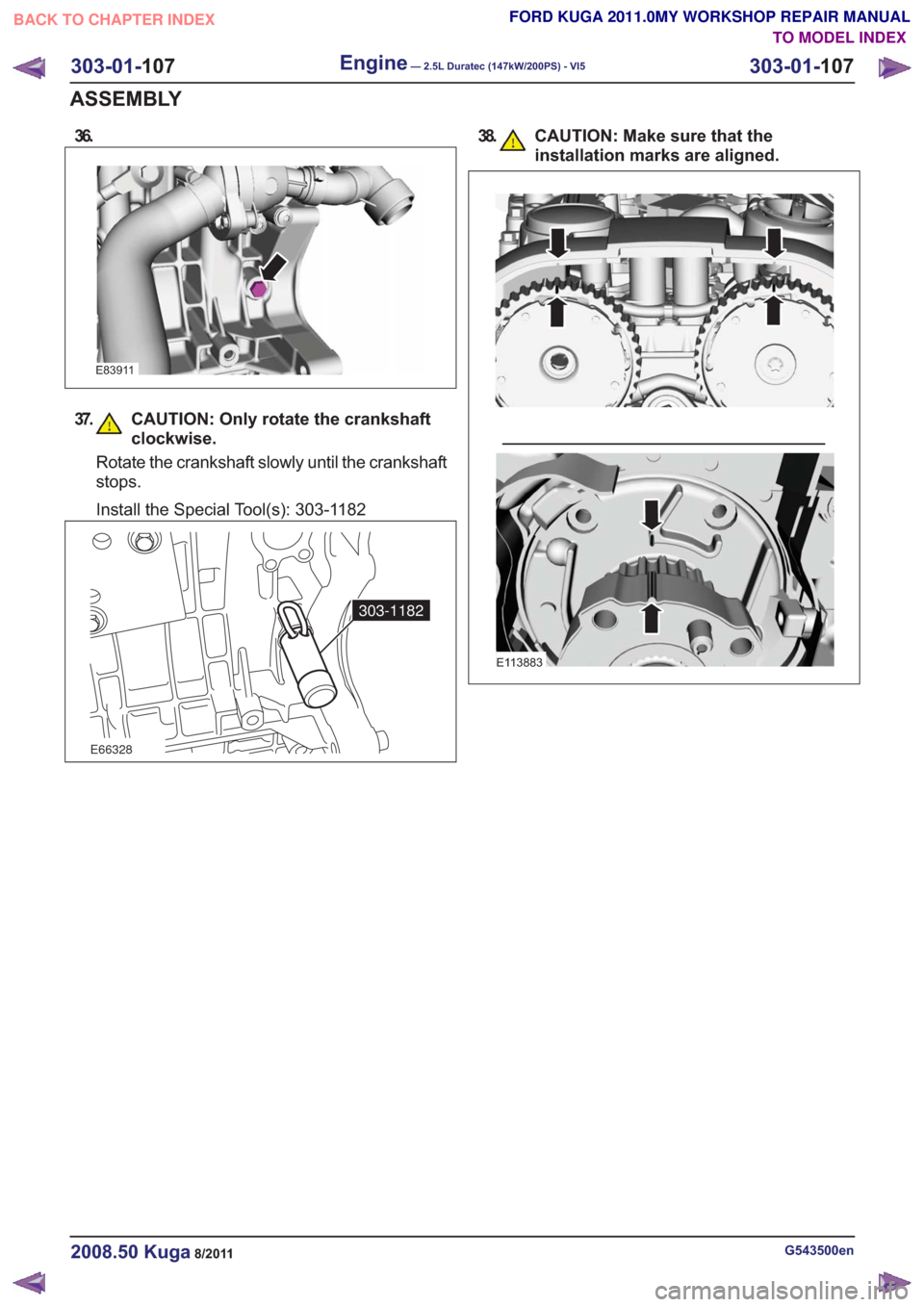

FORD KUGA 2011 1.G Workshop Manual 36. E83911 37. CAUTION: Only rotate the crankshaftclockwise. Rotate the crankshaft slowly until the crankshaft stops. Install the Special Tool(s): 303-1182 E66328 303-1182 38. CAUTION: Make sure that
