Page 1553 of 2057

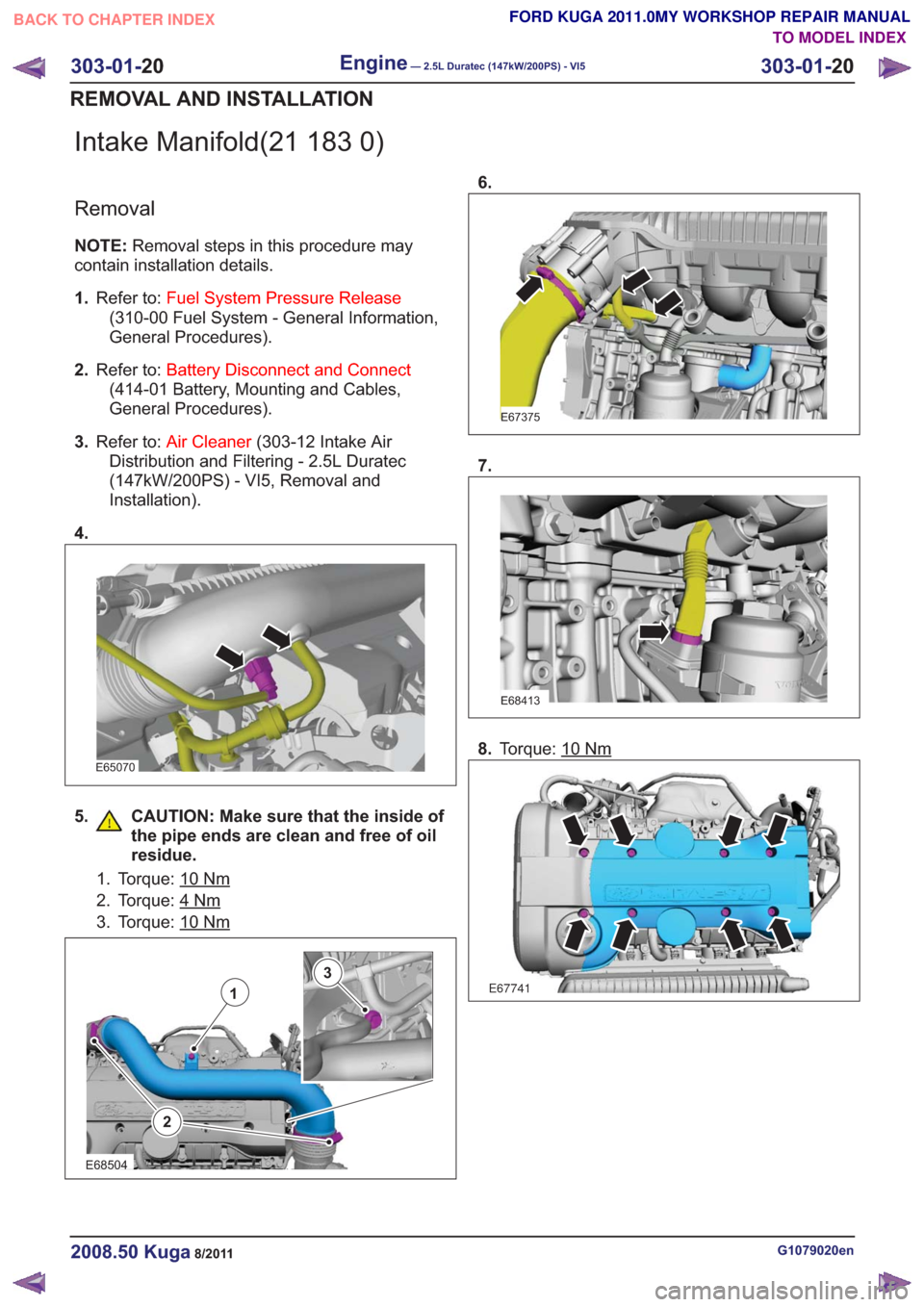

FORD KUGA 2011 1.G Workshop Manual Intake Manifold(21 183 0) Removal NOTE:Removal steps in this procedure may contain installation details. 1. Refer to: Fuel System Pressure Release (310-00 Fuel System - General Information, General Pr

Page 1554 of 2057

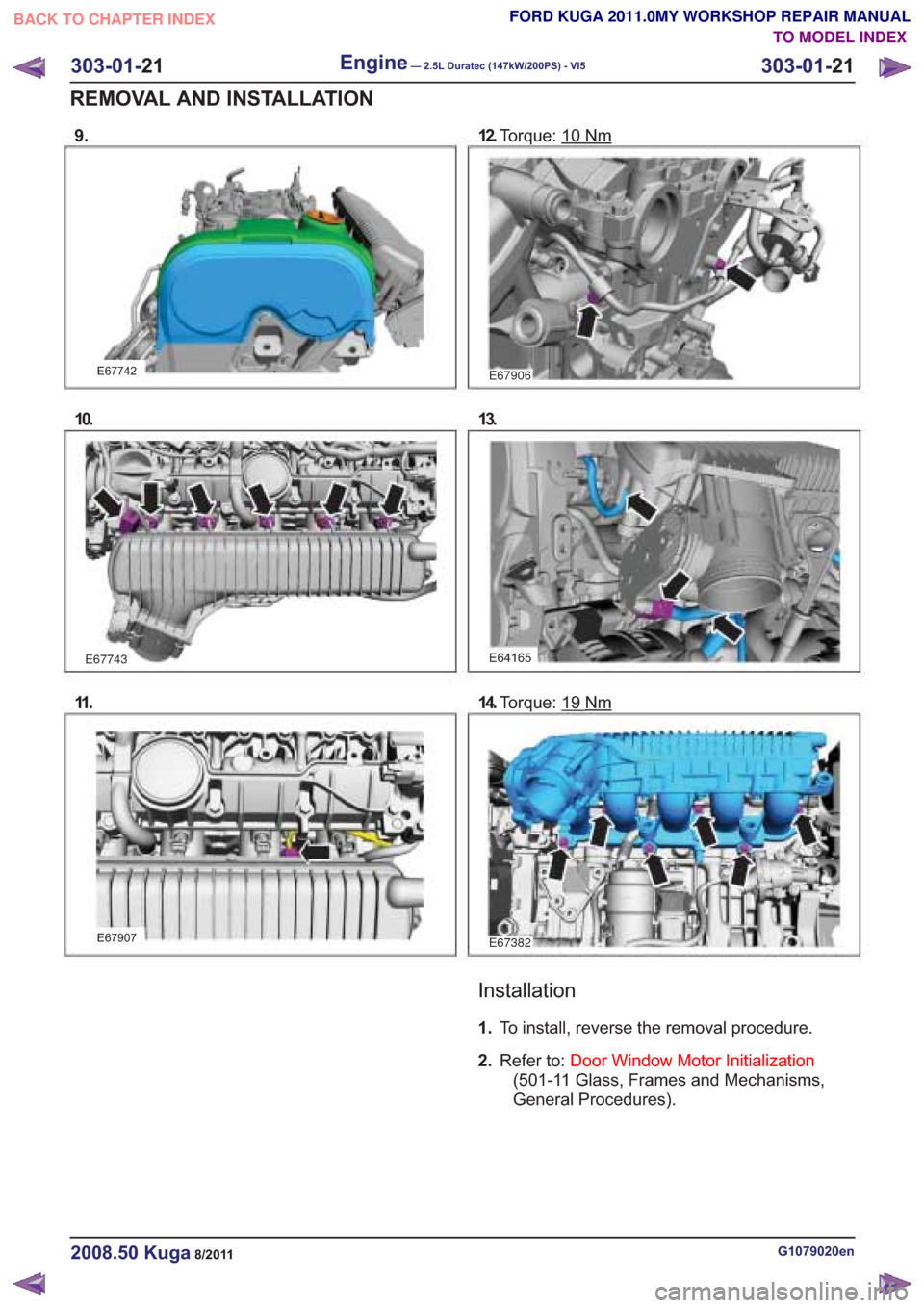

FORD KUGA 2011 1.G Workshop Manual 9. E67742 10. E67743 11 . E67907 12.Torque: 10Nm E67906 13. E64165 14.Torque: 19Nm Installation 1.To install, reverse the removal procedure. 2. Refer to: Door Window Motor Initialization (501-11 Glass

Page 1555 of 2057

FORD KUGA 2011 1.G Workshop Manual Crankshaft Front Seal(21 467 0) Special Tool(s)211-014 Remover, Steering Wheel 13019 303-1180 Installer, Crankshaft Front Seal E62050 303-293 Remover, Crankshaft Seal 21143 Removal 1.Refer to: Timing

Page 1556 of 2057

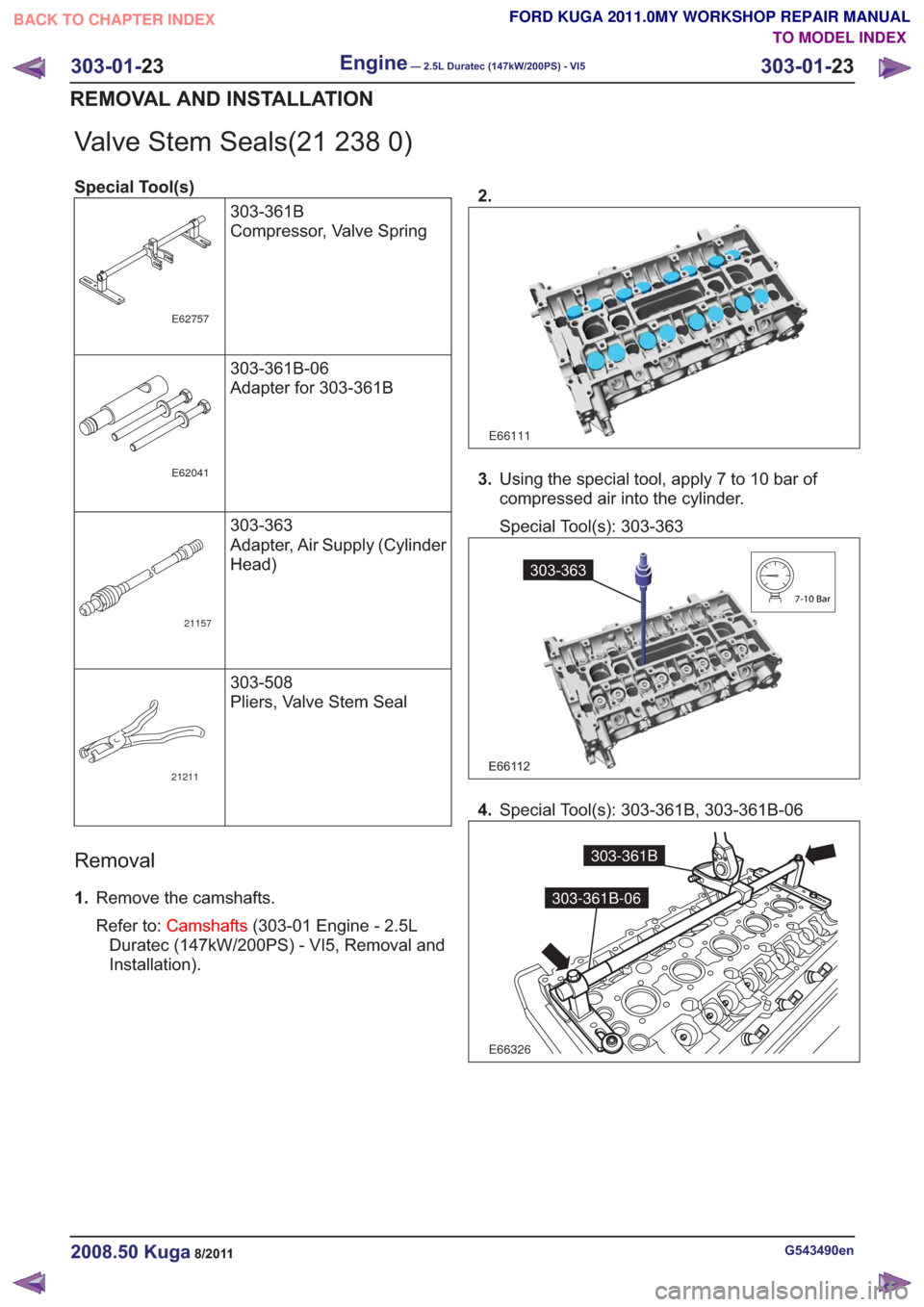

FORD KUGA 2011 1.G Workshop Manual Valve Stem Seals(21 238 0) Special Tool(s)303-361B Compressor, Valve Spring E62757 303-361B-06 Adapter for 303-361B E62041 303-363 Adapter, Air Supply (Cylinder Head) 21157 303-508 Pliers, Valve Stem

Page 1557 of 2057

FORD KUGA 2011 1.G Workshop Manual 5.Special Tool(s): 303-508 E66114 303-508 Installation 1.To install reverse the removal procedure. G543490en2008.50 Kuga8/2011 303-01- 24 Engine— 2.5L Duratec (147kW/200PS) - VI5303-01- 24 REMOVAL A

Page 1558 of 2057

FORD KUGA 2011 1.G Workshop Manual Timing Belt(21 304 0) Special Tool(s) / General Equipment303-1054 Locking Tool, Timing Belt Tensioner 3031054 303-1179 Holding Wrench, Crankshaft E62035 Trolley Jack Two Leg Puller Removal 1.Refer to:

Page 1559 of 2057

FORD KUGA 2011 1.G Workshop Manual 6. E122374 x4 7.General Equipment: Two Leg Puller E122375 8. CAUTION: Make sure that the installation marks are aligned. E113365 G543492en2008.50 Kuga8/2011 303-01- 26 Engine— 2.5L Duratec (147kW/20

Page 1560 of 2057

FORD KUGA 2011 1.G Workshop Manual Vehicles with mechanical timing belt tensioner 9. E68488 1 3 2 Vehicles with automatic timing belt tensioner 10. WARNING: Take extra care whenhandling the compressed spring. Install the Special Tool(s
