Page 1209 of 2057

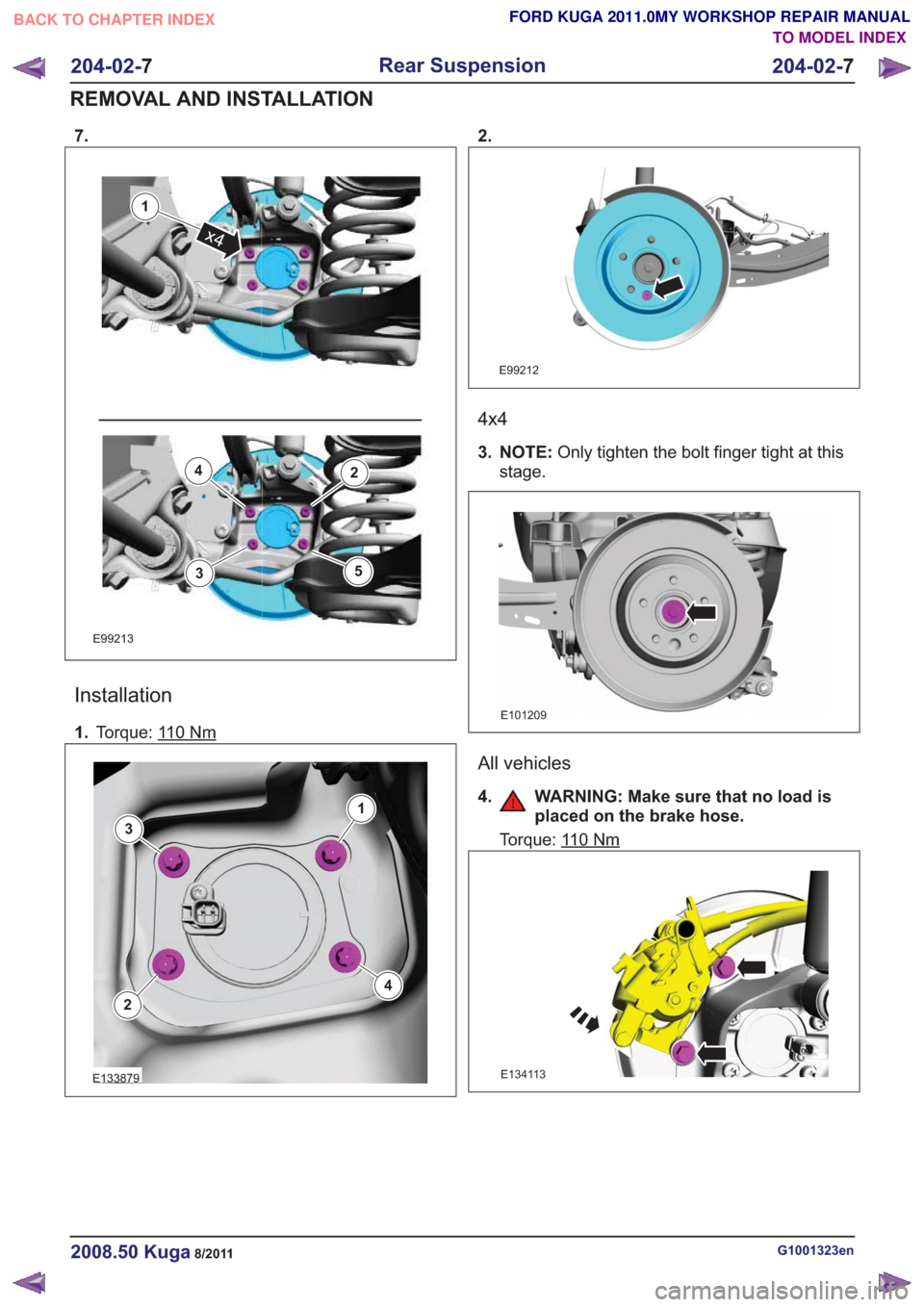

FORD KUGA 2011 1.G Workshop Manual 7. E99213 1 x4 2 3 4 5 Installation 1.Torque: 110Nm E133879 1 2 3 4 2. E99212 4x4 3. NOTE: Only tighten the bolt finger tight at this stage. E101209 All vehicles 4. WARNING: Make sure that no load is

Page 1210 of 2057

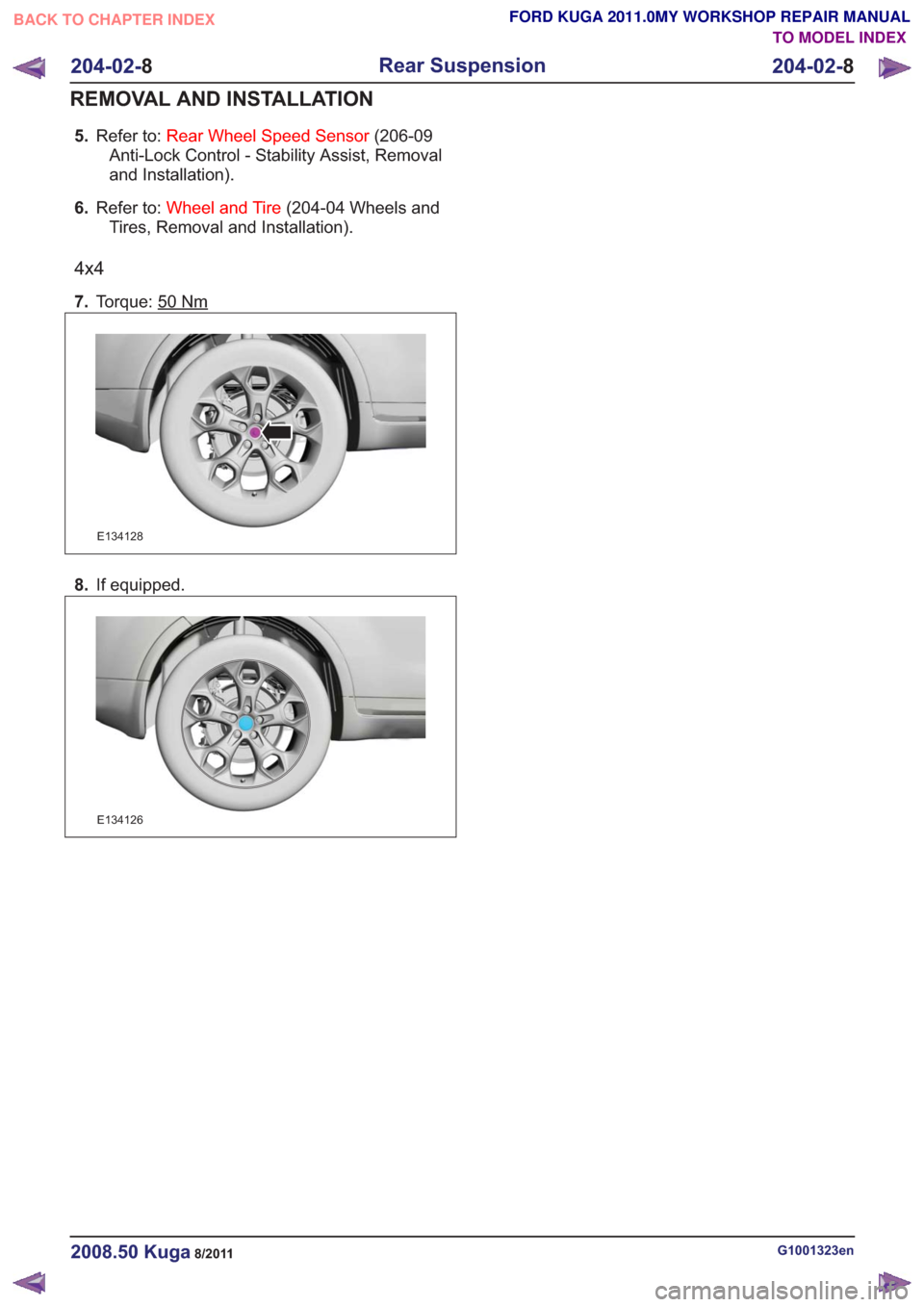

FORD KUGA 2011 1.G Workshop Manual 5.Refer to: Rear Wheel Speed Sensor (206-09 Anti-Lock Control - Stability Assist, Removal and Installation). 6. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 4x4 7. Tor

Page 1211 of 2057

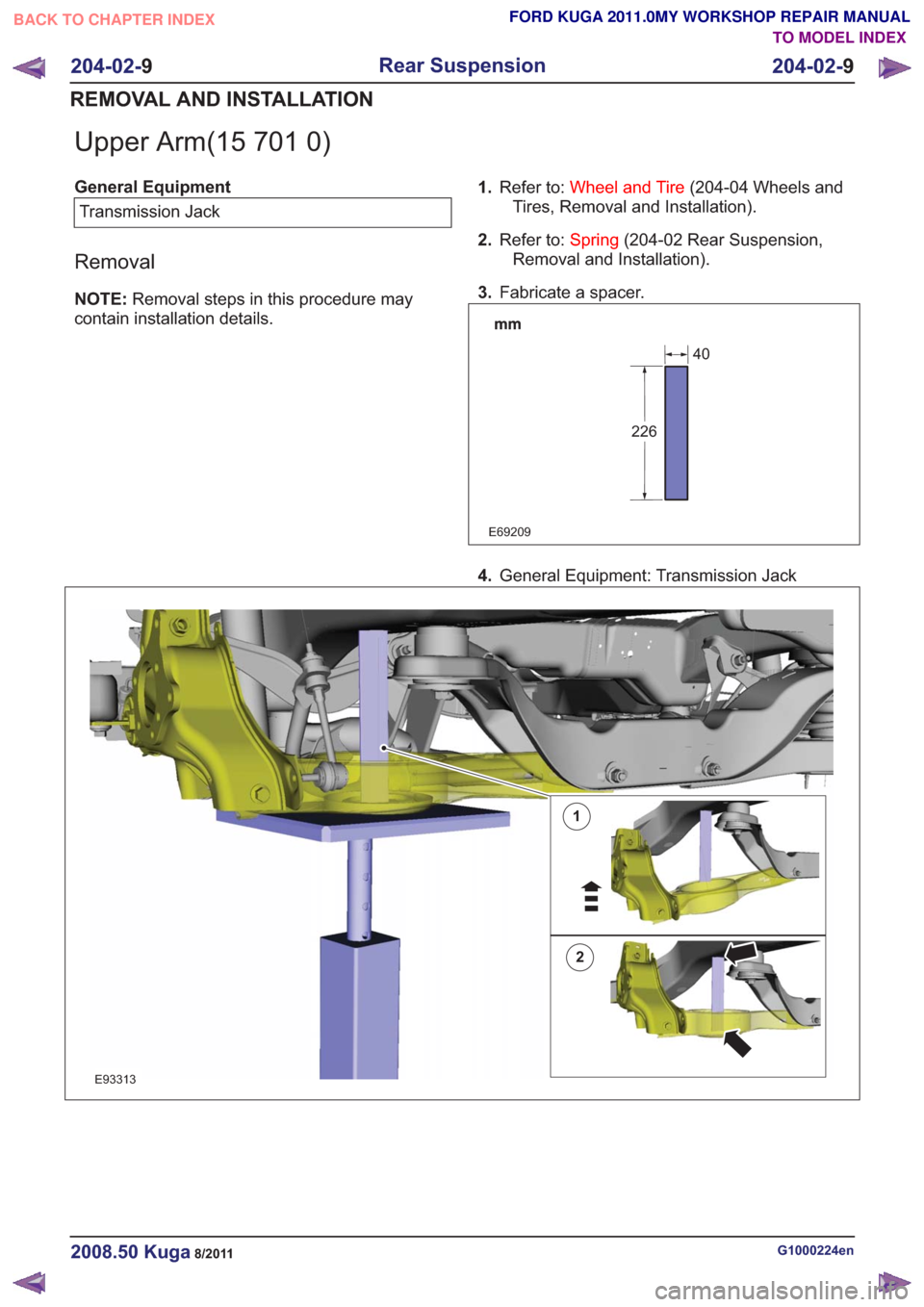

FORD KUGA 2011 1.G Workshop Manual Upper Arm(15 701 0) General EquipmentTransmission Jack Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and

Page 1212 of 2057

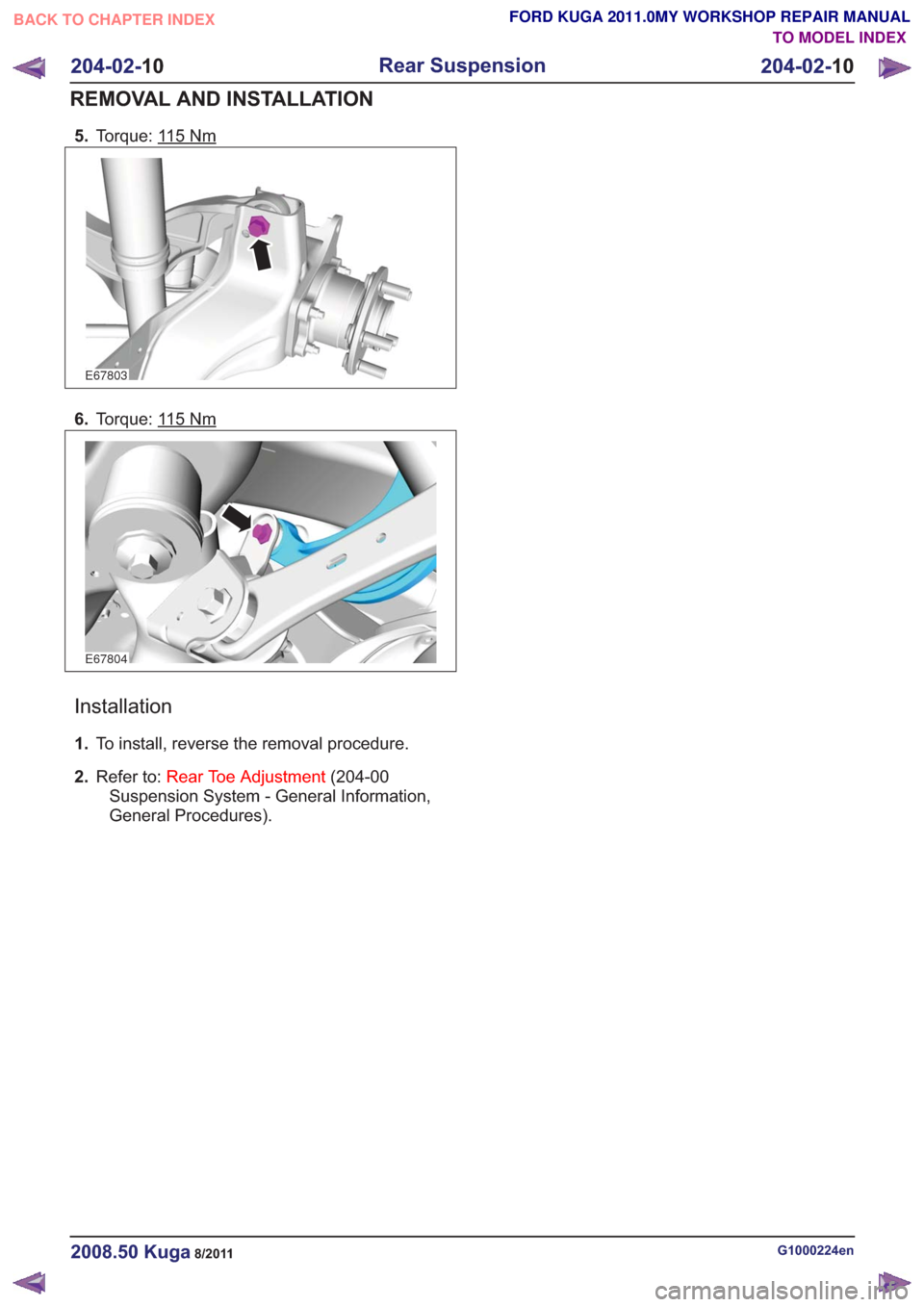

FORD KUGA 2011 1.G Workshop Manual 5.Torque: 115Nm E67803 6.Torque: 115Nm E67804 Installation 1.To install, reverse the removal procedure. 2. Refer to: Rear Toe Adjustment (204-00 Suspension System - General Information, General Proced

Page 1213 of 2057

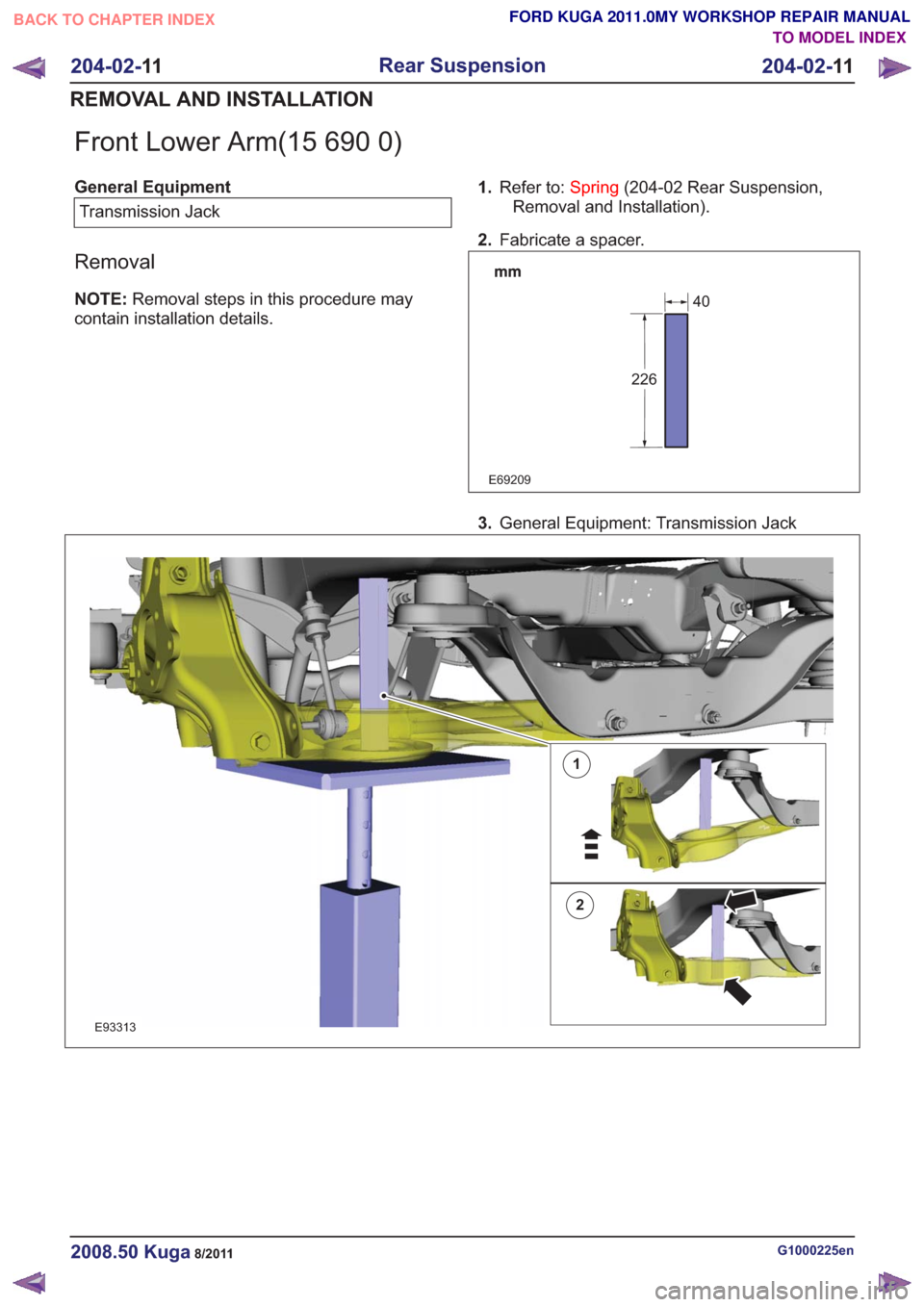

FORD KUGA 2011 1.G Workshop Manual Front Lower Arm(15 690 0) General EquipmentTransmission Jack Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Spring(204-02 Rear Suspension, Removal and Ins

Page 1214 of 2057

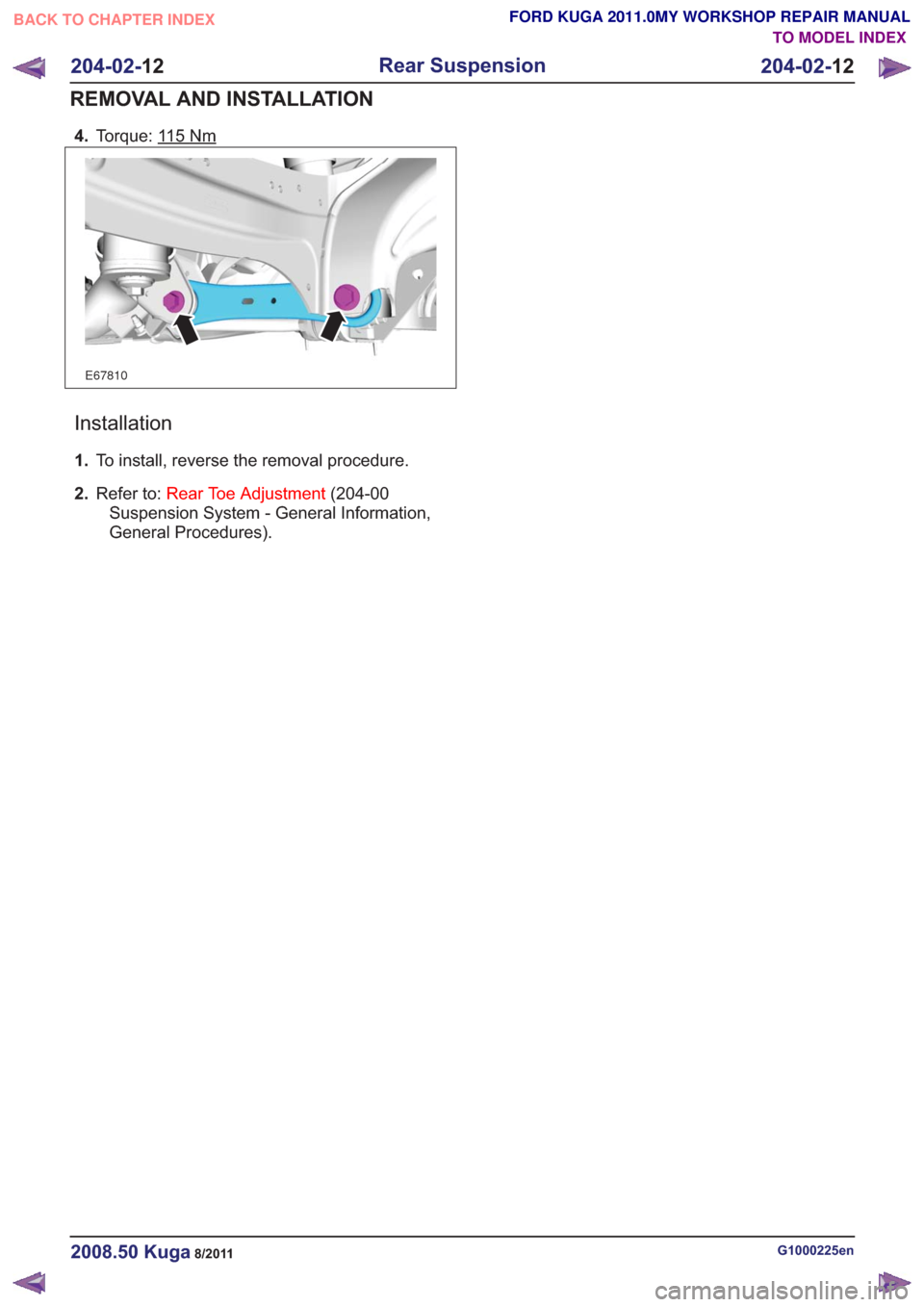

FORD KUGA 2011 1.G Workshop Manual 4.Torque: 115Nm E67810 Installation 1.To install, reverse the removal procedure. 2. Refer to: Rear Toe Adjustment (204-00 Suspension System - General Information, General Procedures). G1000225en2008.5

Page 1215 of 2057

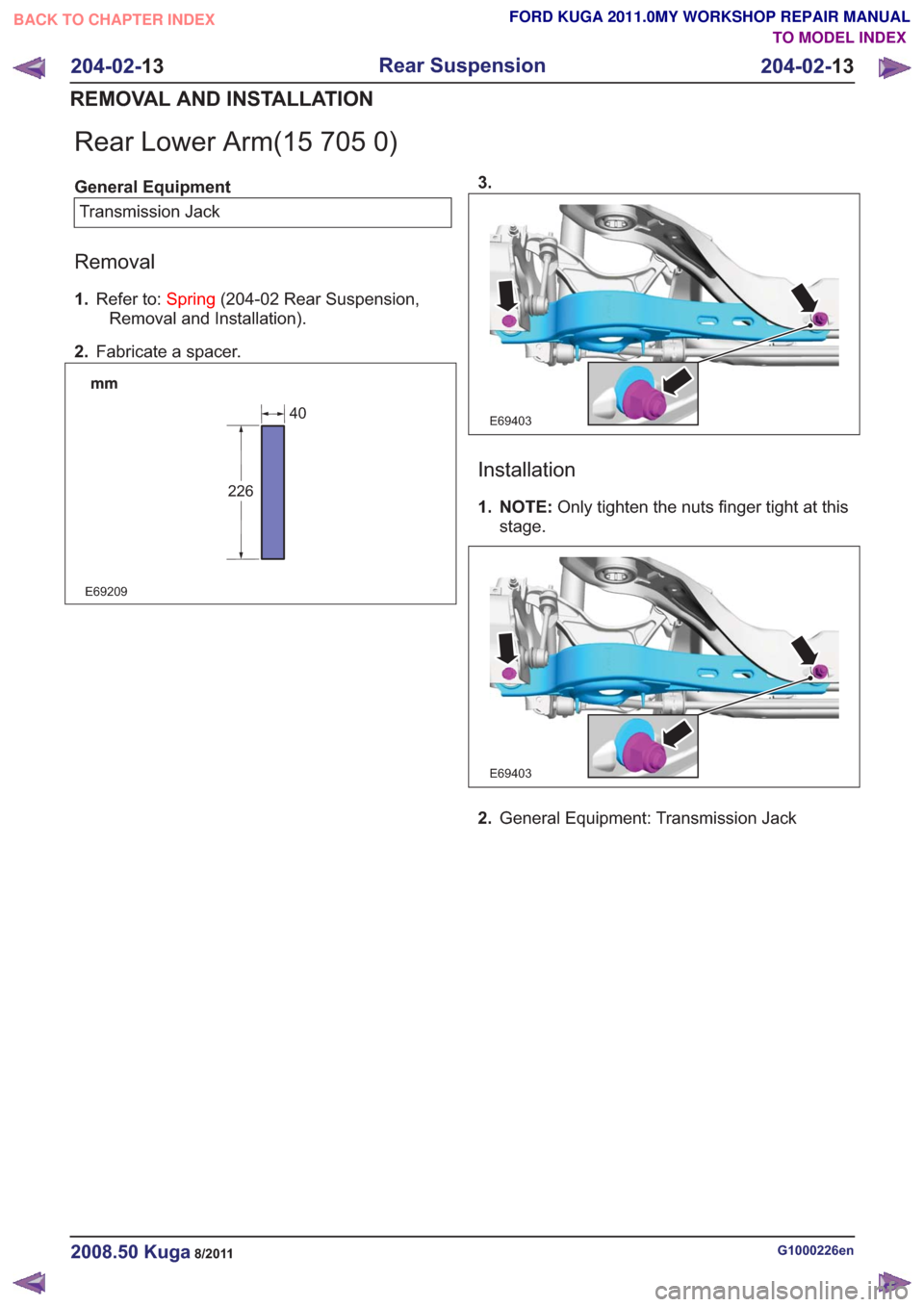

FORD KUGA 2011 1.G Workshop Manual Rear Lower Arm(15 705 0) General EquipmentTransmission Jack Removal 1. Refer to: Spring(204-02 Rear Suspension, Removal and Installation). 2. Fabricate a spacer. E69209 226 40 3. E69403E69403 Installa

Page 1216 of 2057

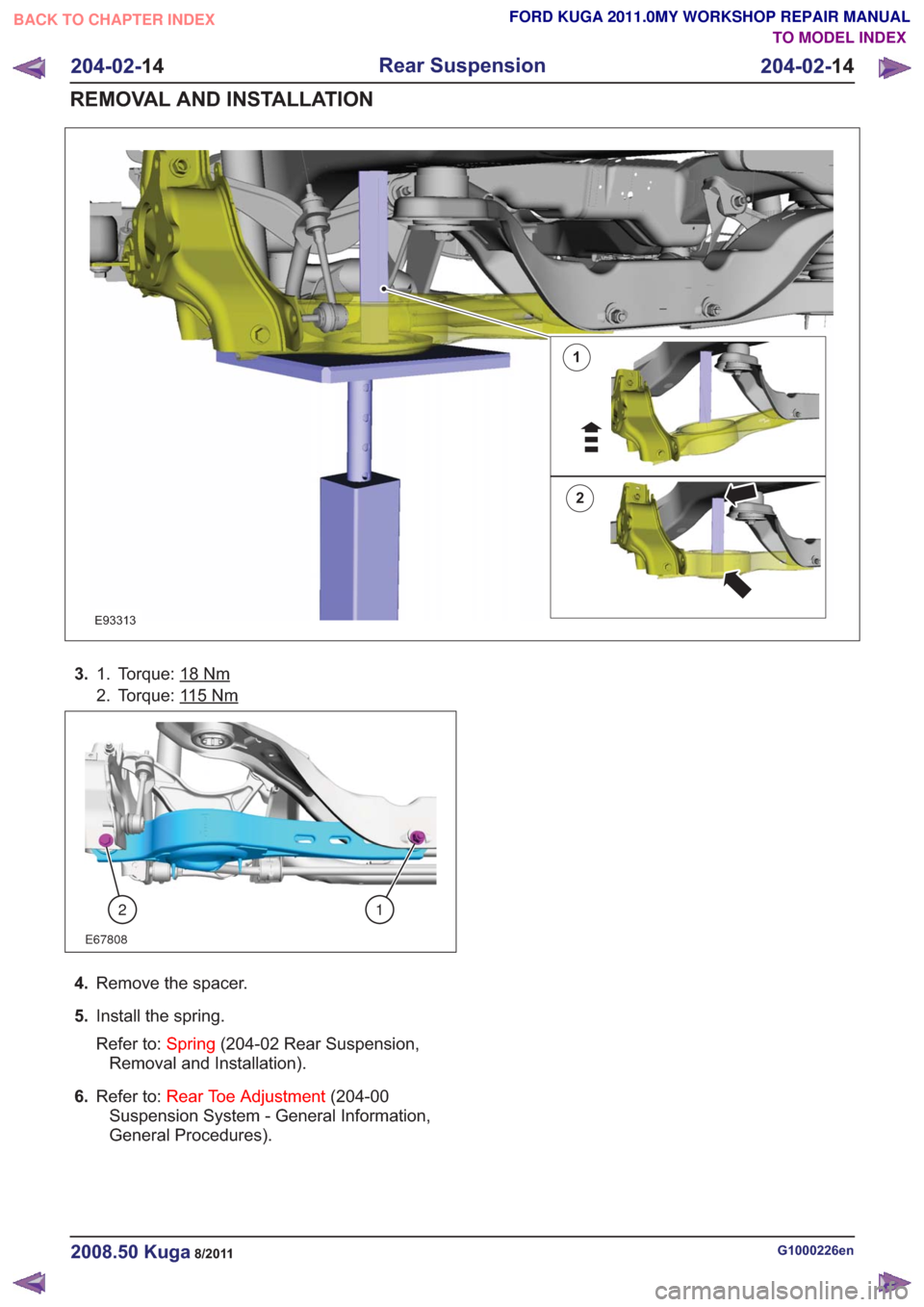

FORD KUGA 2011 1.G Workshop Manual 1 2 E93313 3.Torque: 18Nm1. 2. Torque: 1 15Nm E67808 21 4.Remove the spacer. 5. Install the spring. Refer to: Spring(204-02 Rear Suspension, Removal and Installation). 6. Refer to: Rear Toe Adjustment
