Page 1401 of 2057

FORD KUGA 2011 1.G Workshop Manual 5. CAUTION: Make sure that the brakepedal remains in the rest position. Torque: 24Nm E101510 x4 Installation 1. CAUTIONS: Make sure that the brake booster push rod is correctly located. Make sure that

Page 1402 of 2057

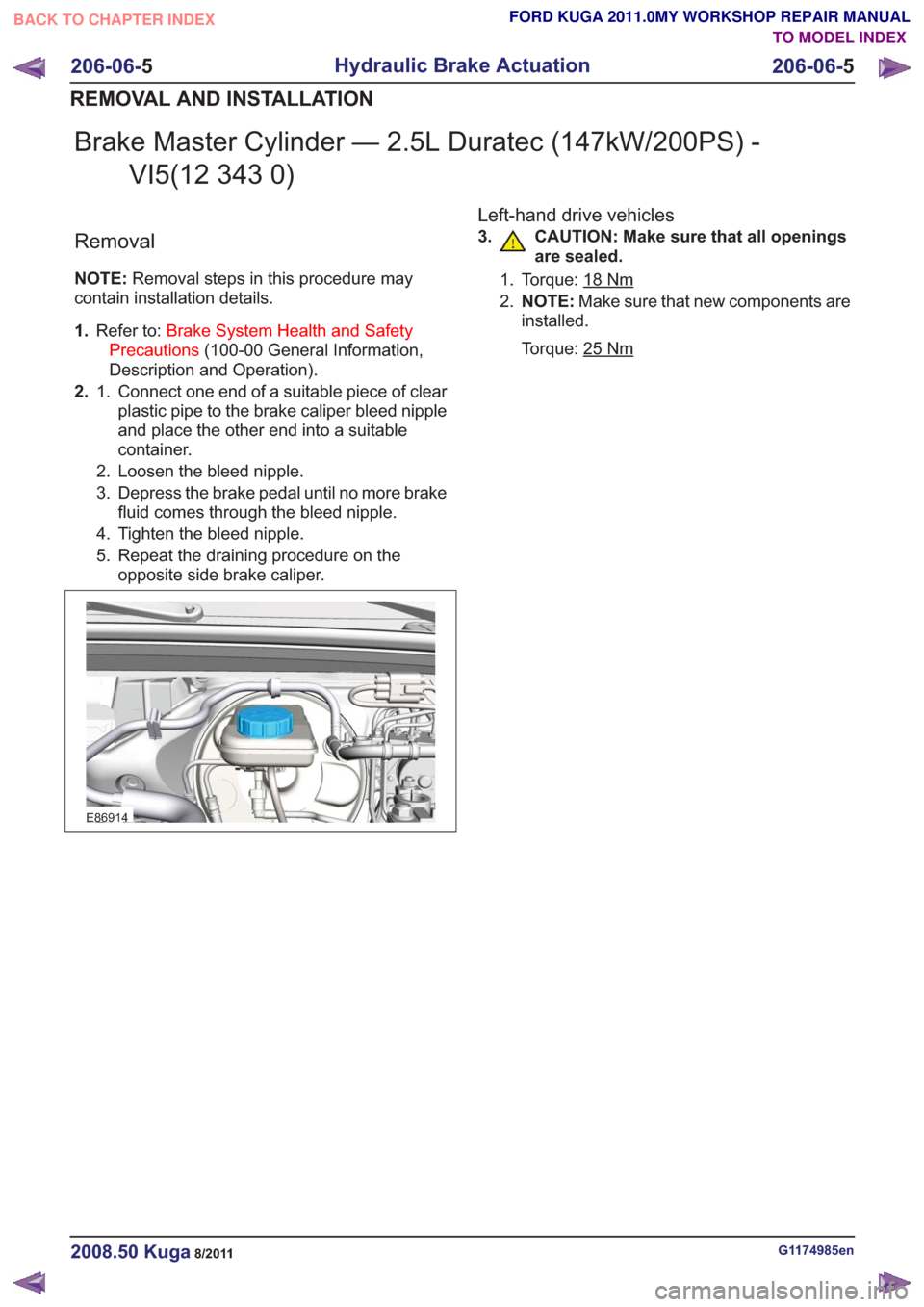

FORD KUGA 2011 1.G Workshop Manual Brake Master Cylinder — 2.5L Duratec (147kW/200PS) -VI5(12 343 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precauti

Page 1403 of 2057

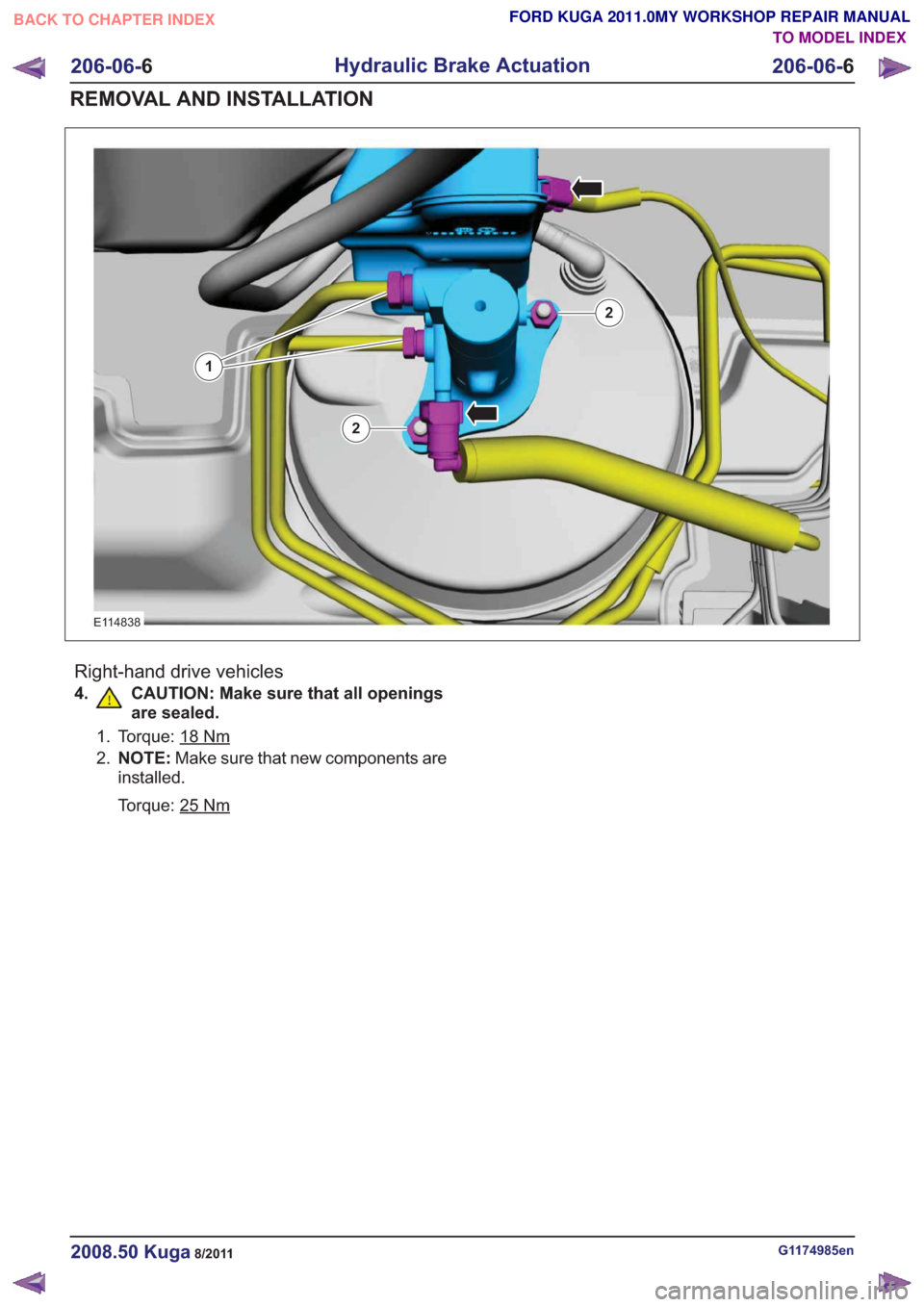

FORD KUGA 2011 1.G Workshop Manual E114838 1 2 2 Right-hand drive vehicles 4. CAUTION: Make sure that all openingsare sealed. 1. Torque: 18Nm 2.NOTE: Make sure that new components are installed. Torque: 25 Nm G1174985en2008.50 Kuga8/20

Page 1404 of 2057

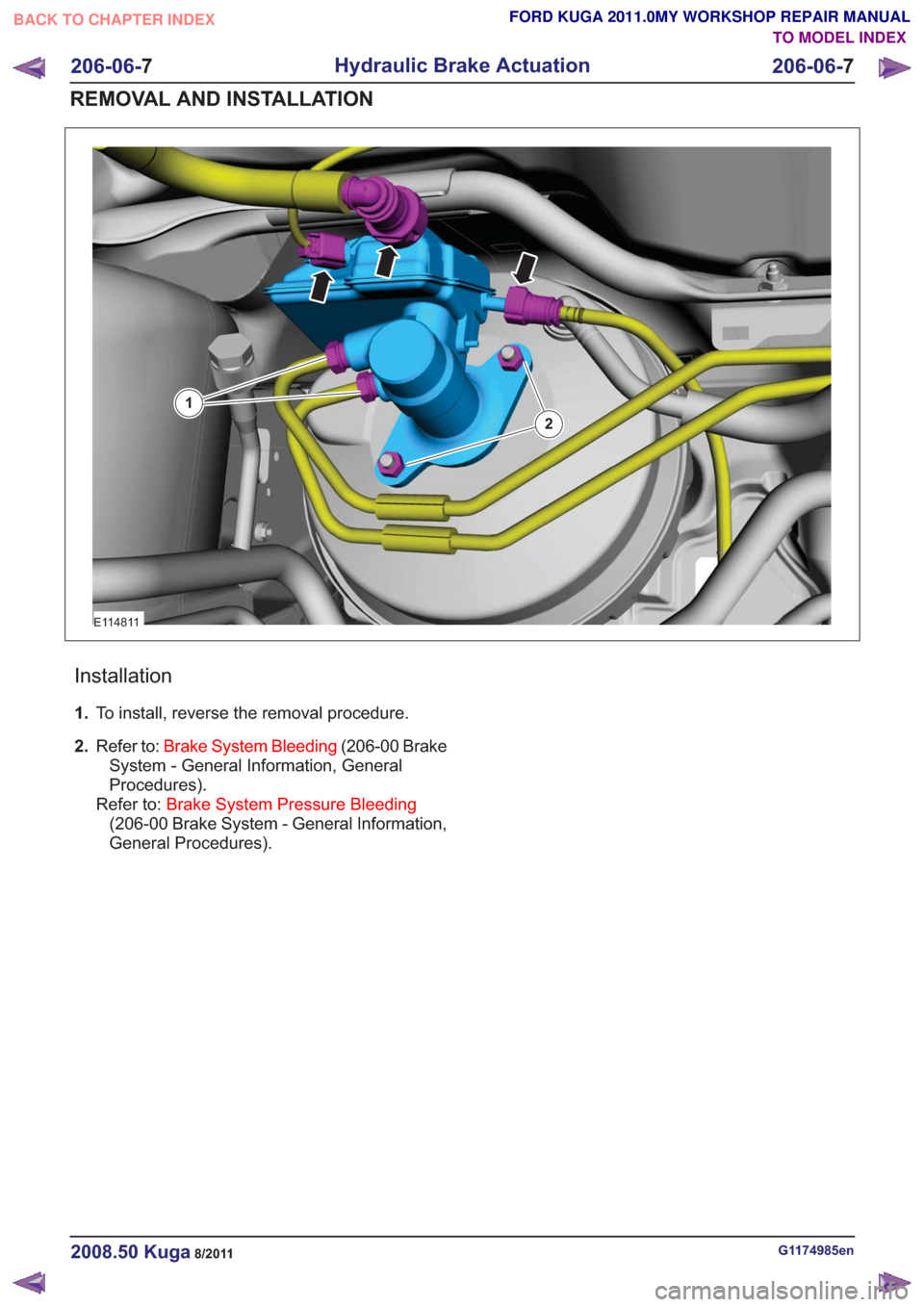

FORD KUGA 2011 1.G Workshop Manual E114811 2 1 Installation 1.To install, reverse the removal procedure. 2. Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures). Refer to: Brake System Pressur

Page 1405 of 2057

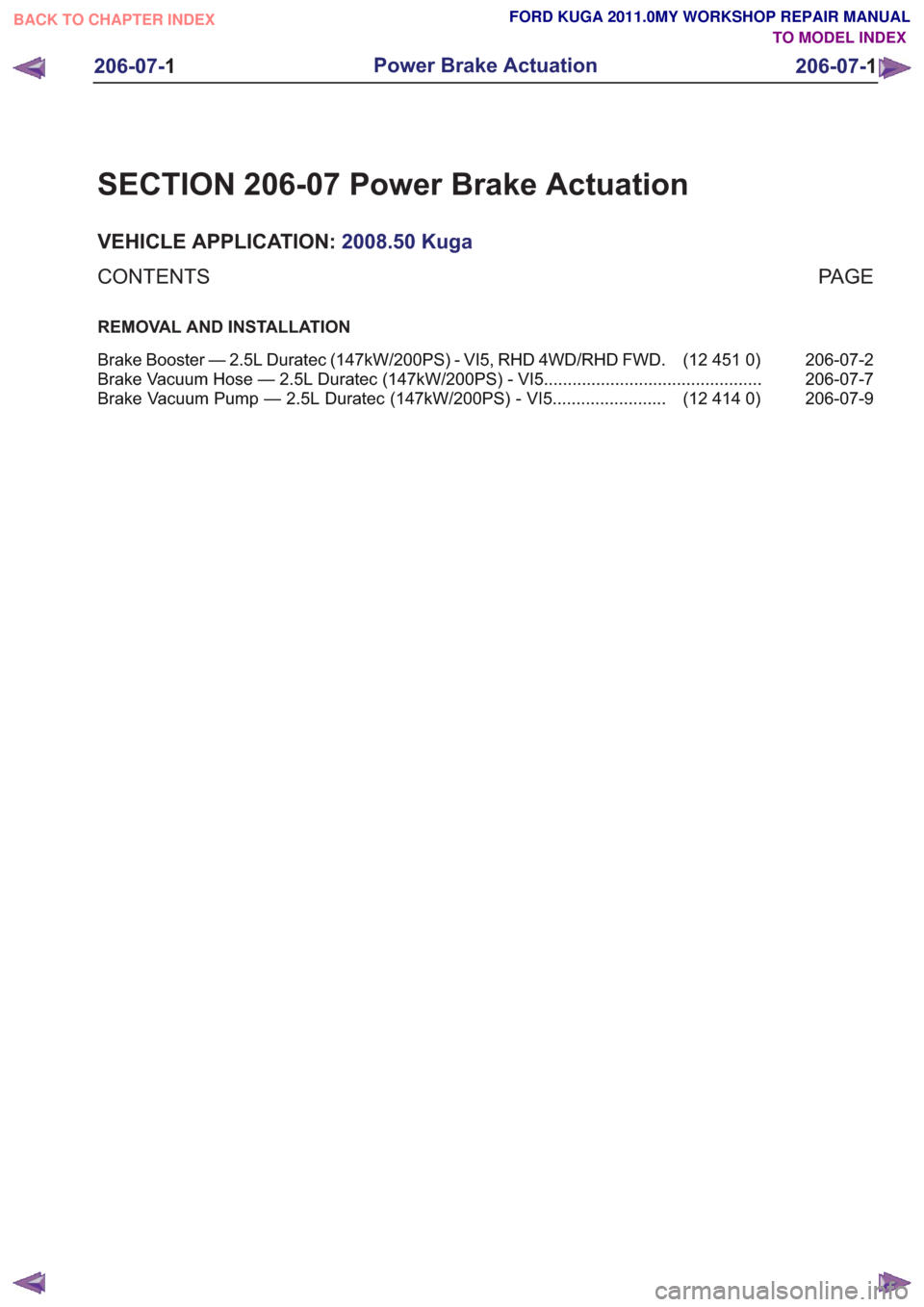

FORD KUGA 2011 1.G Workshop Manual SECTION 206-07 Power Brake Actuation VEHICLE APPLICATION:2008.50 Kuga PA G E CONTENTS REMOVAL AND INSTALLATION 206-07-2 (12 451 0) Brake Booster — 2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD .

Page 1406 of 2057

FORD KUGA 2011 1.G Workshop Manual Brake Booster — 2.5L Duratec (147kW/200PS) - VI5, RHD4WD/RHD FWD(12 451 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety

Page 1407 of 2057

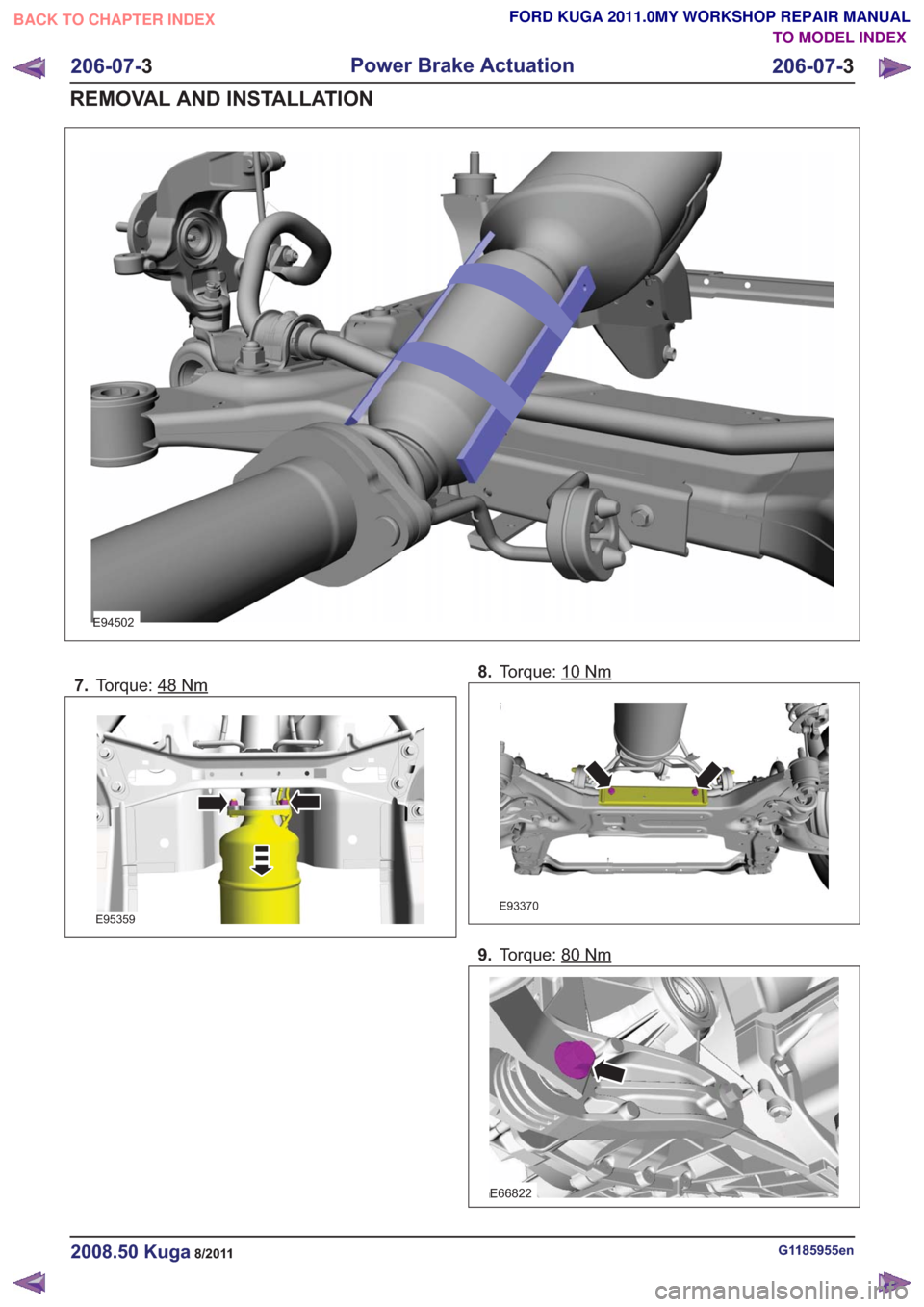

FORD KUGA 2011 1.G Workshop Manual E94502 7.Torque: 48Nm E95359 8.Torque: 10Nm E93370 9.Torque: 80Nm E66822 G1185955en2008.50 Kuga8/2011 206-07- 3 Power Brake Actuation 206-07- 3 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER

Page 1408 of 2057

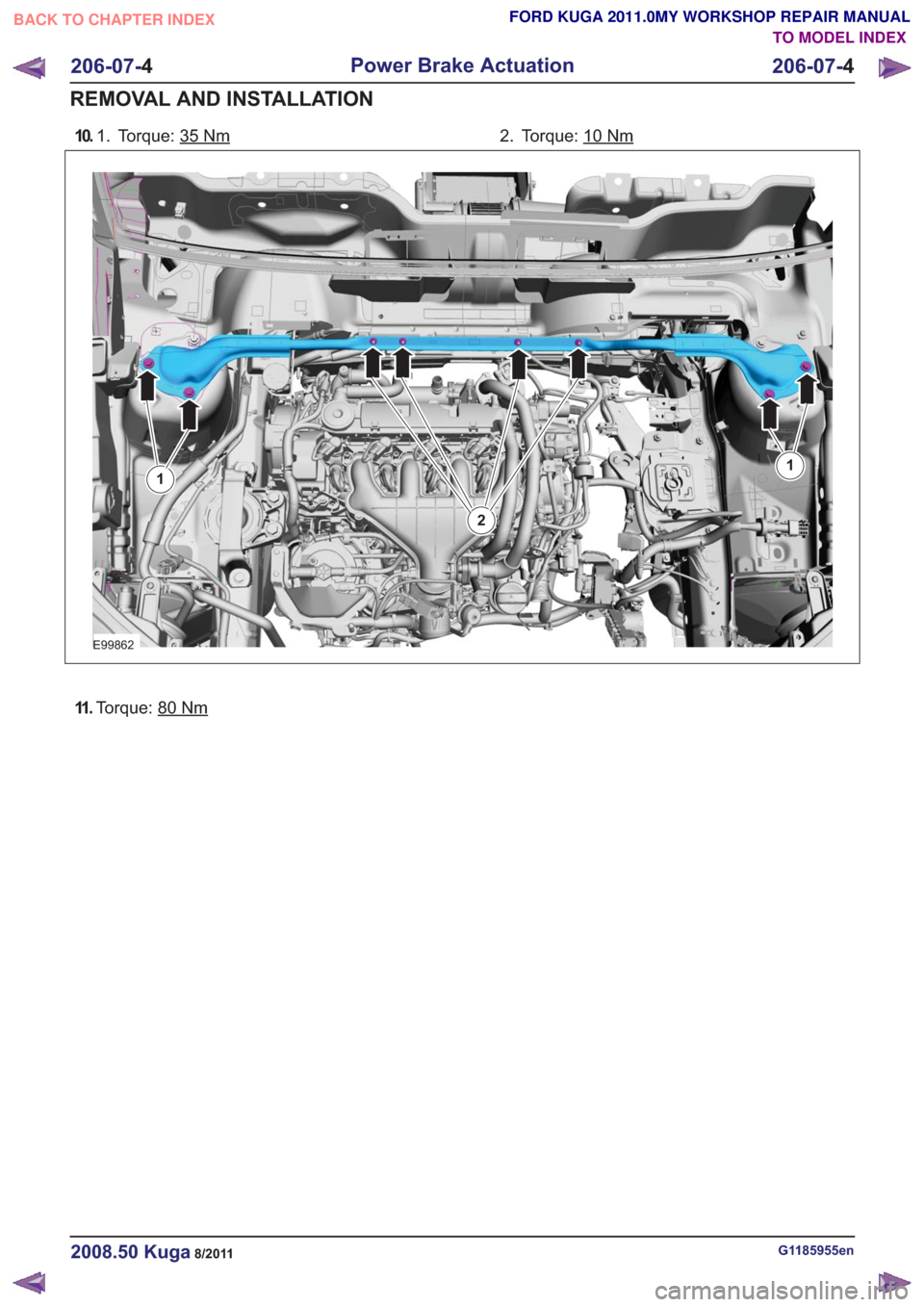

FORD KUGA 2011 1.G Workshop Manual 10.Torque: 35Nm1. Torque: 10Nm2. E99862 11 2 11 .Torque: 80Nm G1185955en2008.50 Kuga8/2011 206-07- 4 Power Brake Actuation 206-07- 4 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER INDEX FORD
