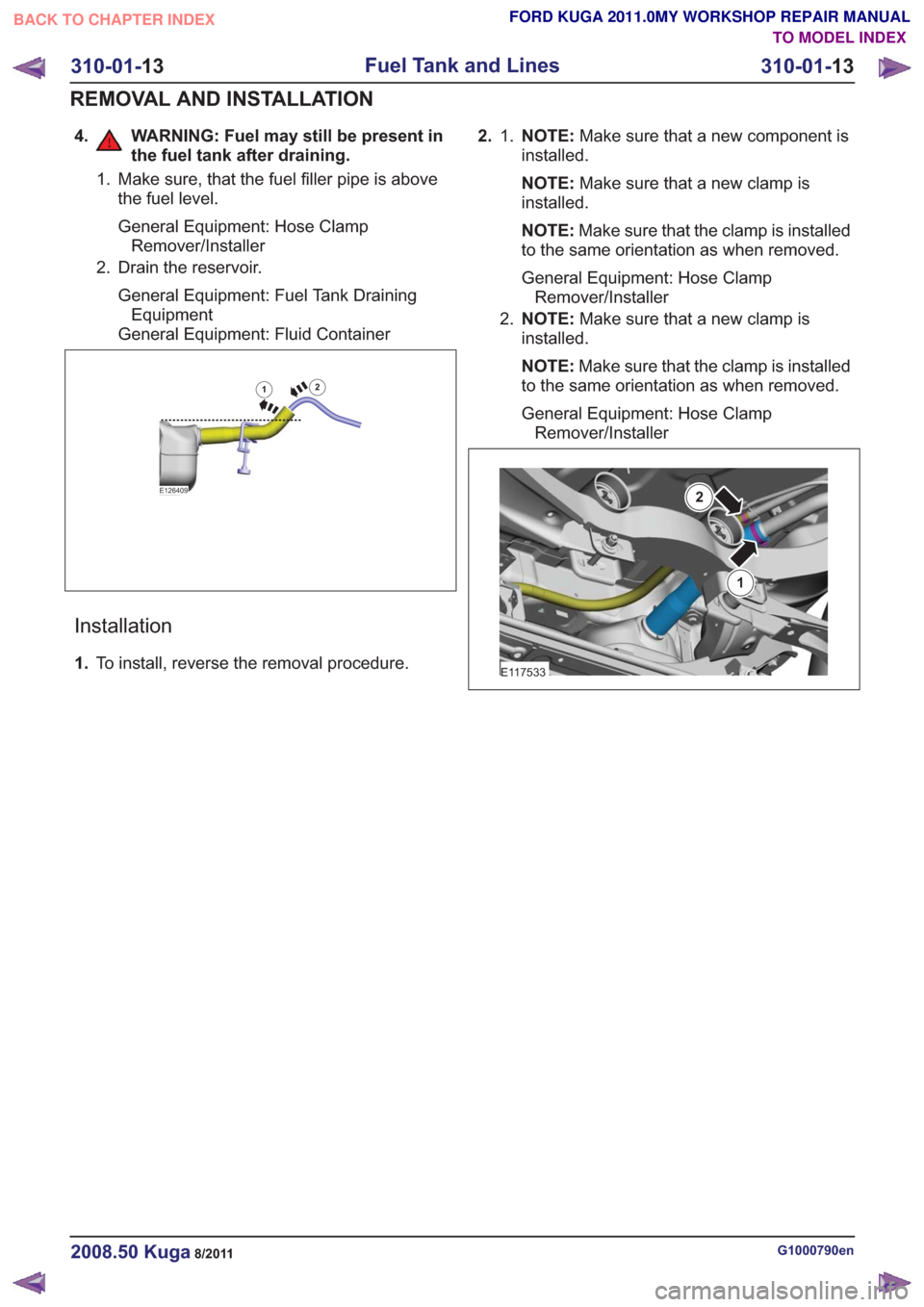

Page 1993 of 2057
4. WARNING: Fuel may still be present inthe fuel tank after draining.
1. Make sure, that the fuel filler pipe is abovethe fuel level.
General Equipment: Hose ClampRemover/Installer
2. Drain the reservoir.
General Equipment: Fuel Tank DrainingEquipment
General Equipment: Fluid Container
E126409
12
Installation
1. To install, reverse the removal procedure. 2. NOTE:
Make sure that a new component is
installed.
1.
NOTE: Make sure that a new clamp is
installed.
NOTE: Make sure that the clamp is installed
to the same orientation as when removed.
General Equipment: Hose Clamp Remover/Installer
2. NOTE: Make sure that a new clamp is
installed.
NOTE: Make sure that the clamp is installed
to the same orientation as when removed.
General Equipment: Hose Clamp Remover/Installer
1
2
E117533
G1000790en2008.50 Kuga8/2011
310-01- 13
Fuel Tank and Lines
310-01- 13
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

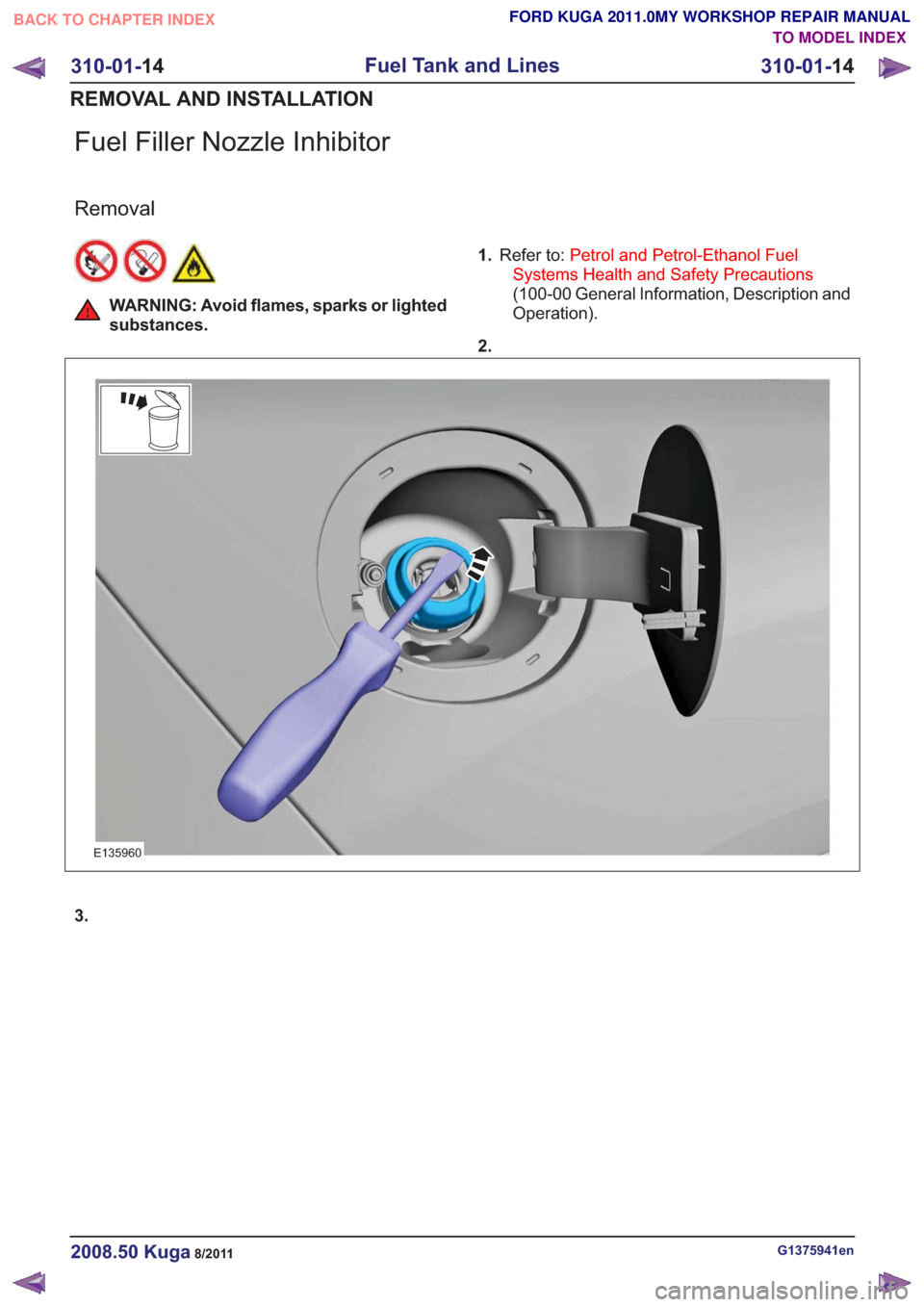

Page 1994 of 2057
Fuel Filler Nozzle Inhibitor
Removal
WARNING: Avoid flames, sparks or lighted
substances.1.
Refer to: Petrol and Petrol-Ethanol Fuel
Systems Health and Safety Precautions
(100-00 General Information, Description and
Operation).
2.
E135960
3.
G1375941en2008.50 Kuga8/2011
310-01- 14
Fuel Tank and Lines
310-01- 14
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

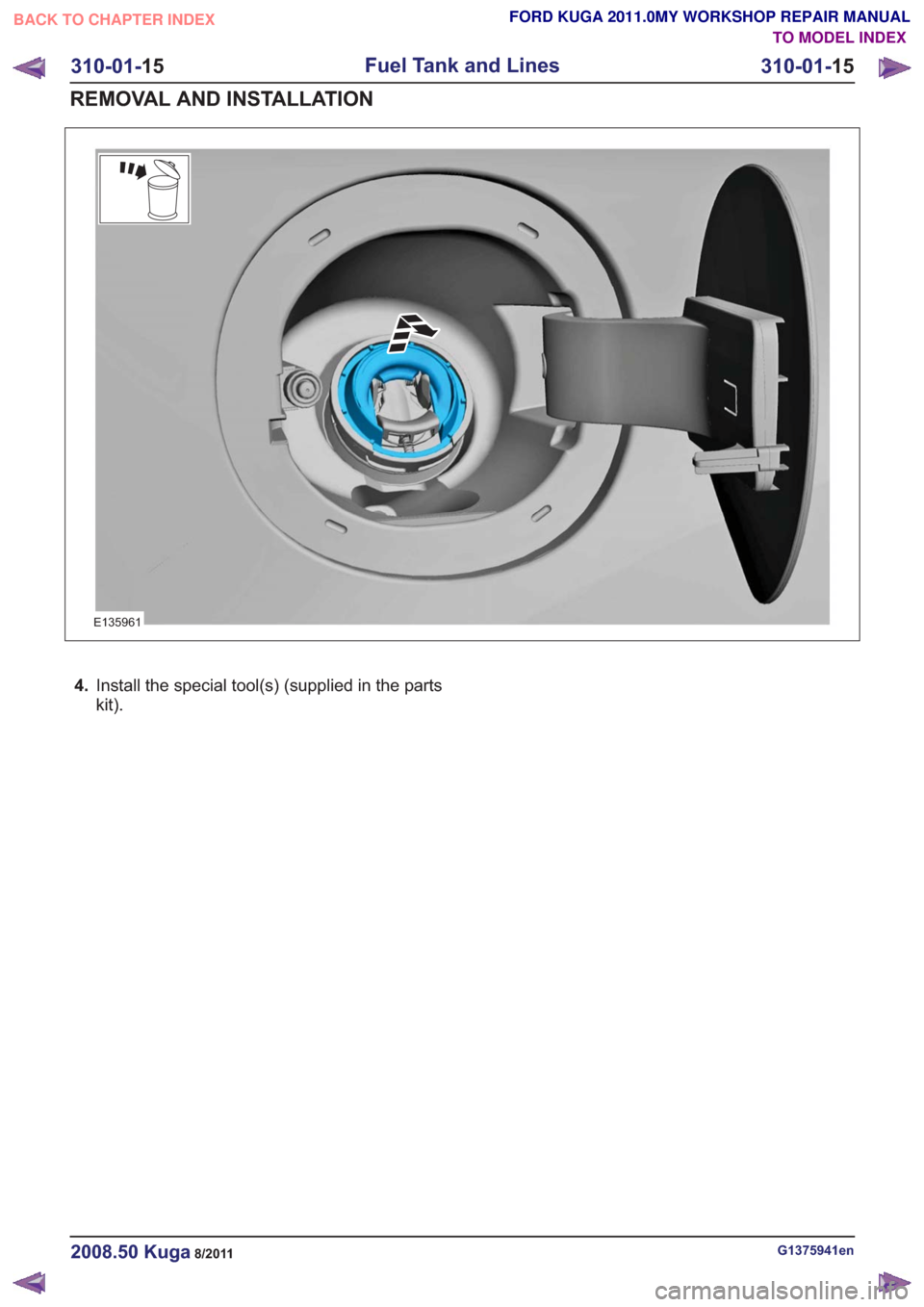

Page 1995 of 2057
E135961
4.Install the special tool(s) (supplied in the parts
kit).
G1375941en2008.50 Kuga8/2011
310-01- 15
Fuel Tank and Lines
310-01- 15
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

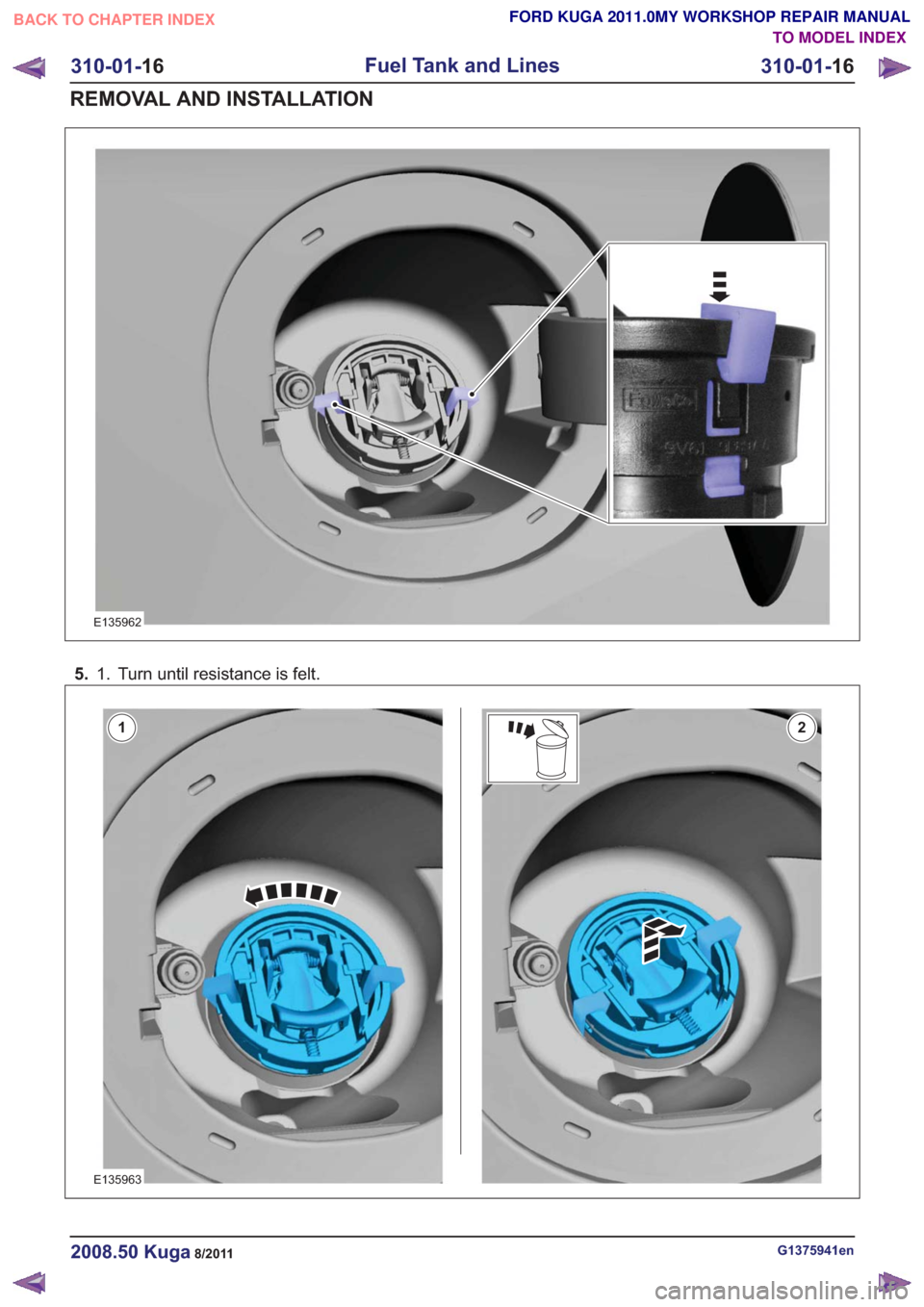

Page 1996 of 2057
E135962
5.Turn until resistance is felt.
1.
E135963
12
G1375941en2008.50 Kuga8/2011
310-01- 16
Fuel Tank and Lines
310-01- 16
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

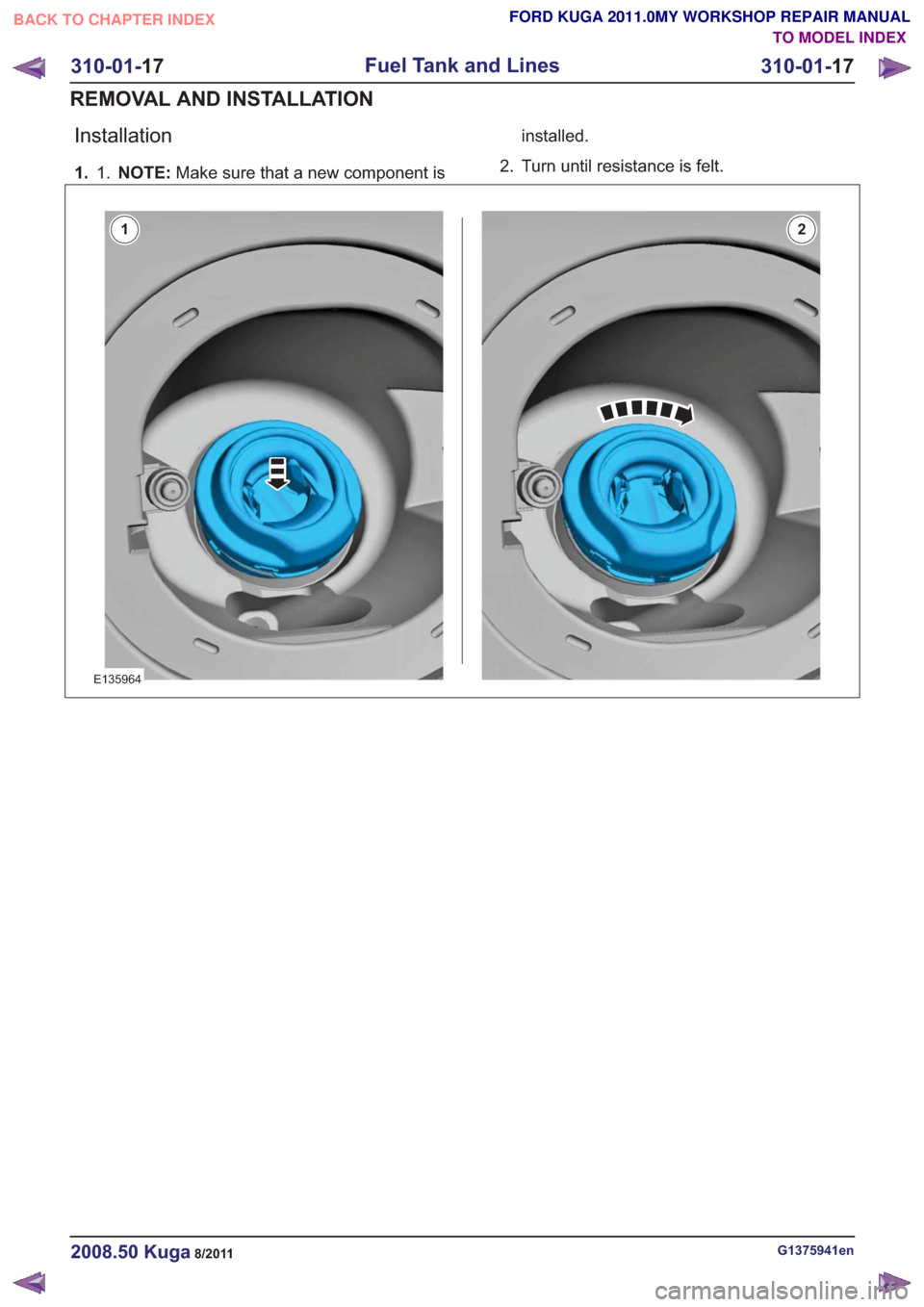

Page 1997 of 2057
Installation
1. NOTE:Make sure that a new component is
1. installed.
2. Turn until resistance is felt.
E135964
12
G1375941en2008.50 Kuga8/2011
310-01- 17
Fuel Tank and Lines
310-01- 17
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1998 of 2057
Fuel Pump and Sender Unit — 2.5L Duratec (147kW/200PS) -VI5
Special Tool(s) / General Equipment
310-210
Wrench, Fuel Tank Sender
Unit
E115757
Special Tool(s) / General Equipment310-211
Wrench, Fuel Tank Sender
Unit
E115758
Fluid Container
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1. Refer to: Fuel Tank - 2.5L Duratec
(147kW/200PS) - VI5 (310-01 Fuel Tank and
Lines, Removal and Installation).
2. Special Tool(s): 310-211
Torque: 1
10Nm
310-211
x2
310-211
x2
E114253
3. CAUTION: Take extra care not to
damage the fuel tank level sensor float
and arm.
E112921
4.
E112922
Vehicles without fuel fired booster heater
5.Refer to: Quick Release Coupling (310-00 Fuel
System - General Information, General
Procedures).
E116270
G1000791en2008.50 Kuga8/2011
310-01- 18
Fuel Tank and Lines
310-01- 18
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

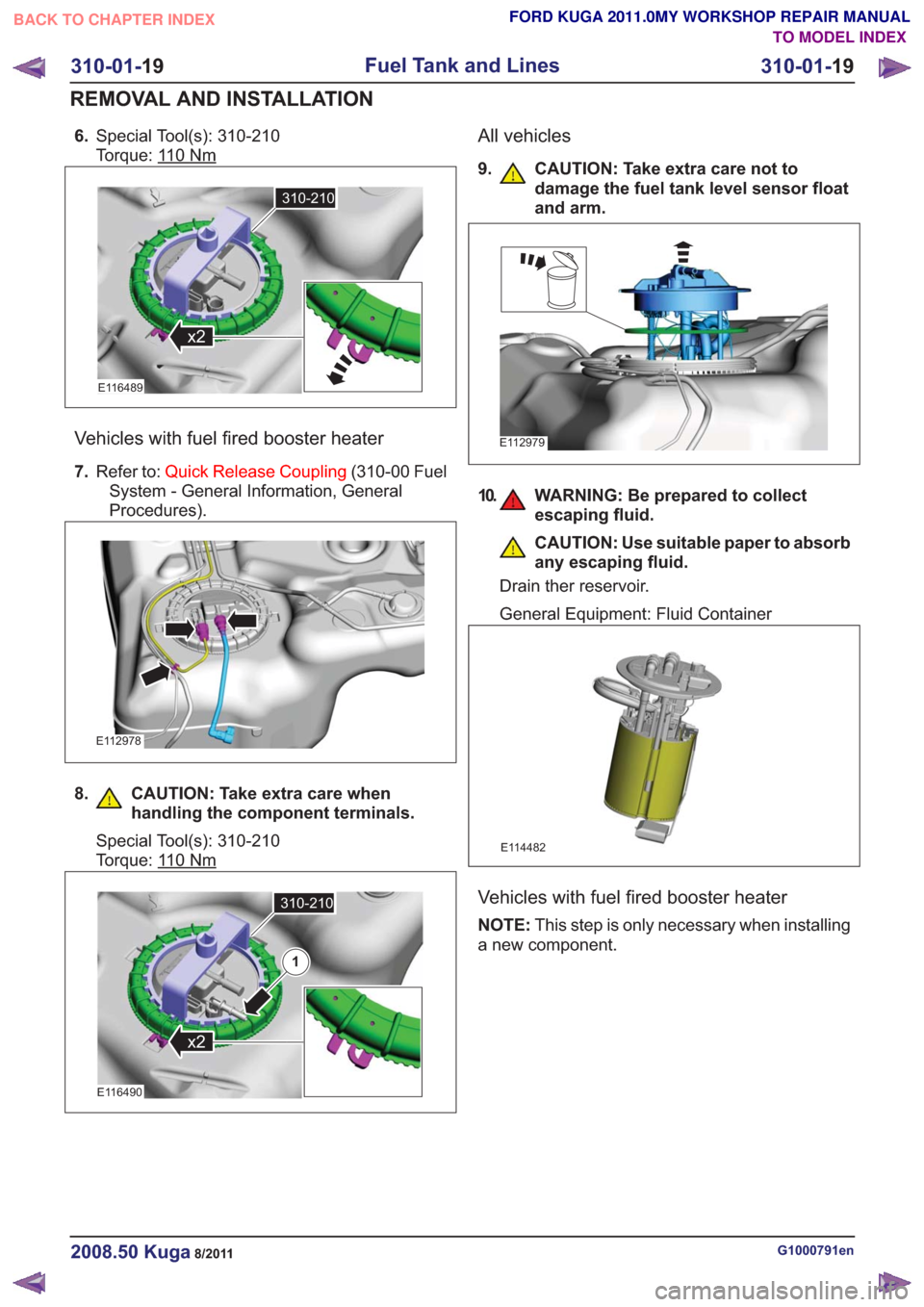

Page 1999 of 2057
6.Special Tool(s): 310-210
Torque: 1
10Nm
310-210
x2
310-210
x2
E116489
Vehicles with fuel fired booster heater
7.Refer to: Quick Release Coupling (310-00 Fuel
System - General Information, General
Procedures).
E112978
8. CAUTION: Take extra care when handling the component terminals.
Special Tool(s): 310-210
Torque: 1
10Nm
310-210
x2
310-210
x2
E116490
1
All vehicles
9. CAUTION: Take extra care not todamage the fuel tank level sensor float
and arm.
E112979
10. WARNING: Be prepared to collectescaping fluid.
CAUTION: Use suitable paper to absorb
any escaping fluid.
Drain ther reservoir.
General Equipment: Fluid Container
E114482
Vehicles with fuel fired booster heater
NOTE: This step is only necessary when installing
a new component.
G1000791en2008.50 Kuga8/2011
310-01- 19
Fuel Tank and Lines
310-01- 19
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 2000 of 2057
11. CAUTION: If either component isdamaged, new paired components must
be installed.
E116518
Installation
1.To install, reverse the removal procedure.
Vehicles with fuel fired booster heater
NOTE: This step is only necessary when installing
a new component.
2. NOTE: Make sure that the component is clean
and free of foreign material.
Tighten the bolt until the head is sheared off.
E115615
NOTE: This step is only necessary when installing
a new component. 3.
E112980
G1000791en2008.50 Kuga8/2011
310-01-
20
Fuel Tank and Lines
310-01- 20
REMOVAL AND INSTALLATION
