Page 1369 of 2057

FORD KUGA 2011 1.G Workshop Manual E139456 21. E137083 1 2 x20 22.On both sides. Torque: 9 Nm G1420093en2008.50 Kuga8/2011 206-00- 33 Brake System - General Information 206-00- 33 GENERAL PROCEDURES TO MODEL INDEX BACK TO CHAPTER INDEX

Page 1370 of 2057

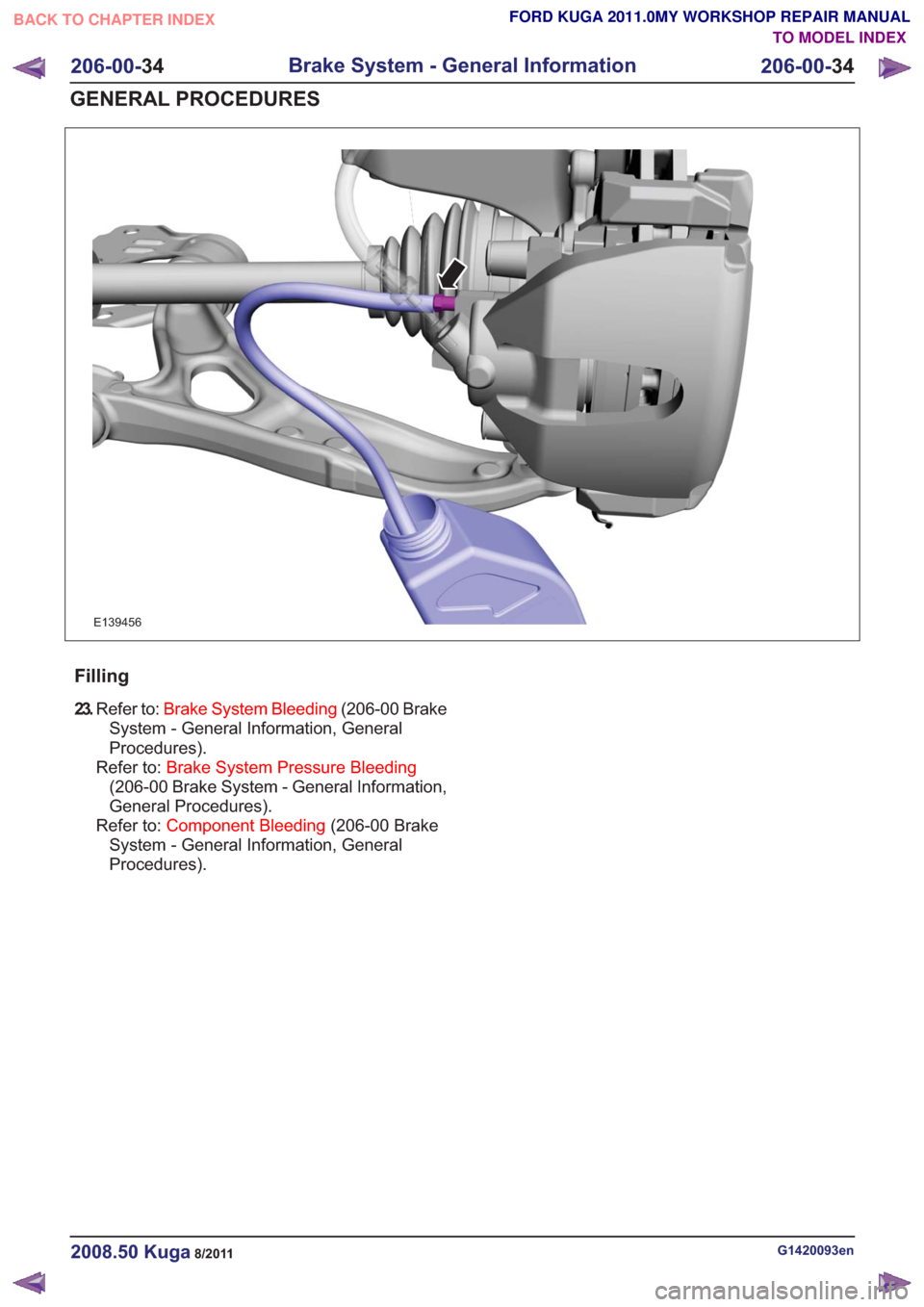

FORD KUGA 2011 1.G Workshop Manual E139456 Filling 23.Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures). Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information,

Page 1371 of 2057

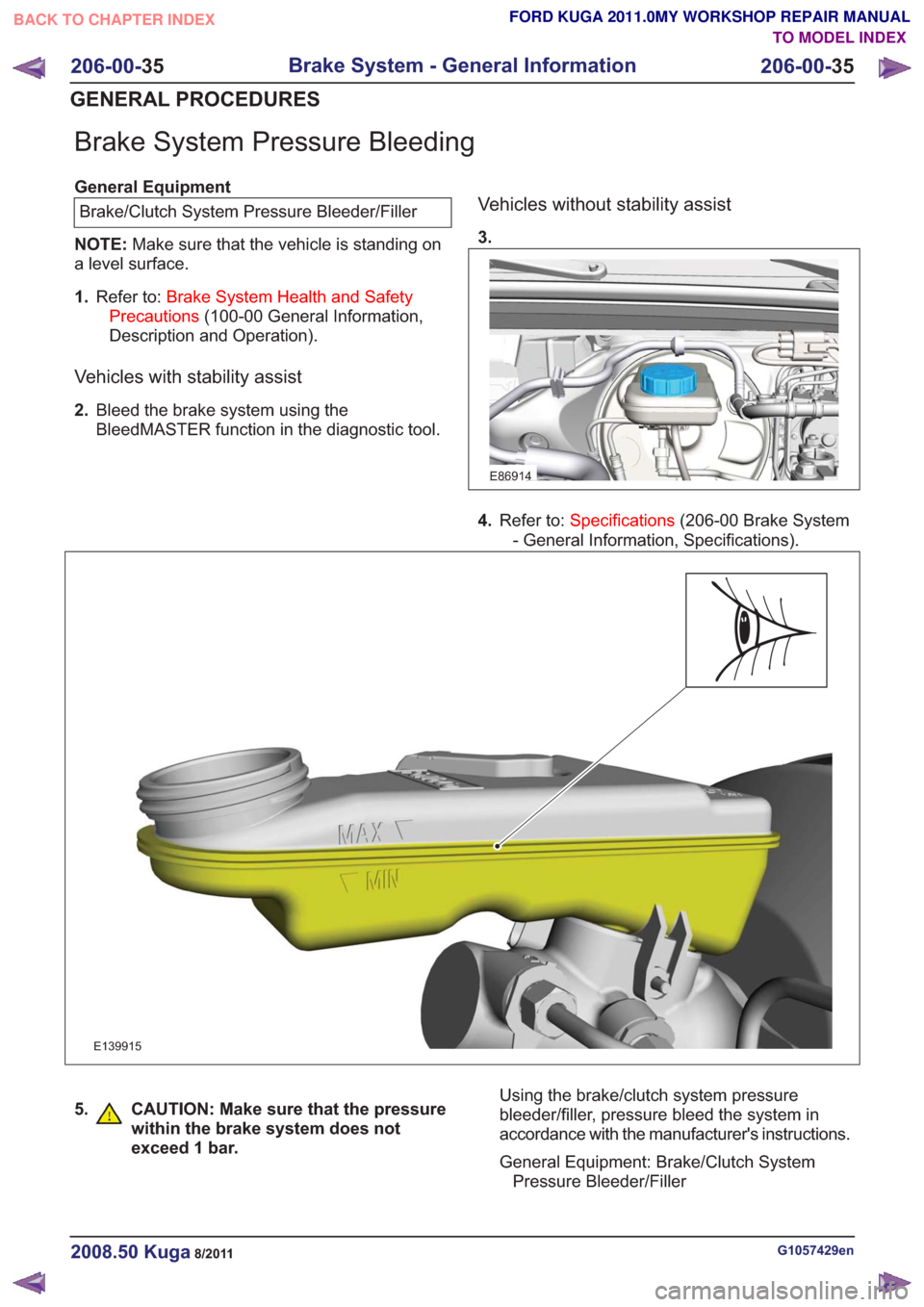

FORD KUGA 2011 1.G Workshop Manual Brake System Pressure Bleeding General EquipmentBrake/Clutch System Pressure Bleeder/Filler NOTE: Make sure that the vehicle is standing on a level surface. 1. Refer to: Brake System Health and Safety

Page 1372 of 2057

FORD KUGA 2011 1.G Workshop Manual 6. E139916 x4 7.Refer to: Specifications (206-00 Brake System - General Information, Specifications). E139915 8. E86914 G1057429en2008.50 Kuga8/2011 206-00- 36 Brake System - General Information 206-0

Page 1373 of 2057

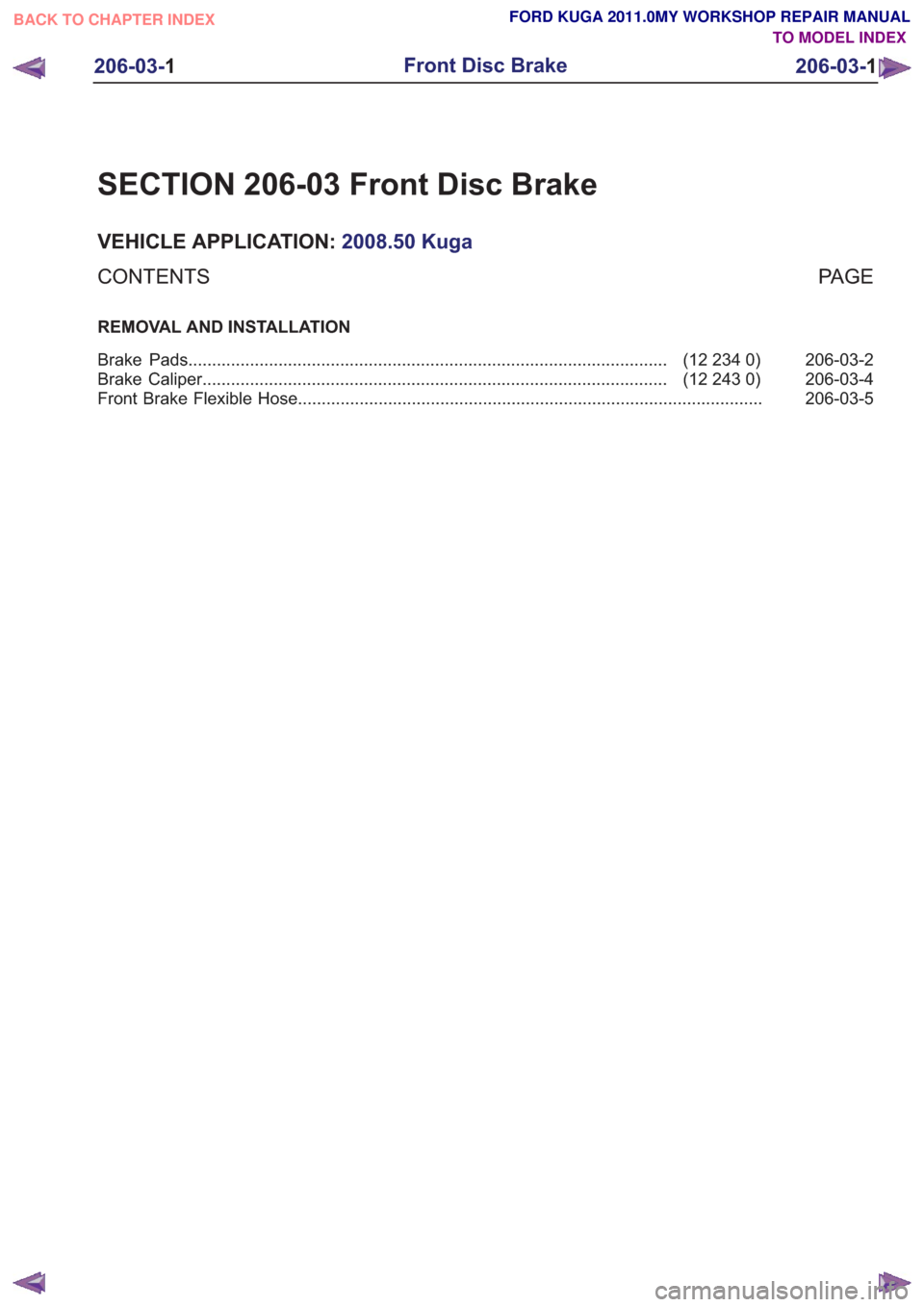

FORD KUGA 2011 1.G Workshop Manual SECTION 206-03 Front Disc Brake VEHICLE APPLICATION:2008.50 Kuga PA G E CONTENTS REMOVAL AND INSTALLATION 206-03-2 (12 234 0) Brake Pads ...............................................................

Page 1374 of 2057

FORD KUGA 2011 1.G Workshop Manual Brake Pads(12 234 0) Special Tool(s)206-005 Retractor, Brake Caliper Piston 12014 Materials Specification Name WSS-M6C57-A2 Brake Fluid - Super DOT4 WSS-M12A4-A2 / 1C1J- 19584-BA Lubricating Paste Rem

Page 1375 of 2057

FORD KUGA 2011 1.G Workshop Manual 7.Special Tool(s): 206-005 E94902 206-005 Installation 1. NOTE: Material: Lubricating Paste (WSS-M12A4-A2 /1C1J-19584-BA) grease E117895 12 2. Material: Lubricating Paste (WSS-M12A4-A2 / 1C1J-19584-BA

Page 1376 of 2057

FORD KUGA 2011 1.G Workshop Manual Brake Caliper(12 243 0) General EquipmentHose Clamp(s) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precautions (100-00 G
