Page 1601 of 2057

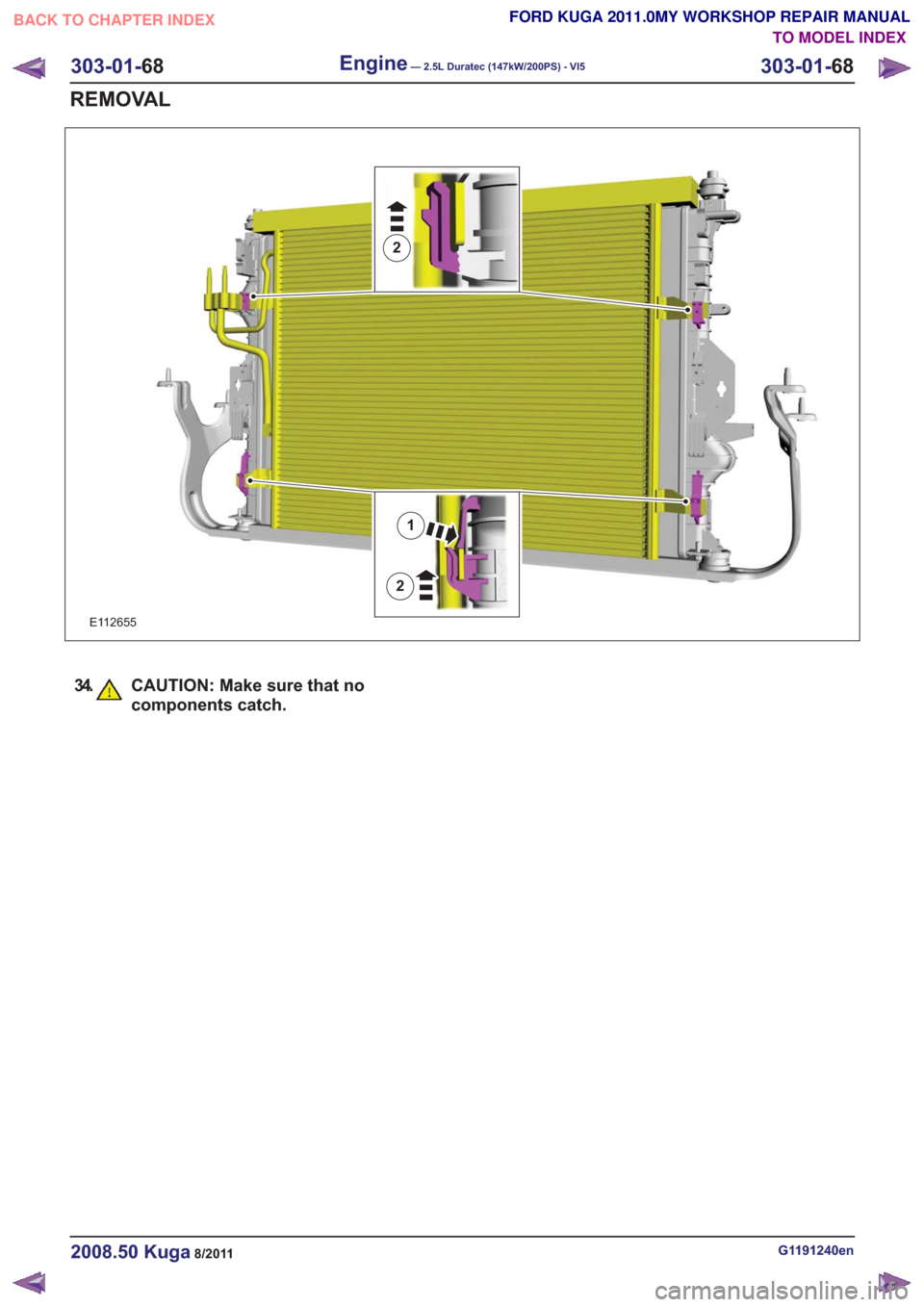

FORD KUGA 2011 1.G Workshop Manual E112655 2 1 2 34. CAUTION: Make sure that nocomponents catch. G1191240en2008.50 Kuga8/2011 303-01- 68 Engine— 2.5L Duratec (147kW/200PS) - VI5303-01- 68 REMOVAL TO MODEL INDEX BACK TO CHAPTER INDEX

Page 1602 of 2057

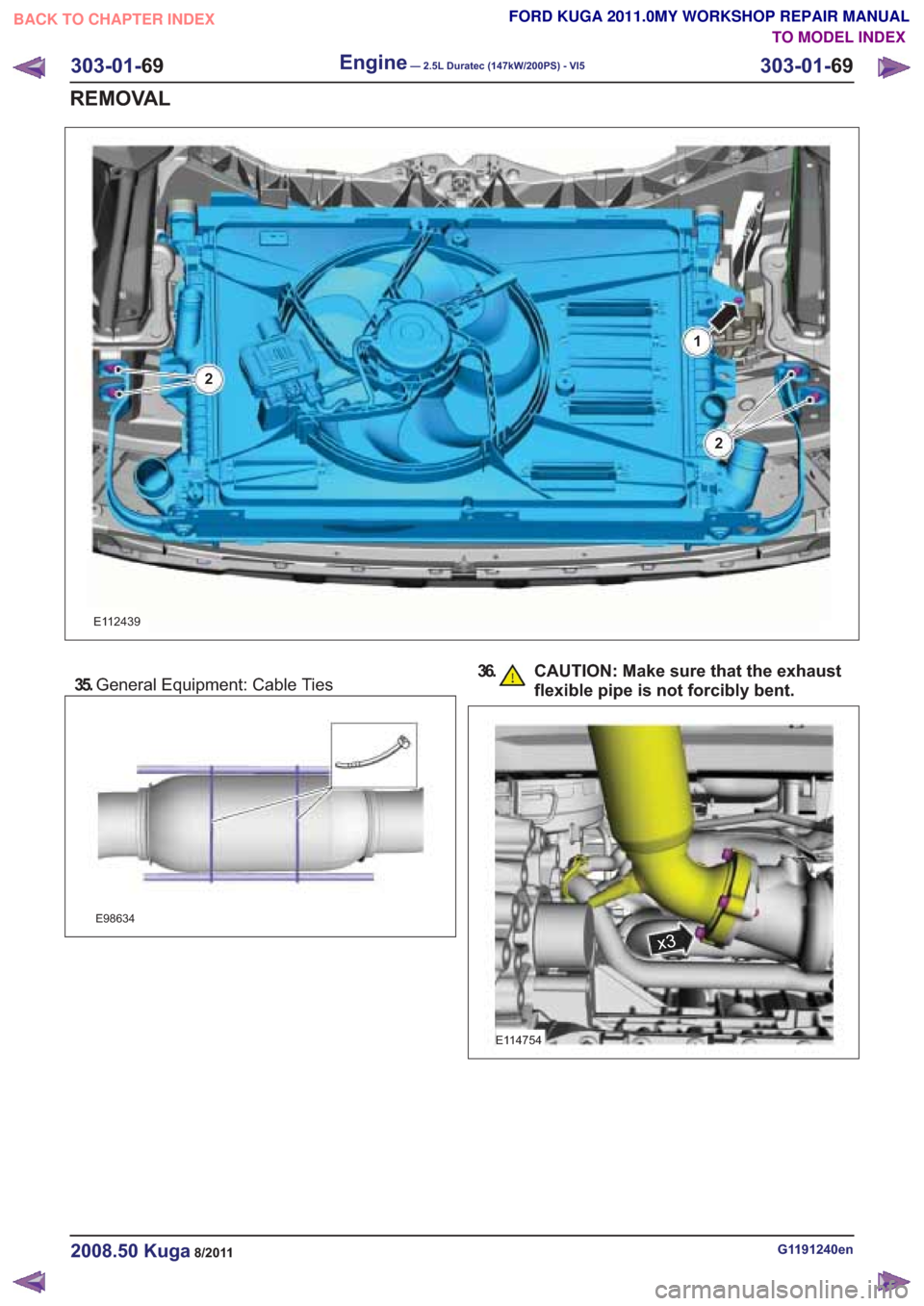

FORD KUGA 2011 1.G Workshop Manual 35.General Equipment: Cable Ties E98634 36. CAUTION: Make sure that the exhaust flexible pipe is not forcibly bent. G1191240en2008.50 Kuga8/2011 303-01- 69 Engine— 2.5L Duratec (147kW/200PS) - VI530

Page 1603 of 2057

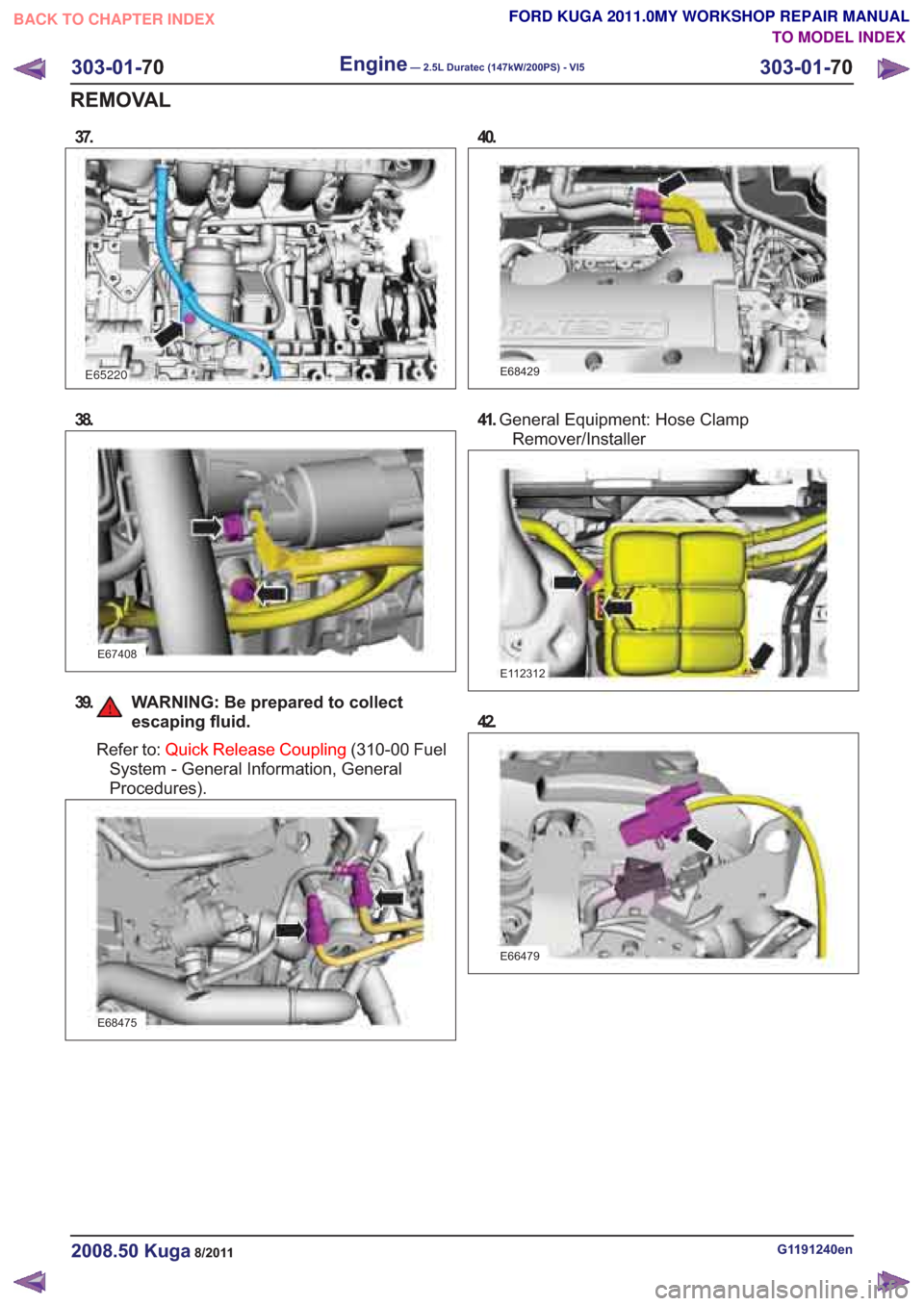

FORD KUGA 2011 1.G Workshop Manual 38. E67408 39. WARNING: Be prepared to collectescaping fluid. Refer to: Quick Release Coupling (310-00 Fuel System - General Information, General Procedures). E68475 41. General Equipment: Hose Clamp

Page 1604 of 2057

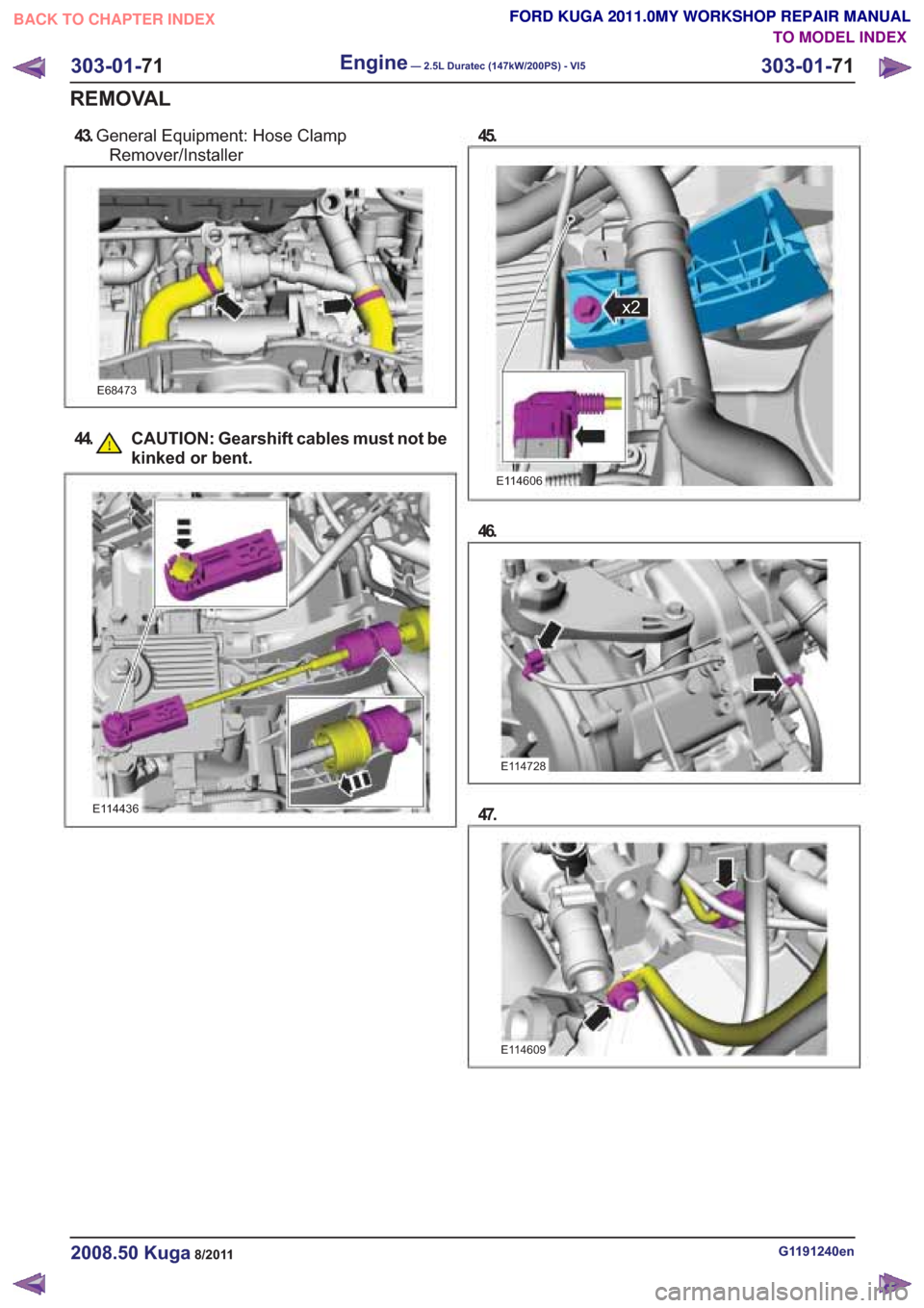

FORD KUGA 2011 1.G Workshop Manual 43.General Equipment: Hose Clamp Remover/Installer E114436 45. 303-01- 71 Engine— 2.5L Duratec (147kW/200PS) - VI5303-01- 71 REMOVAL TO MODEL INDEX BACK TO CHAPTER INDEX FORD KUGA 2011.0MY WORKSHOP

Page 1605 of 2057

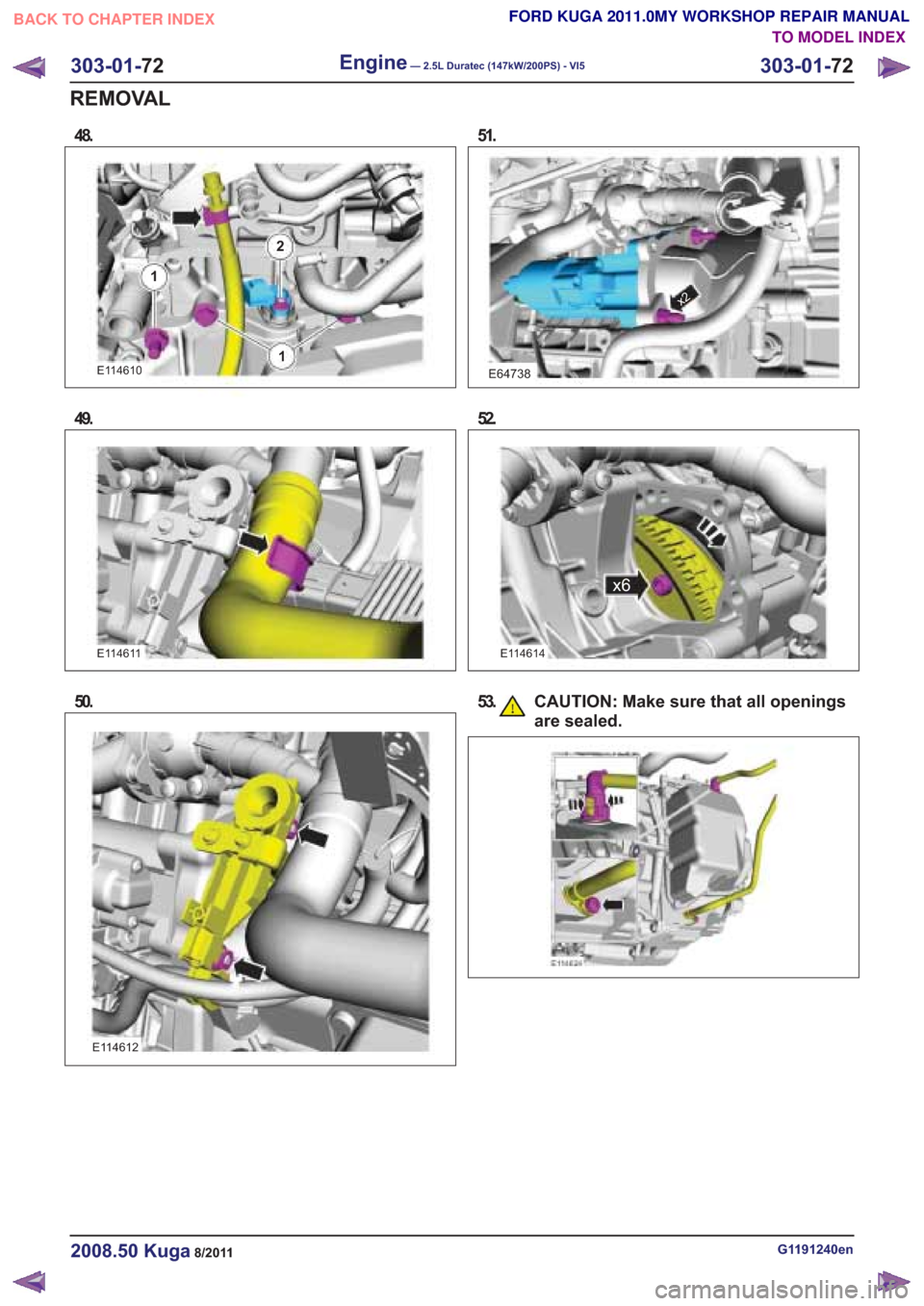

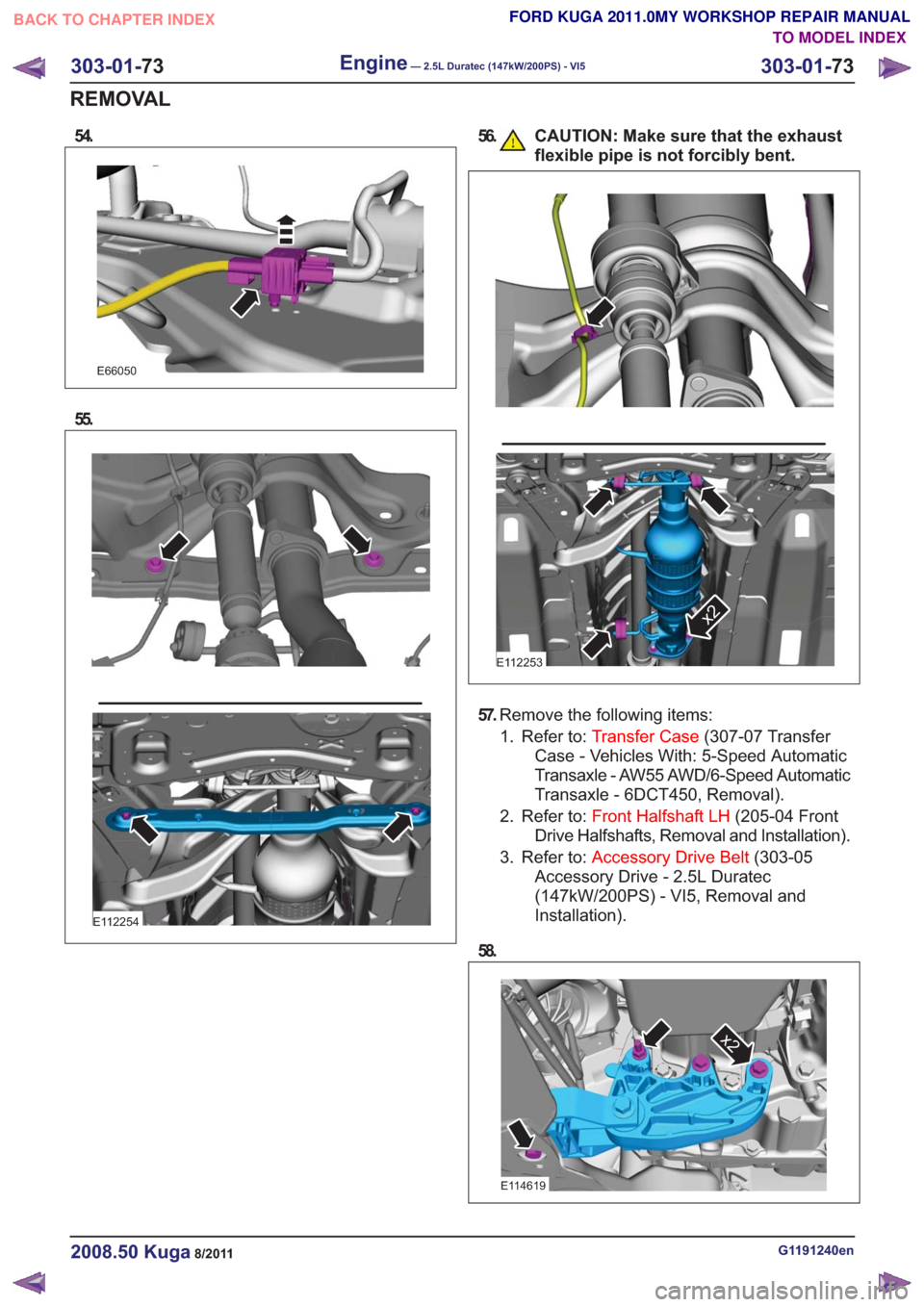

FORD KUGA 2011 1.G Workshop Manual 48. 1 1 2 E114610 49. E114612 51. x2 52. x6 E114614 53. CAUTION: Make sure that all openingsare sealed. G1191240en2008.50 Kuga8/2011 303-01- 72 Engine— 2.5L Duratec (147kW/200PS) - VI5303-01- 72 REM

Page 1606 of 2057

FORD KUGA 2011 1.G Workshop Manual 54. E66050 55. E112254 56. CAUTION: Make sure that the exhaustflexible pipe is not forcibly bent. E112253 x2 57.Remove the following items: 1. Refer to: Transfer Case (307-07 Transfer Case - Vehicles

Page 1607 of 2057

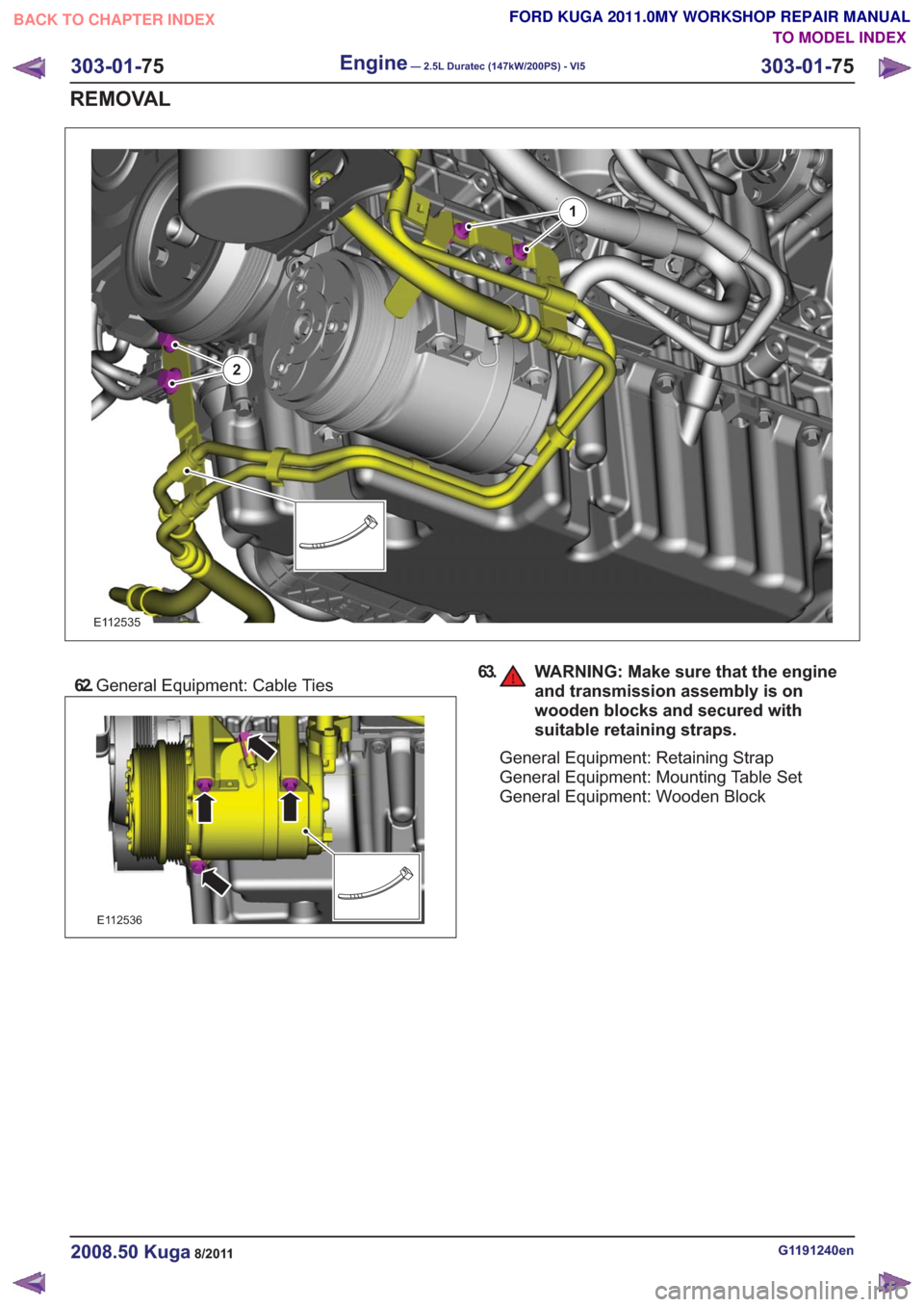

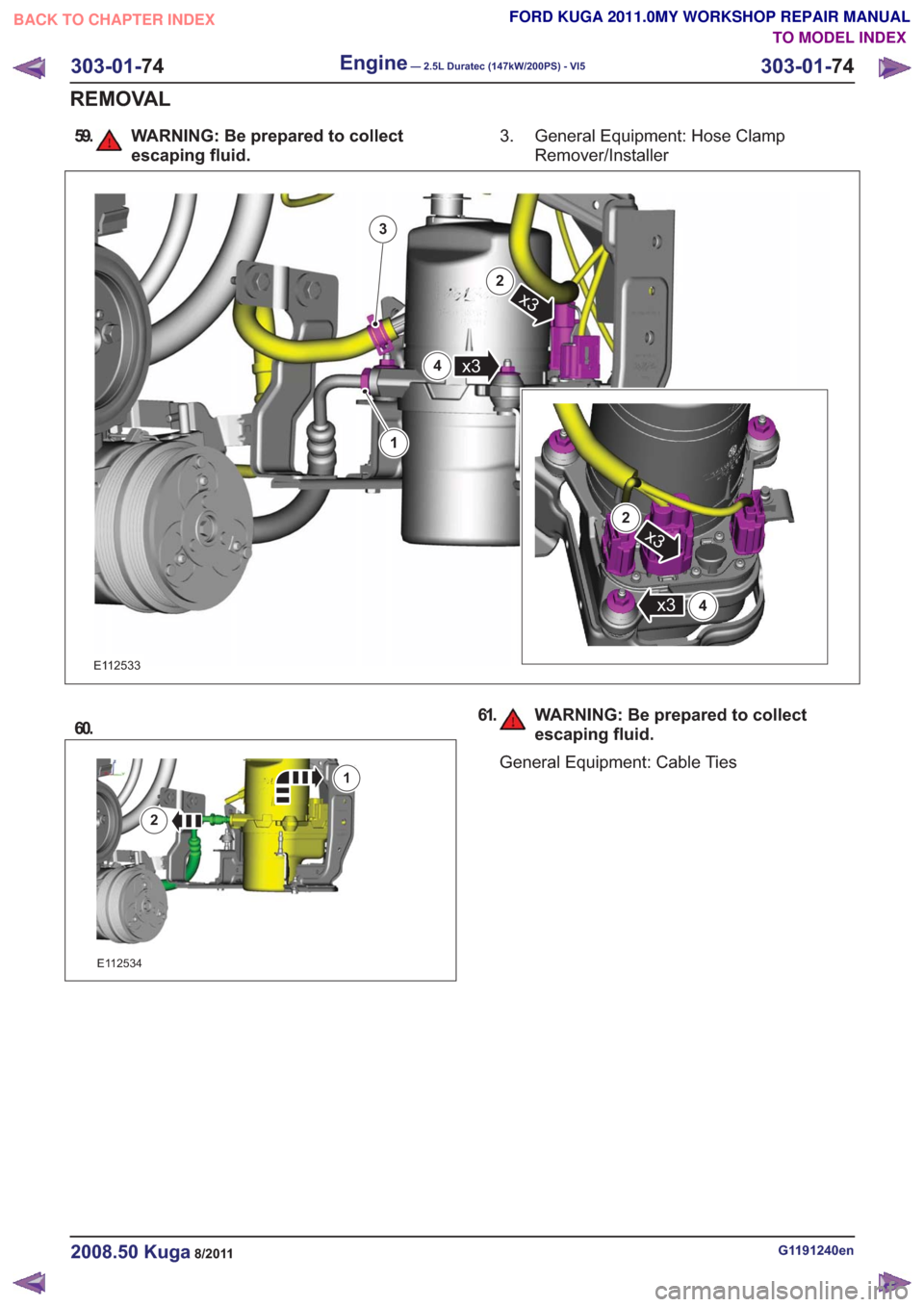

FORD KUGA 2011 1.G Workshop Manual 59. WARNING: Be prepared to collectescaping fluid.General Equipment: Hose Clamp Remover/Installer 3. E112533 1 3 x3 2 x34 x3 2 4x3 60. E112534 1 2 61. WARNING: Be prepared to collect escaping fluid. G

Page 1608 of 2057

FORD KUGA 2011 1.G Workshop Manual E112535 1 2 62.General Equipment: Cable Ties E112536 63. WARNING: Make sure that the engine and transmission assembly is on wooden blocks and secured with suitable retaining straps. General Equipment:
