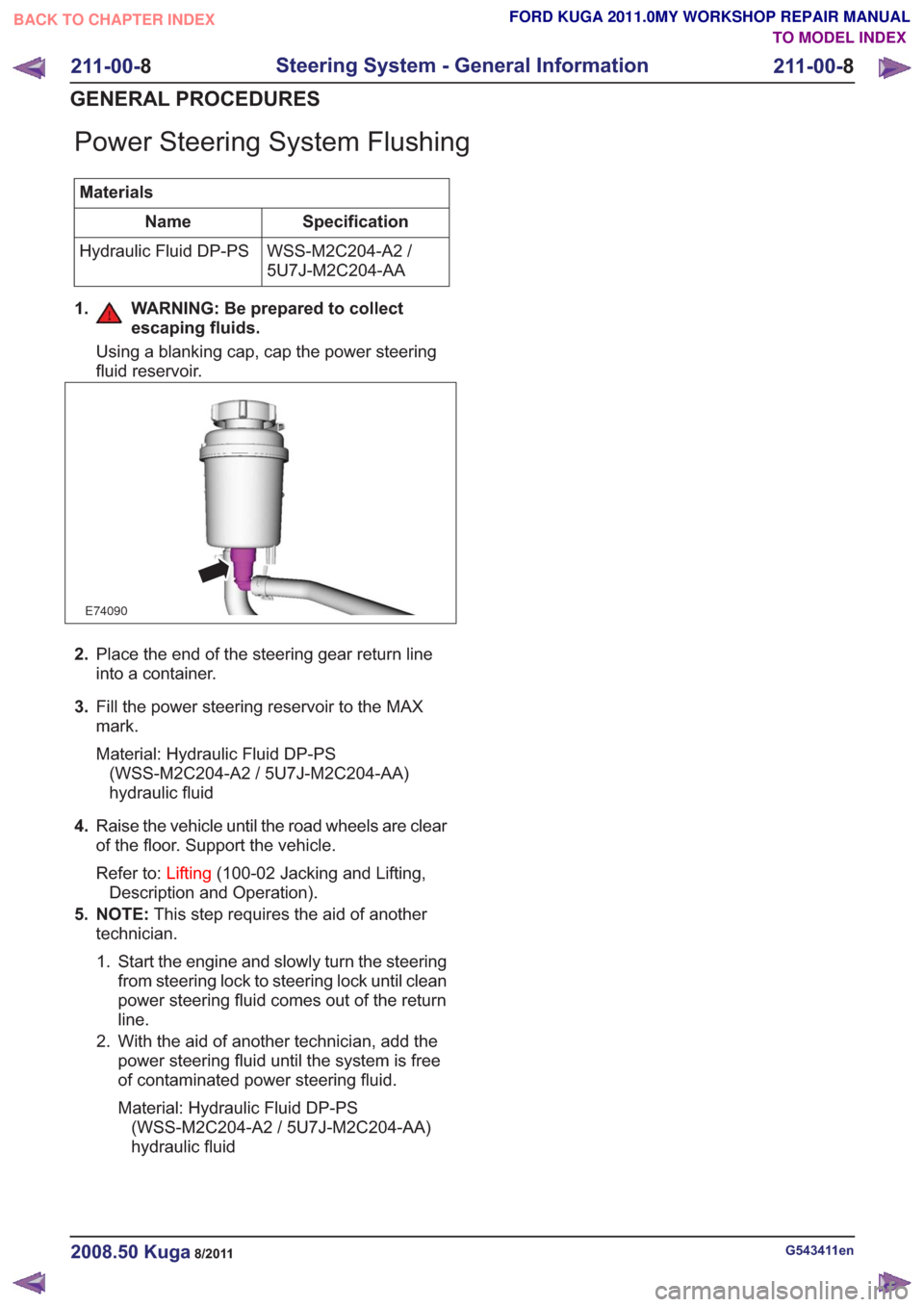

Page 1449 of 2057

FORD KUGA 2011 1.G Workshop Manual Power Steering System Flushing MaterialsSpecification Name WSS-M2C204-A2 / 5U7J-M2C204-AA Hydraulic Fluid DP-PS 1. WARNING: Be prepared to collect escaping fluids. Using a blanking cap, cap the power

Page 1450 of 2057

FORD KUGA 2011 1.G Workshop Manual Power Steering System Filling Special Tool(s)211-189 Adapter, Power Steering Bleeding 13016 416-D001 Hand Vacuum Pump/Pressure Pump 23036A Materials Specification Name WSS-M2C204-A2 / 5U7J-M2C204-AA H

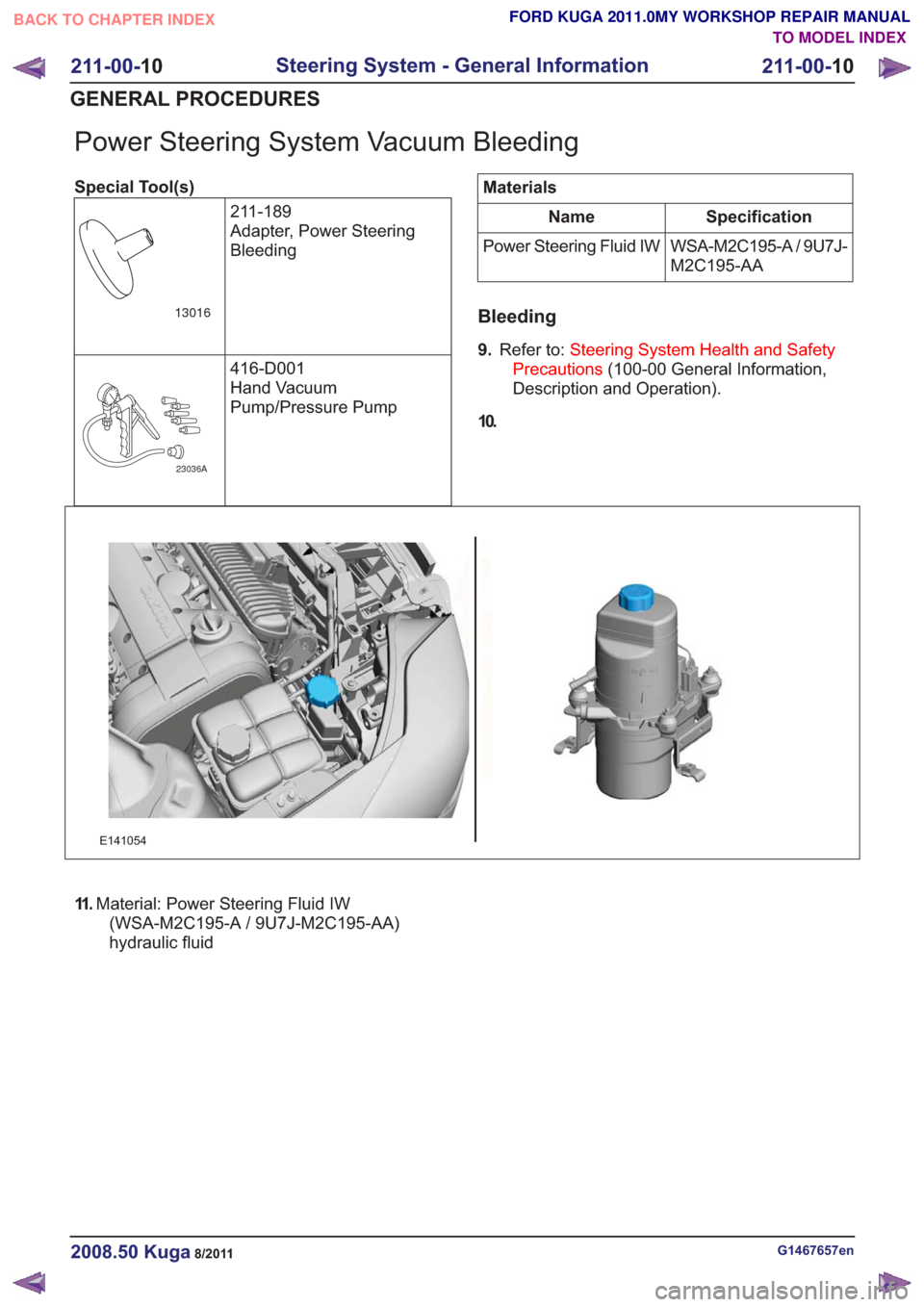

Page 1451 of 2057

FORD KUGA 2011 1.G Workshop Manual Power Steering System Vacuum Bleeding Special Tool(s)211-189 Adapter, Power Steering Bleeding 13016 416-D001 Hand Vacuum Pump/Pressure Pump 23036A Materials Specification Name WSA-M2C195-A / 9U7J- M2C

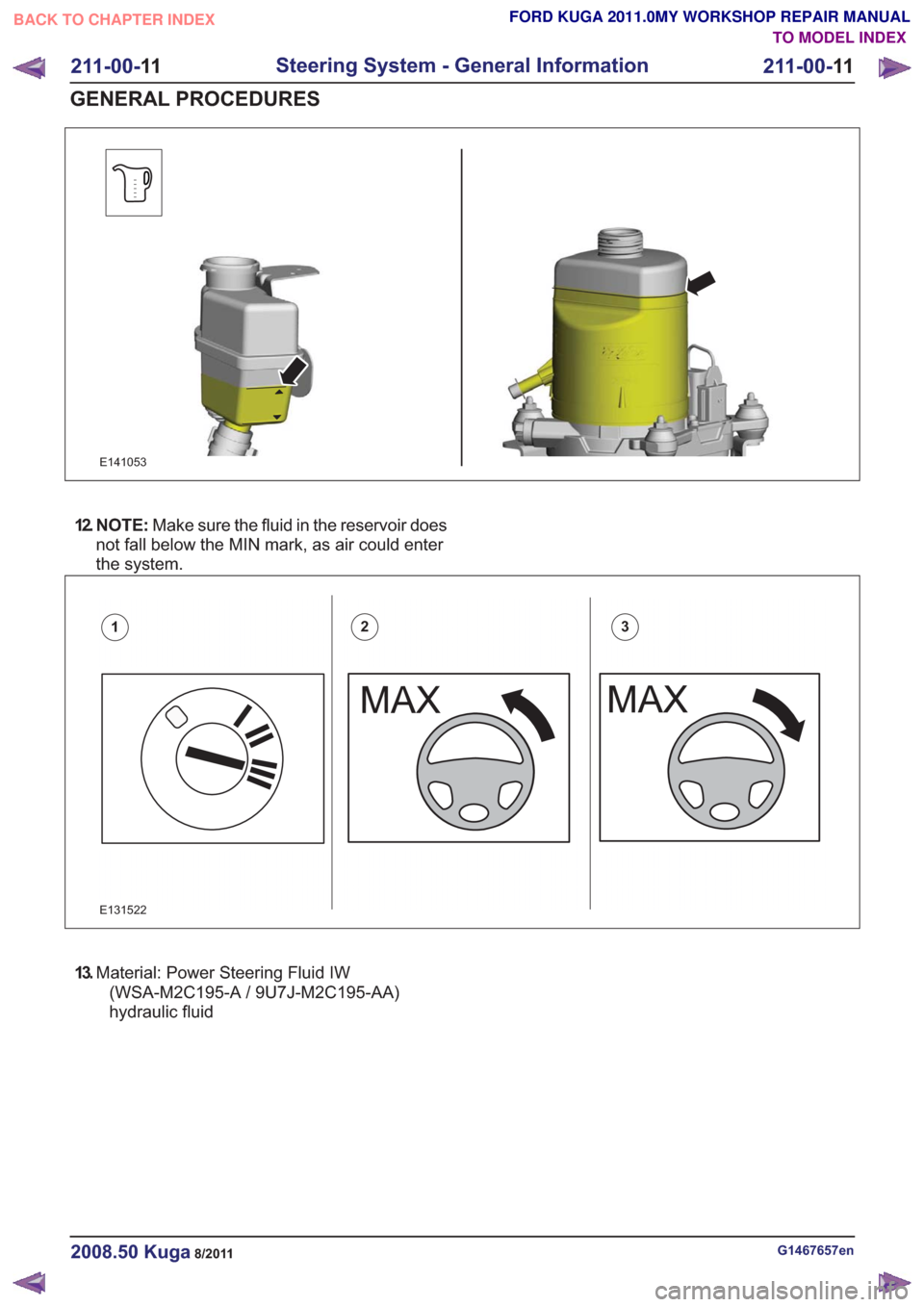

Page 1452 of 2057

FORD KUGA 2011 1.G Workshop Manual E141053 12. N O T E :Make sure the fluid in the reservoir does not fall below the MIN mark, as air could enter the system. E131522 123 13. Material: Power Steering Fluid IW (WSA-M2C195-A / 9U7J-M2C195

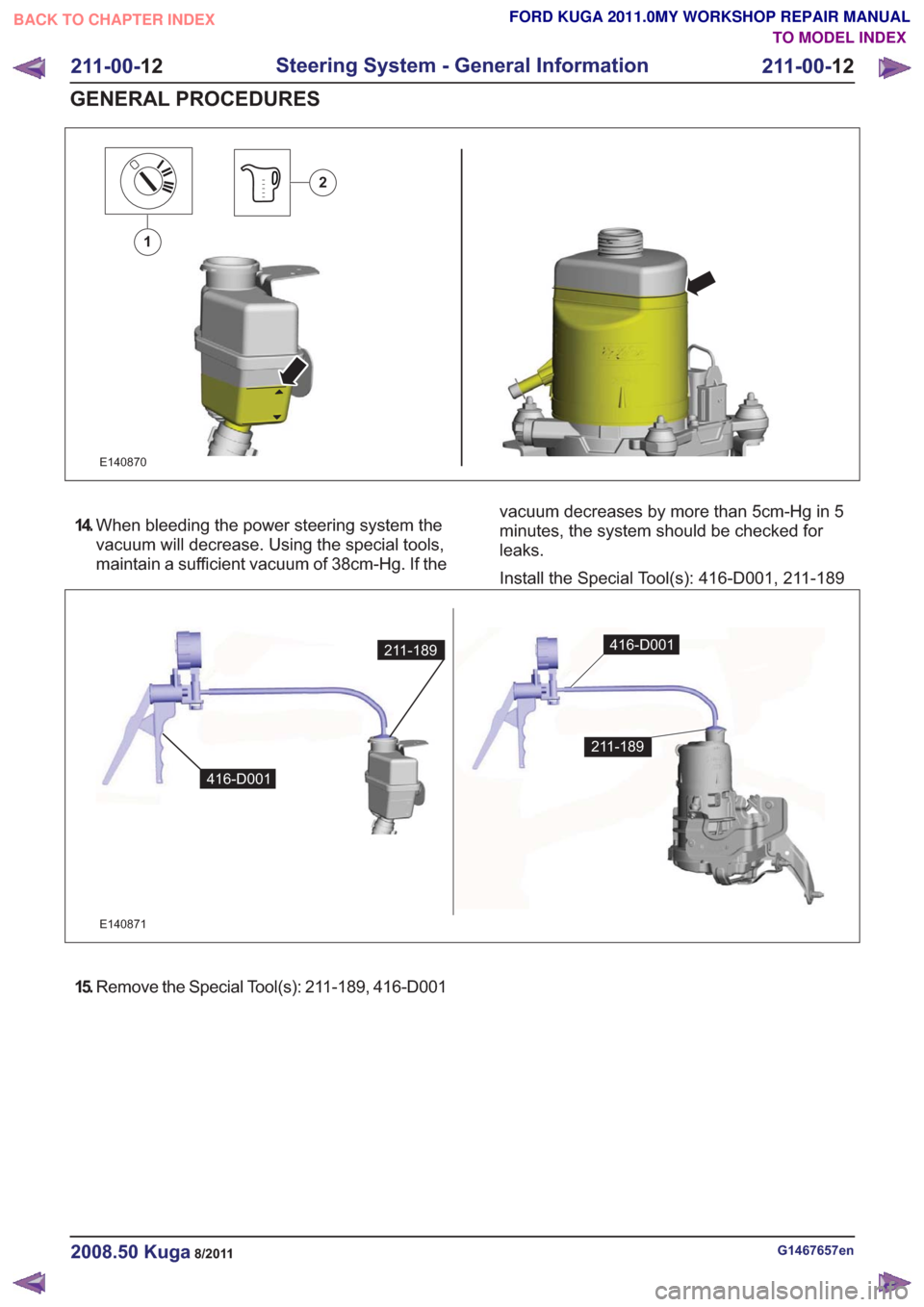

Page 1453 of 2057

FORD KUGA 2011 1.G Workshop Manual E140870 1 2 14.When bleeding the power steering system the vacuum will decrease. Using the special tools, maintain a sufficient vacuum of 38cm-Hg. If the vacuum decreases by more than 5cm-Hg in 5 minu

Page 1454 of 2057

FORD KUGA 2011 1.G Workshop Manual 211-189 416-D001 211-189 416-D001 E140871 416-D001 211-189 16. N O T E :Make sure the fluid in the reservoir does not fall below the MIN mark, as air could enter the system. E131522 123 17. Material:

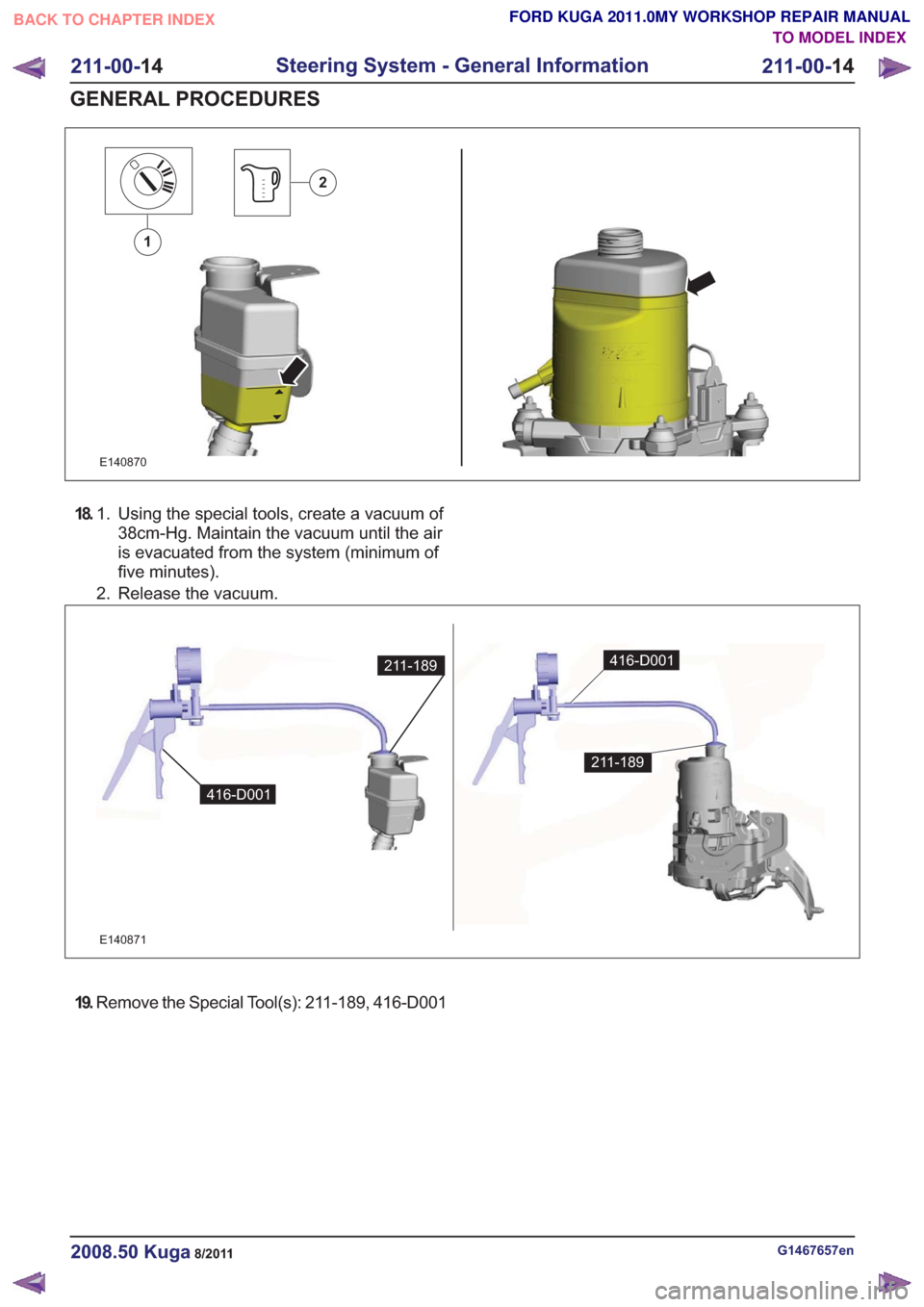

Page 1455 of 2057

FORD KUGA 2011 1.G Workshop Manual E140870 1 2 18.Using the special tools, create a vacuum of 38cm-Hg. Maintain the vacuum until the air 1. is evacuated from the system (minimum of five minutes). 2. Release the vacuum. 211-189 416-D001

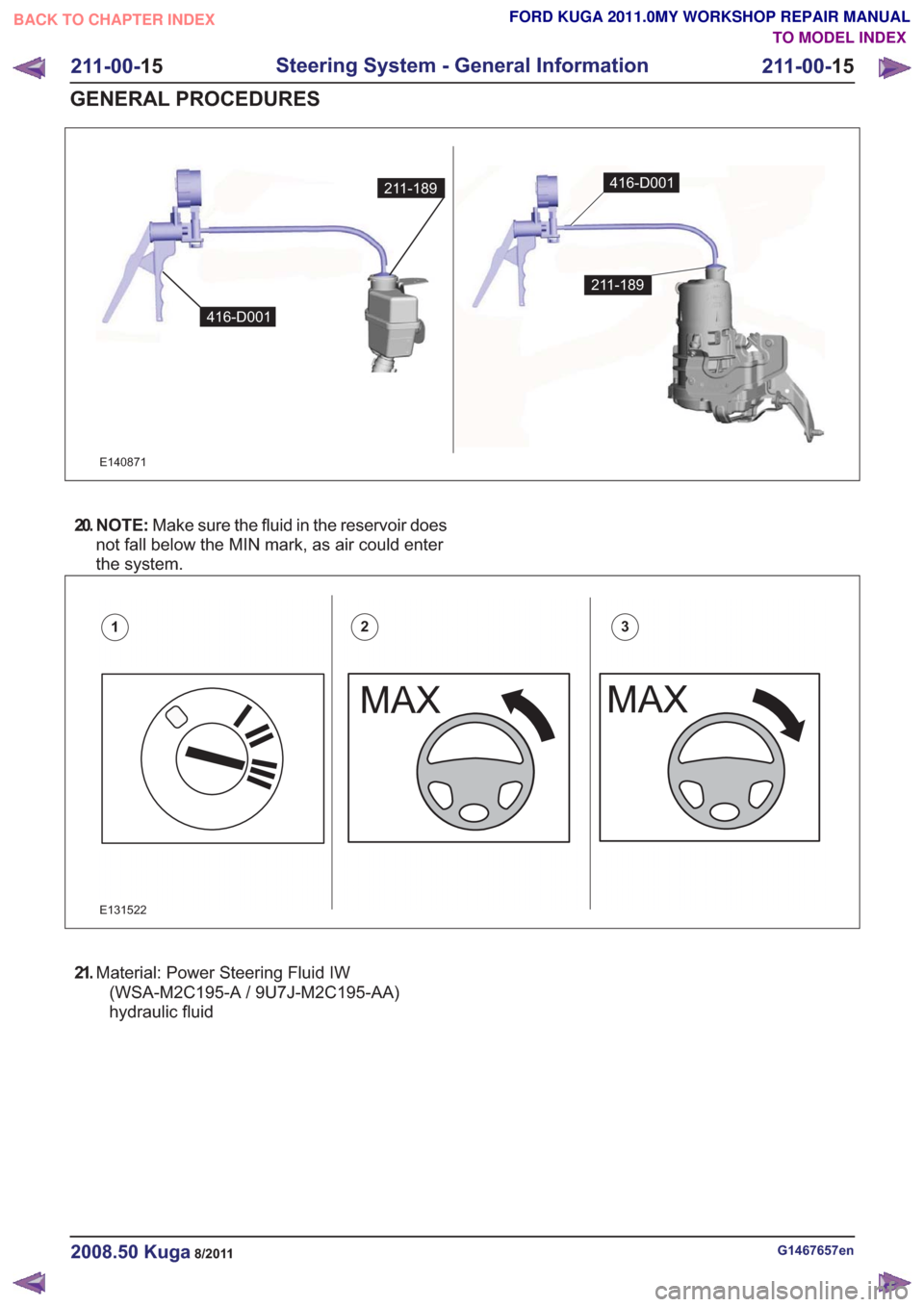

Page 1456 of 2057

FORD KUGA 2011 1.G Workshop Manual 211-189 416-D001 211-189 416-D001 E140871 416-D001 211-189 20. N O T E :Make sure the fluid in the reservoir does not fall below the MIN mark, as air could enter the system. E131522 123 21. Material:
