FORD KUGA 2011 1.G Workshop Manual Description

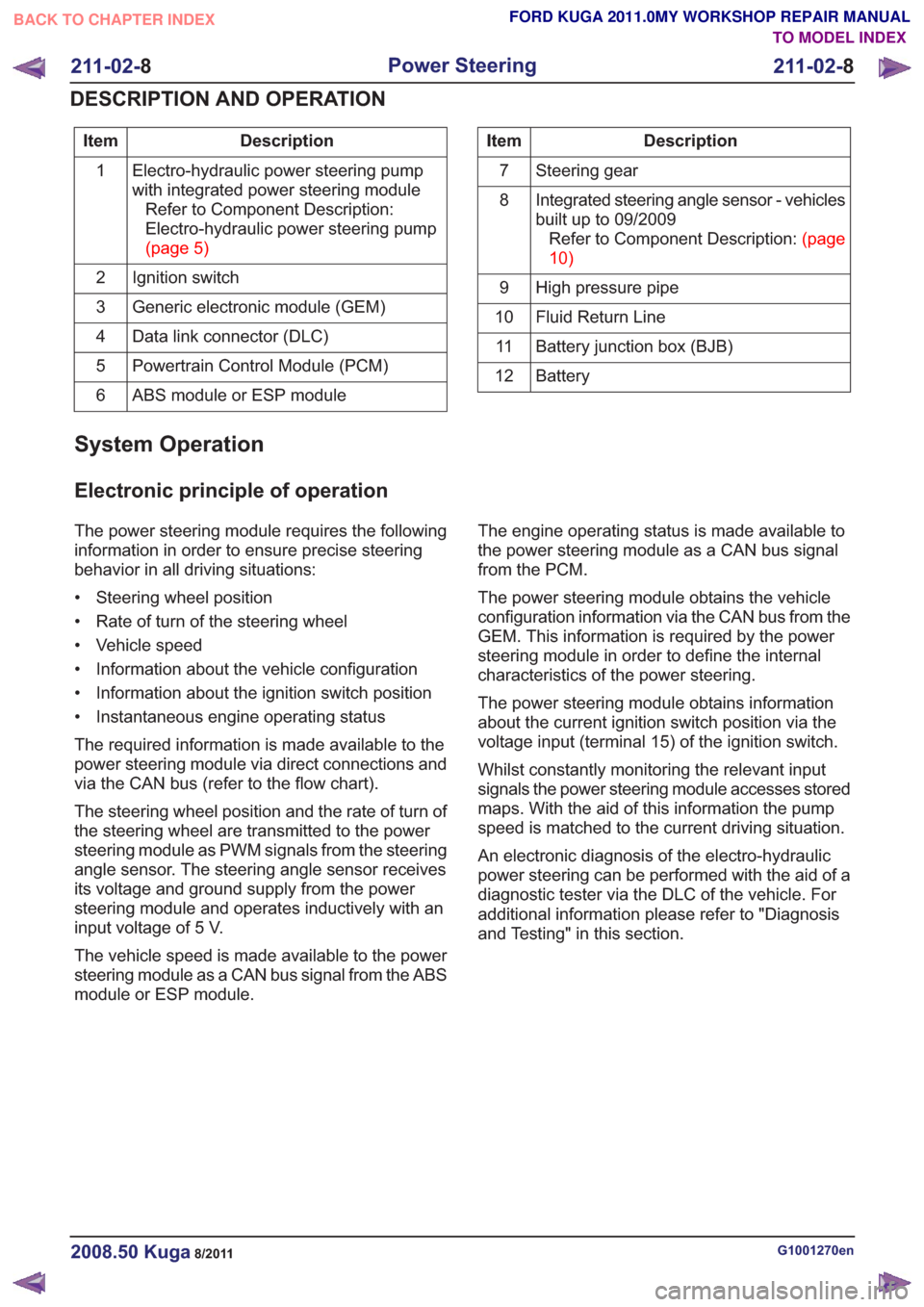

Item
Electro-hydraulic power steering pump
with integrated power steering moduleRefer to Component Description:
Electro-hydraulic power steering pump
(page5)
1
Ignition switch
2
Generic el

Description
Item
Electro-hydraulic power steering pump
with integrated power steering moduleRefer to Component Description:
Electro-hydraulic power steering pump
(page5)
1
Ignition switch
2
Generic electronic module (GEM)
3
Data link connector (DLC)
4
Powertrain Control Module (PCM)
5
ABS module or ESP module
6Description
Item
Steering gear
7
Integrated steering angle sensor - vehicles
built up to 09/2009RefertoComponentDescription:(page
10)
8
High pressure pipe
9
Fluid Return Line
10
Battery junction box (BJB)
11
Battery
12
System Operation
Electronic principle of operation
The power steering module requires the following
information in order to ensure precise steering
behavior in all driving situations:
• Steering wheel position
• Rate of turn of the steering wheel
• Vehicle speed
• Information about the vehicle configuration
• Information about the ignition switch position
• Instantaneous engine operating status
The required information is made available to the
power steering module via direct connections and
via the CAN bus (refer to the flow chart).
The steering wheel position and the rate of turn of
the steering wheel are transmitted to the power
steering module as PWM signals from the steering
angle sensor. The steering angle sensor receives
its voltage and ground supply from the power
steering module and operates inductively with an
input voltage of 5 V.
The vehicle speed is made available to the power
steering module as a CAN bus signal from the ABS
module or ESP module. The engine operating status is made available to
the power steering module as a CAN bus signal
from the PCM.
The power steering module obtains the vehicle
configuration information via the CAN bus from the
GEM. This information is required by the power
steering module in order to define the internal
characteristics of the power steering.
The power steering module obtains information
about the current ignition switch position via the
voltage input (terminal 15) of the ignition switch.
Whilst constantly monitoring the relevant input
signals the power steering module accesses stored
maps. With the aid of this information the pump
speed is matched to the current driving situation.
An electronic diagnosis of the electro-hydraulic
power steering can be performed with the aid of a
diagnostic tester via the DLC of the vehicle. For
additional information please refer to "Diagnosis
and Testing" in this section.
G1001270en2008.50 Kuga8/2011
211-02-
8
Power Steering
211-02- 8
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Page 1466 of 2057

FORD KUGA 2011 1.G Workshop Manual Hydraulic principle of operation
E96442
3
4
5
7
8
6
1
2

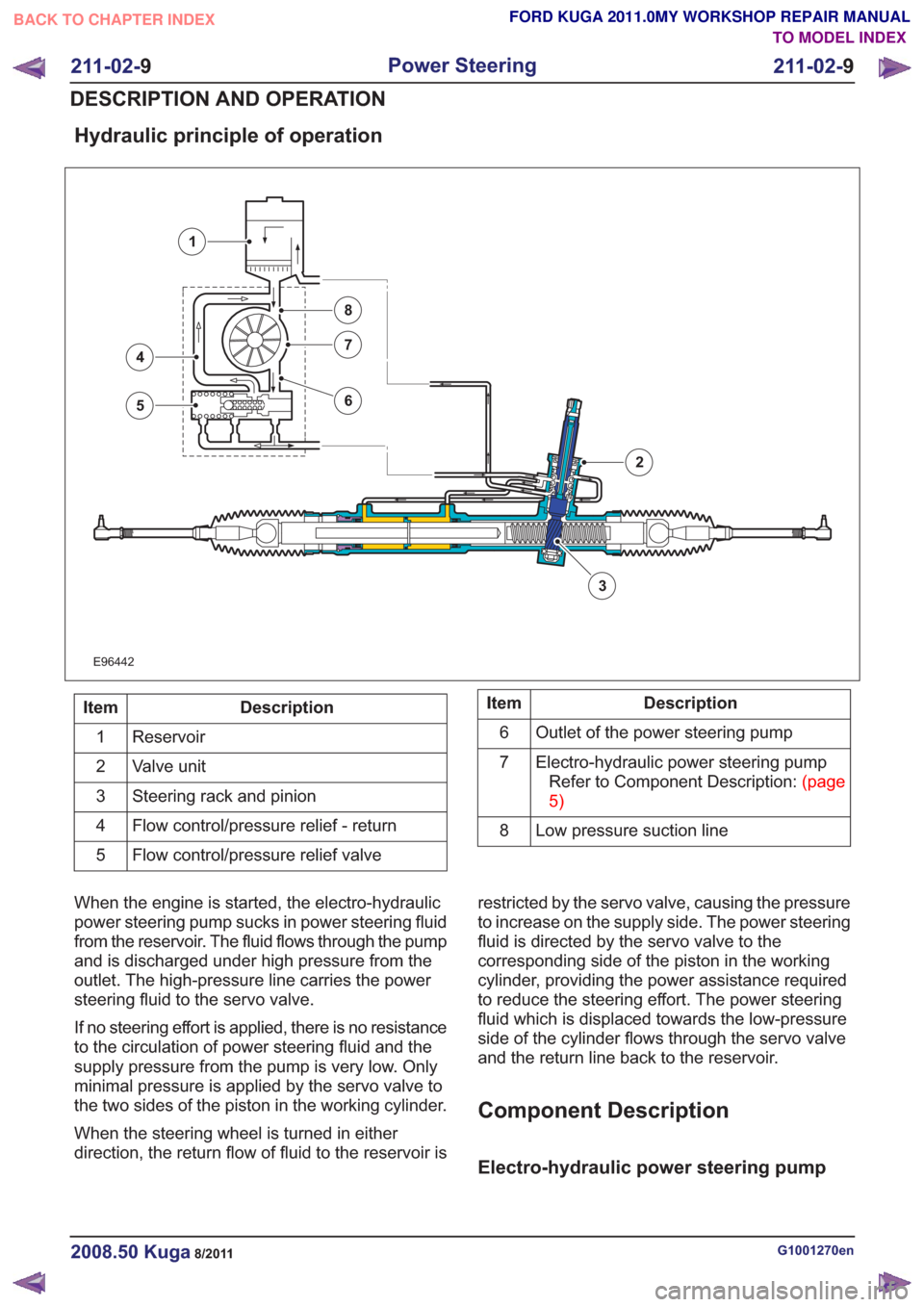

Description
Item
Reservoir
1
Valve unit
2
Steering rack and pinion
3
Flow control/pressure relief - return
4
Flow control/pressure relief valve

Page 1467 of 2057

FORD KUGA 2011 1.G Workshop Manual E96312
1
2
3
Description
Item
Reservoir
1

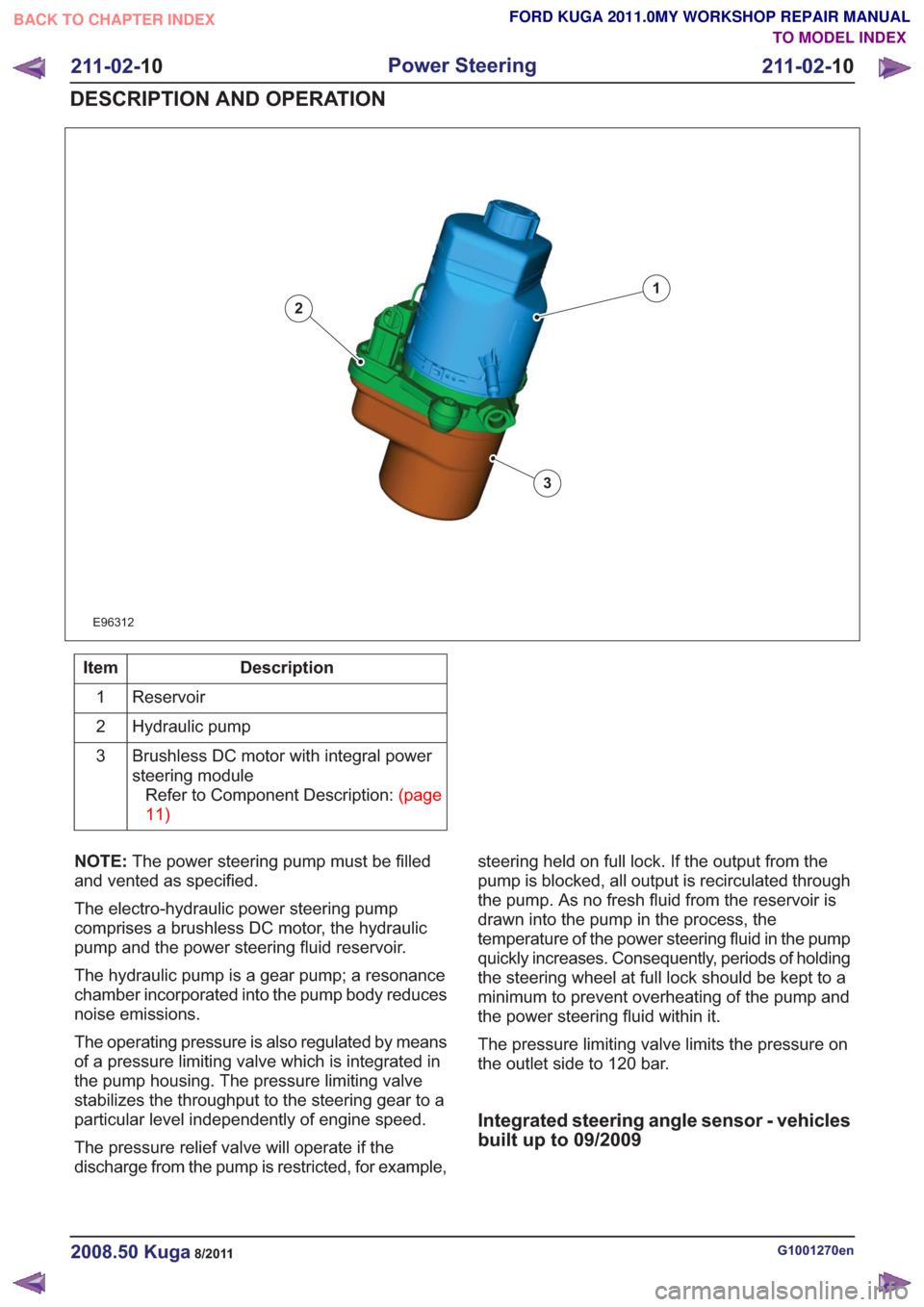

Hydraulic pump
2
Brushless DC motor with integral power
steering moduleRefertoComponentDescription:(page
11)
3
NOTE: The power steering pump must be filled
an

Page 1468 of 2057

FORD KUGA 2011 1.G Workshop Manual E96430

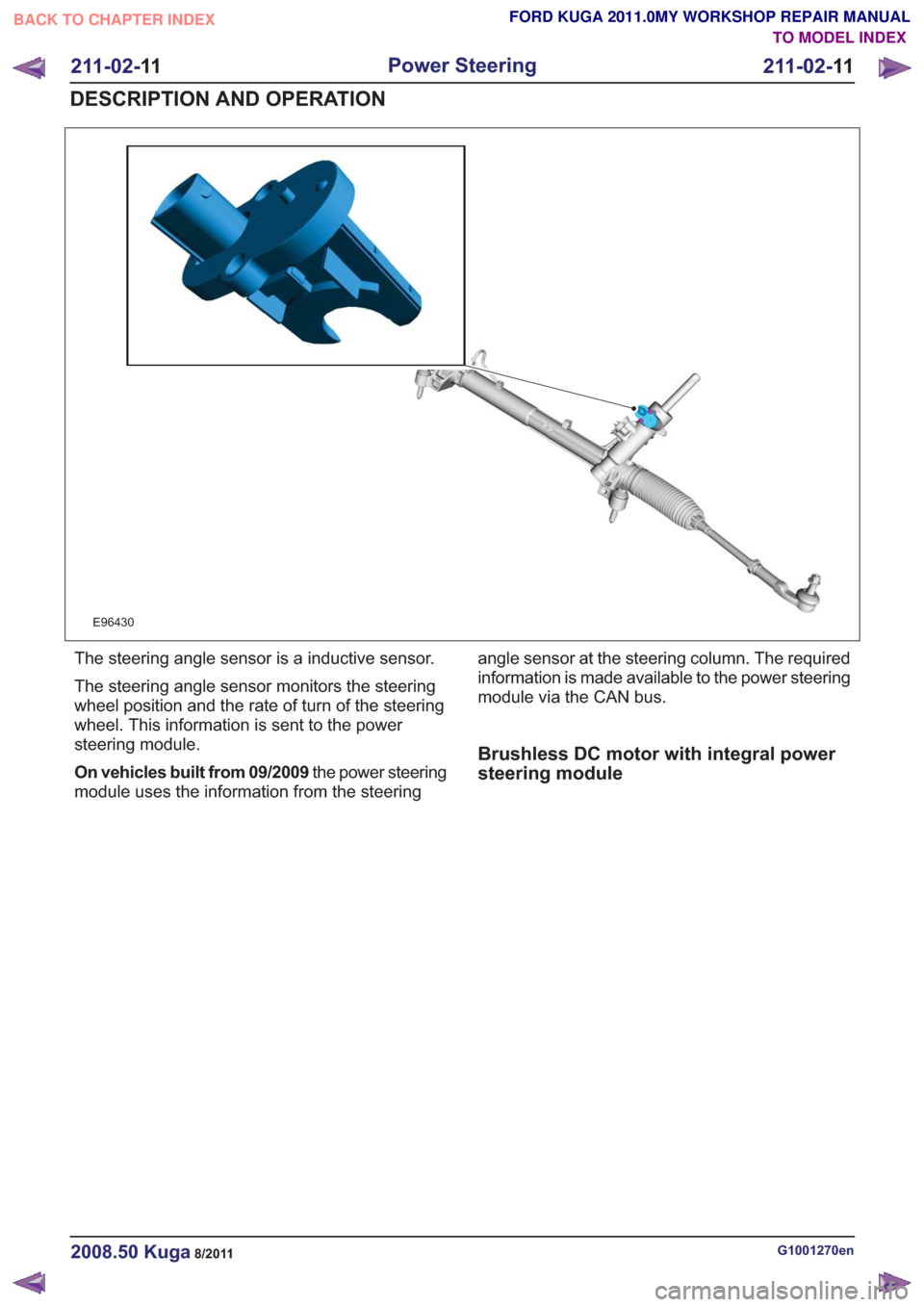

The steering angle sensor is a inductive sensor.
The steering angle sensor monitors the steering
wheel position and the rate of turn of the steering
wheel. This information is sent to the power

Page 1469 of 2057

FORD KUGA 2011 1.G Workshop Manual 1
2
3
45
6
7
8
9
10
E42460
Description
Item

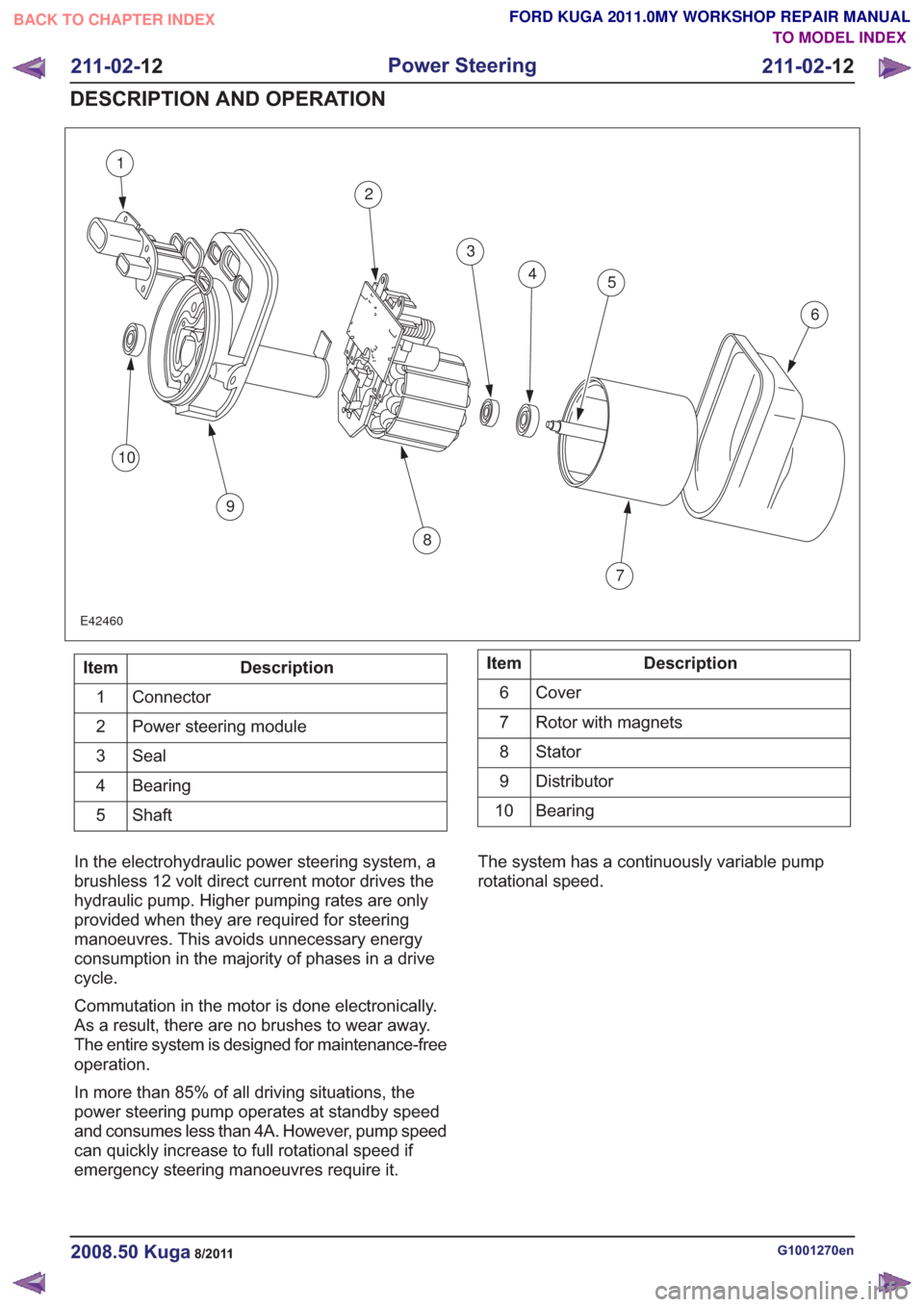

Connector
1
Power steering module
2
Seal
3
Bearing
4
Shaft
5Description
Item
Cover
6
Rotor with magnets
7
Stator8
Distributor
9
Bearing
10
In the electrohyd

Page 1470 of 2057

FORD KUGA 2011 1.G Workshop Manual Power Steering Pressure Line and Return Line Assembly — 2.5LDuratec (147kW/200PS) - VI5(13 443 0)
General Equipment
Hose Clamp Remover/Installer
Removal

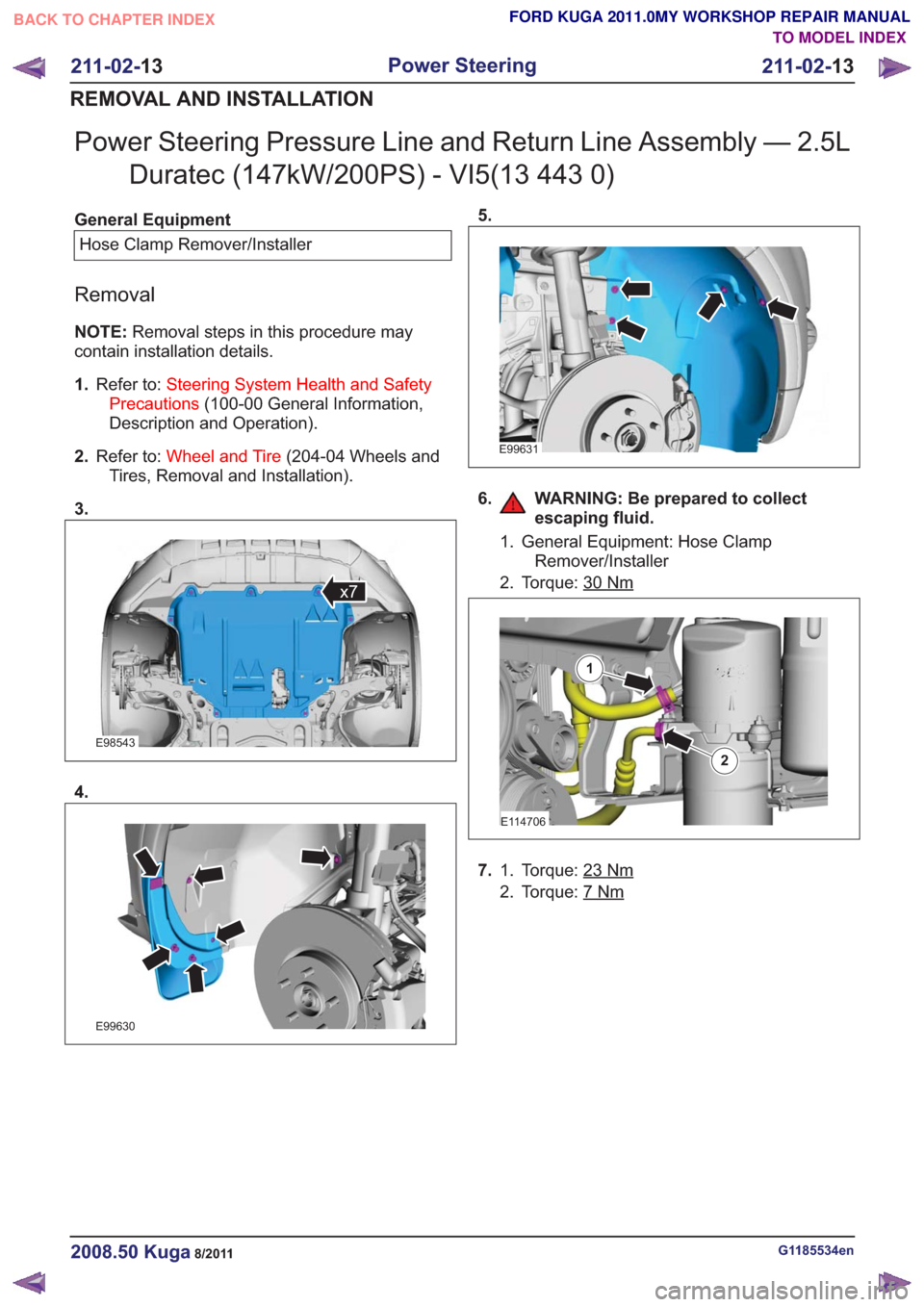

NOTE: Removal steps in this procedure may
con

Page 1471 of 2057

FORD KUGA 2011 1.G Workshop Manual E112634
2
1

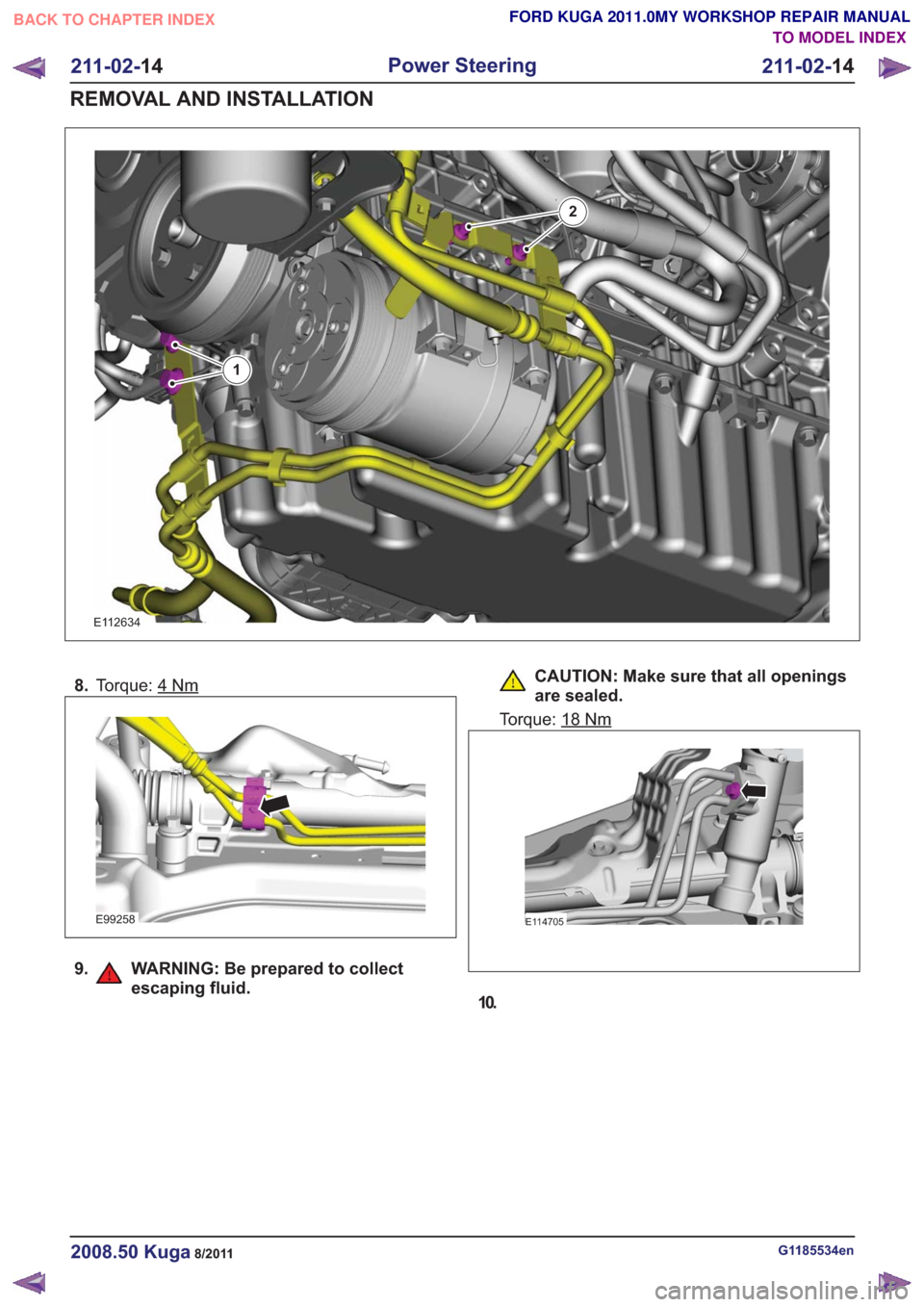

8.Torque: 4Nm
E99258
9. WARNING: Be prepared to collect
escaping fluid.
CAUTION: Make sure that all openings
are sealed.
Torque: 18
Nm
E114705
10.
G1185534en2008.50 Kuga8/2011
211-02- 14
P

Page 1472 of 2057

FORD KUGA 2011 1.G Workshop Manual E114708

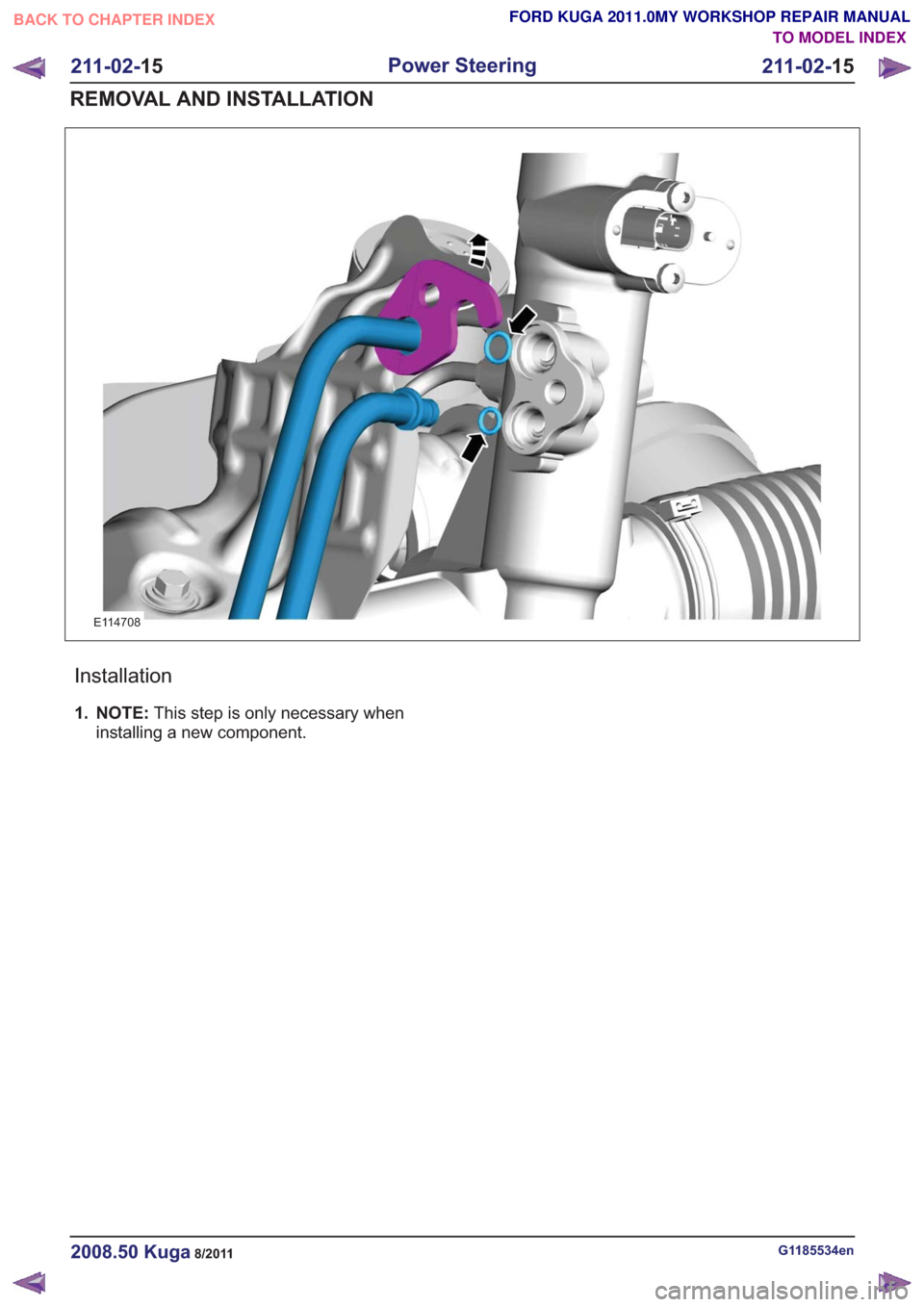

Installation
1. NOTE:This step is only necessary when
installing a new component.
G1185534en2008.50 Kuga8/2011
211-02- 15
Power Steering
211-02- 15
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK

Load next 8 pages
