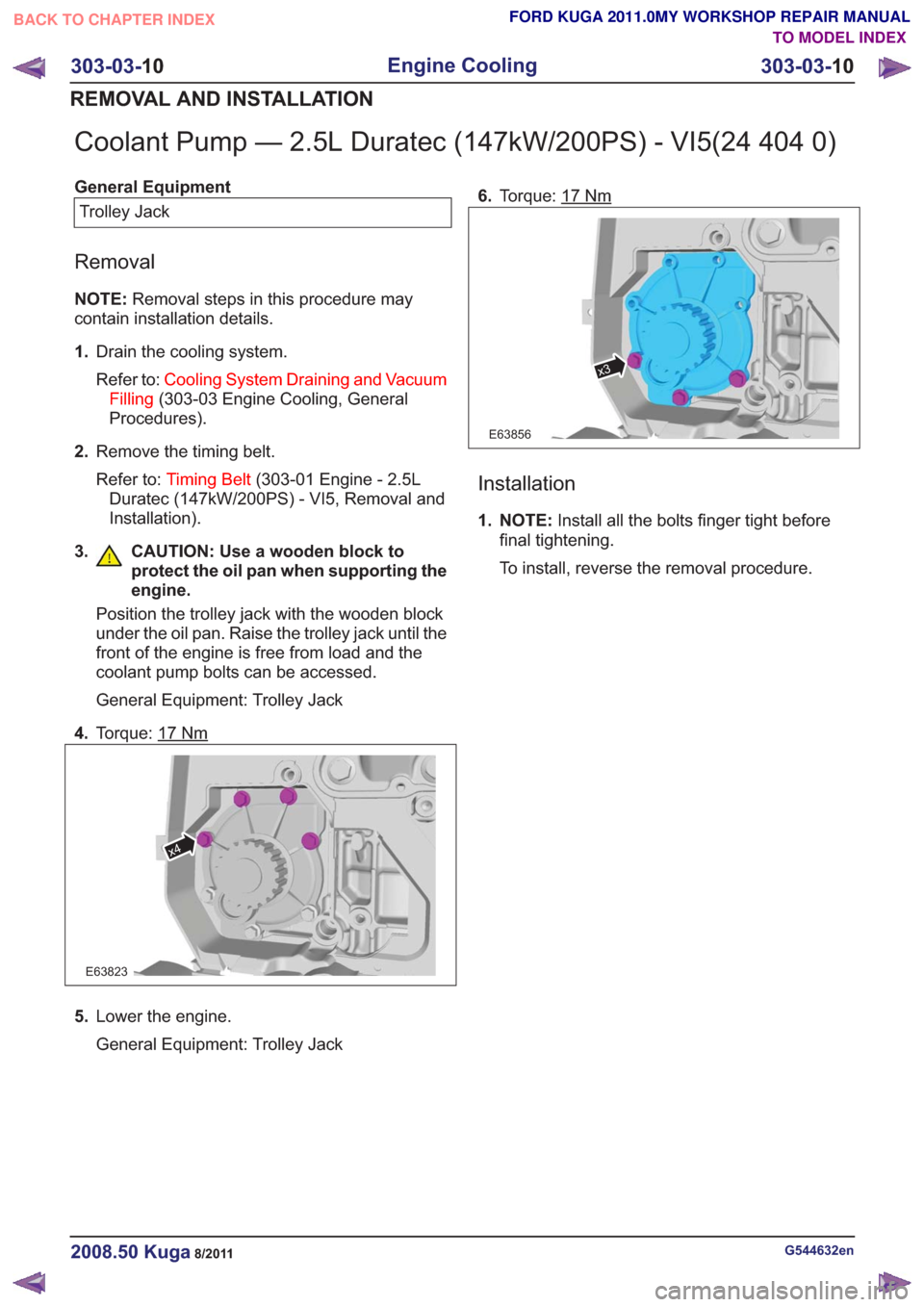

Page 1681 of 2057

FORD KUGA 2011 1.G Workshop Manual Coolant Pump — 2.5L Duratec (147kW/200PS) - VI5(24 404 0) General EquipmentTrolley Jack Removal NOTE: Removal steps in this procedure may contain installation details. 1. Drain the cooling system. R

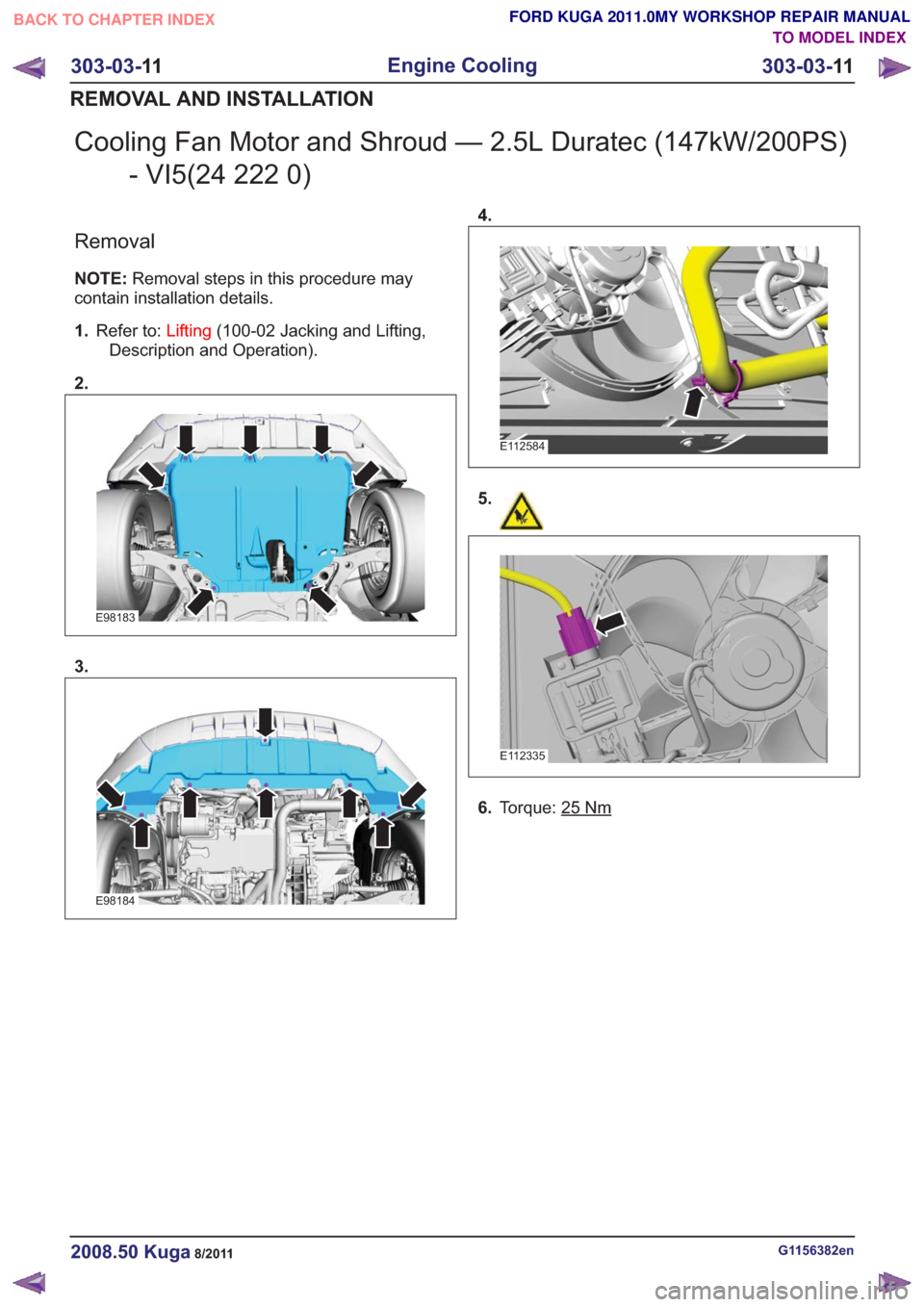

Page 1682 of 2057

FORD KUGA 2011 1.G Workshop Manual Cooling Fan Motor and Shroud — 2.5L Duratec (147kW/200PS)- VI5(24 222 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Lifting(100-02 Jacking and Lifti

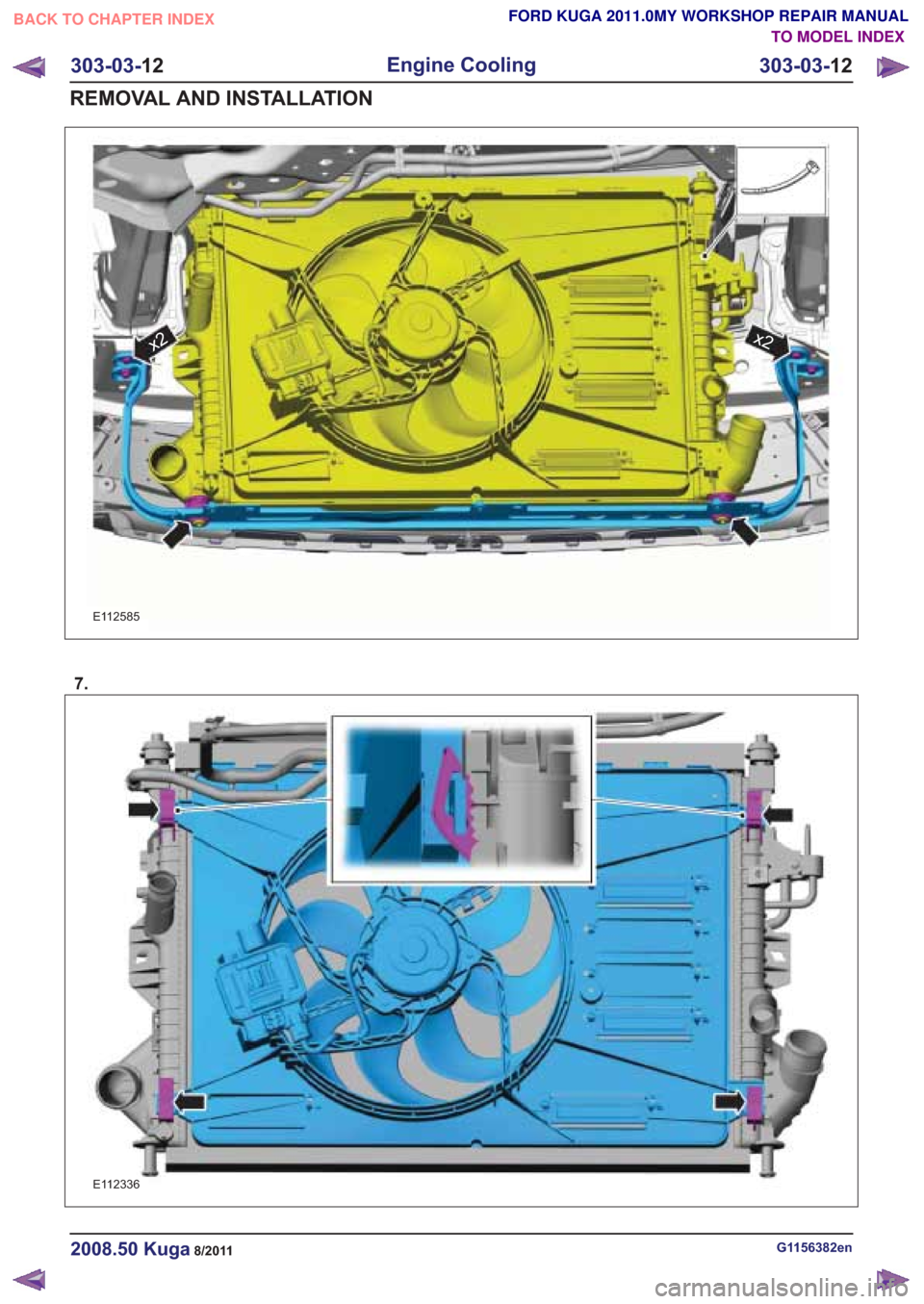

Page 1683 of 2057

FORD KUGA 2011 1.G Workshop Manual E112585 x2 7. G1156382en2008.50 Kuga8/2011 303-03-12 Engine Cooling 303-03- 12 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER INDEX FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL x2 E112336

Page 1684 of 2057

FORD KUGA 2011 1.G Workshop Manual Installation 1.To install, reverse the removal procedure. G1156382en2008.50 Kuga8/2011 303-03- 13 Engine Cooling 303-03- 13 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER INDEX FORD KUGA 2011

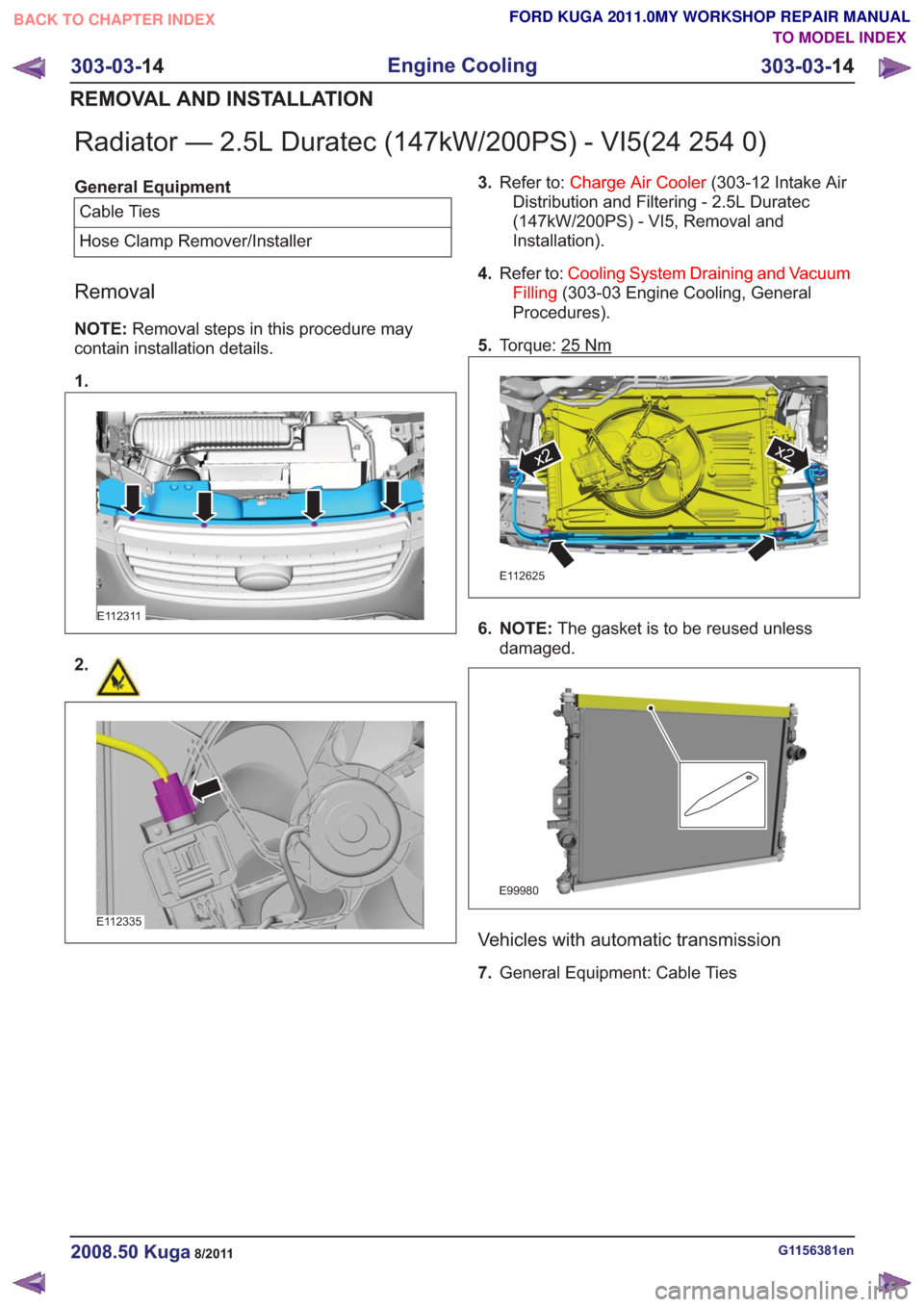

Page 1685 of 2057

FORD KUGA 2011 1.G Workshop Manual Radiator — 2.5L Duratec (147kW/200PS) - VI5(24 254 0) General EquipmentCable Ties Hose Clamp Remover/Installer Removal NOTE: Removal steps in this procedure may contain installation details. 1. E112

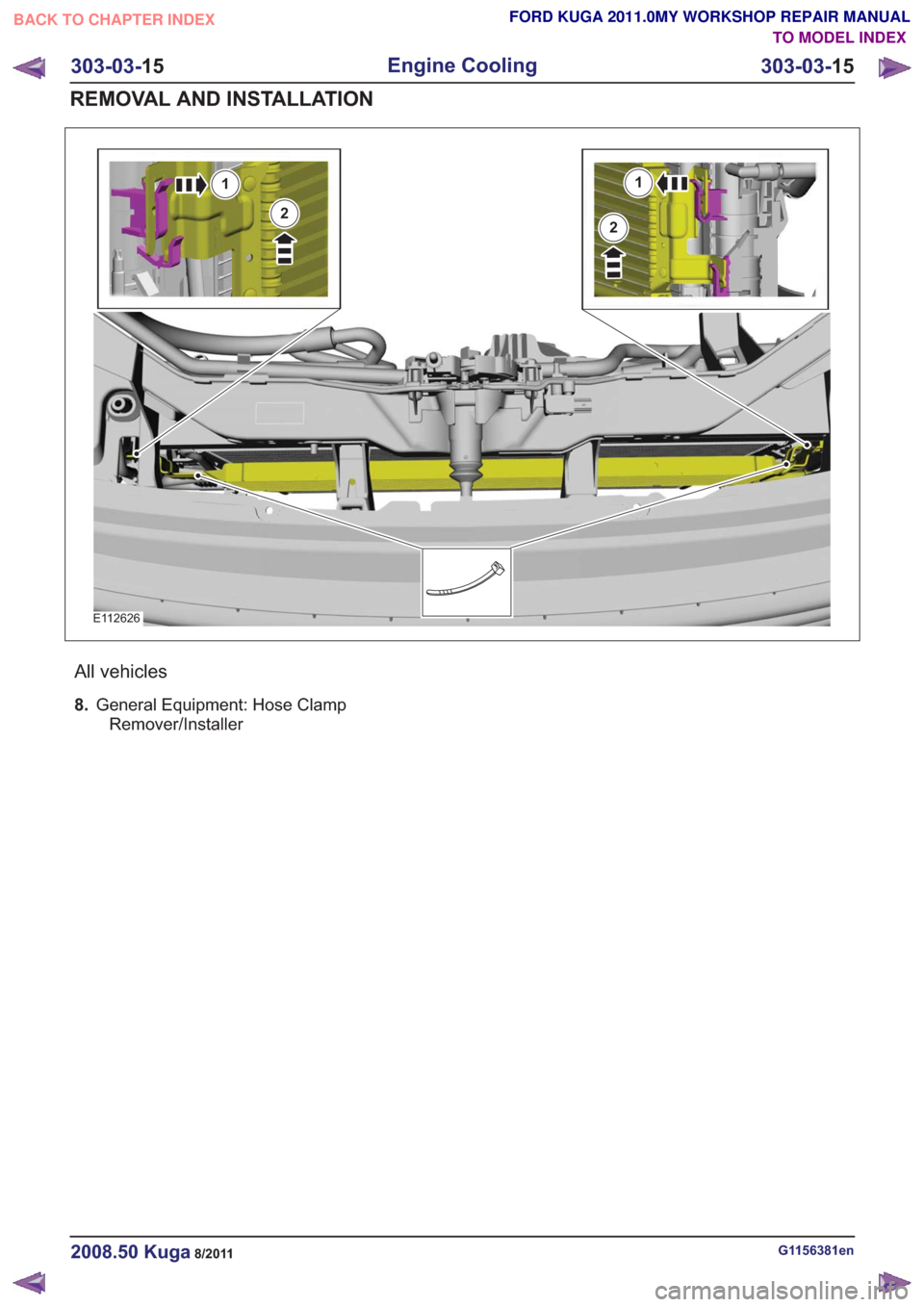

Page 1686 of 2057

FORD KUGA 2011 1.G Workshop Manual E112626 1 2 1 2 All vehicles 8.General Equipment: Hose Clamp Remover/Installer G1156381en2008.50 Kuga8/2011 303-03- 15 Engine Cooling 303-03- 15 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER

Page 1687 of 2057

FORD KUGA 2011 1.G Workshop Manual E112764 1 2 9.Torque: 5Nm E99965 10.General Equipment: Cable Ties G1156381en2008.50 Kuga8/2011 303-03- 16 Engine Cooling 303-03- 16 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER INDEX FORD K

Page 1688 of 2057

FORD KUGA 2011 1.G Workshop Manual E99981 2 1 2 11 . E112627 12. G1156381en2008.50 Kuga8/2011 303-03-17 Engine Cooling 303-03- 17 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER INDEX FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
