Page 1313 of 2057

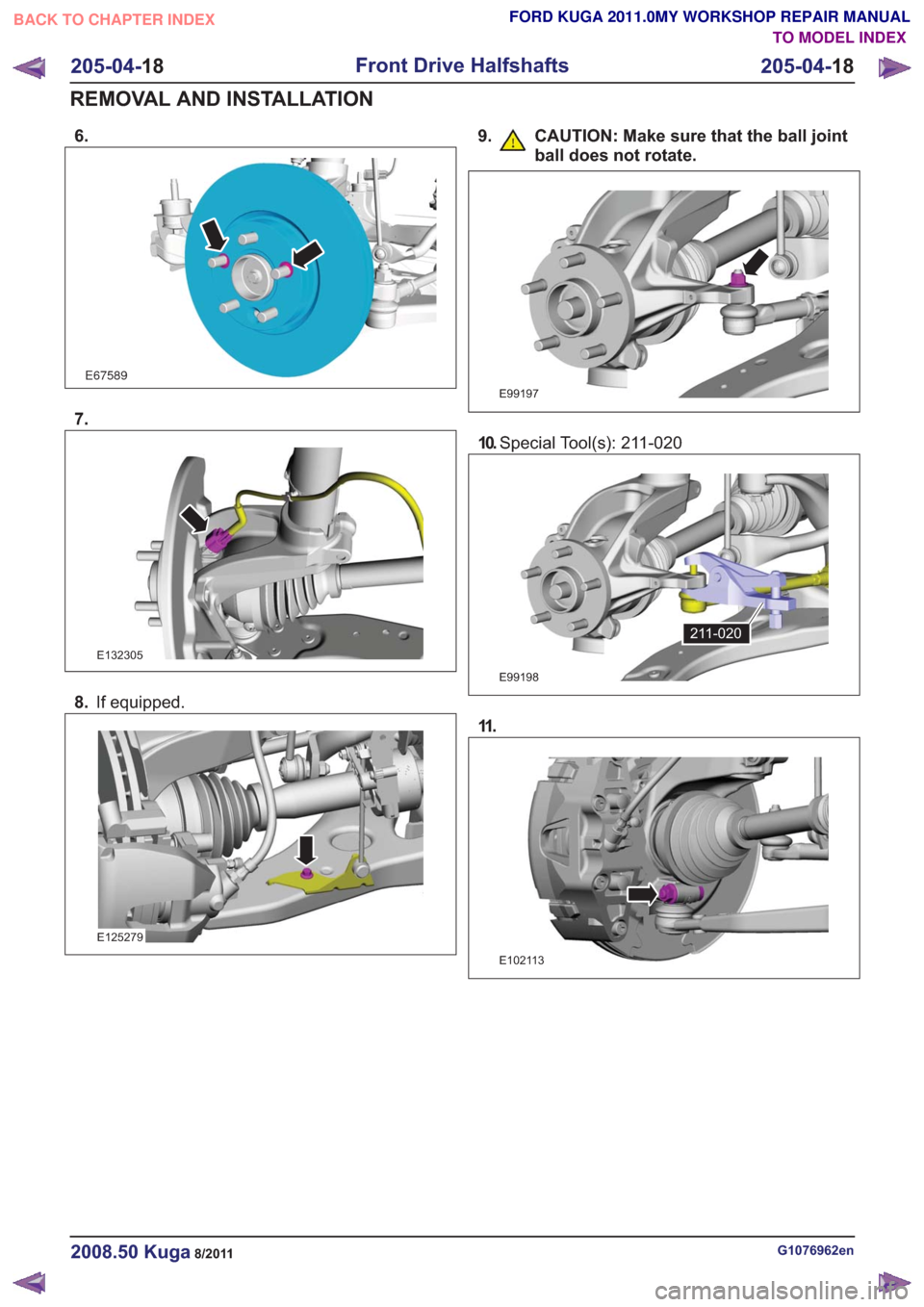

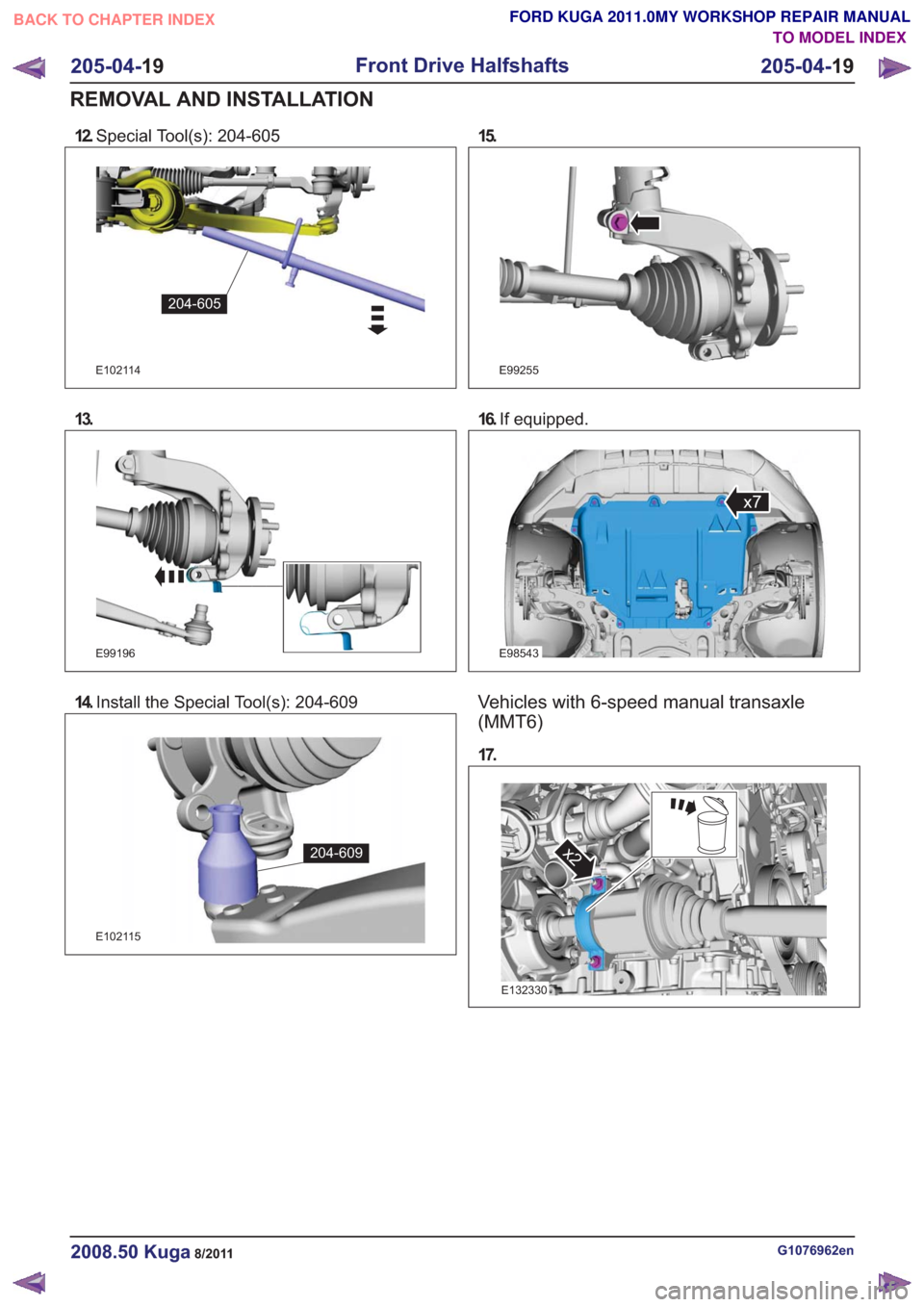

FORD KUGA 2011 1.G Workshop Manual 6. E67589 7. E132305 8.If equipped. E125279 9. CAUTION: Make sure that the ball joint ball does not rotate. E99197 10.Special Tool(s): 211-020 E99198 211-020 11 . E102113 G1076962en2008.50 Kuga8/2011

Page 1314 of 2057

FORD KUGA 2011 1.G Workshop Manual 12.Special Tool(s): 204-605 E102114 204-605 13. E99196 14.Install the Special Tool(s): 204-609 E102115 204-609 15. E99255 16.If equipped. E98543 x7 Vehicles with 6-speed manual transaxle (MMT6) 17. x2

Page 1315 of 2057

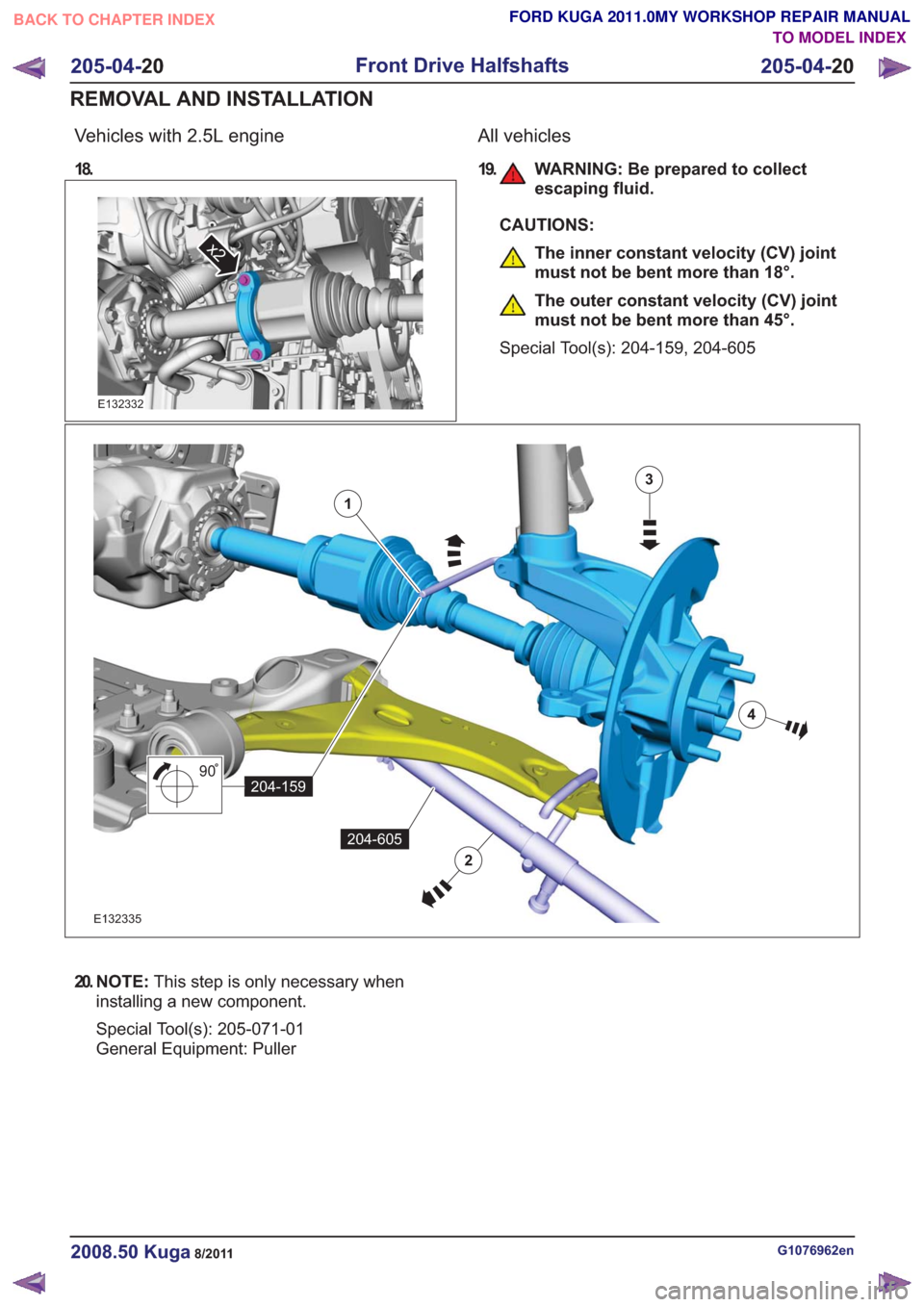

FORD KUGA 2011 1.G Workshop Manual Vehicles with 2.5L engine 18. x2x2 E132332 All vehicles 19. WARNING: Be prepared to collectescaping fluid. CAUTIONS: The inner constant velocity (CV) joint must not be bent more than 18°. The outer c

Page 1316 of 2057

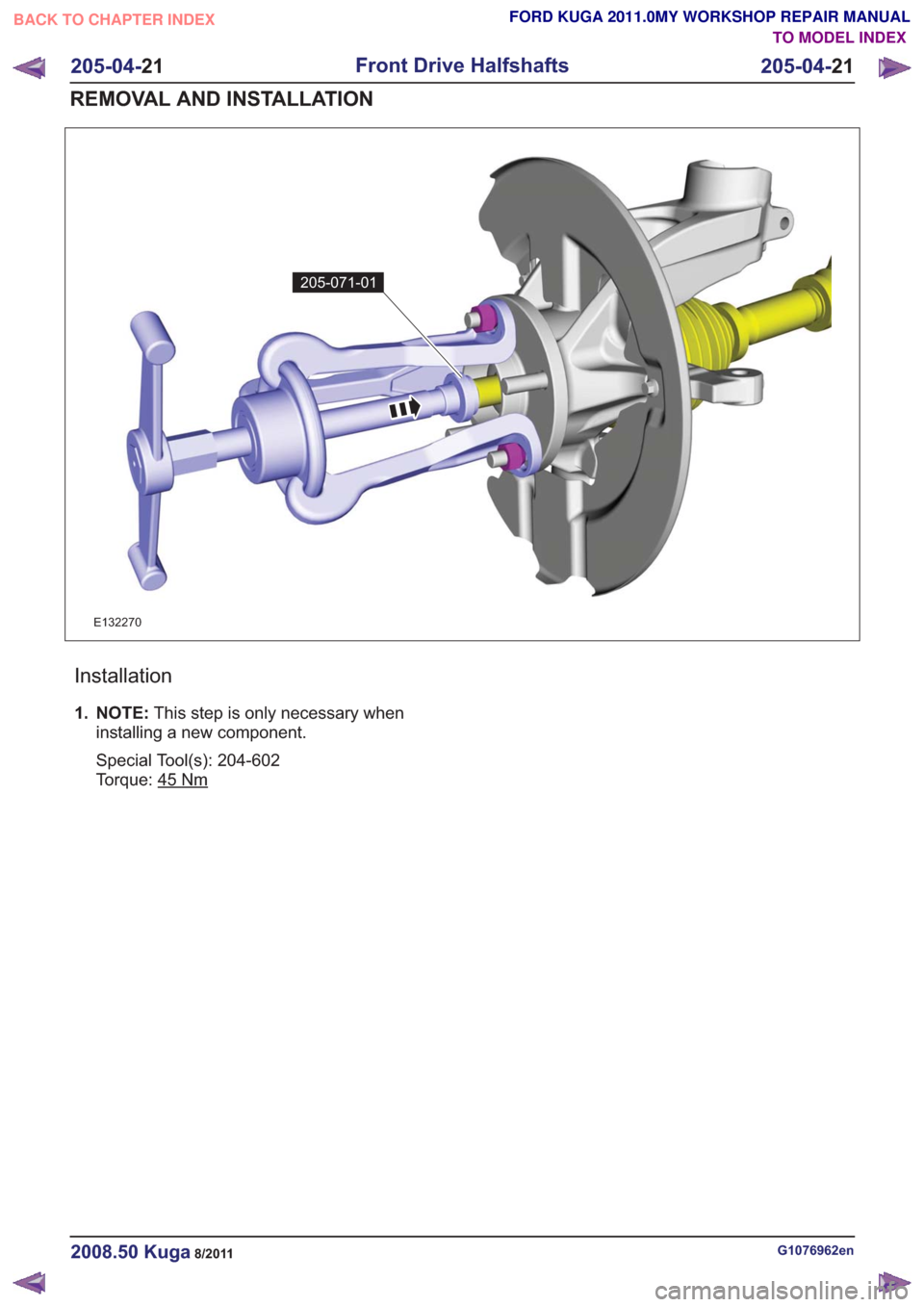

FORD KUGA 2011 1.G Workshop Manual 205-071-01205-071-01 E132270 Installation 1. NOTE:This step is only necessary when installing a new component. Special Tool(s): 204-602 Torque: 45 Nm G1076962en2008.50 Kuga8/2011 205-04- 21 Front Driv

Page 1317 of 2057

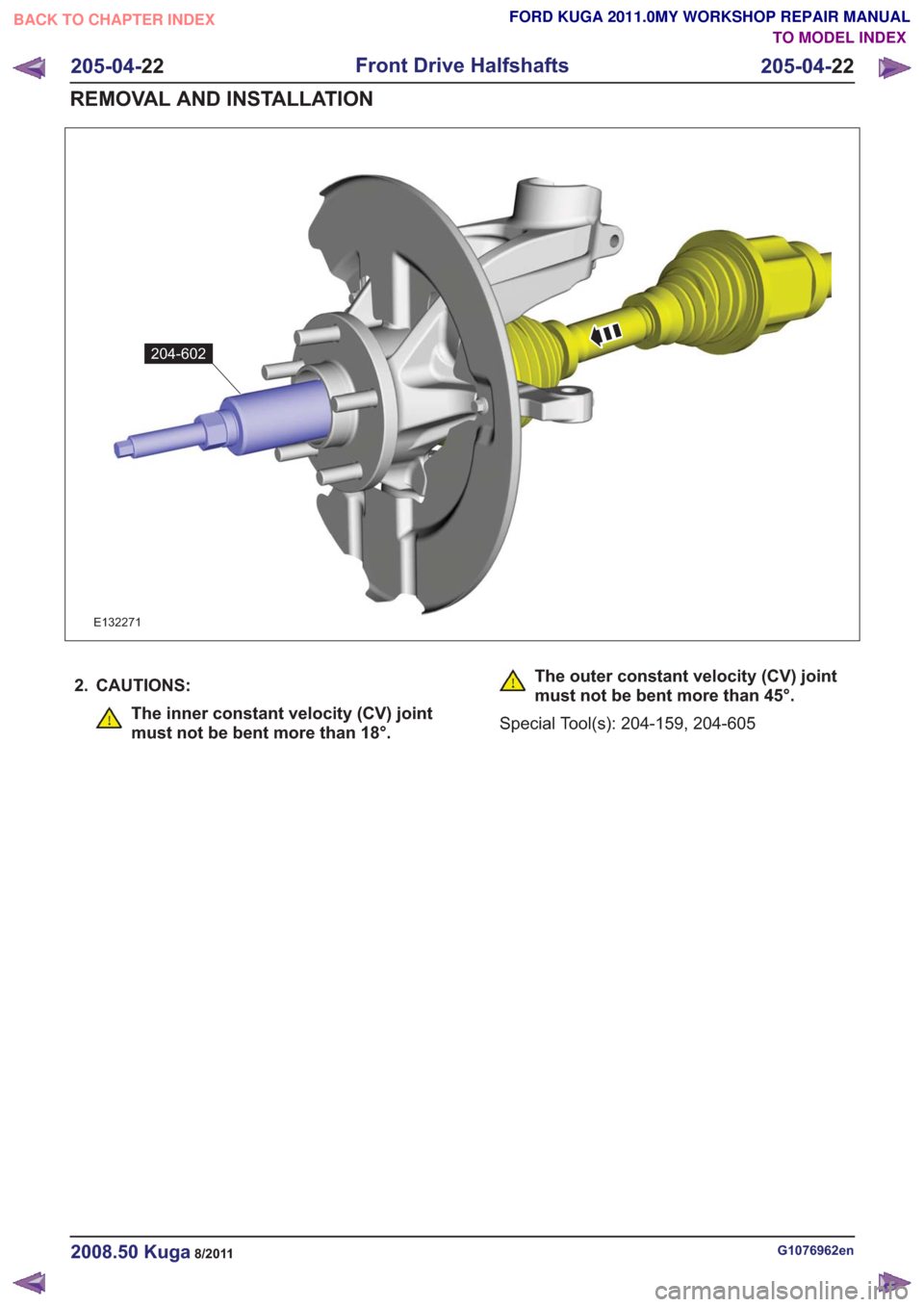

FORD KUGA 2011 1.G Workshop Manual 204-602204-602 E132271 2. CAUTIONS: The inner constant velocity (CV) joint must not be bent more than 18°. The outer constant velocity (CV) joint must not be bent more than 45°. Special Tool(s): 204

Page 1318 of 2057

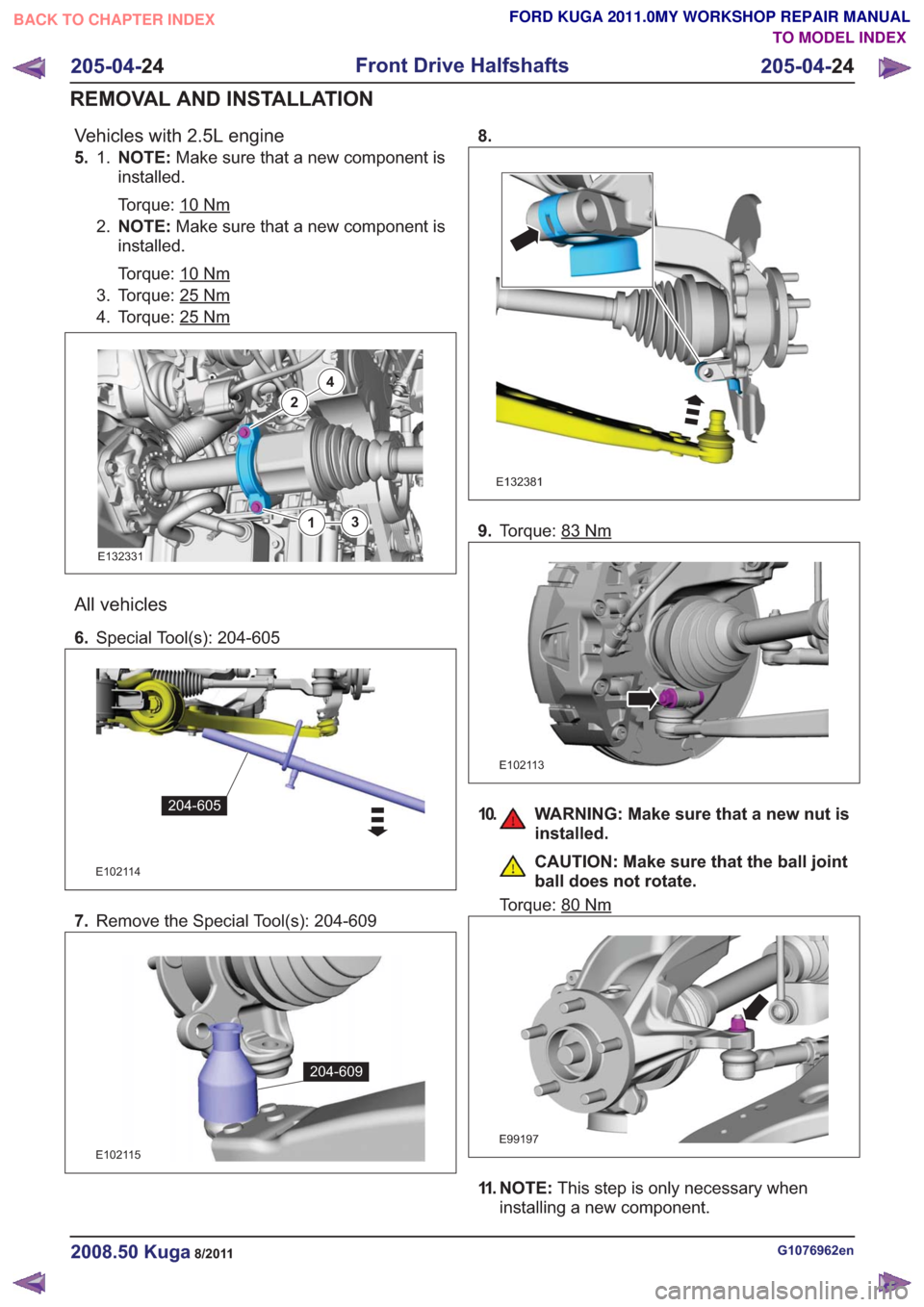

FORD KUGA 2011 1.G Workshop Manual 3 4 204-605 1 204-159 90 2 3 4 204-605 1 204-159 90 2 E132336 3.Torque: 90Nm E99255 Vehicles with 6-speed manual transaxle (MMT6) 4. NOTE: Make sure that a new component is installed. 1. 2. NOTE: Make

Page 1319 of 2057

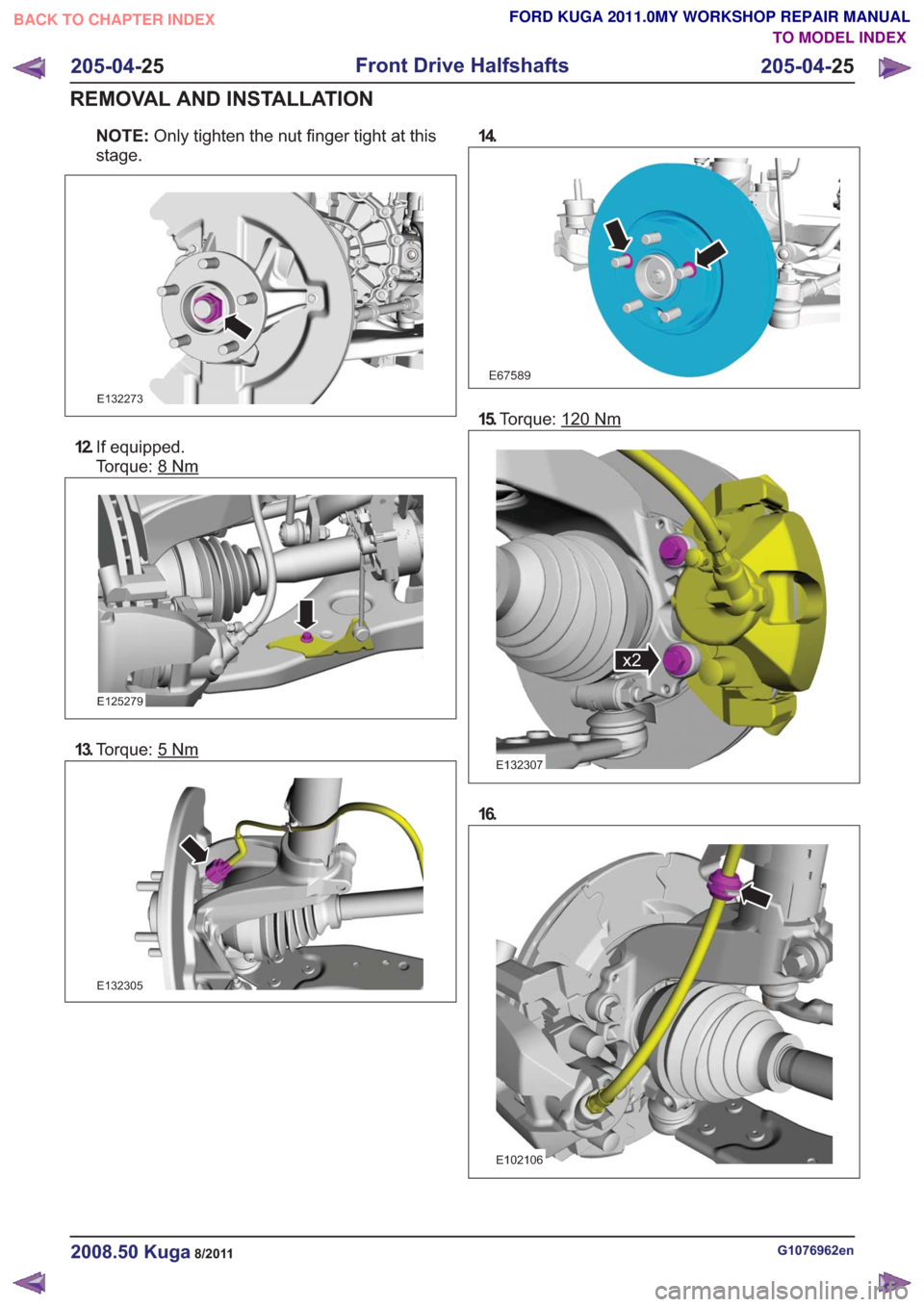

FORD KUGA 2011 1.G Workshop Manual Vehicles with 2.5L engine 5. NOTE:Make sure that a new component is installed. Torque: 10 Nm 1. 2. NOTE: Make sure that a new component is installed. Torque: 10 Nm 3. Torque: 25Nm 4. Torque: 25Nm 2 4

Page 1320 of 2057

FORD KUGA 2011 1.G Workshop Manual NOTE:Only tighten the nut finger tight at this stage. E132273 12. If equipped. Torque: 8 Nm E125279 13.Torque: 5Nm E132305 14. E67589 15.Torque: 120Nm x2x2 E132307 16. E102106 G1076962en2008.50 Kuga8/
