Page 1889 of 2057

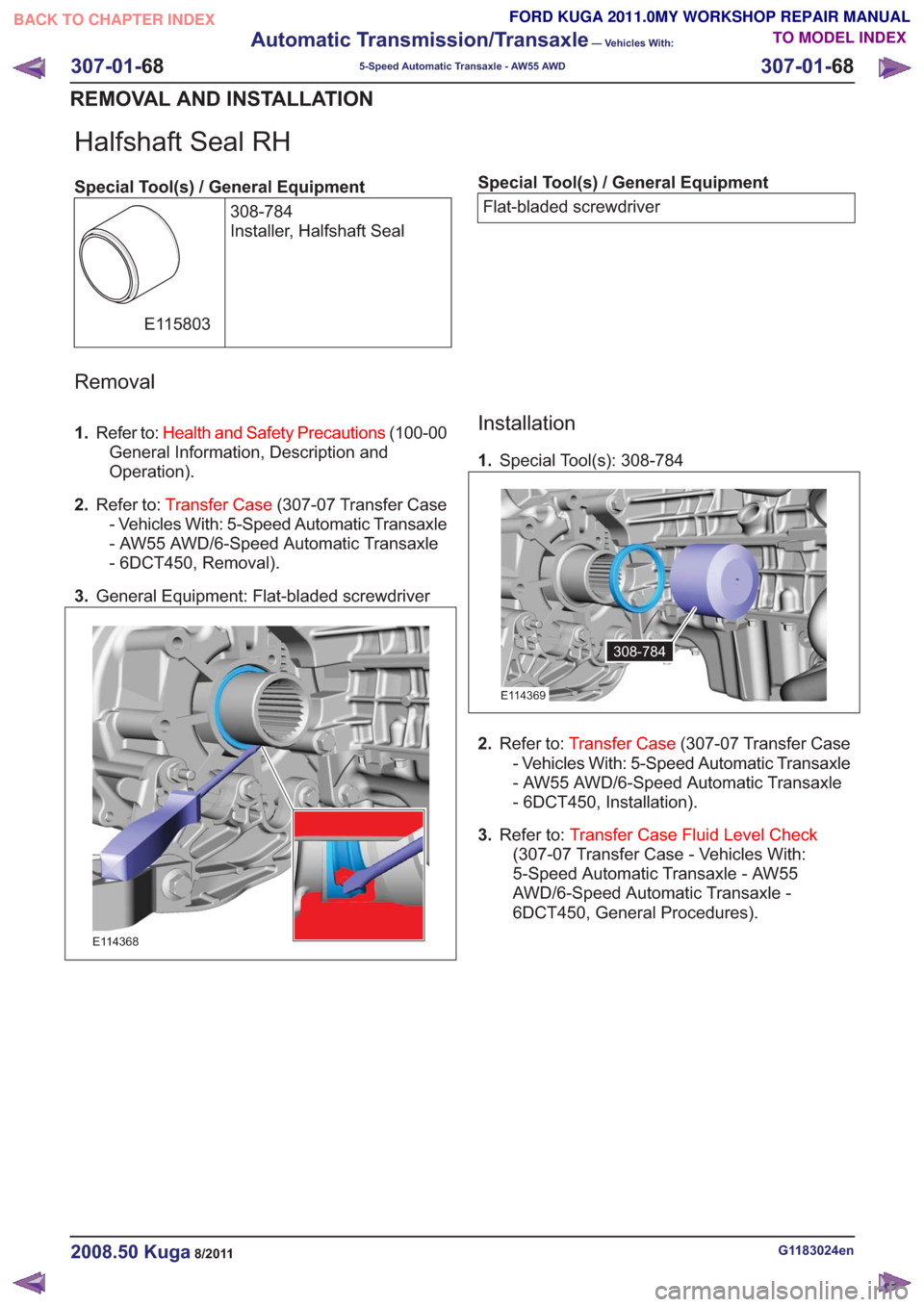

FORD KUGA 2011 1.G Workshop Manual Halfshaft Seal RH Special Tool(s) / General Equipment308-784 Installer, Halfshaft Seal E115803 Special Tool(s) / General EquipmentFlat-bladed screwdriver Removal 1. Refer to: Health and Safety Precaut

Page 1890 of 2057

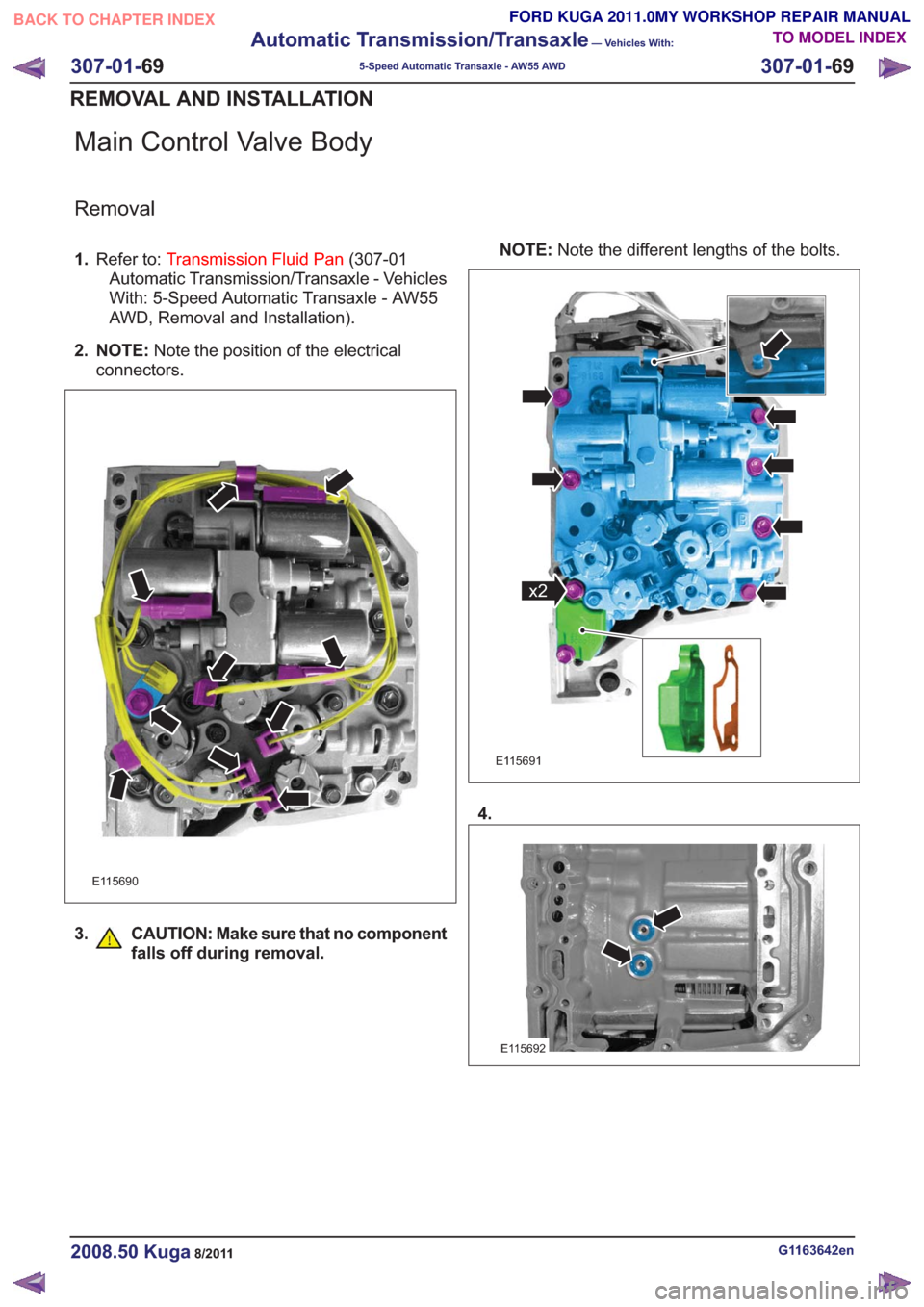

FORD KUGA 2011 1.G Workshop Manual Main Control Valve Body Removal 1.Refer to: Transmission Fluid Pan (307-01 Automatic Transmission/Transaxle - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD, Removal and Installation). 2. NOTE:

Page 1891 of 2057

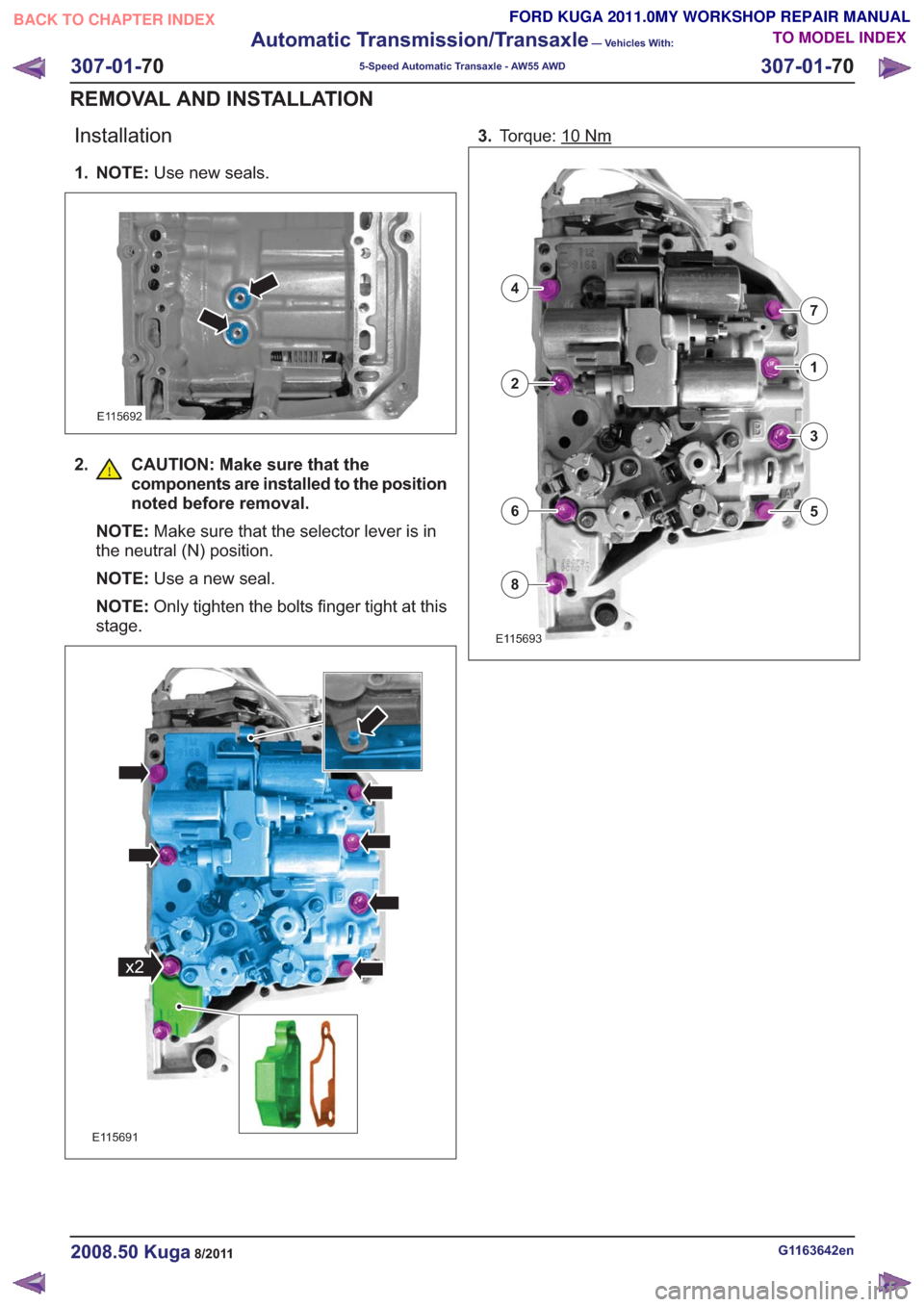

FORD KUGA 2011 1.G Workshop Manual Installation 1. NOTE:Use new seals. E115692 2. CAUTION: Make sure that the components are installed to the position noted before removal. NOTE: Make sure that the selector lever is in the neutral (N)

Page 1892 of 2057

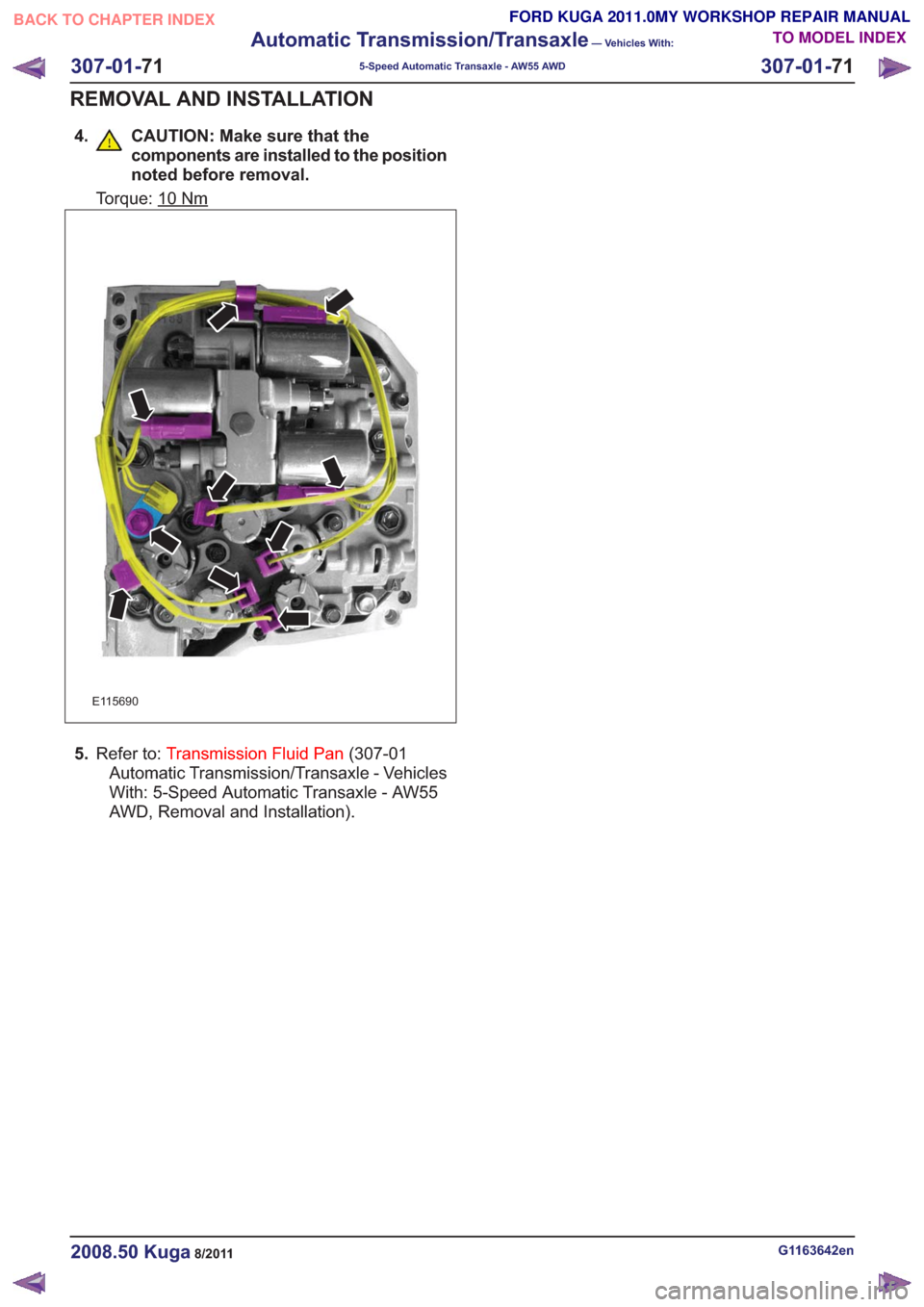

FORD KUGA 2011 1.G Workshop Manual 4. CAUTION: Make sure that thecomponents are installed to the position noted before removal. Torque: 10Nm E115690 5.Refer to: Transmission Fluid Pan (307-01 Automatic Transmission/Transaxle - Vehicles

Page 1893 of 2057

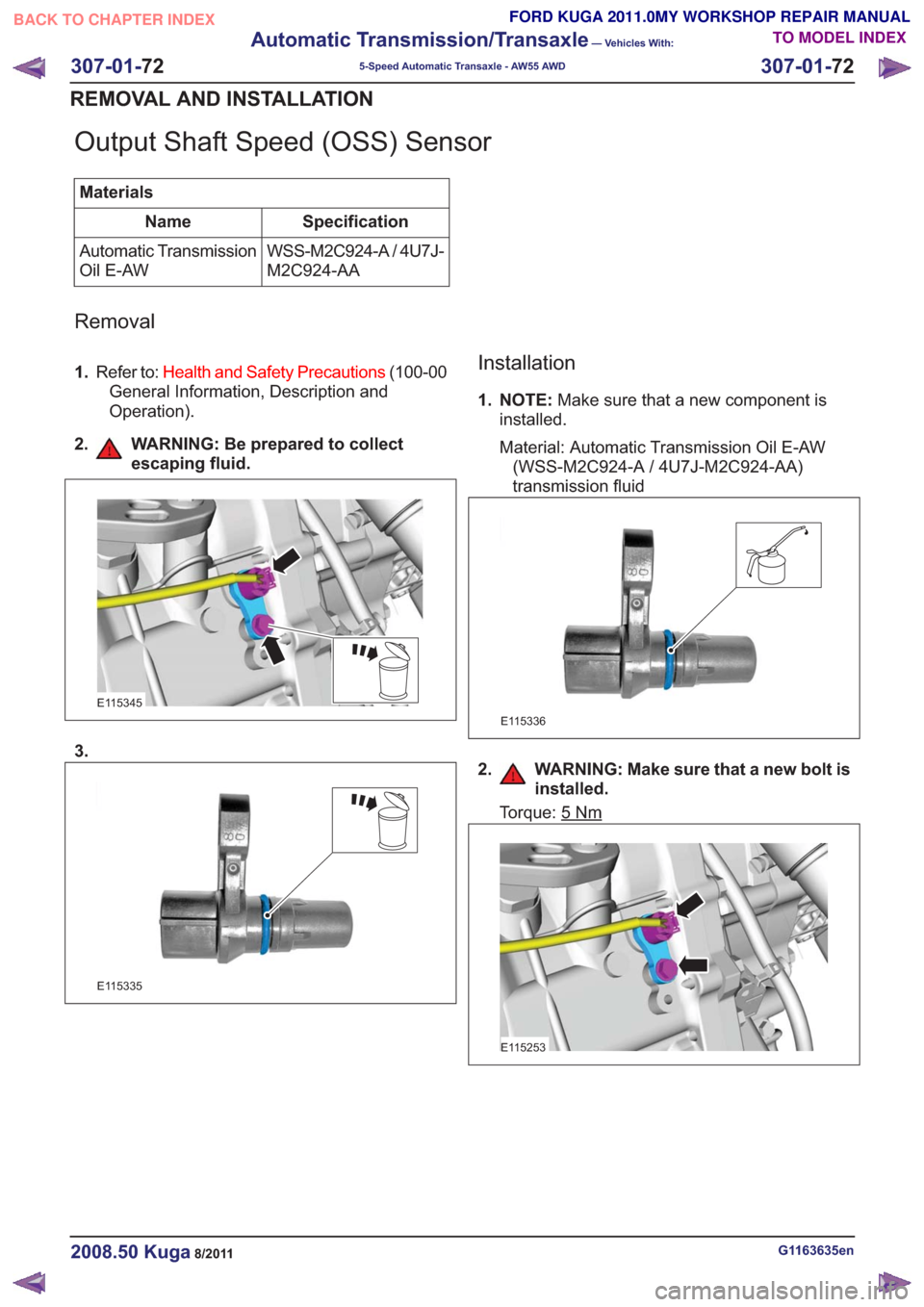

FORD KUGA 2011 1.G Workshop Manual Output Shaft Speed (OSS) Sensor MaterialsSpecification Name WSS-M2C924-A / 4U7J- M2C924-AA Automatic Transmission Oil E-AW Removal 1. Refer to: Health and Safety Precautions (100-00 General Informatio

Page 1894 of 2057

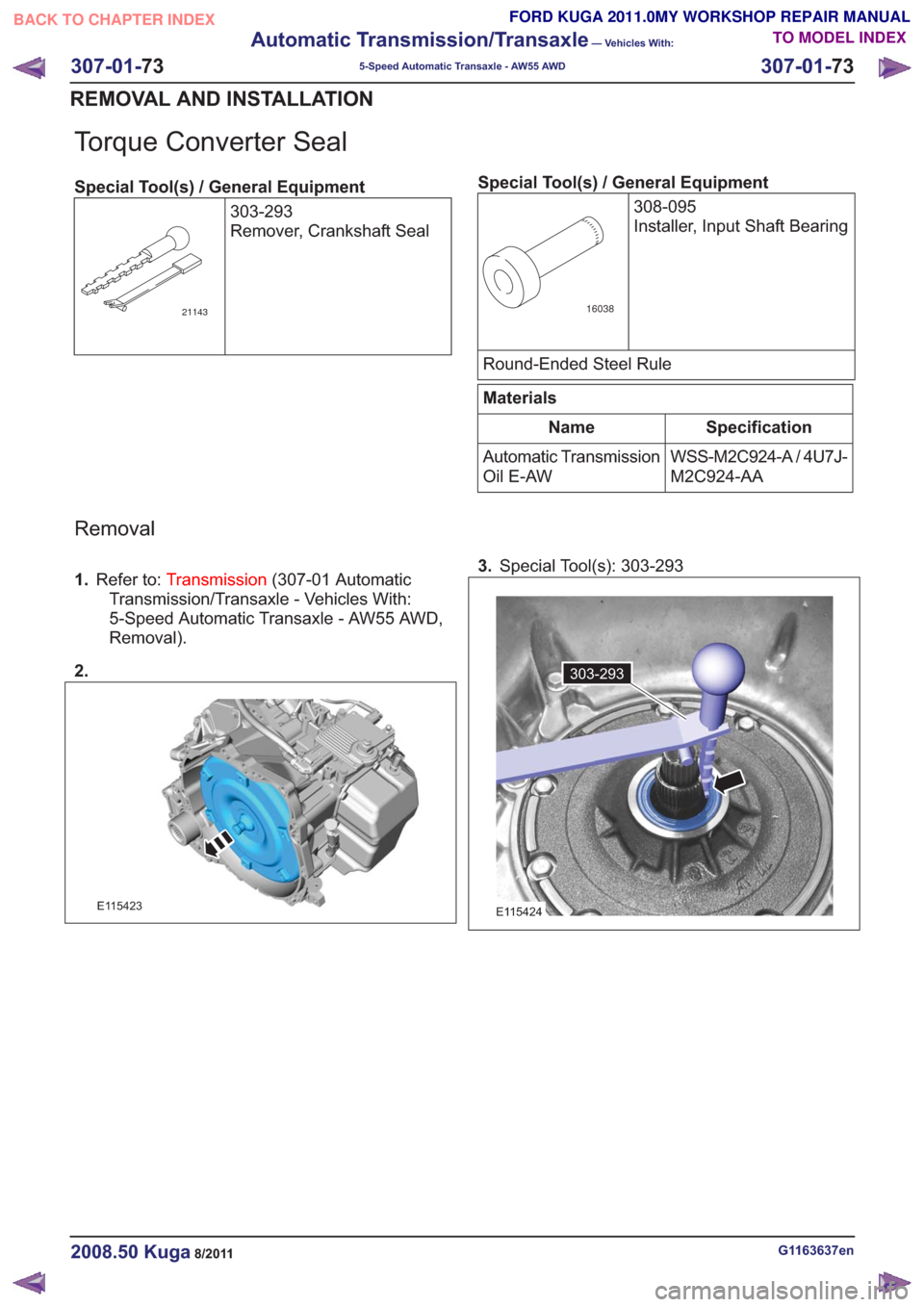

FORD KUGA 2011 1.G Workshop Manual Torque Converter Seal Special Tool(s) / General Equipment303-293 Remover, Crankshaft Seal 21143 Special Tool(s) / General Equipment308-095 Installer, Input Shaft Bearing 16038 Round-Ended Steel Rule M

Page 1895 of 2057

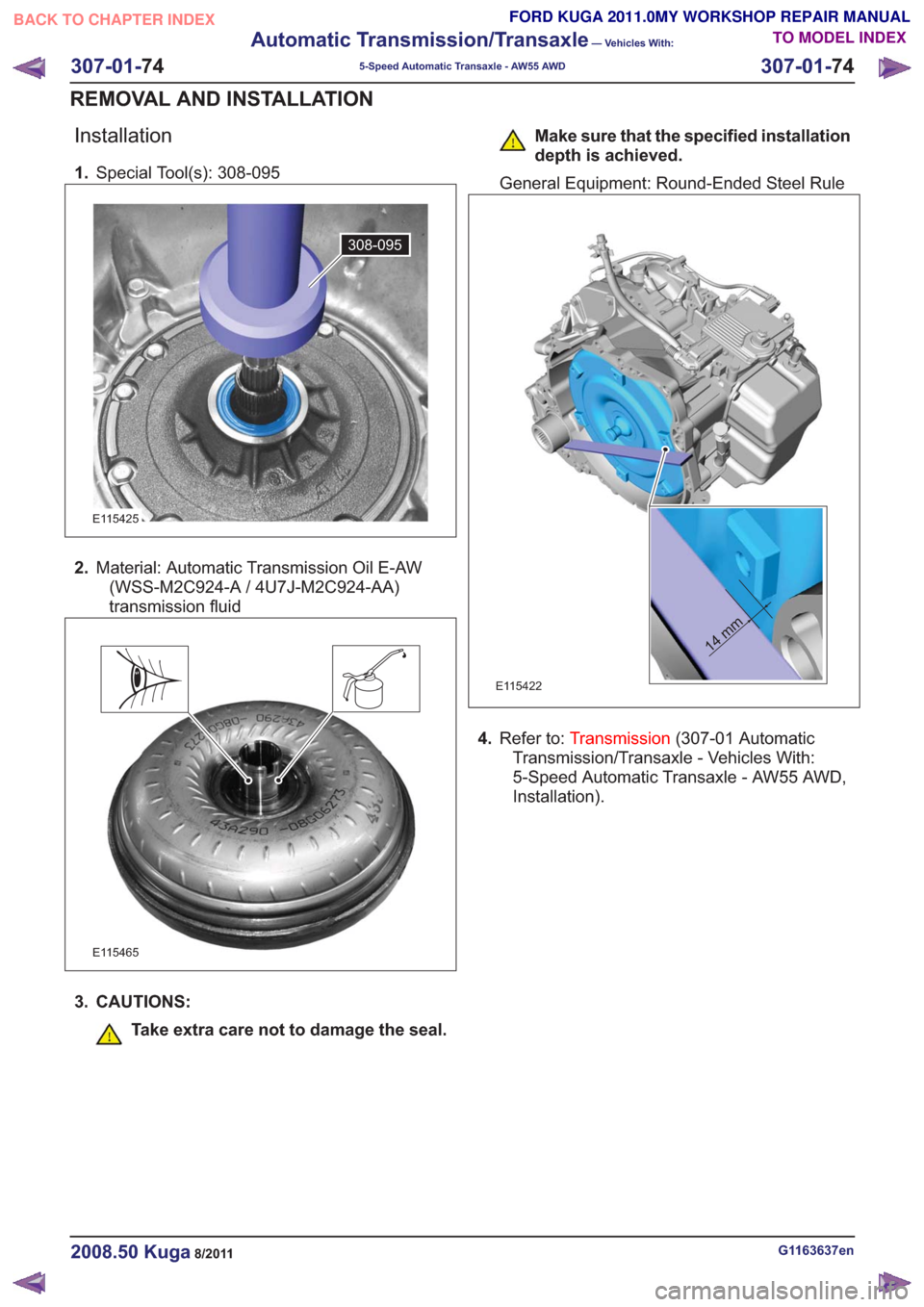

FORD KUGA 2011 1.G Workshop Manual Installation 1.Special Tool(s): 308-095 308-095308-095 E115425 2.Material: Automatic Transmission Oil E-AW (WSS-M2C924-A / 4U7J-M2C924-AA) transmission fluid E115465 3. CAUTIONS: Take extra care not t

Page 1896 of 2057

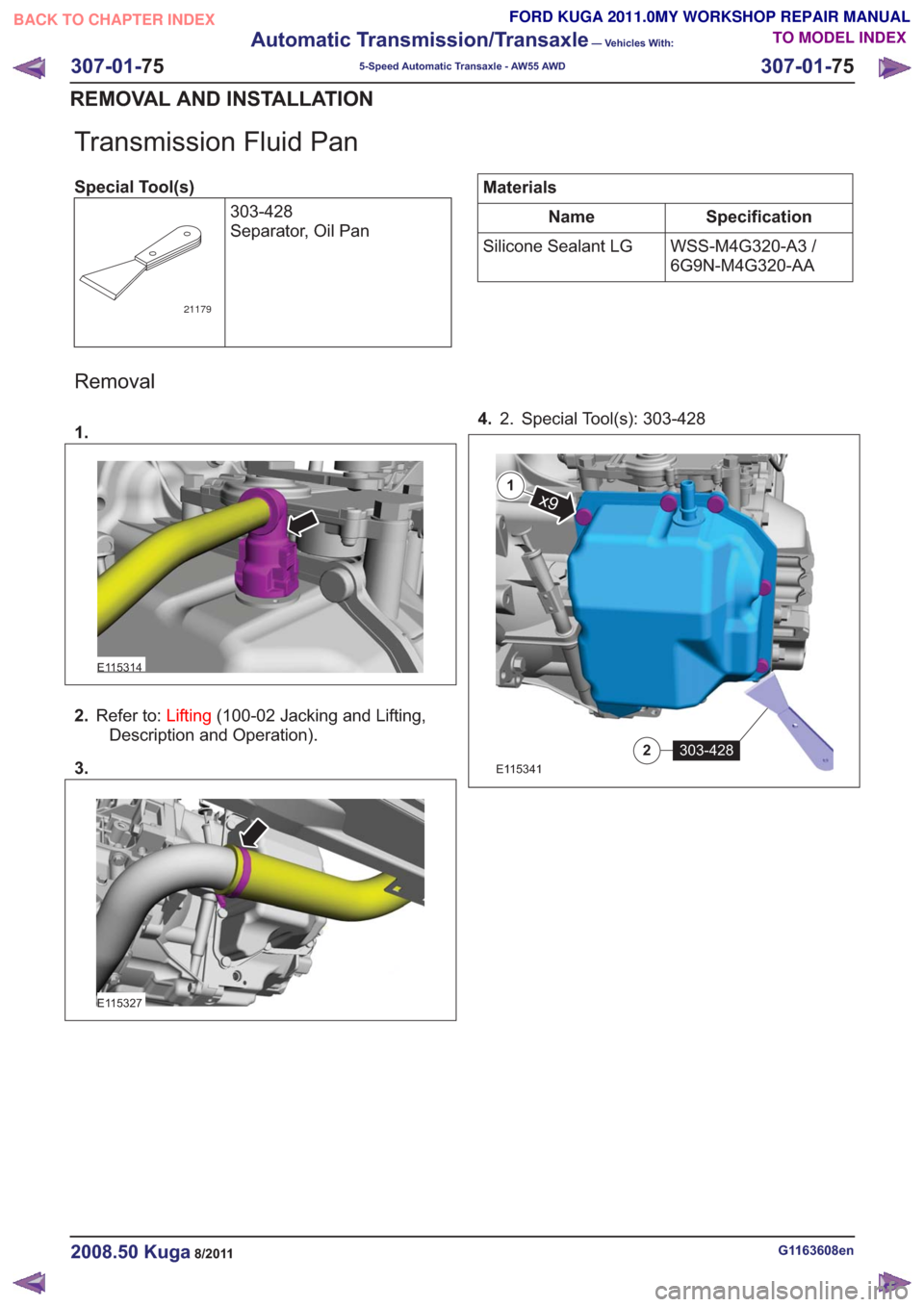

FORD KUGA 2011 1.G Workshop Manual Transmission Fluid Pan Special Tool(s)303-428 Separator, Oil Pan 21179 Materials Specification Name WSS-M4G320-A3 / 6G9N-M4G320-AA Silicone Sealant LG Removal 1. E115314 2. Refer to: Lifting(100-02 Ja
