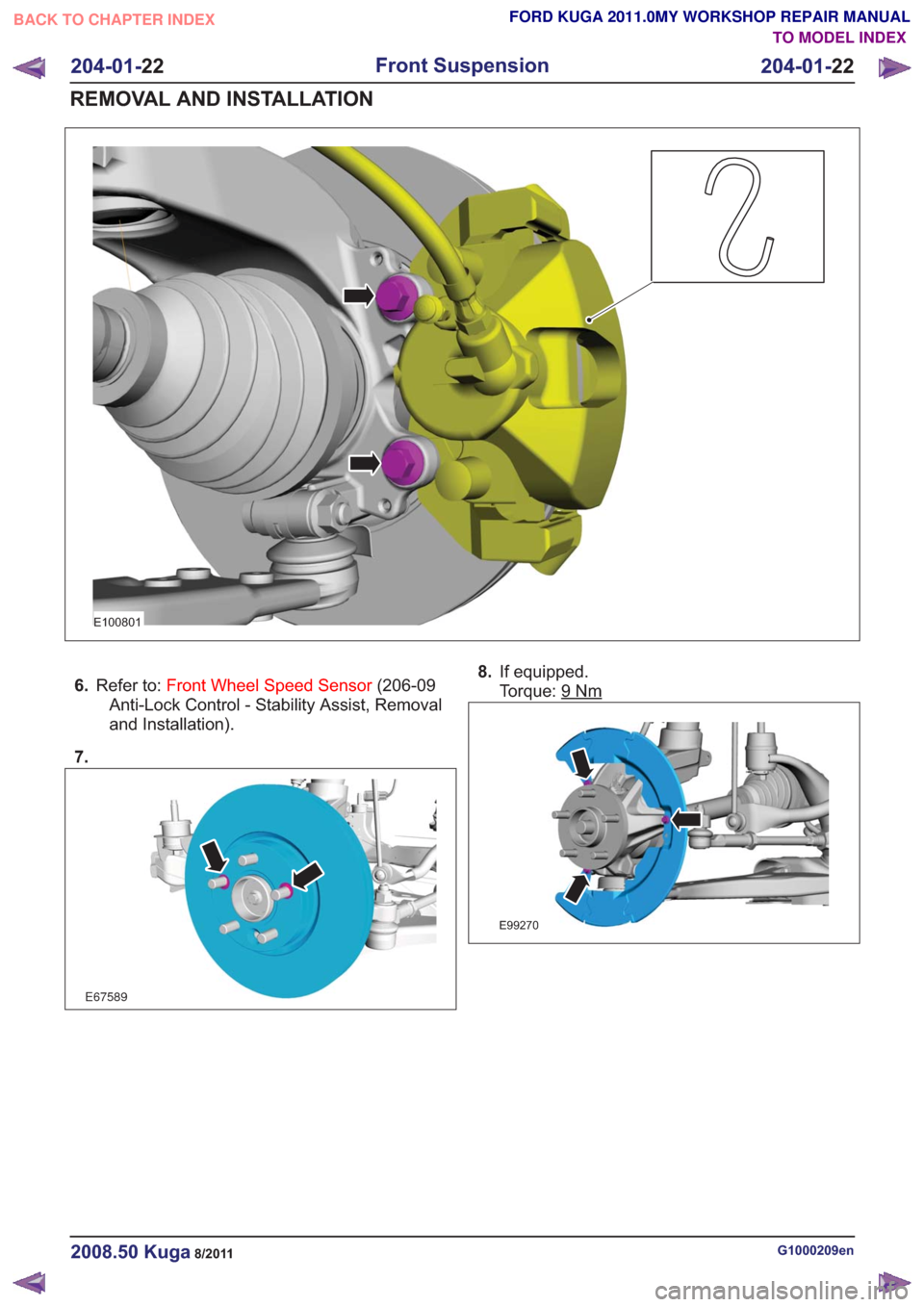

Page 1193 of 2057

FORD KUGA 2011 1.G Workshop Manual E100801 6.Refer to: Front Wheel Speed Sensor (206-09 Anti-Lock Control - Stability Assist, Removal and Installation). 7. E67589 8. If equipped. Torque: 9 Nm E99270 G1000209en2008.50 Kuga8/2011 204-01-

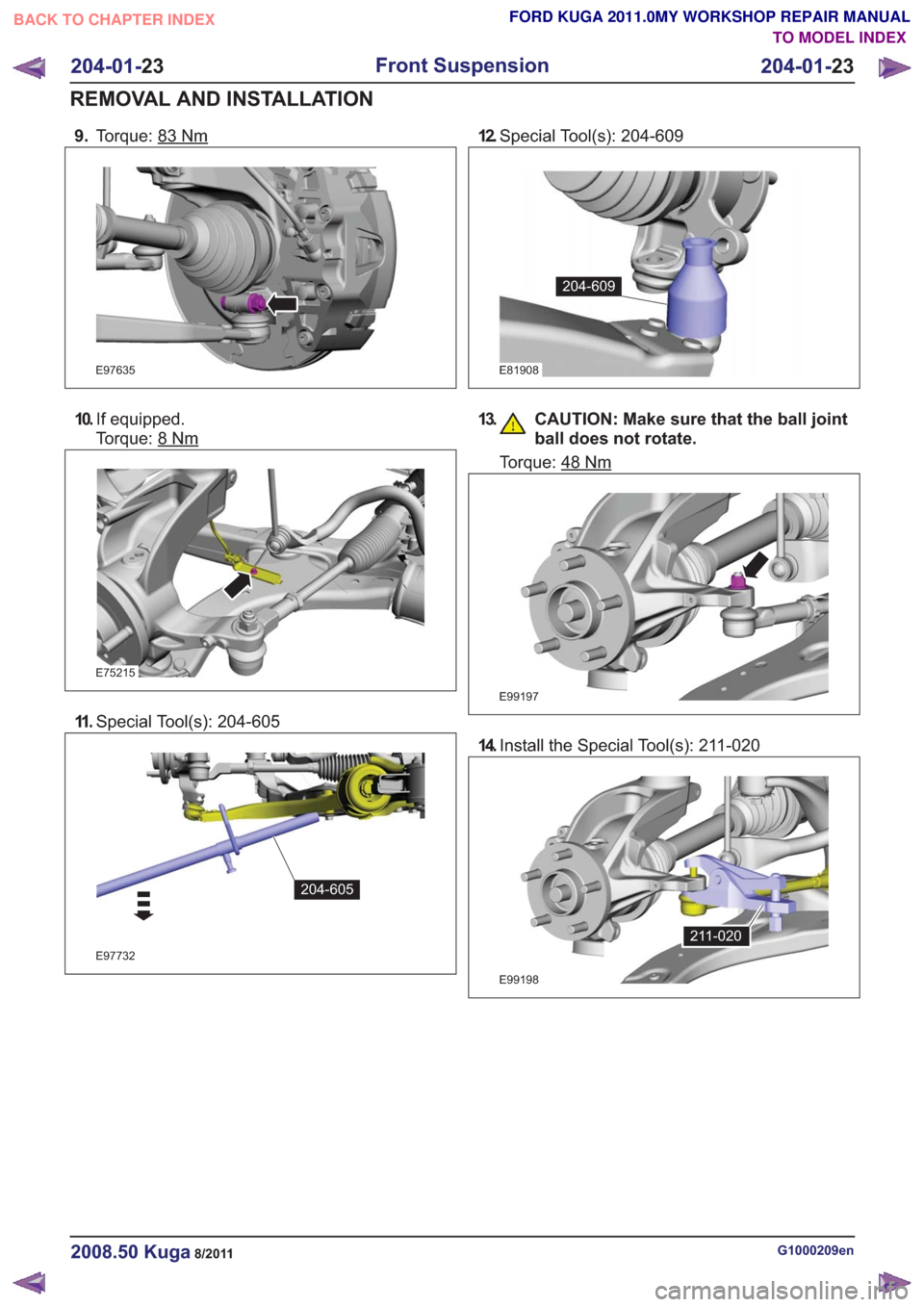

Page 1194 of 2057

FORD KUGA 2011 1.G Workshop Manual 9.Torque: 83Nm E97635 10.If equipped. Torque: 8 Nm E75215 11 .Special Tool(s): 204-605 E97732 204-605 12.Special Tool(s): 204-609 E81908 204-609 13. CAUTION: Make sure that the ball joint ball does no

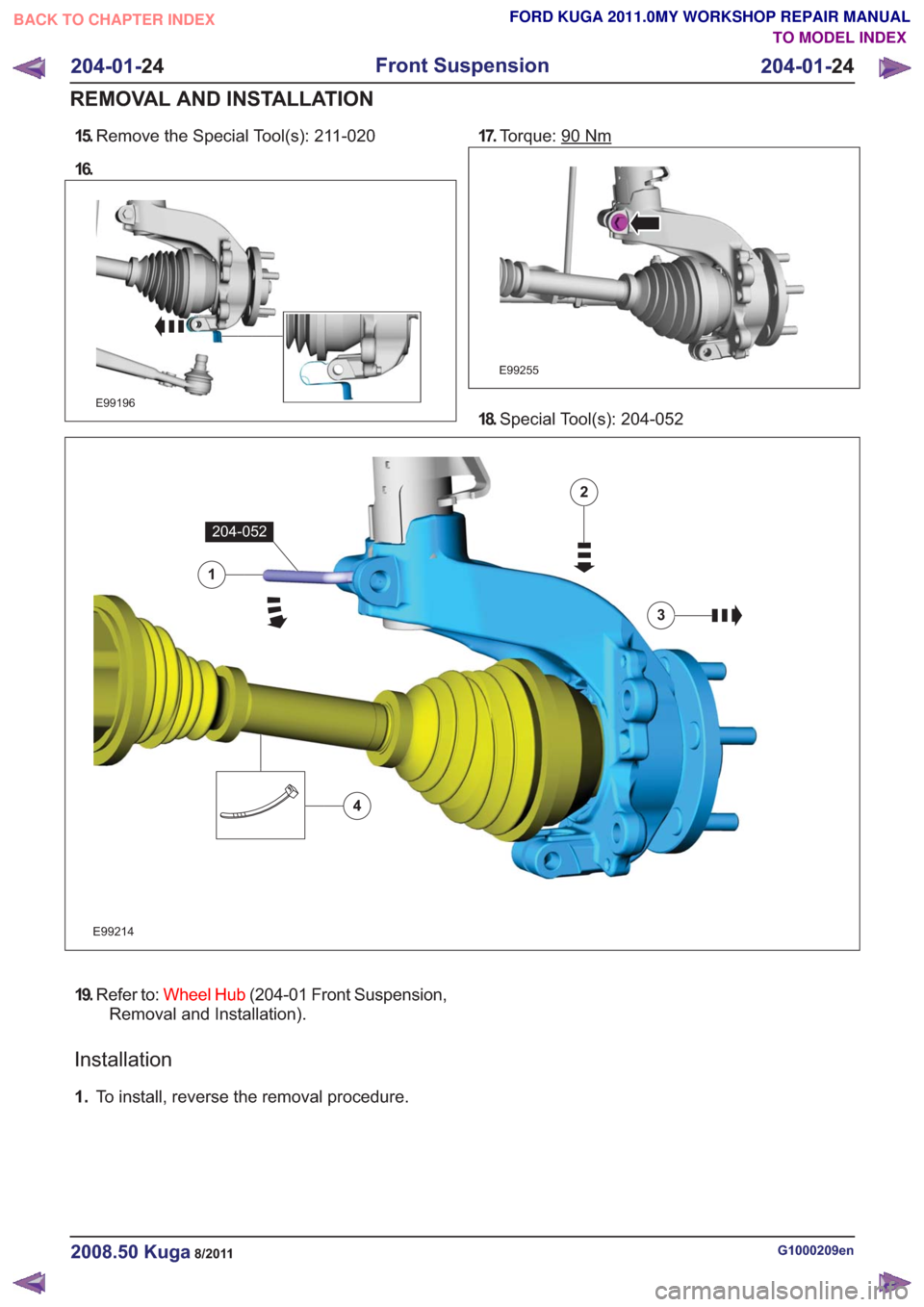

Page 1195 of 2057

FORD KUGA 2011 1.G Workshop Manual 15.Remove the Special Tool(s): 211-020 16. E99196 17. Torque: 90Nm E99255 18.Special Tool(s): 204-052 E99214 1 204-052 2 3 4 19.Refer to: Wheel Hub (204-01 Front Suspension, Removal and Installation).

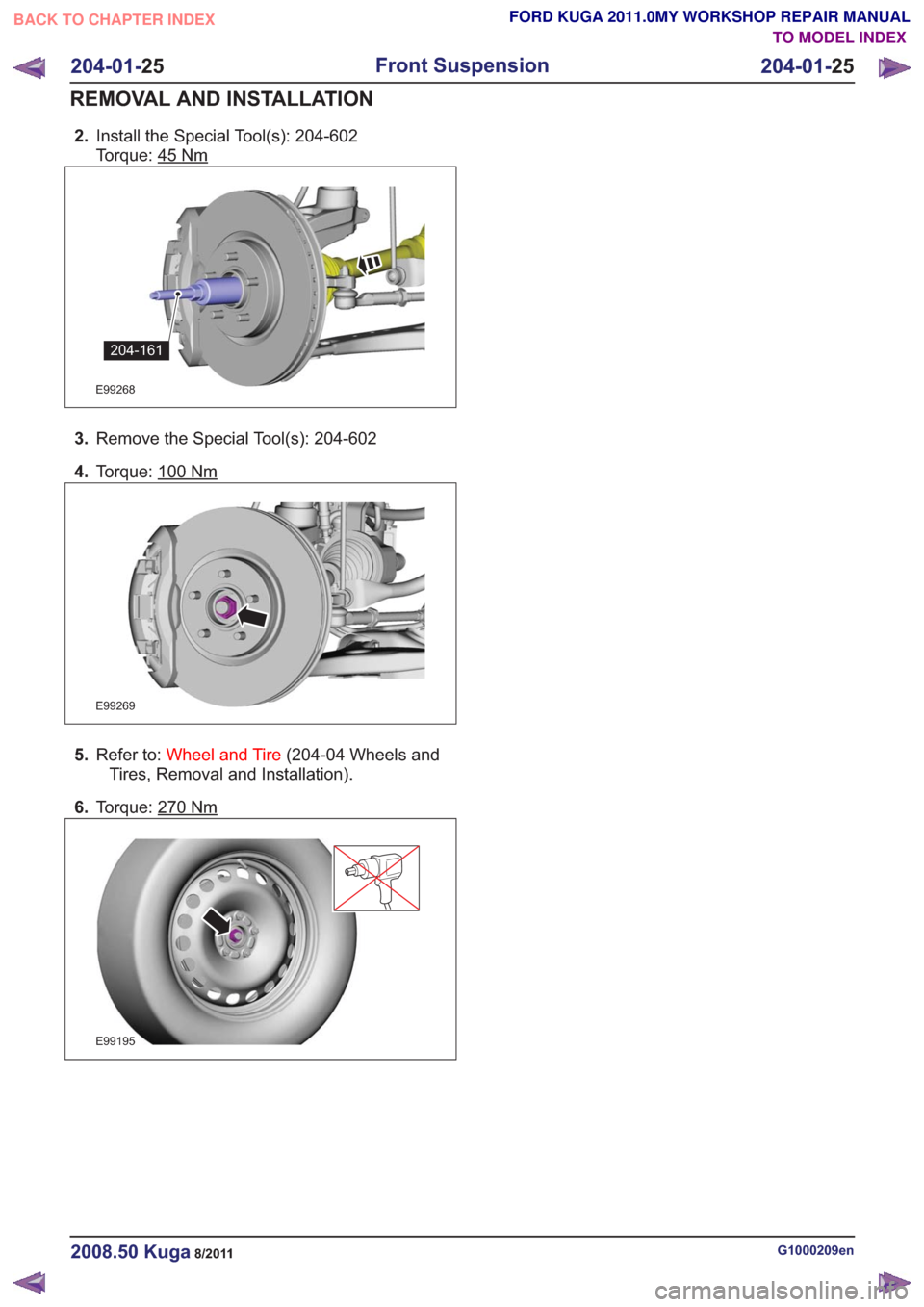

Page 1196 of 2057

FORD KUGA 2011 1.G Workshop Manual 2.Install the Special Tool(s): 204-602 Torque: 45 Nm E99268 204-161 3.Remove the Special Tool(s): 204-602 4. Torque: 100 Nm E99269 5.Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Inst

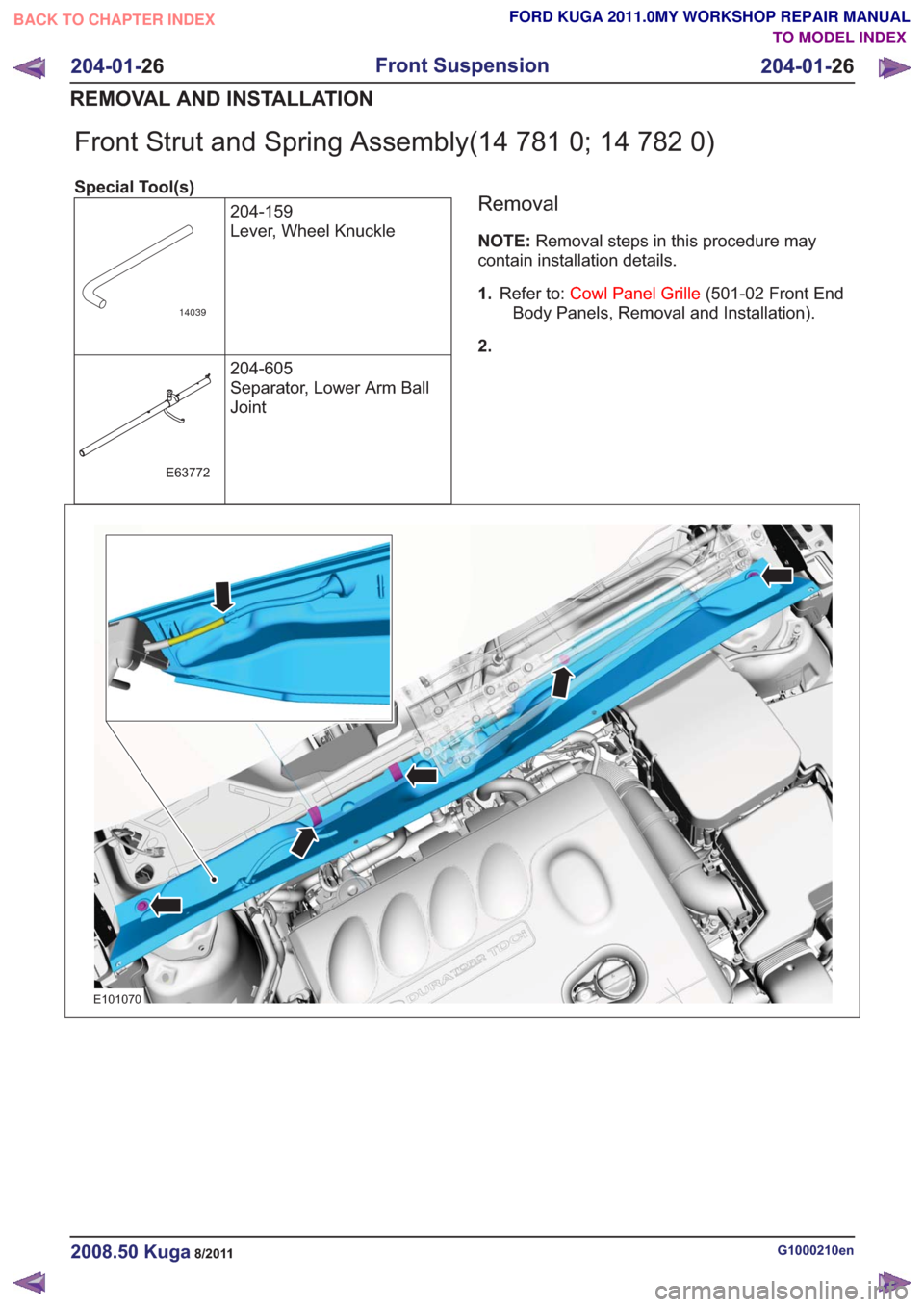

Page 1197 of 2057

FORD KUGA 2011 1.G Workshop Manual Front Strut and Spring Assembly(14 781 0; 14 782 0) Special Tool(s)204-159 Lever, Wheel Knuckle 14039 204-605 Separator, Lower Arm Ball Joint E63772 Removal NOTE:Removal steps in this procedure may co

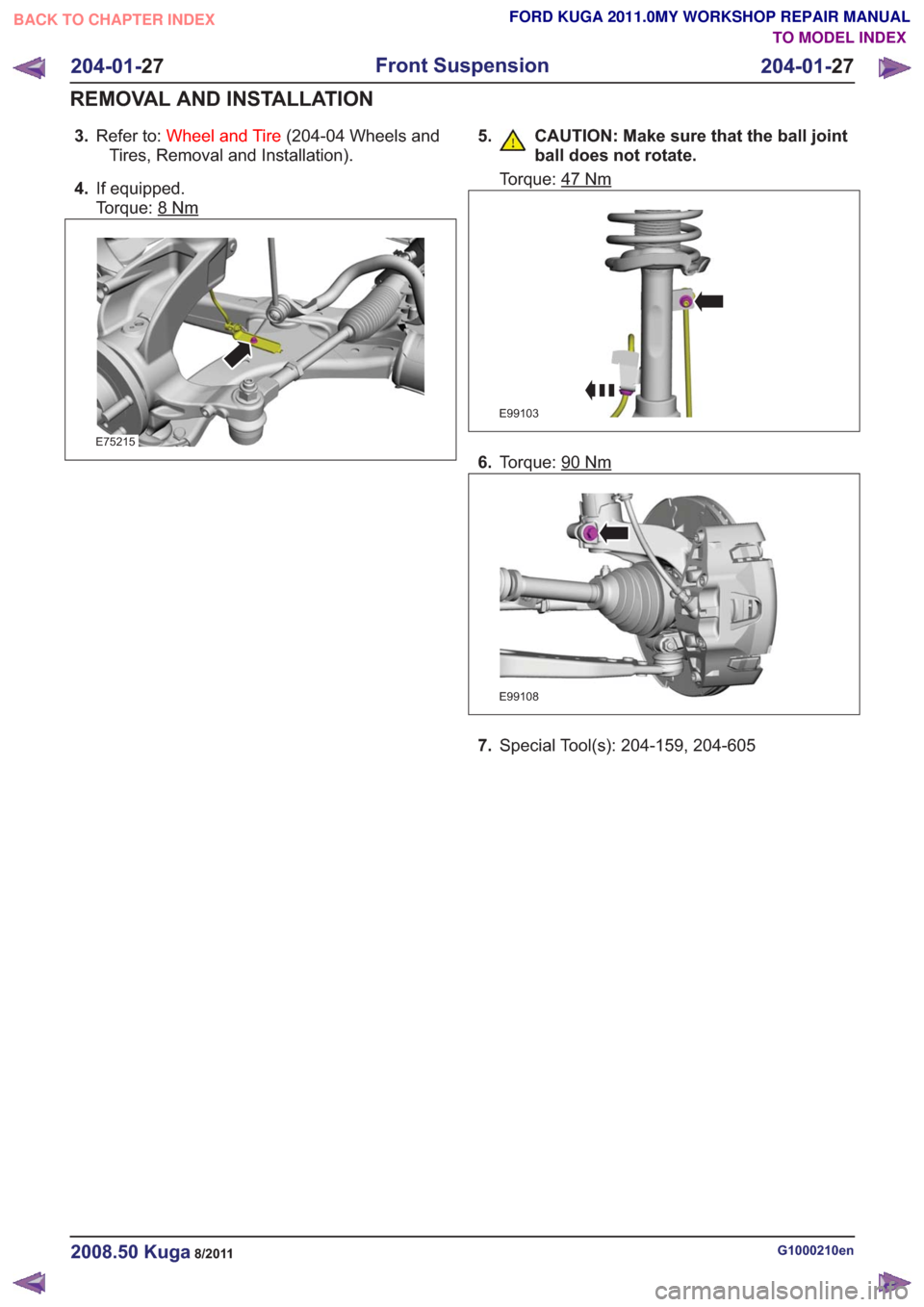

Page 1198 of 2057

FORD KUGA 2011 1.G Workshop Manual 3.Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 4. If equipped. Torque: 8 Nm E75215 5. CAUTION: Make sure that the ball joint ball does not rotate. Torque: 47Nm E99103

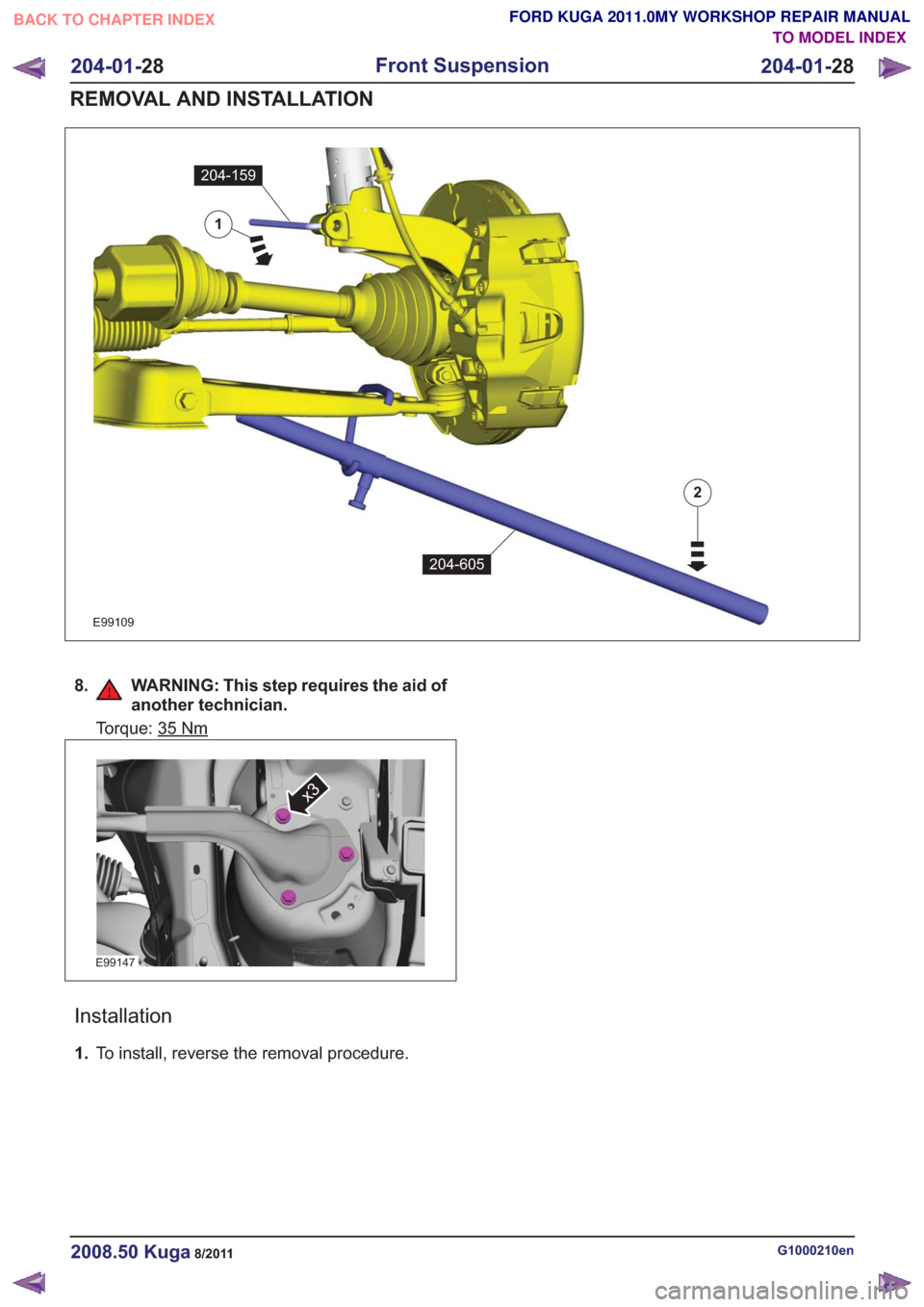

Page 1199 of 2057

FORD KUGA 2011 1.G Workshop Manual E99109 1 204-159 204-605 2 8. WARNING: This step requires the aid ofanother technician. Torque: 35Nm E99147 x3 Installation 1.To install, reverse the removal procedure. G1000210en2008.50 Kuga8/2011 20

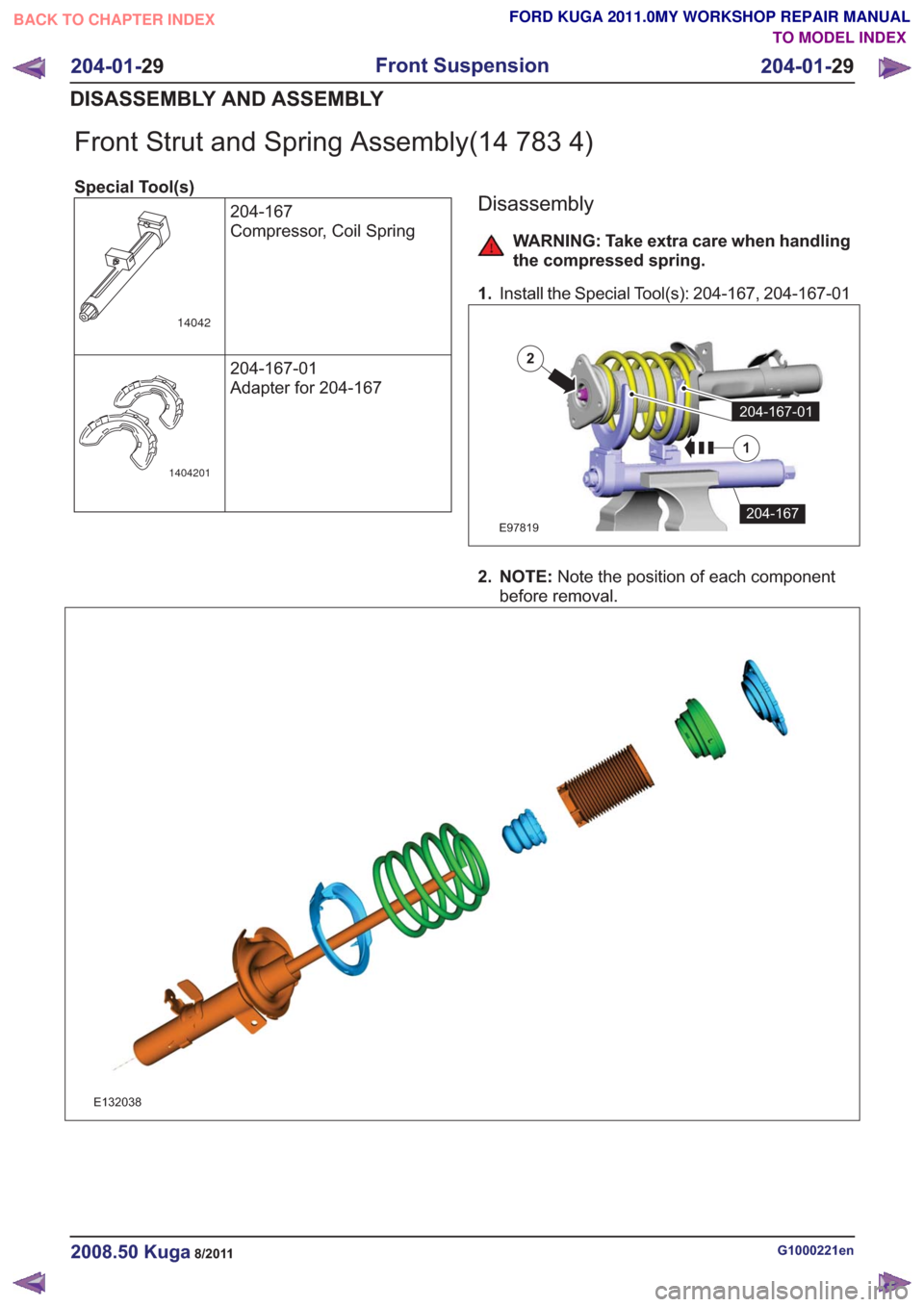

Page 1200 of 2057

FORD KUGA 2011 1.G Workshop Manual Front Strut and Spring Assembly(14 783 4) Special Tool(s)204-167 Compressor, Coil Spring 14042 204-167-01 Adapter for 204-167 1404201 Disassembly WARNING: Take extra care when handling the compressed
