Page 1305 of 2057

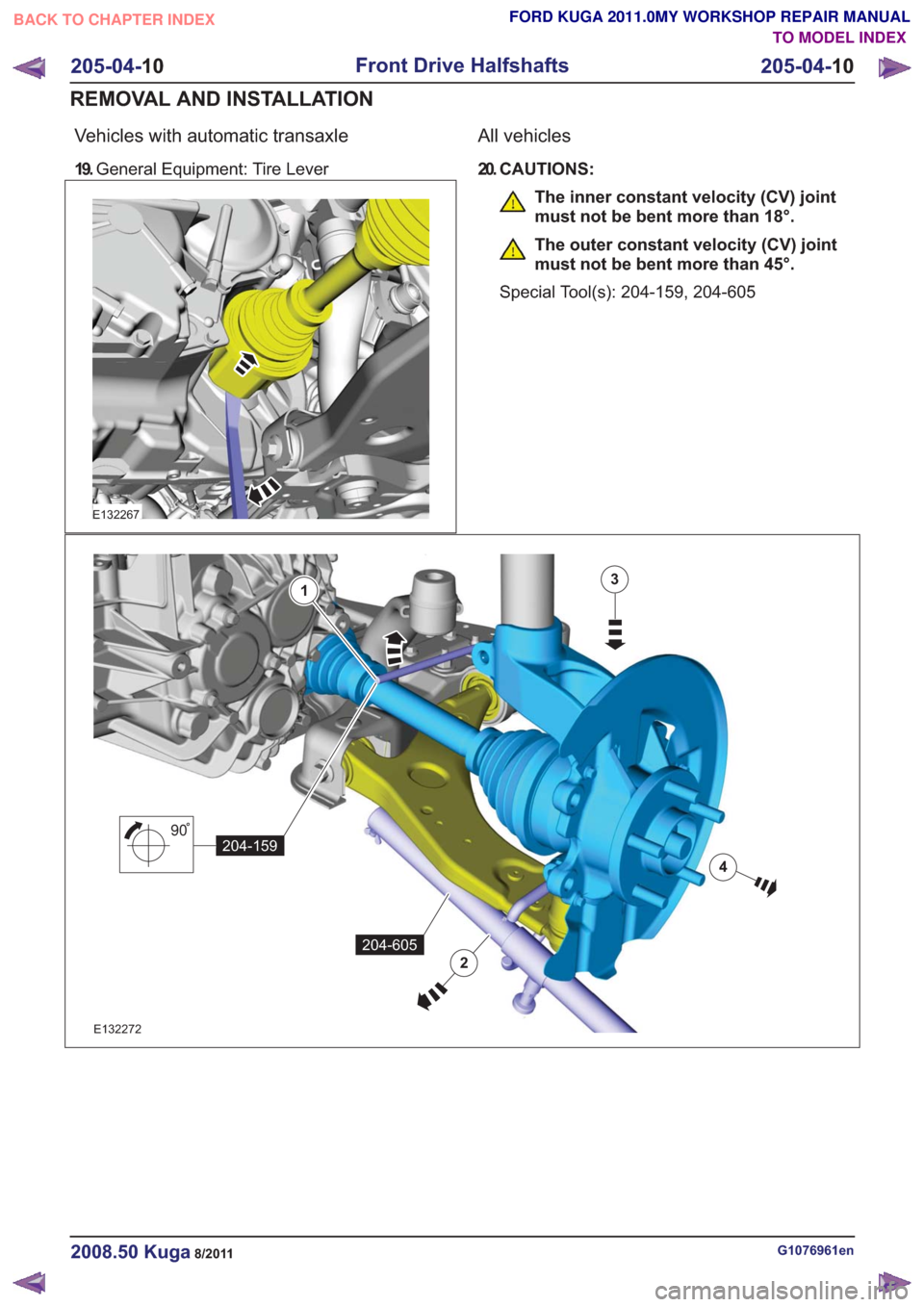

FORD KUGA 2011 1.G Workshop Manual Vehicles with automatic transaxle 19.General Equipment: Tire Lever E132267 All vehicles 20. CAUTIONS: The inner constant velocity (CV) joint must not be bent more than 18°. The outer constant velocit

Page 1306 of 2057

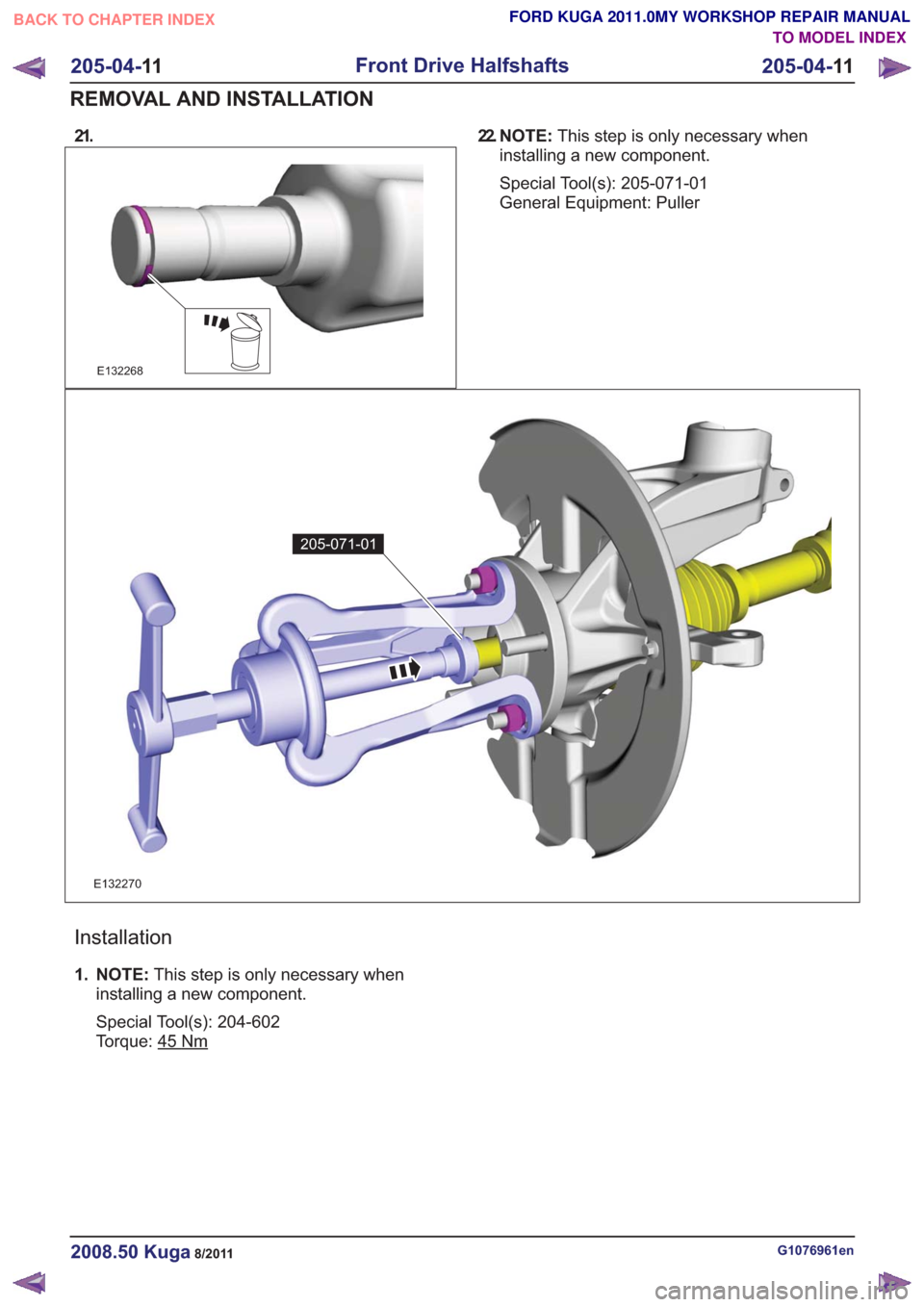

FORD KUGA 2011 1.G Workshop Manual 21. E132268 22. N O T E :This step is only necessary when installing a new component. Special Tool(s): 205-071-01 General Equipment: Puller 205-071-01205-071-01 E132270 Installation 1. NOTE: This step

Page 1307 of 2057

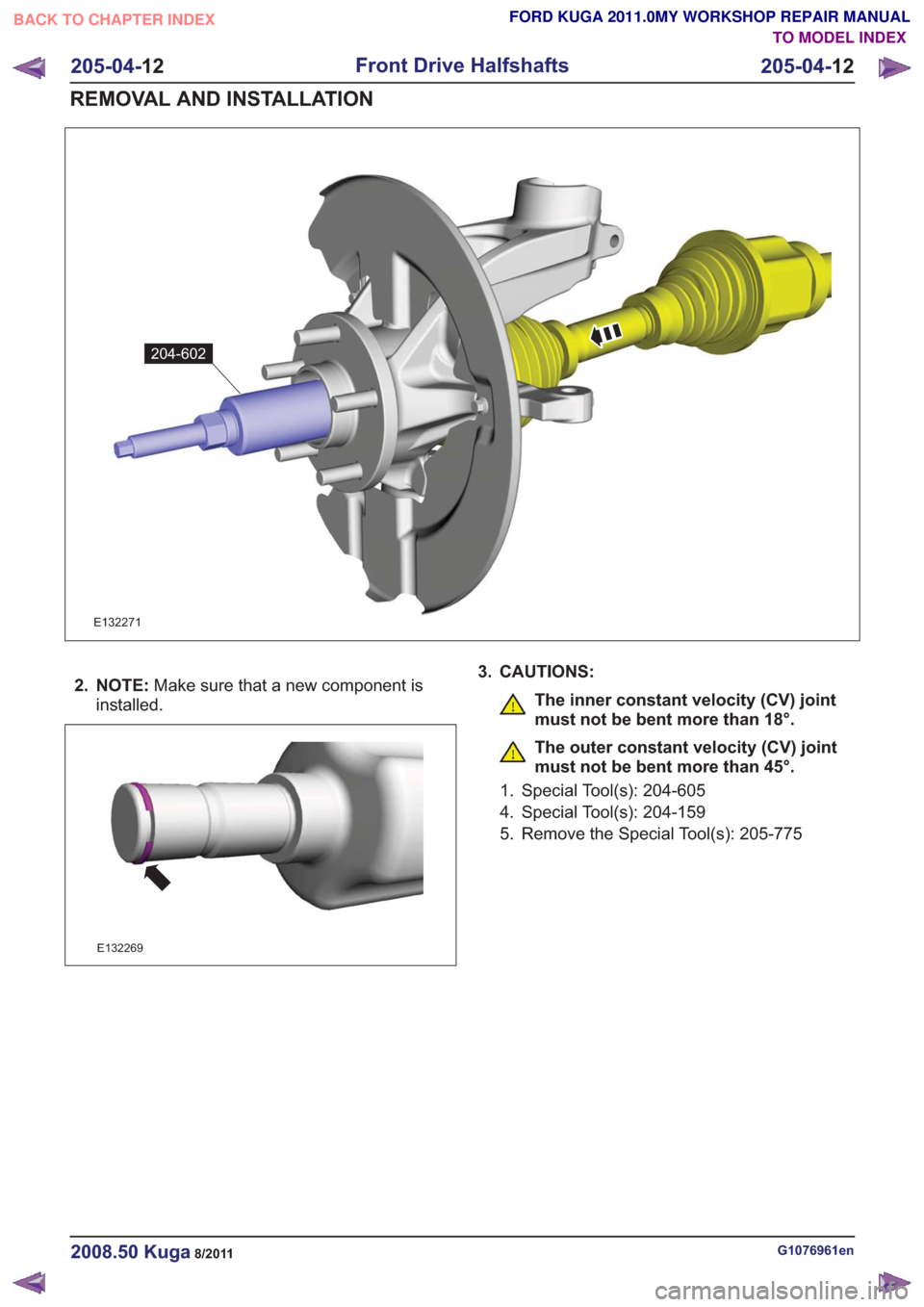

FORD KUGA 2011 1.G Workshop Manual 204-602204-602 E132271 2. NOTE:Make sure that a new component is installed. E132269 3. CAUTIONS: The inner constant velocity (CV) joint must not be bent more than 18°. The outer constant velocity (CV

Page 1308 of 2057

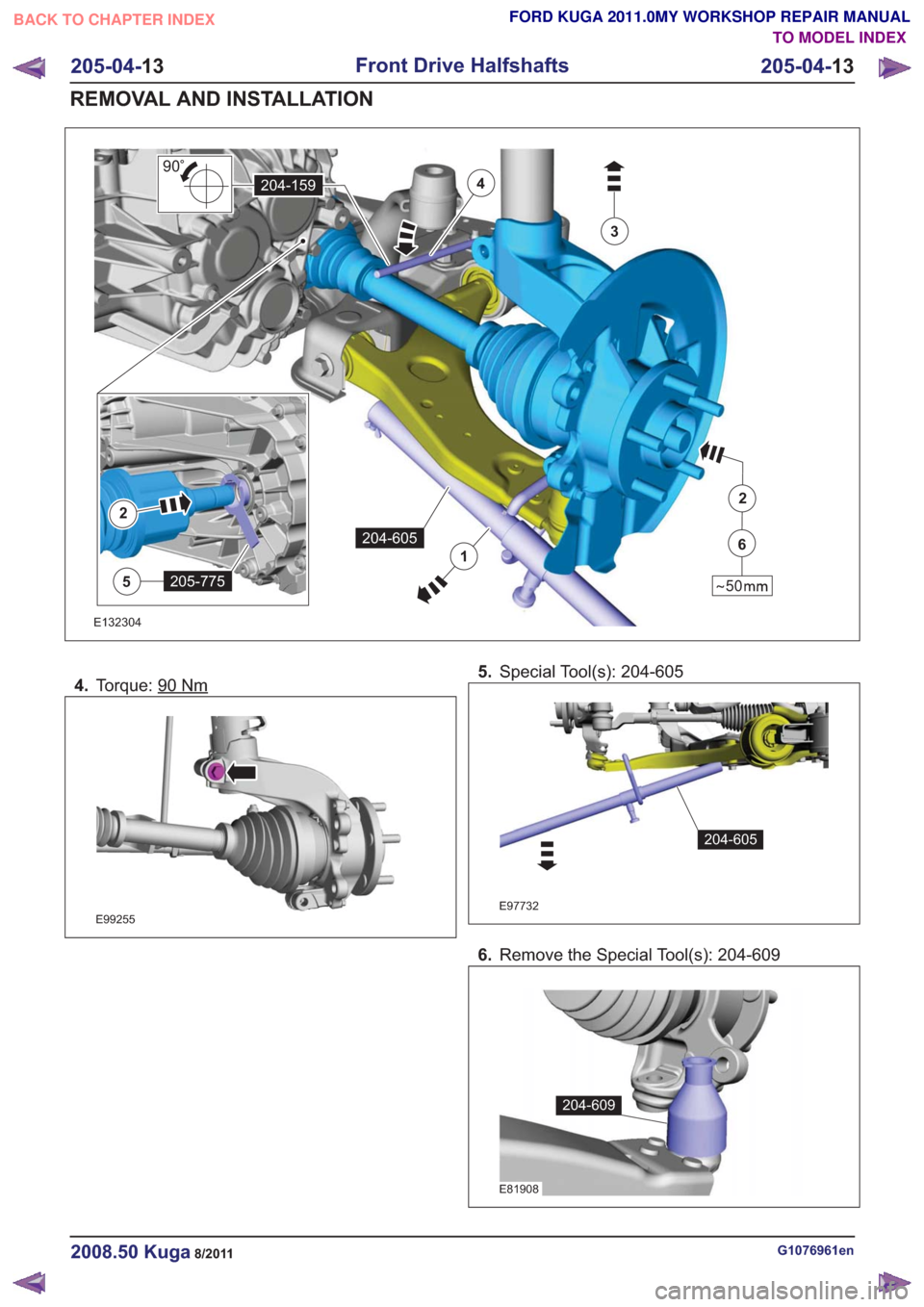

FORD KUGA 2011 1.G Workshop Manual 3 4 1 204-605 204-159 90 2 205-775 2 50 6 5 3 4 1 204-605 204-159 90 2 205-775 2 50 6 5 E132304 4.Torque: 90Nm E99255 5.Special Tool(s): 204-605 E97732 204-605 6.Remove the Special Tool(s): 204-609 E8

Page 1309 of 2057

FORD KUGA 2011 1.G Workshop Manual 7. E132381 8.Torque: 83Nm E97635 9. WARNING: Make sure that a new nut is installed. CAUTION: Make sure that the ball joint ball does not rotate. Torque: 80 Nm E99197 10. N O T E : This step is only ne

Page 1310 of 2057

FORD KUGA 2011 1.G Workshop Manual 13. E67589 14.Torque: 120Nm x2x2 E132307 15. E101039 16. 17.If equipped. E98543 x7 18.Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 19. Lower the Vehicle. 20. N O T E :

Page 1311 of 2057

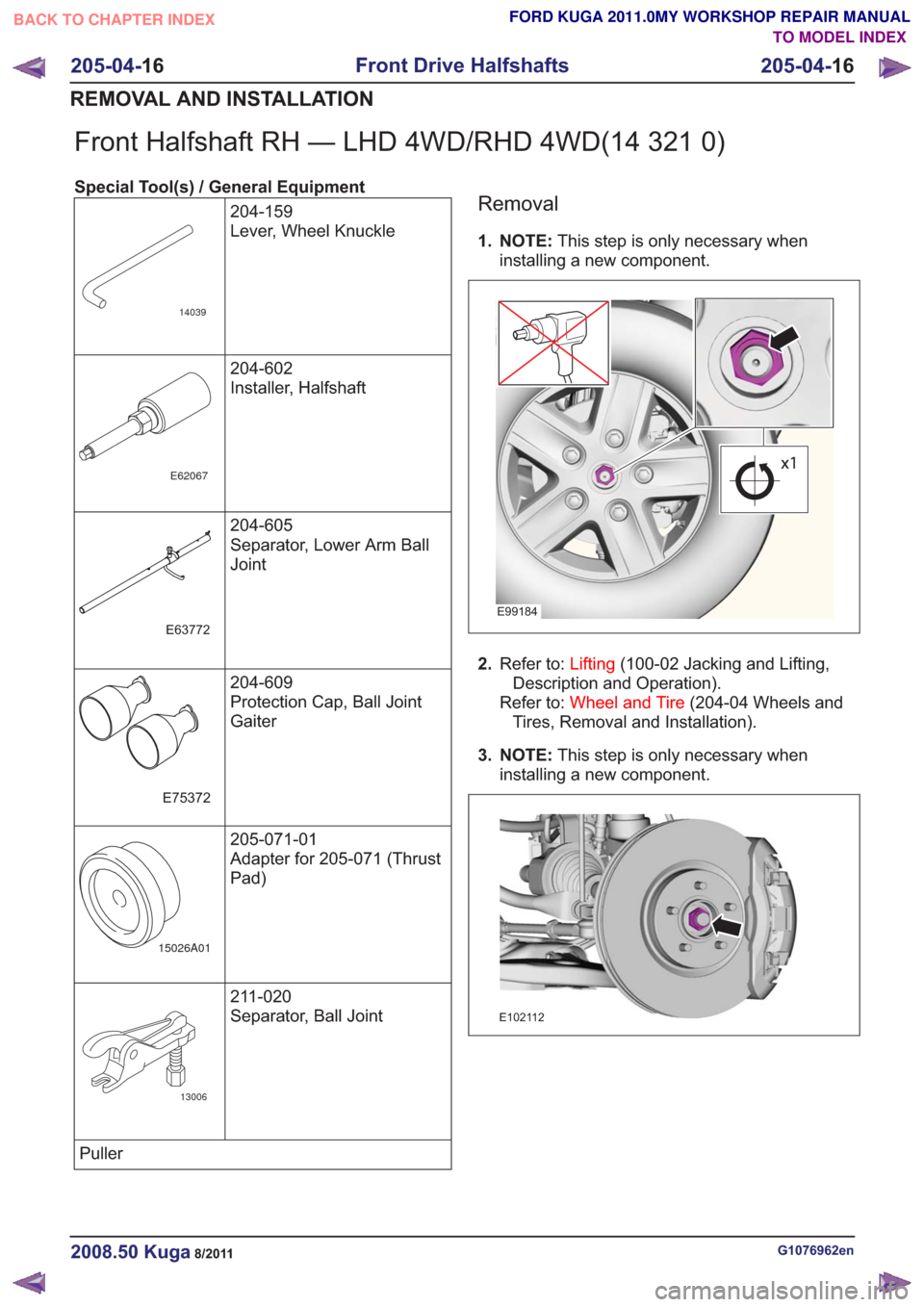

FORD KUGA 2011 1.G Workshop Manual Front Halfshaft RH — LHD 4WD/RHD 4WD(14 321 0) Special Tool(s) / General Equipment204-159 Lever, Wheel Knuckle 14039 204-602 Installer, Halfshaft E62067 204-605 Separator, Lower Arm Ball Joint E6377

Page 1312 of 2057

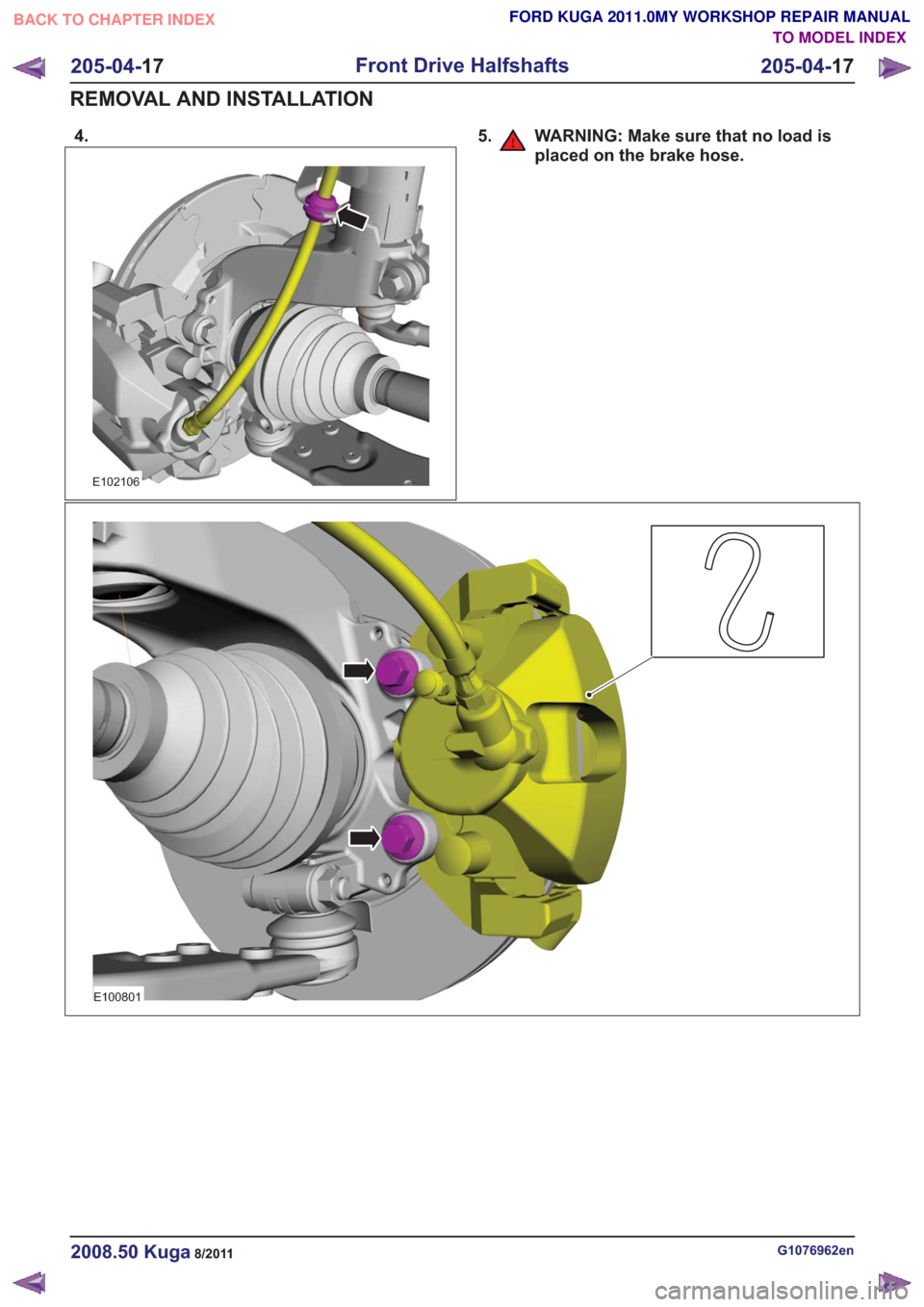

FORD KUGA 2011 1.G Workshop Manual 4. E102106 5. WARNING: Make sure that no load isplaced on the brake hose. E100801 G1076962en2008.50 Kuga8/2011 205-04- 17 Front Drive Halfshafts 205-04- 17 REMOVAL AND INSTALLATION TO MODEL INDEX BACK
