Page 1569 of 2057

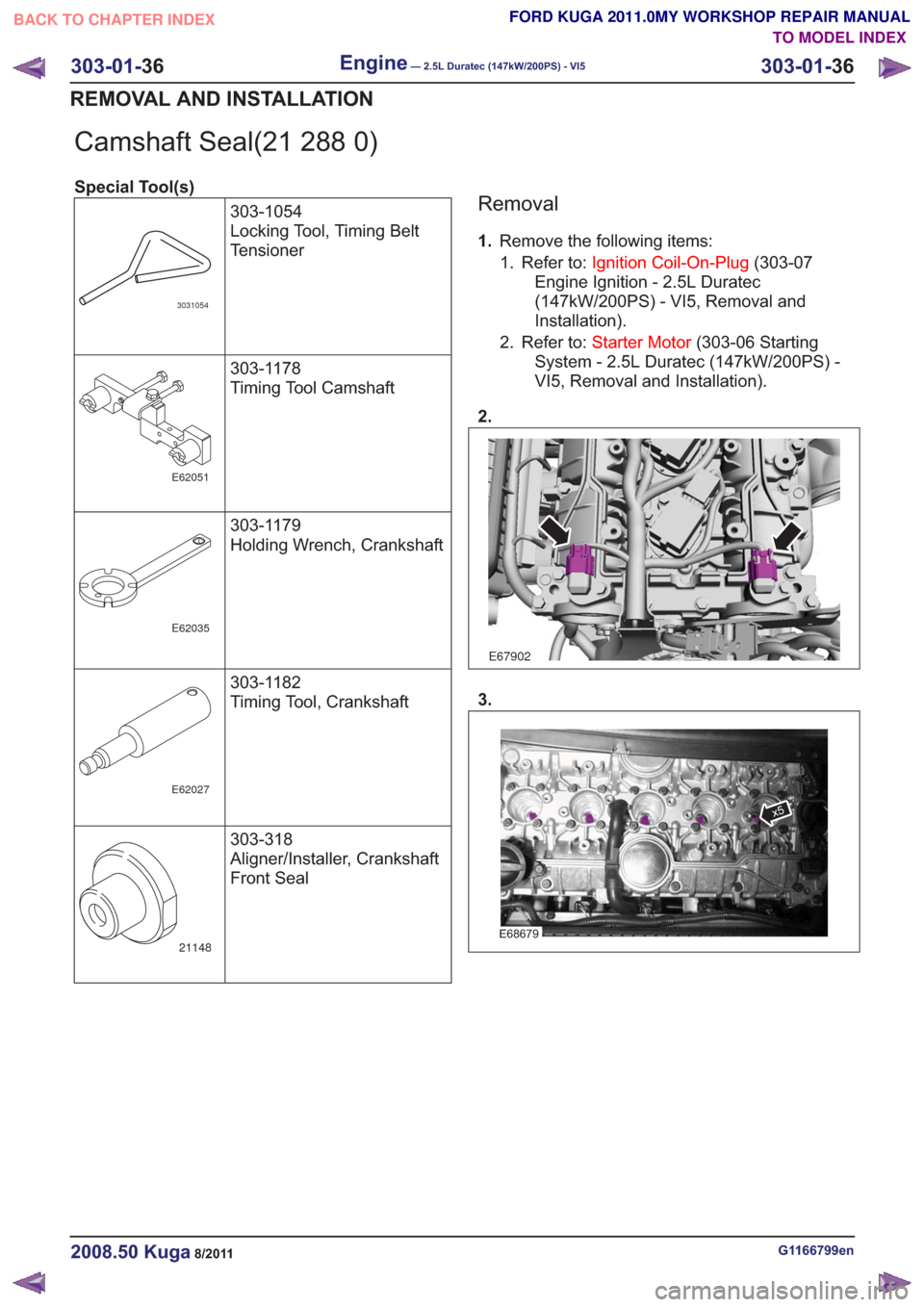

FORD KUGA 2011 1.G Workshop Manual Camshaft Seal(21 288 0) Special Tool(s)303-1054 Locking Tool, Timing Belt Tensioner 3031054 303-1178 Timing Tool Camshaft E62051 303-1179 Holding Wrench, Crankshaft E62035 303-1182 Timing Tool, Cranks

Page 1570 of 2057

FORD KUGA 2011 1.G Workshop Manual 4. E67905 5. E68491 6. E68745 7.Refer to: Timing Belt (303-01 Engine - 2.5L Duratec (147kW/200PS) - VI5, Removal and Installation). 8. Install the Special Tool(s): 303-1178 Torque: 10 Nm E66324 303-11

Page 1571 of 2057

FORD KUGA 2011 1.G Workshop Manual 11 . E71704 Installation 1.Special Tool(s): 303-318 E68747 303-318 2. NOTE: Only tighten the bolts finger tight at this stage. E74333 x2 3. E83911 4. Using the special tool, align the crankshaft. Inst

Page 1572 of 2057

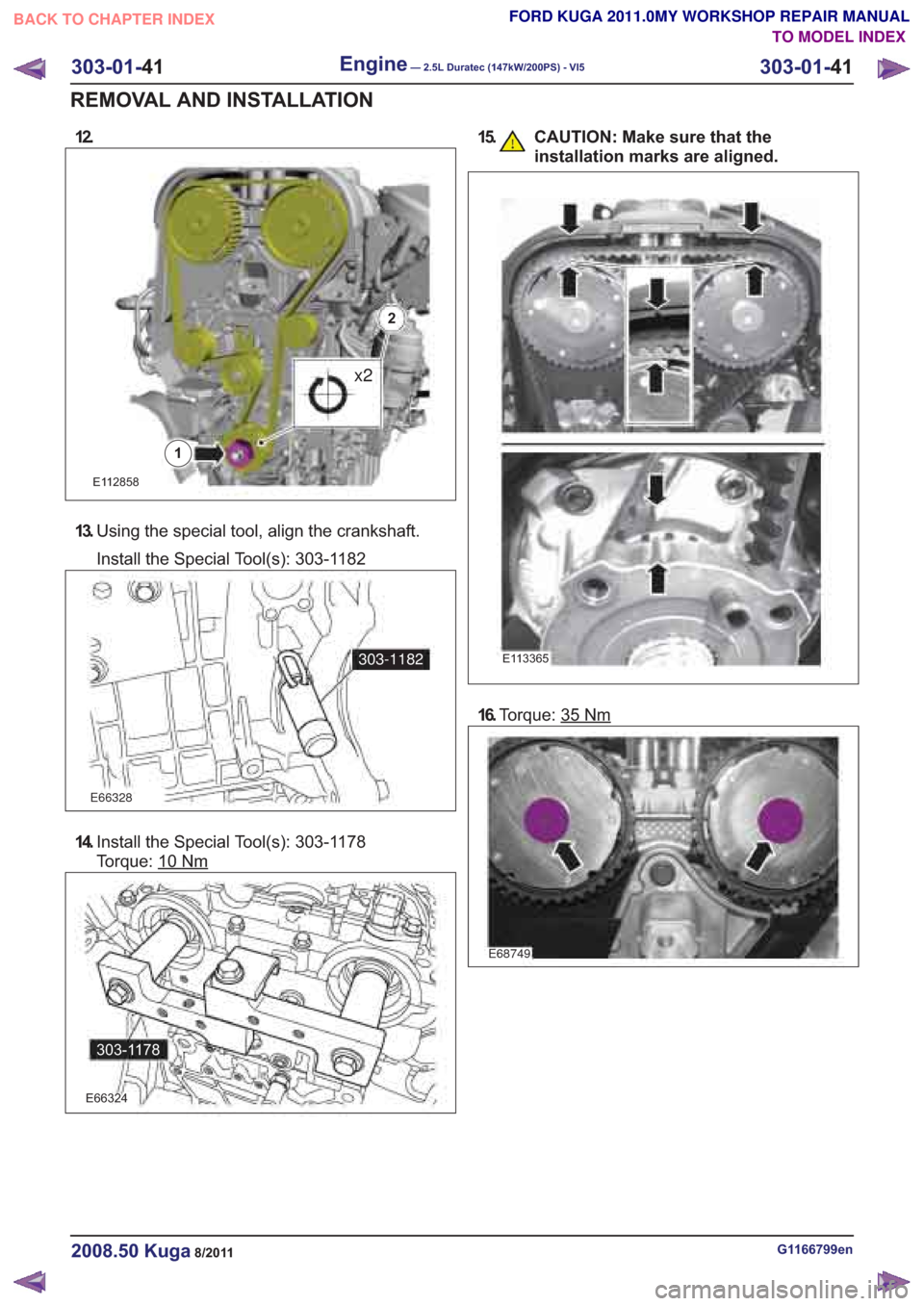

FORD KUGA 2011 1.G Workshop Manual 5. CAUTION: Make sure that theinstallation marks are aligned. E113883 Vehicles with mechanical timing belt tensioner 6. NOTE: Make sure that new components are installed. 1. Torque: 25 Nm 3. NOTE: The

Page 1573 of 2057

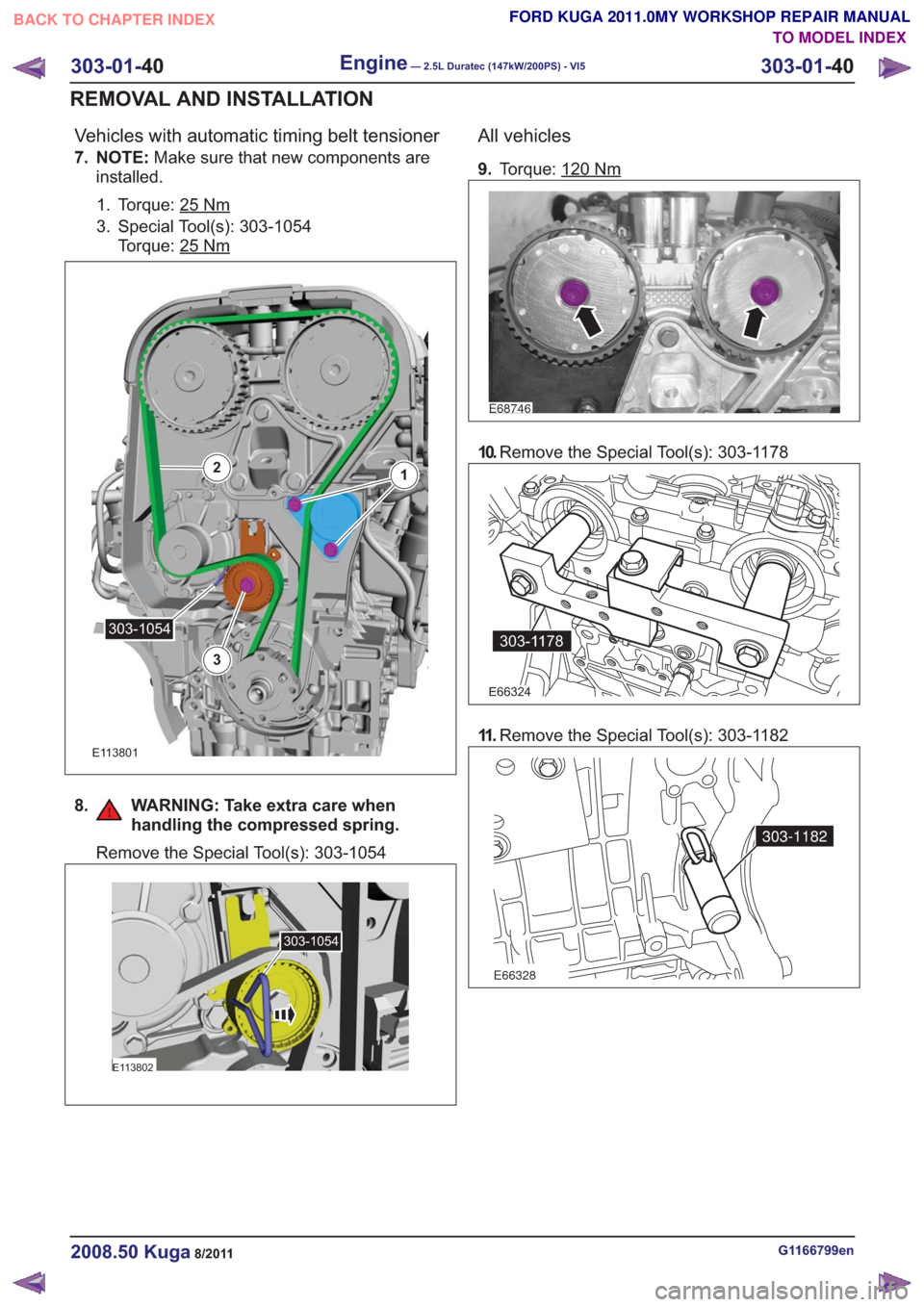

FORD KUGA 2011 1.G Workshop Manual Vehicles with automatic timing belt tensioner 7. NOTE:Make sure that new components are installed. 1. Torque: 25 Nm 3. Special Tool(s): 303-1054 Torque: 25 Nm E113801 12 3 303-1054 8. WARNING: Take ex

Page 1574 of 2057

FORD KUGA 2011 1.G Workshop Manual G1166799en2008.50 Kuga8/2011 FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL TO MODEL INDEX BACK TO CHAPTER INDEX x2 E66328 303-1182 E68749 12.15. CAUTION: Make sure that theinstallation marks are aligned.

Page 1575 of 2057

FORD KUGA 2011 1.G Workshop Manual 17.Remove the Special Tool(s): 303-1182 E66328 303-1182 18.Remove the Special Tool(s): 303-1178 E66324 303-1178 19.Torque: 17Nm E68745 20.Torque: 40Nm E83911 21. N O T E : Make sure that new component

Page 1576 of 2057

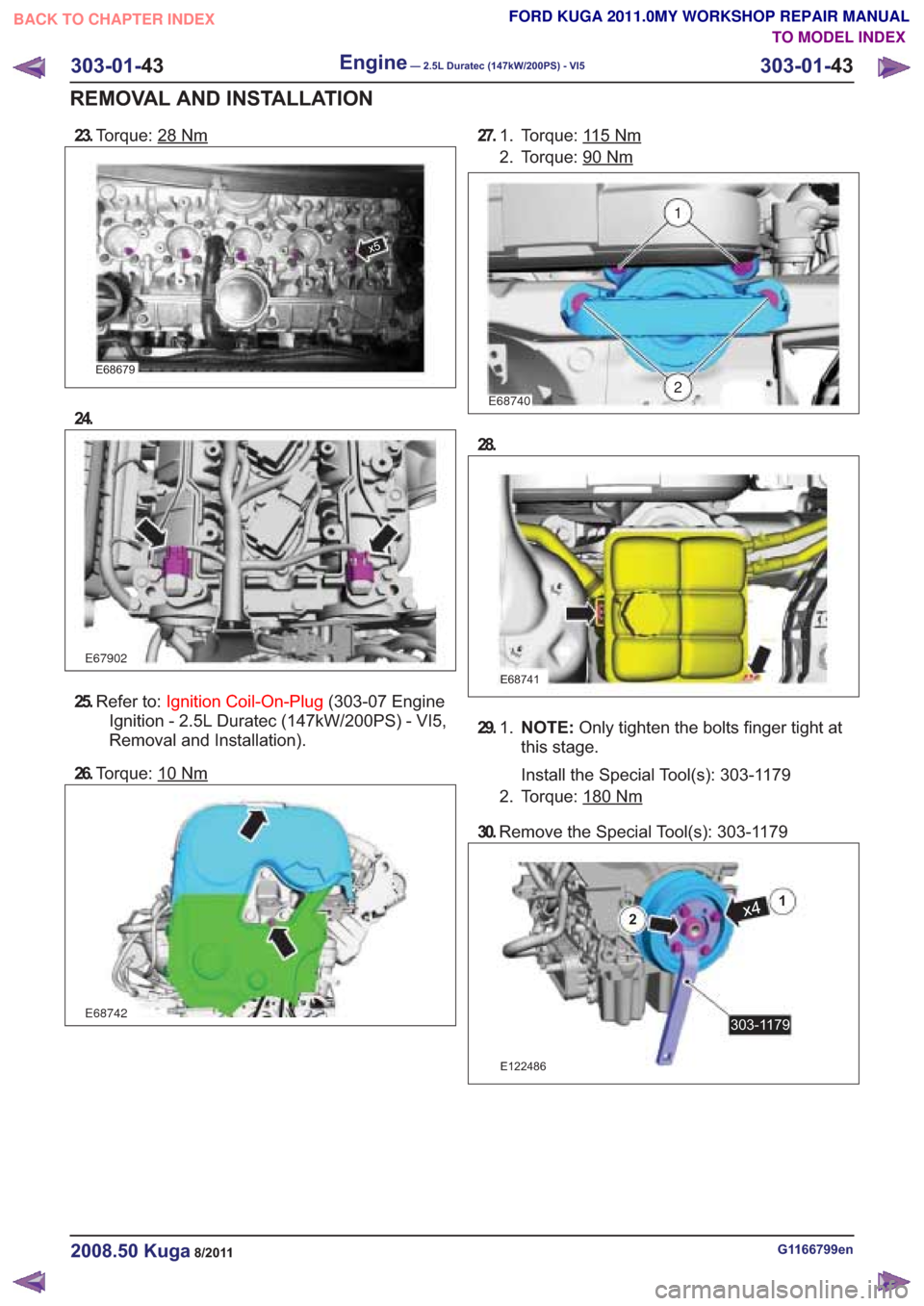

FORD KUGA 2011 1.G Workshop Manual 23.Torque: 28Nm x5 24. 25.Refer to: Ignition Coil-On-Plug (303-07 Engine Ignition - 2.5L Duratec (147kW/200PS) - VI5, Removal and Installation). 26. Torque: 10 E68742 27. To r q u e : 115Nm1. 2. Torqu
