Page 1329 of 2057

FORD KUGA 2011 1.G Workshop Manual SECTION 205-05 Rear Drive Halfshafts VEHICLE APPLICATION:2008.50 Kuga PA G E CONTENTS REMOVAL AND INSTALLATION 205-05-2 Rear Halfshaft .................................................................

Page 1330 of 2057

FORD KUGA 2011 1.G Workshop Manual Rear Halfshaft Special Tool(s) / General Equipment308-759 Remover, Rear Driveshaft E100143 Cable Ties Special Tool(s) / General EquipmentTire Lever Transmission Jack Materials Specification Name WSK-M

Page 1331 of 2057

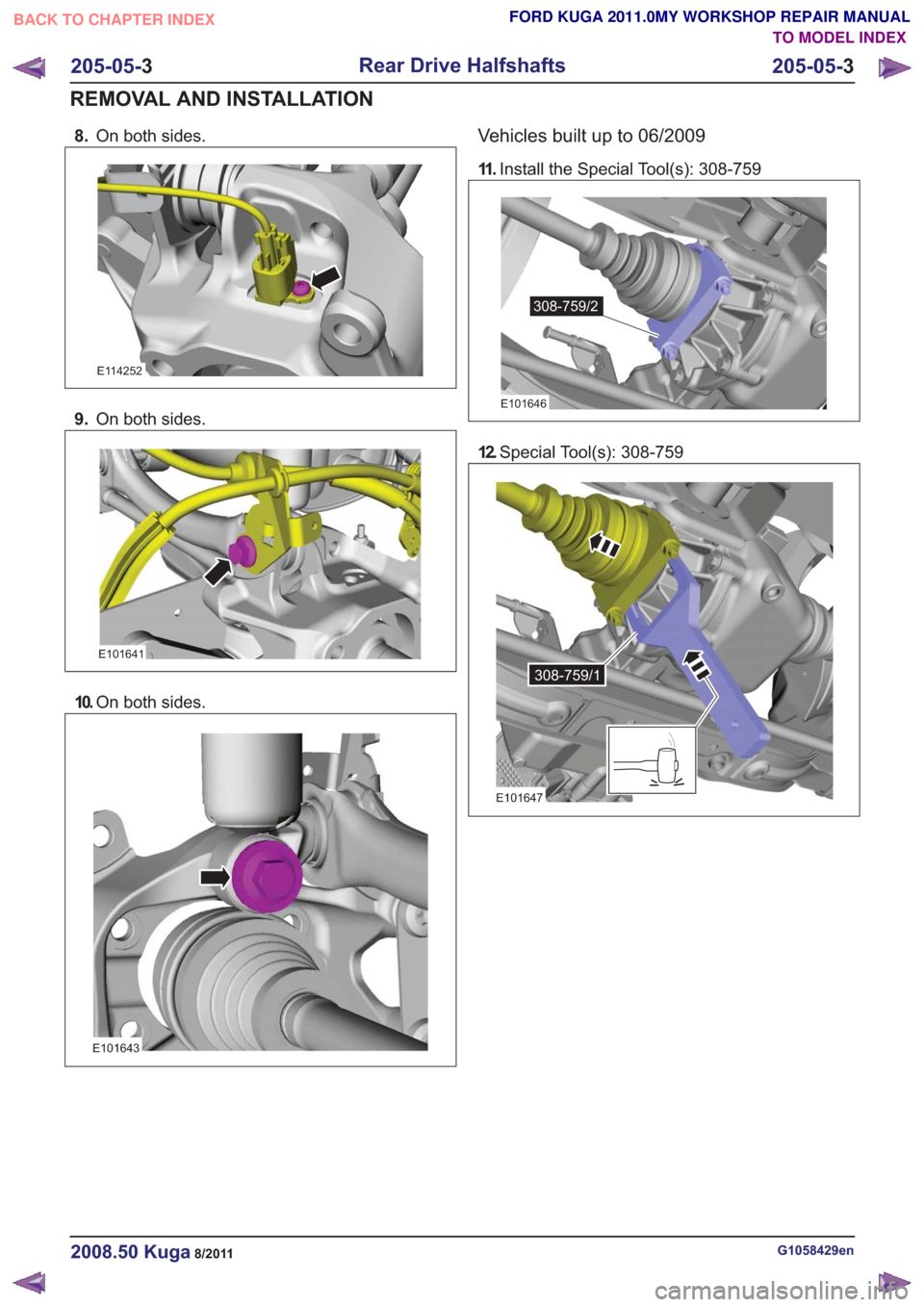

FORD KUGA 2011 1.G Workshop Manual 8.On both sides. E114252 9.On both sides. E101641 10.On both sides. E101643 Vehicles built up to 06/2009 11 .Install the Special Tool(s): 308-759 308-759/2308-759/2 E101646 12.Special Tool(s): 308-759

Page 1332 of 2057

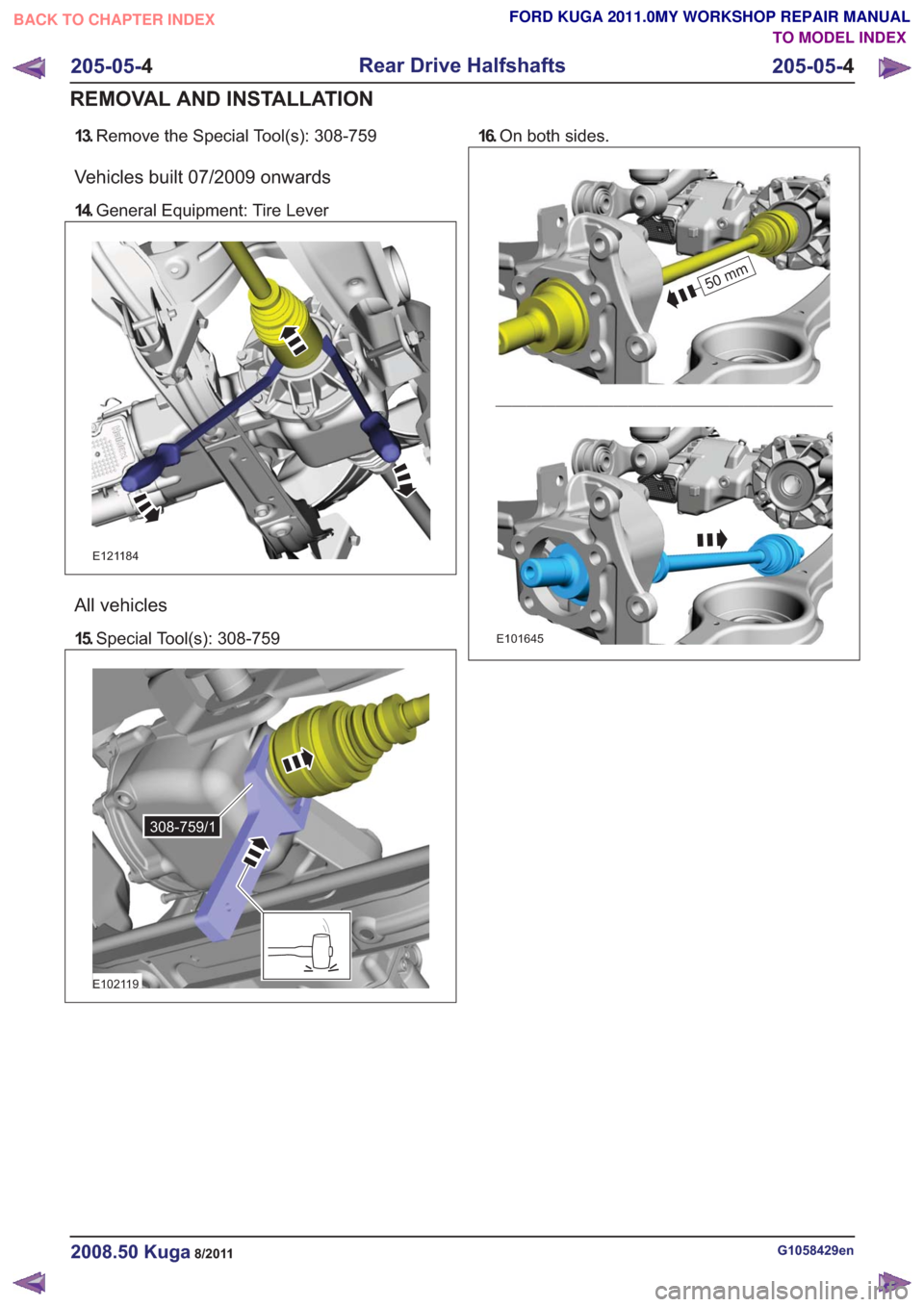

FORD KUGA 2011 1.G Workshop Manual 13.Remove the Special Tool(s): 308-759 Vehicles built 07/2009 onwards 14.General Equipment: Tire Lever E121184 All vehicles 15.Special Tool(s): 308-759 308-759/1308-759/1 E102119 16.On both sides. 50

Page 1333 of 2057

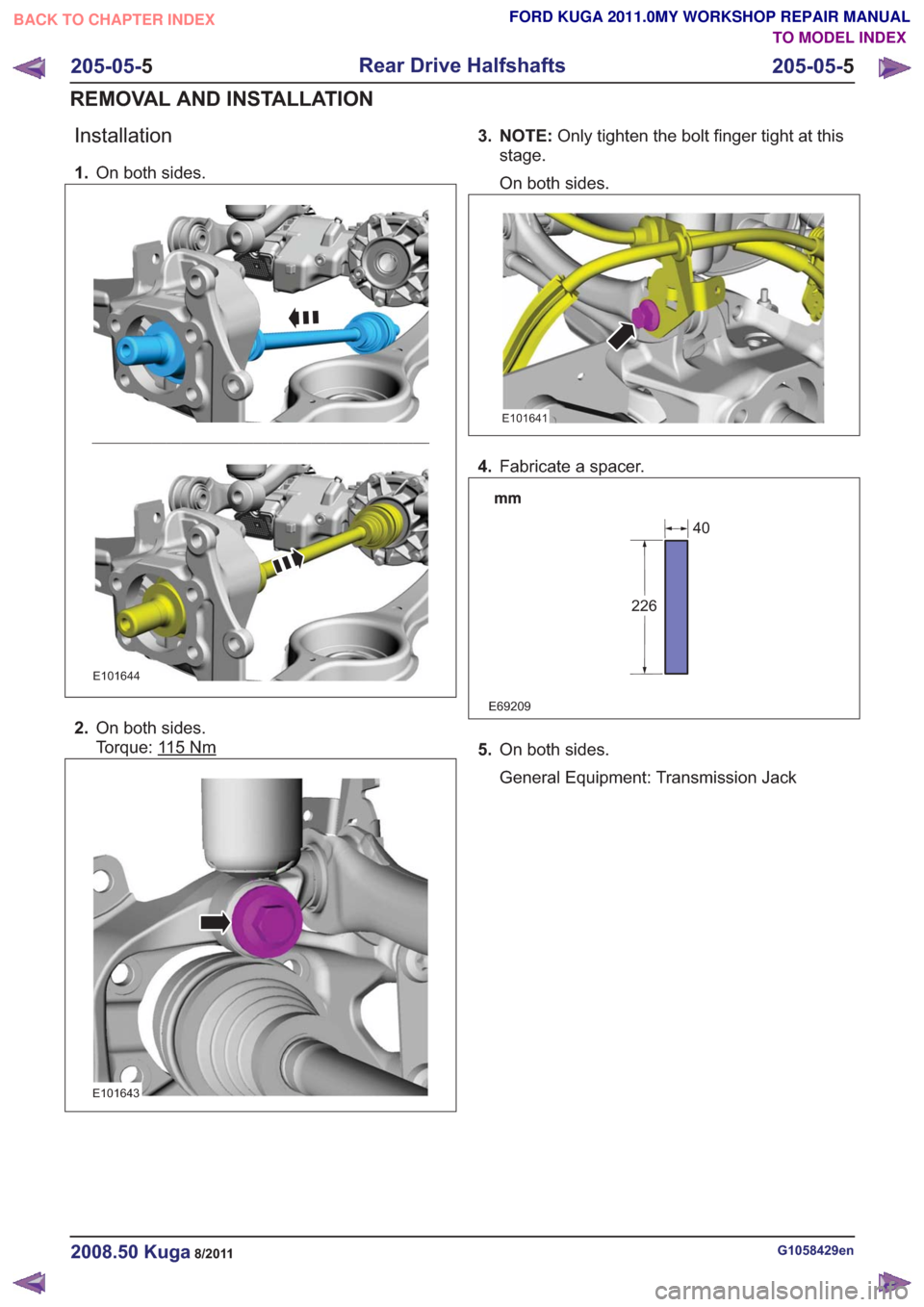

FORD KUGA 2011 1.G Workshop Manual Installation 1.On both sides. E101644 2.On both sides. Torque: 1 15Nm E101643 3. NOTE: Only tighten the bolt finger tight at this stage. On both sides. E101641 4. Fabricate a spacer. E69209 226 40 5.O

Page 1334 of 2057

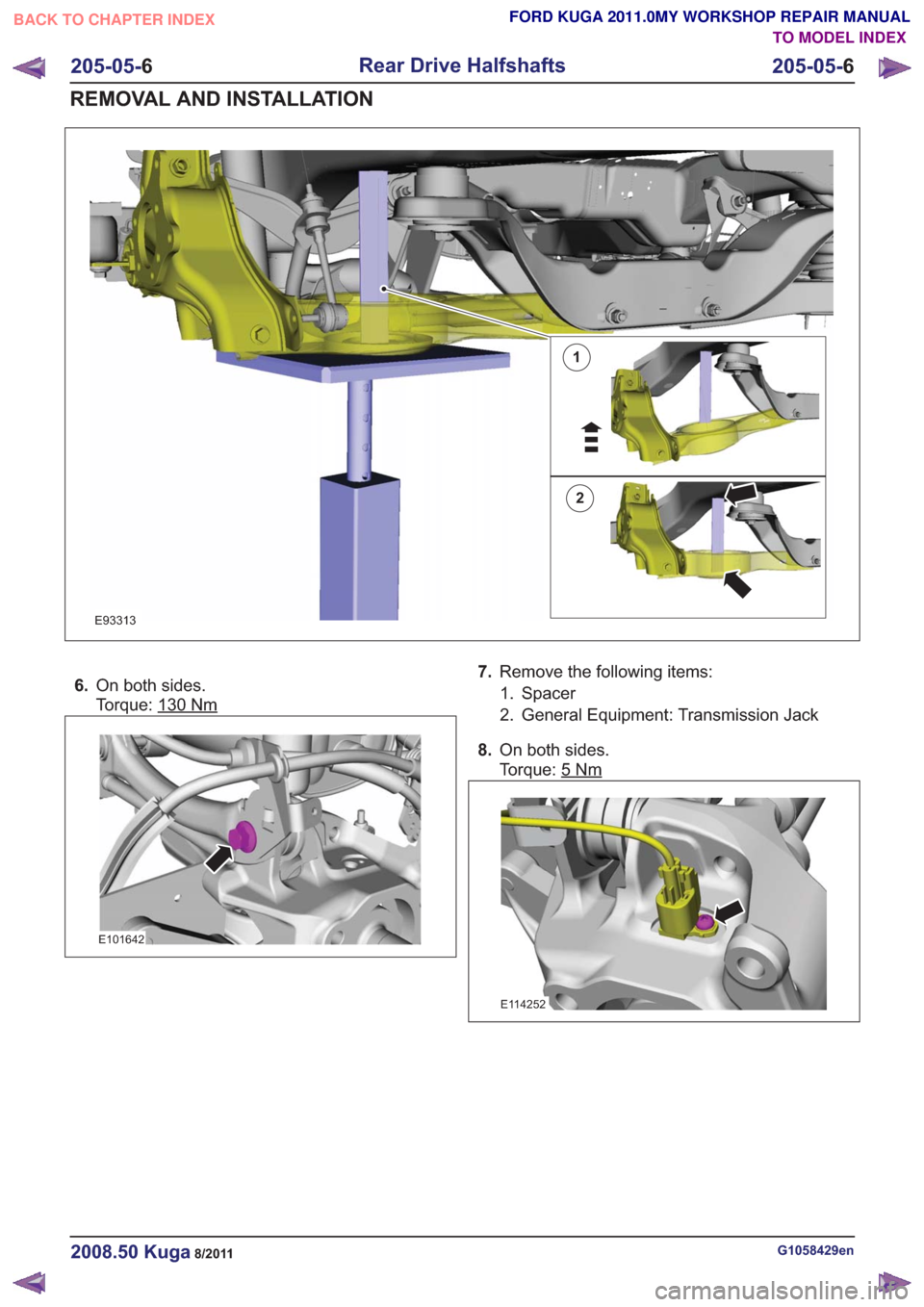

FORD KUGA 2011 1.G Workshop Manual 1 2 E93313 6.On both sides. Torque: 130 Nm E101642 7.Remove the following items: 1. Spacer 2. General Equipment: Transmission Jack 8. On both sides. Torque: 5 Nm E114252 G1058429en2008.50 Kuga8/2011 2

Page 1335 of 2057

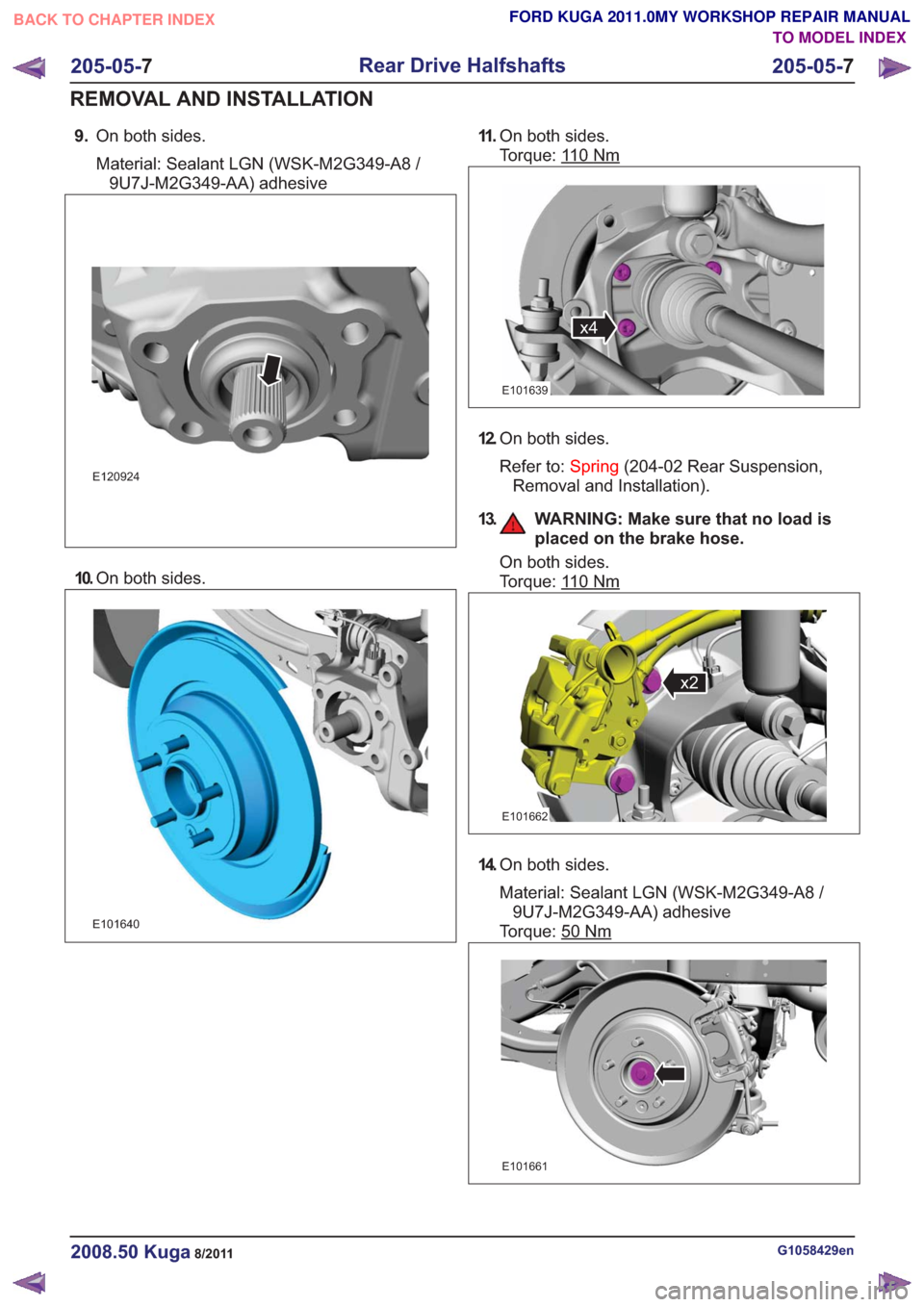

FORD KUGA 2011 1.G Workshop Manual 9.On both sides. Material: Sealant LGN (WSK-M2G349-A8 / 9U7J-M2G349-AA) adhesive E120924 10. On both sides. E101640 11 .On both sides. Torque: 1 10Nm x4x4 E101639 12.On both sides. Refer to: Spring(20

Page 1336 of 2057

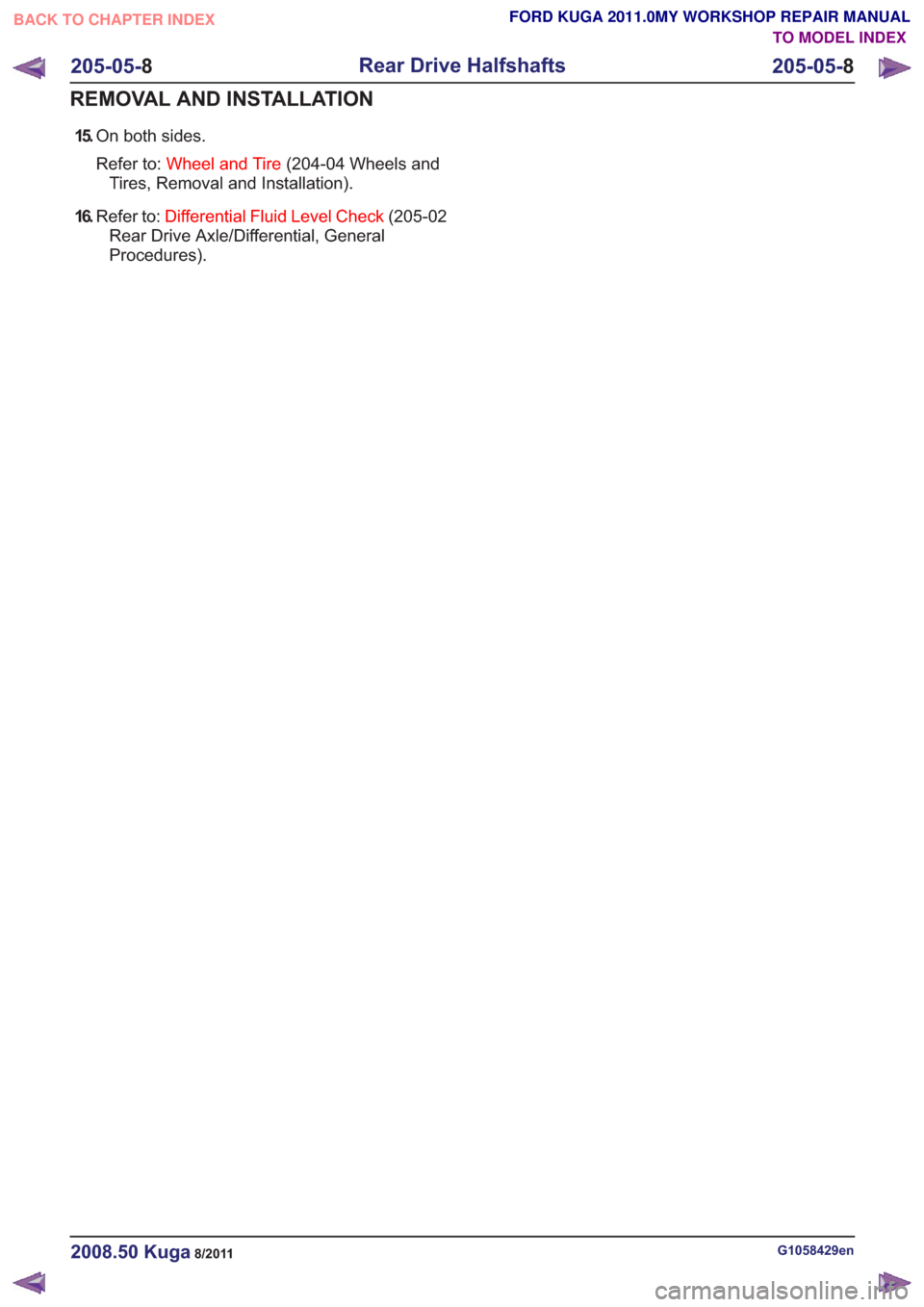

FORD KUGA 2011 1.G Workshop Manual 15.On both sides. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 16. Refer to: Differential Fluid Level Check (205-02 Rear Drive Axle/Differential, General Procedures).
