Page 1689 of 2057

FORD KUGA 2011 1.G Workshop Manual E99754 1 2 Installation 1.To install, reverse the removal procedure. G1156381en2008.50 Kuga8/2011 303-03- 18 Engine Cooling 303-03- 18 REMOVAL AND INSTALLATION TO MODEL INDEX BACK TO CHAPTER INDEX FOR

Page 1690 of 2057

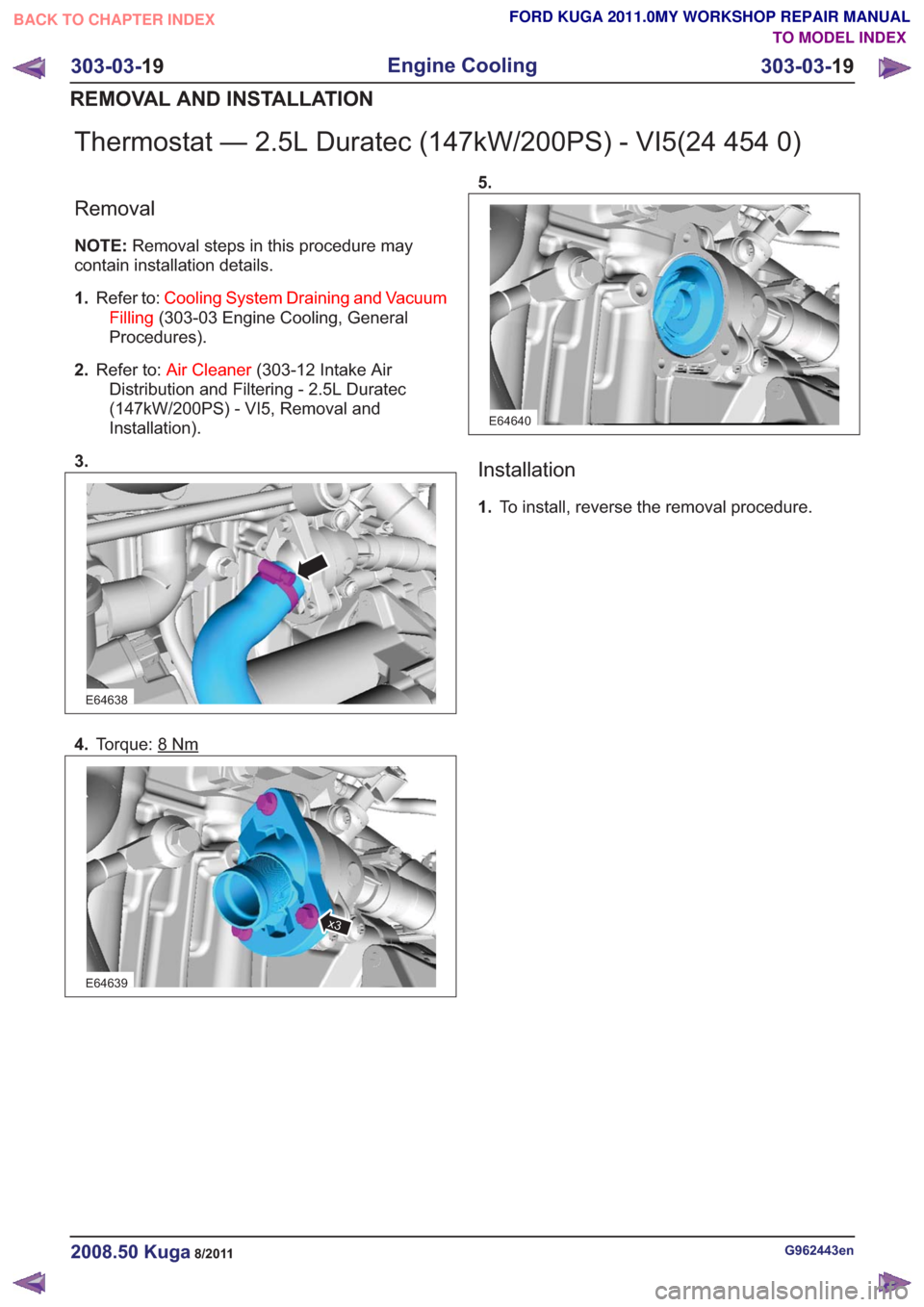

FORD KUGA 2011 1.G Workshop Manual Thermostat — 2.5L Duratec (147kW/200PS) - VI5(24 454 0) Removal NOTE:Removal steps in this procedure may contain installation details. 1. Refer to: Cooling System Draining and Vacuum Filling (303-03

Page 1691 of 2057

FORD KUGA 2011 1.G Workshop Manual Thermostat Housing — 2.5L Duratec (147kW/200PS) -VI5(24 001 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Cooling System Draining and Vacuum Filling

Page 1692 of 2057

FORD KUGA 2011 1.G Workshop Manual SECTION 303-04A Fuel Charging and Controls— 2.5L Duratec (147kW/200PS) - VI5 VEHICLE APPLICATION: 2008.50 Kuga PA G E CONTENTS DESCRIPTION AND OPERATION 303-04A-2 Fuel Charging and Controls ........

Page 1693 of 2057

FORD KUGA 2011 1.G Workshop Manual Fuel Charging and Controls E64777 14 5 2 3 G510053en2008.50 Kuga8/2011 303-04A-2 Fuel Charging and Controls — 2.5L Duratec (147kW/200PS) - VI5 303-04A- 2 DESCRIPTION AND OPERATION TO MODEL INDEX BAC

Page 1694 of 2057

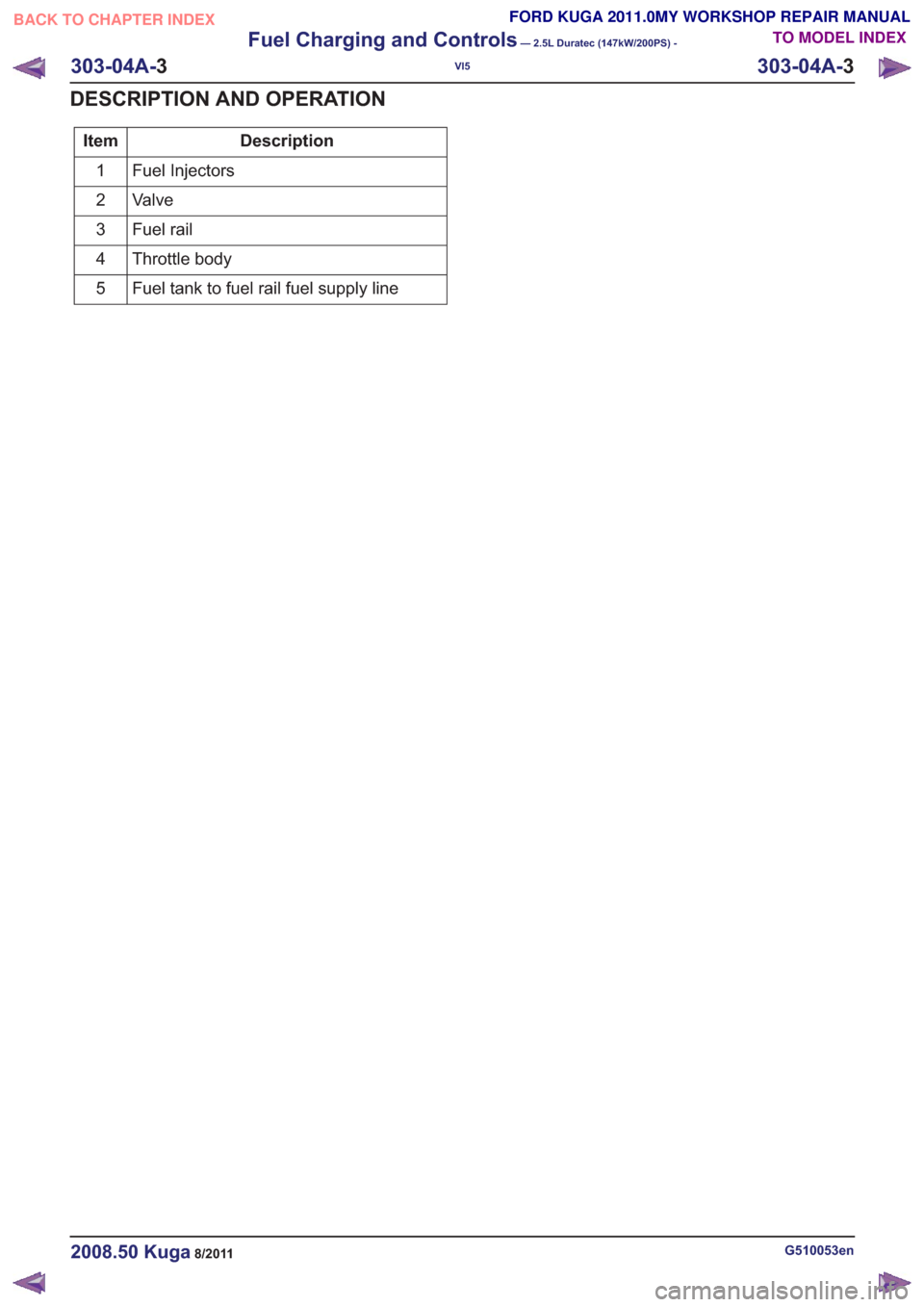

FORD KUGA 2011 1.G Workshop Manual Description Item Fuel Injectors 1 Valve 2 Fuel rail 3 Throttle body 4 Fuel tank to fuel rail fuel supply line 5 G510053en2008.50 Kuga8/2011 303-04A- 3 Fuel Charging and Controls — 2.5L Duratec (147k

Page 1695 of 2057

FORD KUGA 2011 1.G Workshop Manual Fuel Charging and Controls General EquipmentFord diagnostic equipment Inspection and Verification 1. Verify the customer concern by operating the system. 2. Visually inspect for obvious signs of mecha

Page 1696 of 2057

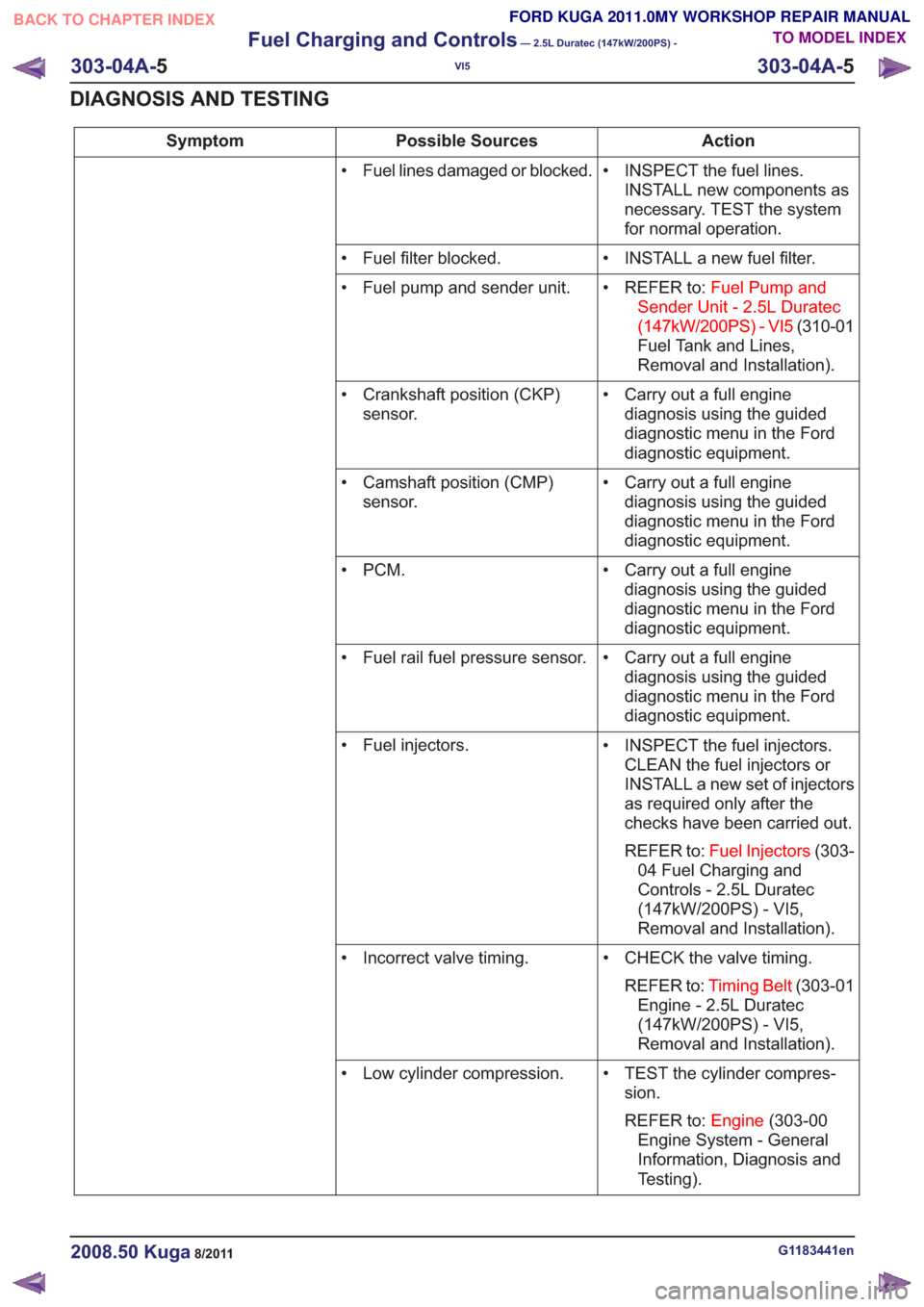

FORD KUGA 2011 1.G Workshop Manual Action Possible Sources Symptom • INSPECT the fuel lines.INSTALL new components as necessary. TEST the system for normal operation. • Fuel lines damaged or blocked. • INSTALL a new fuel filter.
