Page 1921 of 2057

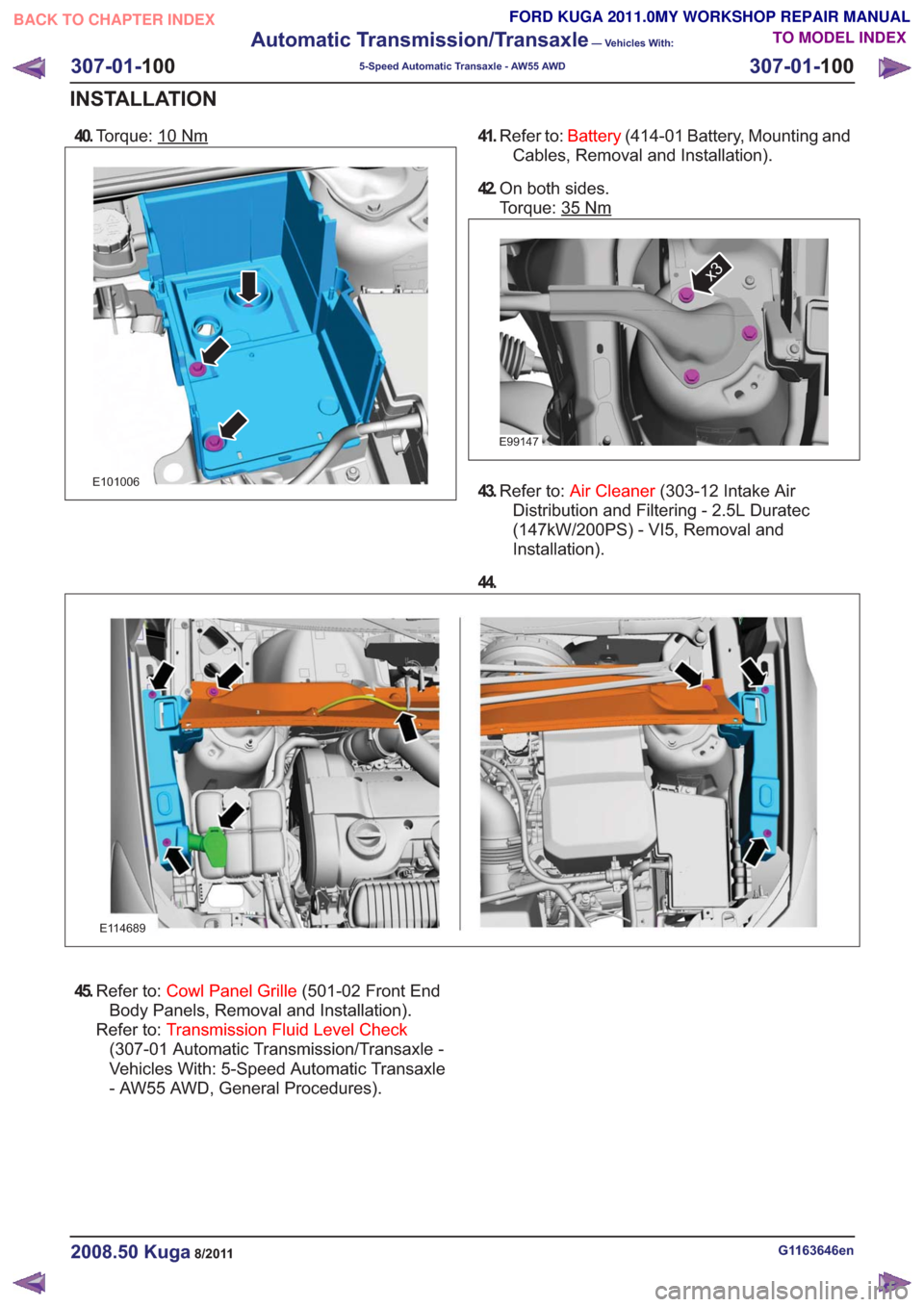

FORD KUGA 2011 1.G Workshop Manual 40.Torque: 10Nm E101006 41.Refer to: Battery(414-01 Battery, Mounting and Cables, Removal and Installation). 42. On both sides. Torque: 35 Nm E99147 x3 43.Refer to: Air Cleaner (303-12 Intake Air Dist

Page 1922 of 2057

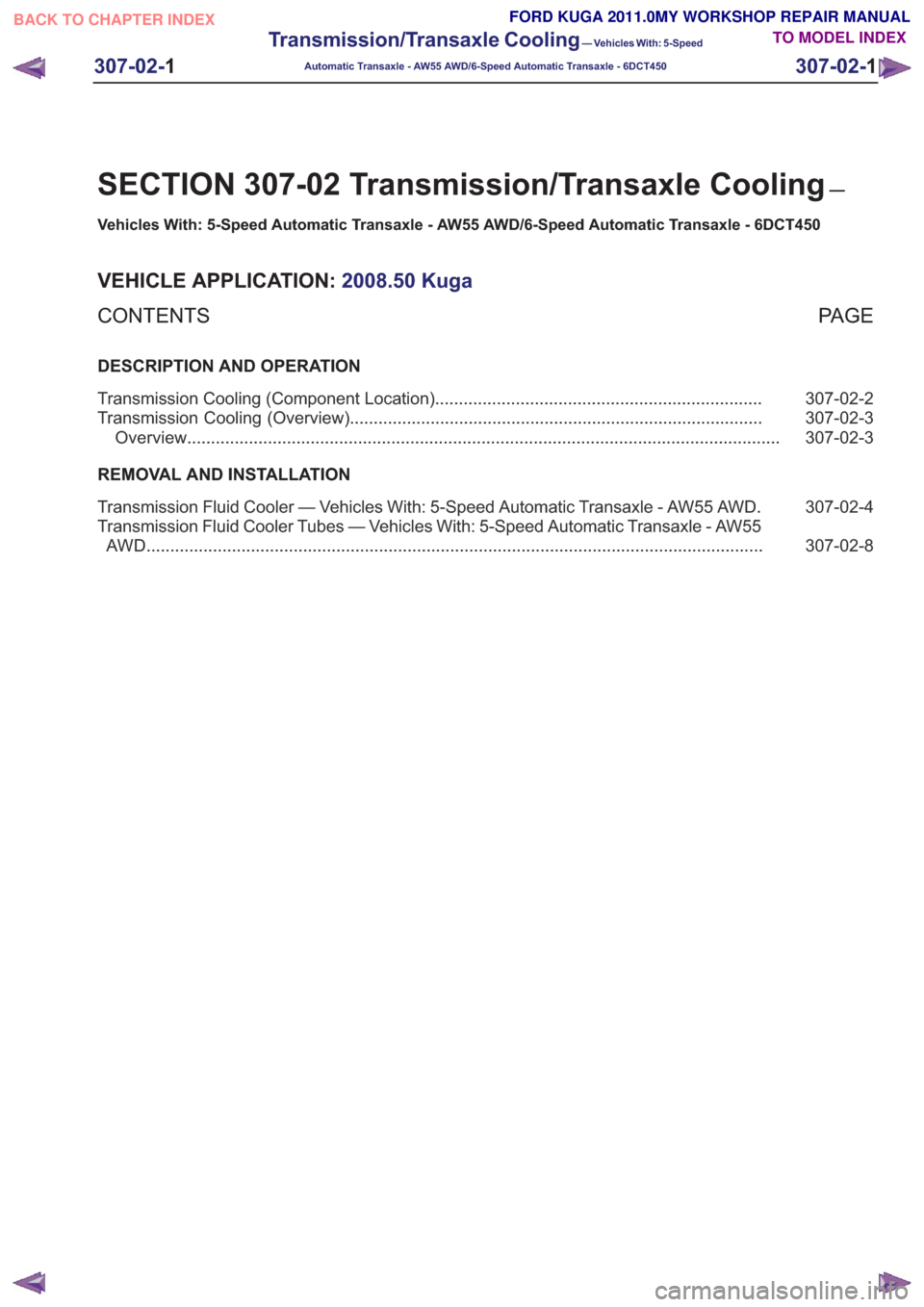

FORD KUGA 2011 1.G Workshop Manual SECTION 307-02 Transmission/Transaxle Cooling— Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450 VEHICLE APPLICATION: 2008.50 Kuga PA G E CONTENTS DESCRIPTI

Page 1923 of 2057

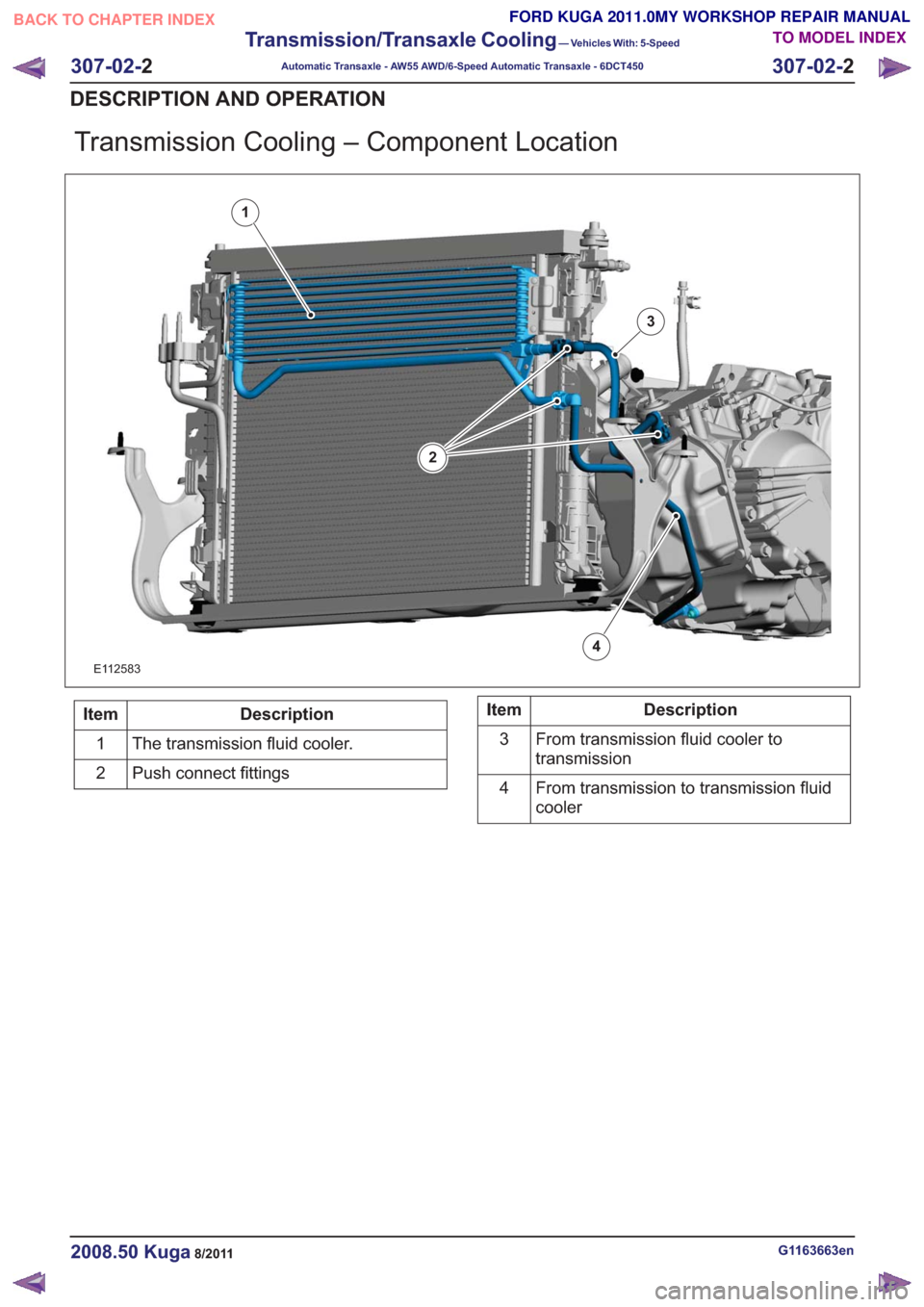

FORD KUGA 2011 1.G Workshop Manual Transmission Cooling – Component Location 1 2 3 4 E112583 Description Item The transmission fluid cooler. 1 Push connect fittings 2Description Item From transmission fluid cooler to transmission 3 F

Page 1924 of 2057

FORD KUGA 2011 1.G Workshop Manual Transmission Cooling – Overview Overview The transmission fluid cooler is secured on the radiator. The transmission fluid cooler operates according to the heat exchanger principle. The ram air passi

Page 1925 of 2057

FORD KUGA 2011 1.G Workshop Manual Transmission Fluid Cooler — Vehicles With: 5-Speed AutomaticTransaxle - AW55 AWD Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Health and Safety Precau

Page 1926 of 2057

FORD KUGA 2011 1.G Workshop Manual E114922 7.Refer to: Lifting(100-02 Jacking and Lifting, Description and Operation). 8. E98184 G1163667en2008.50 Kuga8/2011 307-02- 5 Transmission/Transaxle Cooling — Vehicles With: 5-Speed Automatic

Page 1927 of 2057

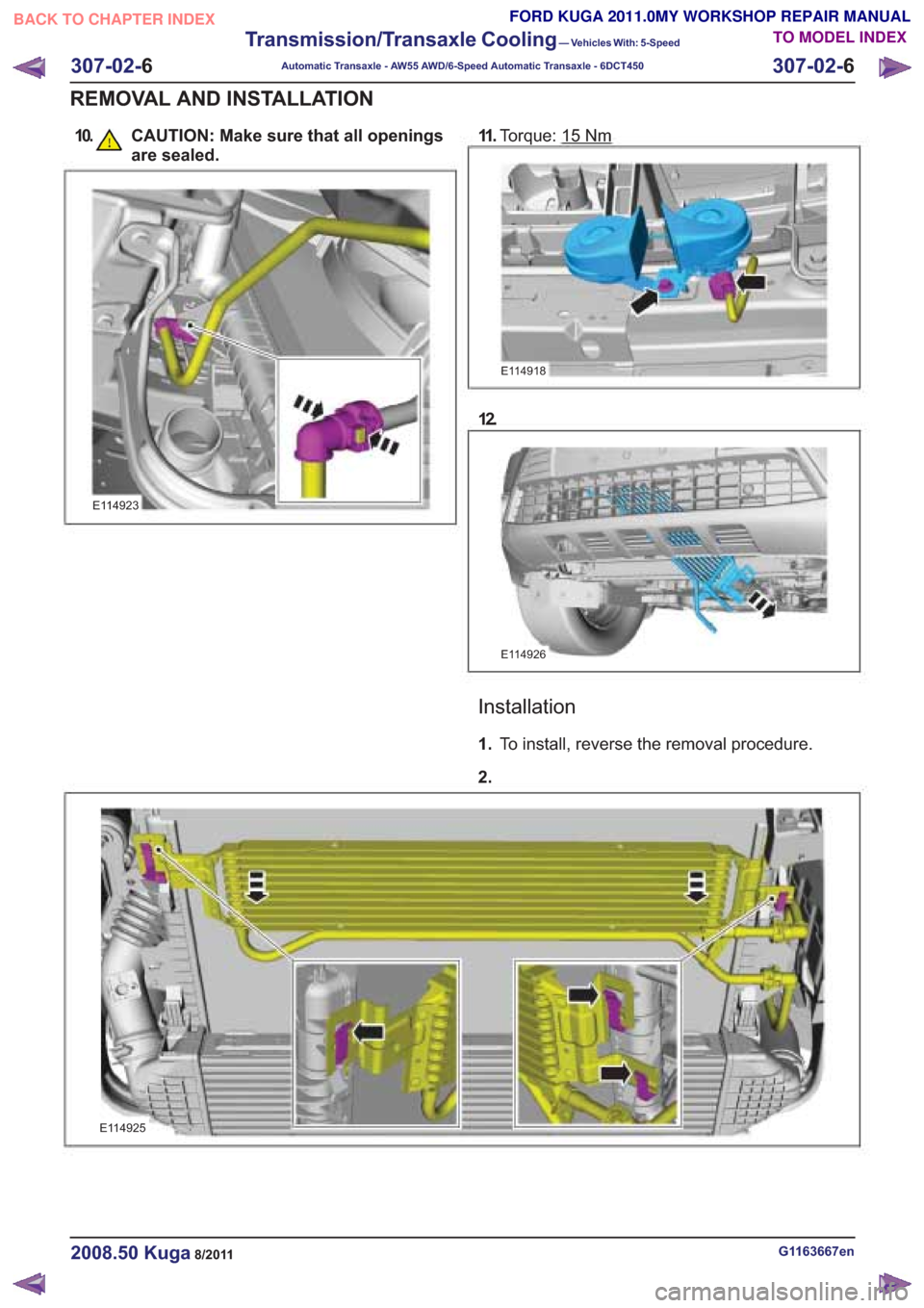

FORD KUGA 2011 1.G Workshop Manual 10. CAUTION: Make sure that all openingsare sealed. E114923 11 .Torque: 15Nm 307-02- 6 Transmission/Transaxle Cooling — Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transa

Page 1928 of 2057

FORD KUGA 2011 1.G Workshop Manual 3.Refer to: Transfer Case Fluid Level Check (307-07 Transfer Case - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450, General Procedures). G1163667en2008.50
