Page 1281 of 2057

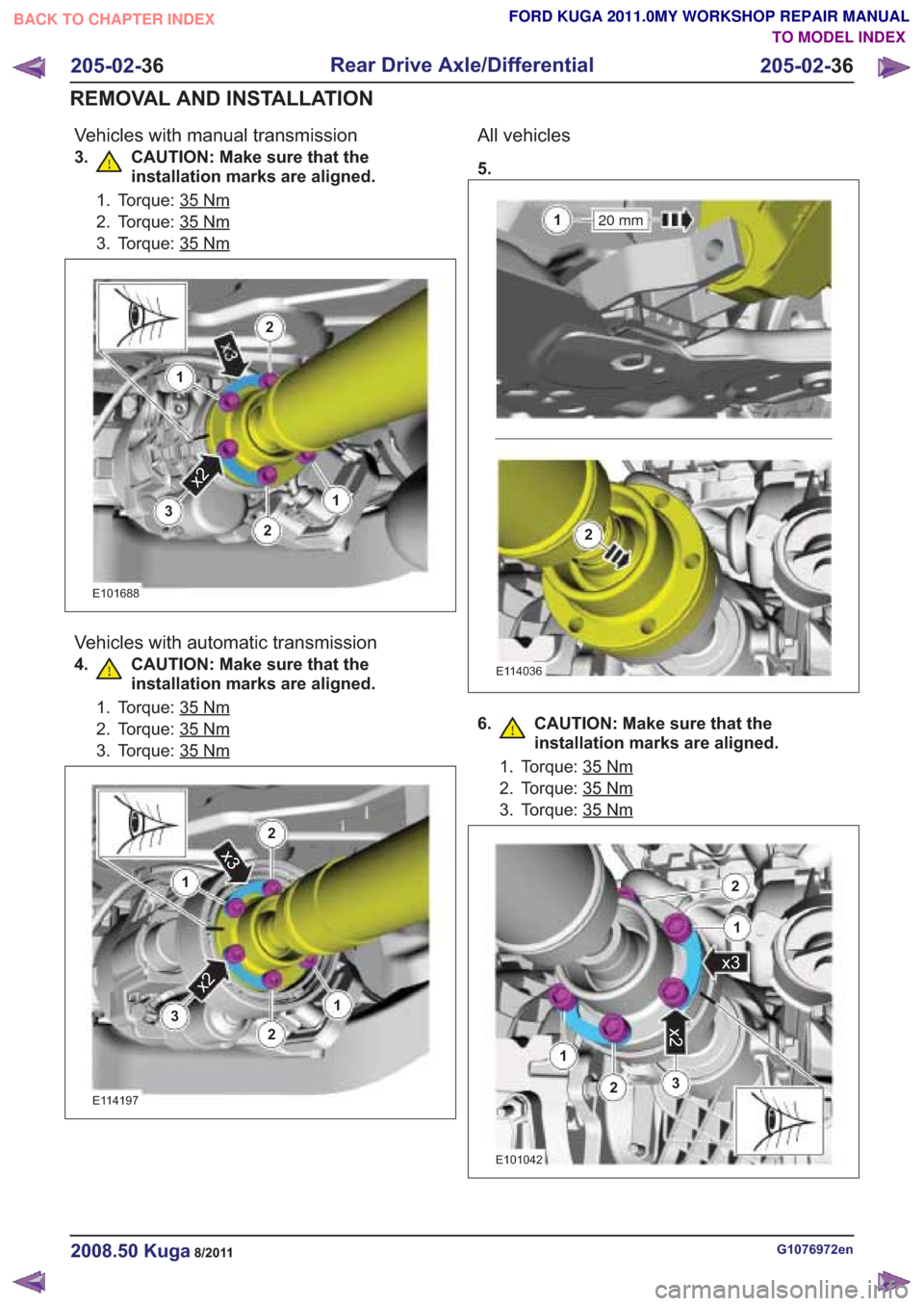

FORD KUGA 2011 1.G Workshop Manual E101688 Vehicles with automatic transmission 4. CAUTION: Make sure that theinstallation marks are aligned. E114197 All vehicles 5. 20 mm E114036 6. CAUTION: Make sure that theinstallation marks are al

Page 1282 of 2057

FORD KUGA 2011 1.G Workshop Manual 7.Torque: 25Nm x2 x2 x2 x2 x2 x2 E114188 8.Torque: • Stage 1: 35 Nm • Stage 2: Loosen 360° • Stage 3: 85Nm E114034 9.Refer to: Differential Fluid Level Check (205-02 Rear Drive Axle/Differentia

Page 1283 of 2057

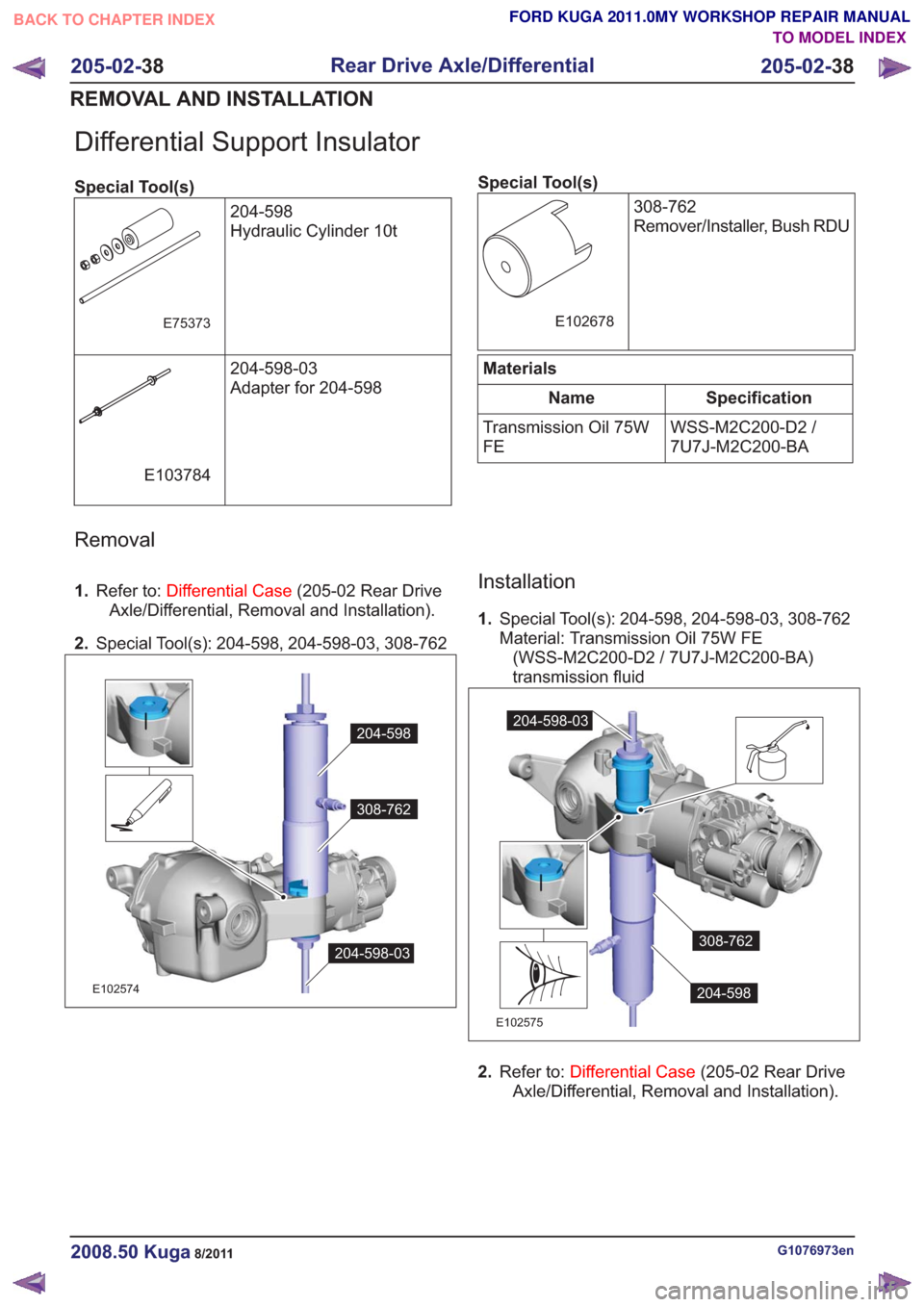

FORD KUGA 2011 1.G Workshop Manual Differential Support Insulator Special Tool(s)204-598 Hydraulic Cylinder 10t E75373 204-598-03 Adapter for 204-598 E103784 Special Tool(s)308-762 Remover/Installer, Bush RDU E102678 Materials Specific

Page 1284 of 2057

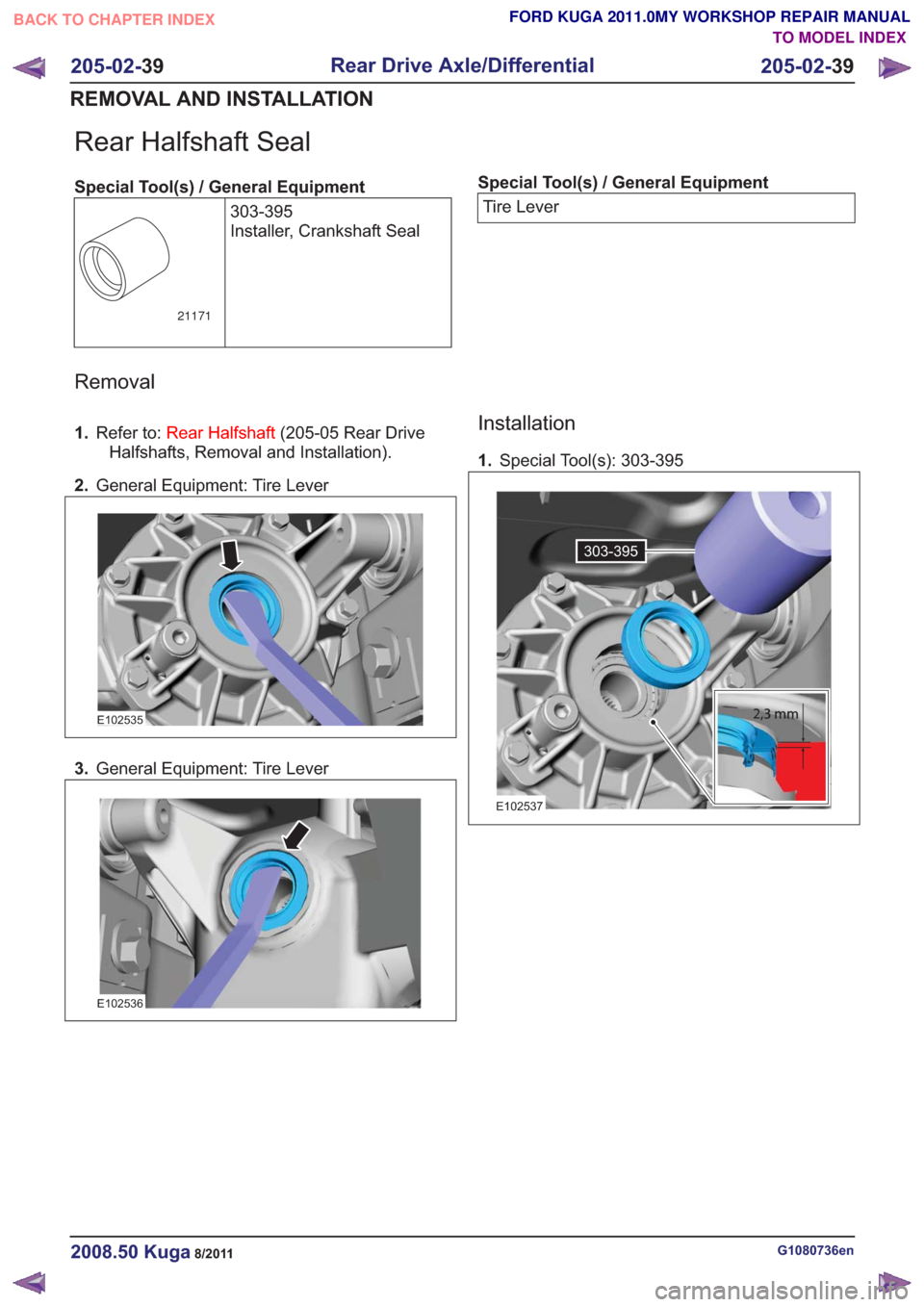

FORD KUGA 2011 1.G Workshop Manual Rear Halfshaft Seal Special Tool(s) / General Equipment303-395 Installer, Crankshaft Seal 21171 Special Tool(s) / General EquipmentTire Lever Removal 1. Refer to: Rear Halfshaft (205-05 Rear Drive Hal

Page 1285 of 2057

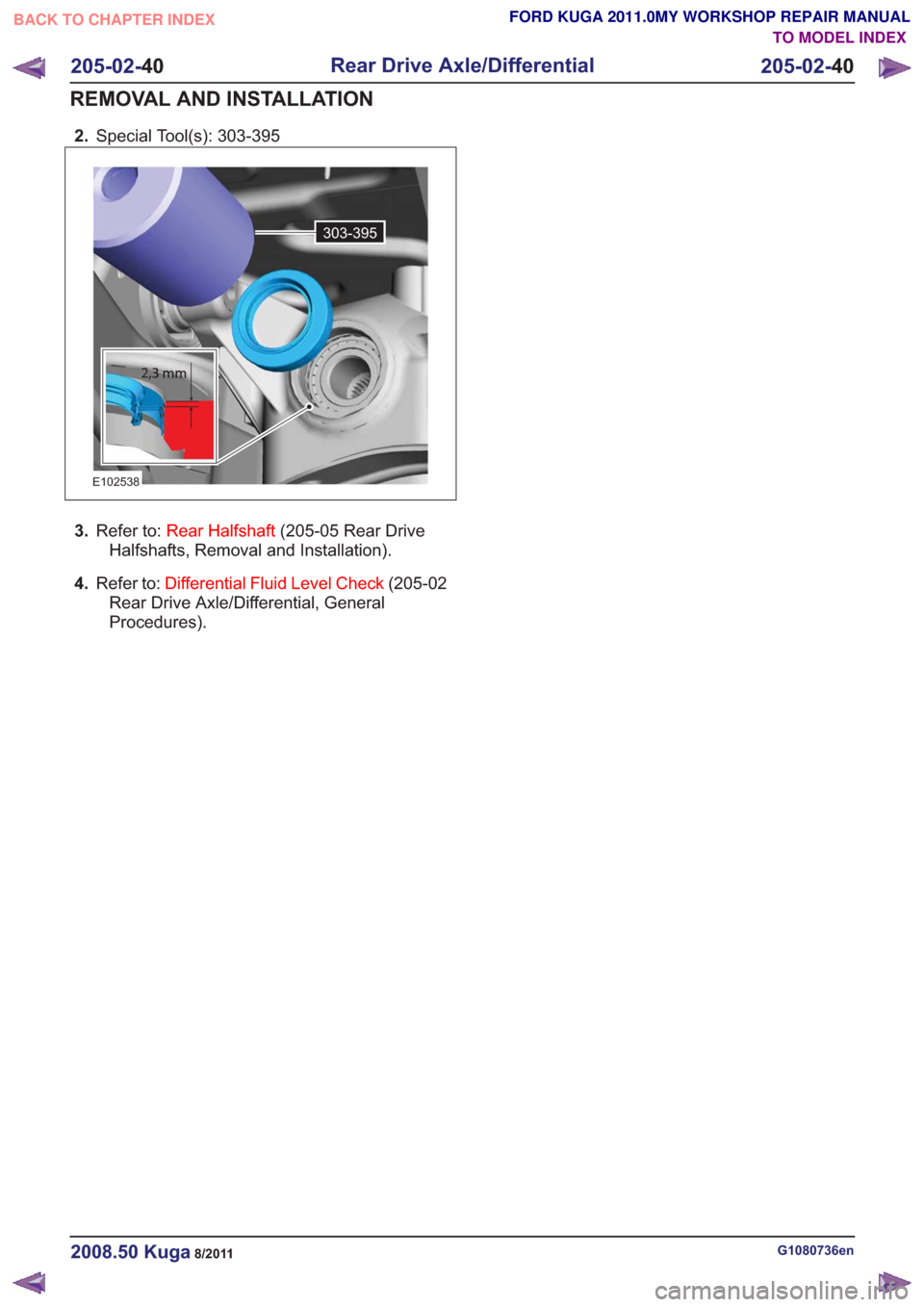

FORD KUGA 2011 1.G Workshop Manual 2.Special Tool(s): 303-395 303-395303-395 E102538 3.Refer to: Rear Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation). 4. Refer to: Differential Fluid Level Check (205-02 Rear Drive Ax

Page 1286 of 2057

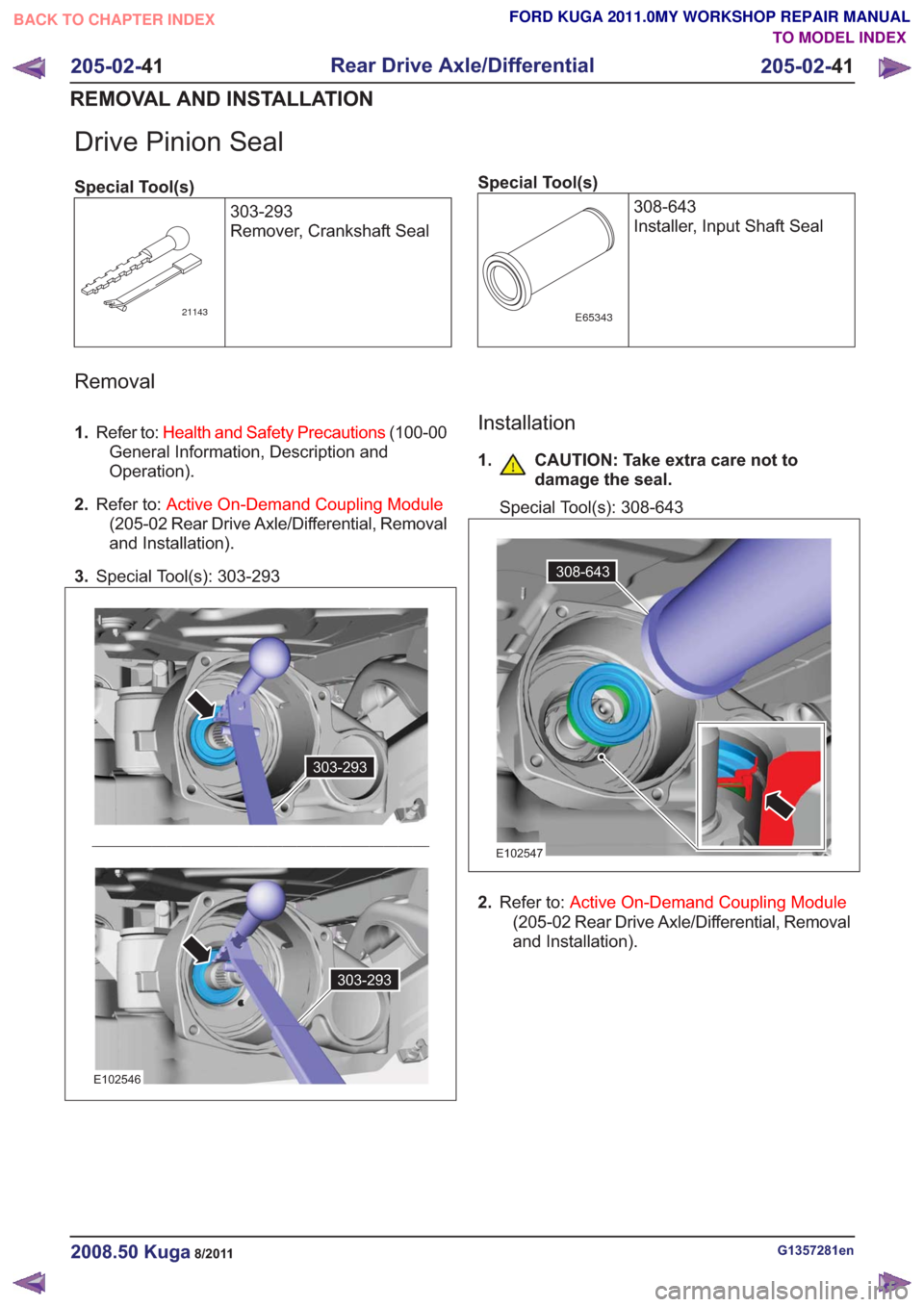

FORD KUGA 2011 1.G Workshop Manual Drive Pinion Seal Special Tool(s)303-293 Remover, Crankshaft Seal 21143 Special Tool(s)308-643 Installer, Input Shaft Seal E65343 Removal 1.Refer to: Health and Safety Precautions (100-00 General Info

Page 1287 of 2057

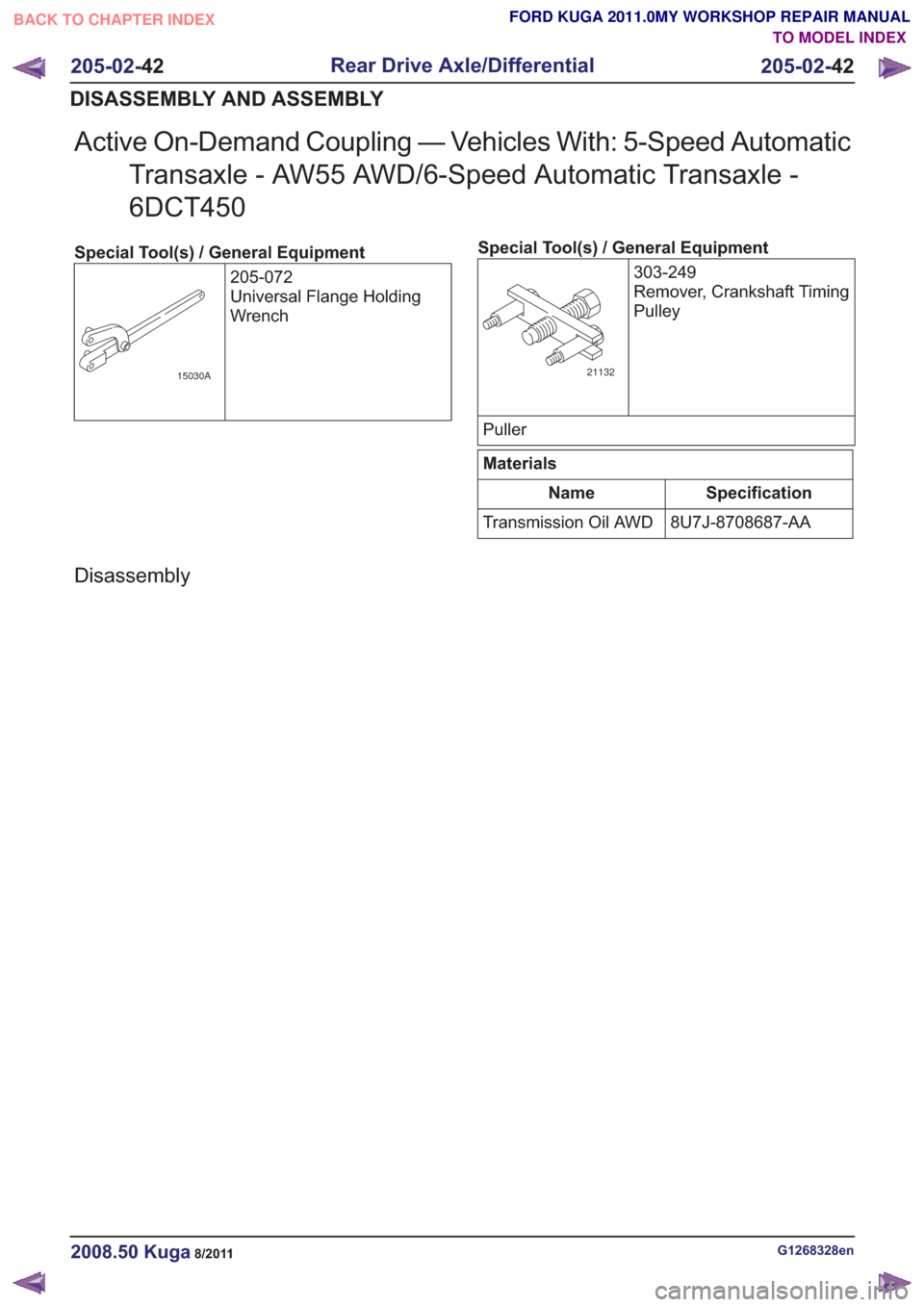

FORD KUGA 2011 1.G Workshop Manual Active On-Demand Coupling — Vehicles With: 5-Speed AutomaticTransaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450 Special Tool(s) / General Equipment 205-072 Universal Flange Holding Wrench 150

Page 1288 of 2057

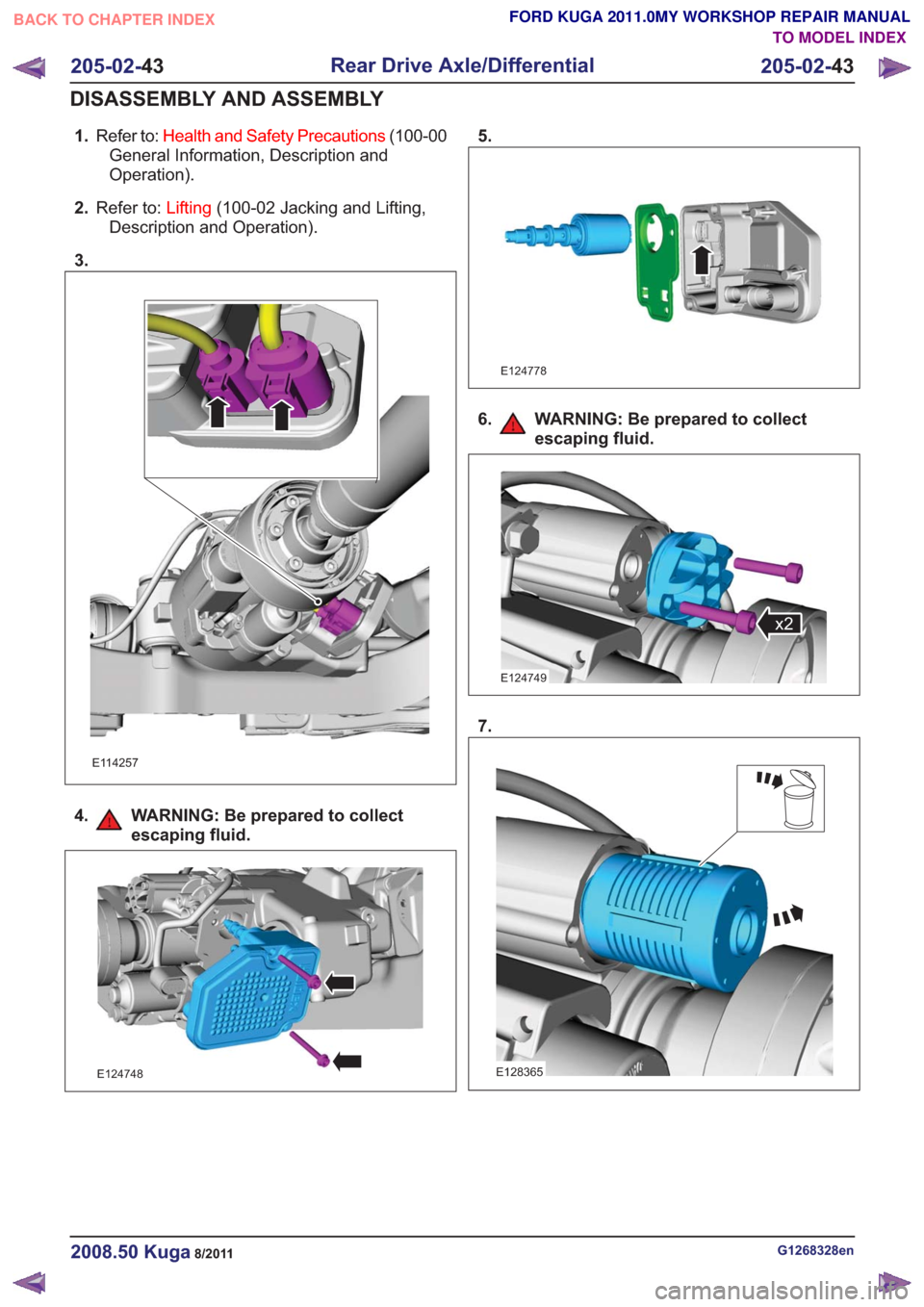

FORD KUGA 2011 1.G Workshop Manual 1.Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Lifting(100-02 Jacking and Lifting, Description and Operation). 3. E114257 4. WARNING: B
