Page 1961 of 2057

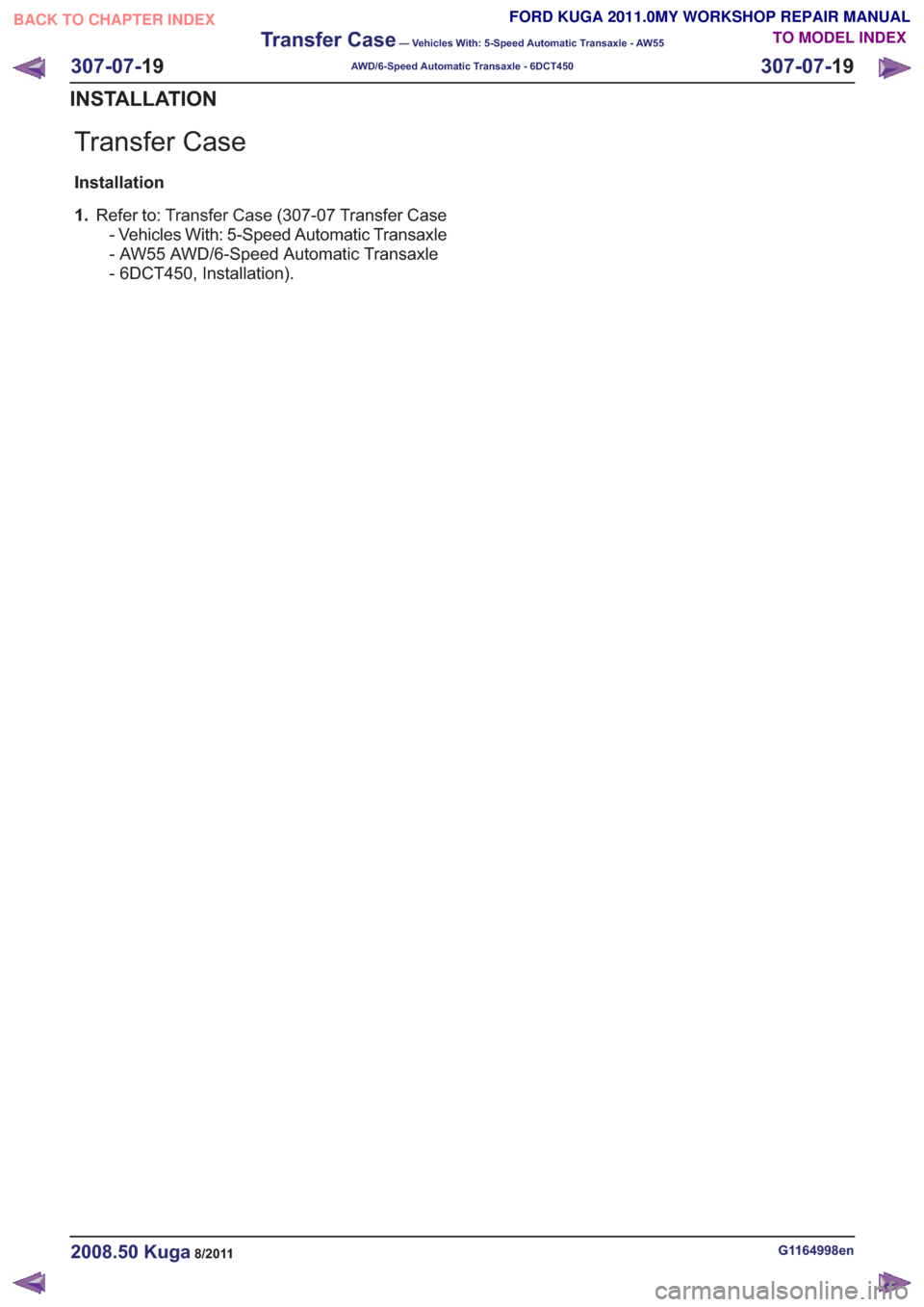

FORD KUGA 2011 1.G Workshop Manual Transfer Case Installation 1.Refer to: Transfer Case (307-07 Transfer Case - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450, Installation). G1164998en2008.

Page 1962 of 2057

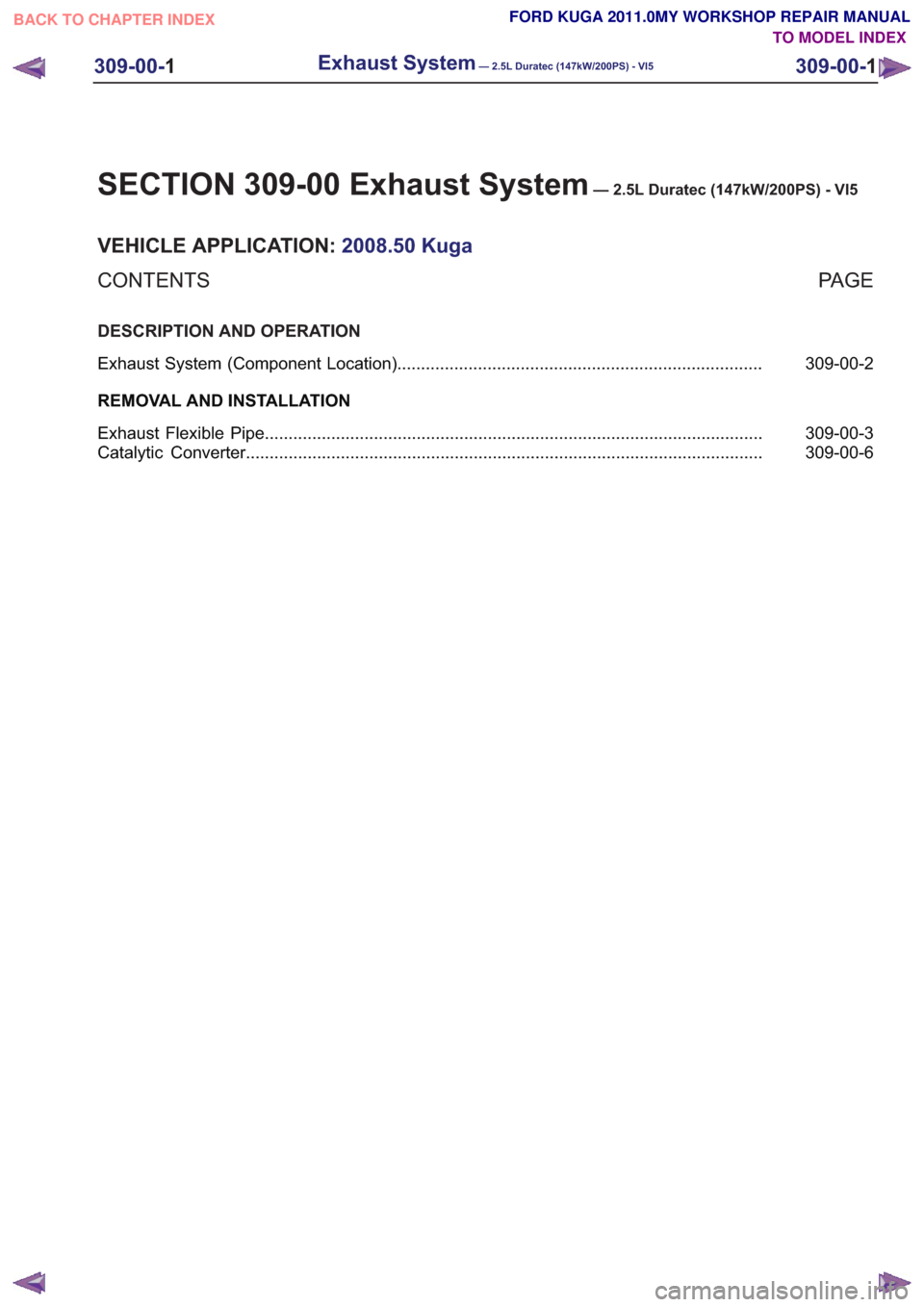

FORD KUGA 2011 1.G Workshop Manual SECTION 309-00 Exhaust System— 2.5L Duratec (147kW/200PS) - VI5 VEHICLE APPLICATION:2008.50 Kuga PA G E CONTENTS DESCRIPTION AND OPERATION 309-00-2 Exhaust System (Component Location) ..............

Page 1963 of 2057

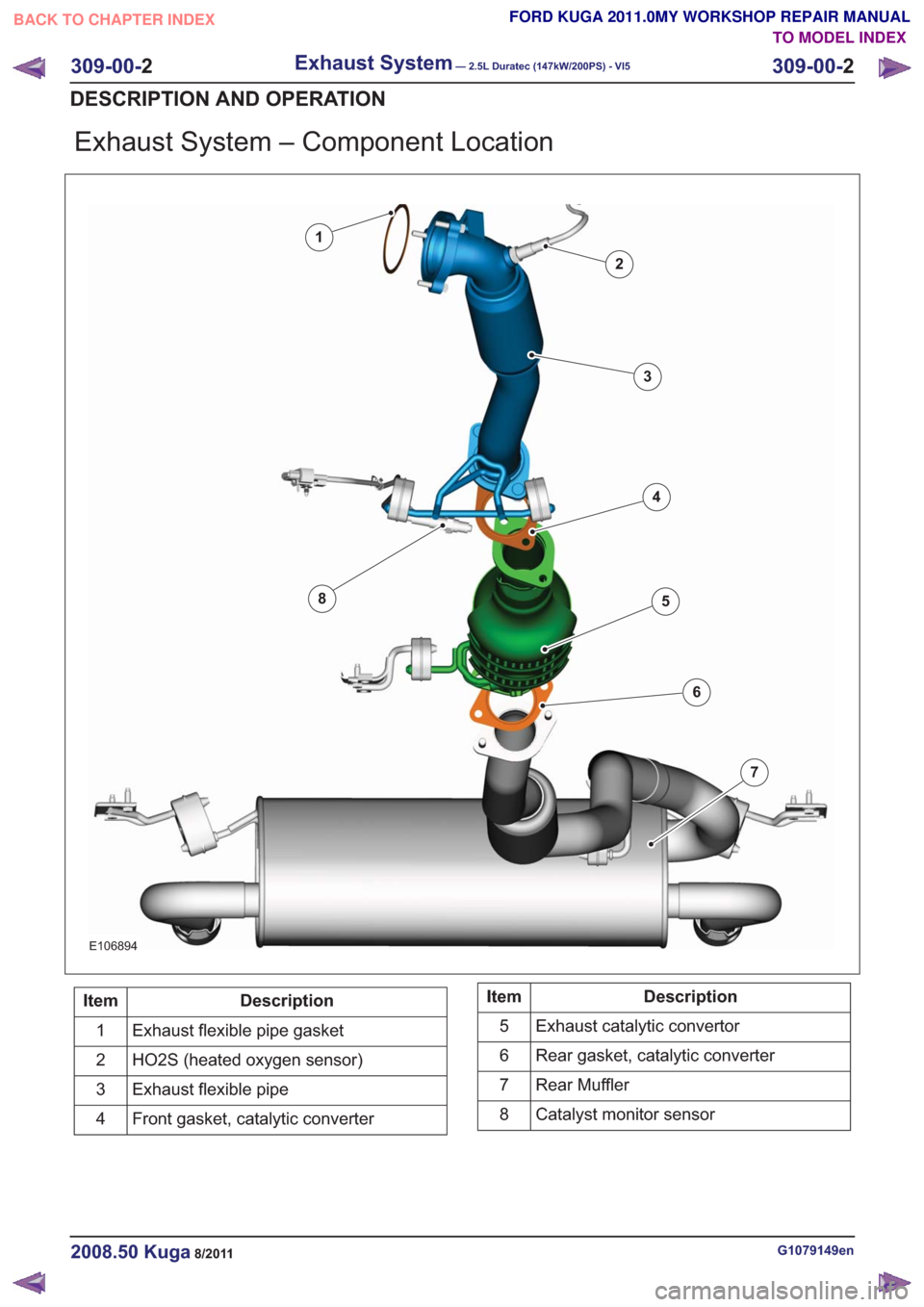

FORD KUGA 2011 1.G Workshop Manual Exhaust System – Component Location E106894 1 2 3 4 5 6 7 8 Description Item Exhaust flexible pipe gasket 1 HO2S (heated oxygen sensor) 2 Exhaust flexible pipe 3 Front gasket, catalytic converter 4D

Page 1964 of 2057

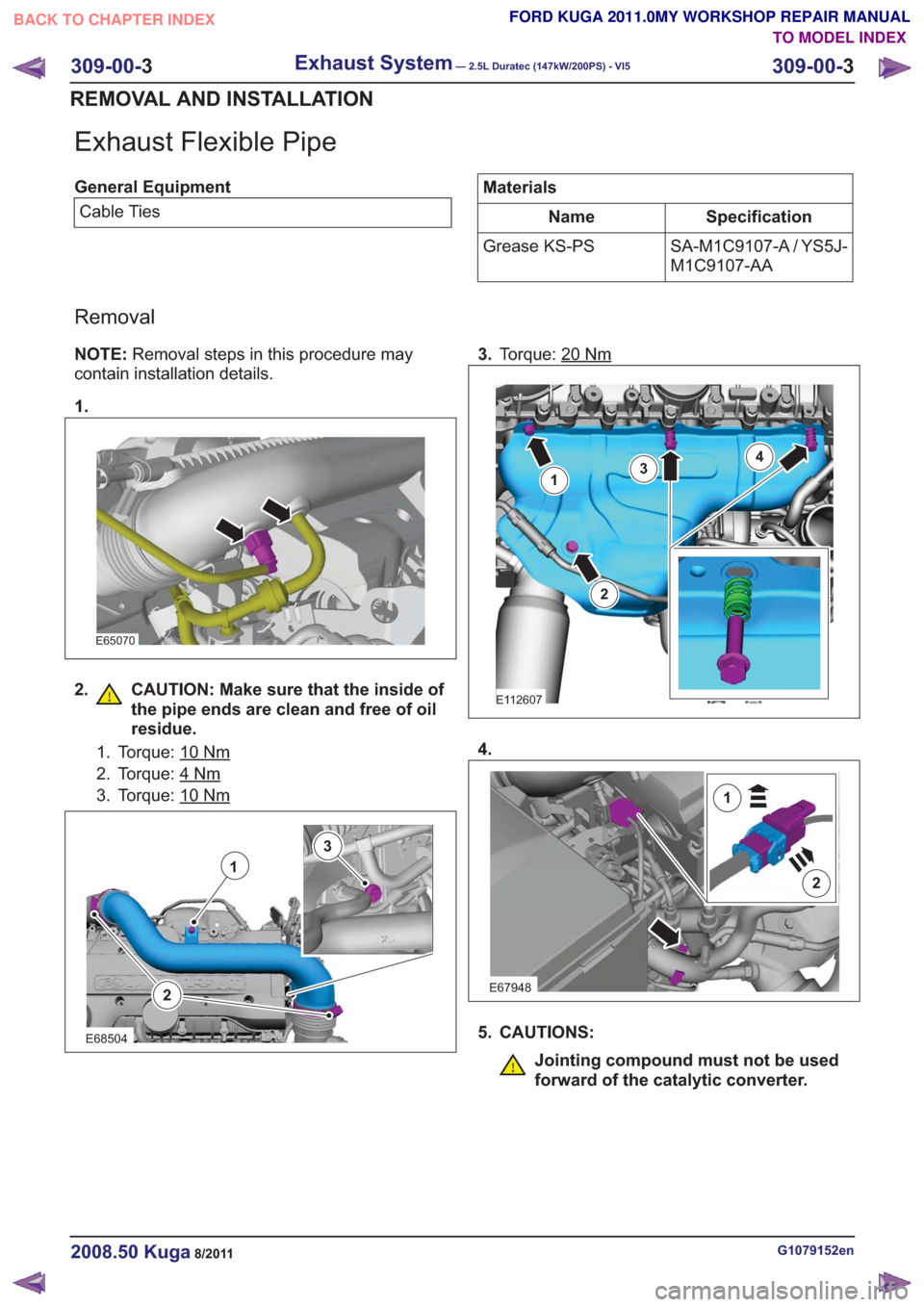

FORD KUGA 2011 1.G Workshop Manual Exhaust Flexible Pipe General EquipmentCable TiesMaterials Specification Name SA-M1C9107-A / YS5J- M1C9107-AA Grease KS-PS Removal NOTE: Removal steps in this procedure may contain installation detail

Page 1965 of 2057

FORD KUGA 2011 1.G Workshop Manual Make sure that the exhaust flexible pipe is not forcibly bent. 2. Torque: 47 Nm 3. Torque: 28Nm E112609 x3 1 2 3 6. Refer to: Lifting(100-02 Jacking and Lifting, Description and Operation). 7. E65299

Page 1966 of 2057

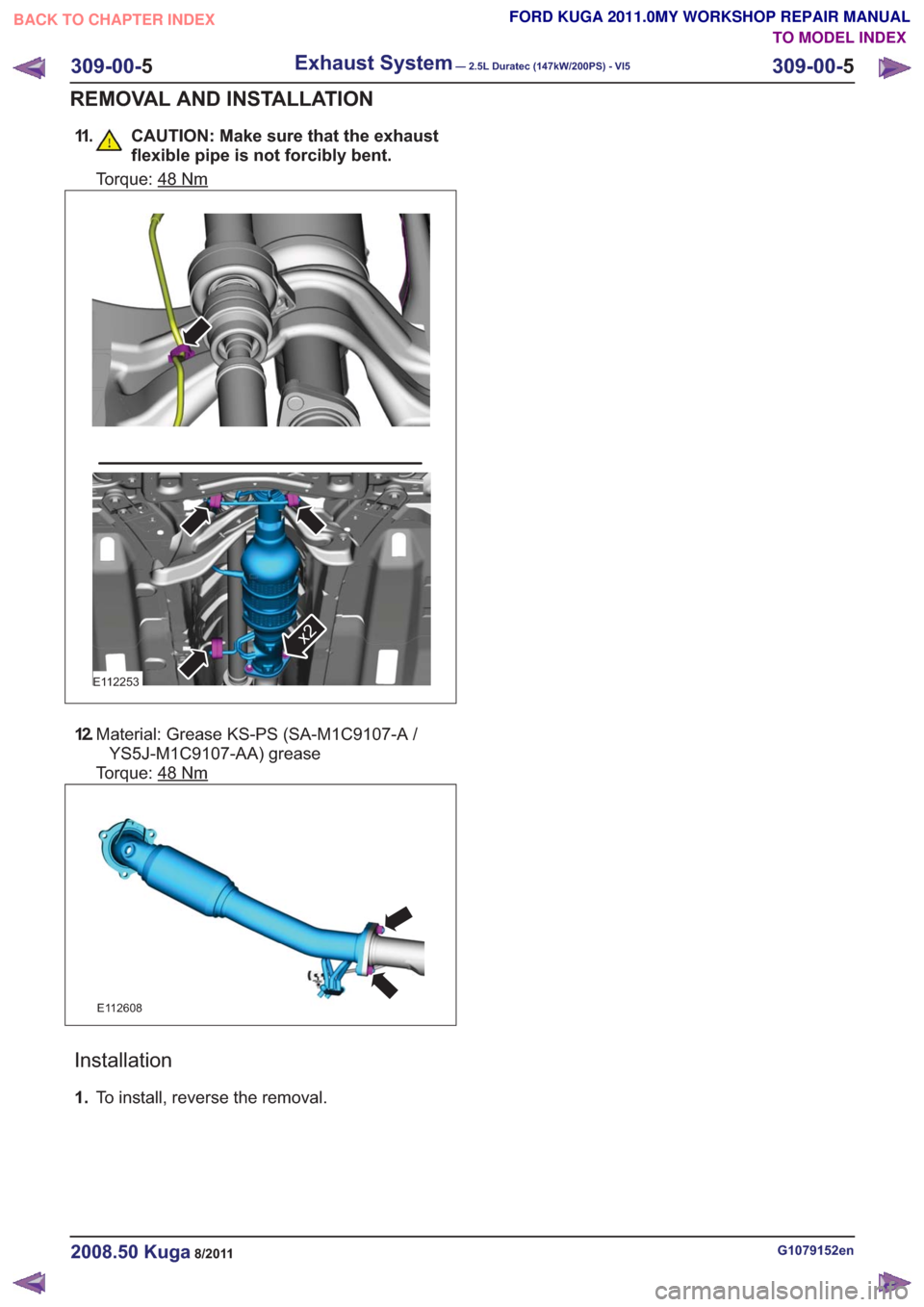

FORD KUGA 2011 1.G Workshop Manual 11. CAUTION: Make sure that the exhaustflexible pipe is not forcibly bent. Torque: 48Nm E112253 x2 12.Material: Grease KS-PS (SA-M1C9107-A / YS5J-M1C9107-AA) grease Torque: 48 Nm E112608 Installation

Page 1967 of 2057

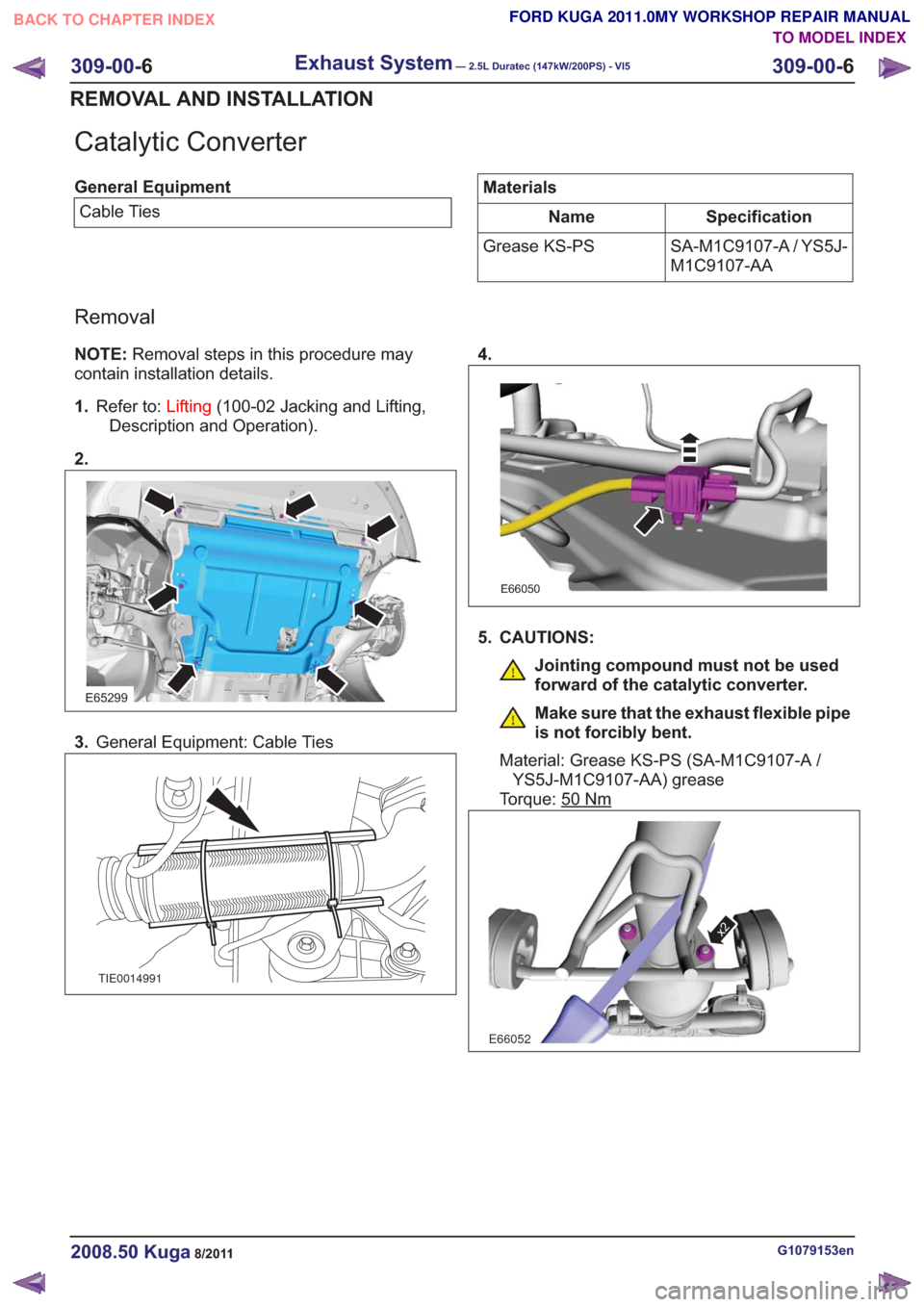

FORD KUGA 2011 1.G Workshop Manual Catalytic Converter General EquipmentCable TiesMaterials Specification Name SA-M1C9107-A / YS5J- M1C9107-AA Grease KS-PS Removal NOTE: Removal steps in this procedure may contain installation details.

Page 1968 of 2057

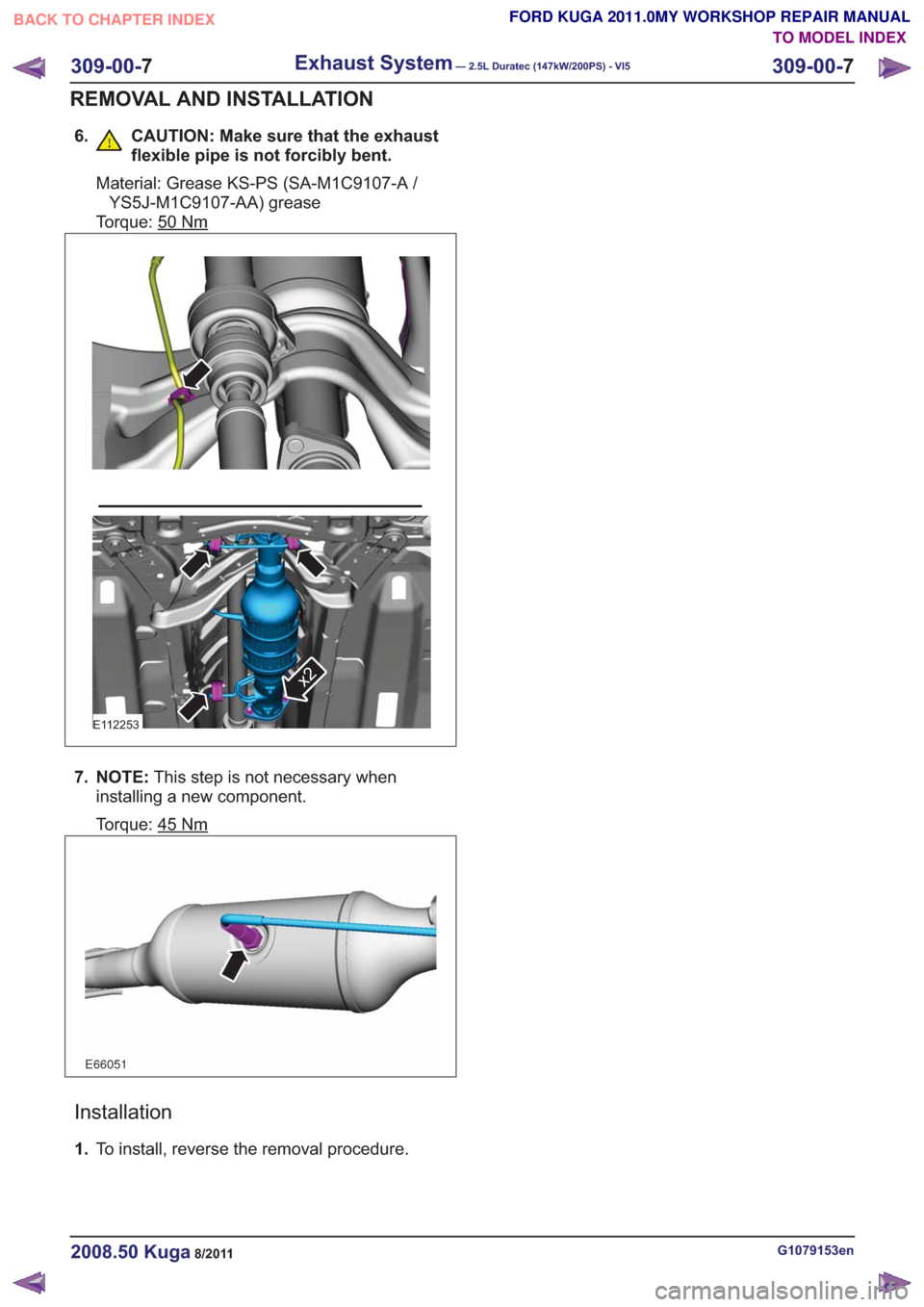

FORD KUGA 2011 1.G Workshop Manual 6. CAUTION: Make sure that the exhaustflexible pipe is not forcibly bent. Material: Grease KS-PS (SA-M1C9107-A /YS5J-M1C9107-AA) grease Torque: 50 Nm E112253 x2 7. NOTE: This step is not necessary whe
