Page 1761 of 2057

FORD KUGA 2011 1.G Workshop Manual Engine Emission Control 2.5L Duratec-ST (VI5) Engine Emission Components 23 4 1 E66306 G510285en2008.50 Kuga8/2011 303-08- 2 Engine Emission Control— 2.5L Duratec (147kW/200PS) - VI5303-08- 2 DESCRI

Page 1762 of 2057

FORD KUGA 2011 1.G Workshop Manual Description Item Intake manifold to turbocharger breather hose 1 Crankcase vent oil separator to valve cover hose 2 Crankcase vent oil separator to intake manifold hose 3 Crankcase vent oil separator

Page 1763 of 2057

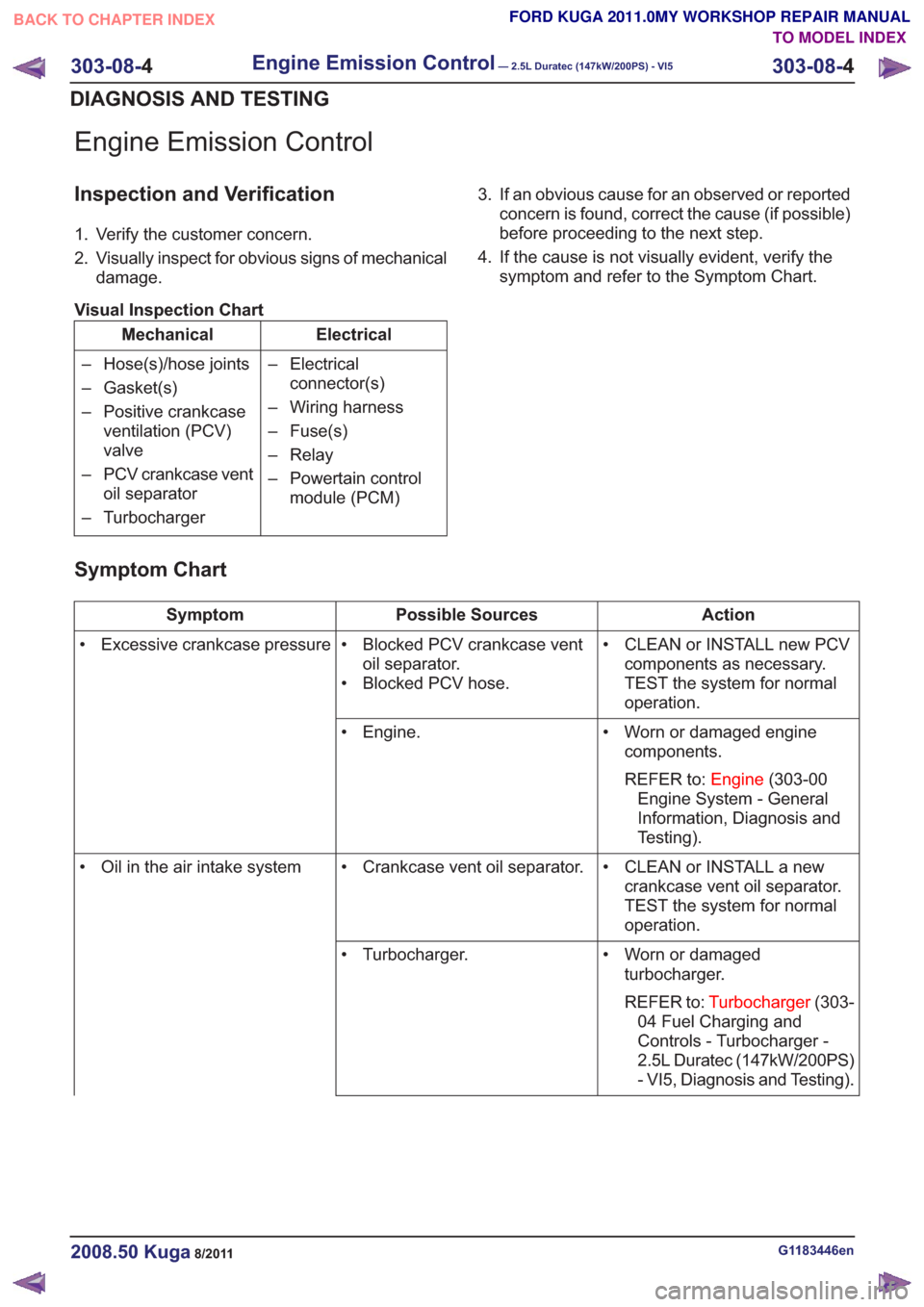

FORD KUGA 2011 1.G Workshop Manual Engine Emission Control Inspection and Verification 1. Verify the customer concern. 2. Visually inspect for obvious signs of mechanicaldamage. Visual Inspection Chart Electrical Mechanical – Electri

Page 1764 of 2057

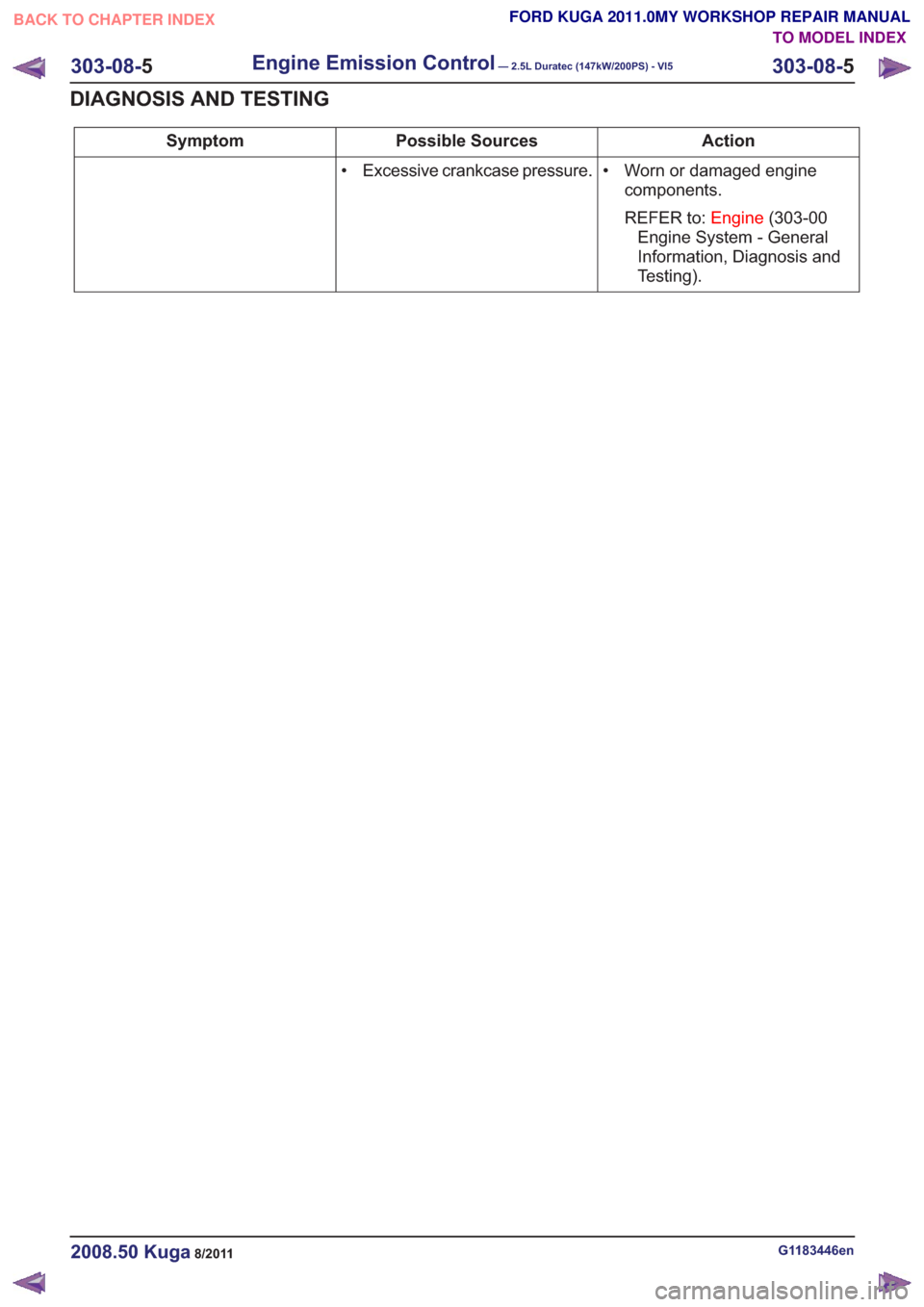

FORD KUGA 2011 1.G Workshop Manual Action Possible Sources Symptom • Worn or damaged enginecomponents. REFER to: Engine(303-00 Engine System - General Information, Diagnosis and Testing). • Excessive crankcase pressure. G1183446en2

Page 1765 of 2057

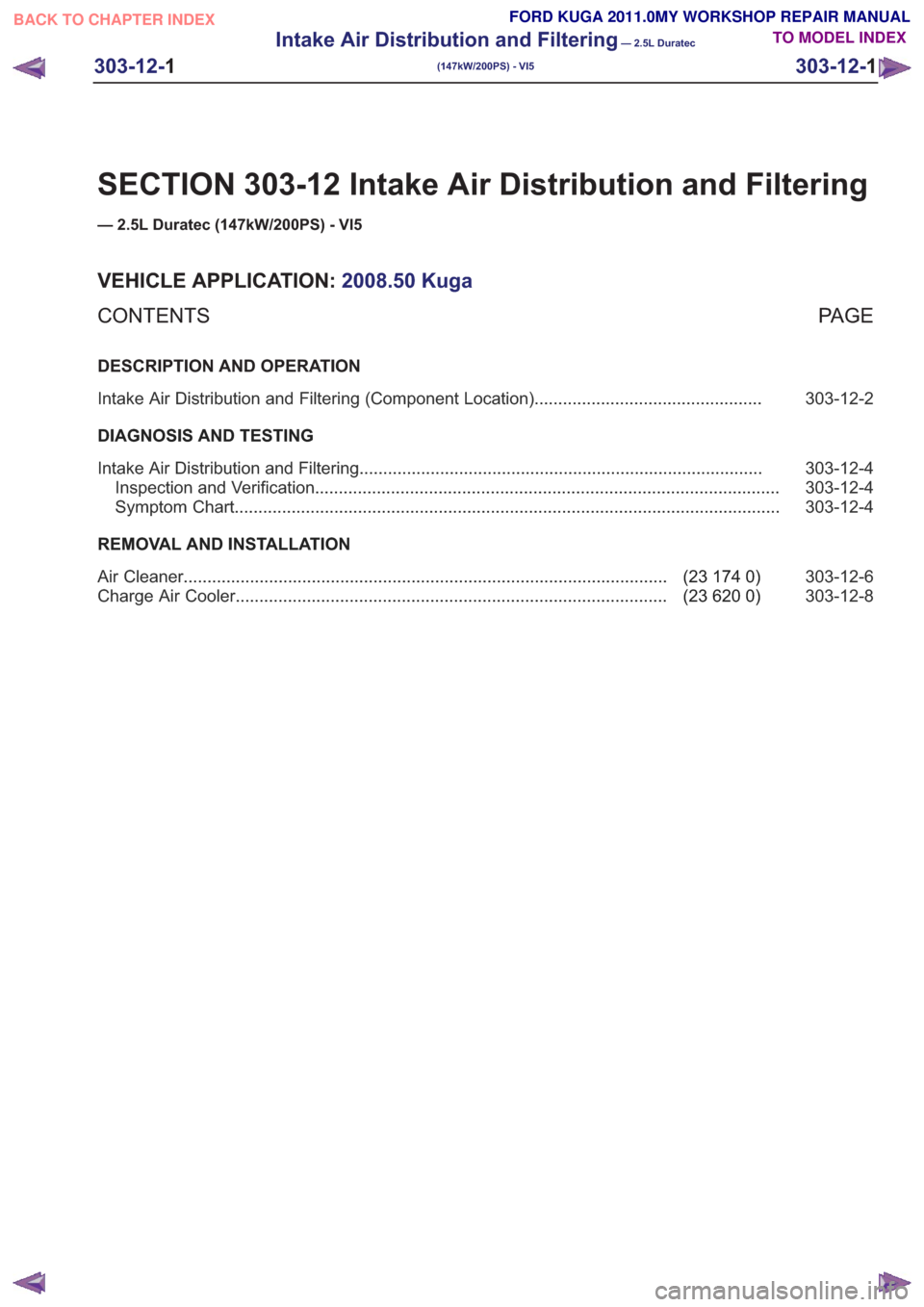

FORD KUGA 2011 1.G Workshop Manual SECTION 303-12 Intake Air Distribution and Filtering — 2.5L Duratec (147kW/200PS) - VI5 VEHICLE APPLICATION:2008.50 Kuga PA G E CONTENTS DESCRIPTION AND OPERATION 303-12-2 Intake Air Distribution an

Page 1766 of 2057

FORD KUGA 2011 1.G Workshop Manual Intake Air Distribution and Filtering – Component Location E105576 1 2 34 5 6 7 8 9 Description Item Intake manifold 1 Air cleaner 2 The MAF (mass air flow) sensor 3 Pipe, air filter to turbocharger

Page 1767 of 2057

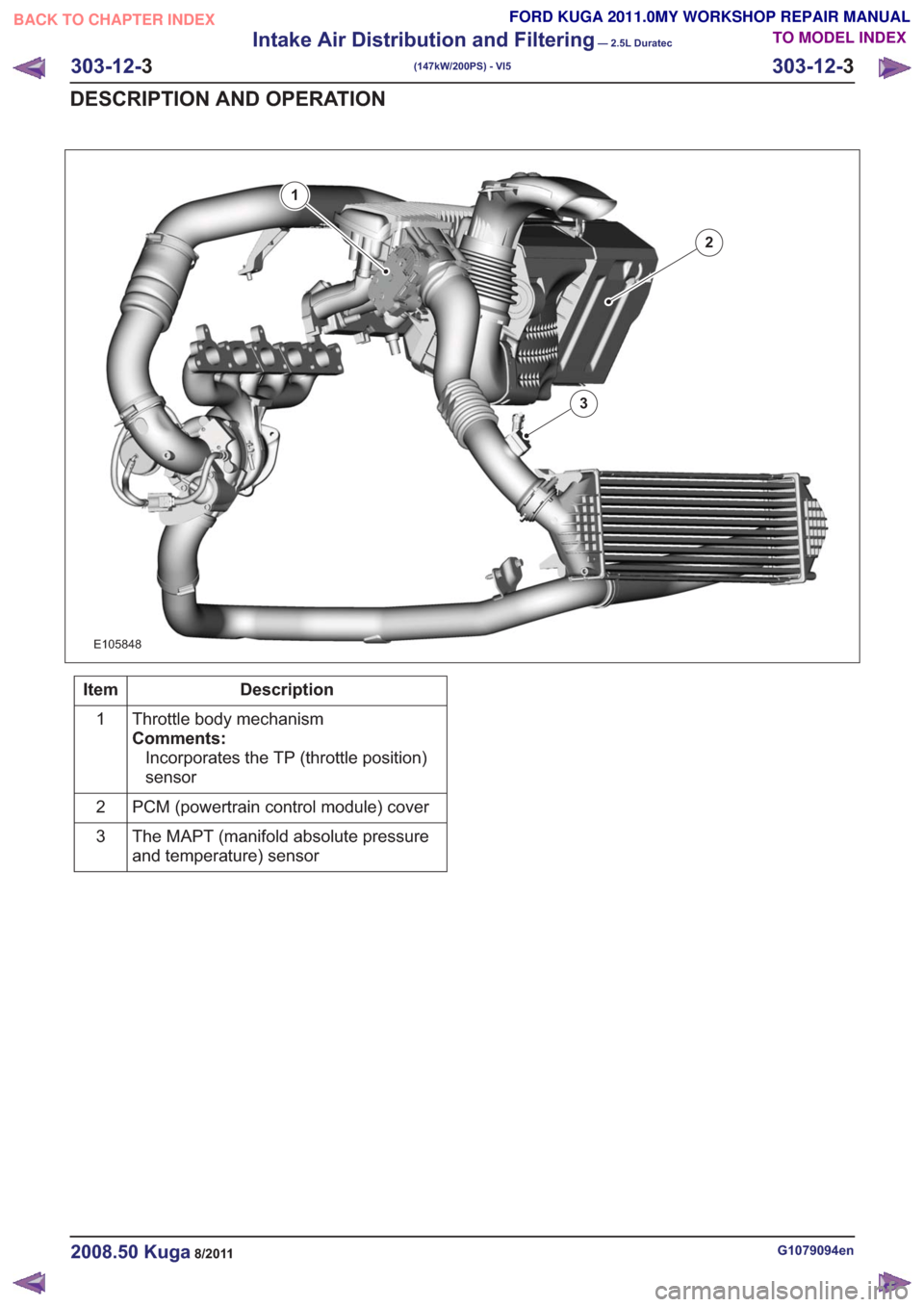

FORD KUGA 2011 1.G Workshop Manual E105848 1 2 3 Description Item Throttle body mechanism Comments:Incorporates the TP (throttle position) sensor 1 PCM (powertrain control module) cover 2 The MAPT (manifold absolute pressure and temper

Page 1768 of 2057

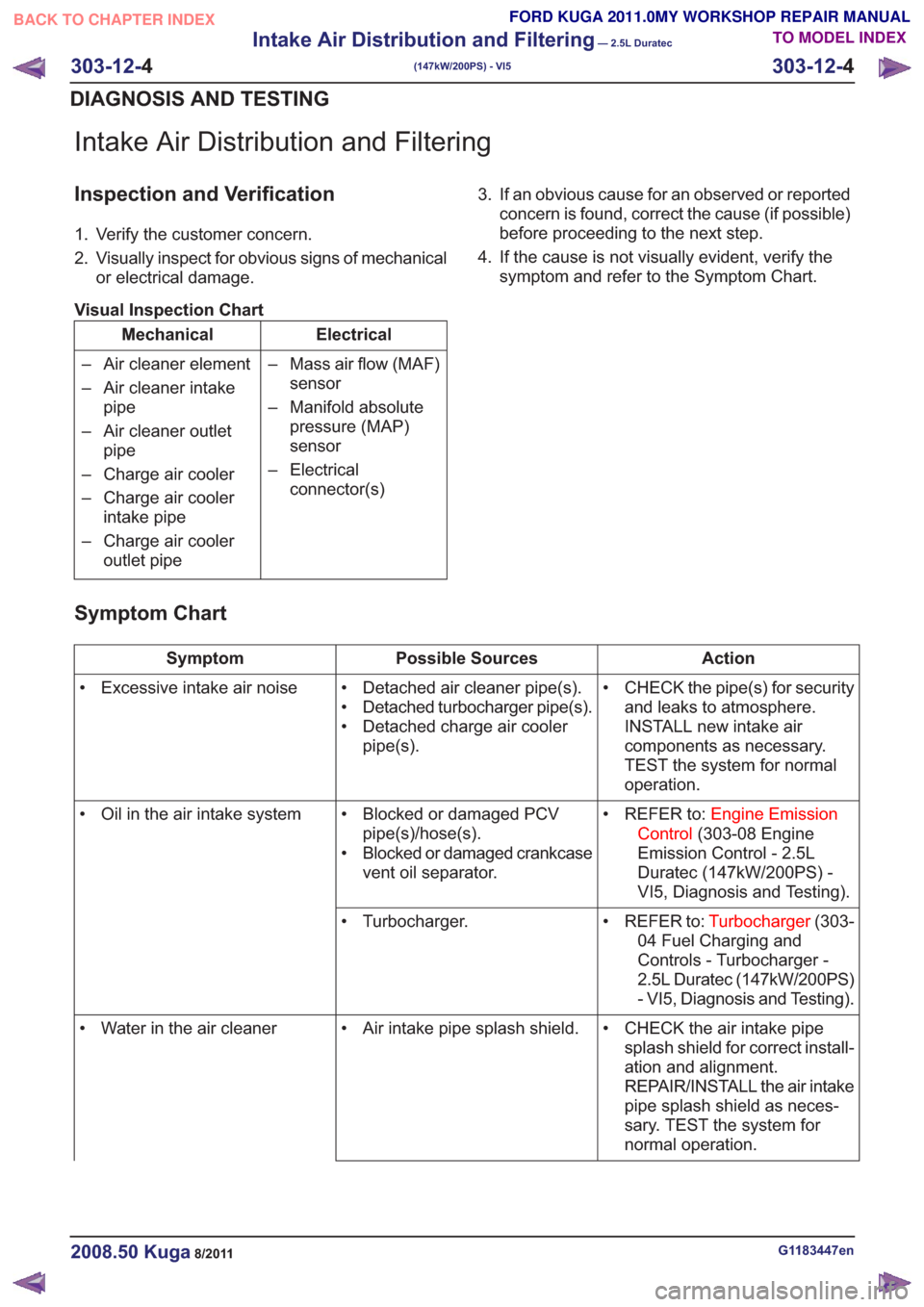

FORD KUGA 2011 1.G Workshop Manual Intake Air Distribution and Filtering Inspection and Verification 1. Verify the customer concern. 2. Visually inspect for obvious signs of mechanicalor electrical damage. Visual Inspection Chart Elect
