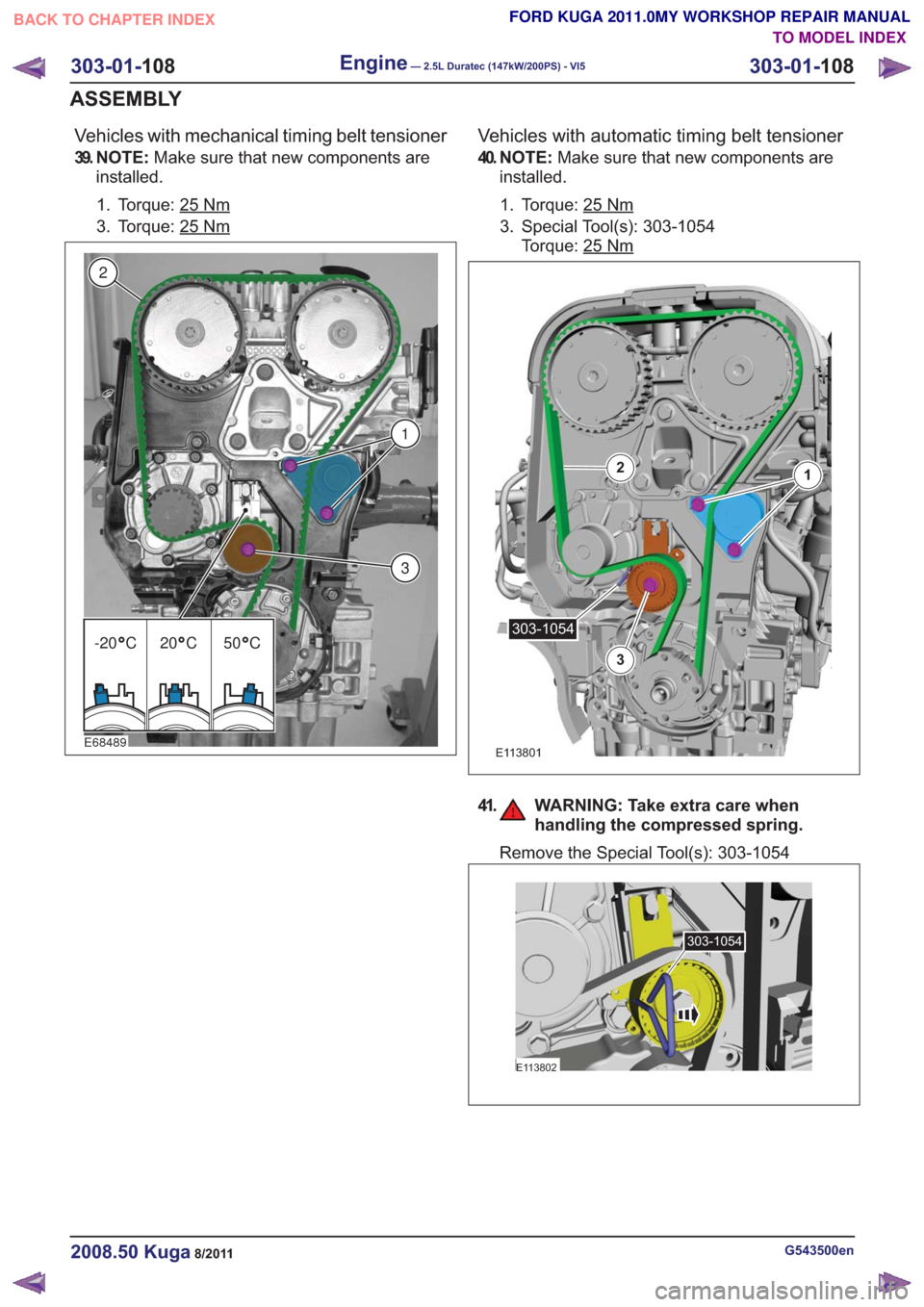

FORD KUGA 2011 1.G Workshop Manual Vehicles with mechanical timing belt tensioner 39. N O T E :Make sure that new components are installed. 1. Torque: 25 Nm 3. Torque: 25Nm E68489 3 1 2 -20 C 20 C 50 C Vehicles with automatic timing be

Page 1642 of 2057

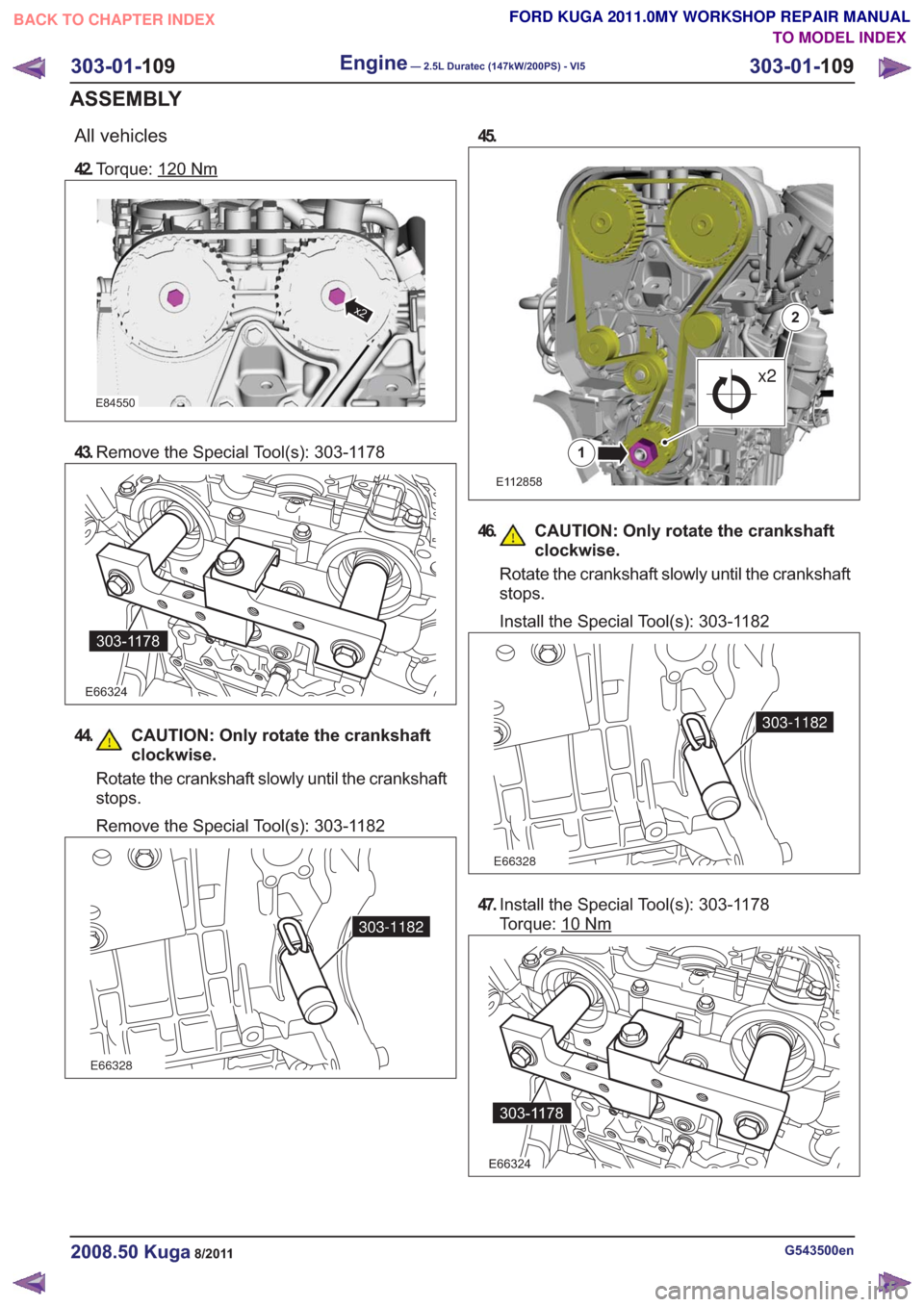

FORD KUGA 2011 1.G Workshop Manual All vehicles 42.Torque: 120Nm E84550 x2 43.Remove the Special Tool(s): 303-1178 E66324 303-1178 44. CAUTION: Only rotate the crankshaft clockwise. Rotate the crankshaft slowly until the crankshaft sto

Page 1643 of 2057

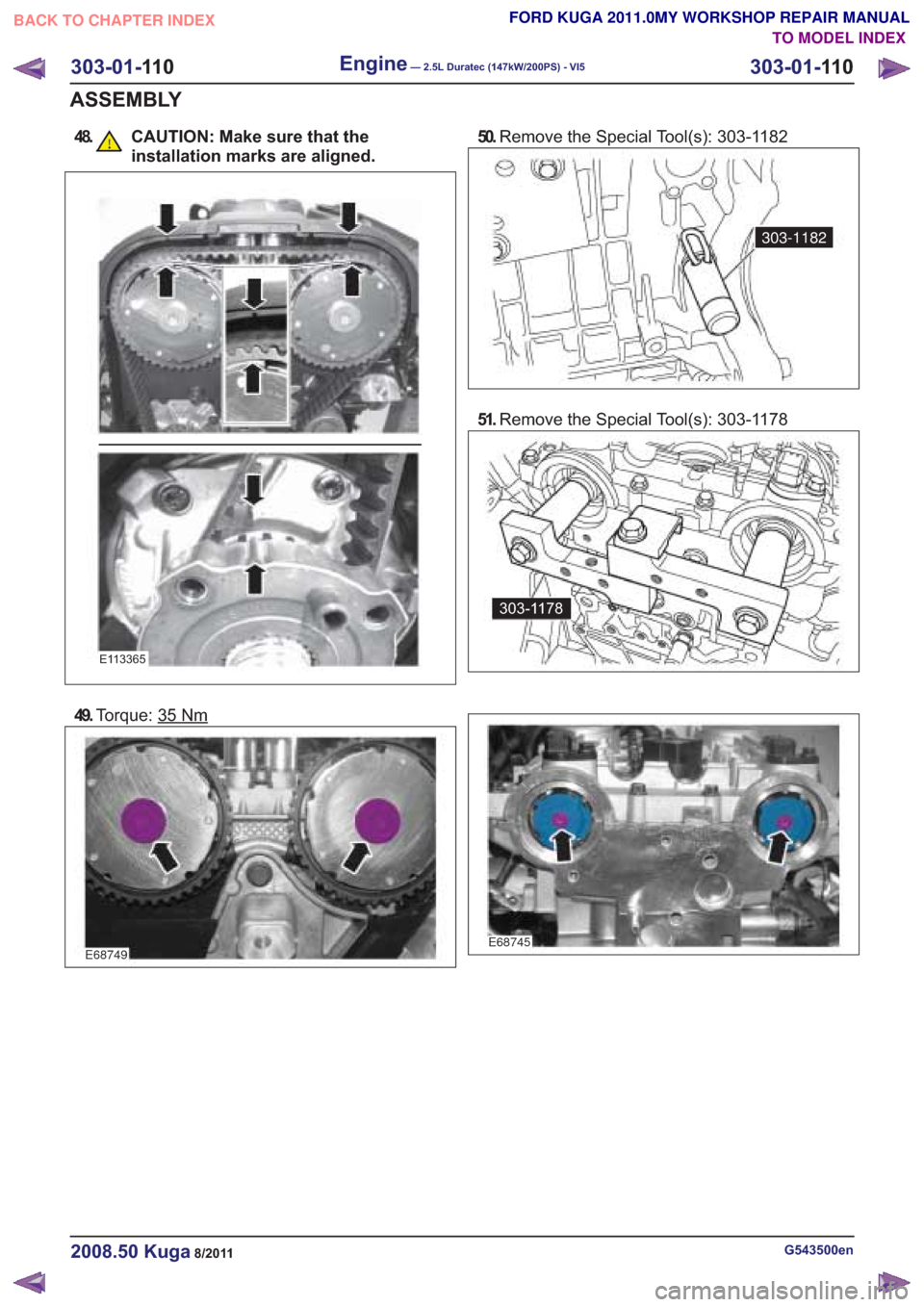

FORD KUGA 2011 1.G Workshop Manual 48. CAUTION: Make sure that the installation marks are aligned. E113365 49.Torque: 35Nm E68749 50.Remove the Special Tool(s): 303-1182 303-1182 51.Remove the Special Tool(s): 303-1178 303-1178 E68745

Page 1644 of 2057

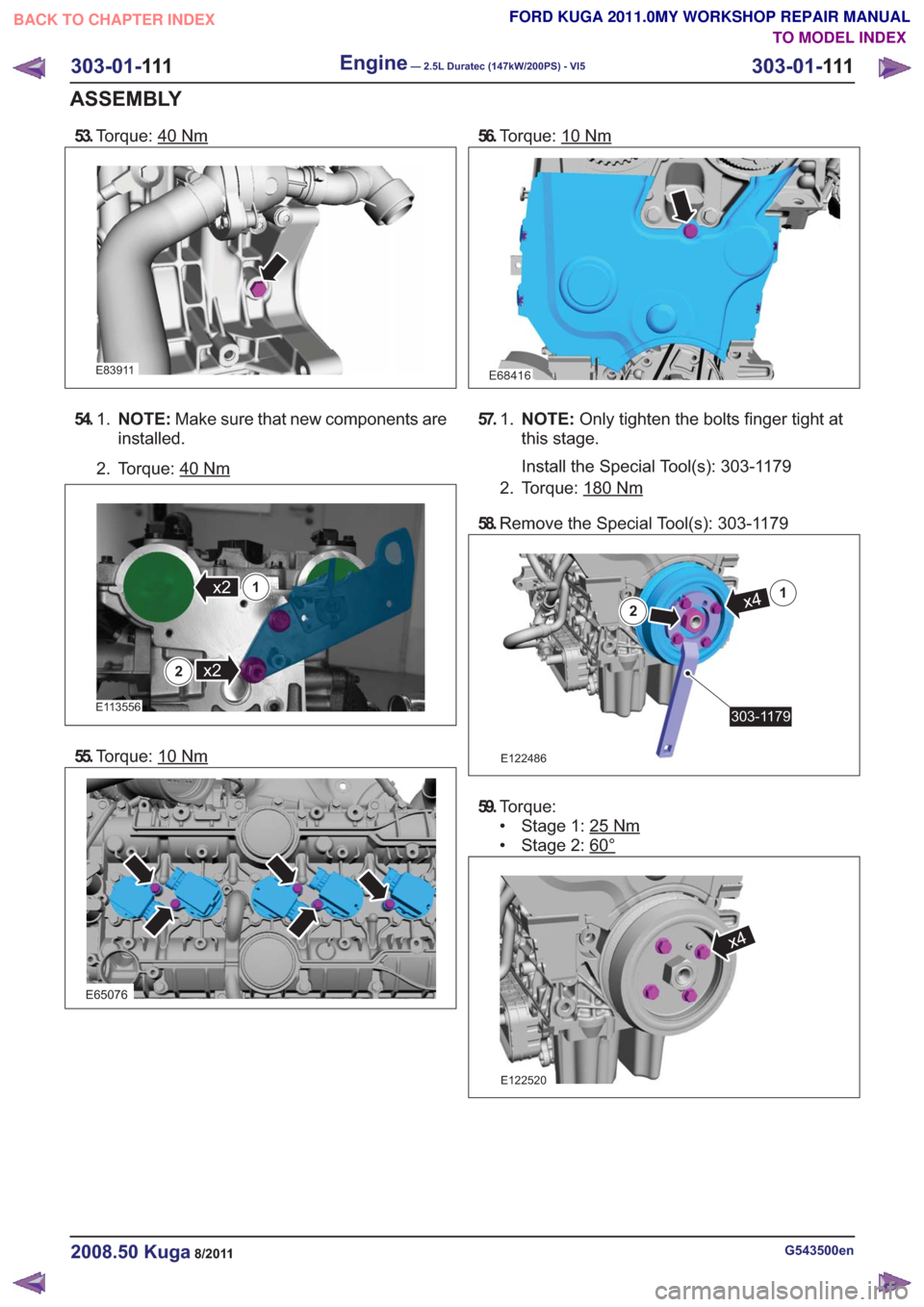

FORD KUGA 2011 1.G Workshop Manual 53.Torque: 40Nm E83911 54. N O T E : Make sure that new components are installed. 1. 2. Torque: 40 Nm E113556 x21 x22 55. Torque: 10Nm E65076 56.Torque: 10Nm E68416 57. N O T E : Only tighten the bolt

Page 1645 of 2057

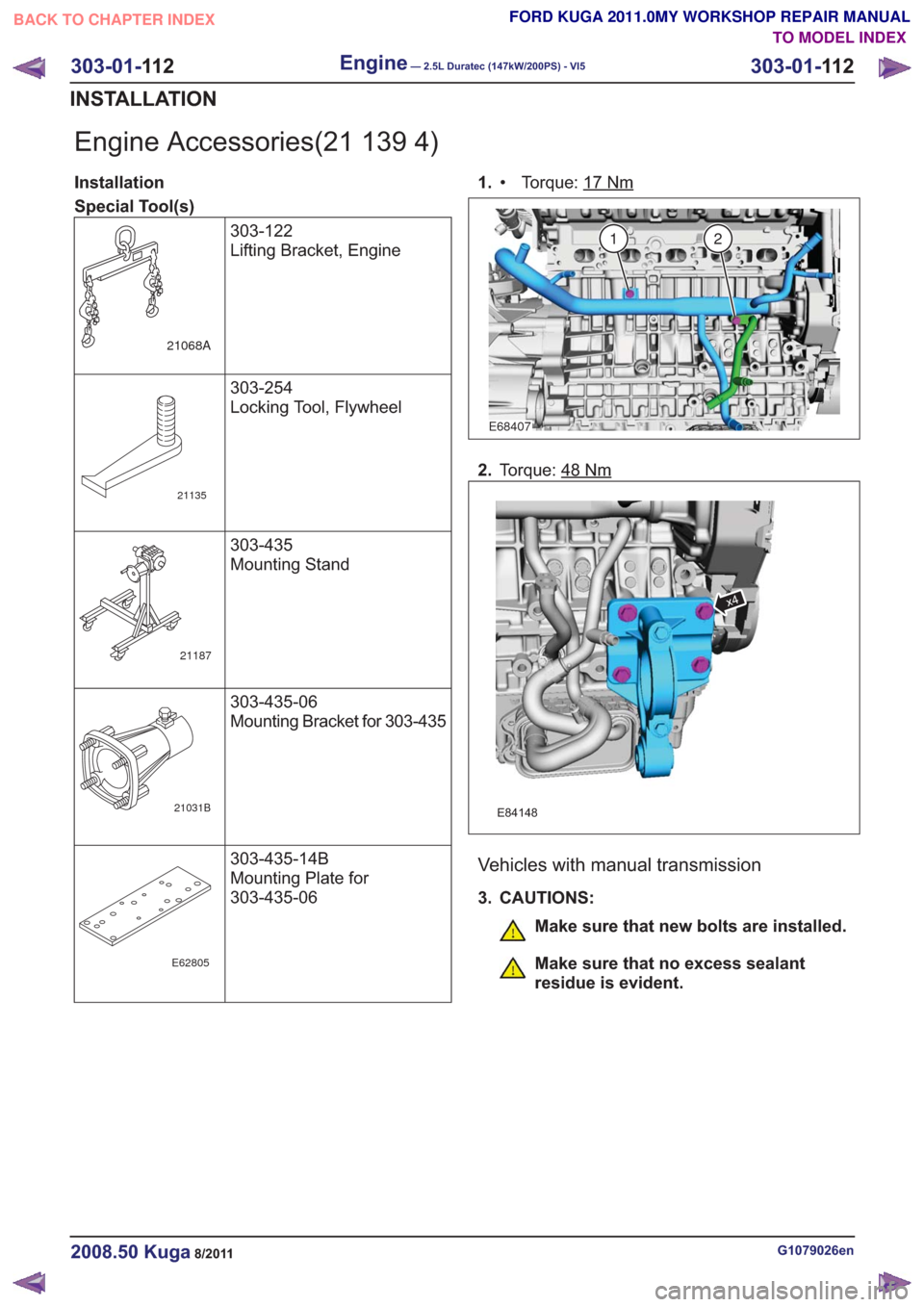

FORD KUGA 2011 1.G Workshop Manual Engine Accessories(21 139 4) Installation Special Tool(s)303-122 Lifting Bracket, Engine 21068A 303-254 Locking Tool, Flywheel 21135 303-435 Mounting Stand 21187 303-435-06 Mounting Bracket for 303-43

Page 1646 of 2057

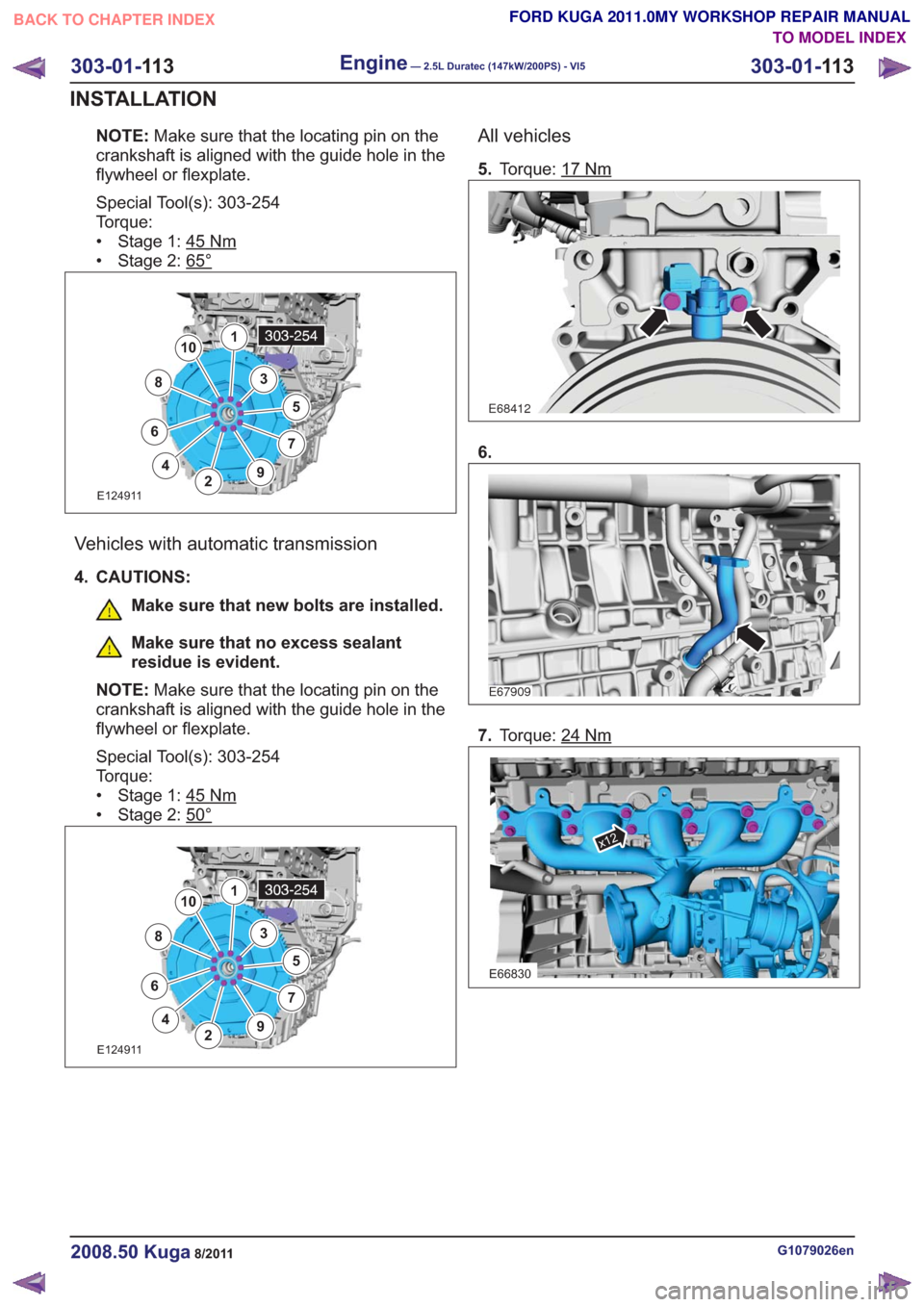

FORD KUGA 2011 1.G Workshop Manual NOTE:Make sure that the locating pin on the crankshaft is aligned with the guide hole in the flywheel or flexplate. Special Tool(s): 303-254 Torque: • Stage 1: 45 Nm • Stage 2: 65° E124911 1 2 3

Page 1647 of 2057

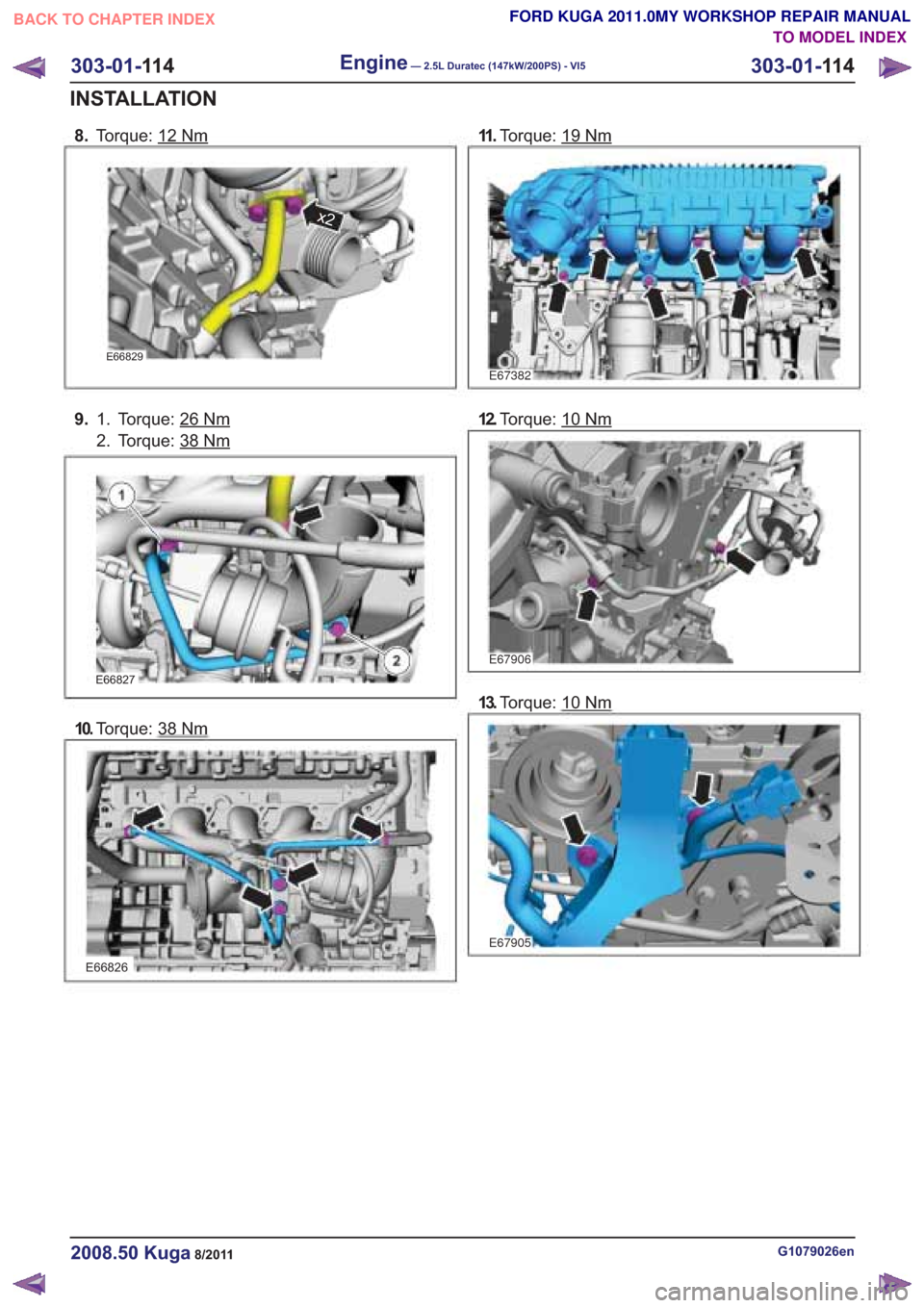

FORD KUGA 2011 1.G Workshop Manual 8.Torque: 12Nm x2 9. Torque: 26Nm1. 2. Torque: 38 Nm 10.Torque: 38Nm 11 .Torque: 19Nm E67382 12.Torque: 10Nm 13.Torque: 10Nm G1079026en2008.50 Kuga8/2011 303-01- 11 4 Engine— 2.5L Duratec (147kW/200

Page 1648 of 2057

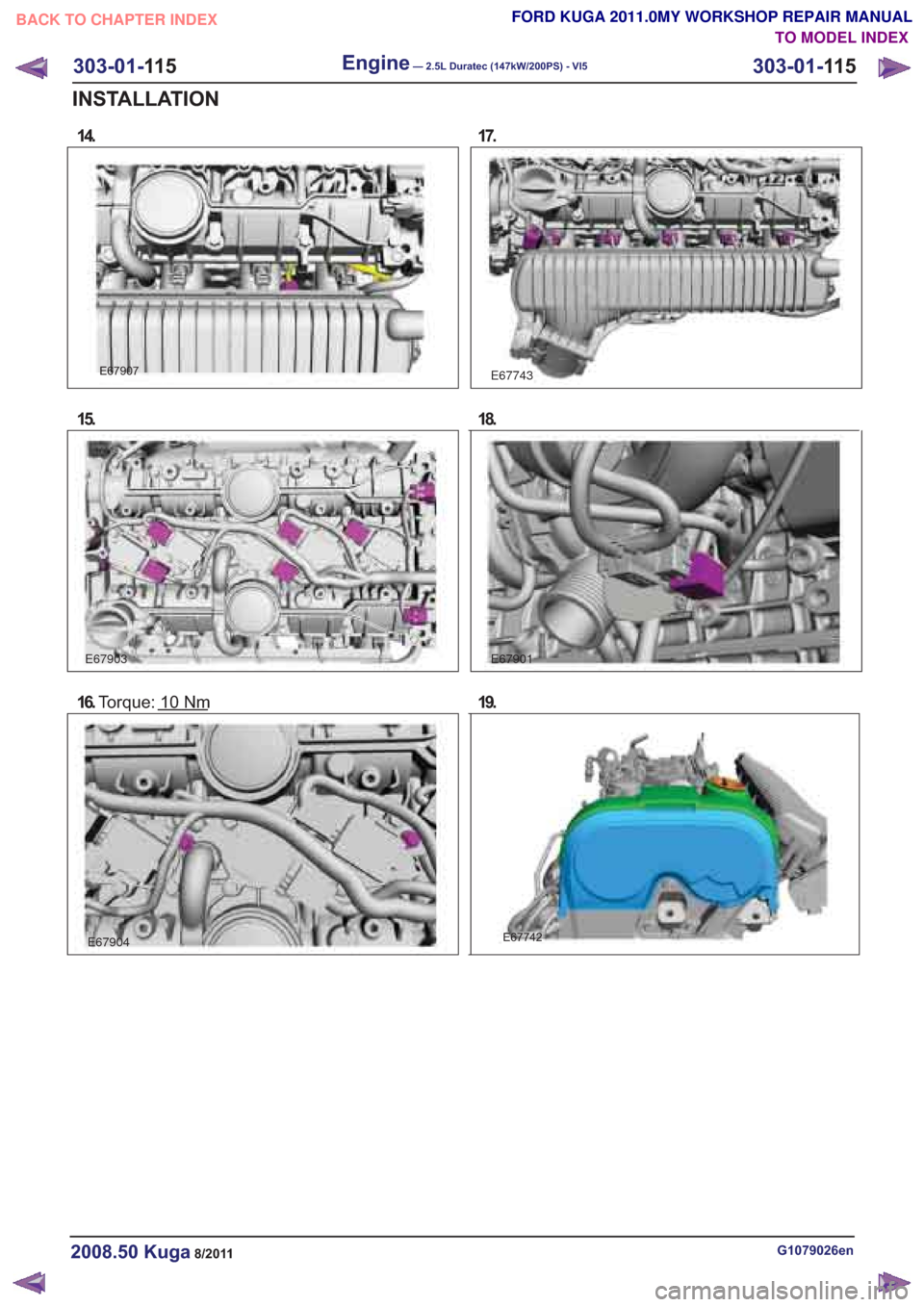

FORD KUGA 2011 1.G Workshop Manual 14. E67907 15. 16.Torque:10Nm E67904 E67743 E67901 E67742 303-01-115Engine—2.5LDuratec(147kW/200PS)-VI5303-01-115 INSTALLATION TO MODEL INDEX BACK TO CHAPTER INDEXFORD KUGA 2011.0MY WORKSHOP REPAIR
