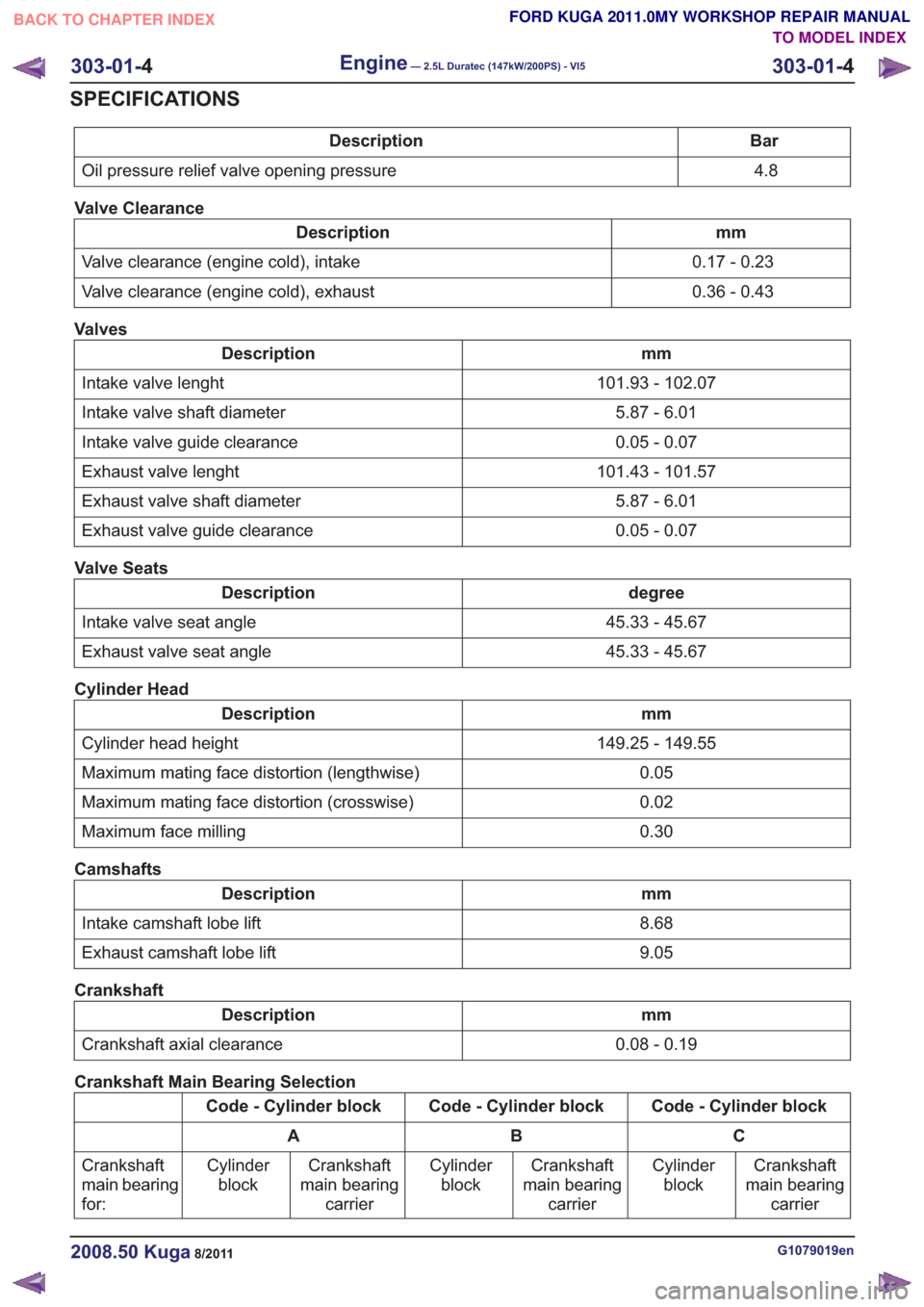

FORD KUGA 2011 1.G Workshop Manual Bar Description 4.8 Oil pressure relief valve opening pressure Valve Clearance mm Description 0.17 - 0.23 Valve clearance (engine cold), intake 0.36 - 0.43 Valve clearance (engine cold), exhaust Valve

Page 1538 of 2057

FORD KUGA 2011 1.G Workshop Manual Code - Cylinder block Code - Cylinder block Code - Cylinder block Code - Crankshaft blue thick blue thick blue thick yellow medium yellow medium yellow medium A blue thick yellow medium yellow medium

Page 1539 of 2057

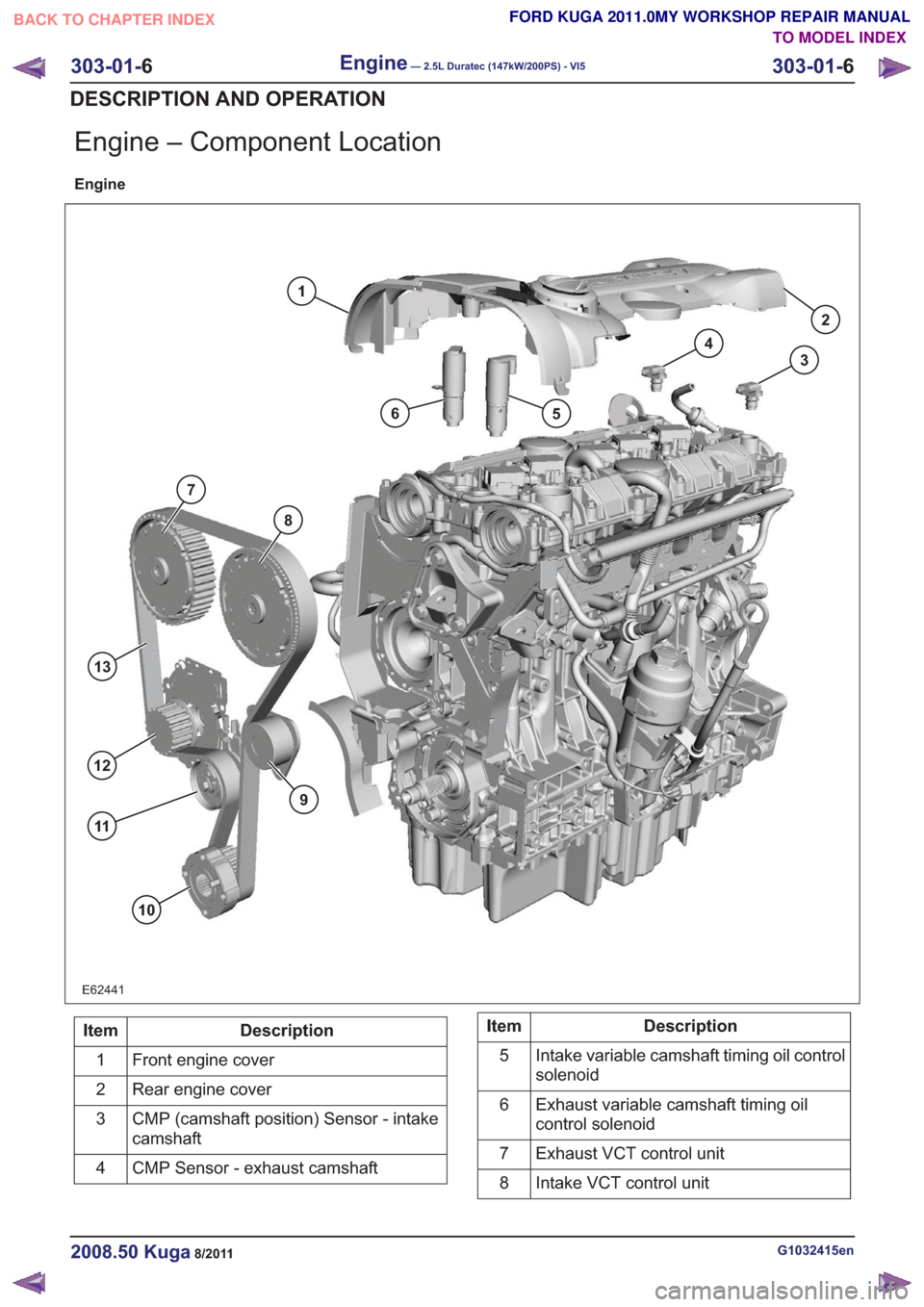

FORD KUGA 2011 1.G Workshop Manual Engine – Component Location Engine E62441 1 65 4 3 2 9 10 13 12 11 8 7 Description Item Front engine cover 1 Rear engine cover 2 CMP (camshaft position) Sensor - intake camshaft 3 CMP Sensor - exhau

Page 1540 of 2057

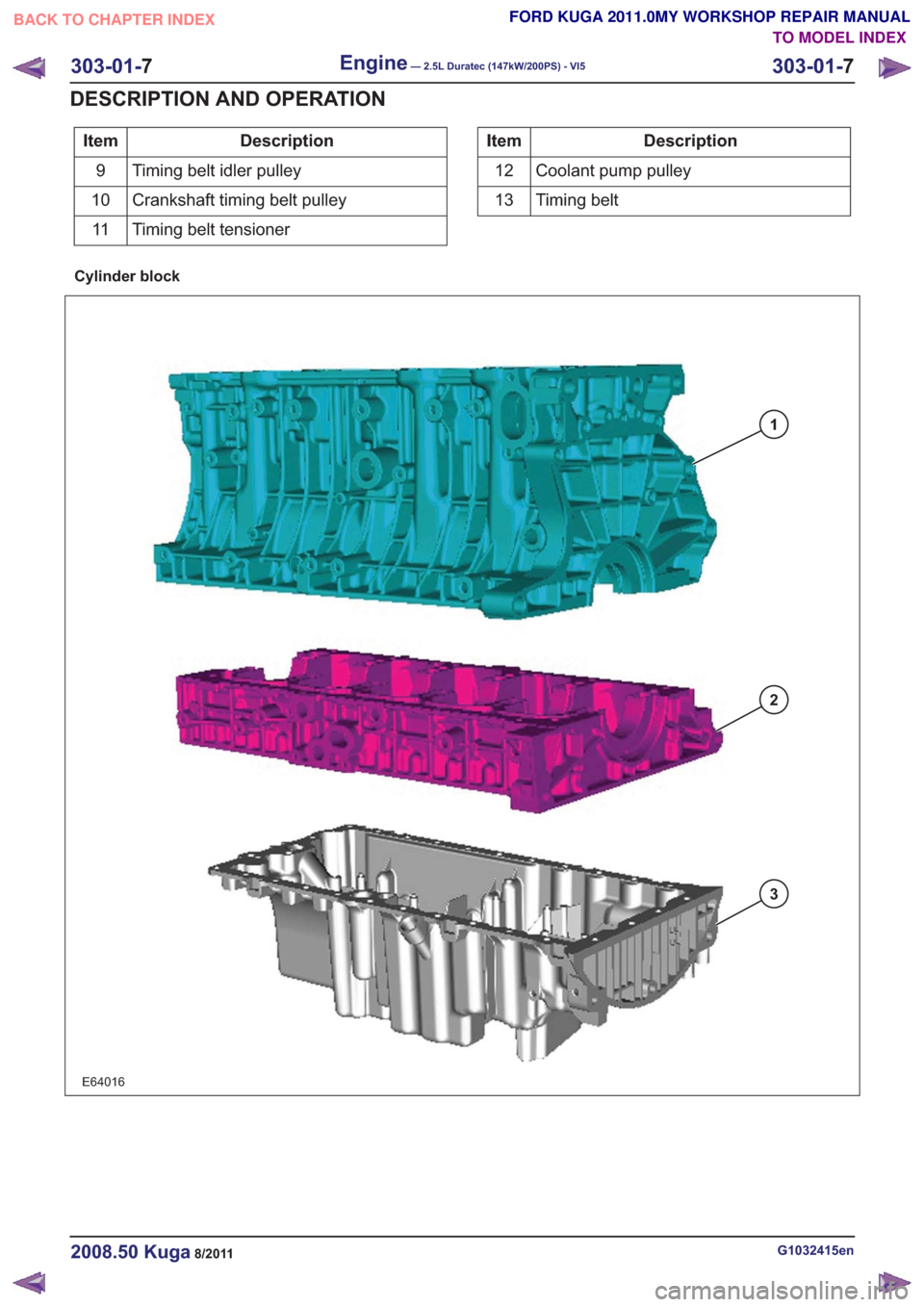

FORD KUGA 2011 1.G Workshop Manual Description Item Timing belt idler pulley 9 Crankshaft timing belt pulley 10 Timing belt tensioner 11Description Item Coolant pump pulley 12 Timing belt 13 Cylinder block E64016 1 2 3 G1032415en2008.5

Page 1541 of 2057

FORD KUGA 2011 1.G Workshop Manual Description Item Cylinder block 1 Bedplate 2Description Item 3 Oil sump G1032415en2008.50 Kuga8/2011 303-01- 8 Engine— 2.5L Duratec (147kW/200PS) - VI5303-01- 8 DESCRIPTION AND OPERATION TO MODEL IN

Page 1542 of 2057

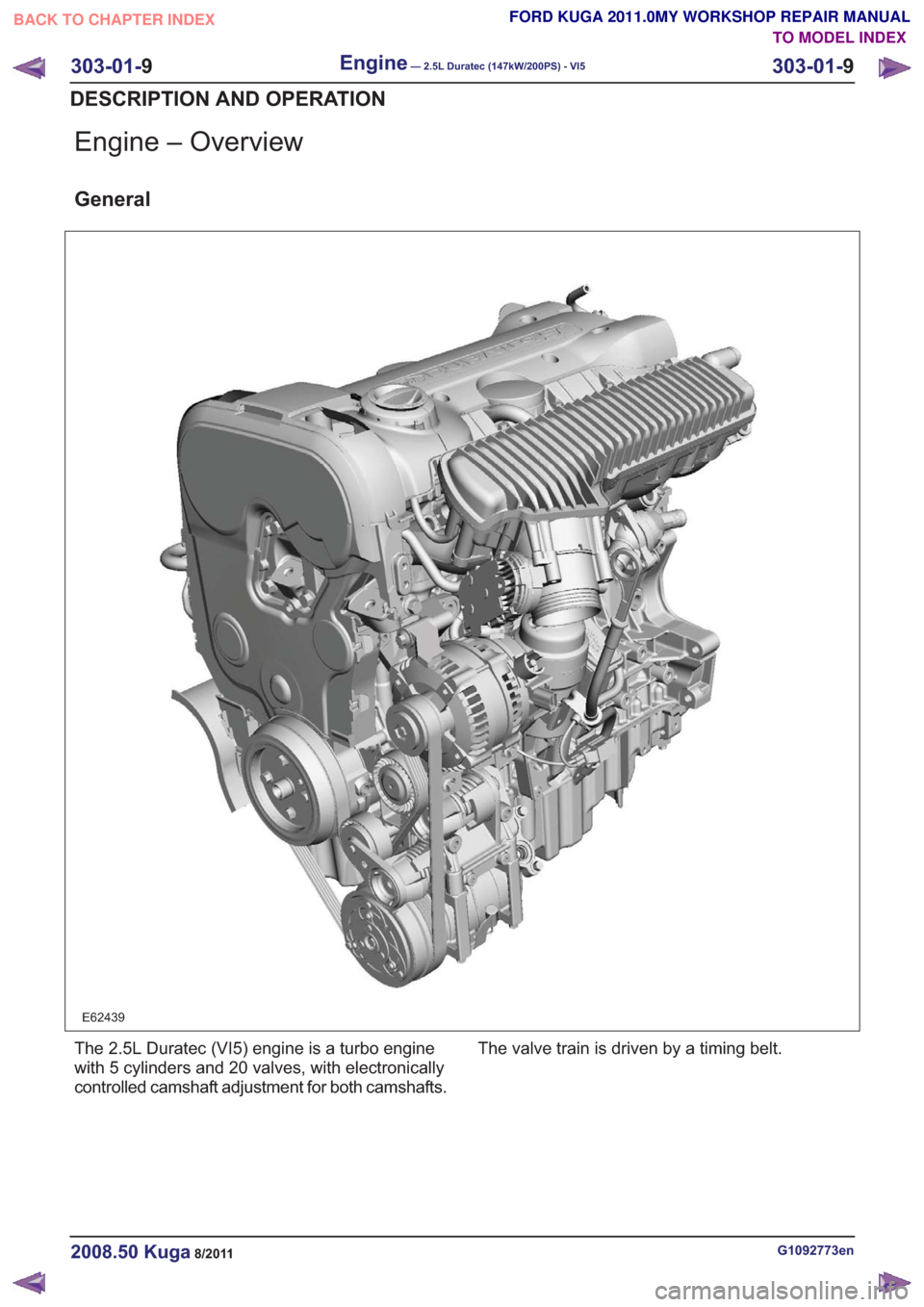

FORD KUGA 2011 1.G Workshop Manual Engine – Overview General E62439 The 2.5L Duratec (VI5) engine is a turbo engine with 5 cylinders and 20 valves, with electronically controlled camshaft adjustment for both camshafts.The valve train

Page 1543 of 2057

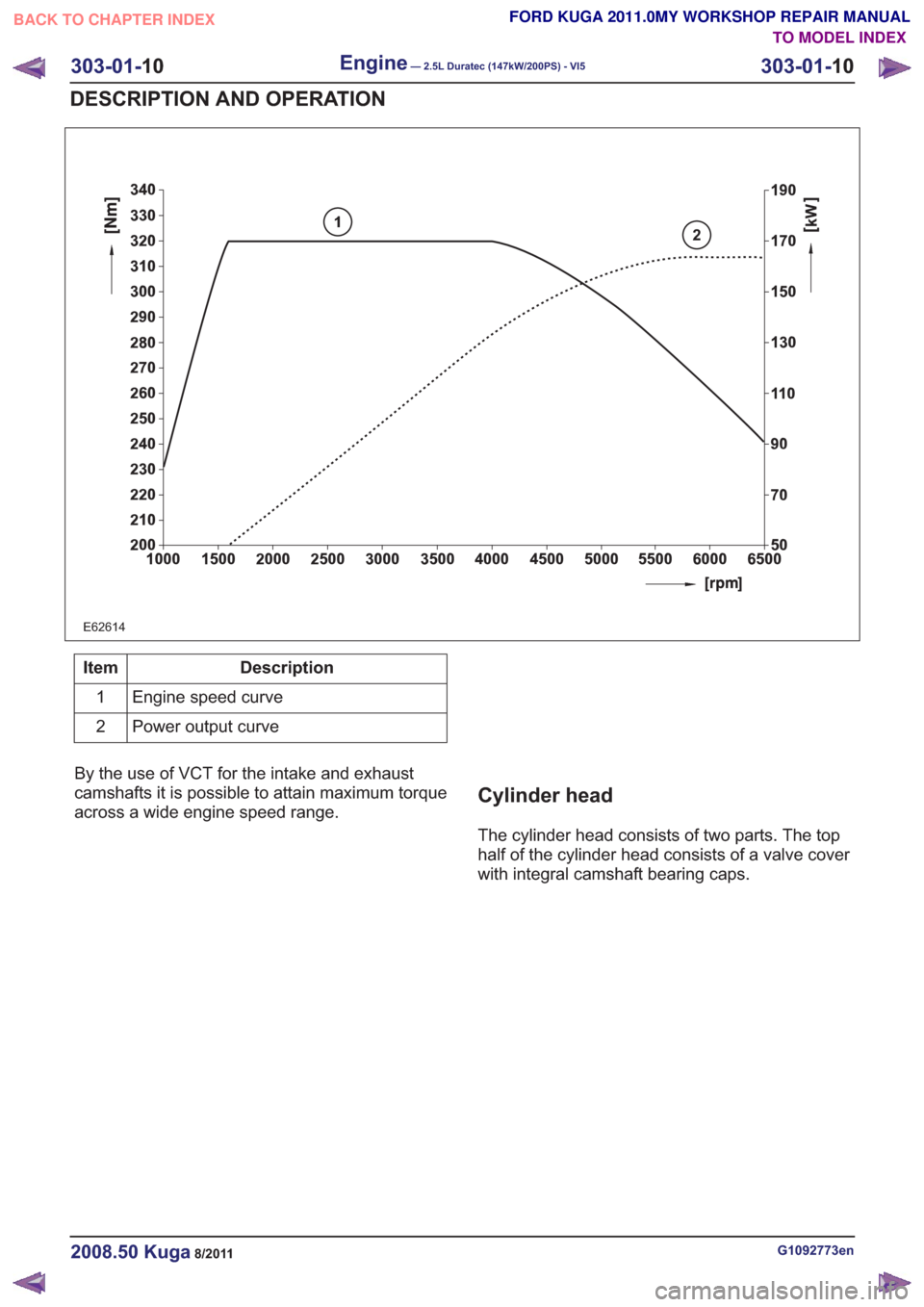

FORD KUGA 2011 1.G Workshop Manual 2 E62614 1 Description Item Engine speed curve 1 Power output curve 2 By the use of VCT for the intake and exhaust camshafts it is possible to attain maximum torque across a wide engine speed range. C

Page 1544 of 2057

FORD KUGA 2011 1.G Workshop Manual E62857 1 2 3 6 5 4 Description Item Camshaft bearings 1 Valve cover 2 Cylinder head 3Description Item Spark plug well sealing ring 4 Exhaust camshaft 5 intake camshaft 6 A conventional cylinder head g
