2011 FORD KUGA radiator

DETAILS/RESULTS/ACTIONS
TEST CONDITIONS
B4: CHECK THE POWERTRAIN/DRIVETRAIN MOUNTS
1 Carry out the powertrain/drivetrain mount neut-
ralizing procedure
• Are the powertrain/drivetrain mounts OK?
zYe s Vehicle condition corrected. ROAD TEST as
necessary.
zNoINSTALL new powertrain/drivetrain mounts
as necessary. ROAD TEST as necessary.
PINPOINT TEST C : IDLE BOOM/SHAKE/VIBRATION/SHUDDER
DETAILS/RESULTS/ACTIONS
TEST CONDITIONS
C1: CHECK THE CABLE/HOSES
1 Check the engine compartment for any
component that may have a touch condition
between the engine and body or chassis. For
example: control cable, air conditioning (A/C)
hoses, acceleration cable.
• Are the components OK?
zYe s GO to C2 .
zNo
REPAIR or INSTALL new components as
necessary. ROAD TEST as necessary.
C2: CHECK THE ENGINE COOLING RADIATOR
1 Check the engine cooling radiator mountings
and bushings for security and condition. Check
the radiator installation for any component that
may have a touch condition.
• Is the installation and bushings OK?
zYe s GO to C3 .
zNo
REPAIR or INSTALL new components as
necessary. ROAD TEST as necessary.
G37349en2008.50 Kuga8/2011
100-04- 16
Noise, Vibration and Harshness
100-04- 16
DIAGNOSIS AND TESTING
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

DETAILS/RESULTS/ACTIONS
TEST CONDITIONS
D2: INSPECT THE WHEEL BEARINGS
1 Inspect the wheel bearings.
• Are the wheel bearings OK?
zYe s GO to D3 .
zNo
INSTALL new wheel bearings as necessary.
REFER to: Front Wheel Bearing (204-01 Front
Suspension, Removal and Installation).
ROAD TEST as necessary.
D3: INSPECT THE WHEEL AND TIRE RUNOUT
1 Inspect the wheel and tire runout.
• Is the wheel and tire runout OK?
zYe s Balance the wheels and tires. Refer to the
wheel balance equipment manufacturer's
instructions. ROAD TEST as necessary.
zNoINSTALL new wheels or tires as necessary.
REFER to: Wheel and Tire (204-04 Wheels
and Tires, Removal and Installation).
ROAD TEST as necessary.
PINPOINT TEST E : NON-AXLE NOISE
DETAILS/RESULTS/ACTIONS
TEST CONDITIONS
E1: INSPECT THE VEHICLE TRIM
1 Check the radiator grille and trim panels to see
if they are the source of the noise.
• Are the vehicle trim components causing the noise?
zYe s
INSTALL new trim components or REPAIR as
necessary. ROAD TEST as necessary.
zNoGO to E2.
E2: CHECK THE AIR CONDITIONING (A/C) SYSTEM FOR NOISE
1 Ignition switch in position III.
2Ignition switch in position II.
G37349en2008.50 Kuga8/2011
100-04-
18
Noise, Vibration and Harshness
100-04- 18
DIAGNOSIS AND TESTING
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

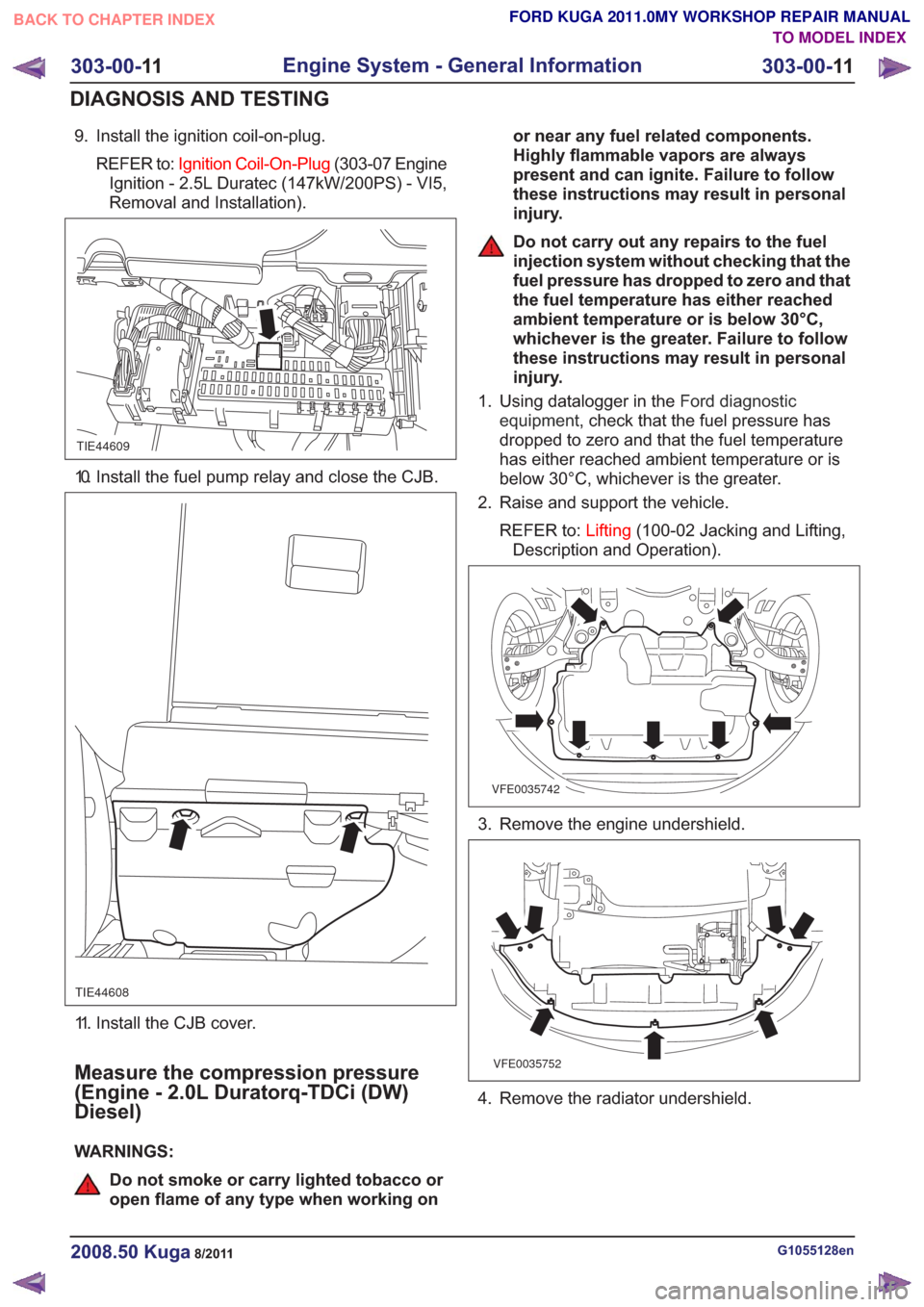

9. Install the ignition coil-on-plug.REFER to: Ignition Coil-On-Plug (303-07 Engine
Ignition - 2.5L Duratec (147kW/200PS) - VI5,
Removal and Installation).
TIE44609
10. Install the fuel pump relay and close the CJB.
TIE44608
11. Install the CJB cover.
Measure the compression pressure
(Engine - 2.0L Duratorq-TDCi (DW)
Diesel)
WARNINGS:
Do not smoke or carry lighted tobacco or
open flame of any type when working on or near any fuel related components.
Highly flammable vapors are always
present and can ignite. Failure to follow
these instructions may result in personal
injury.
Do not carry out any repairs to the fuel
injection system without checking that the
fuel pressure has dropped to zero and that
the fuel temperature has either reached
ambient temperature or is below 30°C,
whichever is the greater. Failure to follow
these instructions may result in personal
injury.
1. Using datalogger in the Ford diagnostic
equipment , check that the fuel pressure has
dropped to zero and that the fuel temperature
has either reached ambient temperature or is
below 30°C, whichever is the greater.
2. Raise and support the vehicle.
REFER to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
VFE0035742
3. Remove the engine undershield.
VFE0035752
4. Remove the radiator undershield.
G1055128en2008.50 Kuga8/2011
303-00- 11
Engine System - General Information
303-00- 11
DIAGNOSIS AND TESTING
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Put the engine cover into installation position
and clip it in place by pressing at the places
shown.• Make sure that the engine upper cover is fully engaged in the area of the fuel filter, if
necessary apply more pressure in the areas
shown.
25. Install the cowl panel grille.
REFER to: Cowl Panel Grille (501-02 Front End
Body Panels, Removal and Installation).
26. Raise and support the vehicle.
REFER to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
TIE44583
27. Install the glow plug relay.
VFE0035752
28. Install the radiator undershield.
VFE0035742
29. Install the engine undershield.
30. Lower the vehicle.
31. Reset the PCM fault memory.
Measure the oil pressure (21 113 0)
The oil pressure depends on various factors
(engine speed, oil temperature, oil viscosity,
amount of oil filter contamination etc.).
Measure the oil pressure (Engine - 2.5L
Duratec-ST (VI5))
1. Raise and support the vehicle.
REFER to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
E65955
2. Remove the engine undershield.
E68443
3. Disconnect the oil pressure switch electrical connector.
G1055128en2008.50 Kuga8/2011
303-00- 14
Engine System - General Information
303-00- 14
DIAGNOSIS AND TESTING
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

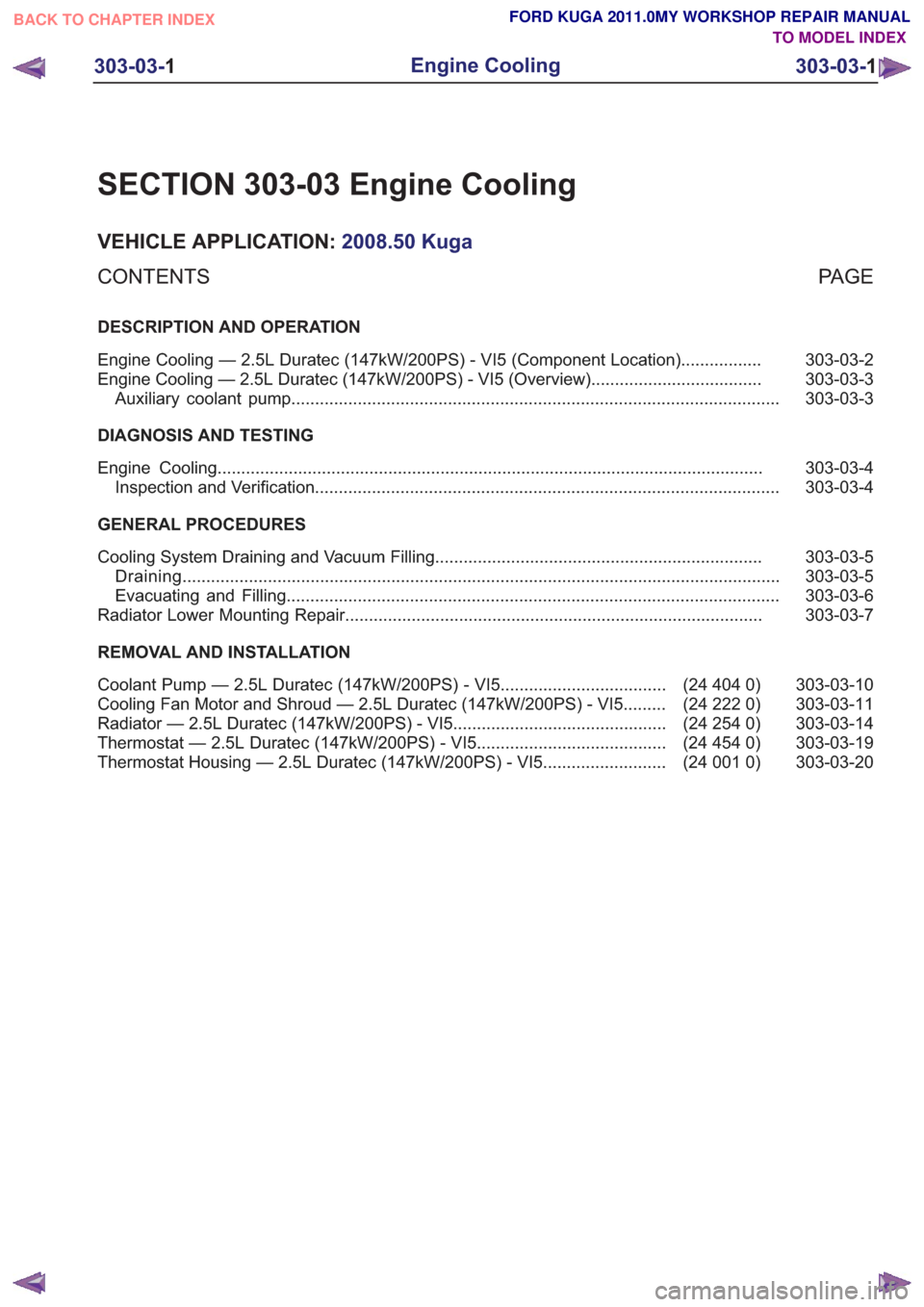

SECTION 303-03 Engine Cooling
VEHICLE APPLICATION:2008.50 Kuga
PA G E
CONTENTS
DESCRIPTION AND OPERATION
303-03-2
Engine Cooling — 2.5L Duratec (147kW/200PS) - VI5 (Component Location) .................
303-03-3
Engine Cooling — 2.5L Duratec (147kW/200PS) - VI5 (Overview) ....................................
303-03-3
Auxiliary coolant pump ........................................................................\
...............................
DIAGNOSIS AND TESTING 303-03-4
Engine Cooling ........................................................................\
...........................................
303-03-4
Inspection and Verification ........................................................................\
..........................
GENERAL PROCEDURES 303-03-5
Cooling System Draining and Vacuum Filling .....................................................................
303-03-5
Draining ........................................................................\
......................................................
303-03-6
Evacuating and Filling ........................................................................\
................................
303-03-7
Radiator Lower Mounting Repair ........................................................................\
................
REMOVAL AND INSTALLATION 303-03-10
(24 404 0)
Coolant Pump — 2.5L Duratec (147kW/200PS) - VI5 ...................................
303-03-11
(24 222 0)
Cooling Fan Motor and Shroud — 2.5L Duratec (147kW/200PS) - VI5 .........
303-03-14
(24 254 0)
Radiator — 2.5L Duratec (147kW/200PS) - VI5 .............................................
303-03-19
(24 454 0)
Thermostat — 2.5L Duratec (147kW/200PS) - VI5 ........................................
303-03-20
(24 001 0)
Thermostat Housing — 2.5L Duratec (147kW/200PS) - VI5 ..........................
303-03-1
Engine Cooling
303-03- 1
.
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

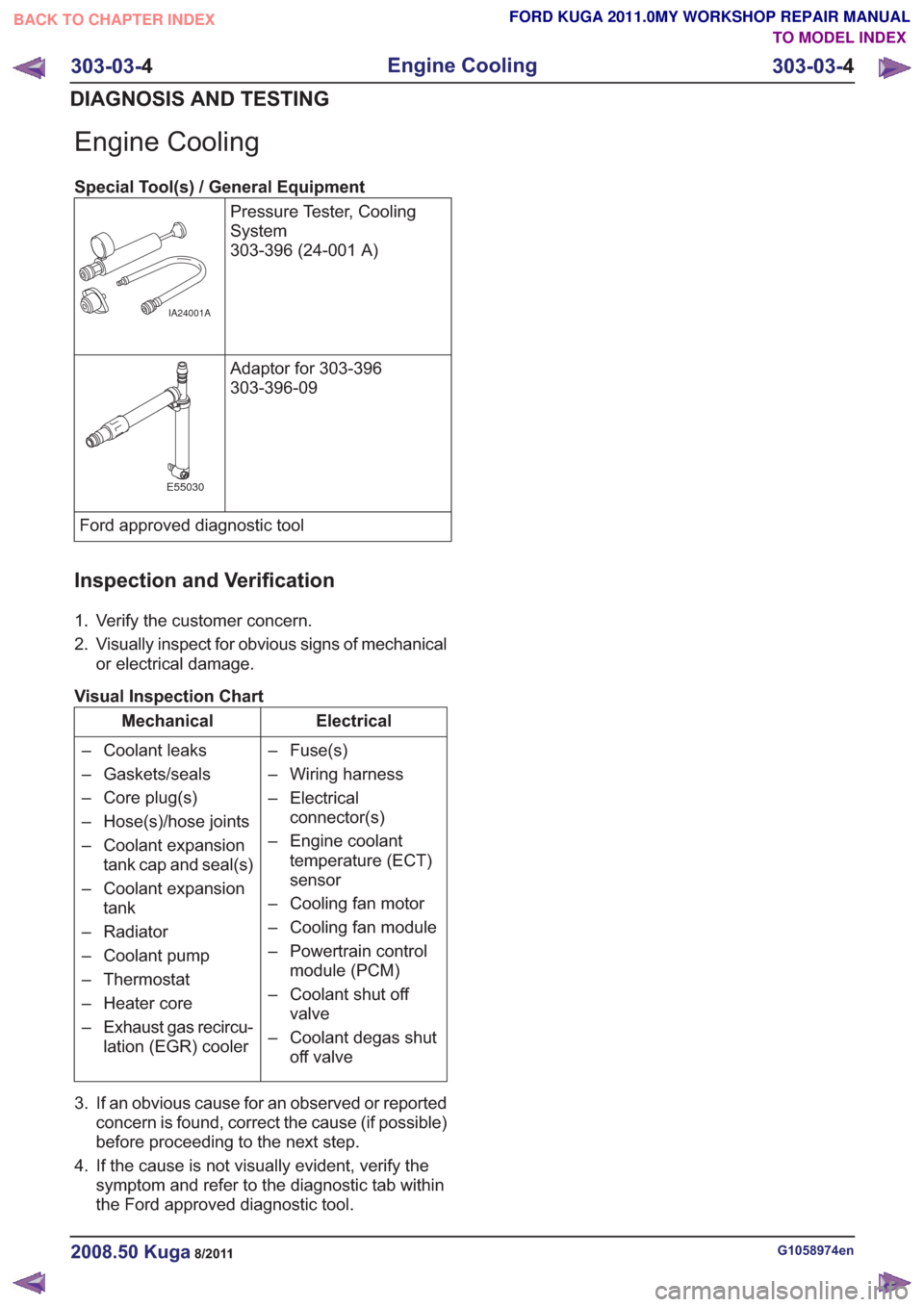

Engine Cooling
Special Tool(s) / General EquipmentPressure Tester, Cooling
System
303-396 (24-001 A)
IA24001A
Adaptor for 303-396
303-396-09
E55030
Ford approved diagnostic tool
Inspection and Verification
1. Verify the customer concern.
2. Visually inspect for obvious signs of mechanicalor electrical damage.
Visual Inspection Chart
Electrical
Mechanical
– Fuse(s)
– Wiring harness
– Electricalconnector(s)
– Engine coolant temperature (ECT)
sensor
– Cooling fan motor
– Cooling fan module
– Powertrain control module (PCM)
– Coolant shut off valve
– Coolant degas shut off valve
– Coolant leaks
– Gaskets/seals
– Core plug(s)
– Hose(s)/hose joints
– Coolant expansion
tank cap and seal(s)
– Coolant expansion tank
– Radiator
– Coolant pump
– Thermostat
– Heater core
– Exhaust gas recircu- lation (EGR) cooler
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible)
before proceeding to the next step.
4. If the cause is not visually evident, verify the symptom and refer to the diagnostic tab within
the Ford approved diagnostic tool.
G1058974en2008.50 Kuga8/2011
303-03- 4
Engine Cooling
303-03- 4
DIAGNOSIS AND TESTING
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

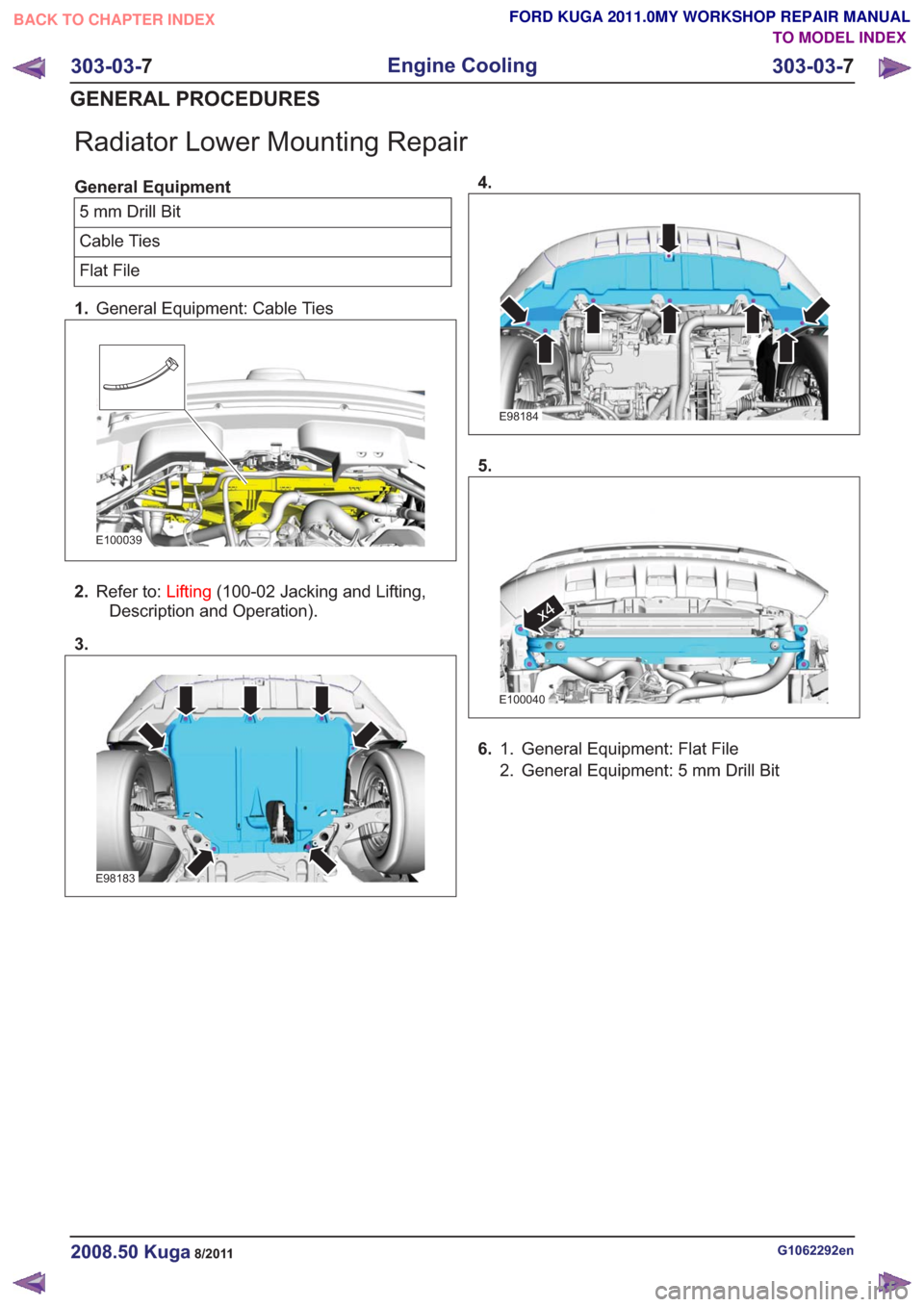

Radiator Lower Mounting Repair
General Equipment5mmDrillBit
Cable Ties
Flat File
1. General Equipment: Cable Ties
E100039
2.Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
3.
E98183
4.
E98184
5.
E100040
x4
6. General Equipment: Flat File
1.
2. General Equipment: 5 mm Drill Bit
G1062292en2008.50 Kuga8/2011
303-03- 7
Engine Cooling
303-03- 7
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

8.Torque: 25Nm
E100040
x4
9.
E98184
10.
E98183
11 .Remove the cable ties securing the radiator and
condenser assembly.
