FORD KUGA 2011 1.G Workshop Manual generate a square wave output signal. The signal acts in proportion to the rotational speed of the sensor ring. The ABS sensor rings are built into the seals in the front wheel bearings. The ABS modul

Page 1434 of 2057

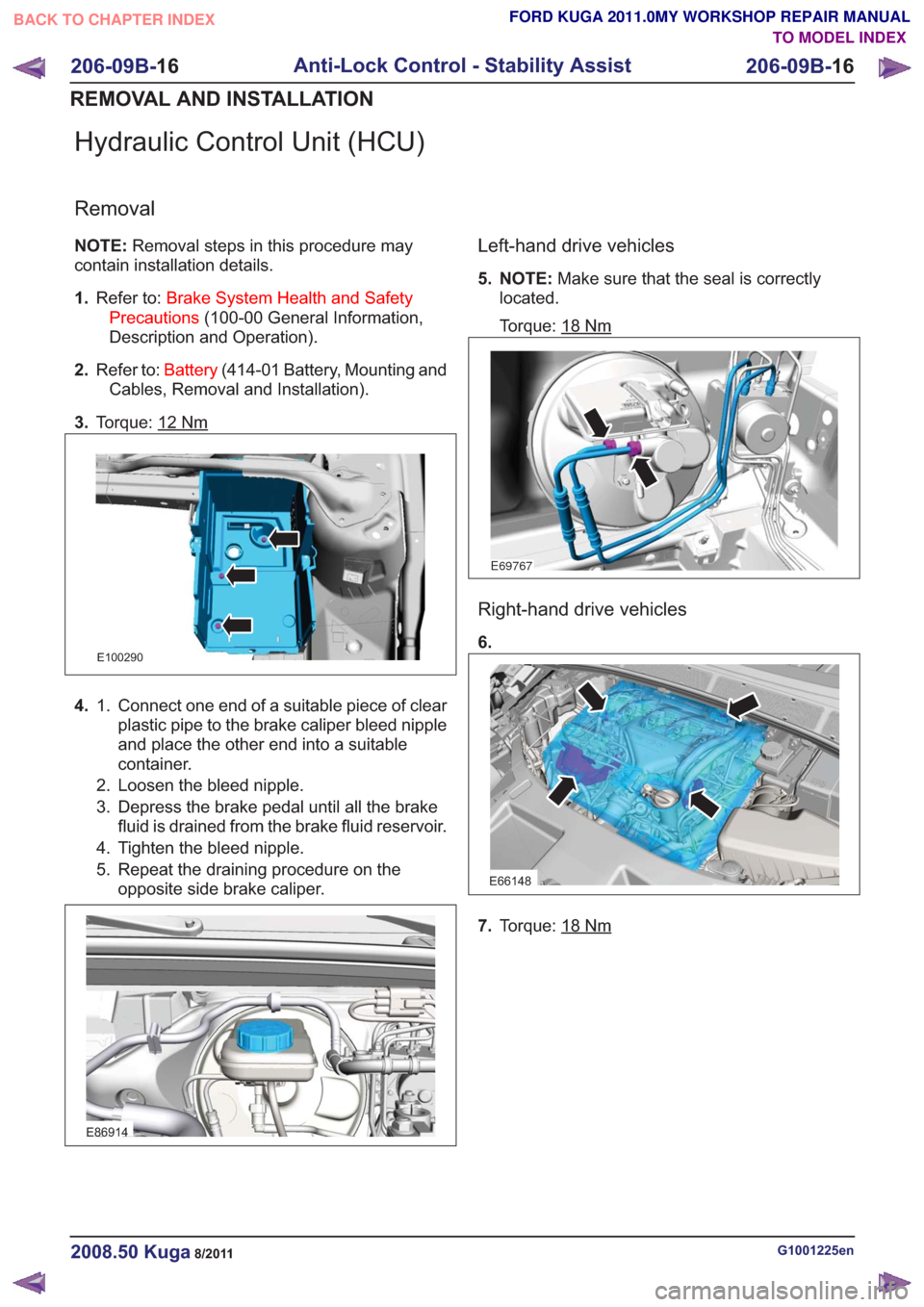

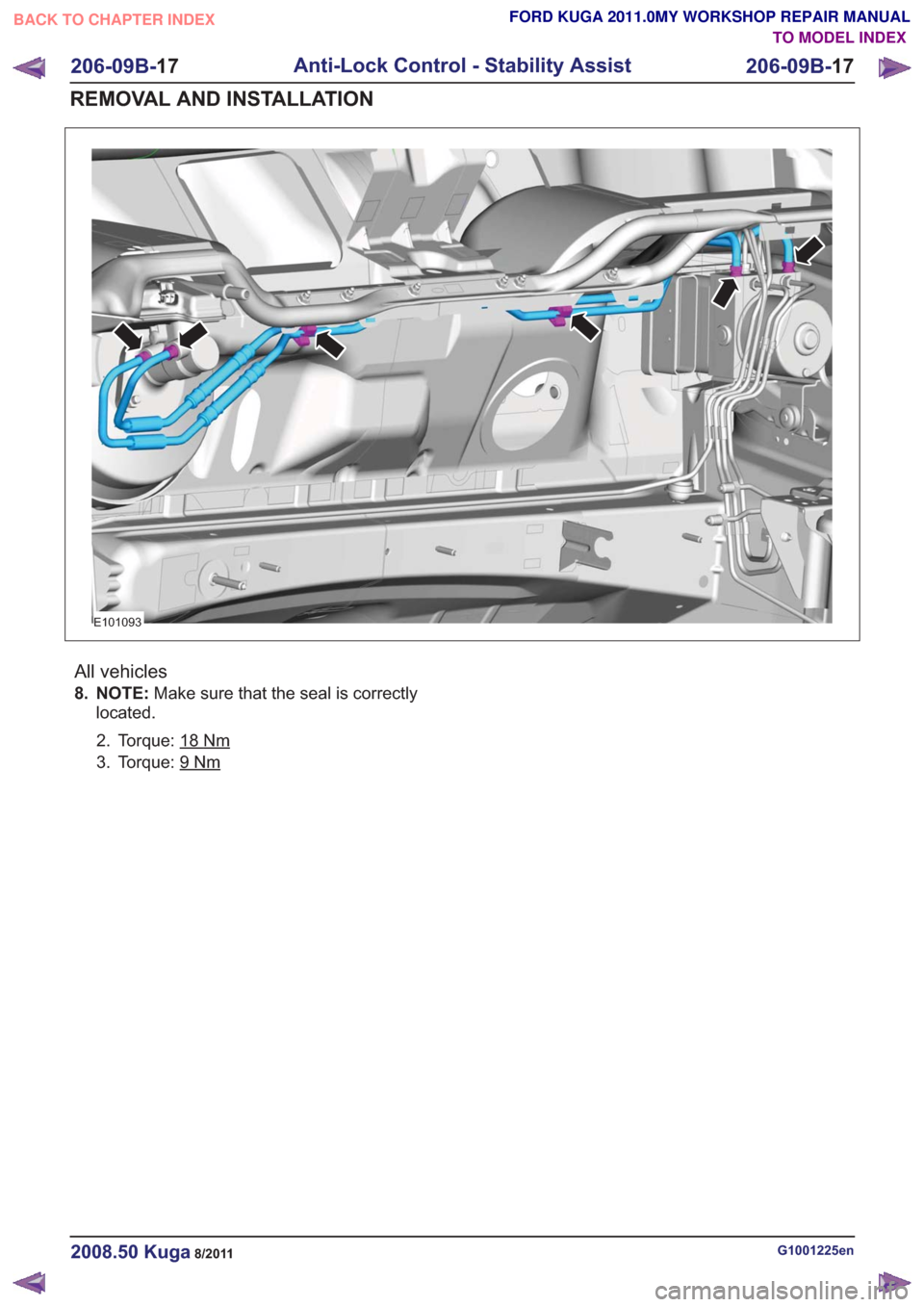

FORD KUGA 2011 1.G Workshop Manual Hydraulic Control Unit (HCU) Removal NOTE:Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Descrip

Page 1435 of 2057

FORD KUGA 2011 1.G Workshop Manual E101093 All vehicles 8. NOTE:Make sure that the seal is correctly located. 2. Torque: 18 Nm 3. Torque: 9Nm G1001225en2008.50 Kuga8/2011 206-09B- 17 Anti-Lock Control - Stability Assist 206-09B- 17 REM

Page 1436 of 2057

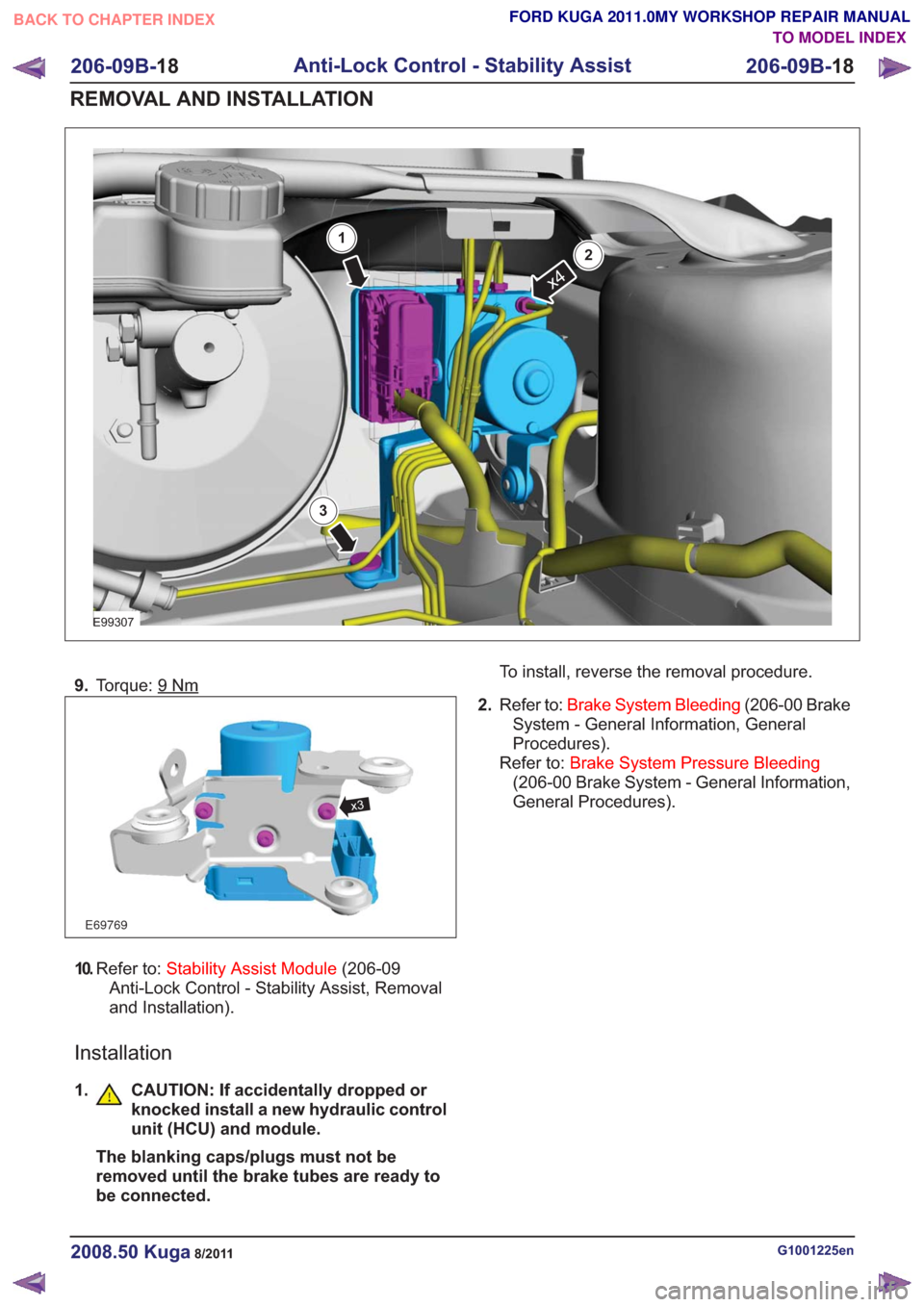

FORD KUGA 2011 1.G Workshop Manual E99307 x4 1 2 3 9.Torque: 9Nm E69769 x3 10.Refer to: Stability Assist Module (206-09 Anti-Lock Control - Stability Assist, Removal and Installation). Installation 1. CAUTION: If accidentally dropped o

Page 1437 of 2057

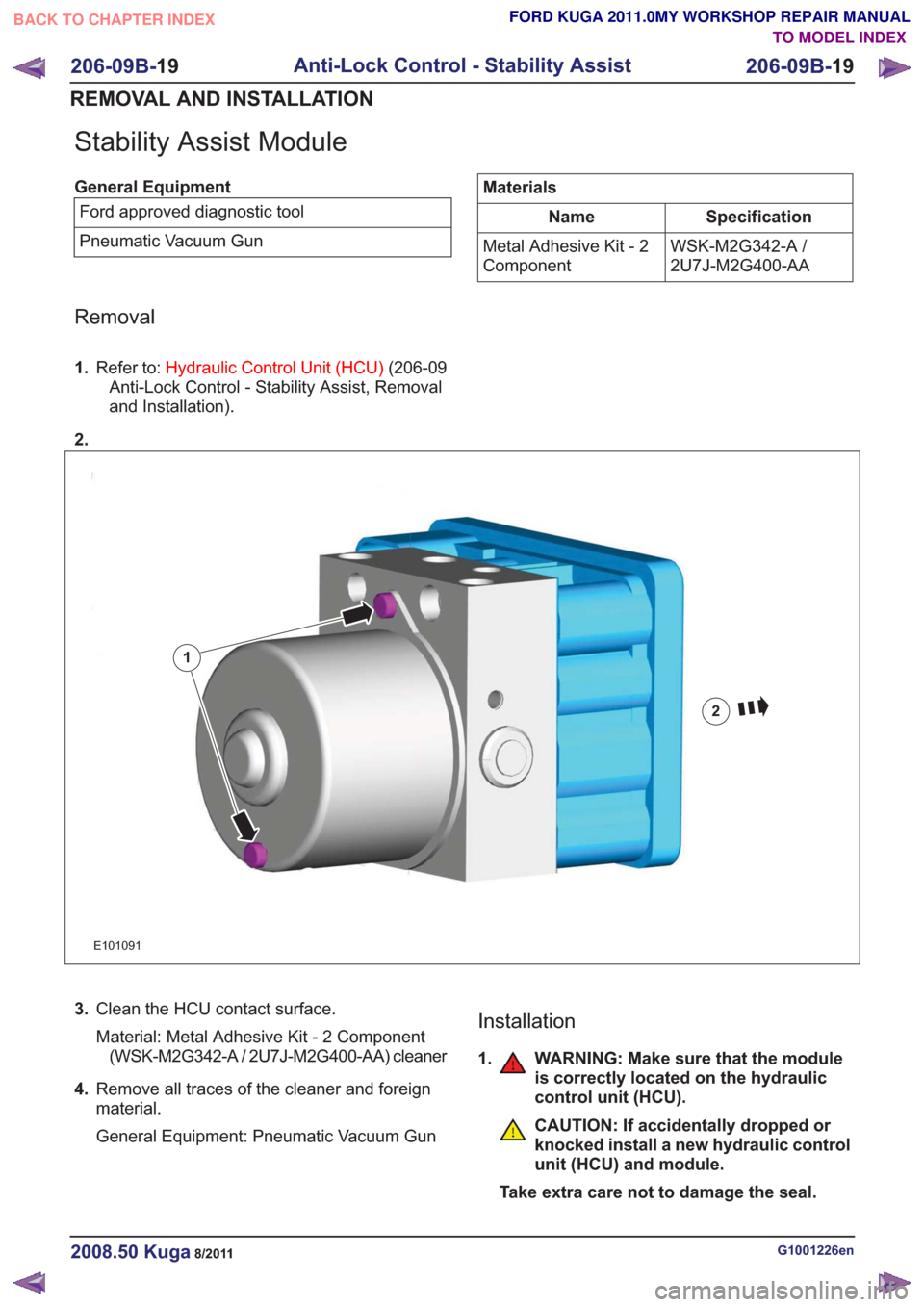

FORD KUGA 2011 1.G Workshop Manual Stability Assist Module General EquipmentFord approved diagnostic tool Pneumatic Vacuum GunMaterials Specification Name WSK-M2G342-A / 2U7J-M2G400-AA Metal Adhesive Kit - 2 Component Removal 1. Refer

Page 1438 of 2057

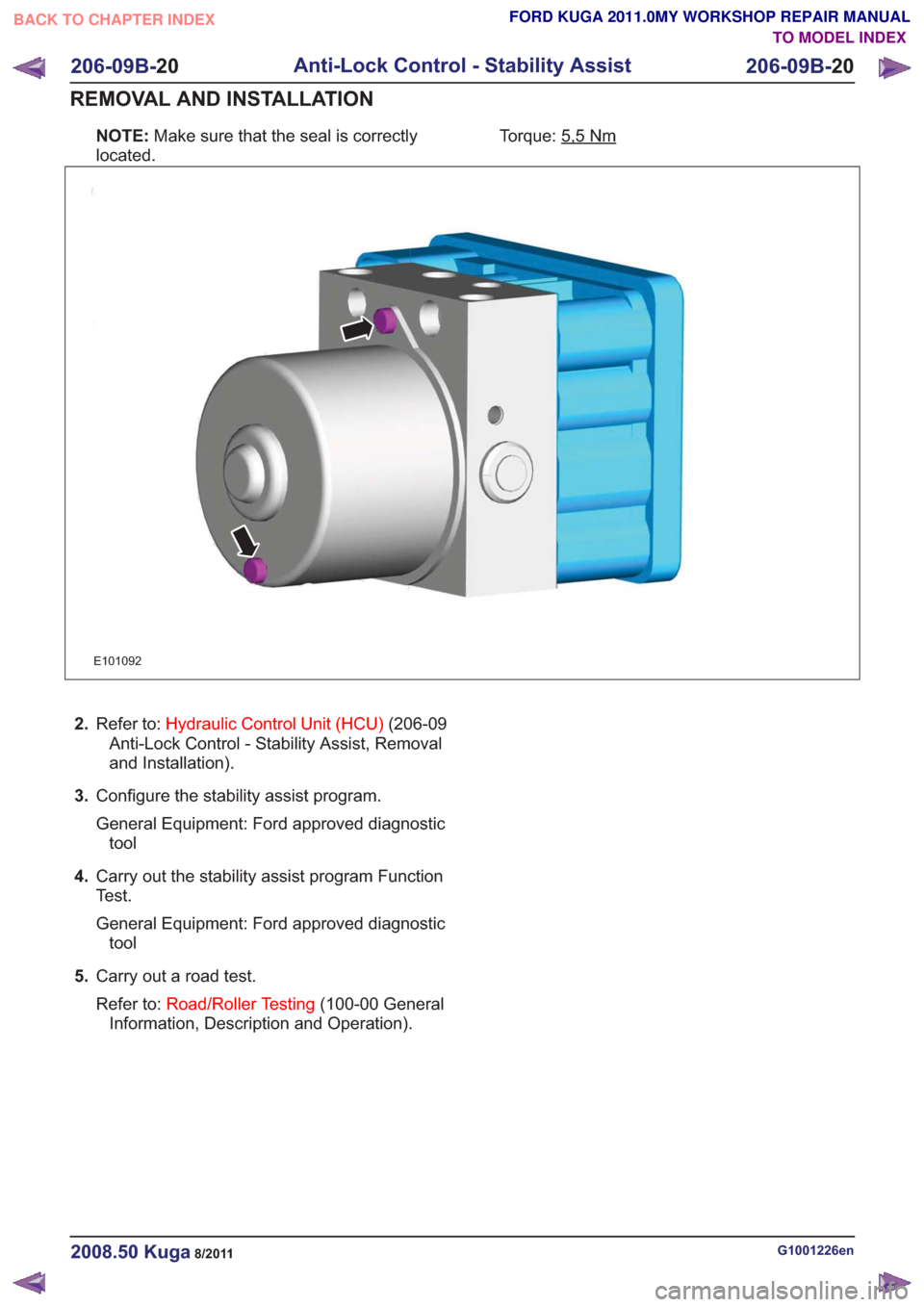

FORD KUGA 2011 1.G Workshop Manual NOTE:Make sure that the seal is correctly located. Torque: 5,5Nm E101092 2. Refer to: Hydraulic Control Unit (HCU) (206-09 Anti-Lock Control - Stability Assist, Removal and Installation). 3. Configure

Page 1439 of 2057

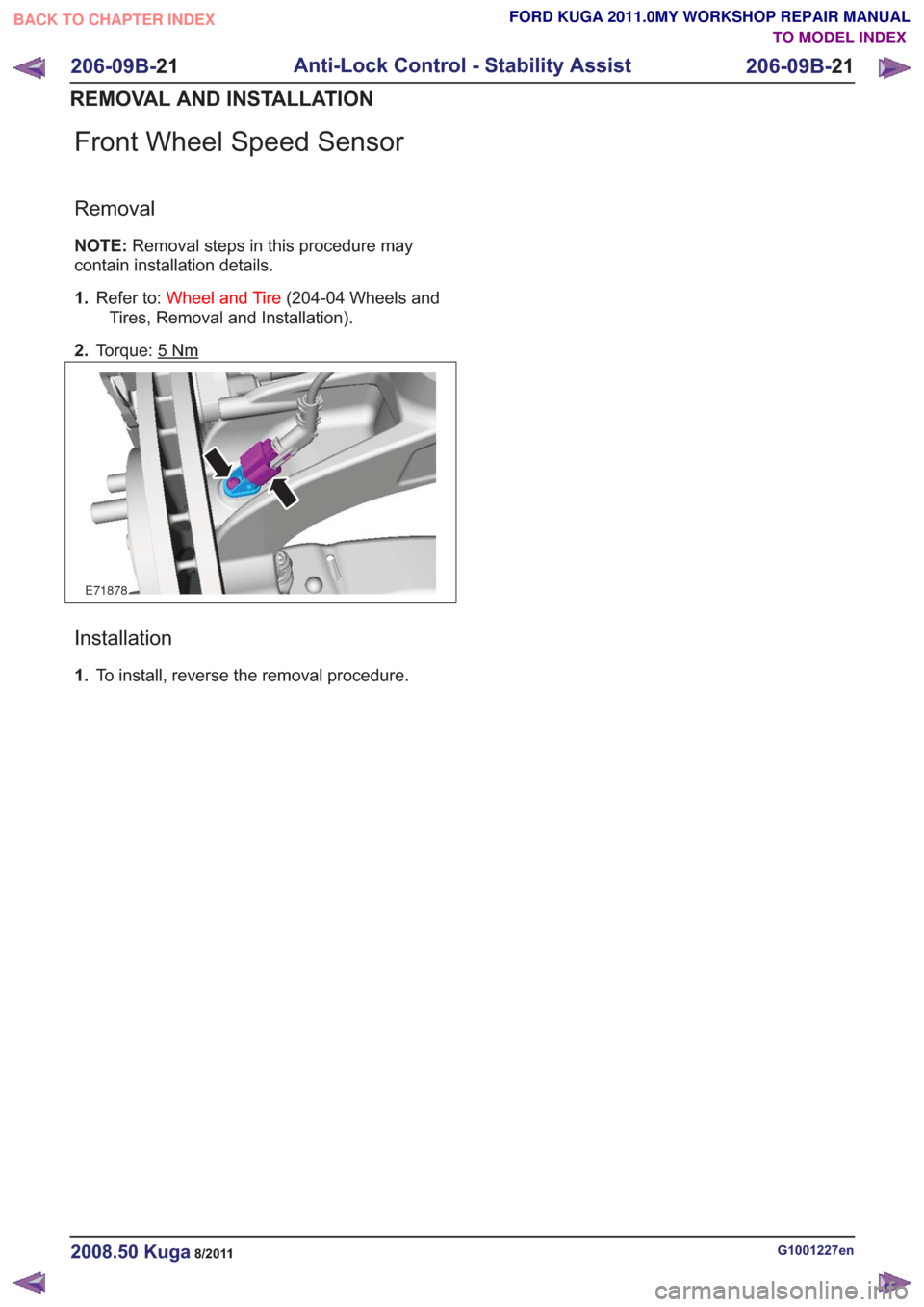

FORD KUGA 2011 1.G Workshop Manual Front Wheel Speed Sensor Removal NOTE:Removal steps in this procedure may contain installation details. 1. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 2. Torque: 5 Nm

Page 1440 of 2057

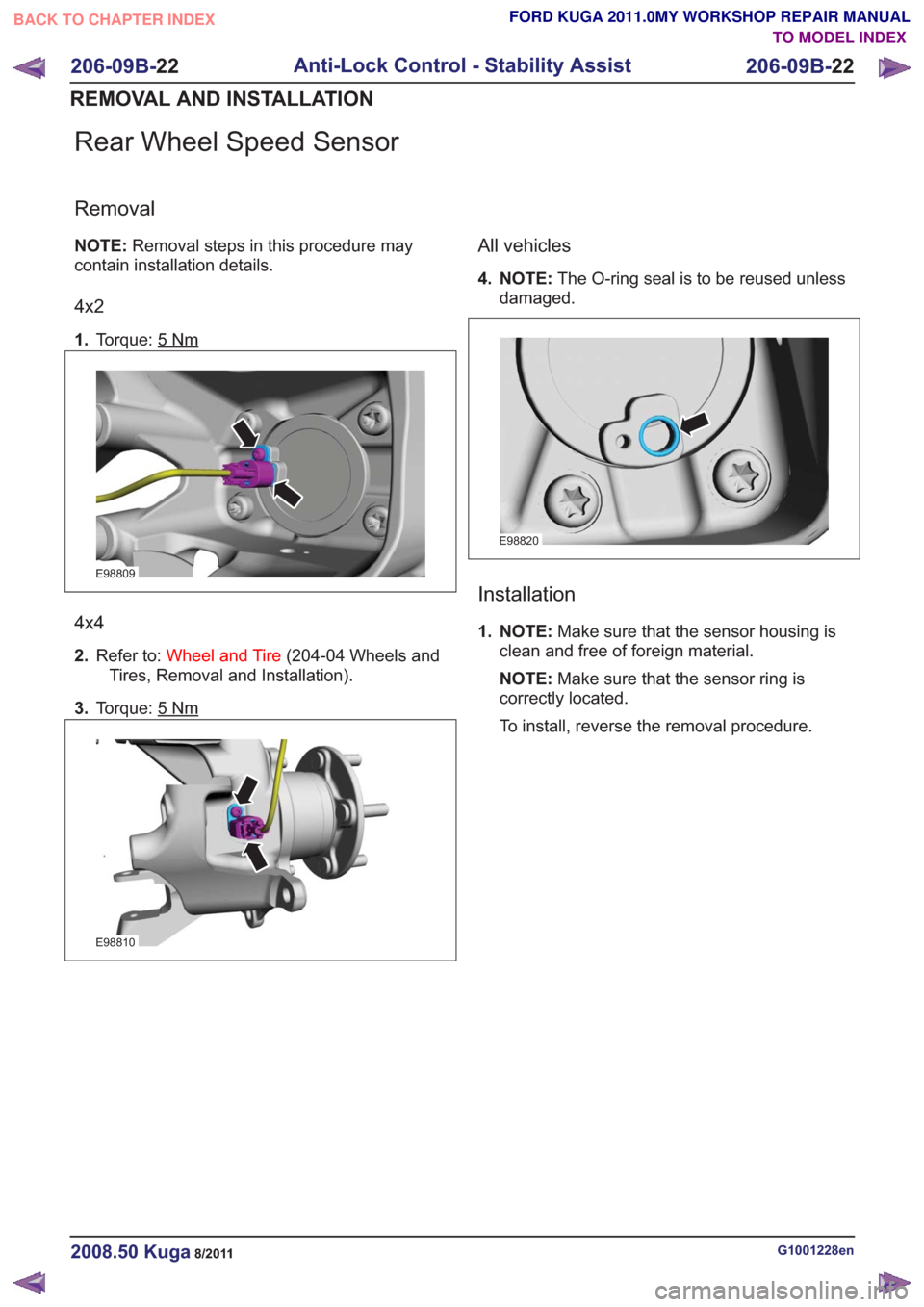

FORD KUGA 2011 1.G Workshop Manual Rear Wheel Speed Sensor Removal NOTE:Removal steps in this procedure may contain installation details. 4x2 1. Torque: 5Nm E98809 4x4 2.Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and In
