Page 1897 of 2057

FORD KUGA 2011 1.G Workshop Manual Installation 1. CAUTION: Make sure that the matingfaces are clean and free of foreign material. Material: Silicone Sealant LG (WSS-M4G320-A3/ 6G9N-M4G320-AA) sealant 3mm3mm E115316 2. Torque: 18Nm x9x

Page 1898 of 2057

FORD KUGA 2011 1.G Workshop Manual Transmission Range (TR) Sensor Special Tool(s)501-028A Pliers, Door Trim Removal 43001A Removal 1. E114413 2. E114504 3. E114505 4. 20 mm20 mm E114506 G1163634en2008.50 Kuga8/2011 307-01-77 Automatic

Page 1899 of 2057

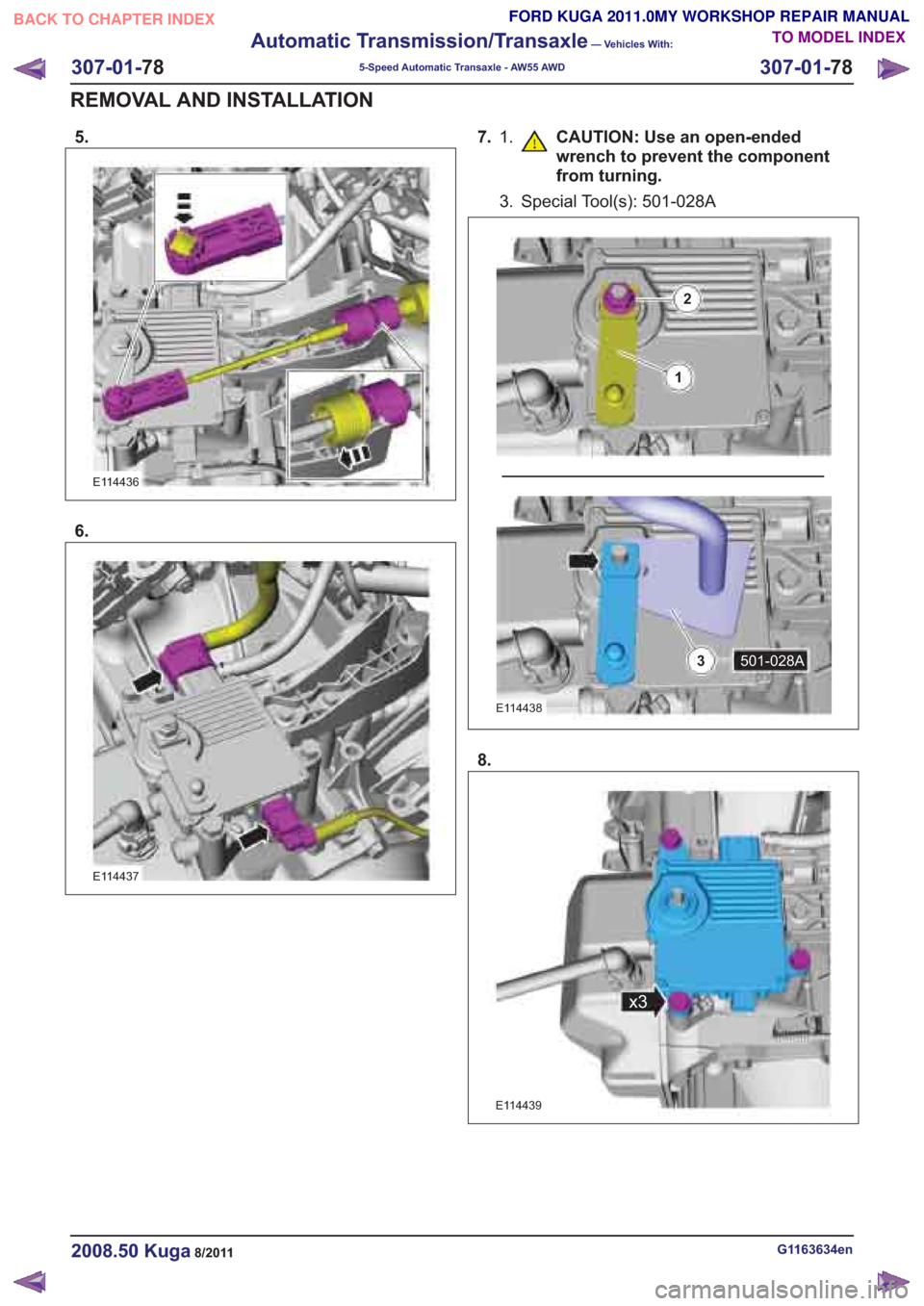

FORD KUGA 2011 1.G Workshop Manual 5. E114436 6. E114437 7.1. CAUTION: Use an open-ended wrench to prevent the component from turning. 3. Special Tool(s): 501-028A E114438 8. E114439 G1163634en2008.50 Kuga8/2011 307-01- 78 Automatic Tr

Page 1900 of 2057

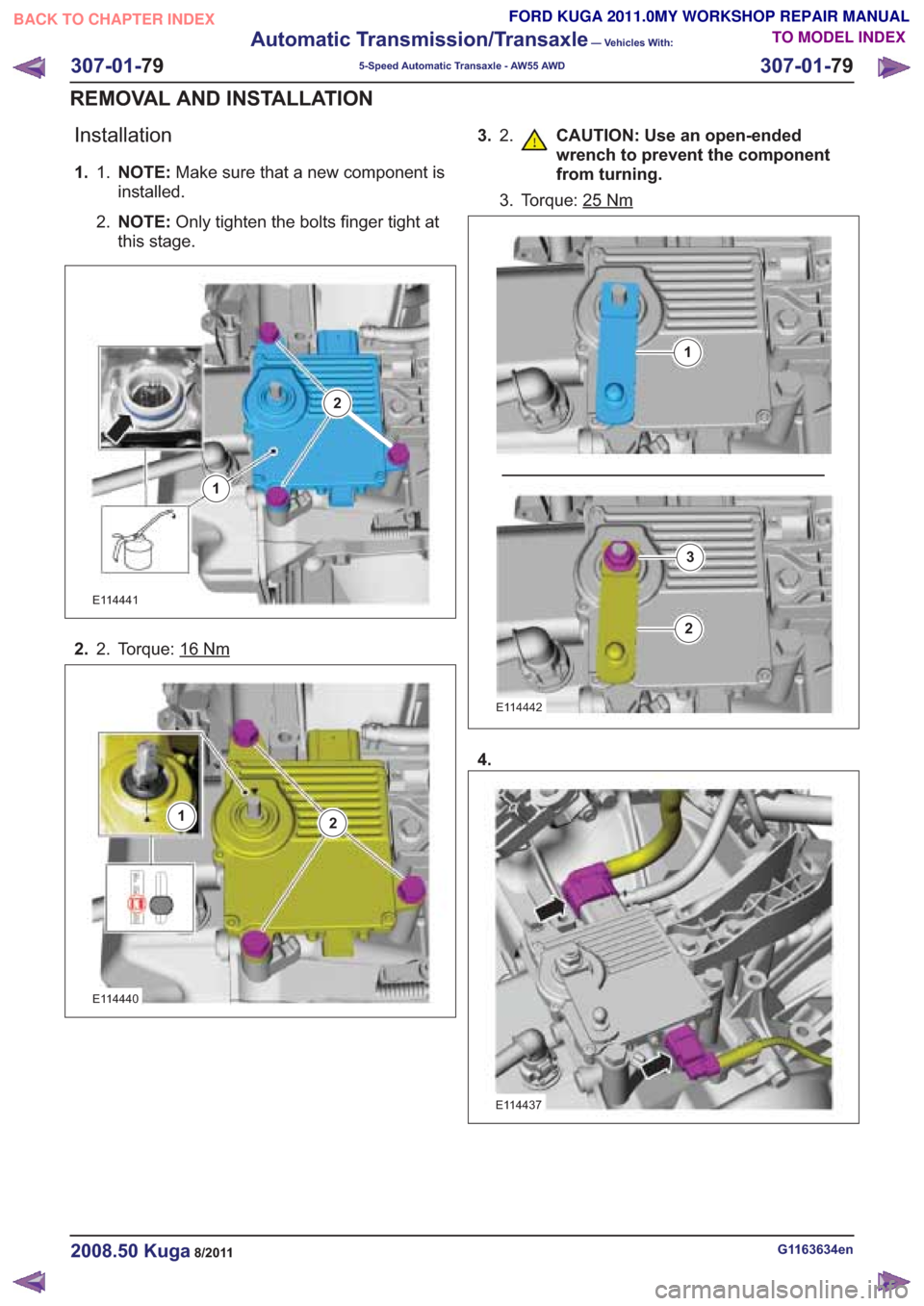

FORD KUGA 2011 1.G Workshop Manual Installation 1. NOTE:Make sure that a new component is installed. 1. 2. NOTE: Only tighten the bolts finger tight at this stage. 2 1 2 1 E114441 2. Torque: 16Nm2. 2121 E114440 3.2. CAUTION: Use an ope

Page 1901 of 2057

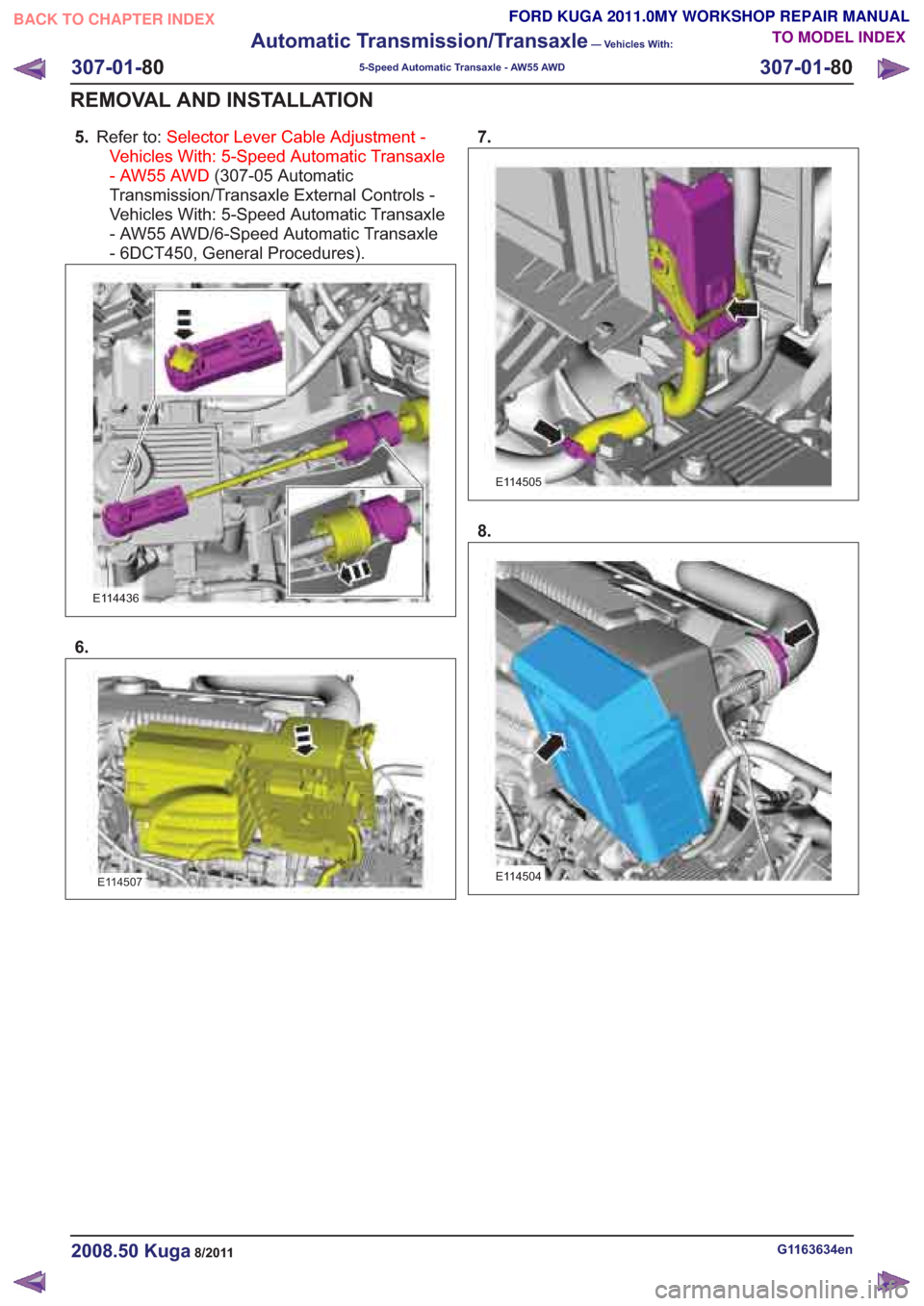

FORD KUGA 2011 1.G Workshop Manual 5.Refer to: Selector Lever Cable Adjustment - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD (307-05 Automatic Transmission/Transaxle External Controls - Vehicles With: 5-Speed Automatic Transa

Page 1902 of 2057

FORD KUGA 2011 1.G Workshop Manual Turbine Shaft Speed (TSS) Sensor MaterialsSpecification Name WSS-M2C924-A / 4U7J- M2C924-AA Automatic Transmission Oil E-AW Removal 1. Refer to: Health and Safety Precautions (100-00 General Informati

Page 1903 of 2057

FORD KUGA 2011 1.G Workshop Manual Transmission Removal Special Tool(s) / General Equipment303-290-01 Adapter for 303-290A 2114001 303-290-03A Adapter for 303-290A 30329003A 303-290-05A Adapter for 303-290A 30329005A Special Tool(s) /

Page 1904 of 2057

FORD KUGA 2011 1.G Workshop Manual 4.On both sides. Loosen: 3 turn(s) E99147 x3 5.Refer to: Battery(414-01 Battery, Mounting and Cables, Removal and Installation). 6. E101006 7. Refer to: Air Cleaner (303-12 Intake Air Distribution and
